Intelligent Temperature Controller REX-C100FK07-V*AN

Temperature Controller Set

The complete temperature controller set is designed for enhanced performance in mechanical and automated control systems. This set includes a temperature controller, SSR-40 DA, and an M6 1M cable. With intelligent PID control, this digital display controller offers high precision and ease of use in controlling temperature.

Features:

• Process value (PV) and adjustment value (SV) functionality.
• Output, alarm, and auto-adjustment indicators via light-emitting diode.
• Versatile pin control options (including on/off, step-type PID, and continuous PID).
• Self-adjusting control mechanism.
• SSR-40 DA provides quick temperature control with minimal overrun and high accuracy.

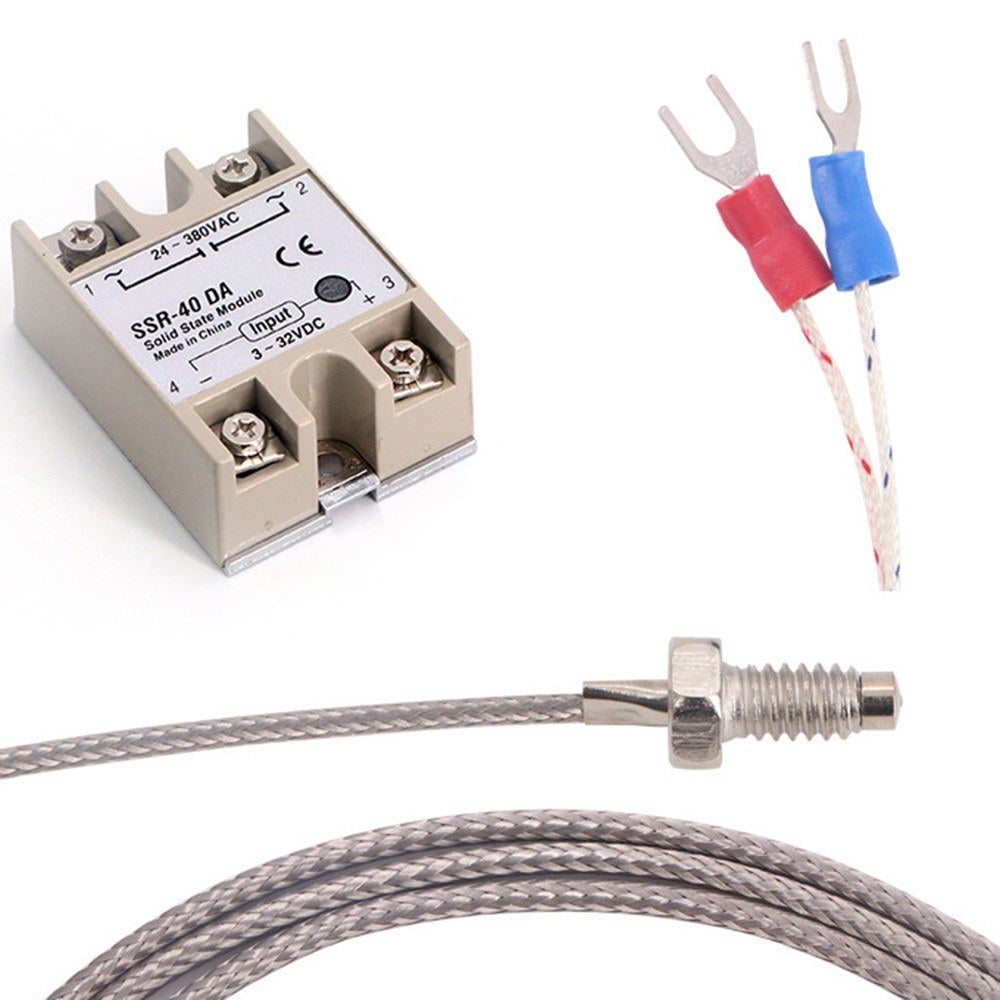

• Includes an M6 thread 1m length K-type thermocouple for temperature detection.
• Ideal for use in electric power, chemical industries, injection molding, food processing, ovens, and other equipment.

Specifications:

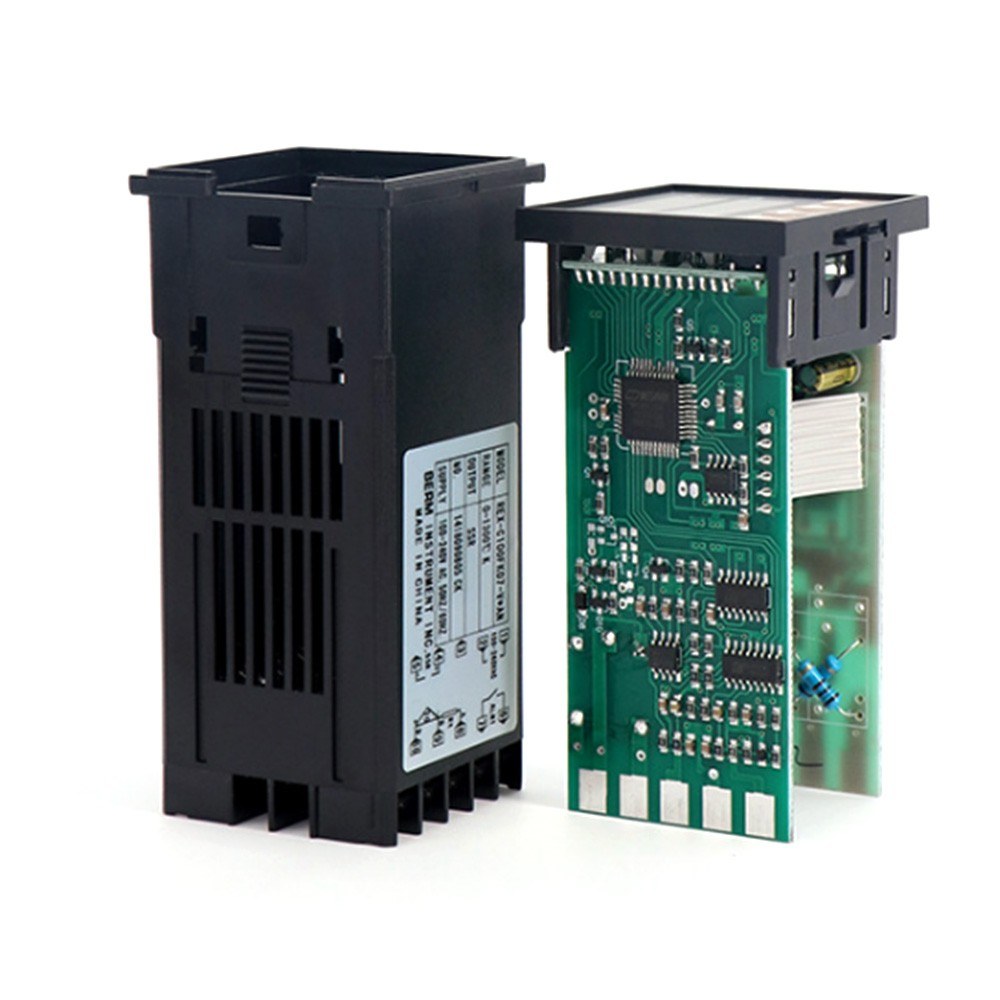

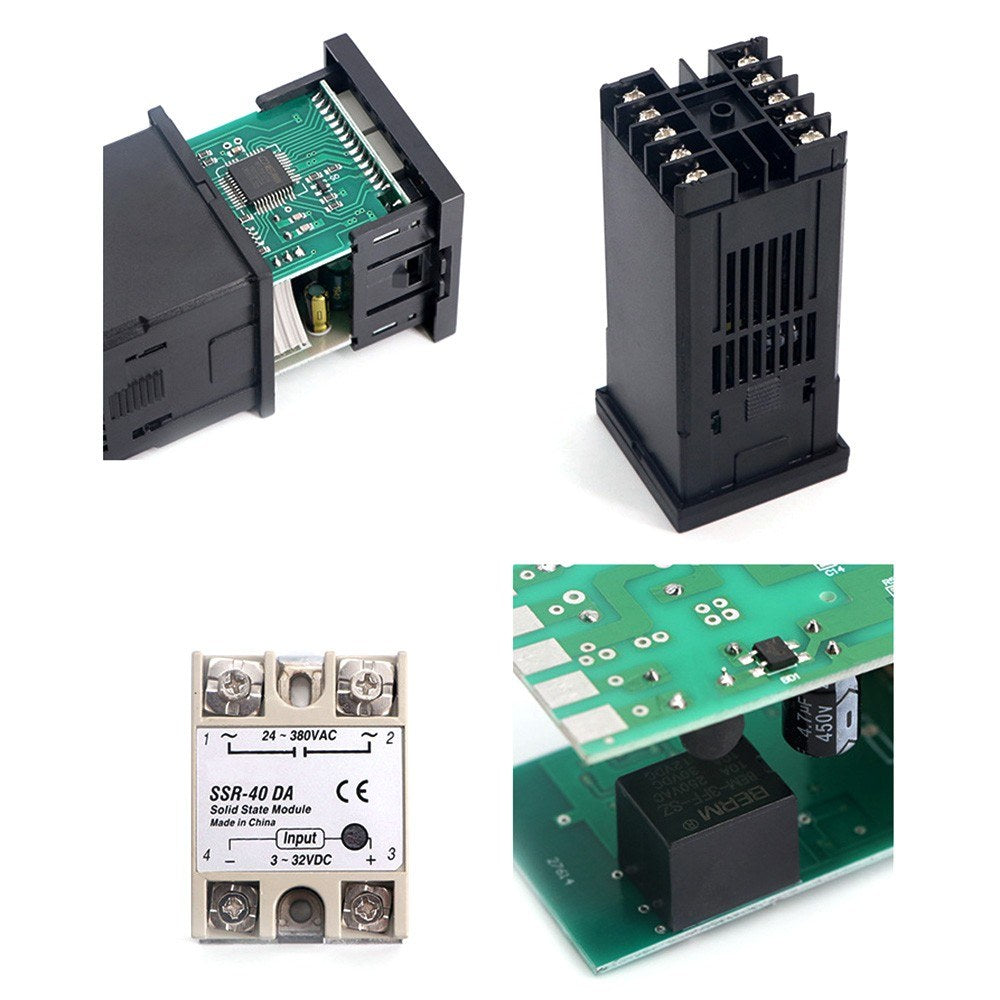

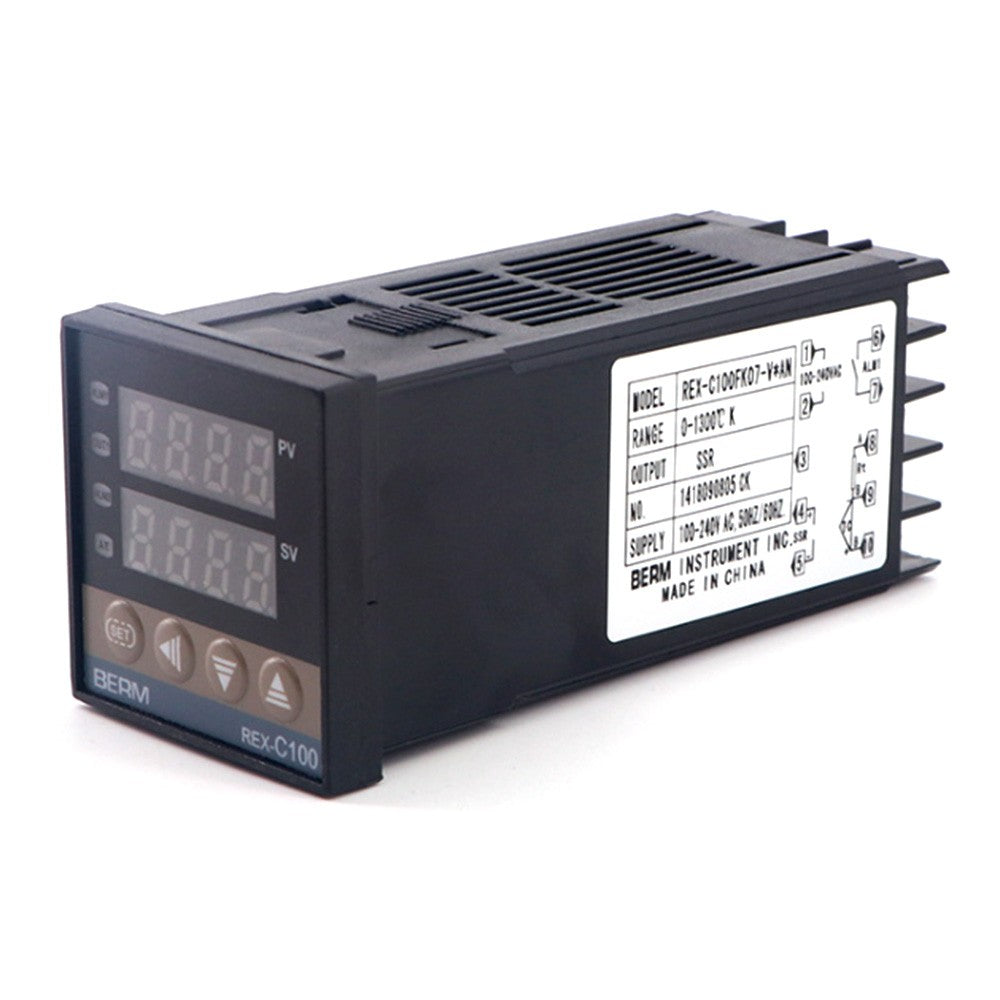

• Temperature Controller:
  Supply: AC100-240V, 50/60HZ
  Material: ABS
  Color: Black
  Temperature Range: 0 to 1300℃
  Output: SSR

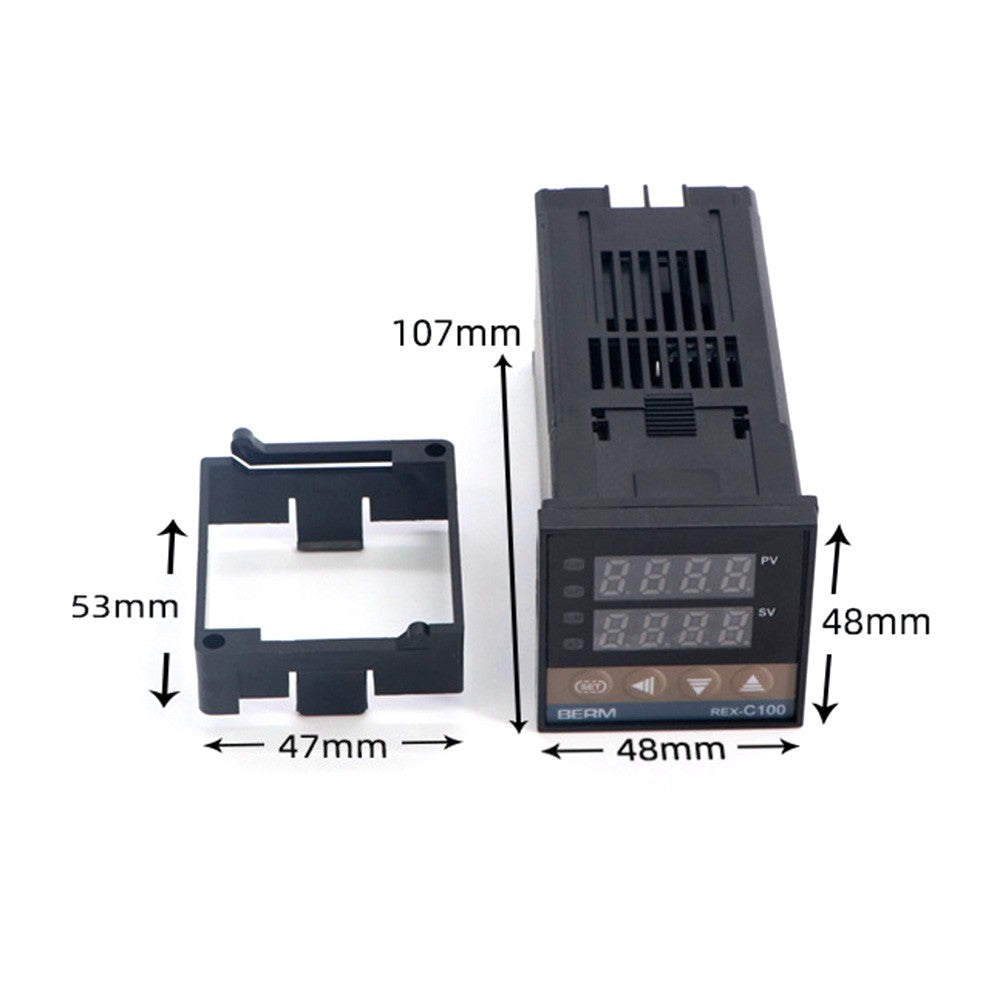

  Item Size: 107 x 48 x 48 mm / 4.21 x 1.89 x 1.89 in
  Bracket Size: 53 x 47 mm / 2.09 x 1.85 in

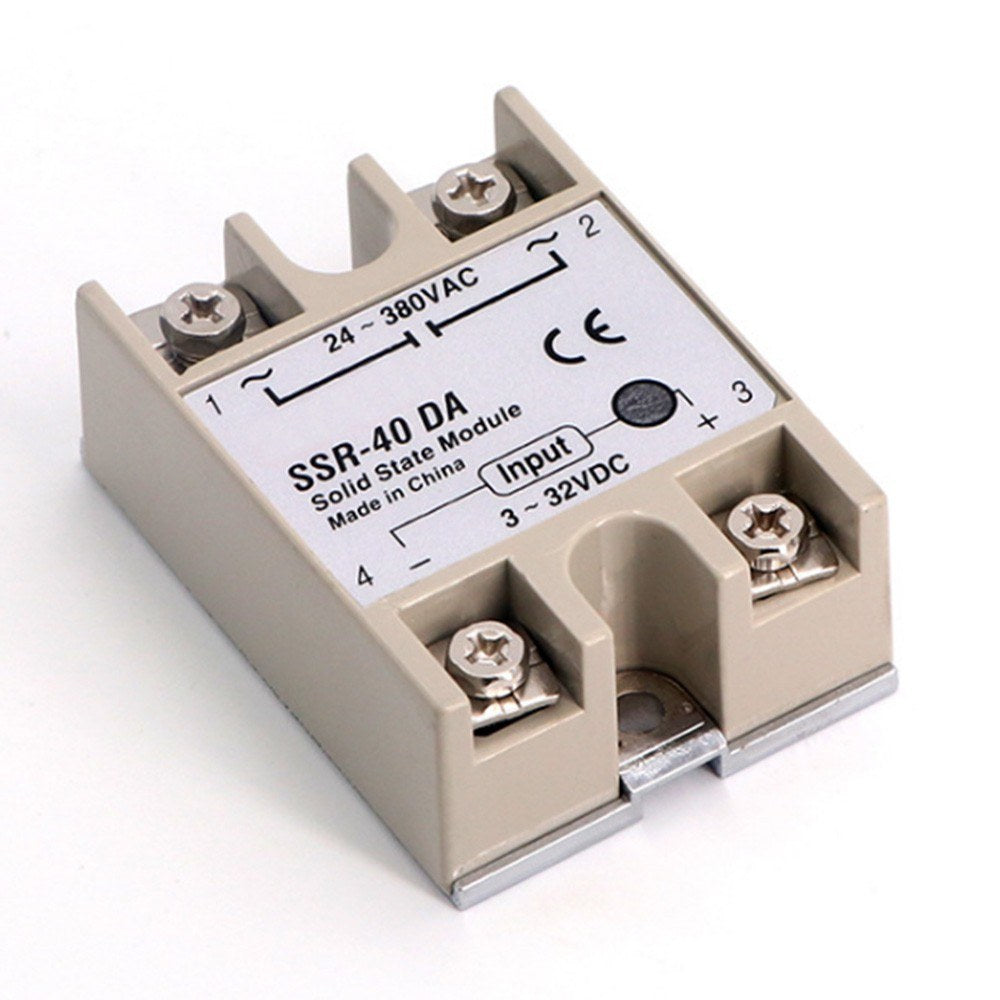

• SSR-40 DA:
  Output Current: 40A
  Input Voltage: DC3-32V
  Output Voltage: AC24-380V

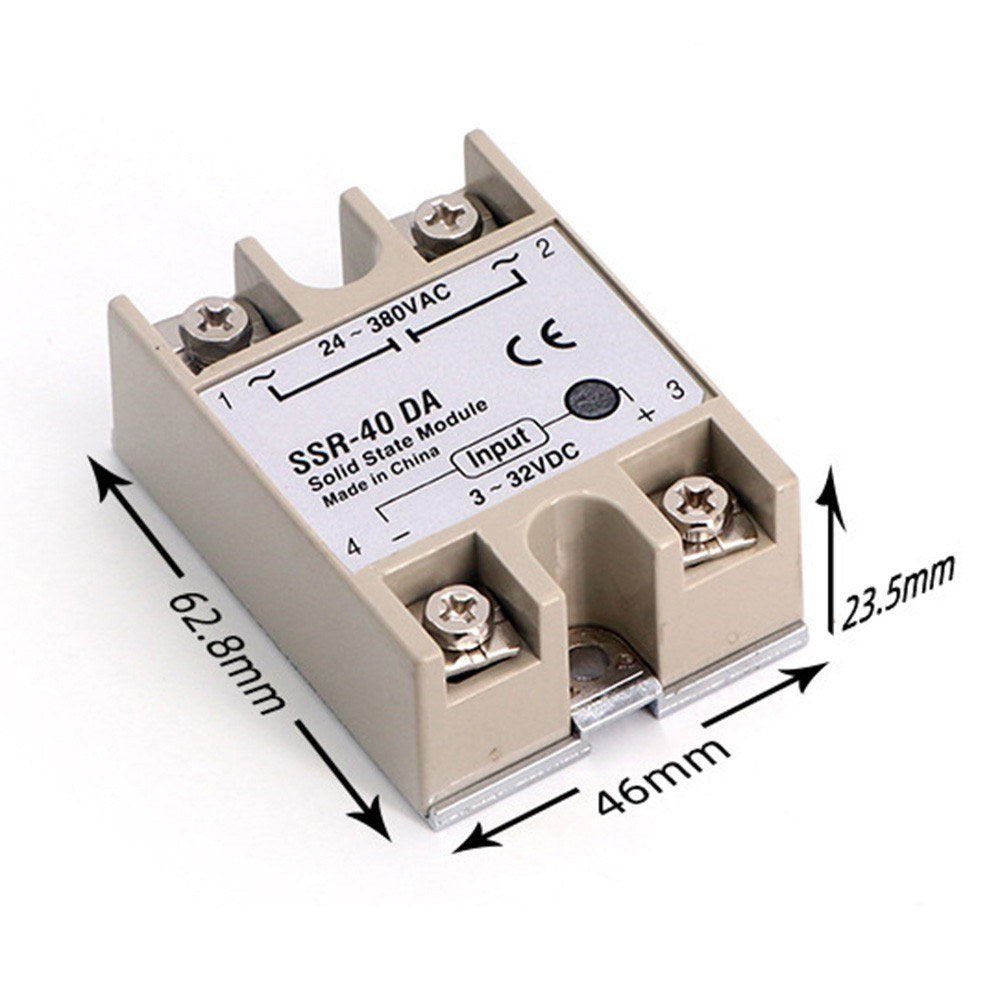

  Item Size: 62.8 x 46 x 23.5 mm / 2.47 x 1.81 x 0.93 in

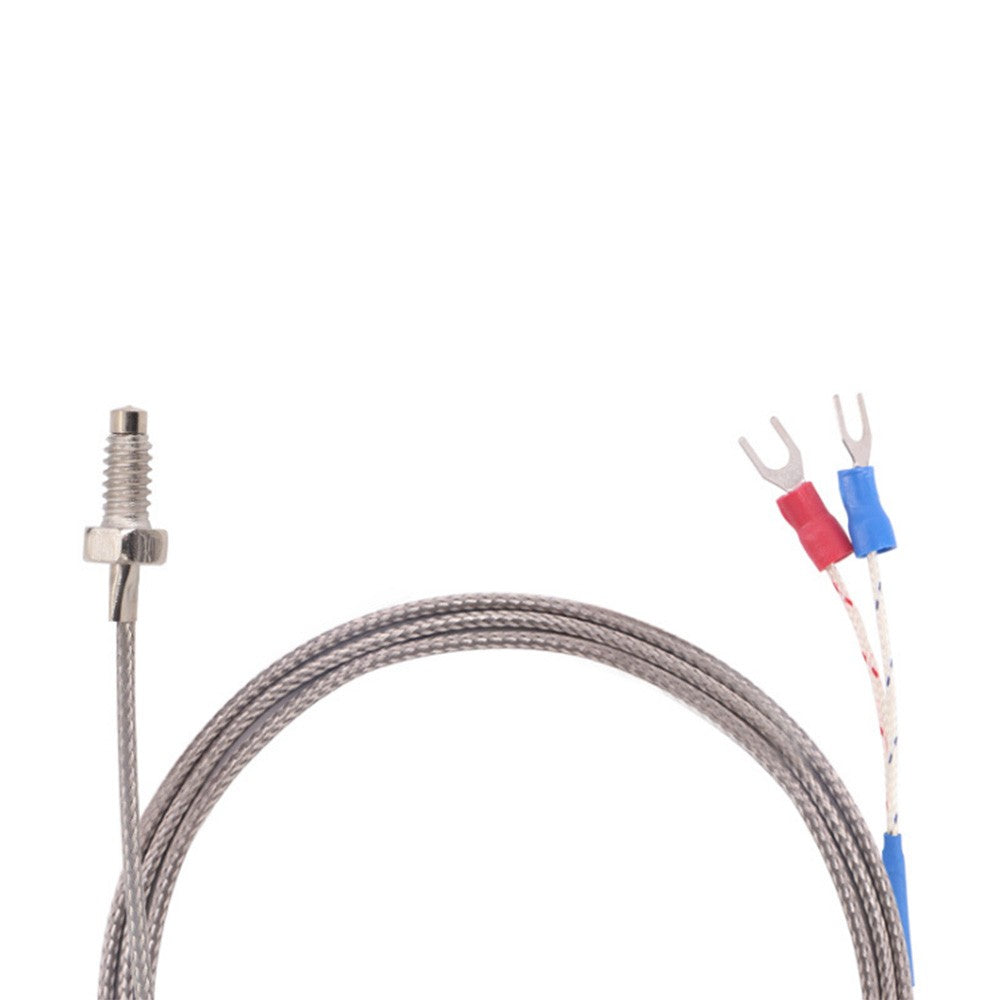

• K Thermocouple Probe Cable:
  Length: 1m / 3.28 ft
• Package Weight: 269g / 9.49 ounces
• Package Size: 150 x 125 x 50 mm / 5.91 x 4.92 x 1.97 in

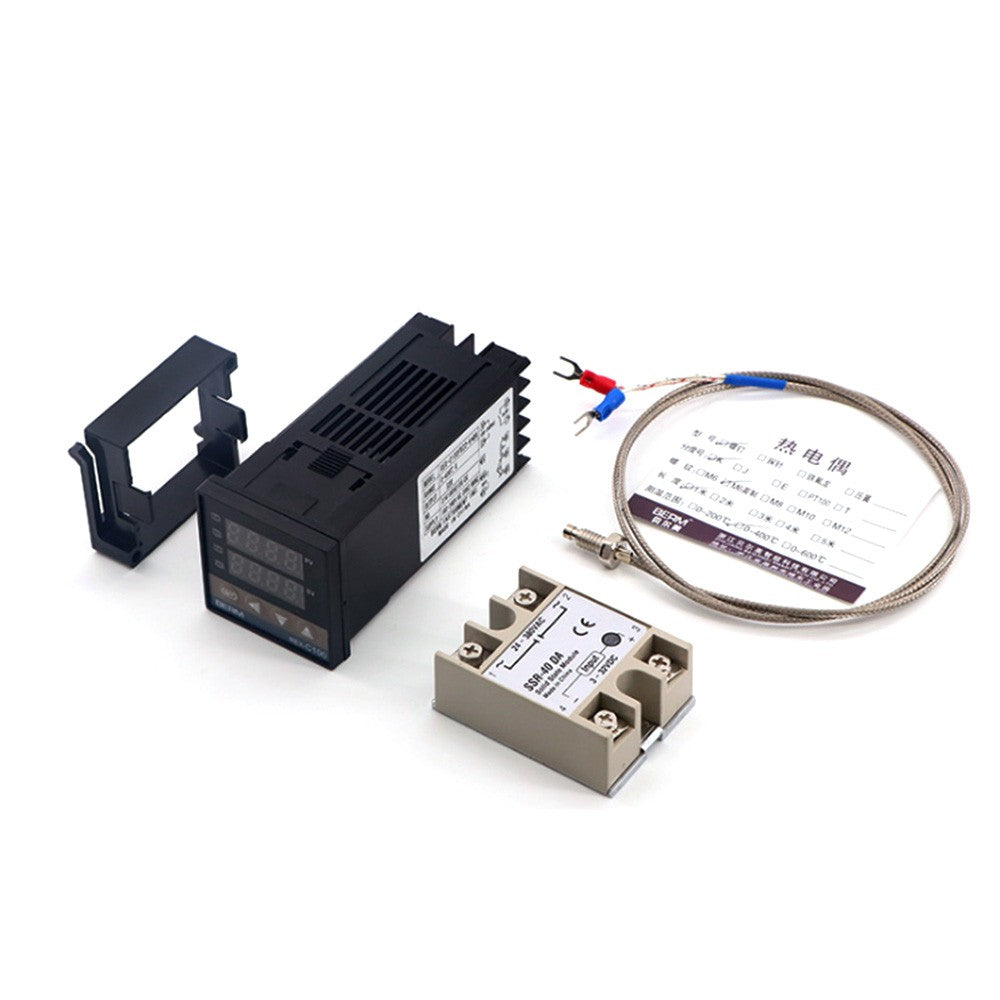

Packing List:

• 1 x Temperature Controller
• 1 x Fixed Bracket
• 1 x SSR-40 DA
• 1 x K Thermocouple Probe Cable
• 1 x User Manual
