Smart USB Voltage & Current Tester with Digital IPS Display - Multi-Function Power Meter & Capacity Tester with 9 Data Storage Groups

Features:

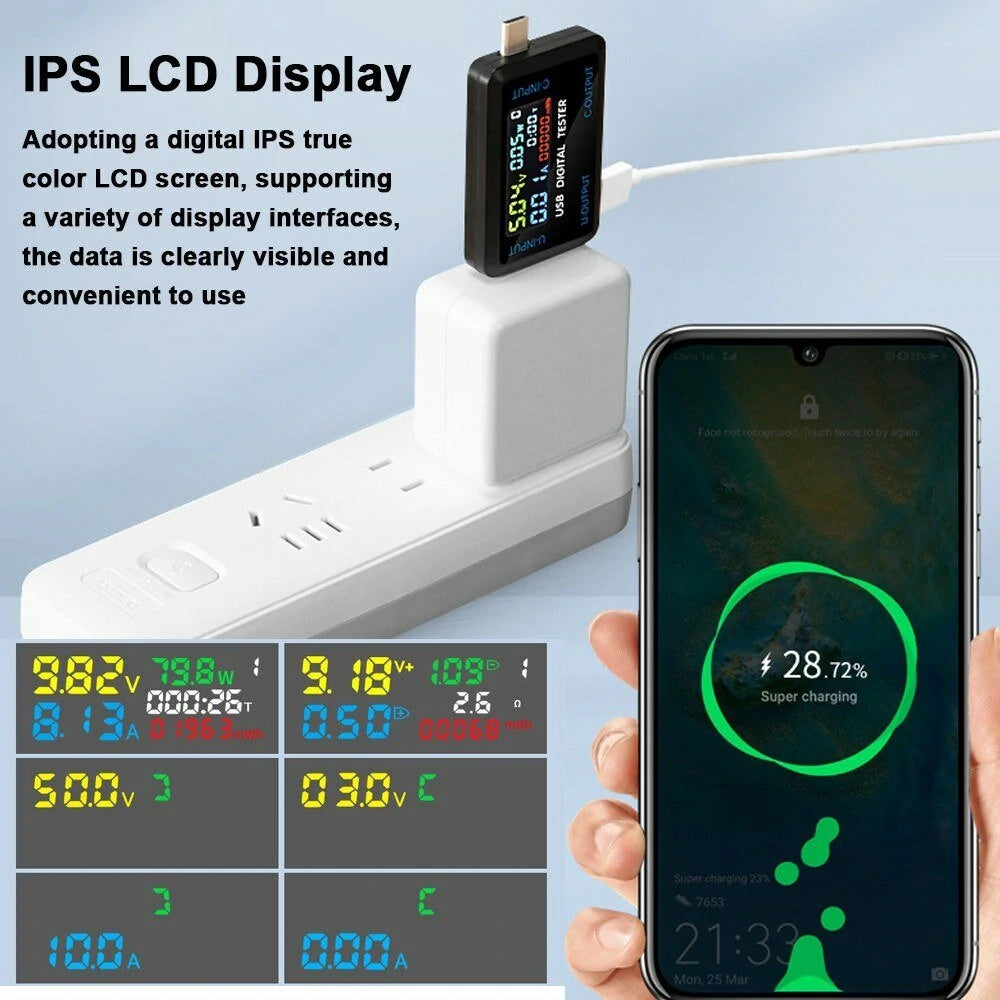

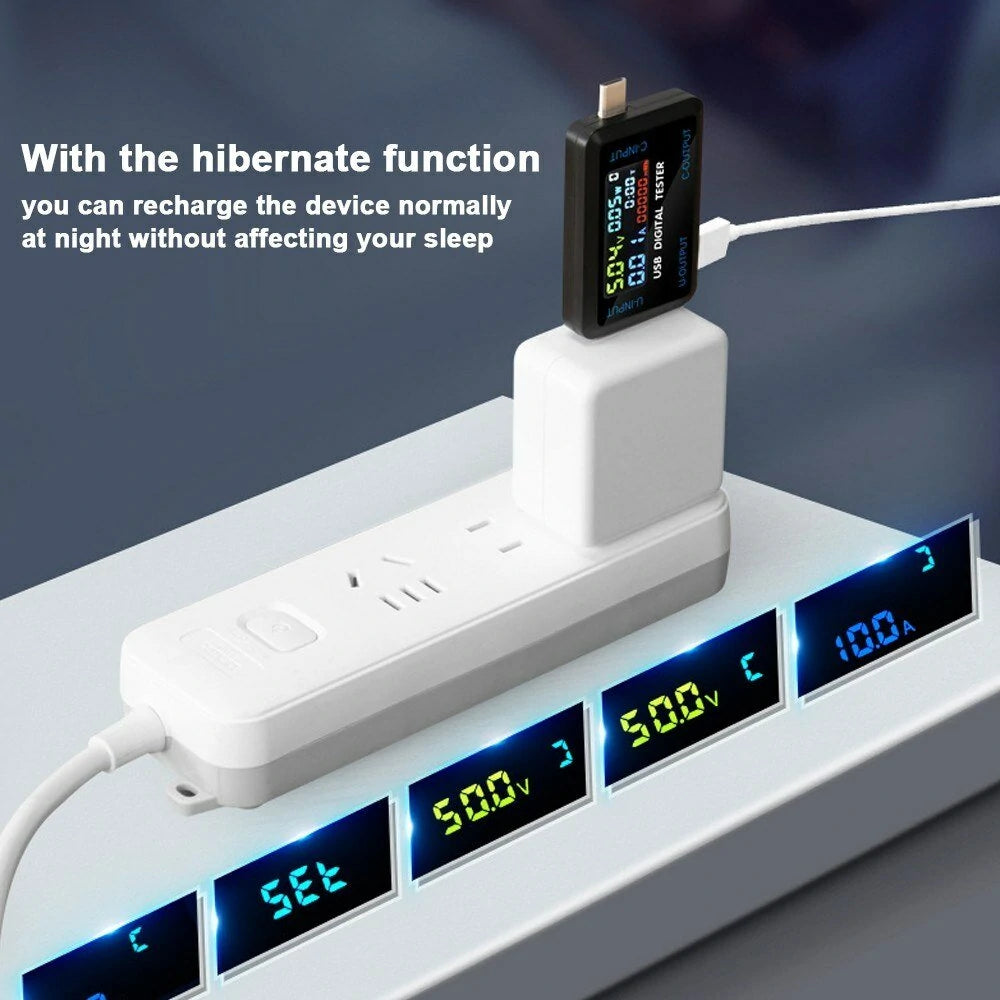

• IPS LCD Display: Utilizes a digital IPS true color LCD screen for clear visibility and ease of use. It includes a hibernate function for uninterrupted nighttime charging.

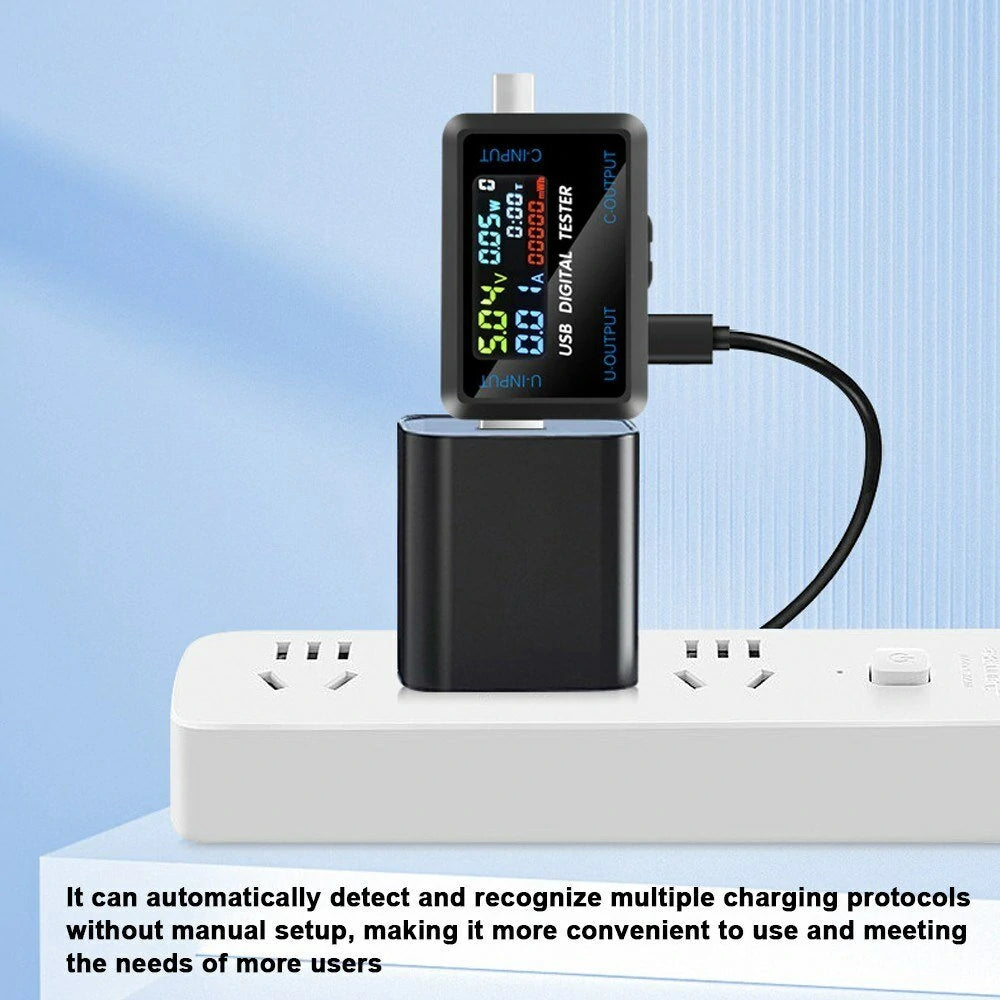

• Multiple Interfaces Optional: Choose from three interface types: Type-C round port, USB-A square port, or a combination of both. This flexibility ensures compatibility with a wide range of devices, and it automatically detects multiple charging protocols without manual setup.

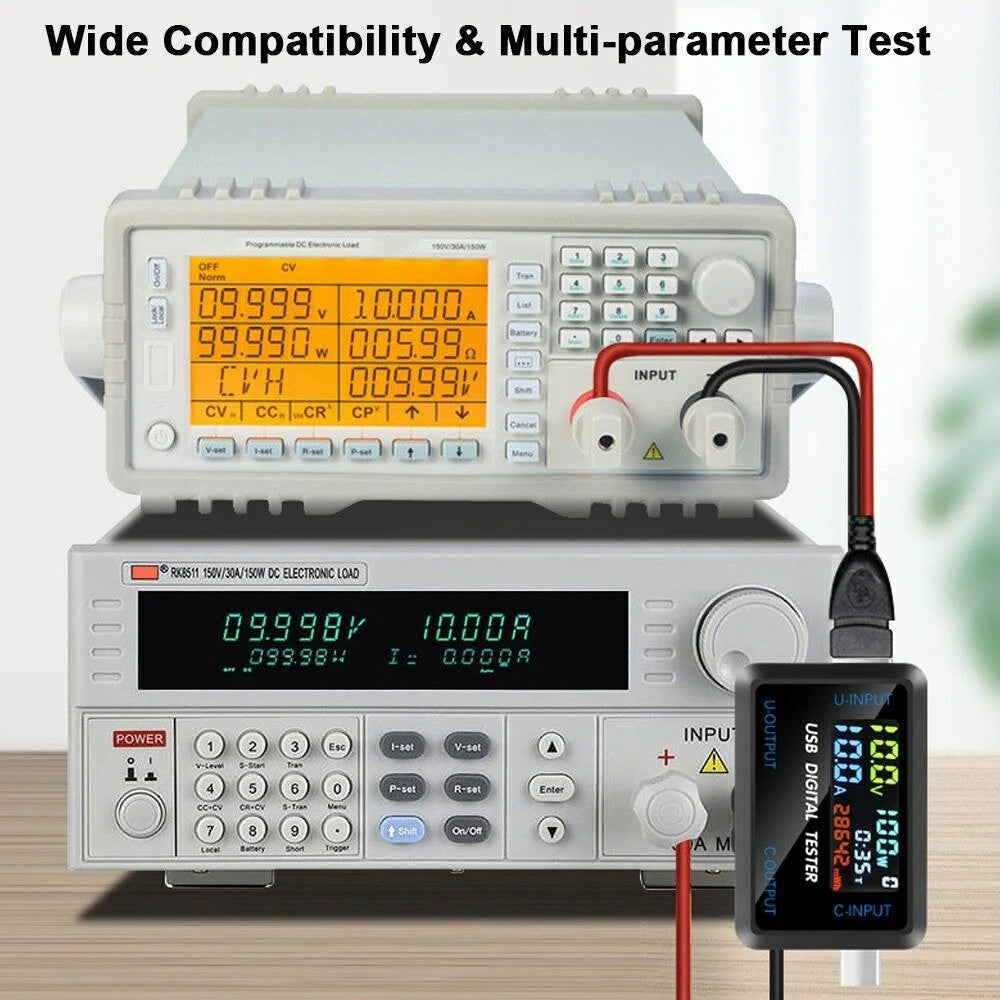

• Wide Compatibility & Multi-parameter Test: Easily test various USB and Type-C devices, including chargers, cables, power banks, laptops, and phones. Capable of measuring current, voltage, power, capacity, resistance, timing, temperature, and more for a comprehensive device status overview.

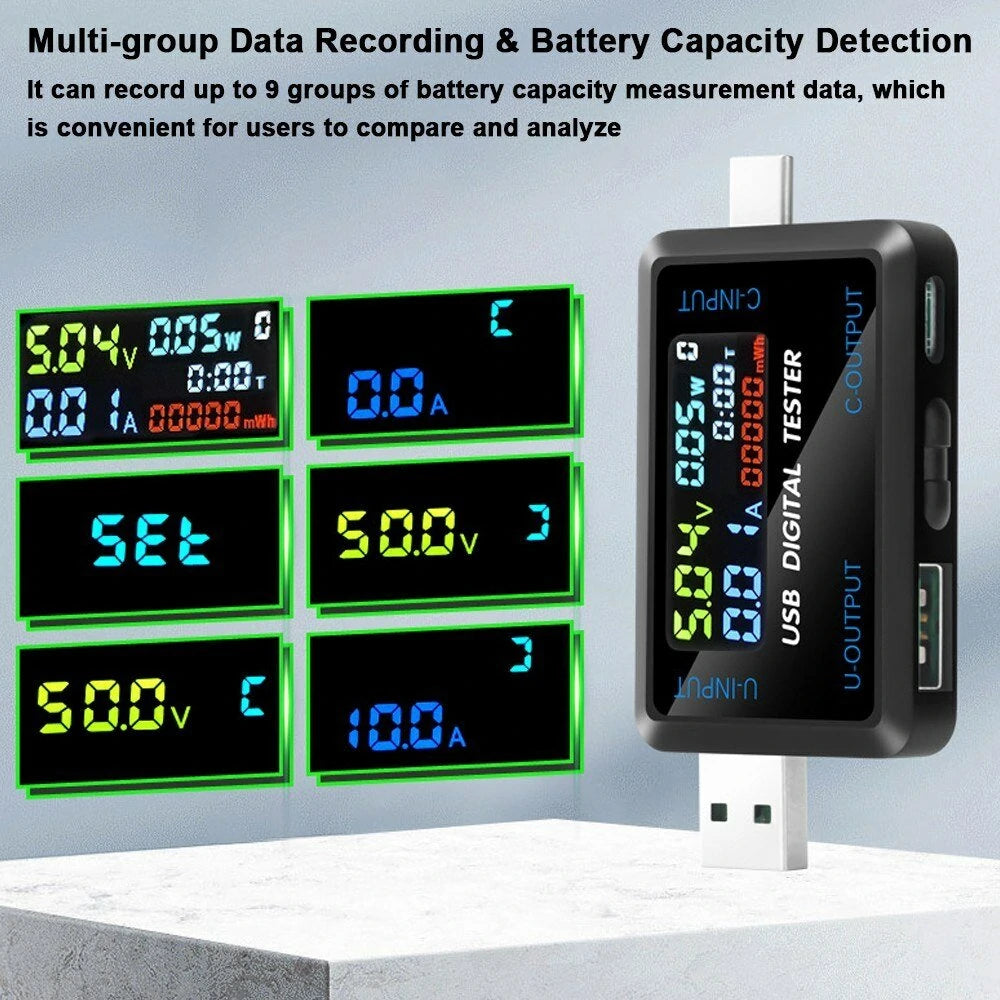

• Multi-group Data Recording & Battery Capacity Detection: Record up to 9 groups of battery capacity data for analysis and comparison. Calculate battery capacity from measured data to monitor battery health effectively.
• Laptop Charging Monitoring: Real-time monitoring of charging voltage, current, and other key parameters during laptop charging. All data is clearly displayed for easy tracking without complicated operations.

Specifications:

• Name: Voltage Current Tester
• Material: Plastics

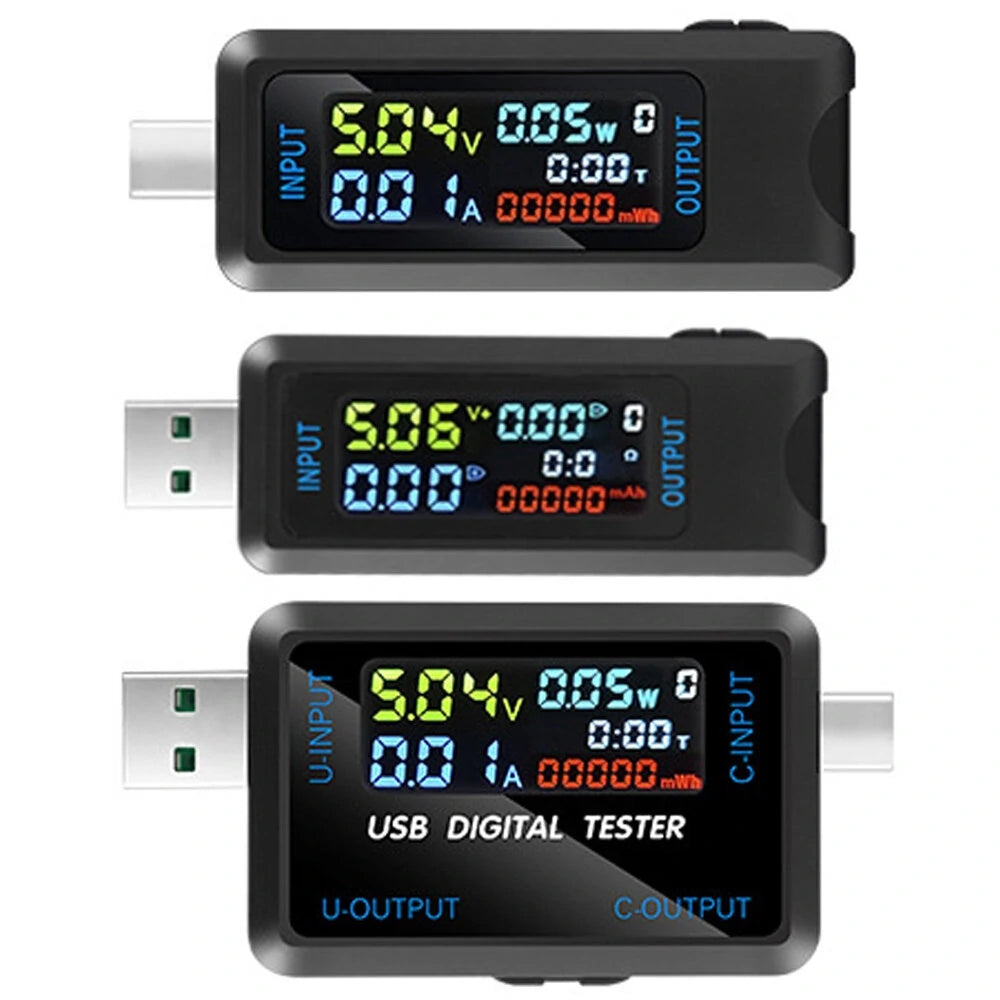

• Model Options:

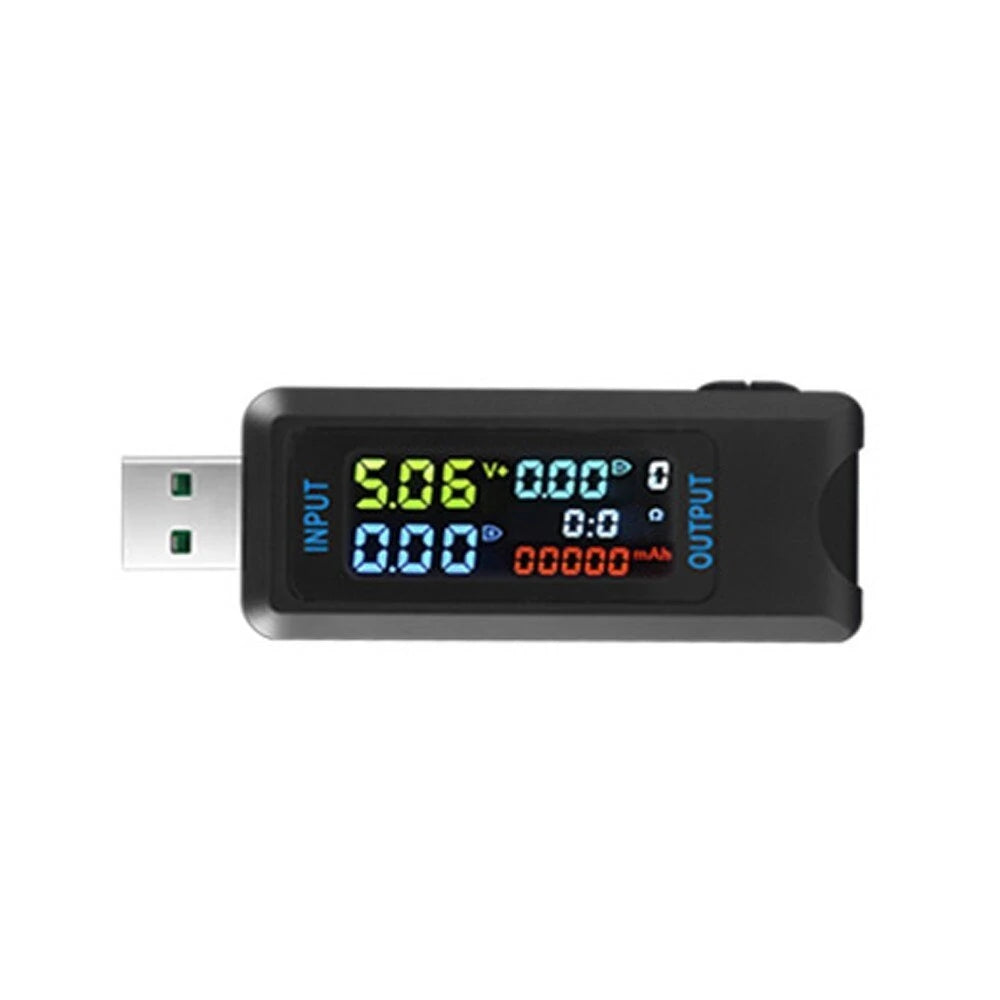

  • 6527-U (USB port)

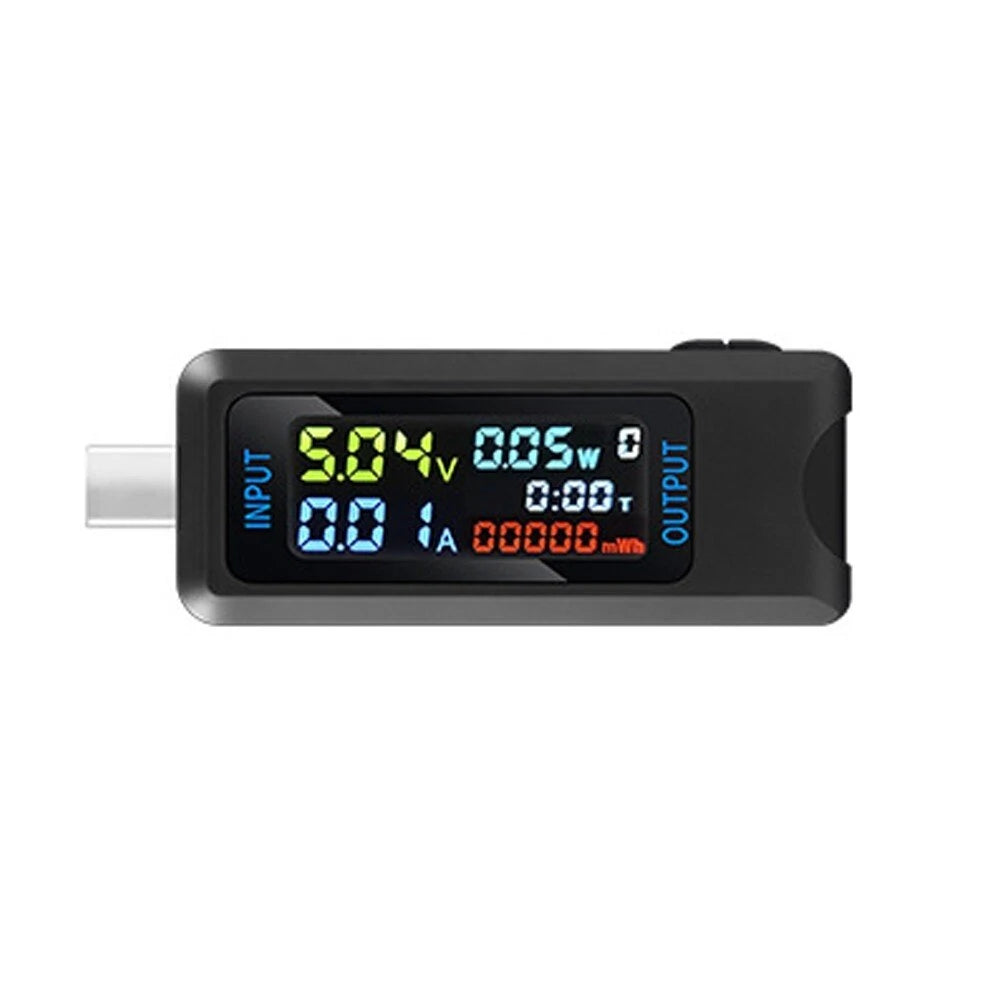

  • 6527-T (Type-C port)

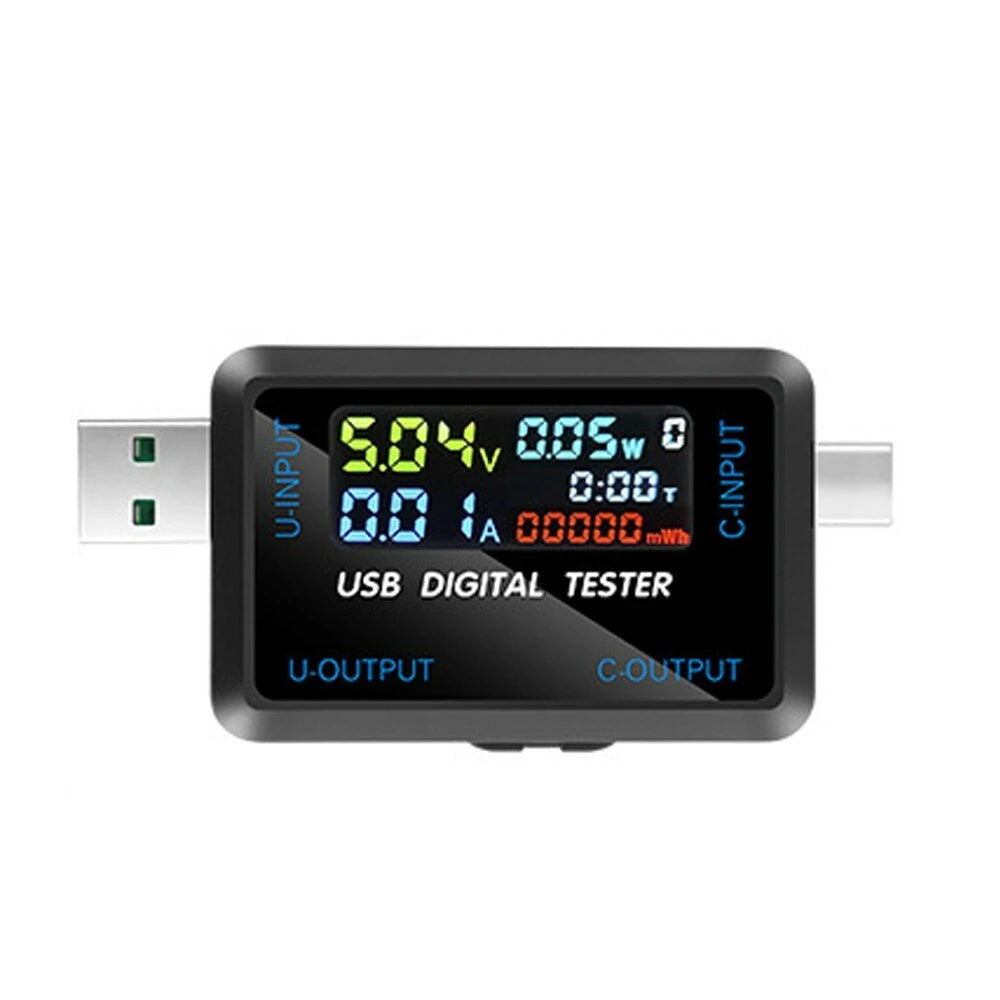

  • 6527-Q (USB + Type-C port)
• Voltage Measurement Range: 4.5V - 36.0V
• Current Measurement Ranges: 0-5A / 0-8A
• Capacity Accumulation Range: 0-99999mAh
• Power Accumulation Range: 0-99999mWh
• Power Measurement Range: 0.00-150W
• Impedance Measurement Range: 1-999.9Ω
• Temperature Measurement Range: 0-80℃
• Timing Time: Up to 999 hours and 59 minutes
• Output Interface: USB / Type-C / USB + Type-C
• USB D+ Voltage Range: 0V-2.99V
• USB D- Voltage Range: 0V-2.99V
• Refresh Time: >500mS per refresh
• Measurement Rate: Approx. 0.5 times/second
• Display: IPS true color LCD display
• Operating Temperature: -10℃ to +60℃
• Working Humidity: 10-80% (non-condensing)
• Working Air Pressure: 80-106kPa
• Item Size: 57 x 39 x 11 mm (2.24 x 1.54 x 0.43 inches)
• Package Size: 80 x 60 x 30 mm (3.15 x 2.36 x 1.18 inches)
• Package Weight:
  • 6527-U: 20g (0.71 ounces)
  • 6527-T: 18g (0.63 ounces)
  • 6527-Q: 23g (0.81 ounces)

Package Included:

• 1 x Voltage Current Tester (optional)
