Stereo Microscope 3.5~90X Zoom with 16MP Camera, All-Metal Stand, 56-LED Ring Light for Industrial PCB Repair

Features:

• 3.5~90X zoom magnification power with crisp sharp images
• Super widefield high-eyepoint optics
• Widefield of view
• 4" (100mm) working distance
• Sturdy all-metal pillar stand
• Powerful 56-LED ring light with dimmer
• Ideal for industrial inspection and biological lab applications
• Perfect for gemologists, manufacturing engineers, dental lab technicians, and semiconductor industry professionals

Product Highlights:

• 56-LED ring light offering super widefield optics and 7X-45X zoom magnification with cool light illumination
• Excellent stereo inspection with adjustable brightness
• High resolution with great flatness and contrast for sharp, clear images
• Binocular head with 45-degree inclined, 360-degree swiveling eye tubes
• Crystal clear, true color images
• Dual eye tubes with adjustable diopters for comfortable viewing
• Large working distance and sturdy all-metal stand
• Accurate alignment for reduced eye strain
• Full optical glass elements and precise ground glass lenses
• Full metal chrome-plated mechanical components
• Adjustable interpupillary distance and rubber eye-guards included

Specifications:

• Head: 360-degree rotatable, 45-degree inclined binocular
• Eyepieces: 30mm super widefield high-eyepoint WF10X/20MM
• Objective Zoom Range: 0.35X-9.0X (using Barlow lenses)
• Working Distance: 4" (100mm)
• Diopter Adjustment: ± 5dp
• Interpupillary Distance: 2-3/16" - 2-15/16" (55-75mm)
• Round Plate: 3-3/4" (95mm) in diameter
• Stand Dimensions: 10" x 7-7/8" x 10.75" (254 x 200 x 275mm)
• Illumination: 56-LED Ring Light
• Power Input: 110-240V, 50-60HZ, Automatic Switching
• Accessories: Paired eye-caps

Microscope Camera Specifications:

• Automatic white balance, exposure, and color adjustment for USB output
• Image Sensor: CMOS 1/2.9
• Pixel Size: 2.85 × 2.85μm
• Video Output: Full HD 1080p (via HDMI), 720P (via USB)
• Image Resolution: 4608*3456 (via HDMI)
• Video Recording: 1080p (via HDMI)
• Image Format: JPEG
• Lens: C/CS
• Resolution: 1920*1080@30fps, 720p 160@fps
• TF Card Interface: Max 64G
• PC Support: Windows XP/7/8/10 system, HAYEAR measure software
• Digital Zoom: 4x digital zoom
• Languages: English, Chinese, Japanese, French, German, Italian, Korean, Turkish, Russian
• Camera Dimension: 50mm x 50mm x 43mm
• Package Dimension: 16cm x 10cm x 8cm / 0.3kg

Package Includes:

• 1 x Trinocular Microscope Zoom Head
• 1 x Pair of Super Widefield 10X Eyepieces
• 1 x 56-LED Ring Light with Adapter
• 1 x Large Pillar Table Stand
• 1 x Focusing Rack
• 1 x Pair of Eye-Guards
• 1 x Dust Cover
• 1 x Microscope Camera
• 1 x High Temperature Resistant Working Pad
• 1 x Universal Bracket

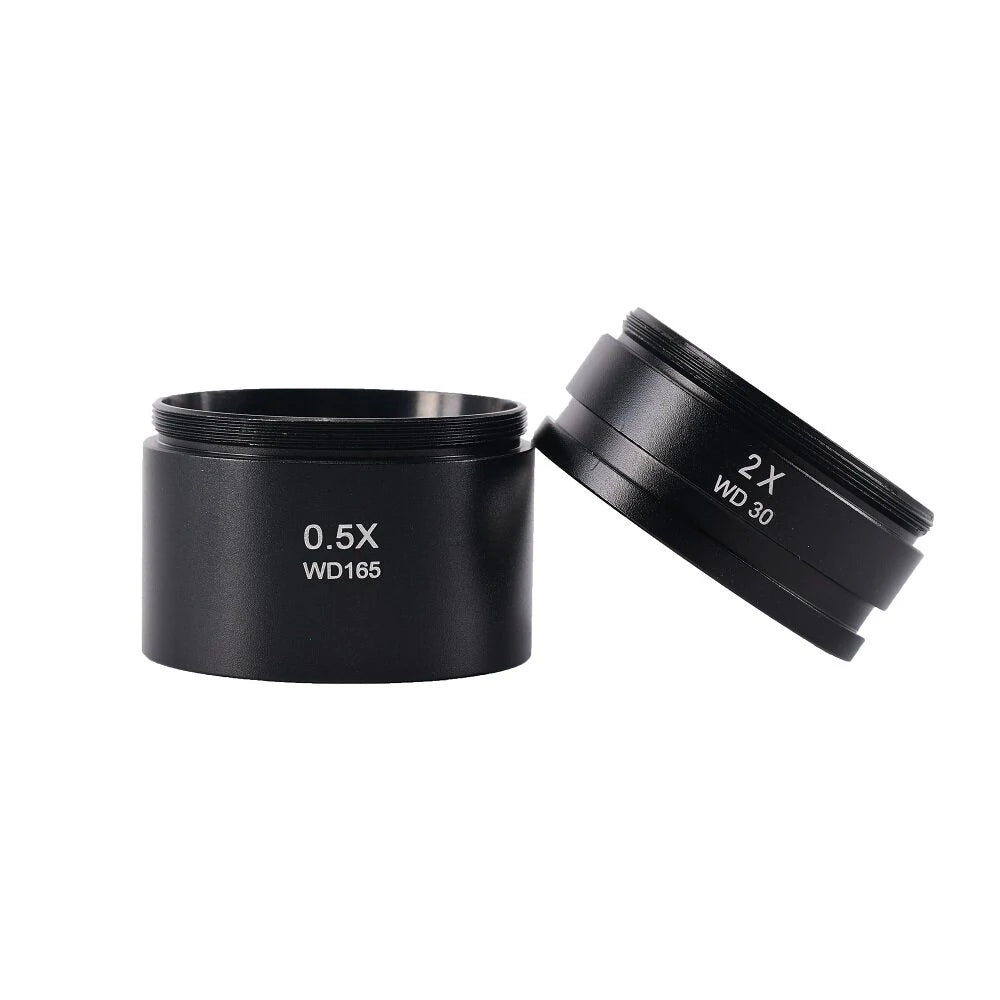

• 1 x 2.0X Microscope Auxiliary Objective Lens (Working Distance 30mm)
• 1 x 0.5X Microscope Auxiliary Objective Lens (Working Distance 165mm)

Note: A plug adapter will be sent according to your country.
