INFIRAY P2 Pro Infrared Thermal Camera for Mobile Phones - Industrial PCB Circuit Testing & Floor Heating Temperature Measurement

Tips: The P2 Pro is an upgraded version of the P2.
Please note: This product is the Android version.

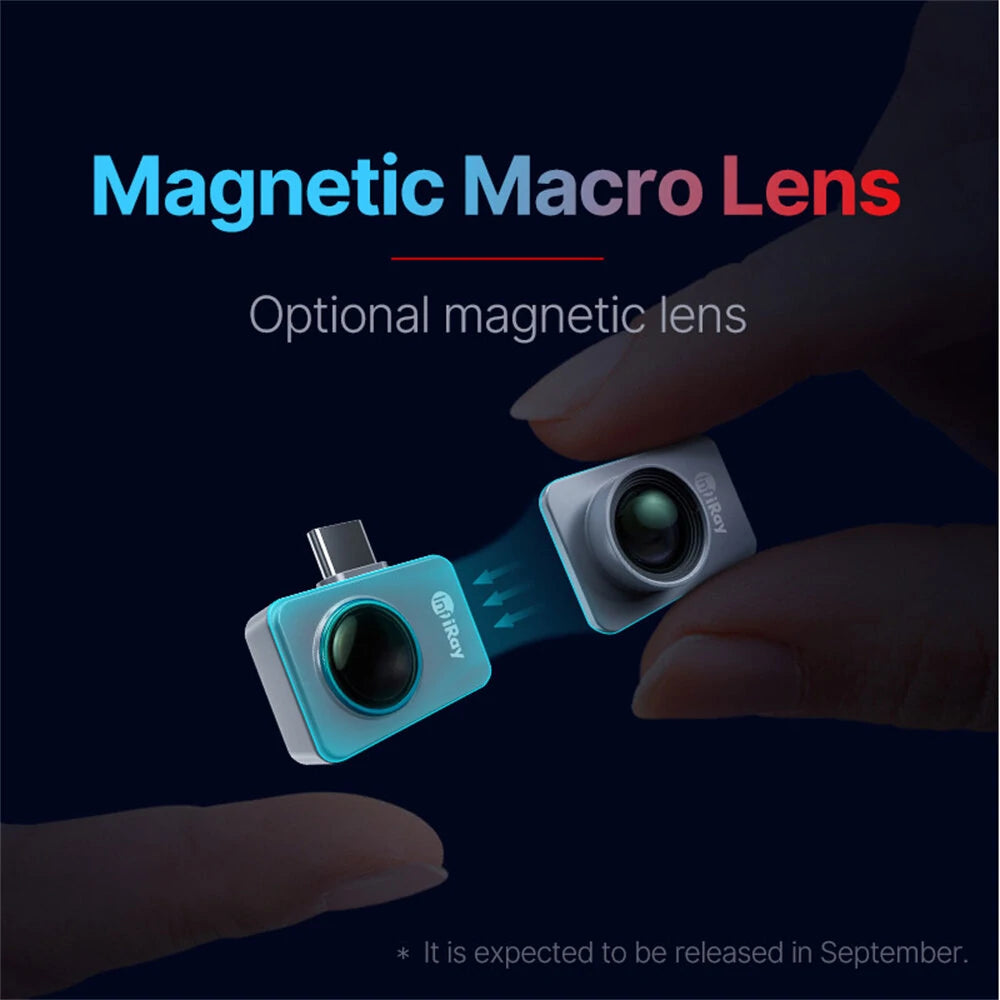

The P2 Pro features an extra macro lens, and its temperature measurement range surpasses that of the P2.

Features:

• High Resolution Imaging: The P2 Pro Mobile Phone Infrared Thermal Imager offers a resolution of 256x192, delivering clear and detailed thermal images for all your needs.
• Extended Battery Life: Enjoy over 300 minutes of battery life, allowing for extensive testing without the need for frequent recharging.

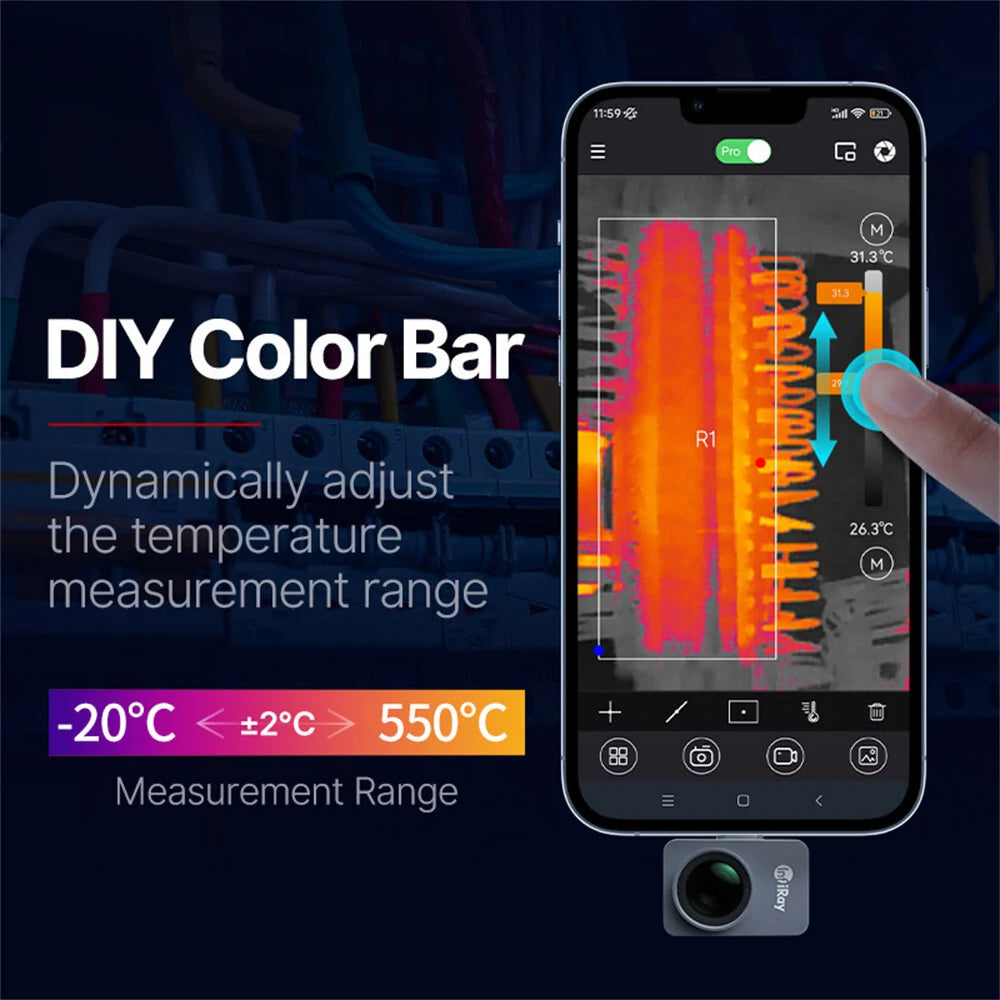

• Wide Measurement Range: With a temperature measurement range from -20°C to +550°C, this thermal imager is perfect for various industrial applications.
• Compact and Lightweight: Weighing only 9g, its compact size makes it portable and easy to handle during extended use.
• Advanced Processor: Equipped with a self-developed ASIC chip processor, it ensures fast and accurate processing of thermal data.

Specifications:

• Product: Infrared Thermal Imager
• Model: INFIRAY P2 Pro
• Resolution: 256x192
• Battery Life: >300 minutes
• Measurement Range: -20°C to +550°C
• Frame Rate: 25Hz
• Operating Temperature: -10°C to +55°C
• Storage Temperature: -40°C to +85°C
• Power Consumption: 350mW
• Processor: Self-developed ASIC chip
• Lens Focal Length: 3.2mm
• Aperture: F1.1
• Field of View (FOV): 56.0°×42.2°
• Focusing Mode: Athermalized fixed focus lens
• Shell Size: 27×18×9.8(mm)
• Color: Silver
• Interface: USB Type C
• Weight: 9g

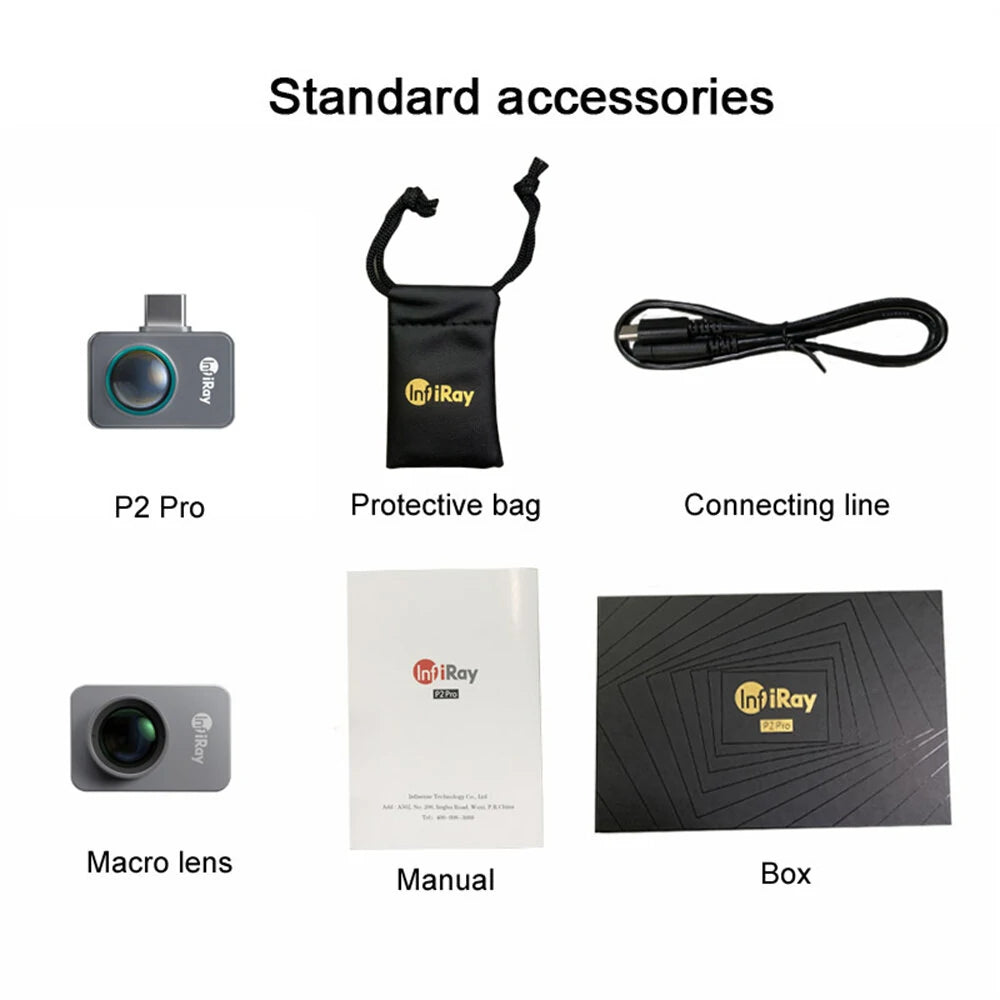

Package Included:

• 1 x P2 Pro Infrared Thermal Imager
• 1 x Macro Lens
• 1 x Connecting Line
• 1 x Protective Carrying Bag
• 1 x User Manual
