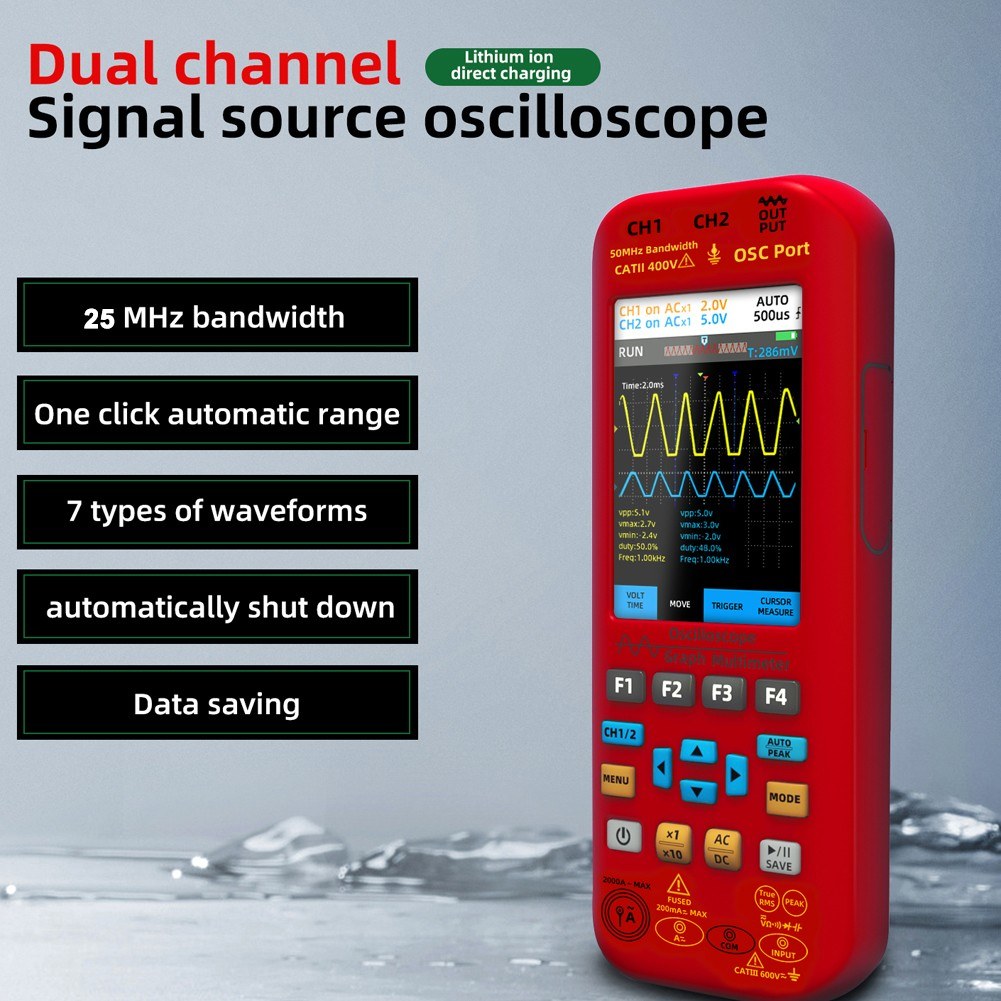

3in1 Multimeter: Oscilloscope, Signal Generator, and Autorange Multimeter

This innovative product combines the functionalities of an oscilloscope, a signal generator, and an autorange multimeter, making it an essential tool for professionals and educators alike. Benefit from the ability to measure various electrical parameters, capture waveforms, and display electrical signals accurately. Its multifunctional design includes auto-ranging, 20,000 count true RMS measurement, data hold, and automatic shutdown features.

Perfect for applications in electronics testing and debugging, troubleshooting, communicating, computing, and more.

Key Features

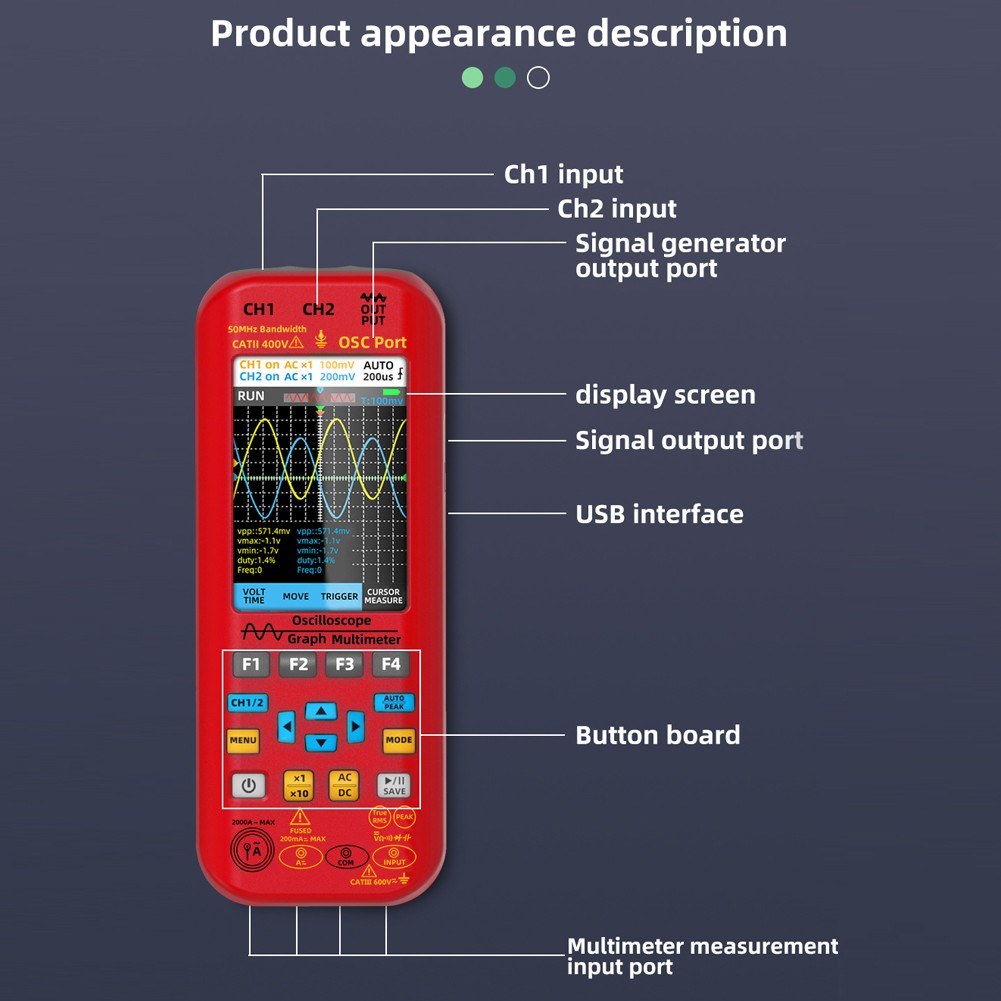

3in1 Design & Comprehensive Measurement

Integrating a 50MHz bandwidth oscilloscope, a 20,000-count multimeter, and a high-precision signal source, this device features a 3.98-inch TFT screen, ensuring multi-faceted and precise electronic signal detection and analysis to meet both professional and educational needs.

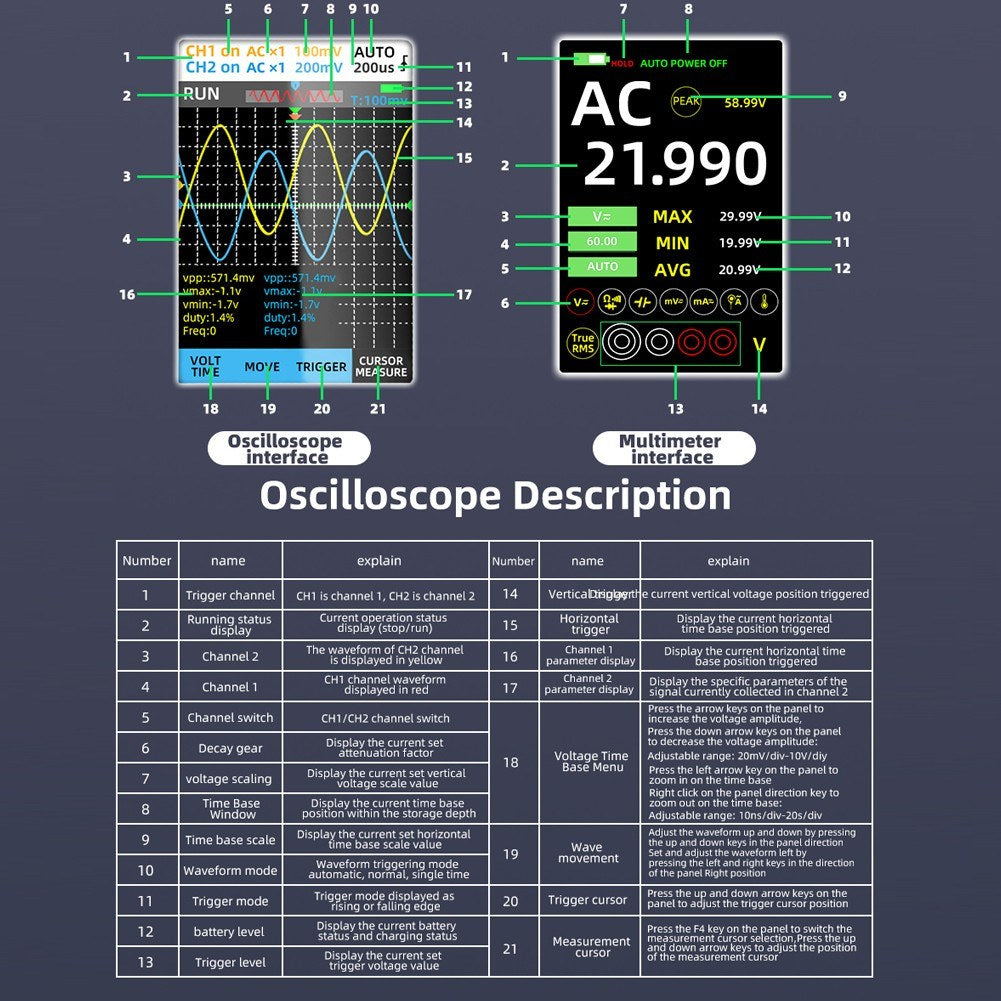

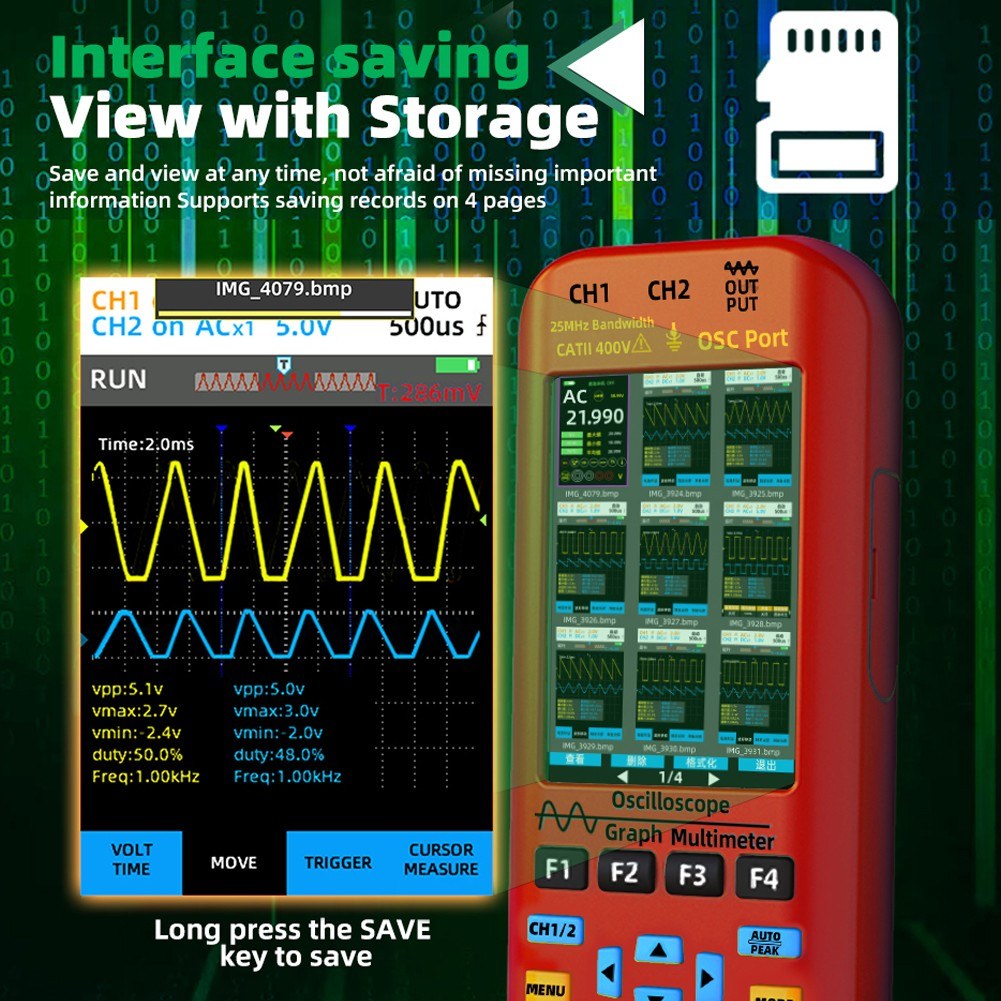

Oscilloscope Function

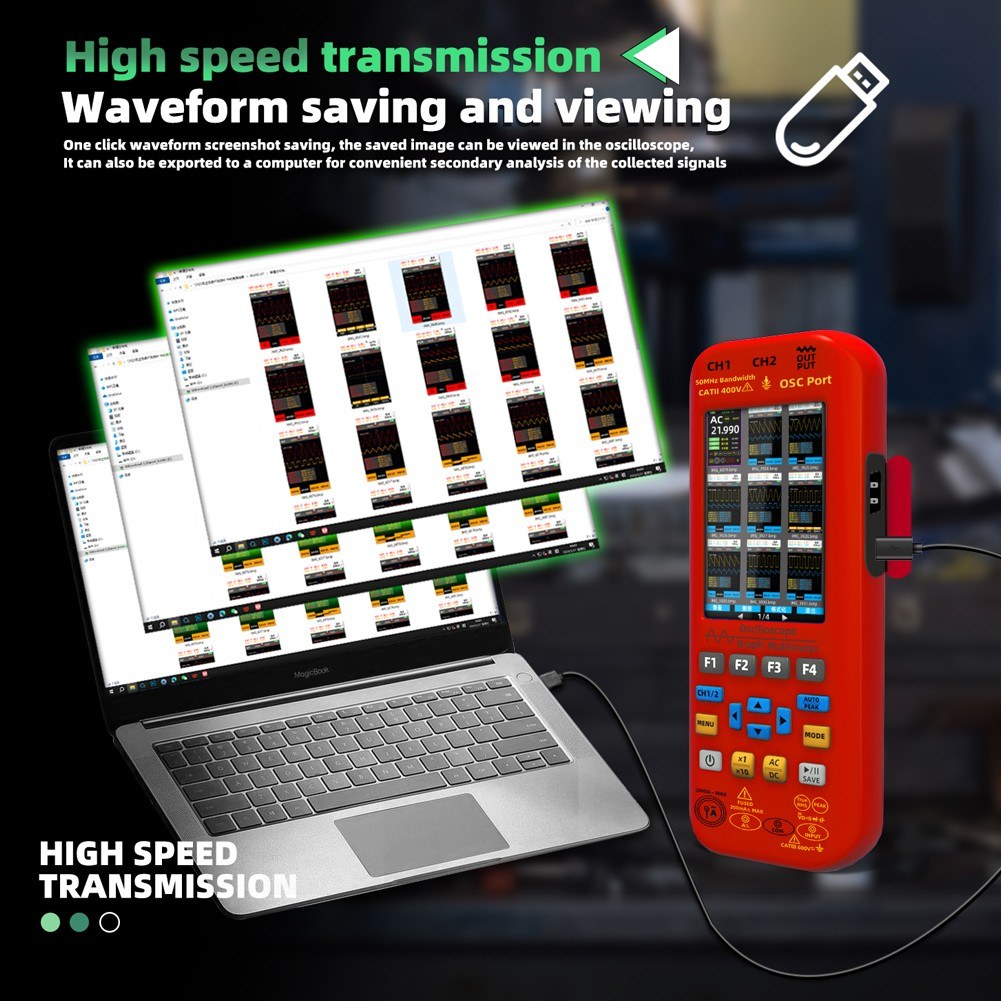

Easily manage oscilloscope imaging with support for saving, viewing, and deleting records. Connect to computers via a USB cable for extended analysis, ensuring professional data management.

Signal Source Function

Choose from 7 adjustable waveform types. This flexibility is ideal for emulating various signal environments, assessing system responses, and teaching demonstrations.

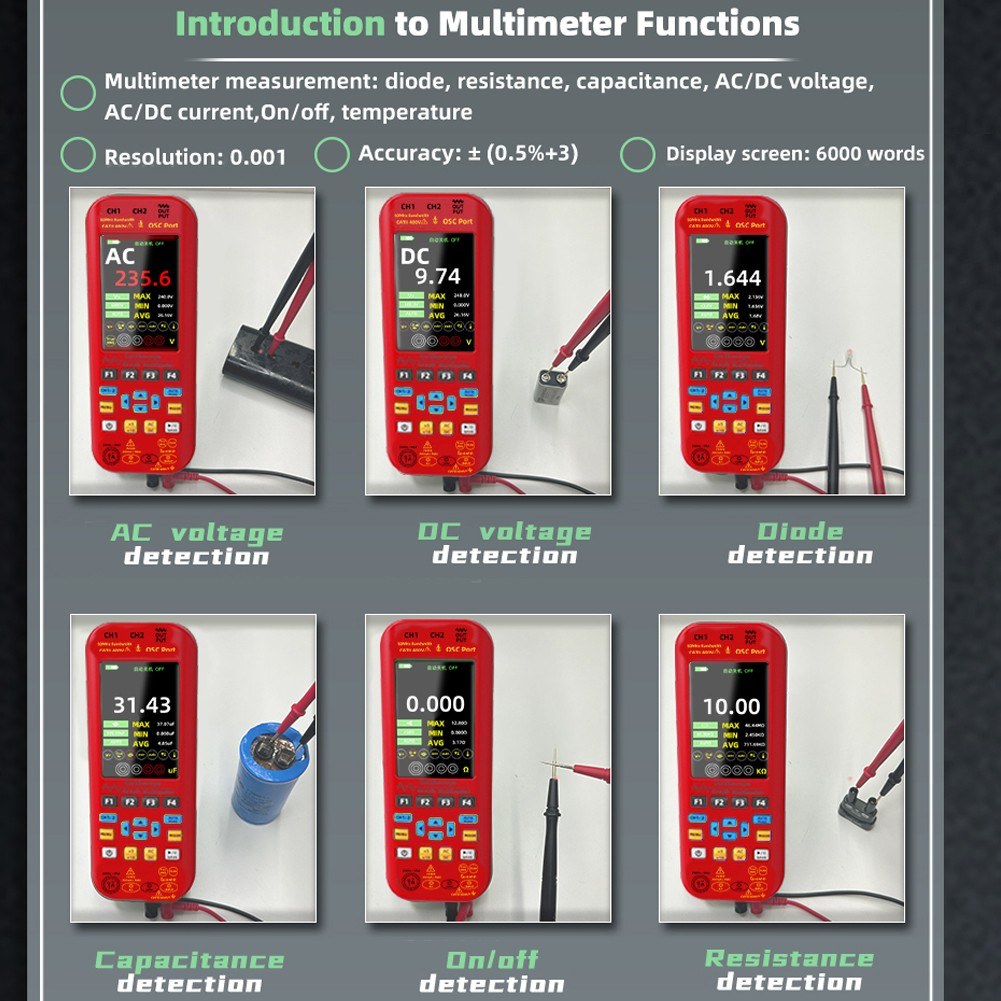

Multimeter Functions

Support for DC & AC voltage and current, resistance, capacitance, temperature, diode, and on/off test functions. Additional features include true RMS testing, screen backlight, low battery reminders, and automatic shutdown.

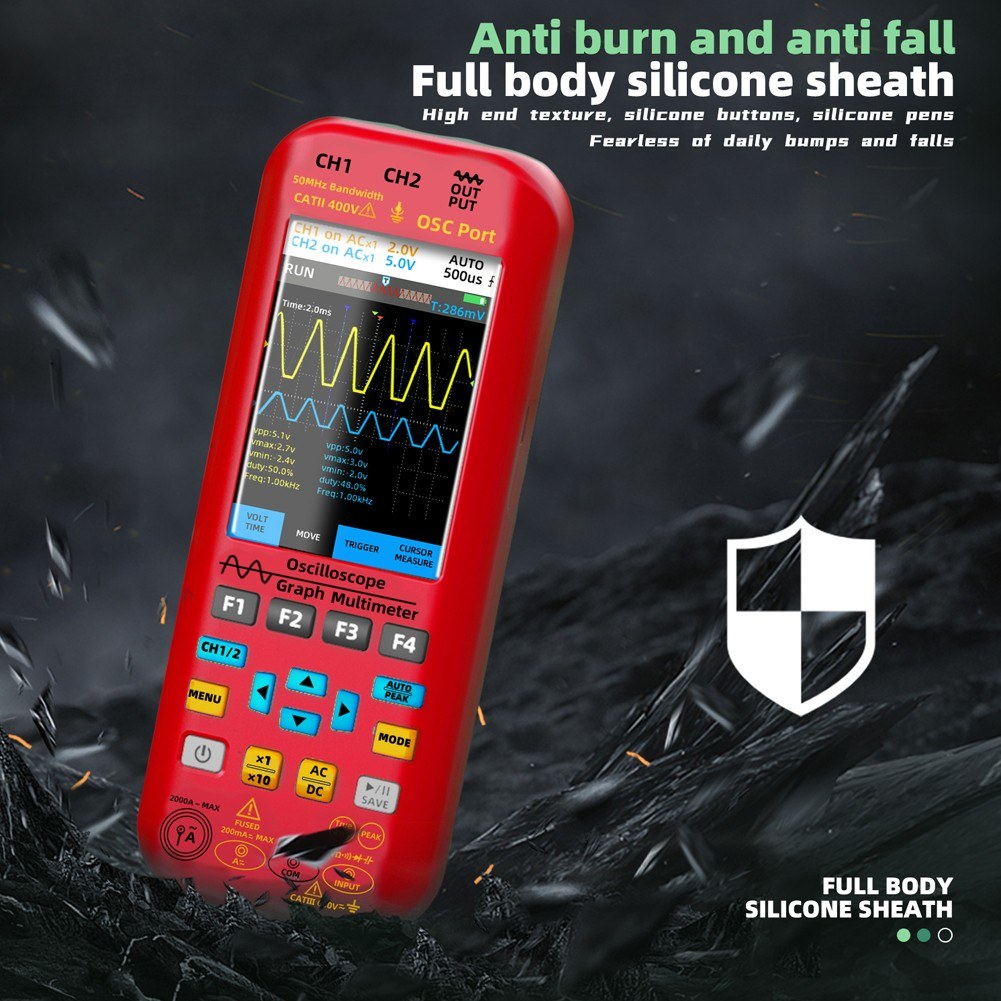

Intelligent Burnproof Design

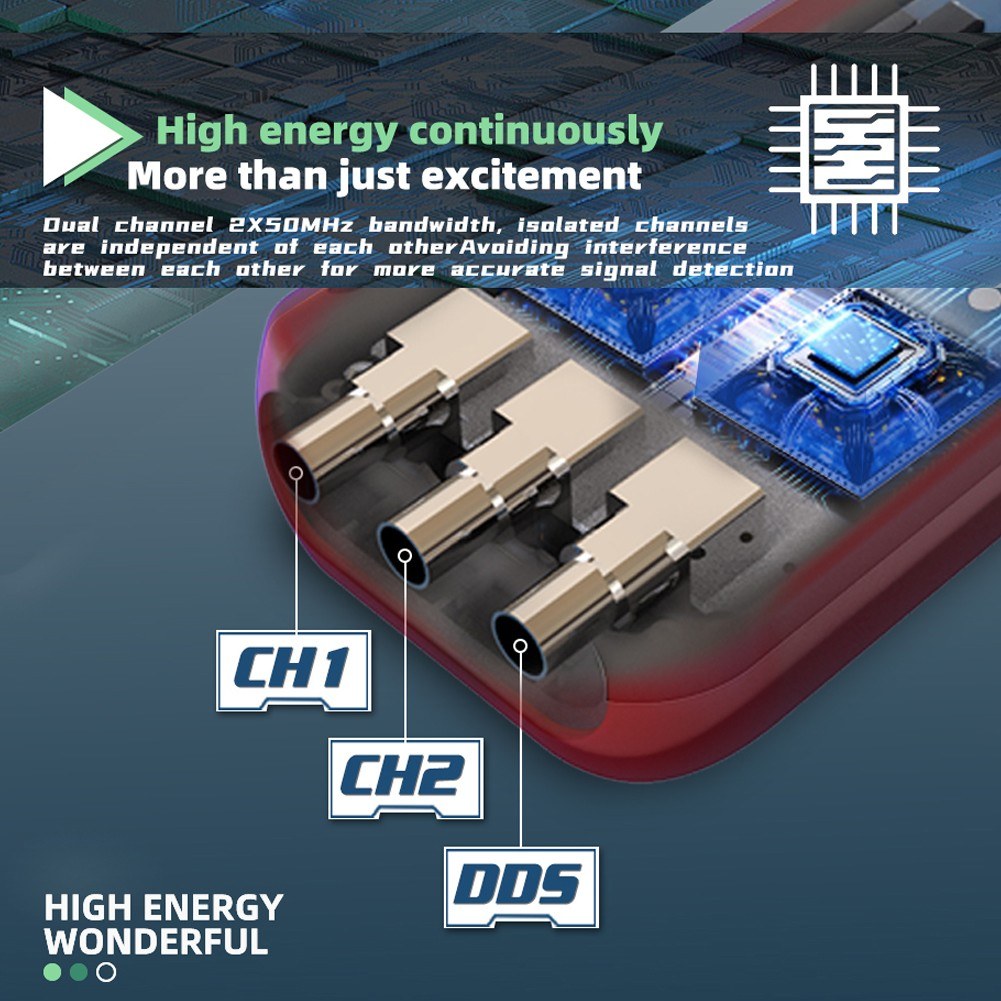

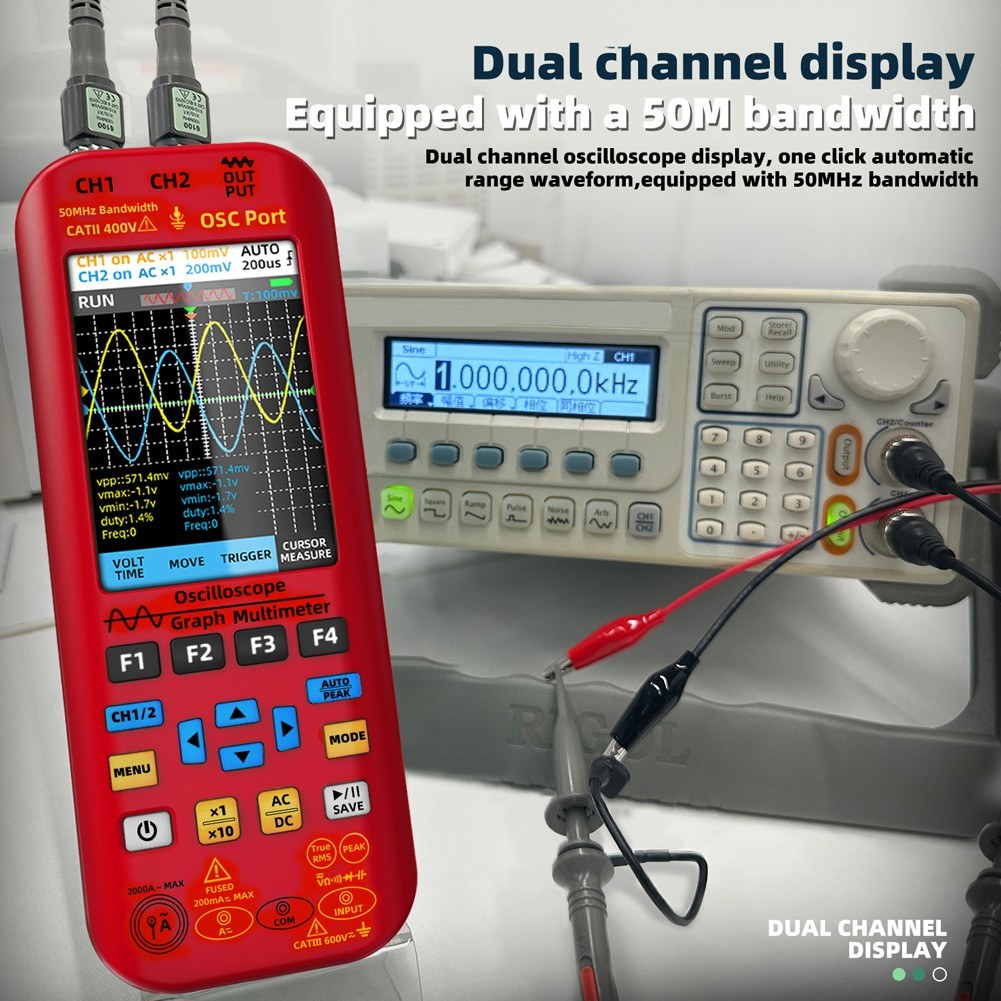

The dual-channel 50MHz bandwidth design reduces signal interference, enabling more accurate detection. The shock-resistant silicone cover protects against wear and enhances portability across various environments.

Powerful Data Analysis & Storage

Utilize FFT spectrum analysis, mathematical operations, and cursor measurements. This device provides real-time, accurate operations and in-depth analysis, improving signal processing and troubleshooting.

Convenient Operation & Efficient Triggering

With a simple and intuitive interface, the one-button Auto feature offers quick setup. Multiple triggering modes efficiently meet complex measurement needs, providing real-time data trends for precise analysis.

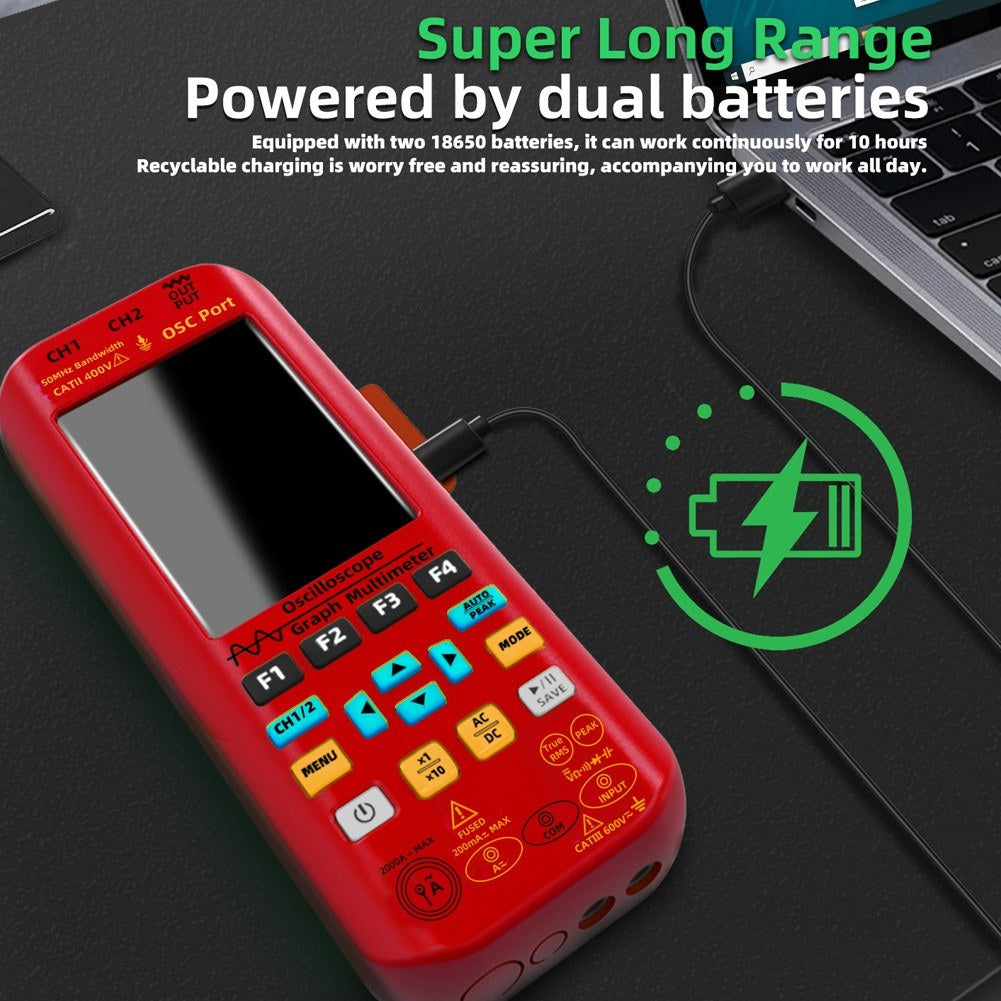

Rechargeable Battery & High Portability

A built-in high-capacity lithium battery ensures long-lasting power, while the lightweight design boosts portability. Recharge with a Type-C cable. Ideal for laboratory research, teaching, or DIY maintenance.

Specifications

General Information

• Name: 3in1 Multimeter
• Material: Plastics + Silicone
• Battery: 2 x built-in 6000mAh batteries (included)
• Screen size & resolution: 3.98 Inch TFT display
• Display value: 20,000 count
• Screen backlight: Yes
• Low battery reminder: Yes
• Automatic shutdown: Yes
• Working environment: 0-40℃, ＜75%RH
• Storage environment: -20℃ to 60℃, ＜80%RH
• Item size: 216.6 x 84.5 x 36mm / 8.53 x 3.33 x 1.42in
• Item weight: 384g / 0.85lb
• Package size: 240 x 128 x 73mm / 9.45 x 5.04 x 2.87in
• Package weight: 945g / 2.08lb

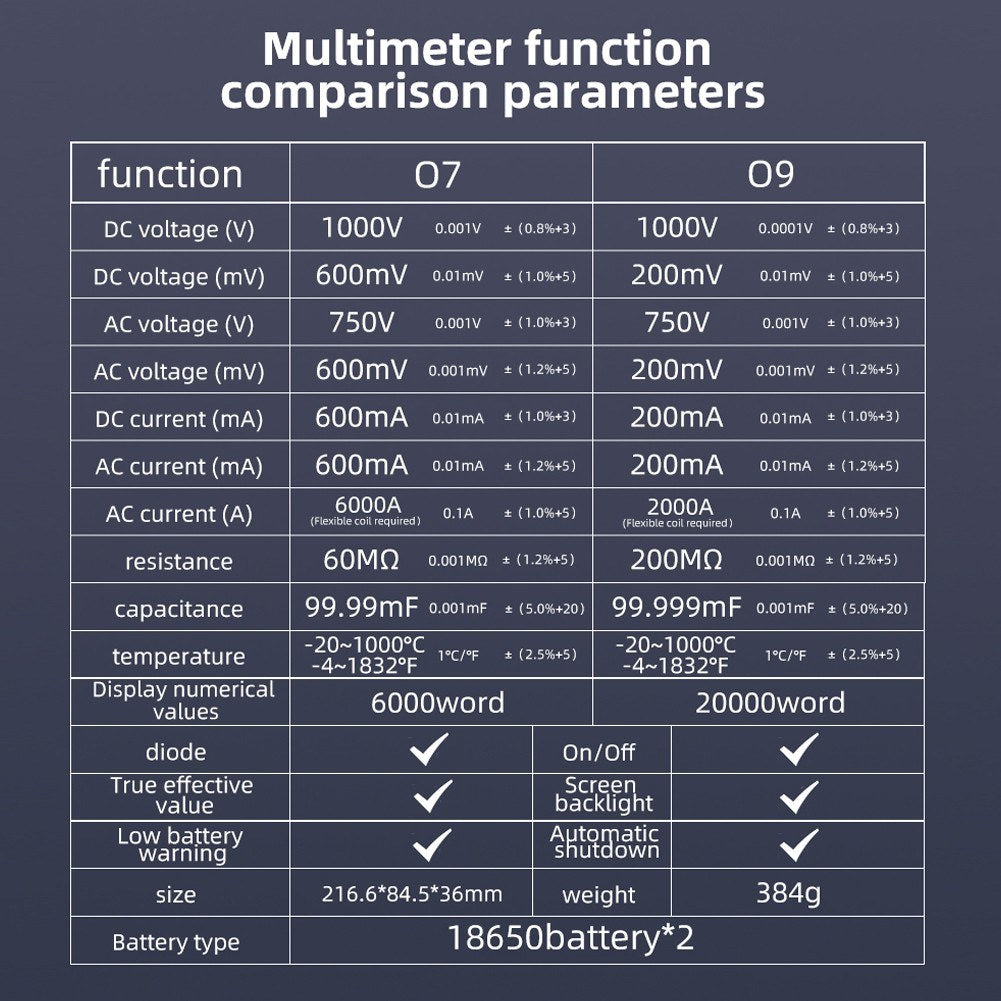

Multimeter

• DC Voltage: Up to 1000V, ±1.0%

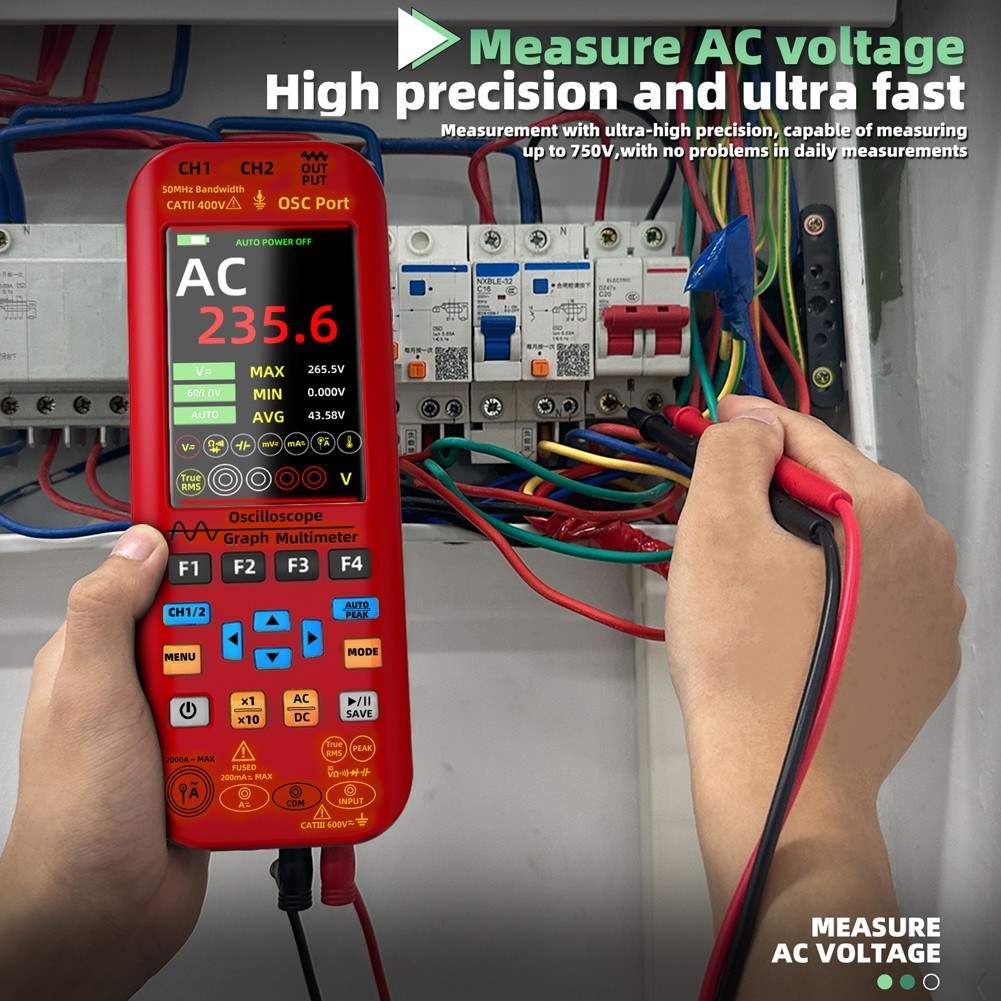

• AC Voltage: Up to 750V, ±1.2%
• AC Voltage Frequency Response: 40Hz-1kHz
• DC Current: Up to 200.00mA, ±1.0%
• AC Current: Up to 200.00mA, ±1.2%
• Flexible Current Clamp/AC Current(A): Up to 2000A, ±1.0%
• Resistance: Up to 20.00MΩ, ±1.5%
• Capacitance: Up to 99.999mF, ±5.0%
• Temperature: (-20~1000℃)/(-4~1832℉), ±2.5%
• Diode Testing: Yes
• Connectivity Testing: Yes

Signal Generator

• Channel: Single
• Frequency: 0-2MHz
• Amplitude: 0.1V-3.0V
• Waveforms: Sinewave, squarewave, sawtooth, etc.
• Squarewave Duty Cycle: 1-99%
• Minimum Resolution: 1Hz

Oscilloscope

• Channels: Dual
• Analogue Bandwidth: 50MHz
• Real-Time Sample Rate: 250MSa/s
• Input Coupling: DC/AC
• Storage Depth: Max 128kByte
• Input Impedance: 1MΩ, @16pF
• Maximum Input Voltage: X1 < 150V, X10 < 300V
• Trigger Mode: Automatic/normal/single

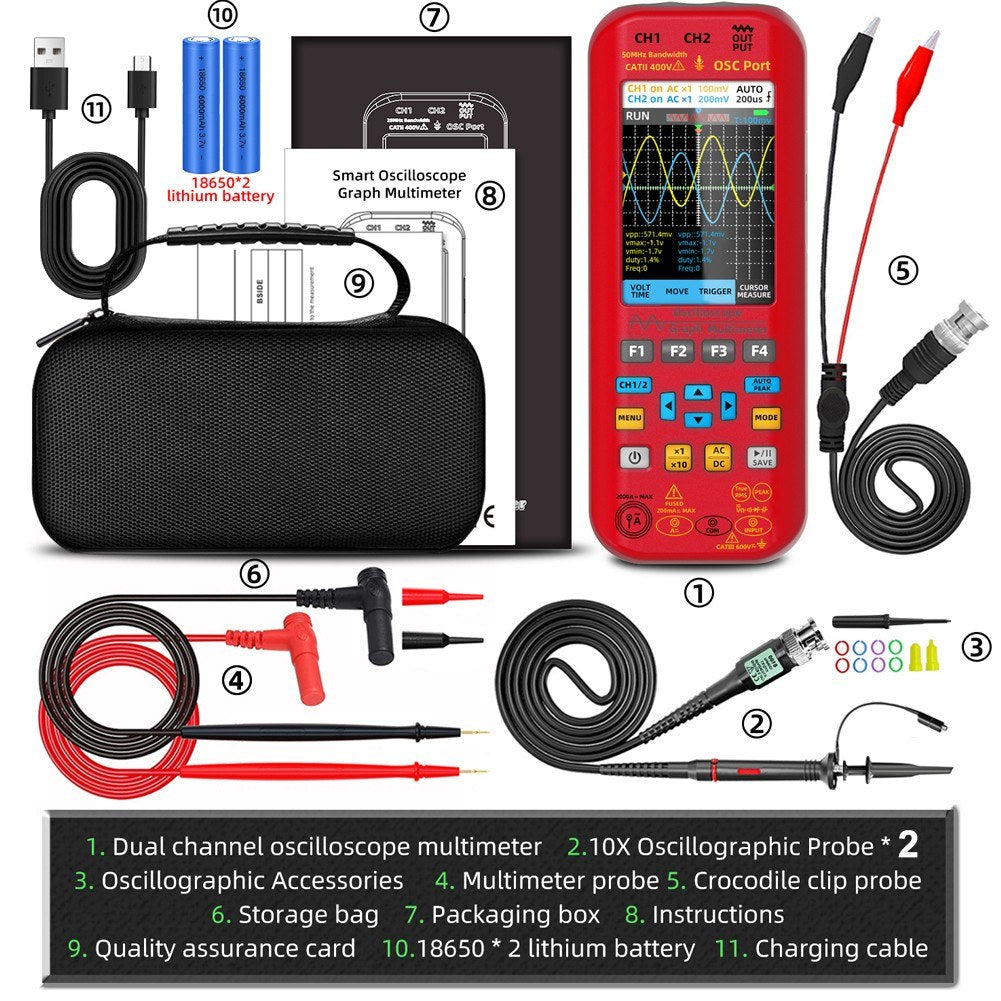

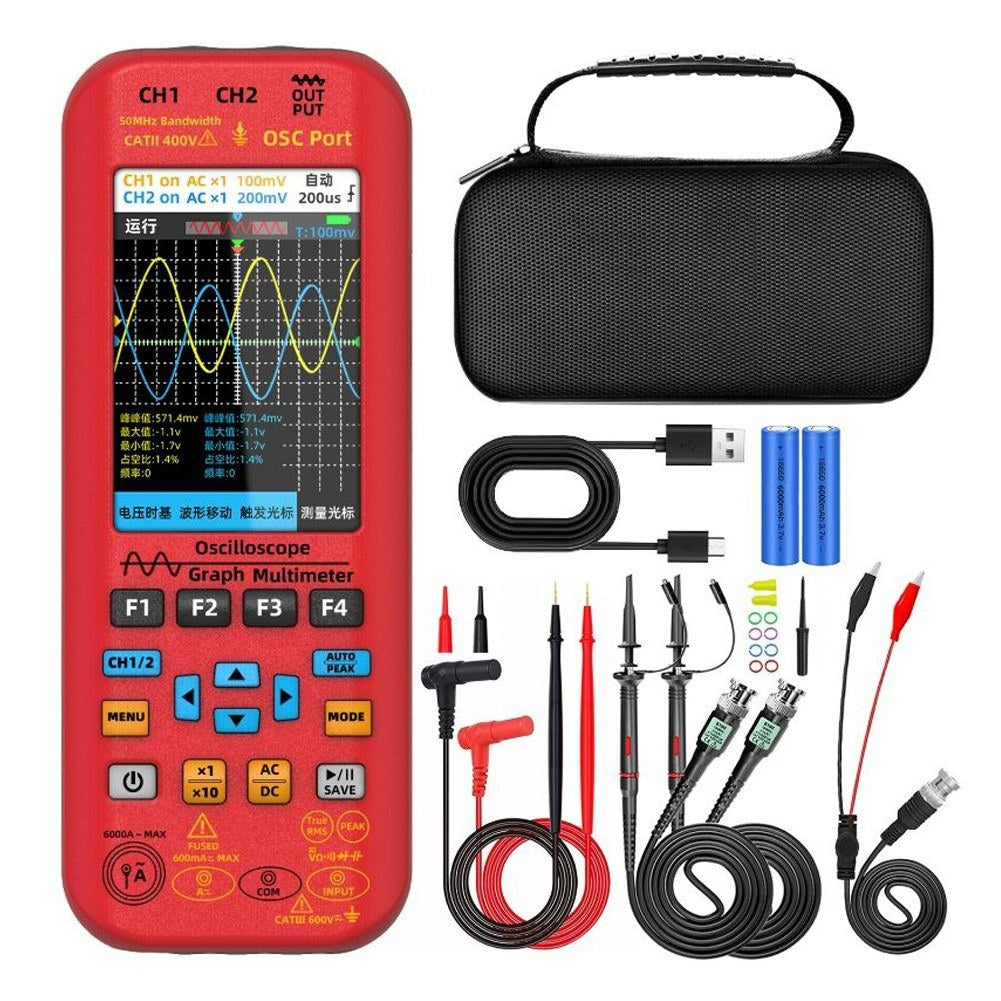

Packing List

• 1 x 3in1 Meter
• 2 x 10X Oscillographic Probe
• 1 x Set of Oscillographic Accessories
• 2 x Multimeter Pen
• 1 x Clip Probe
• 1 x Cable
• 1 x EVA Bag
