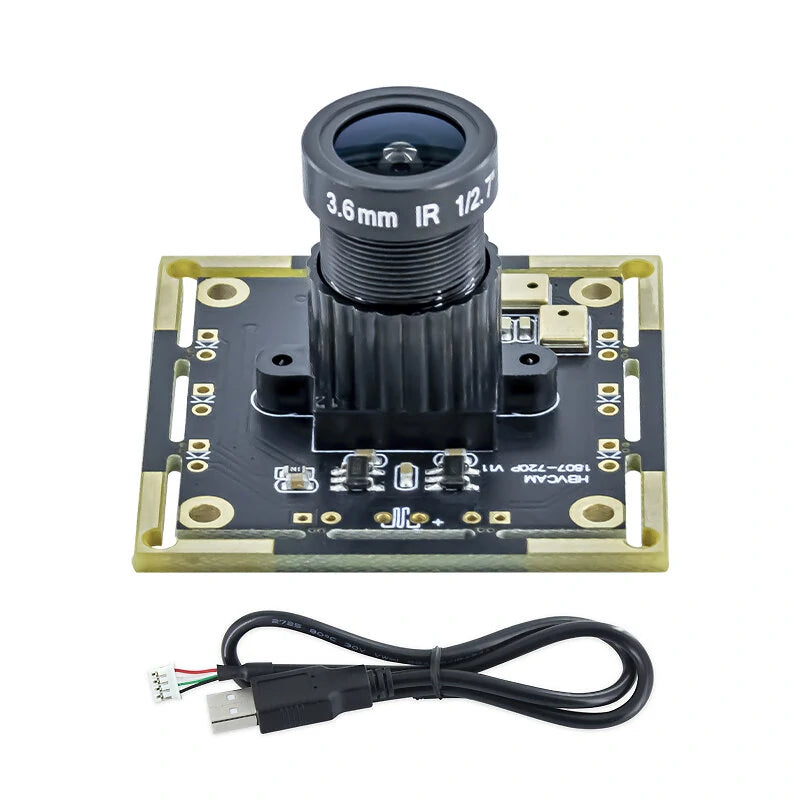

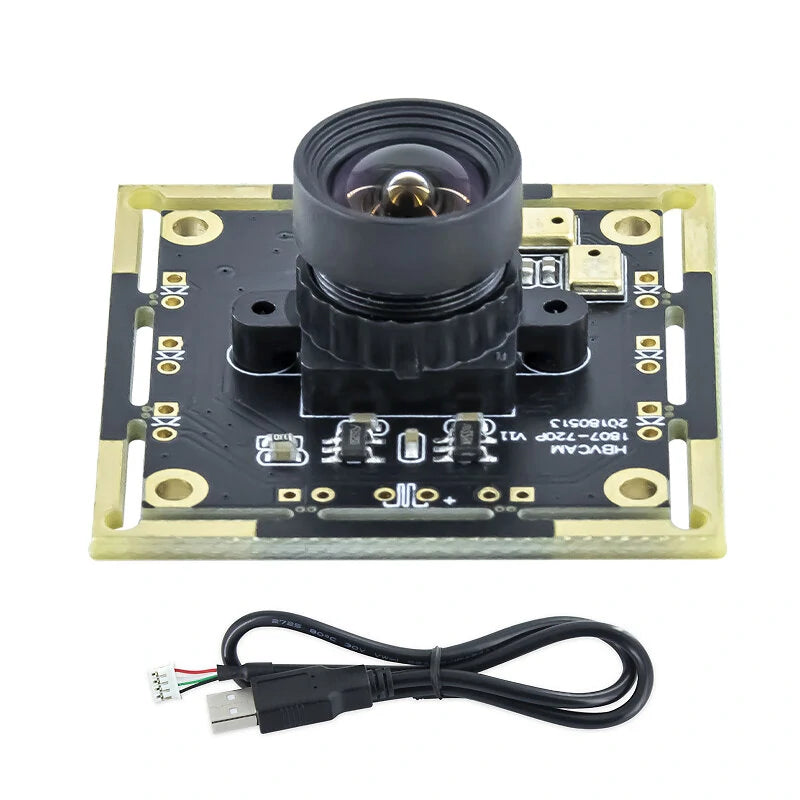

HD 1MP USB Camera Module 720P, Manual Focus, 72/100/160° Lens, 38x38mm, 32x32mm Compatible, USB Driver-Free

Product Specifications

• Model: HBVCAM-W20217 V22
• Pixel: 1 million pixels
• Photosensitive Chip: OV9732 (1/4") CMOS
• Field of View / Focal Length Options:
  • 72° small distortion at 3.6mm
  • 100° no distortion at 2.1mm
  • 160° with distortion at 3.15mm
• Format: MJPG / YUY2
• Resolution & Frame Rates:
  • MJPEG 640x360 at 30FPS / YUY2 640x360 at 30FPS
  • MJPEG 640x480 at 30FPS / YUY2 640x480 at 20FPS
  • MJPEG 1280x720 at 30FPS / YUY2 1280x720 at 10FPS
• Focus Method: Manual focus (lens optional)
• Key Features:
  • Face recognition
  • QR code recognition
  • Optional infrared fill light
• Output: USB 2.0
• Supported Systems: WinXP, Win7, Win8, Win10, MAC OSX, Linux, Android
• Cable: Standard 0.5 meter USB cable
• Operating Temperature: -20°C to 70°C
• Dimensions:
  • 72°: 38mm x 38mm x 24.5mm ±0.5mm
  • 100°: 38mm x 38mm x 16.05mm ±0.5mm
  • 160°: 38mm x 38mm x 18mm ±0.5mm

Highlighted Features

1. Wide Field of View: Options up to 160° with manual focus for precise alignment.
2. Advanced Functionalities: Includes face and QR code recognition, with the option to add infrared lighting.
3. Efficient Design: Driver-free USB 2.0 output for ease of use.
4. Reliable Performance: Operates smoothly between -20°C and 70°C.
5. Broad Compatibility: Compatible with a variety of operating systems.

Package Includes

• 1x Camera Module
• 1x USB Cable
