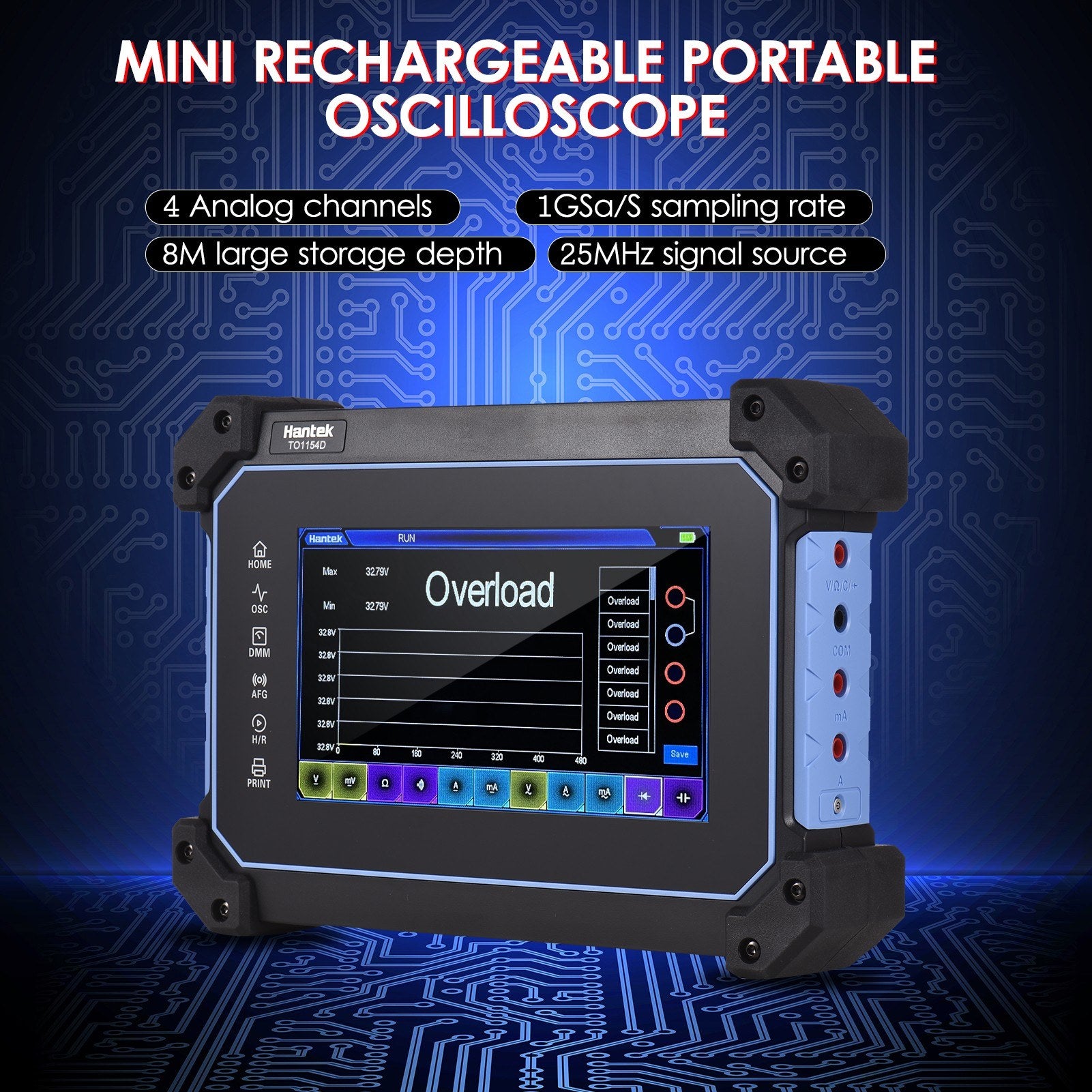

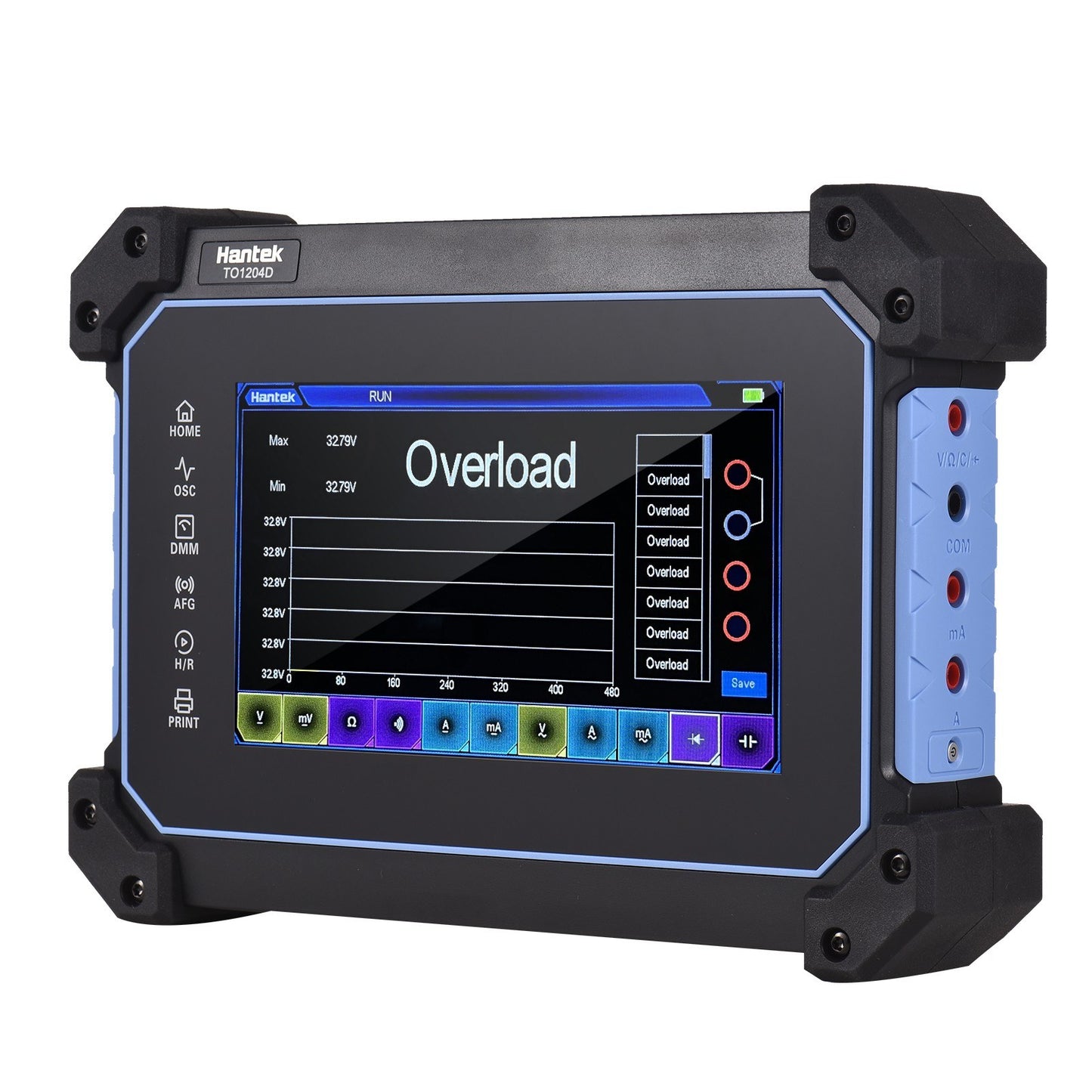

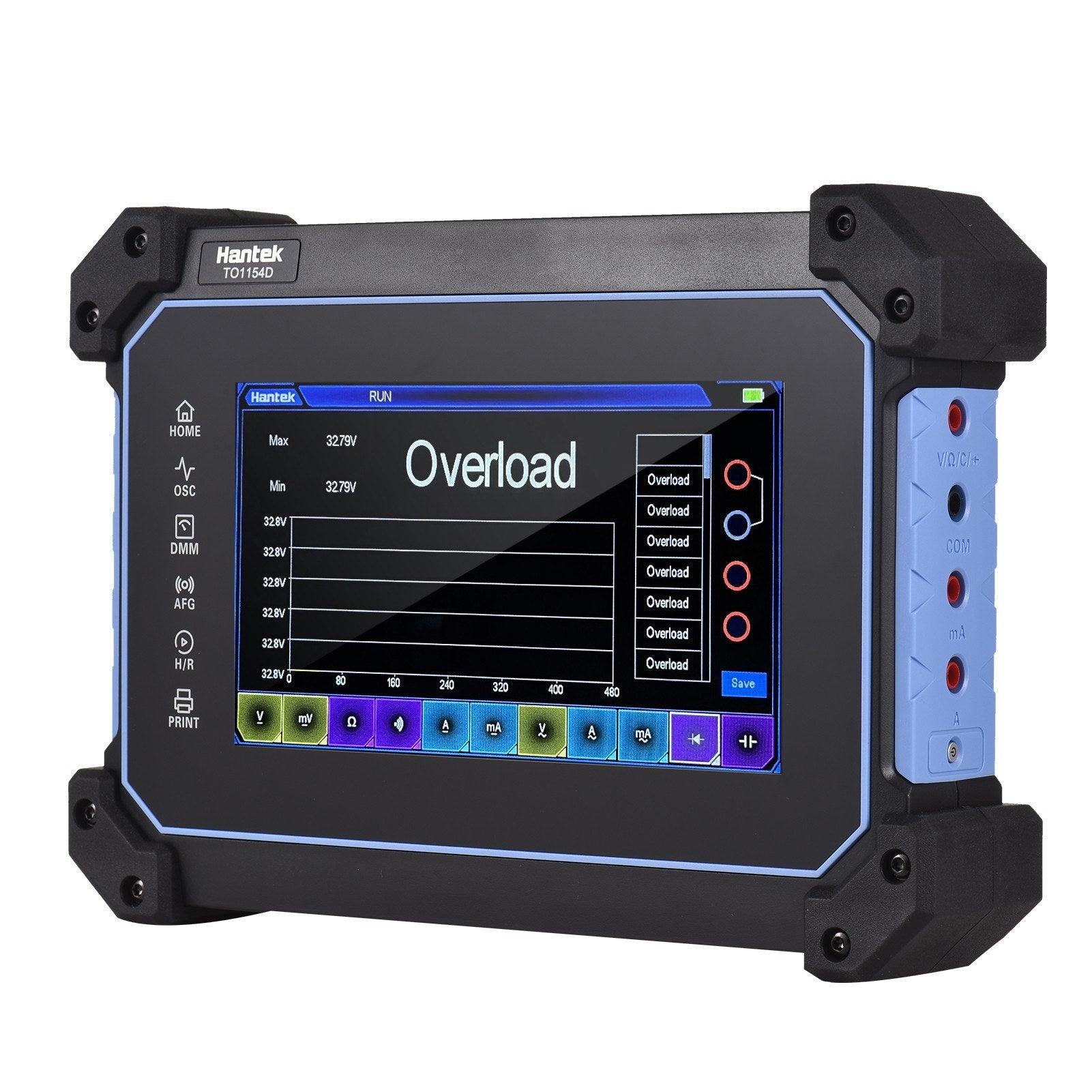

Hantek TO1112 / TO1112C / TO1112D / TO1154D / TO1204D / TO1254D Portable 4-Channel Oscilloscope Multimeter with Signal Generator & Tool Bag, 7" TFT LCD, 1GSa/s, 8M Memory

Product Overview

This portable full touch screen oscilloscope combines multiple measurement tools into one compact device. Designed for both field and lab use, it features a durable, anti-shock structure and a unique suspension stand for hands-free operation. Ideal for electronics engineers, educators, and hobbyists.

Key Features

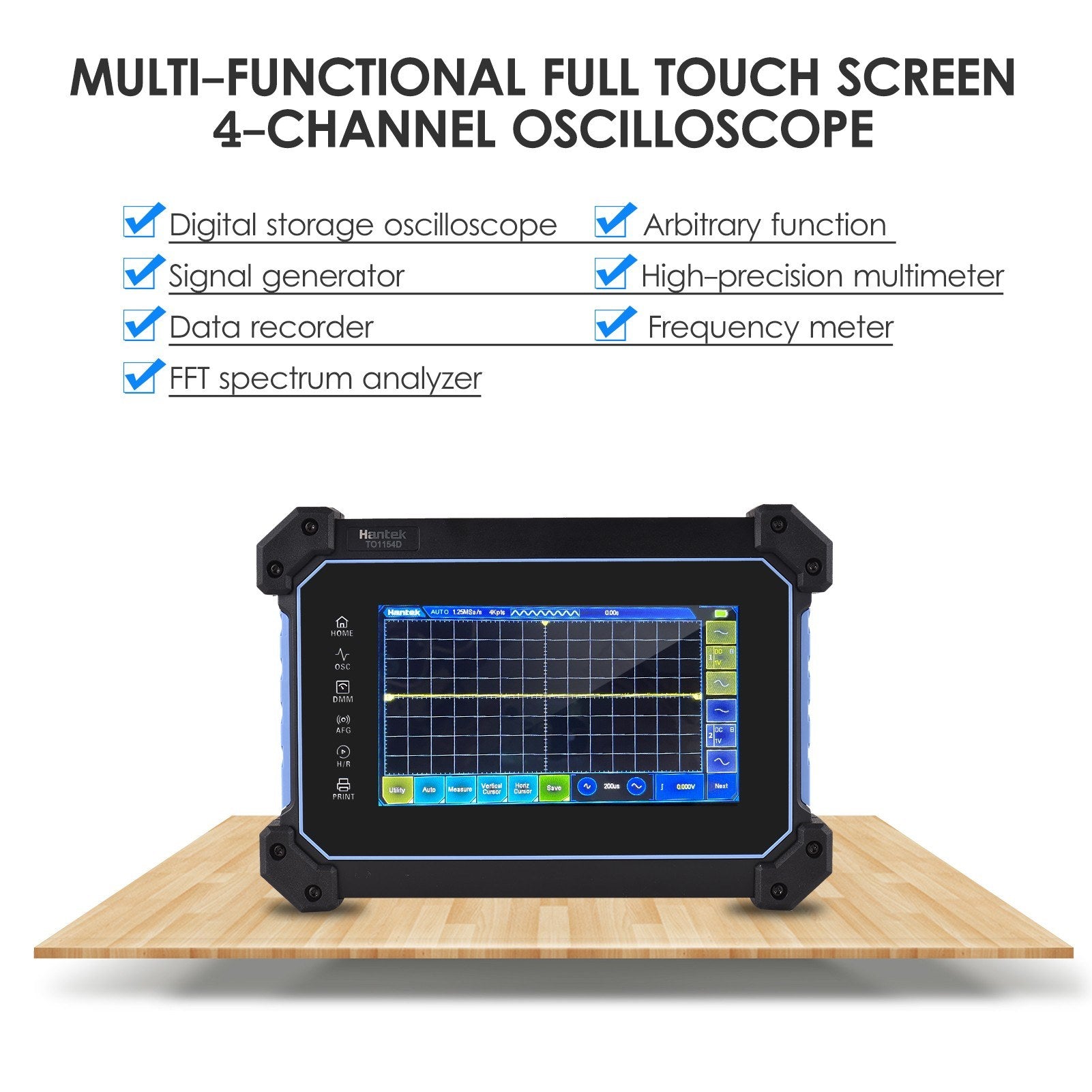

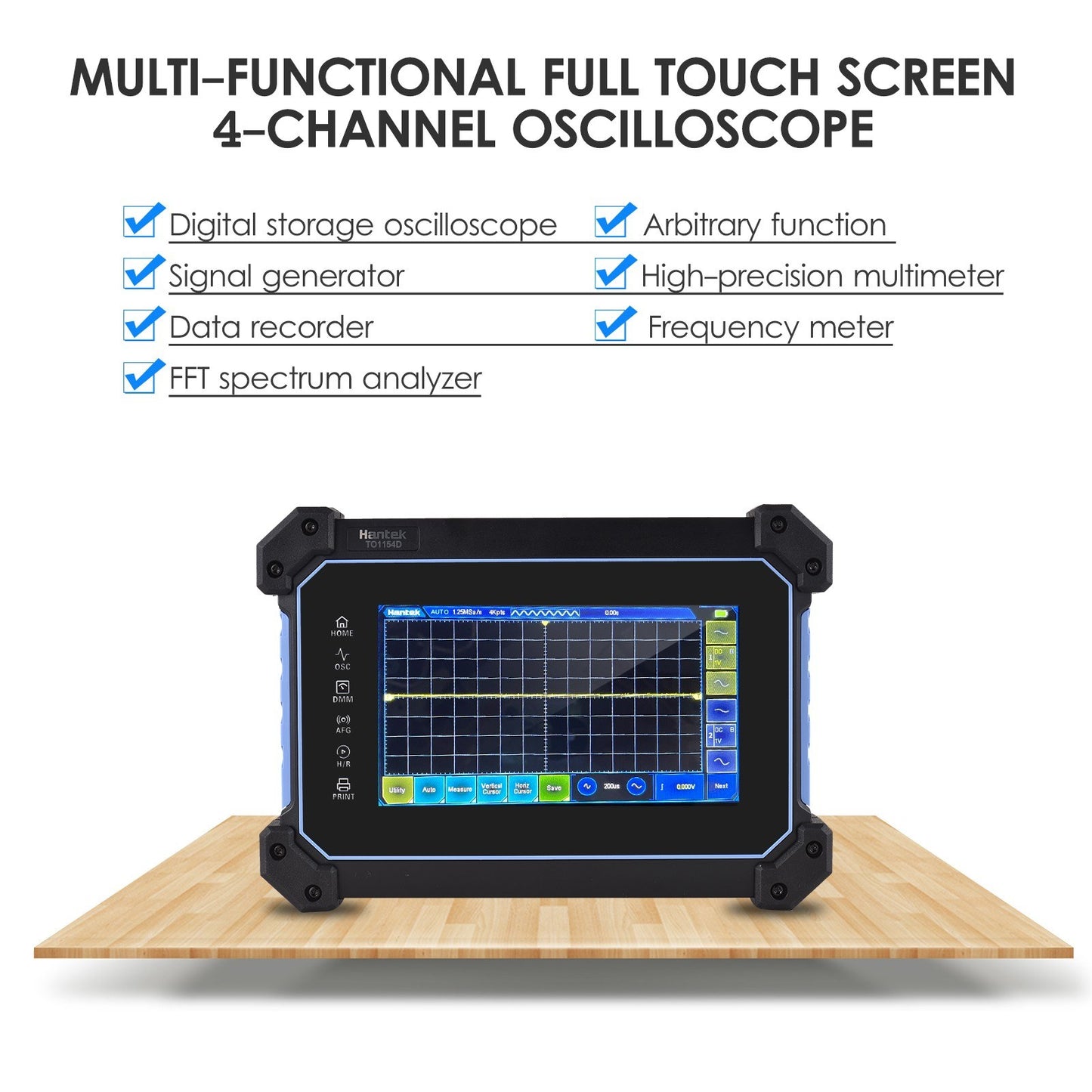

• 6-in-1 Multifunction Device: Oscilloscope, Signal Generator, Multimeter, Data Recorder, Frequency Meter, and FFT Spectrum Analyzer.
• High-Speed Oscilloscope Performance: 1GSa/s sampling rate, 8Mpt memory depth, standard 25MHz signal source, and multiple trigger modes.

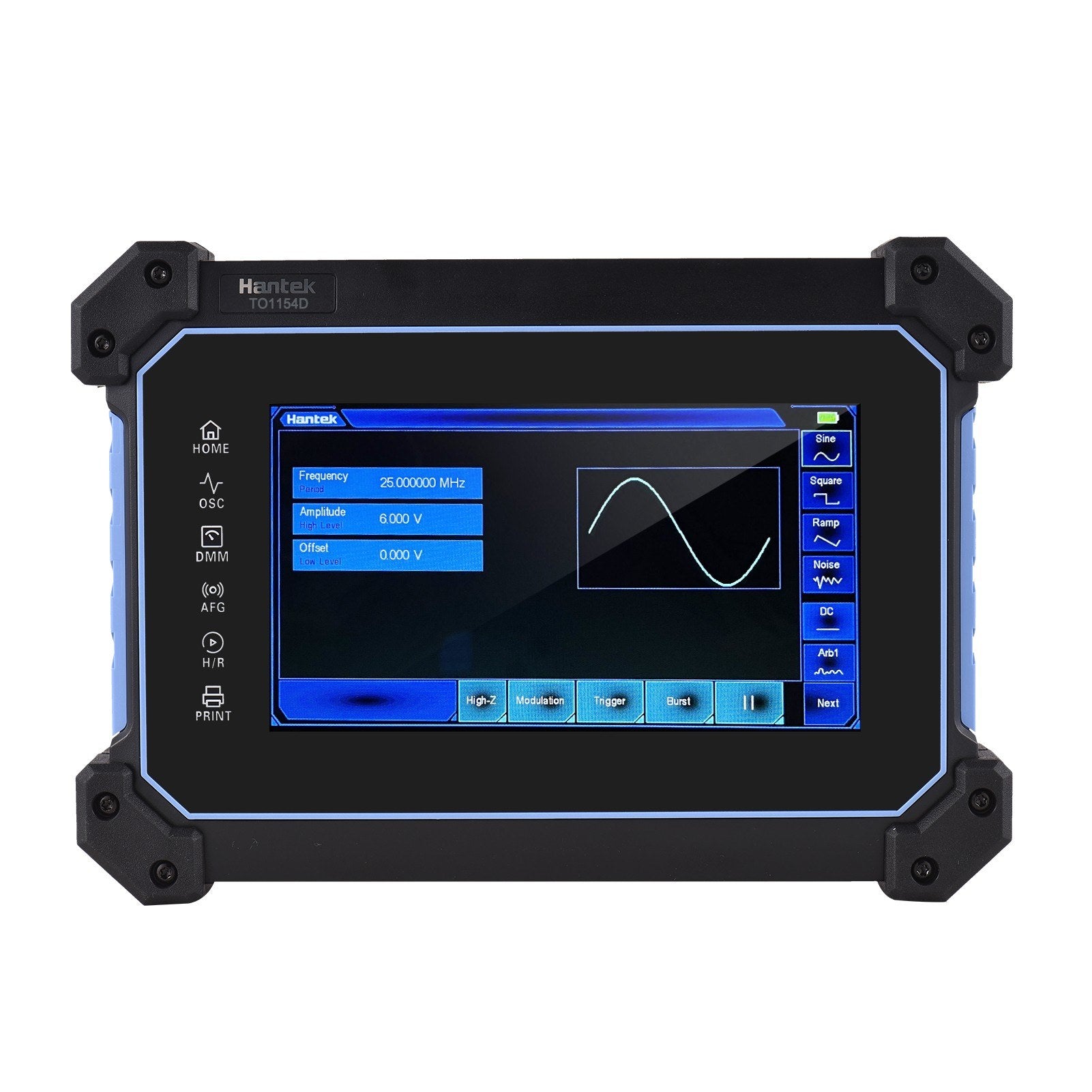

• Versatile Waveform Generator: 25MHz output, 12-bit resolution, 200MSa/s sample rate, supports AM/FM modulation.

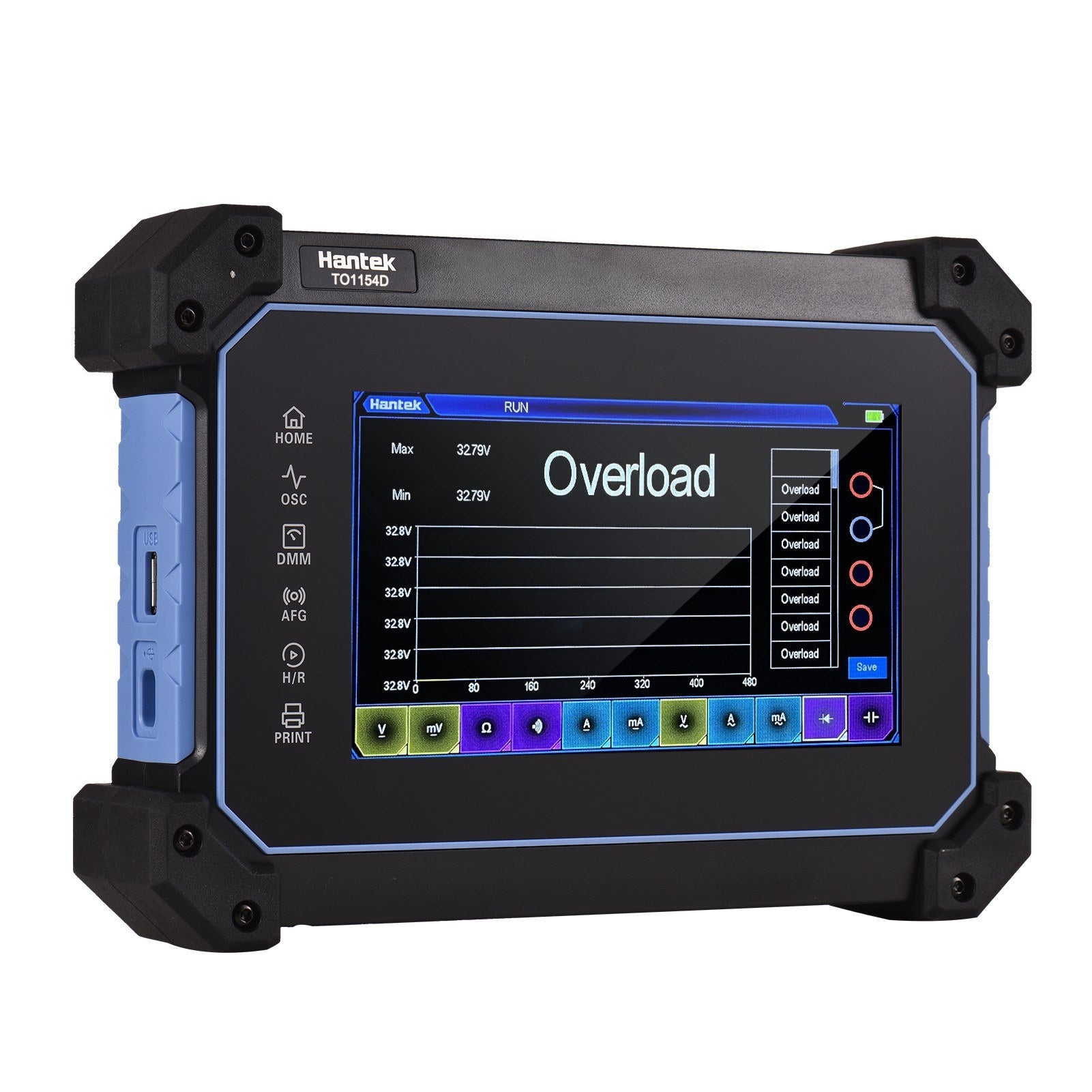

• Precision Multimeter: Measures AC/DC voltage and current, resistance, capacitance, diode, and continuity.
• 7" TFT LCD Display: Clear 800×480 resolution for easy waveform and measurement reading.

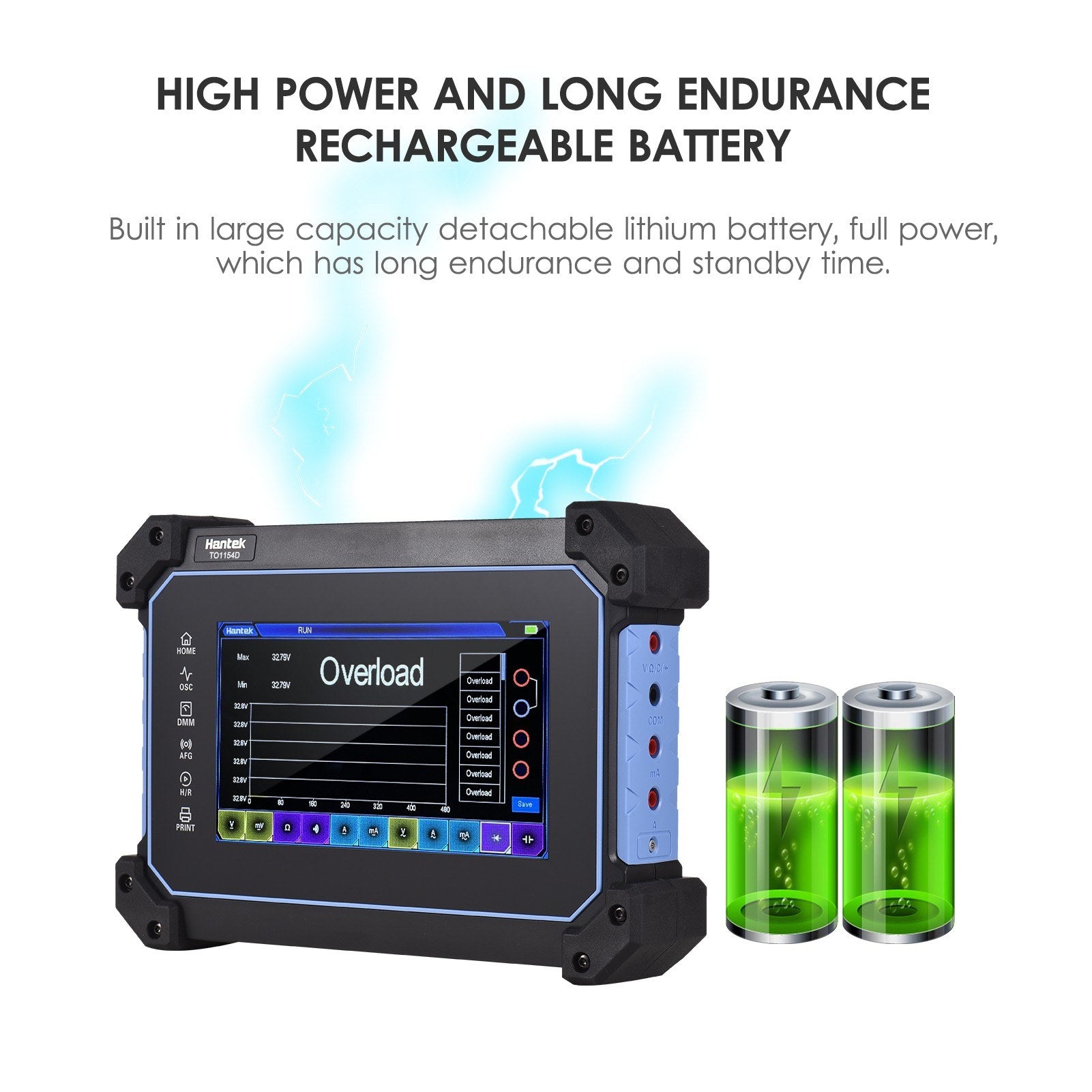

• Long Battery Life: High-capacity lithium battery with fast charging support.

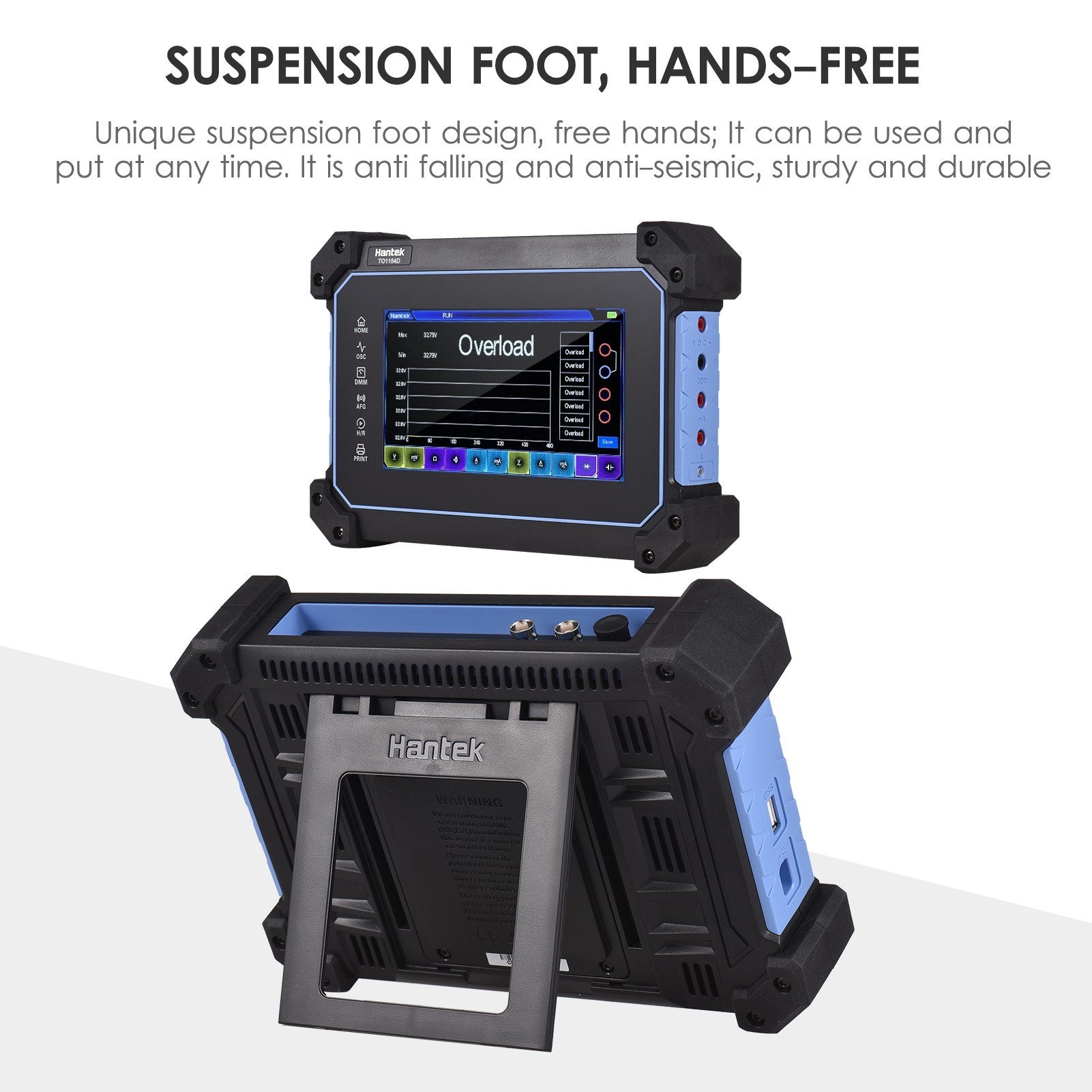

• Hands-Free Operation: Equipped with a sturdy suspension stand for convenient usage.

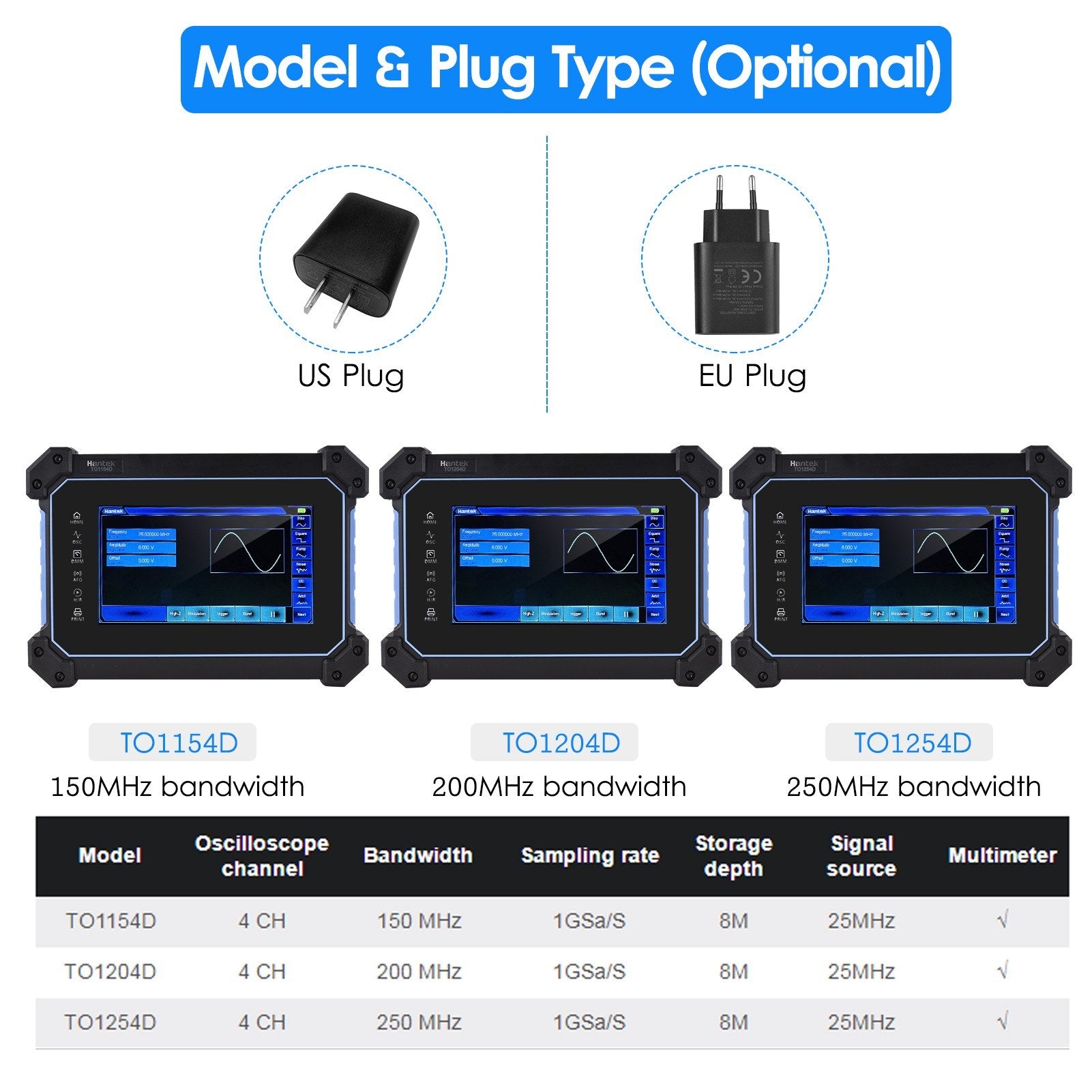

Model Options

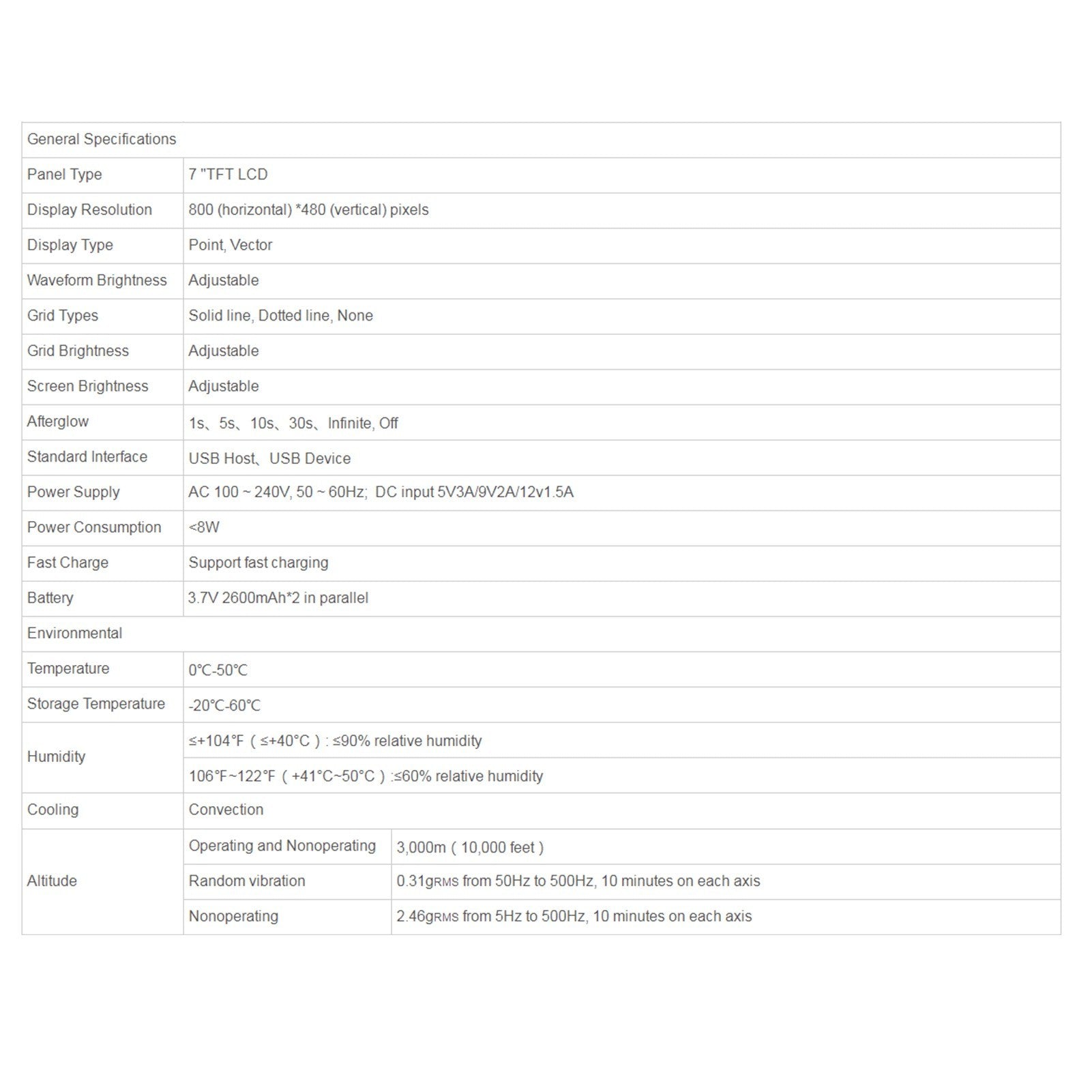

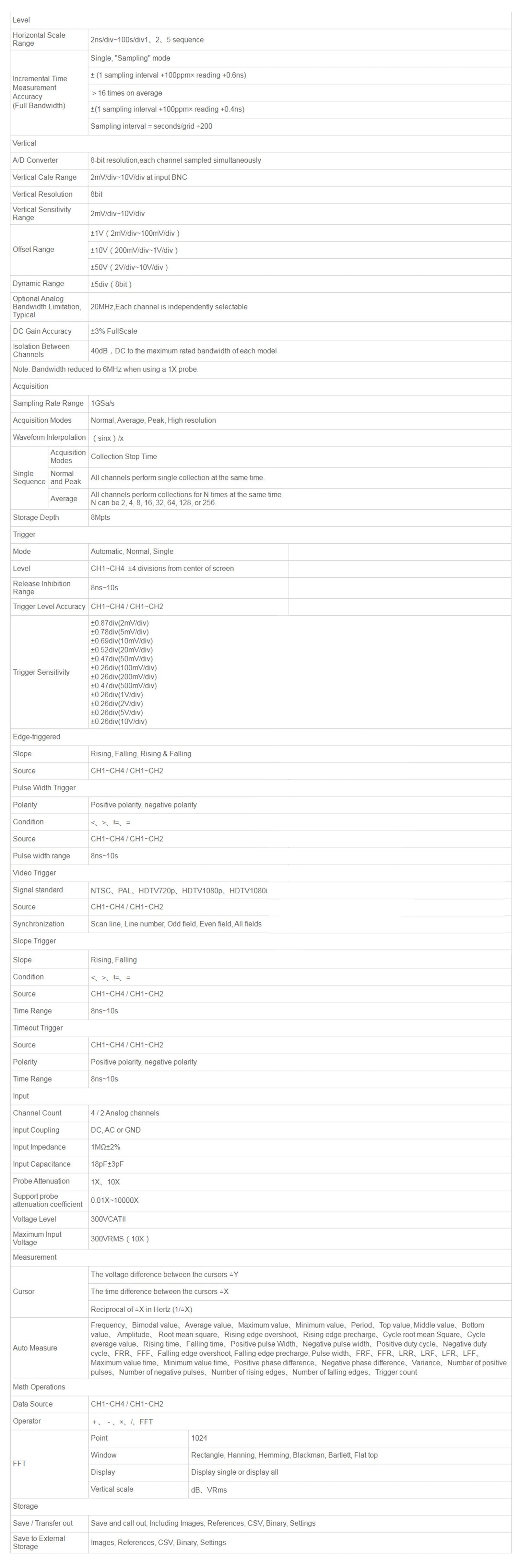

Specifications

• Oscilloscope: Up to 4 channels (model dependent), 1GSa/s sampling rate, 8Mpts memory depth.

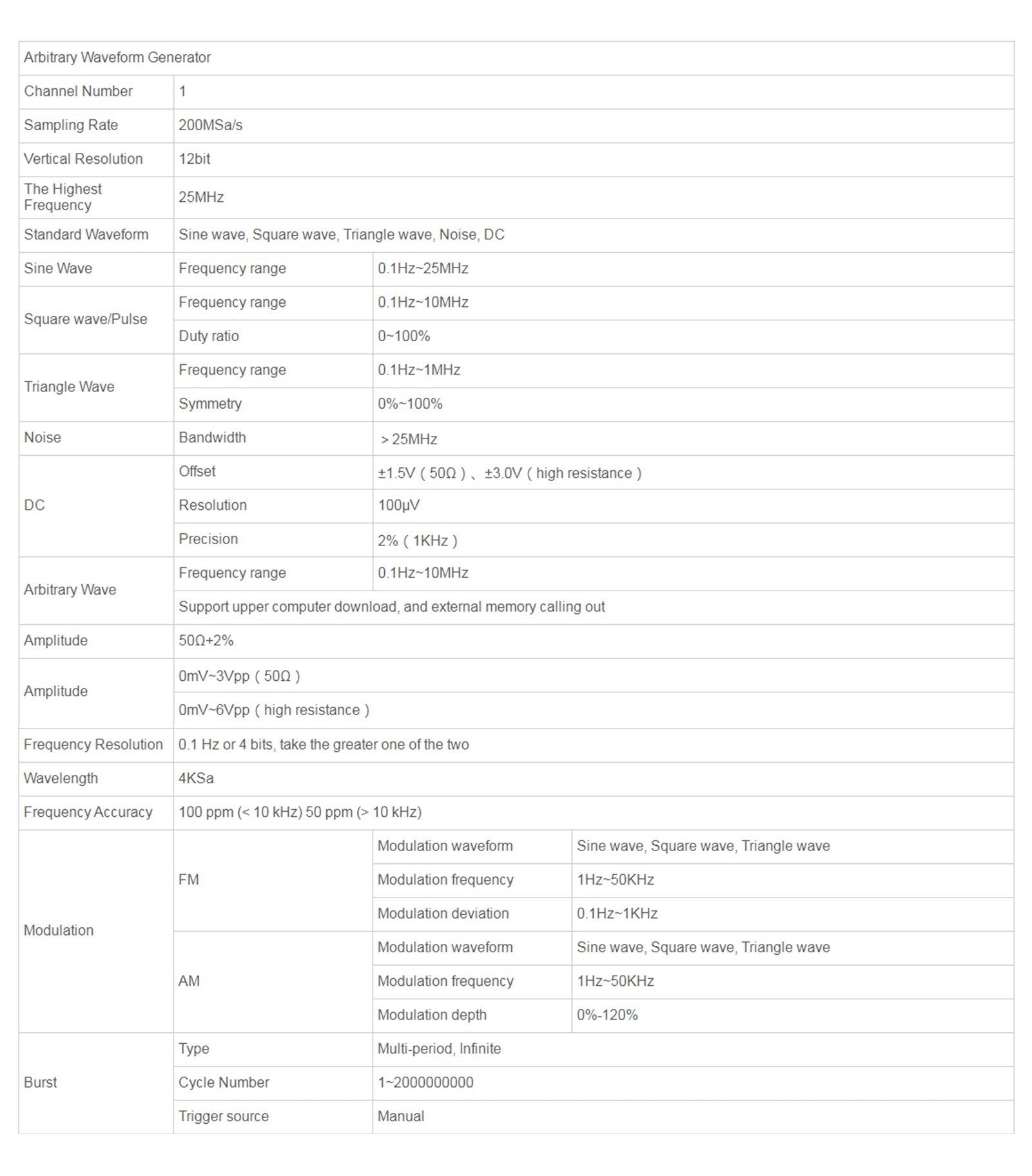

• Signal Generator: 1 channel, 200MSa/s, 12-bit, up to 25MHz frequency output.

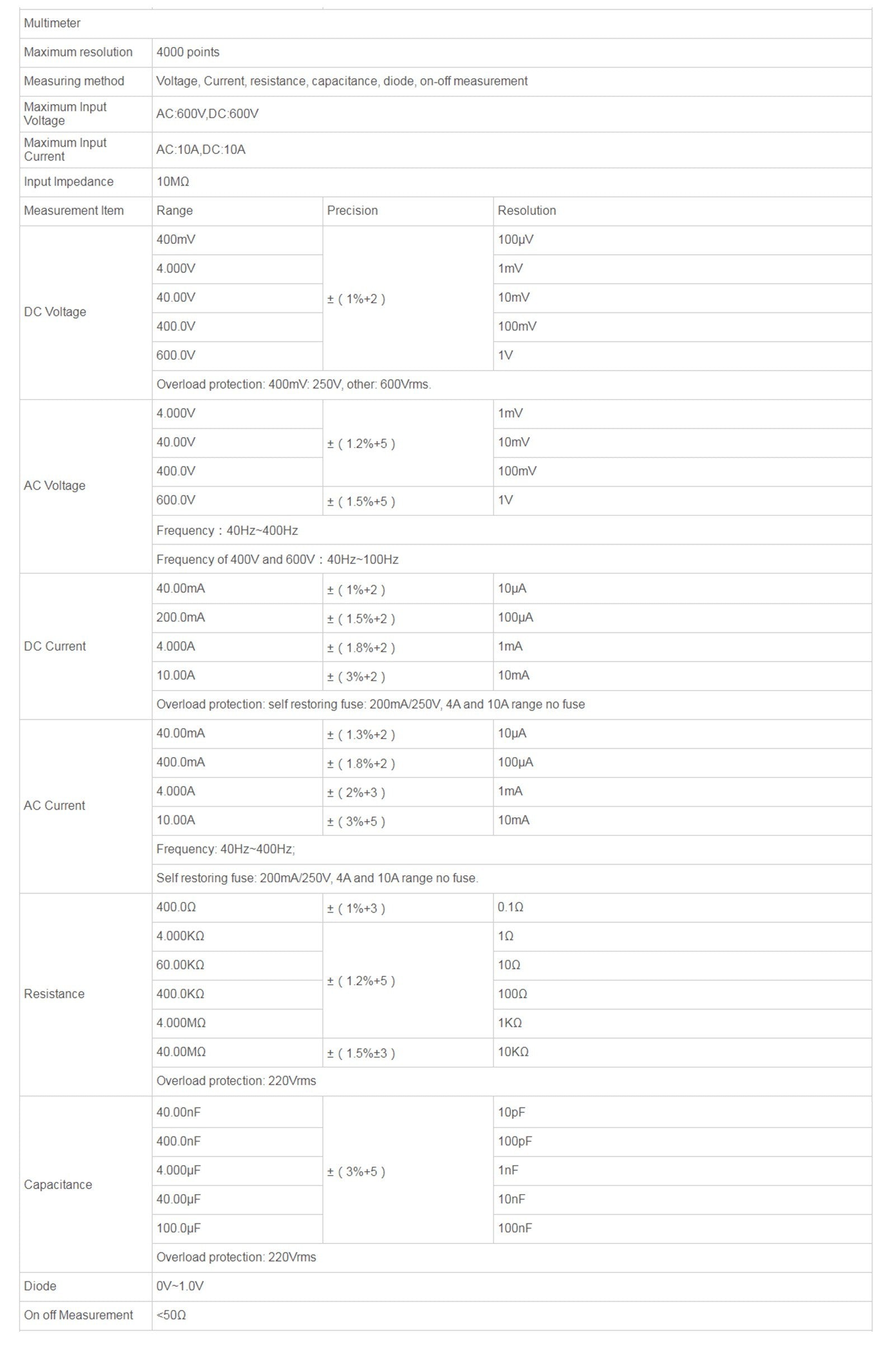

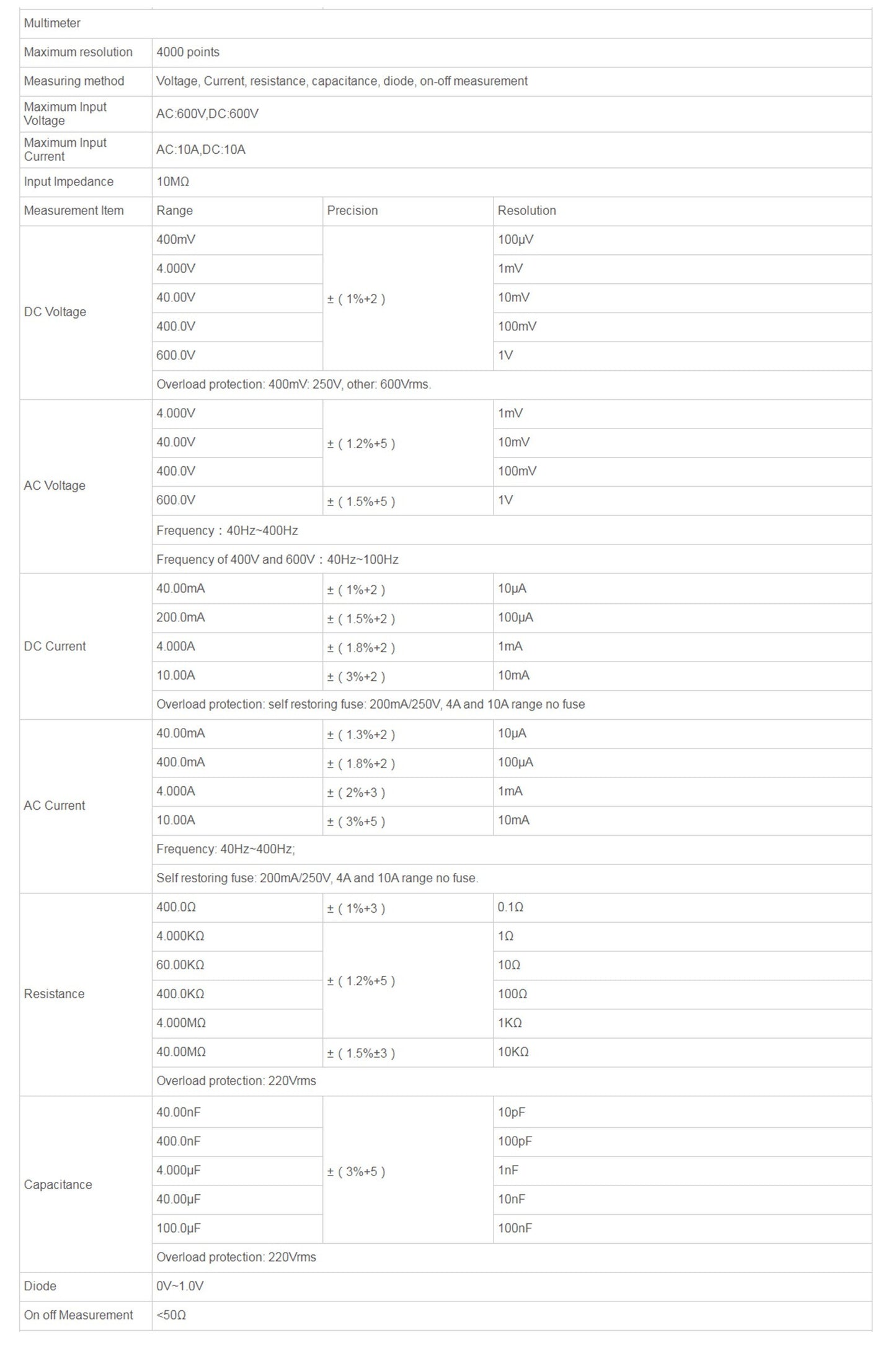

• Multimeter: 4000 count resolution, supports voltage, current, resistance, capacitance, diode, and continuity testing.
• Display: 7" TFT LCD, 800×480 resolution.
• Power: AC 100–240V 50/60Hz, DC fast charging supported.
• Battery: 3.7V 2600mAh × 4 (parallel).
• Operating Temperature: 0–50°C.

Size & Weight

• Device Size: 248 × 176 × 54 mm / 9.76 × 6.93 × 2.13 in
• Device Weight: 1182 g / 2.61 lb
• Package Size: 31.5 × 23.5 × 10.5 cm / 12.40 × 9.25 × 4.13 in
• Package Weight: 2193 g / 4.84 lb

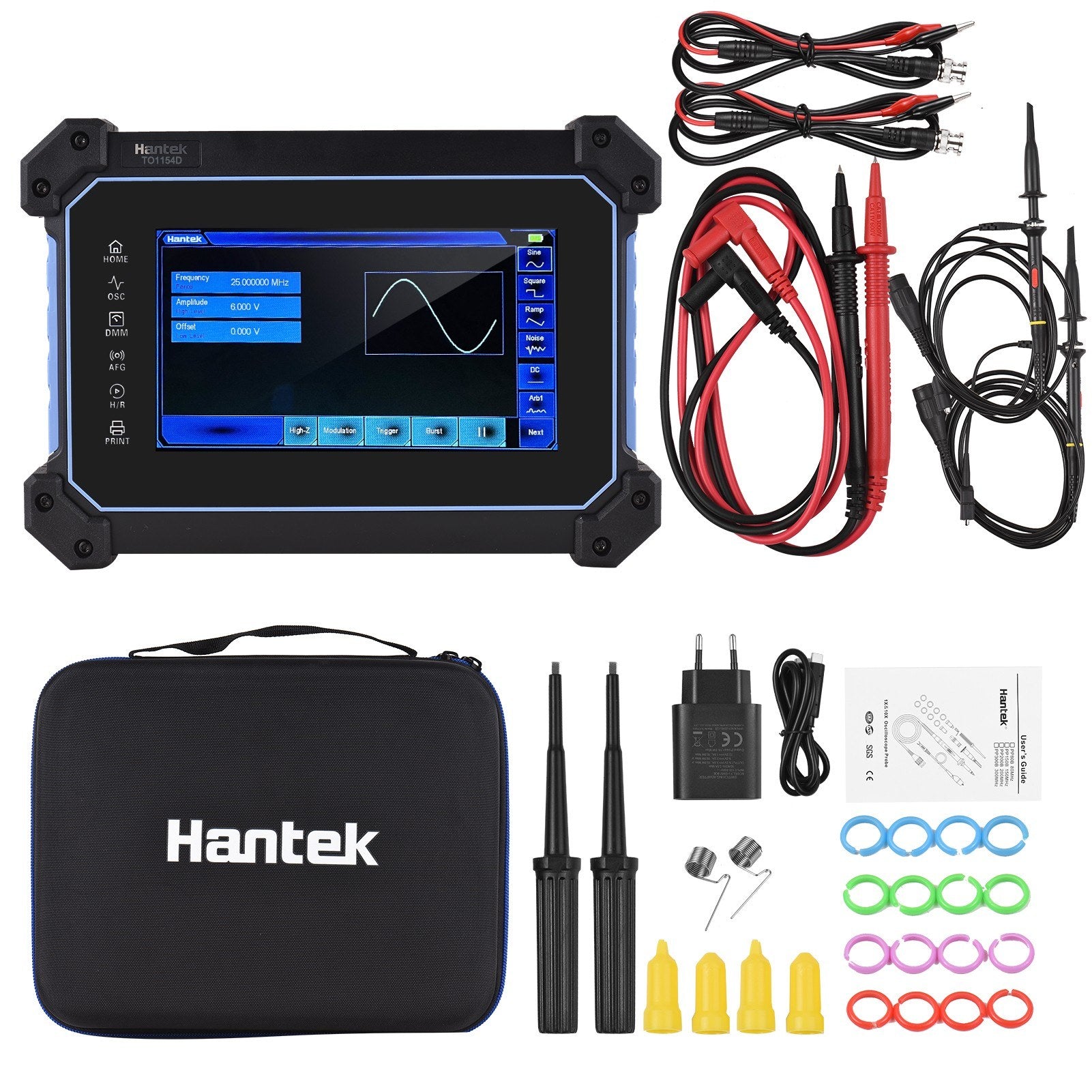

Package Includes

• 1 × Digital Oscilloscope (Model as selected)
• 2 × 1X/10X Oscilloscope Probes
• 2 × Multimeter Test Leads
• 2 × Alligator Clip Wires
• 1 × Type-C Cable
• 1 × Power Adapter
• Accessory Kits
• 1 × Zipper Storage Case
