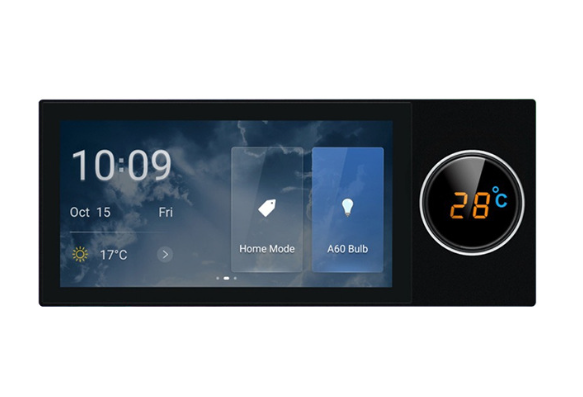

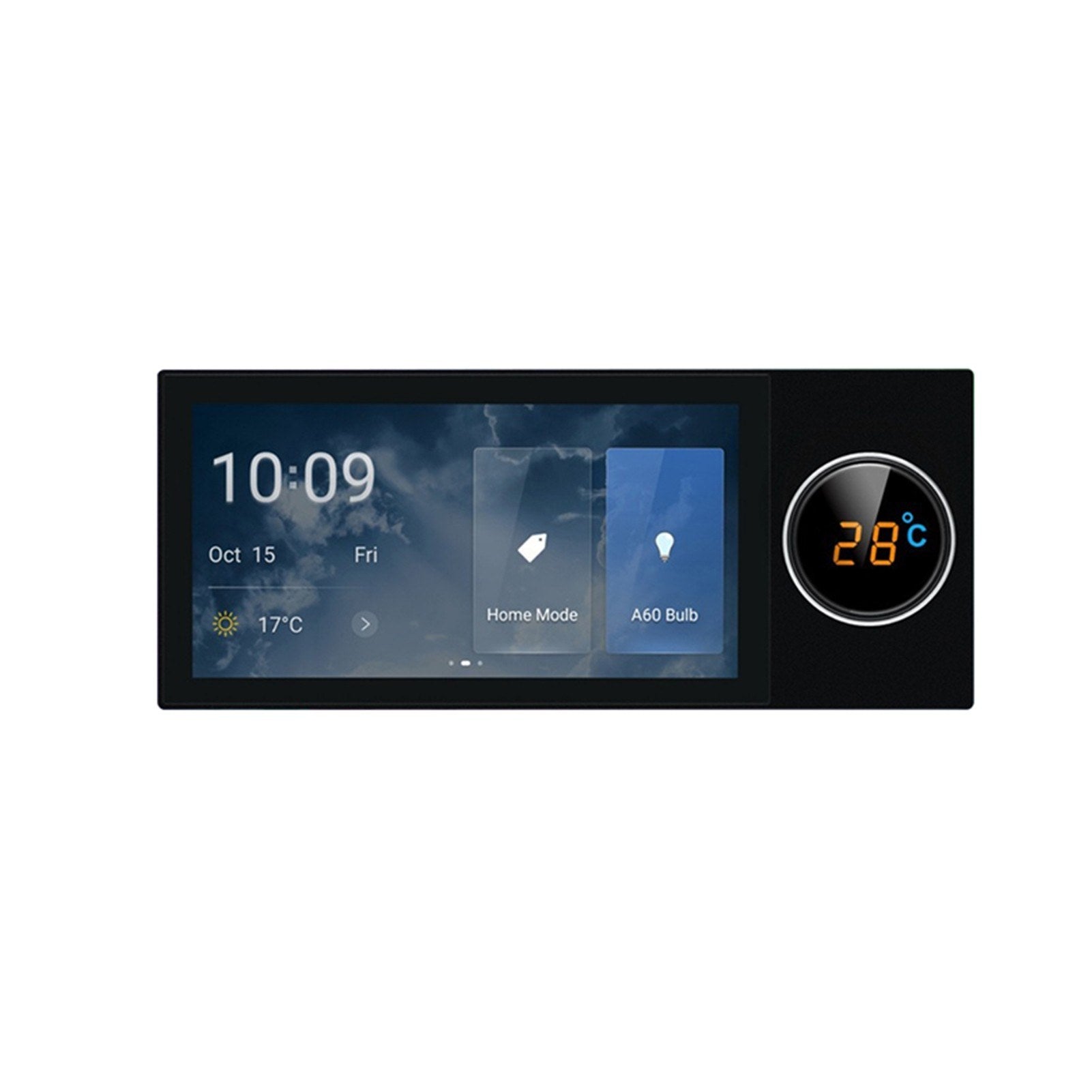

8-Inch Smart Home Control Panel with Touchscreen & Rotary Knob
The F6 Smart Central Control Panel is an 8-inch wall-mounted smart home controller designed to bring device management, scene automation, scheduling, and gateway functions into a single interface.
It combines a large IPS touchscreen with a physical rotary control knob, providing a convenient way to operate compatible smart home devices. The panel supports Tuya devices and Zigbee-based smart home applications, making it suitable for centralized control of lighting, appliances, scenes, and other connected devices.
Two versions are available: a Relay Control Version for direct relay-based appliance control and a Music Player Version with integrated audio playback functions.
Key Features
- 8-Inch IPS Touchscreen: Large 1440 × 720 display provides a clear interface for smart home control and device management.

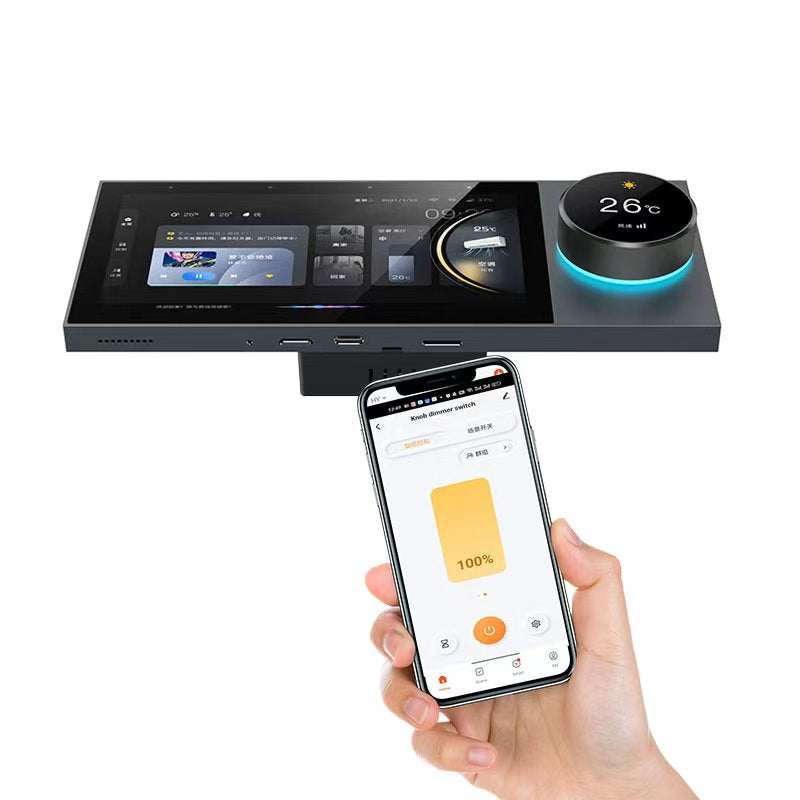

- Touchscreen + Rotary Knob: Combines touch operation with a physical rotary controller for convenient adjustment and navigation.

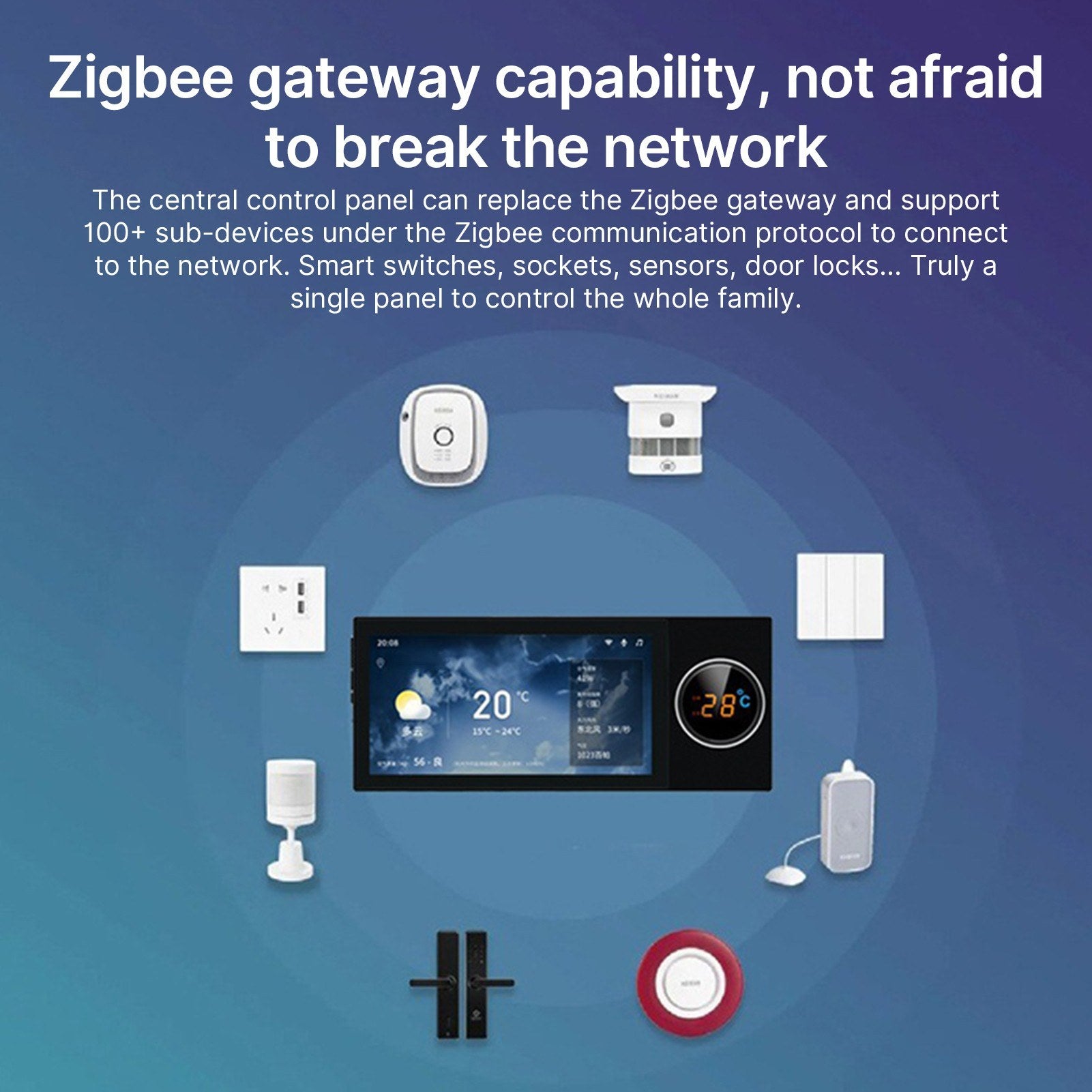

- Smart Home Integration: Designed to work with compatible Tuya devices and Zigbee smart home systems.

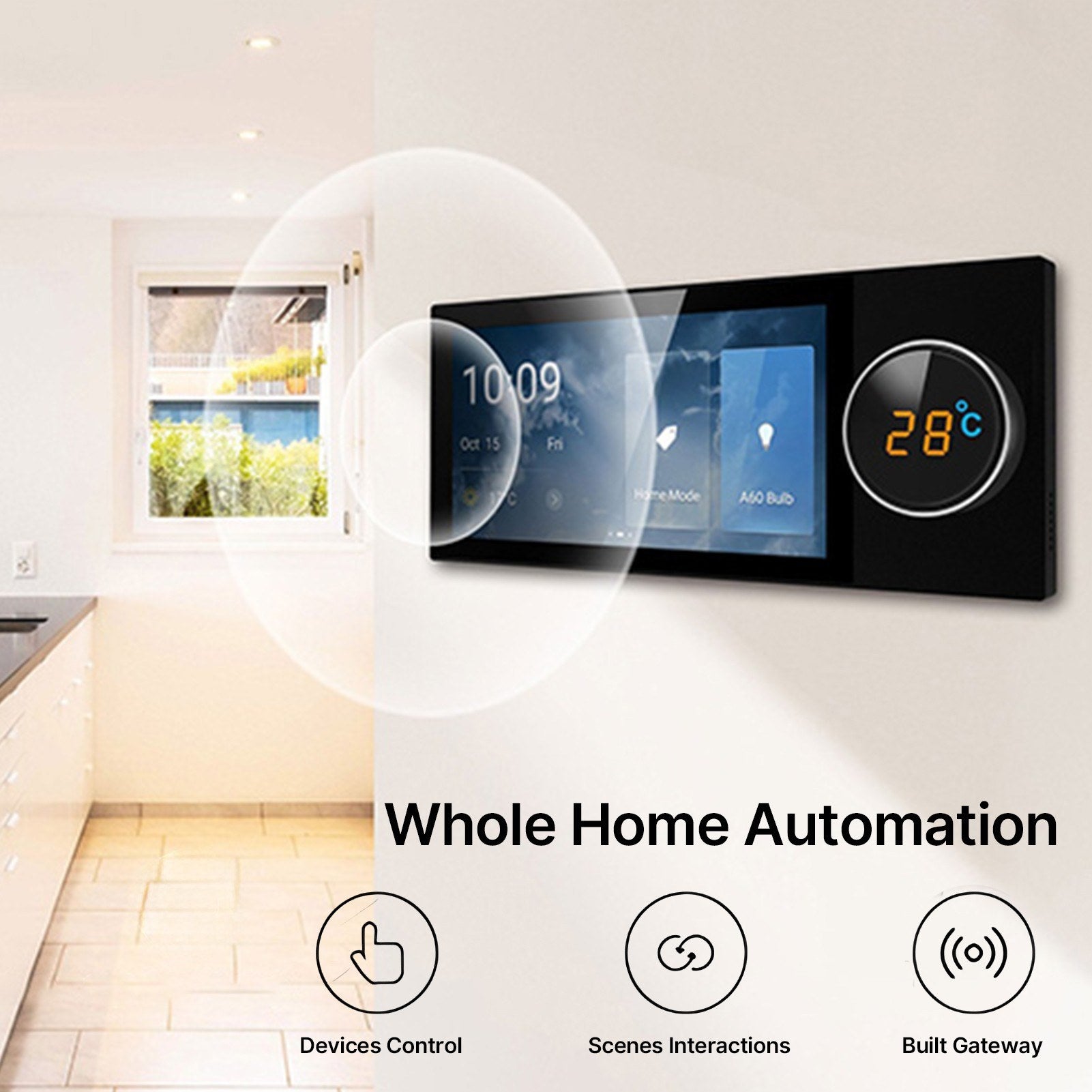

- Scene & Automation Control: Supports centralized operation of connected devices, scenes, and scheduled functions.

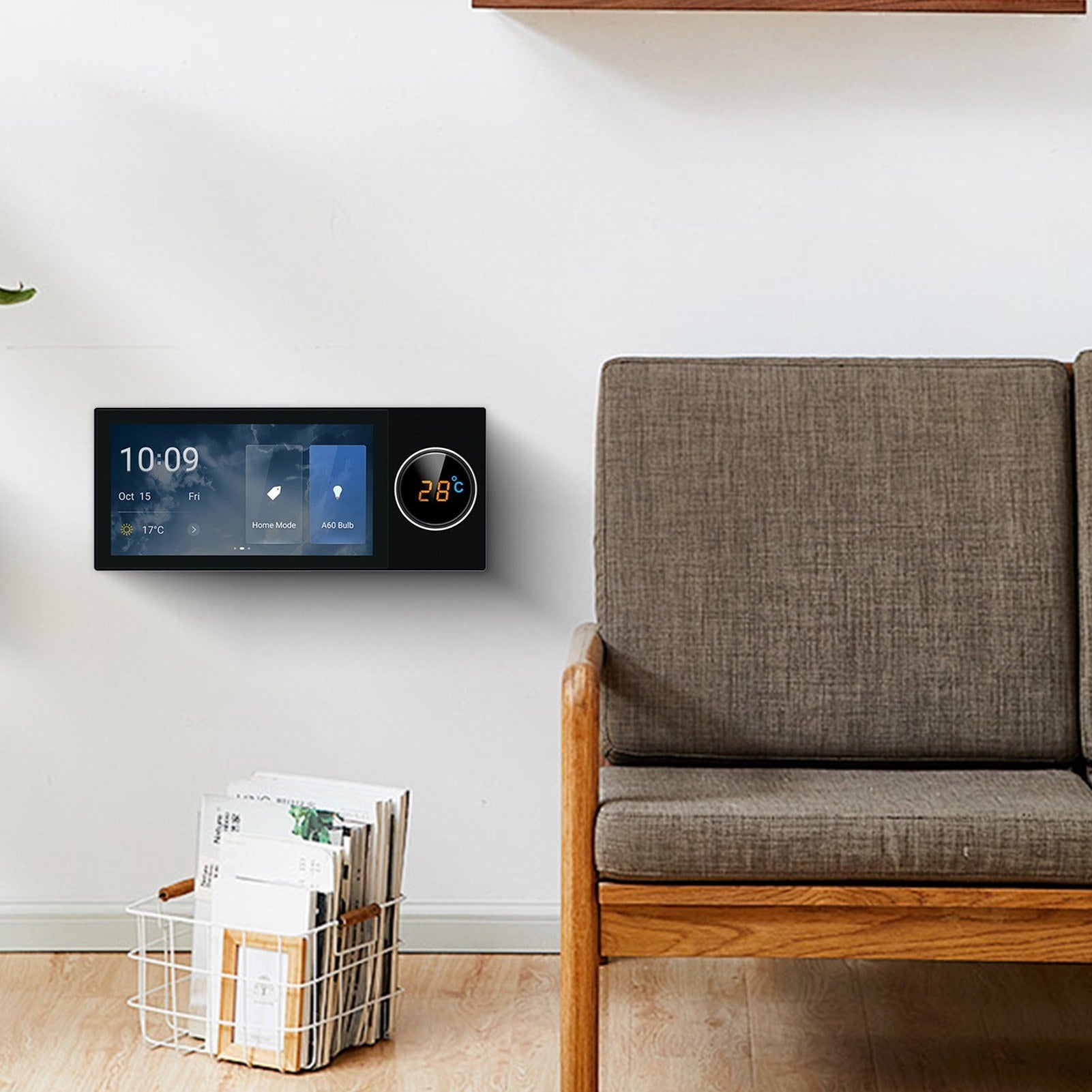

- Wall-Mounted Design: Designed for permanent installation on a wall with the included mounting accessories and wire box.

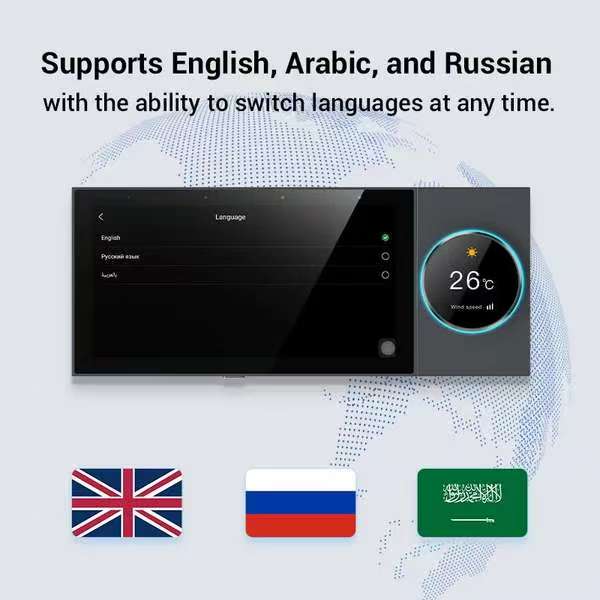

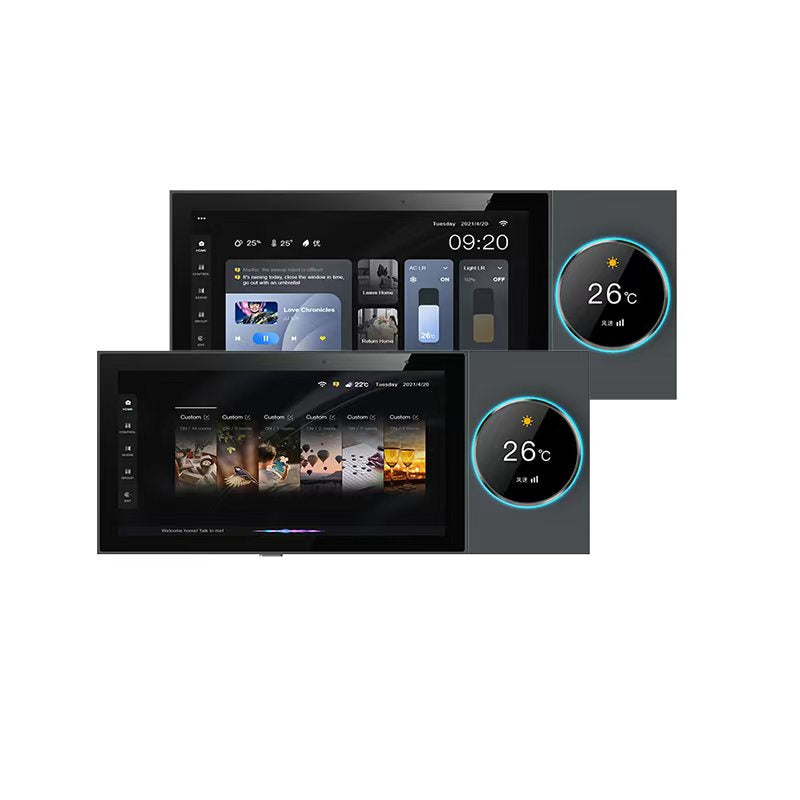

- Customizable Interface: Supports functions such as wallpaper replacement and personalized control interfaces.
- Network Connectivity: Supports 2.4GHz WiFi, Ethernet, and Bluetooth 4.0.
- Android Platform: Runs on Android 8.1 with a quad-core processor, 2GB RAM, and 8GB storage.
Available Versions

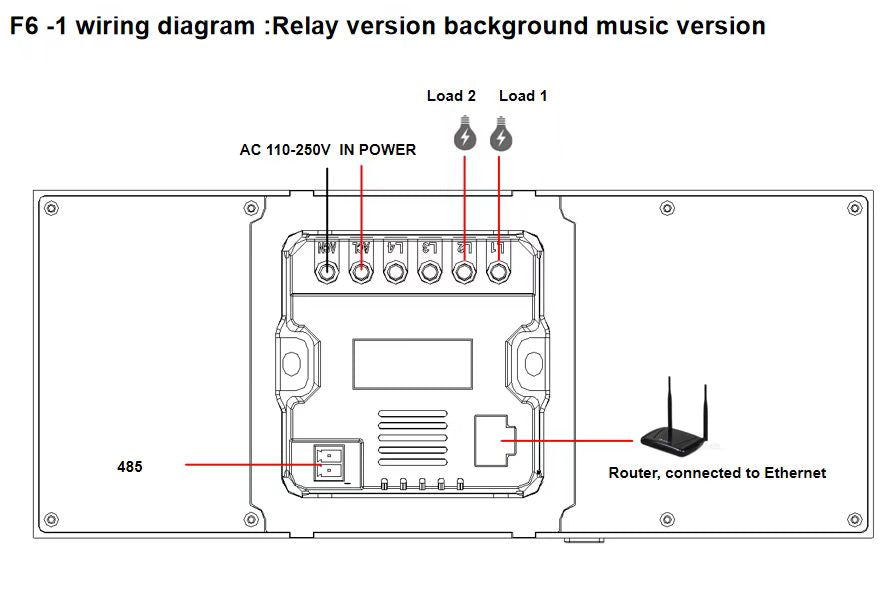

Relay Control Version
The Relay Version is designed for applications requiring direct switching control. It provides two relay output channels rated at up to 200W per channel, making it suitable for compatible lighting and low-power electrical appliances.
- 2-way relay output
- Up to 200W per channel
- External 8Ω speaker connection
- Suitable for smart lighting and appliance control

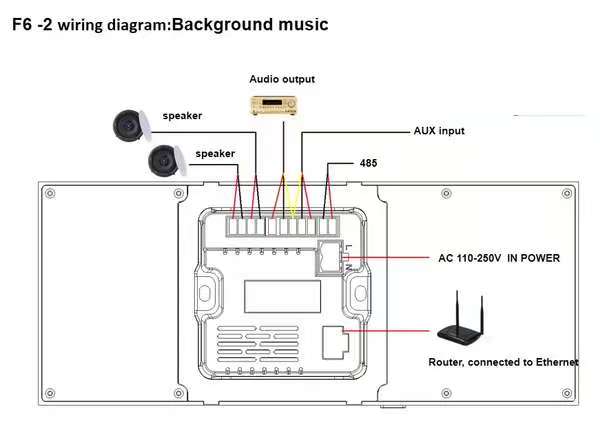

Music Player Version
The Music Player Version adds audio playback functionality while retaining the smart home control features. Music can be played through supported USB storage, TF cards, Bluetooth, or compatible applications.
- Music playback functionality
- USB/U-disk support
- TF card support
- Bluetooth audio support
- App-based playback support
- Built-in speaker with external speaker support
Technical Specifications
| Specification | Details |
|---|---|
| Product Type | Smart Home Central Control Panel |
| Main Display | 8-inch IPS touchscreen |
| Display Resolution | 1440 × 720 |
| Secondary Display | 1.28-inch circular IPS, 240 × 240 |
| Operating System | Android 8.1 |
| CPU | Quad-core Cortex-A35, 1.5GHz |
| RAM | 2GB |
| Storage | 8GB |
| WiFi | 2.4GHz |
| Ethernet | Supported |
| Bluetooth | Bluetooth 4.0 |
| TF Card | Up to 32GB |
| USB | Up to 32GB |

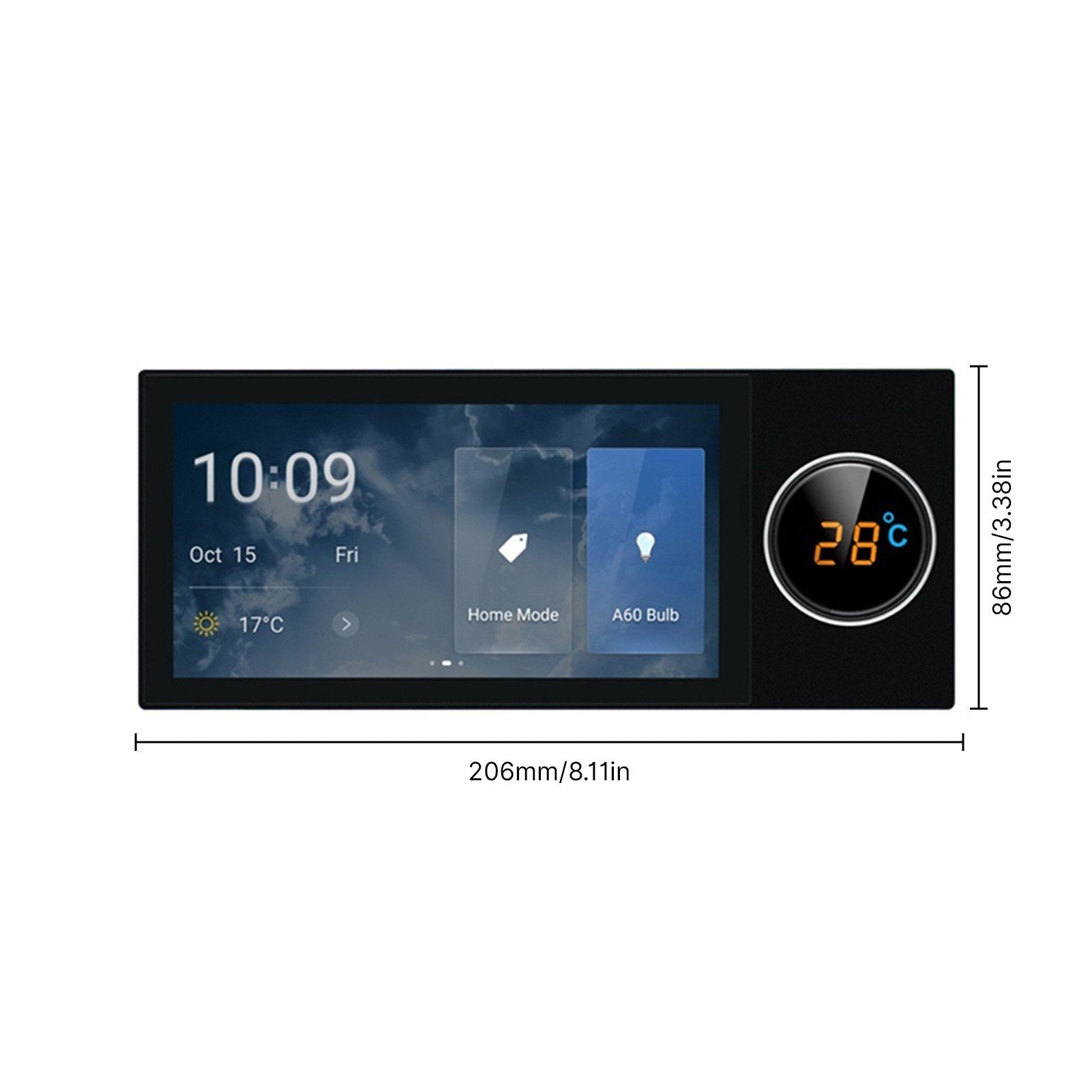

| Dimensions | 208 × 86 × 10.5 mm |
| Weight | Approximately 0.38 kg |
Version Comparison
| Feature | Relay Control Version | Music Player Version |
|---|---|---|
| 8-Inch Touchscreen | Yes | Yes |
| Rotary Knob | Yes | Yes |
| Tuya Compatibility | Yes | Yes |
| Zigbee Support | Yes | Yes |
| Relay Output | 2 channels, up to 200W/channel | No |
| Music Playback | No | Yes |
| USB / TF Music Playback | No | Yes |
| Bluetooth Audio | No | Yes |
| Speaker | External 8Ω speaker | Built-in + external support |

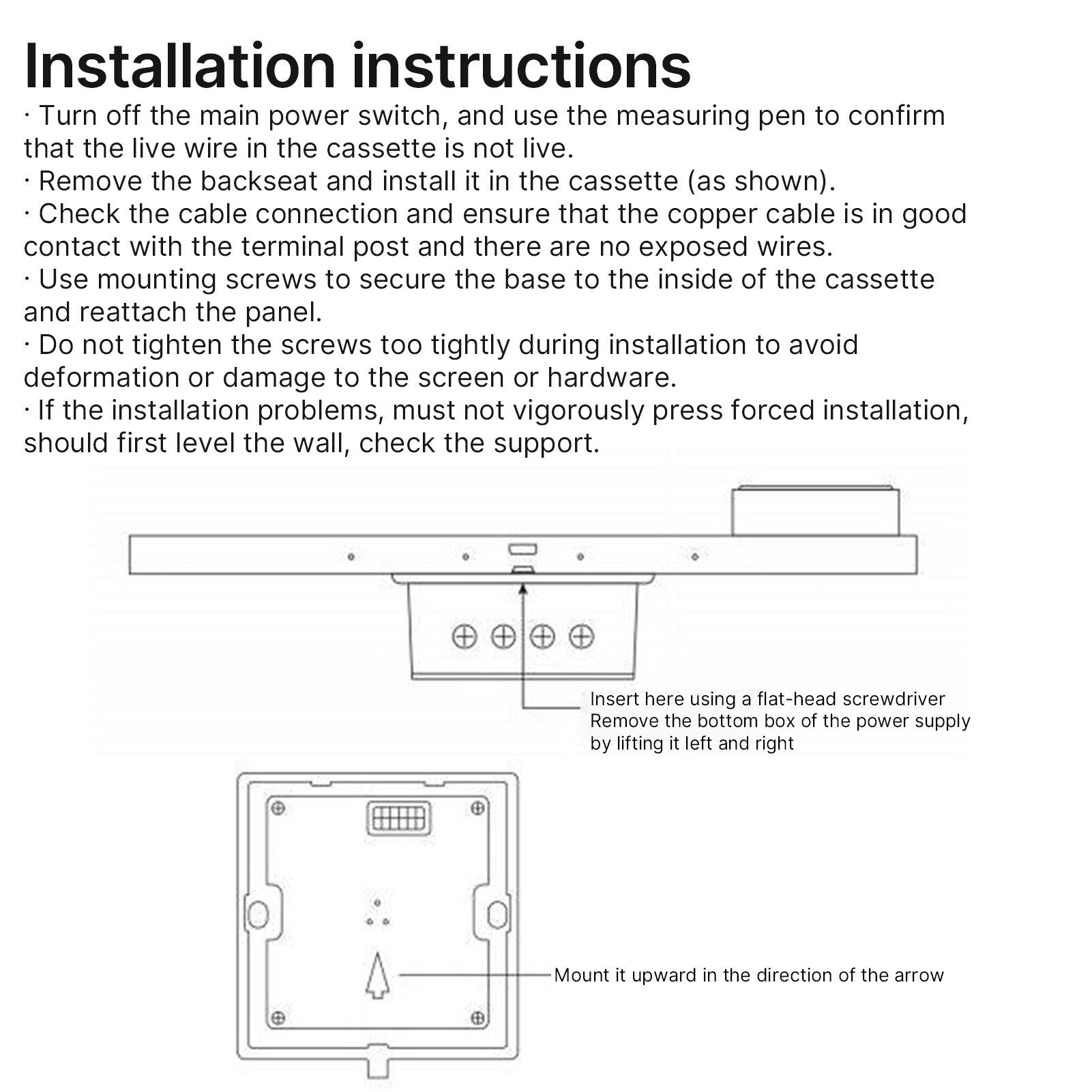

Installation

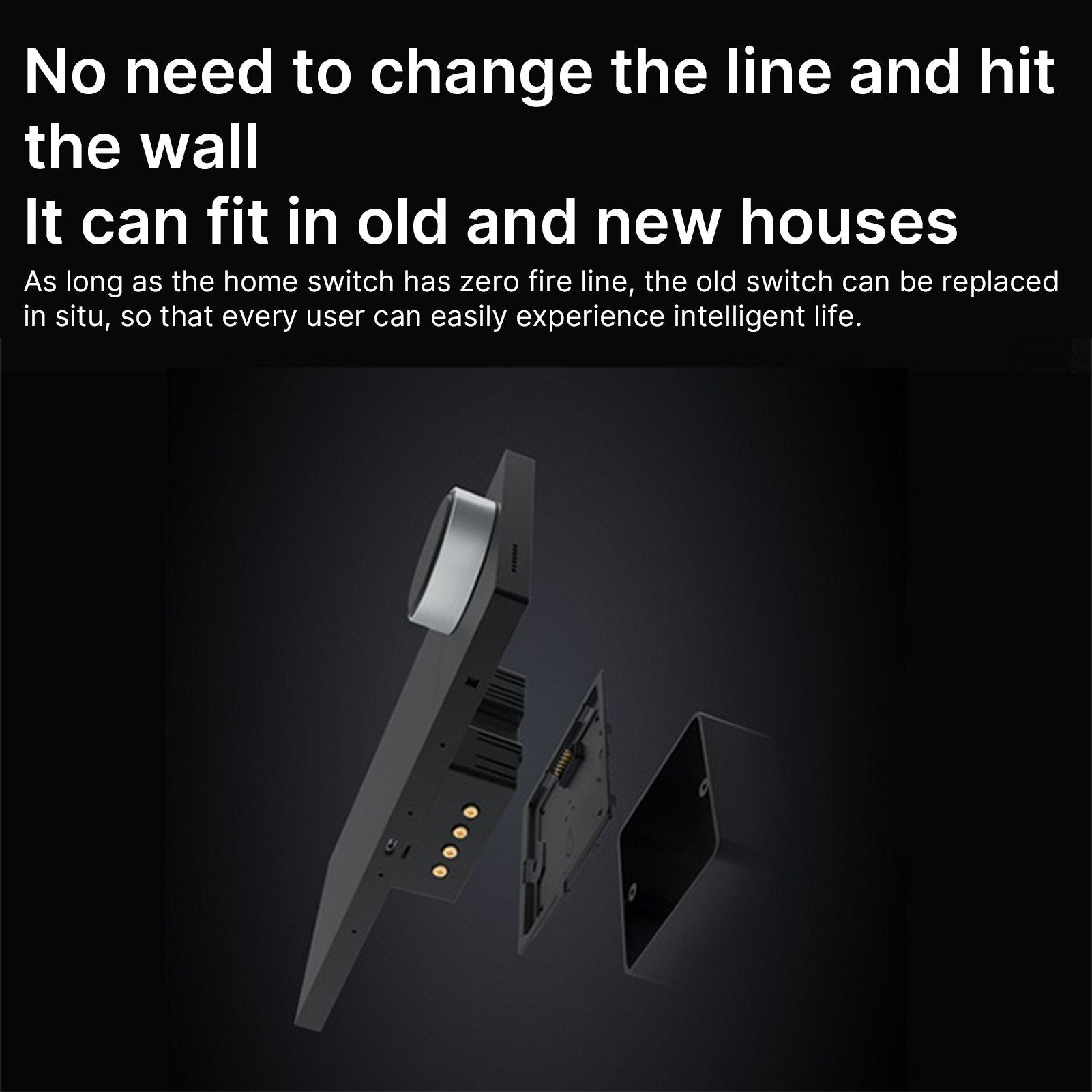

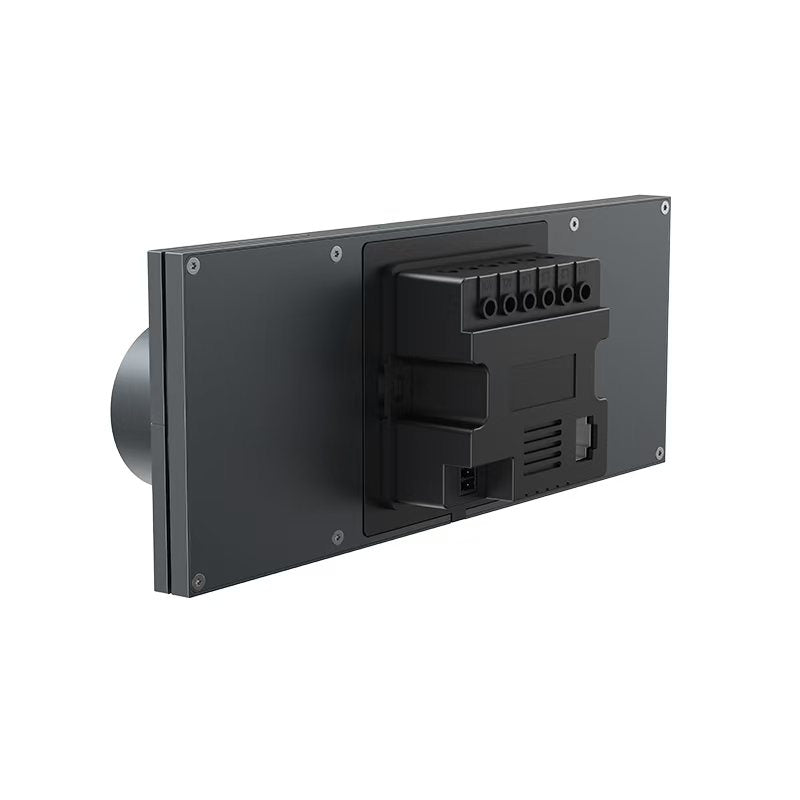

The panel is designed for wall-mounted installation and comes with a wire box, mounting holder, screws, and other required mounting accessories. Its slim enclosure is suitable for installation as a centralized smart home control interface.
Package Contents
- 1 × 8-Inch Smart Home Control Panel
- 1 × Wire Box
- 1 × Mounting Holder
- 1 × Set of Mounting Screws
- 1 × User Manual
- 1 × Color Box
Important Notes
- Please select the correct version according to your intended application: Relay Control Version or Music Player Version.
- Actual smart home functions depend on device compatibility, network configuration, and the applications used.
- The relay output rating should be observed when connecting electrical loads.
- Please verify the installation and wiring requirements before connecting the device to electrical equipment.
