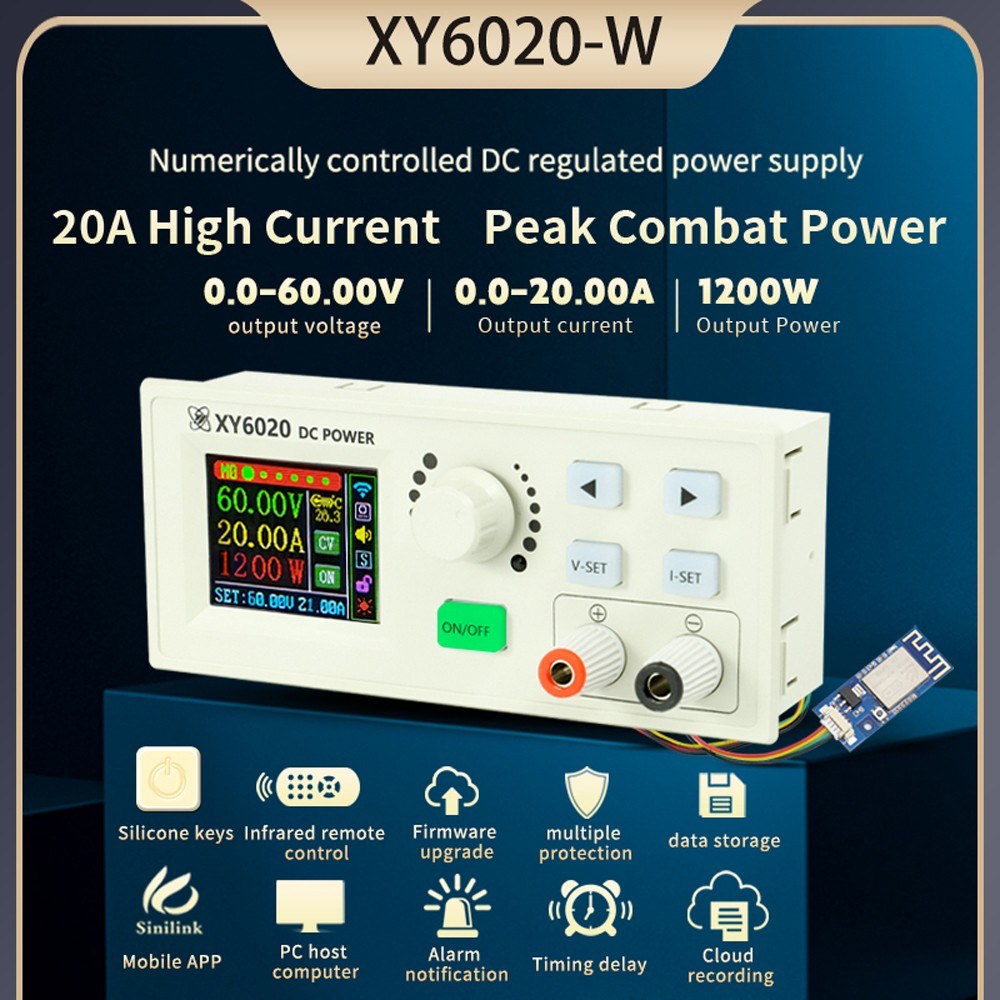

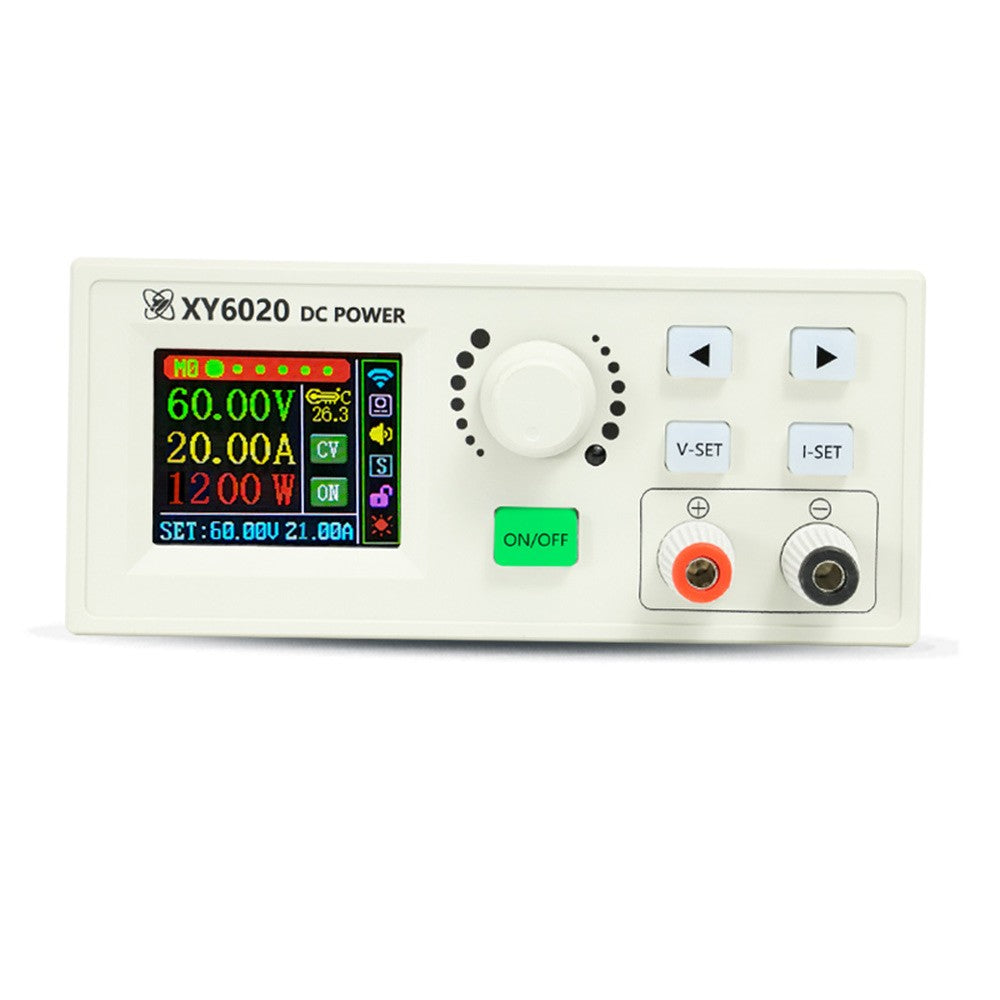

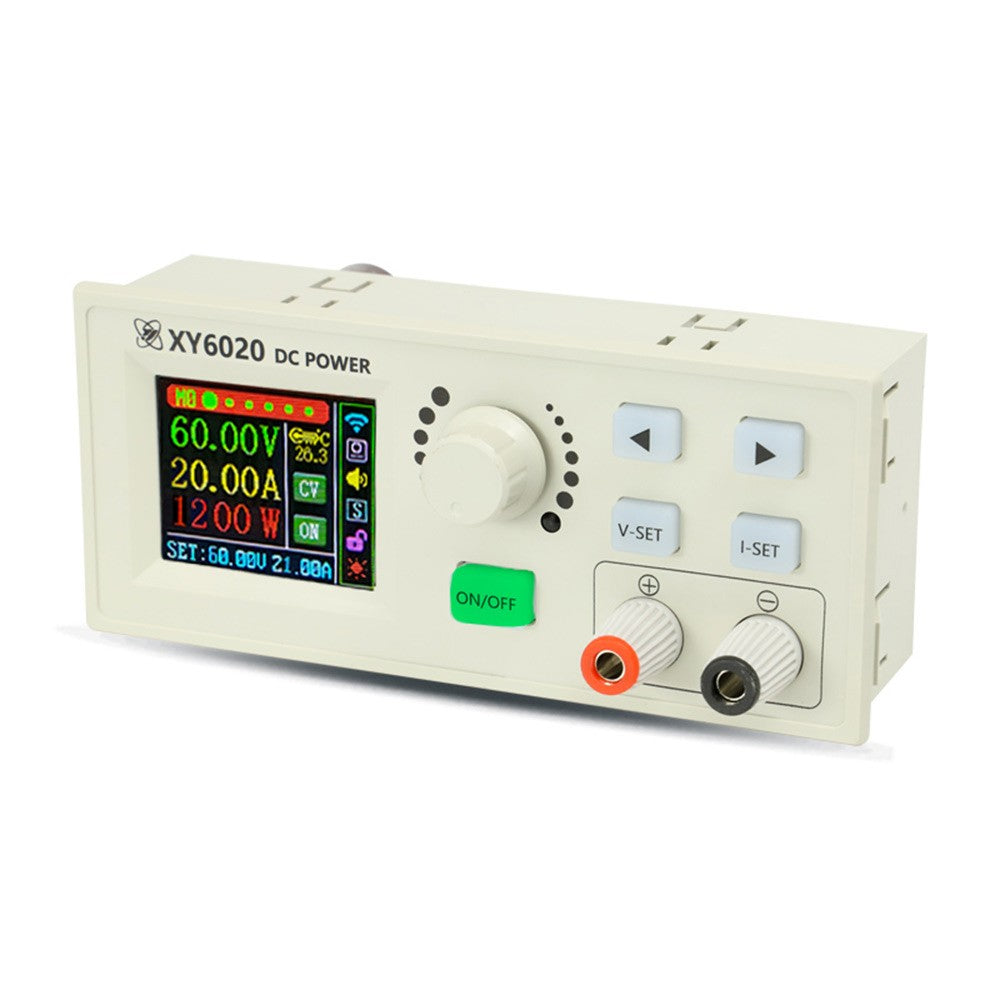

XY6020 1200W 20A DC-DC Buck Converter Power Supply Module with Voltmeter: Adjustable Constant Voltage & Current

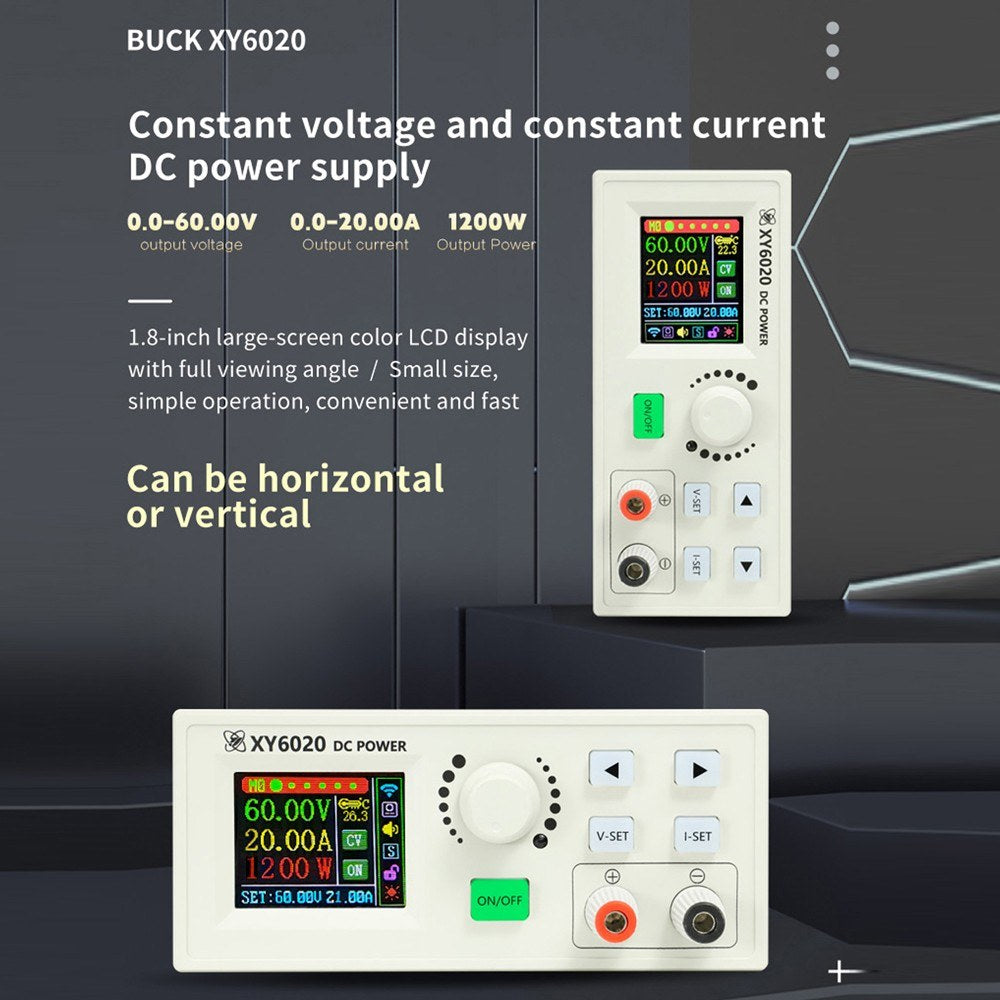

Introducing a high-performance, reliable constant voltage and constant current DC power supply, delivering an impressive 60V output voltage, 20A output current, and 1200W output power. This powerful unit is enhanced with a large 1.8-inch colorful LCD screen, ensuring high brightness and the convenience of displaying multiple pieces of information on one screen.

Features:

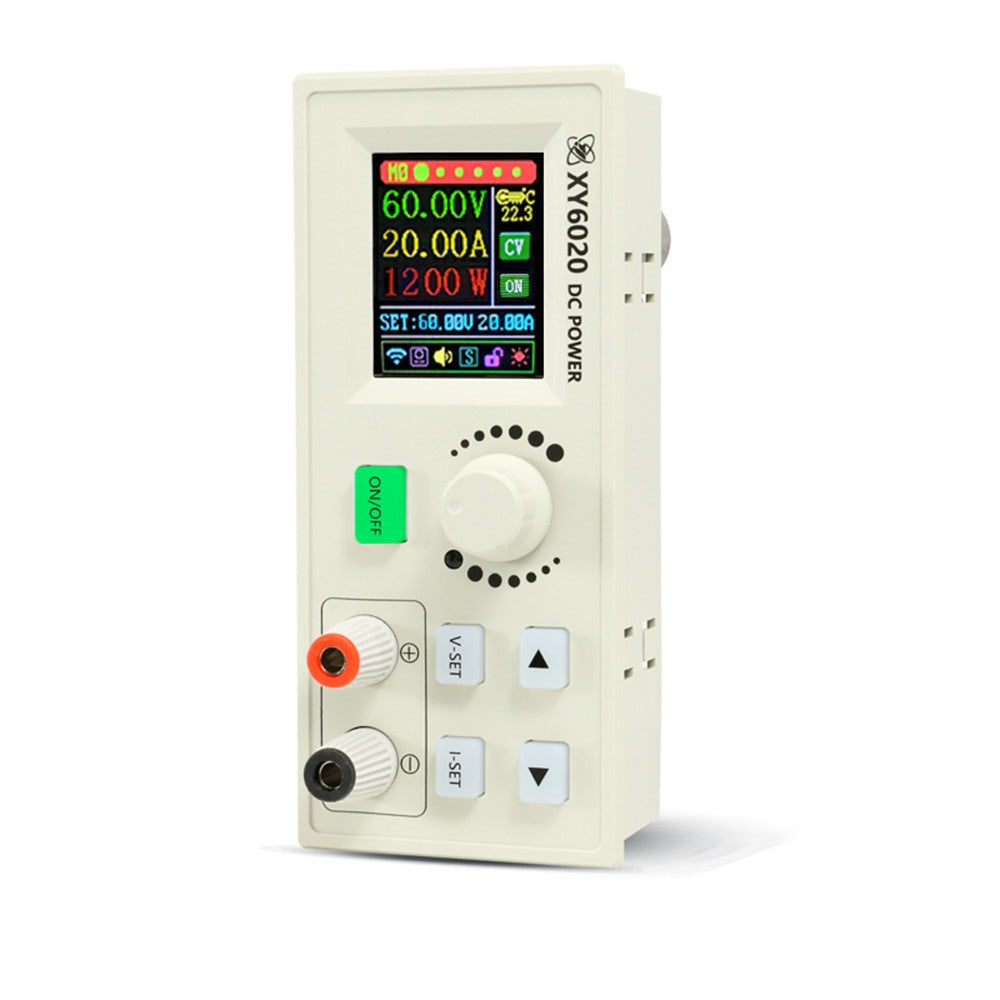

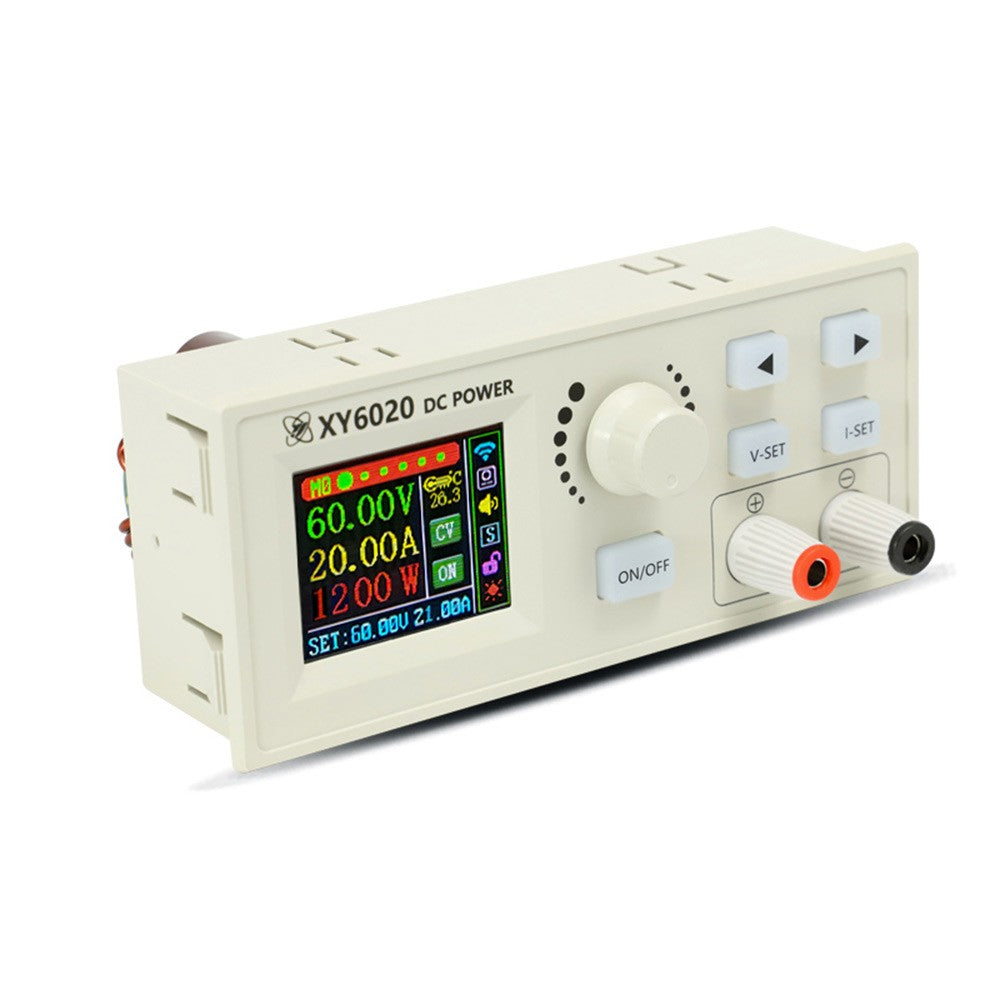

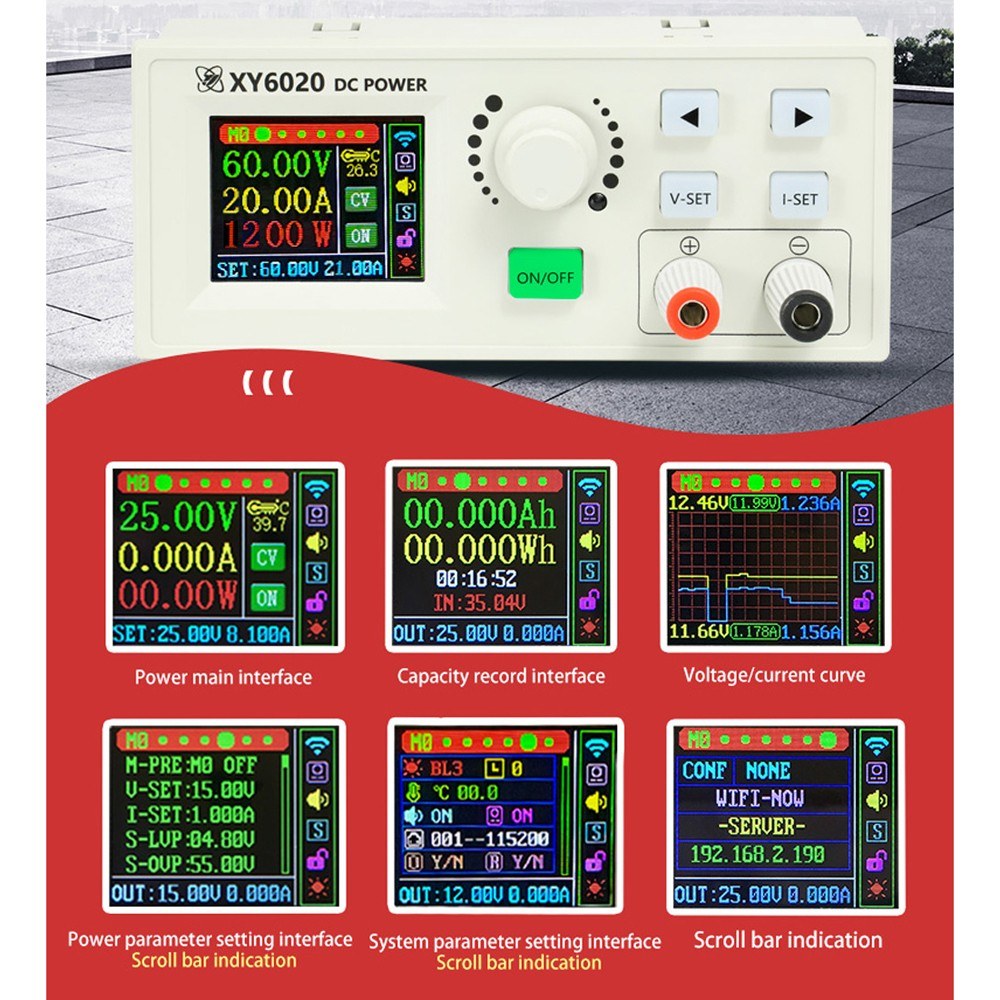

• Adjustable 1.8-inch colorful LCD screen, suitable for both horizontal and vertical viewing.
• Constructed from high-quality materials for enhanced safety.

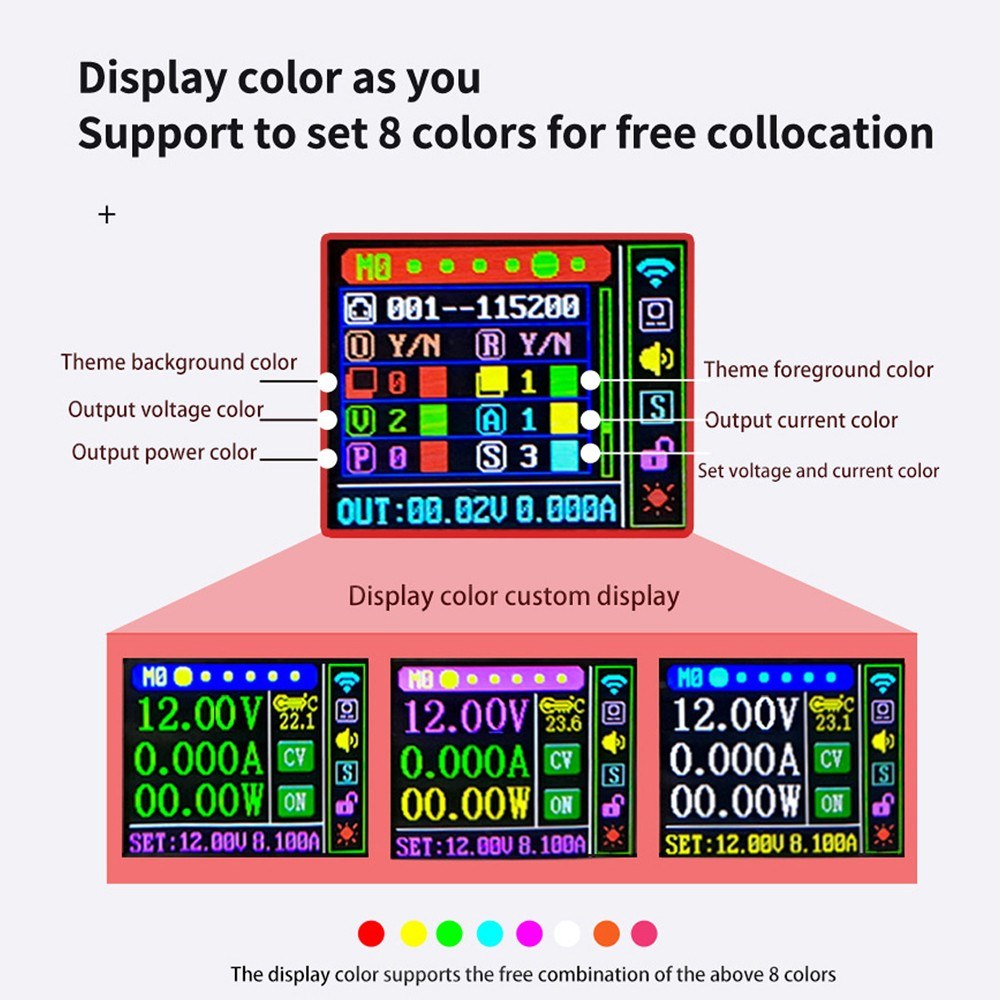

• Choose from 8 customizable display colors.

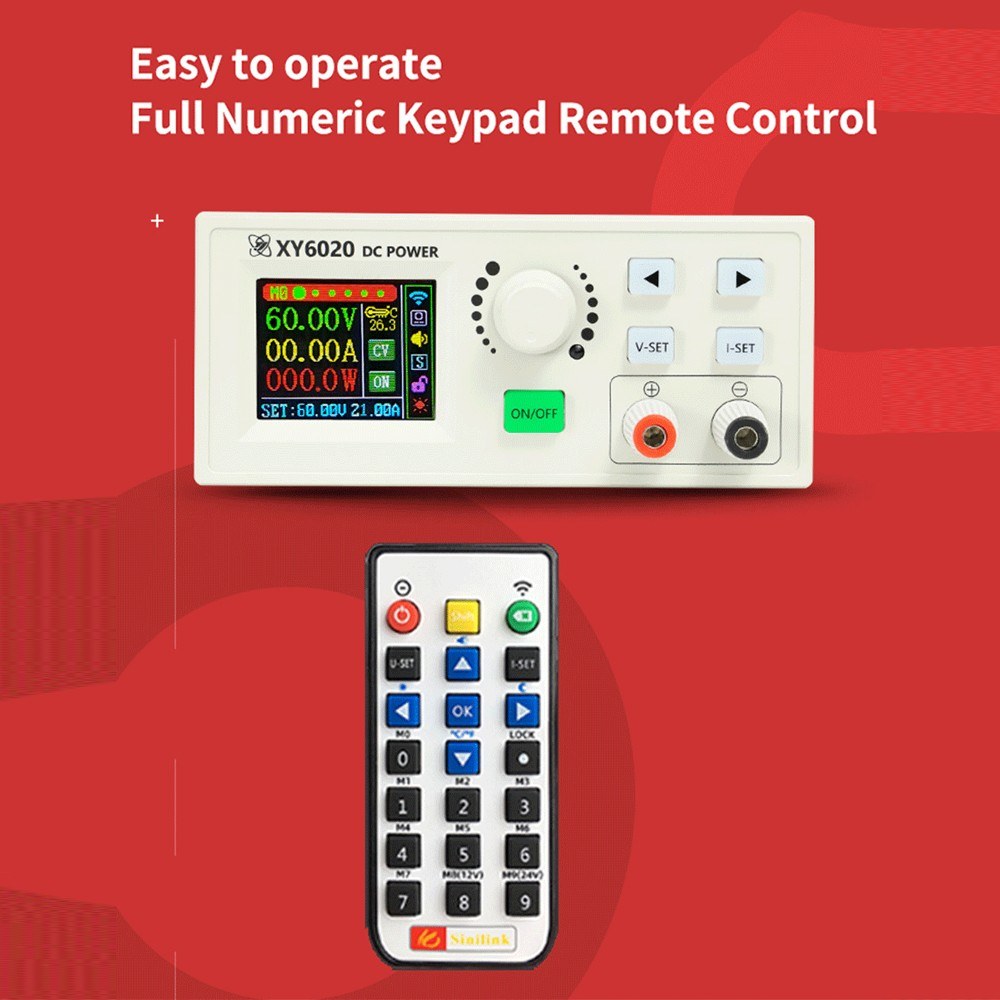

• Comes with a remote controller for effortless and convenient operation.

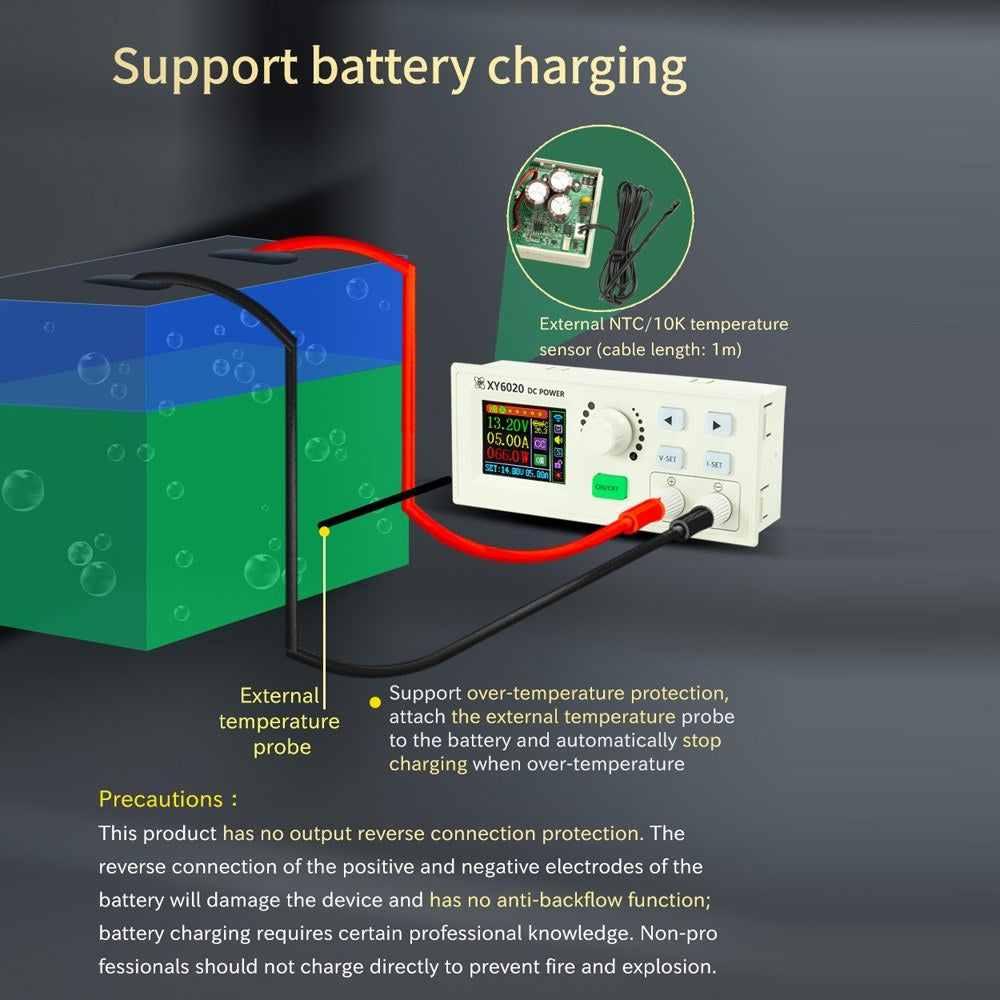

• Equipped with over-temperature protection to automatically halt charging if overheating occurs.

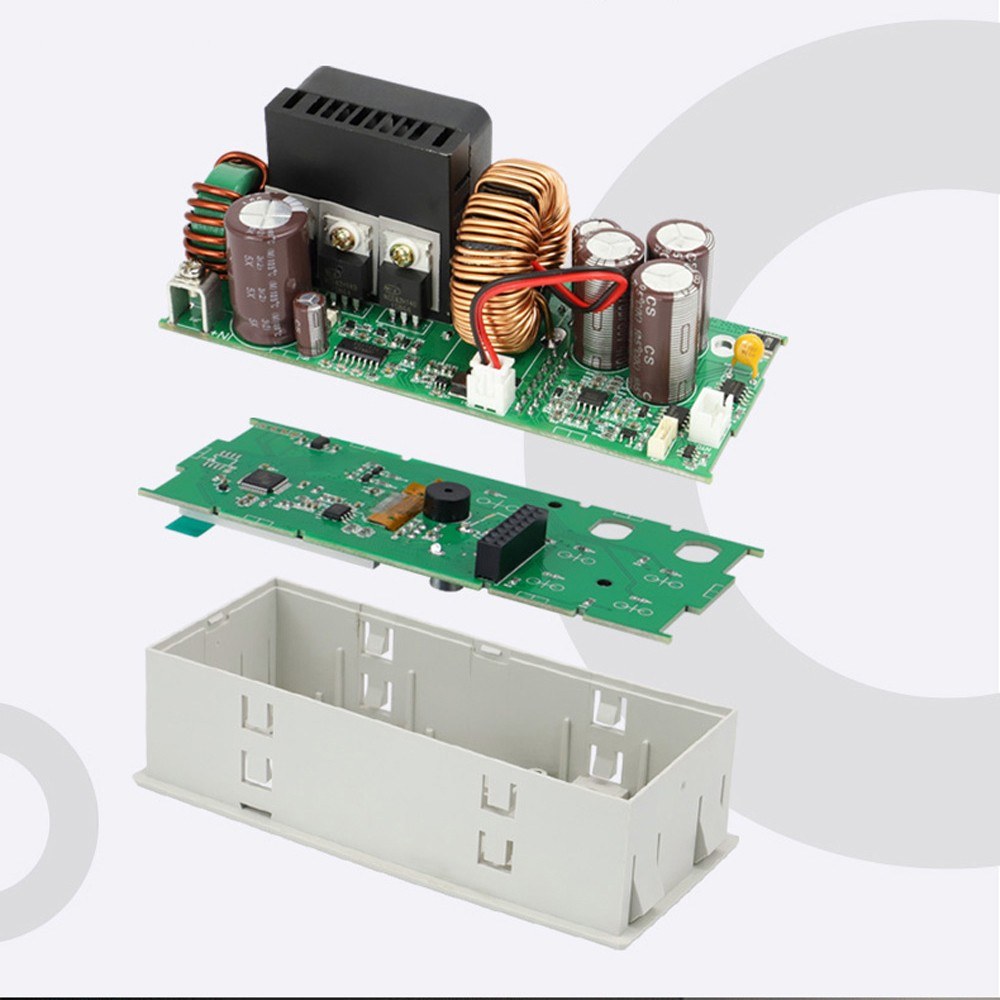

• Features a high-accuracy circuit board for stable performance.

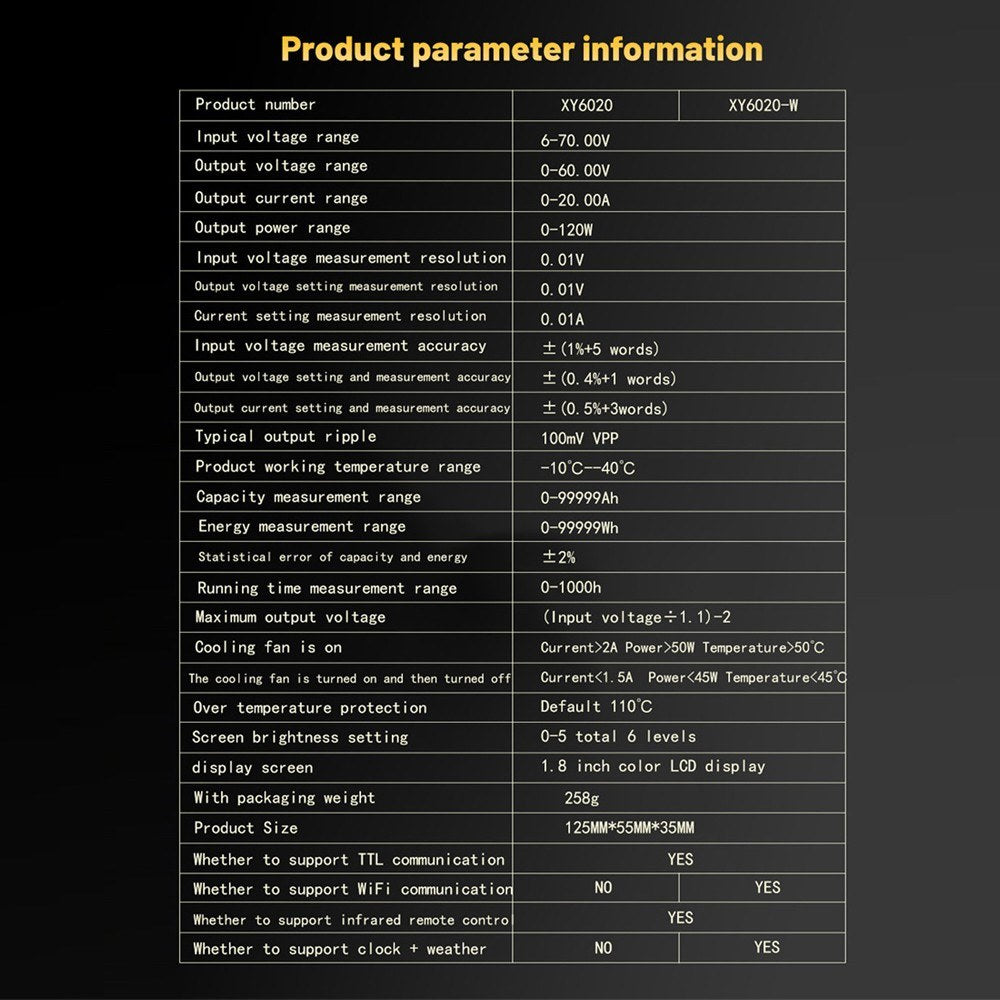

Specifications:

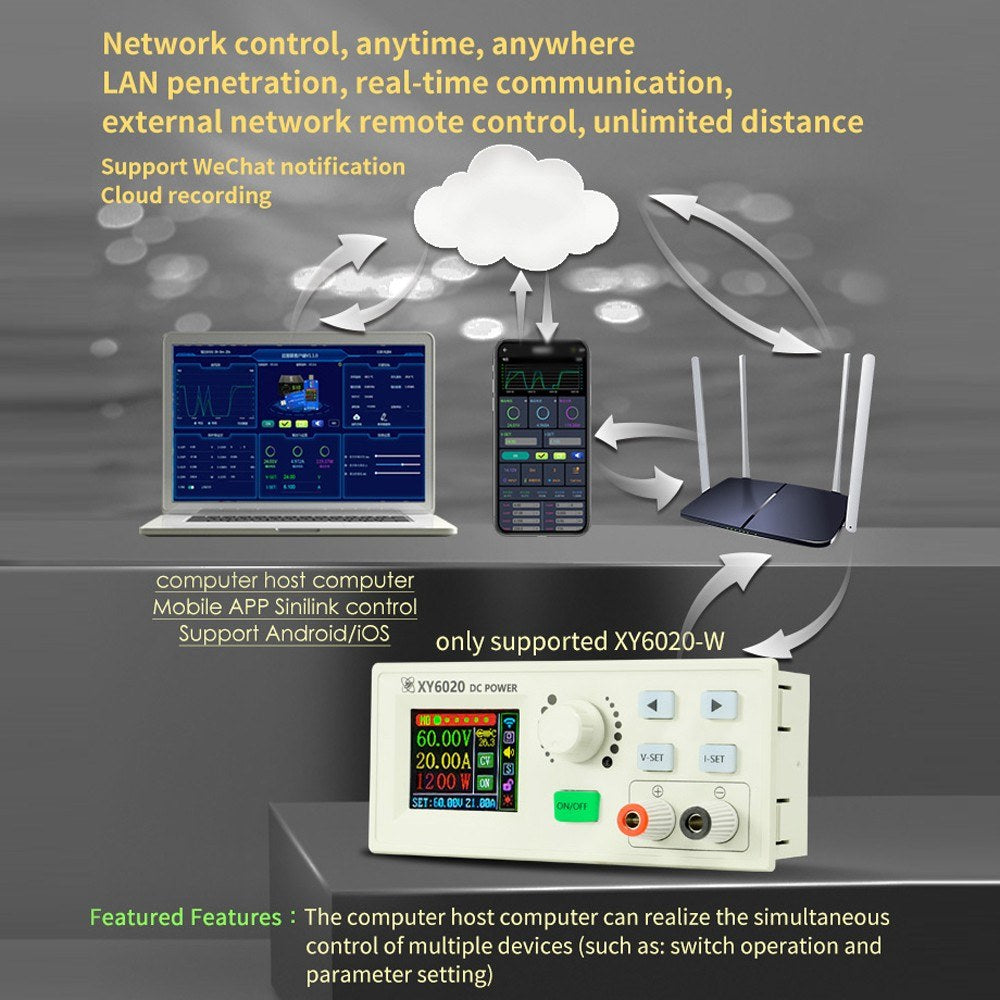

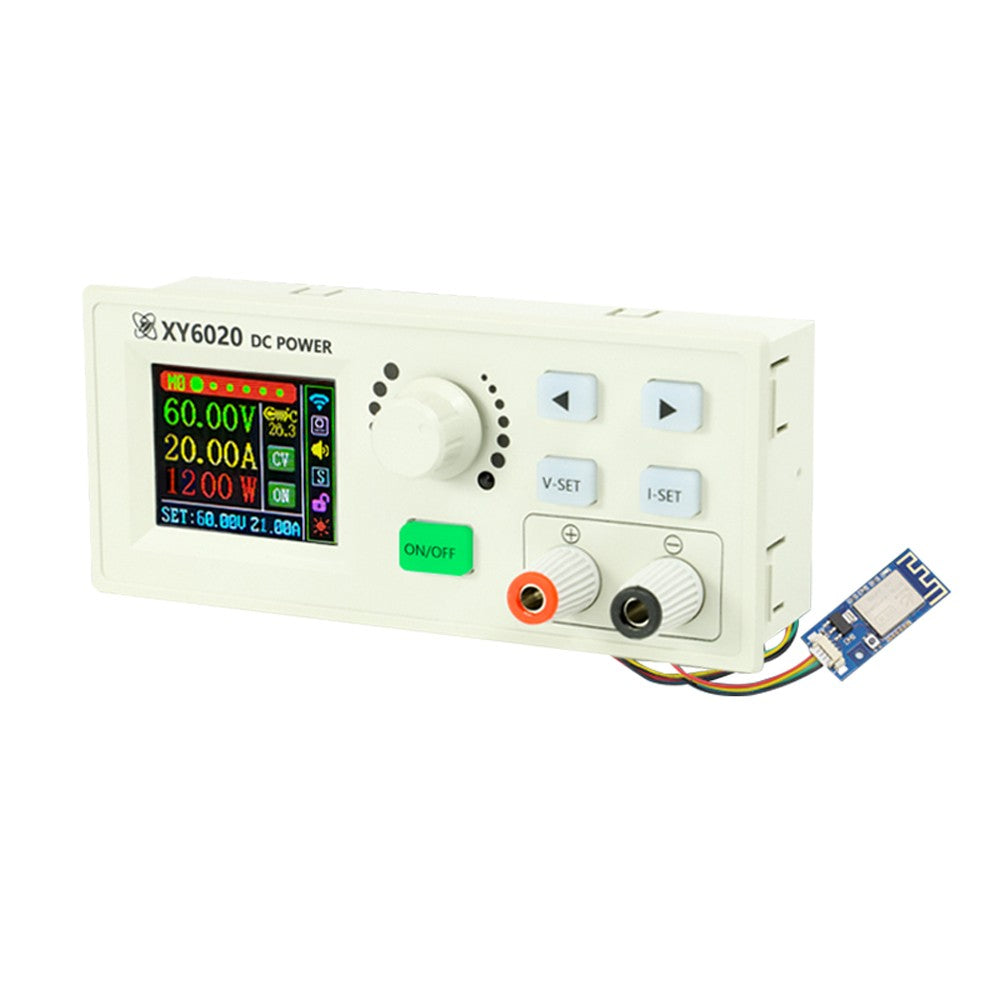

• Type: Available with or without Wi-Fi module (optional)
• Input Voltage Range: 6-70V ±1％
• Output Voltage Range: 0-60V ±0.4％
• Output Current Range: 0-20A ±0.5％
• Output Power Range: 0-1200W
• Input Voltage Measuring Resolution: 0.01V
• Output Voltage Setting Measuring Resolution: 0.01V
• Current Setting Measuring Resolution: 0.01V
• Typical Output Ripple: 100mV VPP
• Operating Temperature: -10 to 40℃
• Capacity Measuring Range: 0-99999Ah ±2％
• Power Measuring Range: 0-99999Wh ±2％
• Working Time Measuring Range: 0-1000h
• Screen Size: 1.8 inches
• Remote Controller Battery: 1 x CR2025, 3V, 150mAH

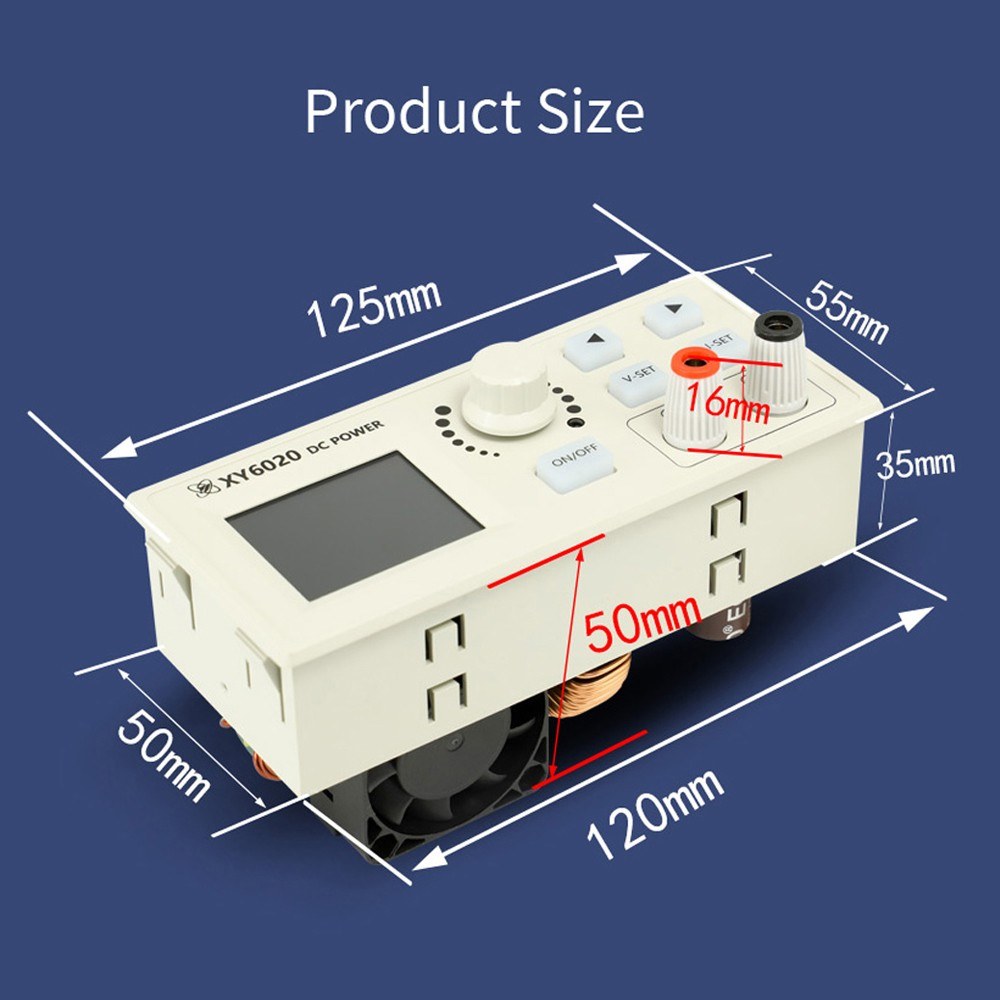

• Product Dimensions: 125 x 55 x 35mm (4.9 x 2.2 x 1.4 inches)
• Product Weight: 256g (9.0 ounces)
• Package Dimensions: 150 x 100 x 90mm (5.9 x 3.9 x 3.5 inches)
• Package Weight: 341g (12.0 ounces)

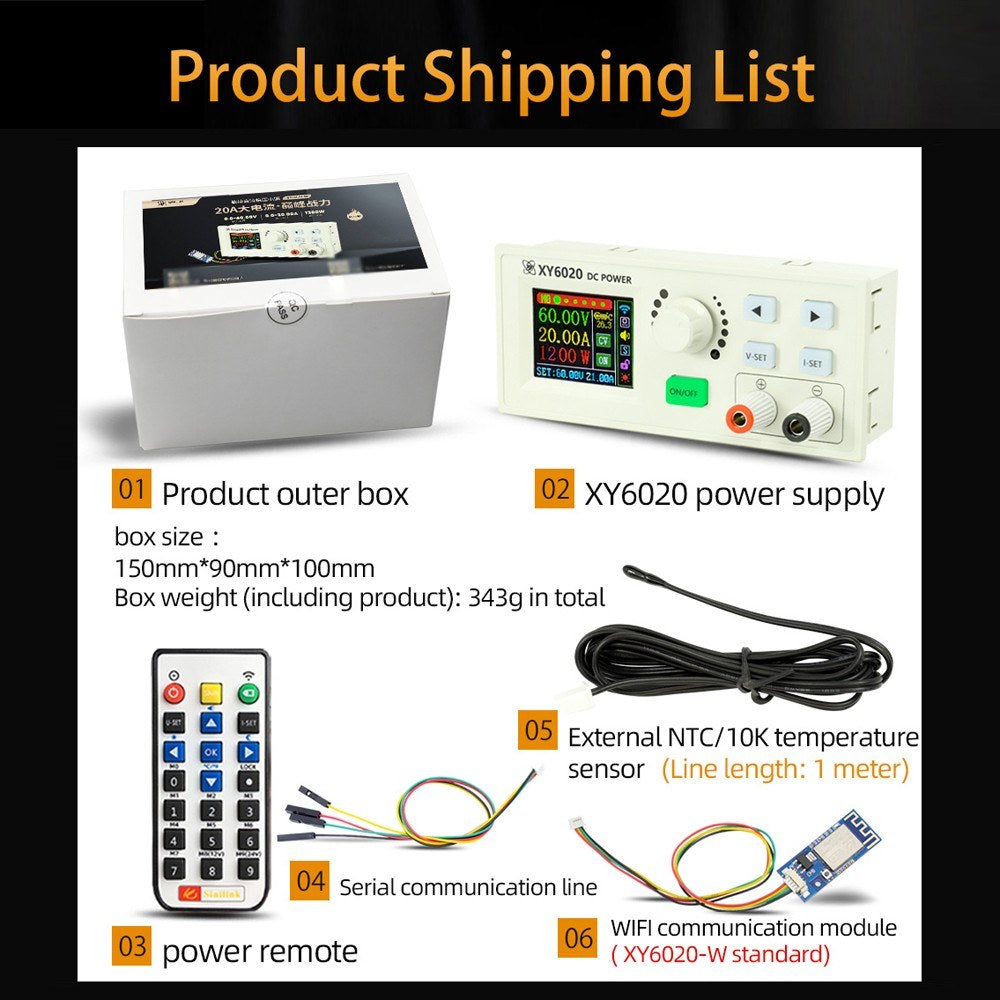

Packing List:

• 1 x Power Supply Module
• 1 x Temperature Detector
• 1 x Remote Controller
• 1 x Serial Communication Line
