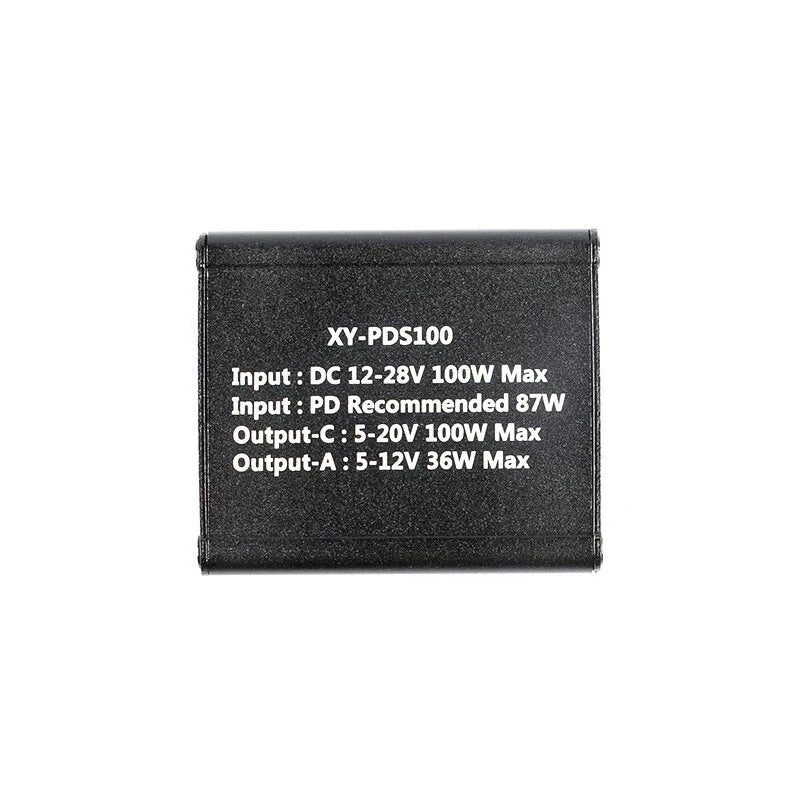

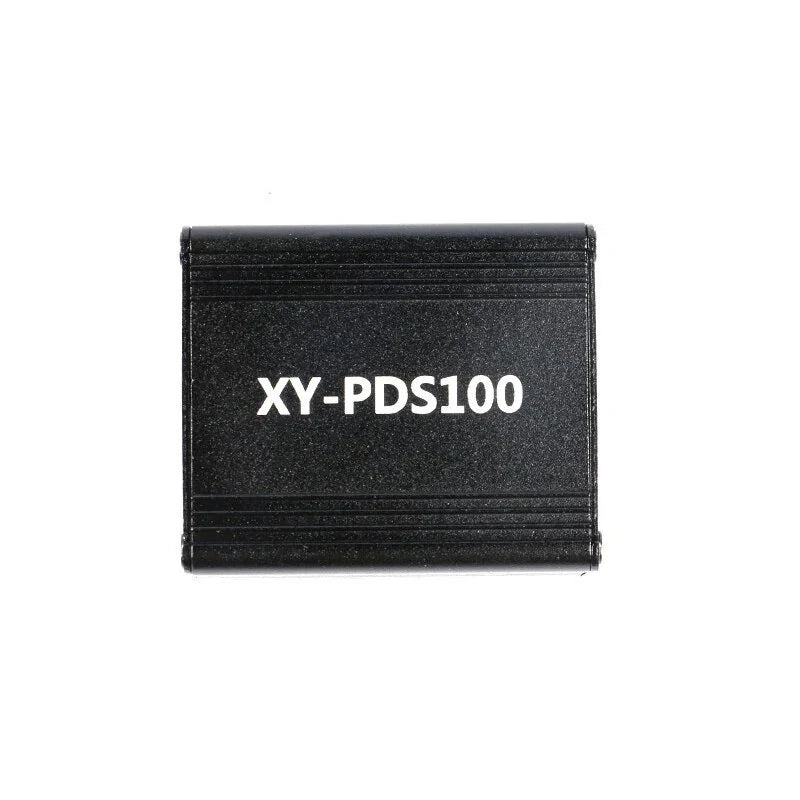

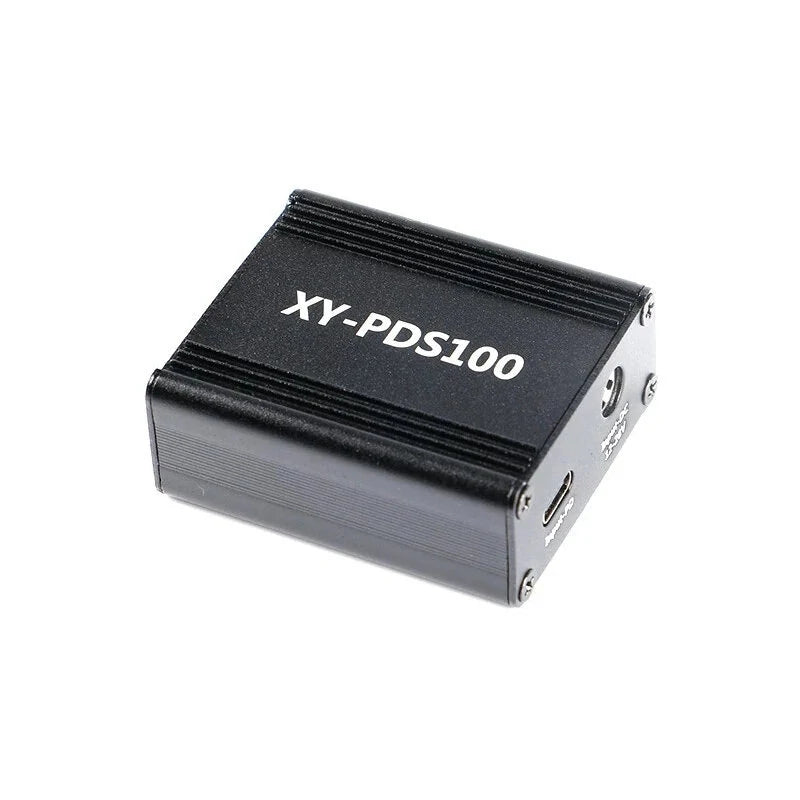

100W Type-C Quick Charger Module QC4.0/QC3.0 for Huawei SCP/FCP, Apple PD, MediaTek PE2.0 - XY-PDS100

Quick Charge Module

Features:

• Maximum voltage: 32 volts (recommended usage: up to 28 volts)
• Pure step-down module without boost function
• For 20V output, use a DC power supply over 21V
• Low voltage reaches 6V (note: fast charge often not activated at 6V)
• Achieves 100W output power at PD output (PD20V, 5A)
• Use the original data cable for low voltage and high current fast charging
• Measure charging voltage and current with a low internal resistance USB meter to prevent affecting charging current
• USB port required for charging OPPO and OnePlus mobile phones
• QC4/QC4.0/PD3.0 and similar protocols require TYPE_C port
• Dual 5V output when USB and TYPE_C ports are used simultaneously

Compatibility:

• Supports fast charging protocols such as:
• PD2.0, PD3.0, PPS
• Qualcomm QC4+/QC3.0
• Huawei SCP/FCP
• OPPO VOOC
• OnePlus DASH
• Apple 2.4A
• Samsung AFC
• VIVO 9V2A Twin Engine
• MediaTek PE2.0

Specifications:

• Item Type: Quick Charge Module
• Material: Electronic components

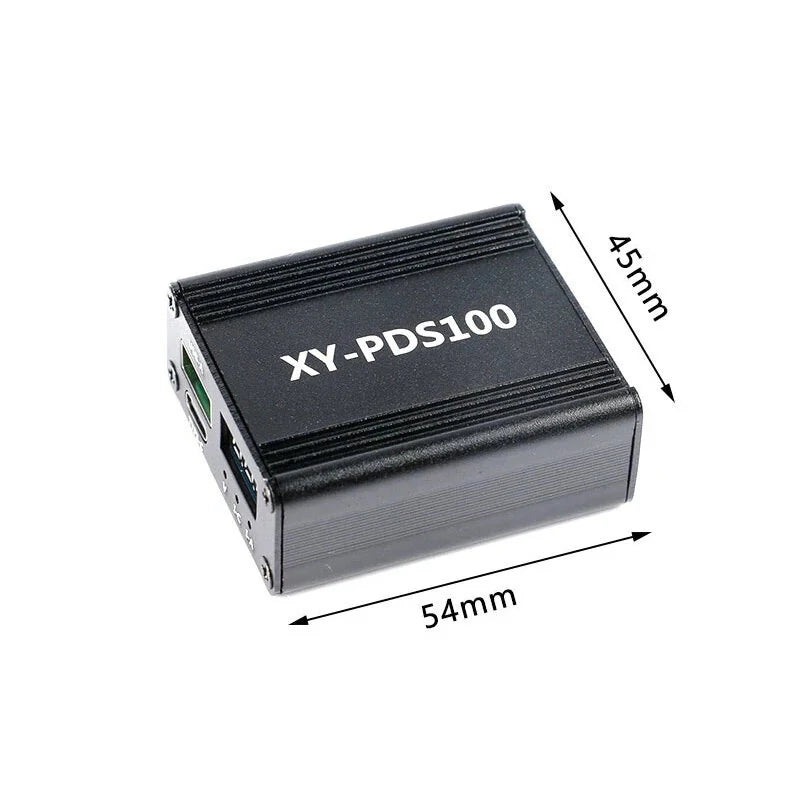

• Size: 53 x 46 x 21mm (2.08 x 1.8 x 0.8 inches)

Note:

• Please allow a 0-1cm error due to manual measurement.
• Due to varying monitor settings, the actual color of the item may differ from the image.

Package Includes:

• 1 x Quick Charge Module
• Note: Other accessories shown in the demo are not included.
