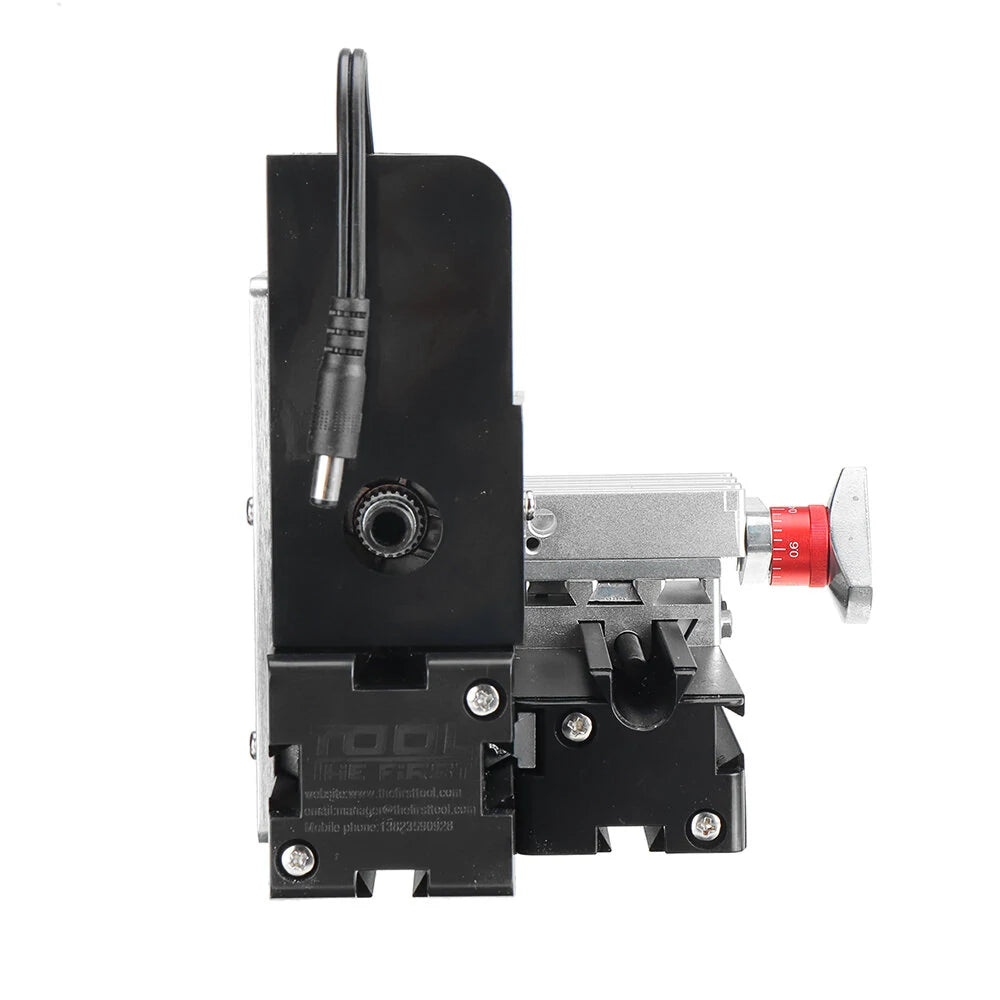

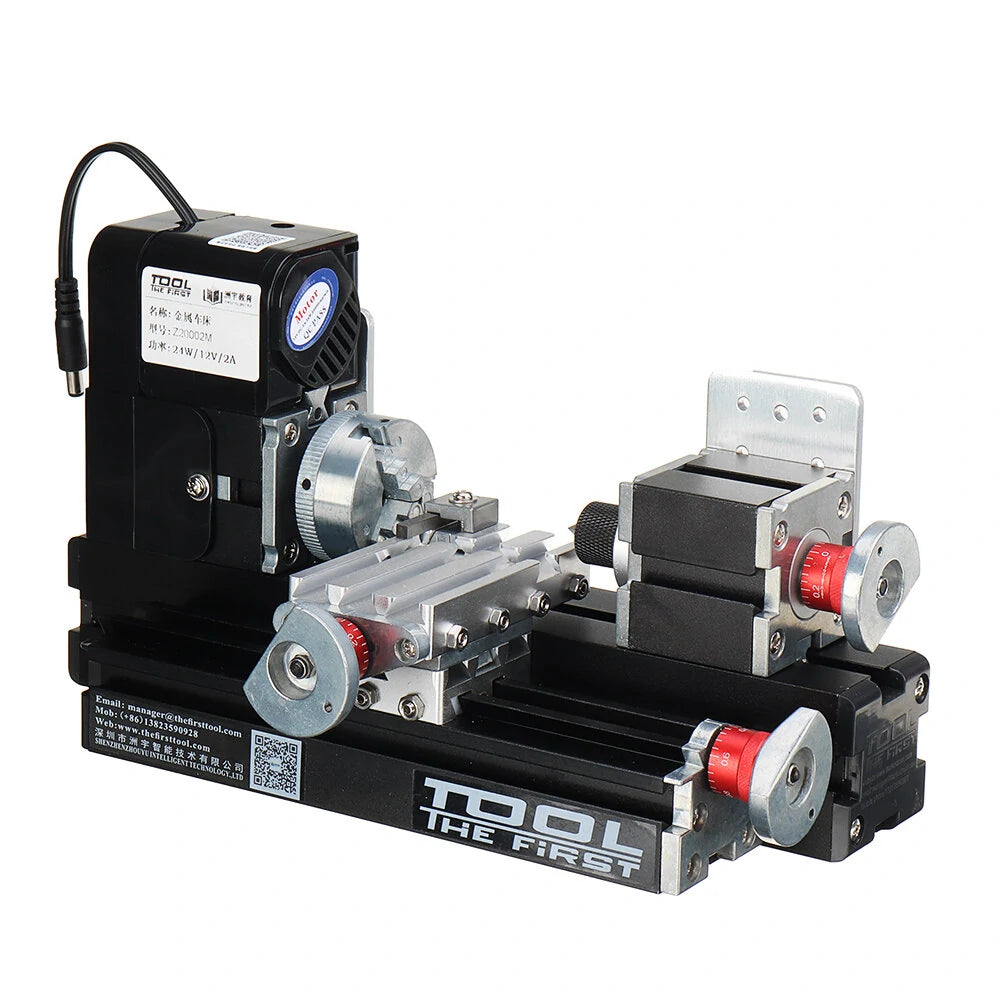

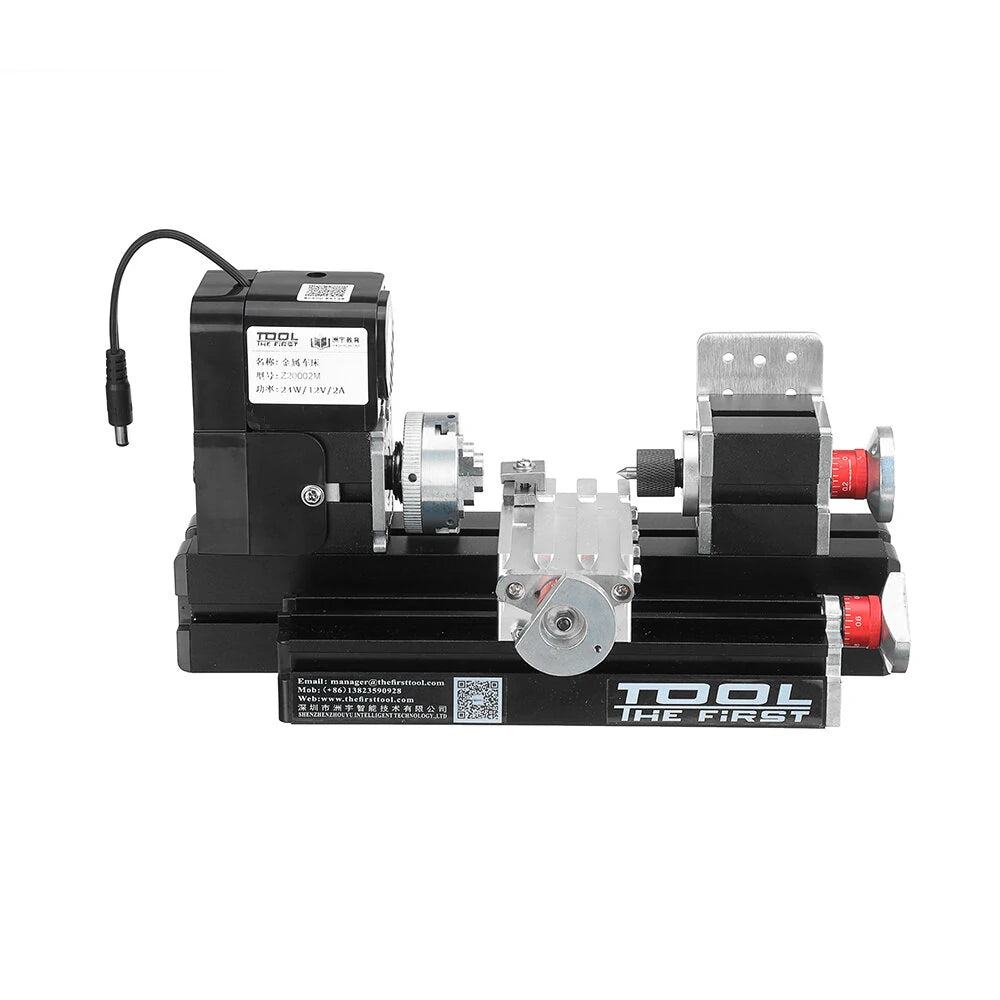

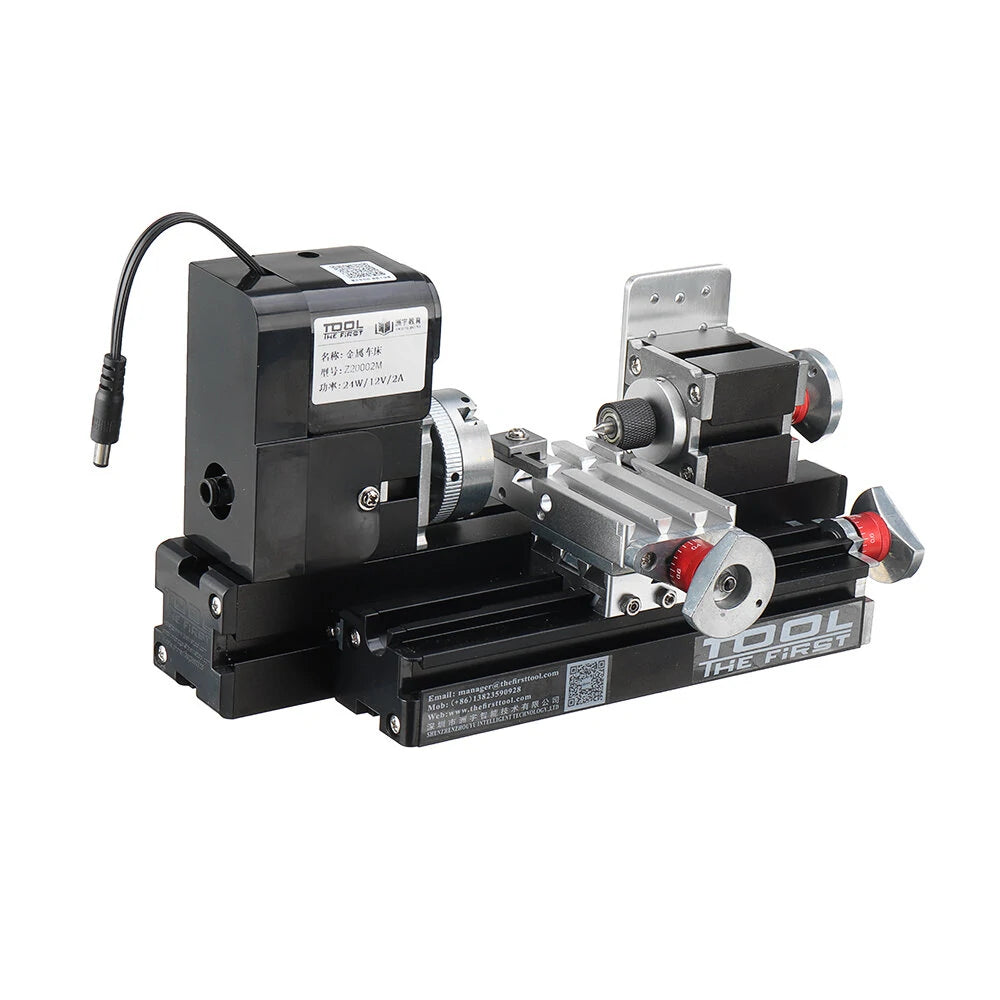

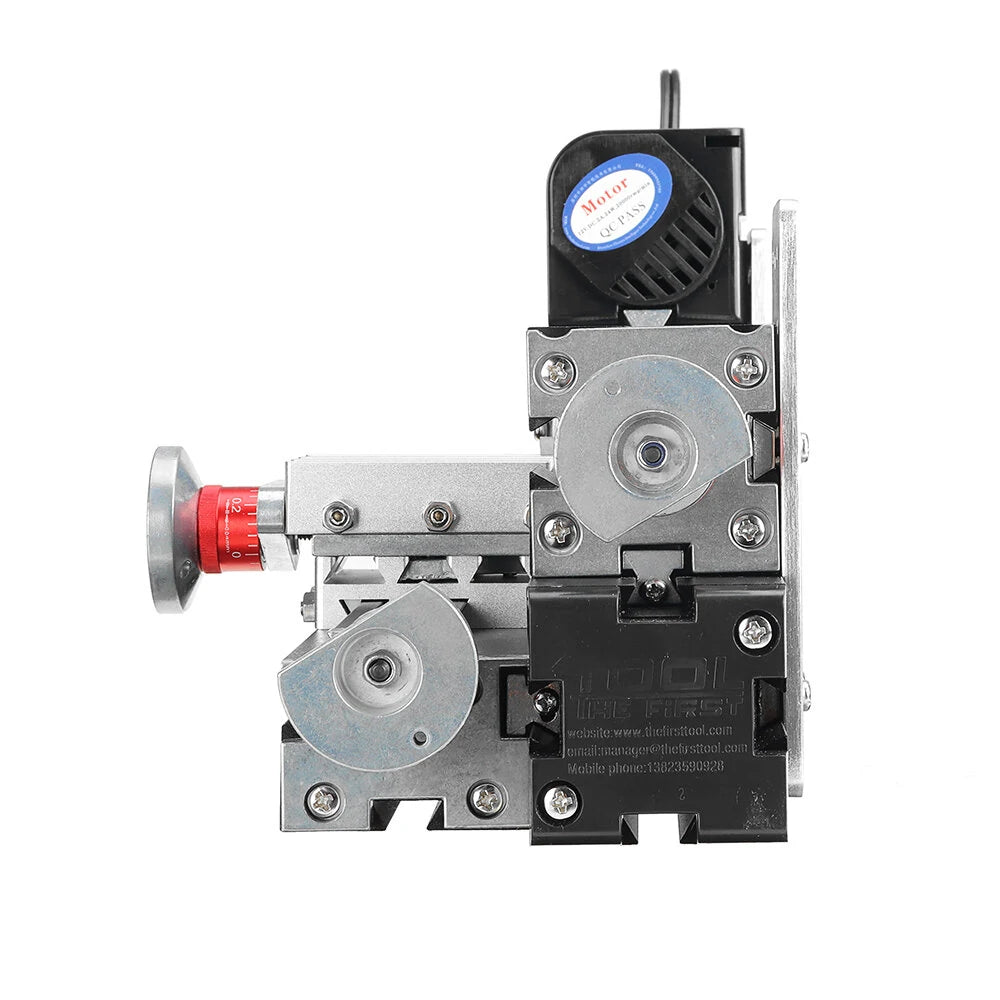

Compact 12V DC 2A 24W Mini Wood & Metal Rotating Lathe Machine

Discover the Details

Features

• The motor case and headstock are integrated for seamless operation.
• Main components include a headstock, tailstock, elongated machine bed, large slider, small slider, motor blade, gear, connection piece, and a drive belt cover. All parts are metal, except for the drive belt cover.
• The center height is 25mm, with a distance of 135mm between centers. The motor speed typically reduces to 2000rpm/min when working with metal.
• The lathe tool is crafted from high-speed steel, suitable for processing soft metals, nonferrous metals, and other materials. Using a central block, the diameter can expand to 100mm.

Specifications

• Motor Speed: 20,000rpm/min (optional 12,000rpm/min)

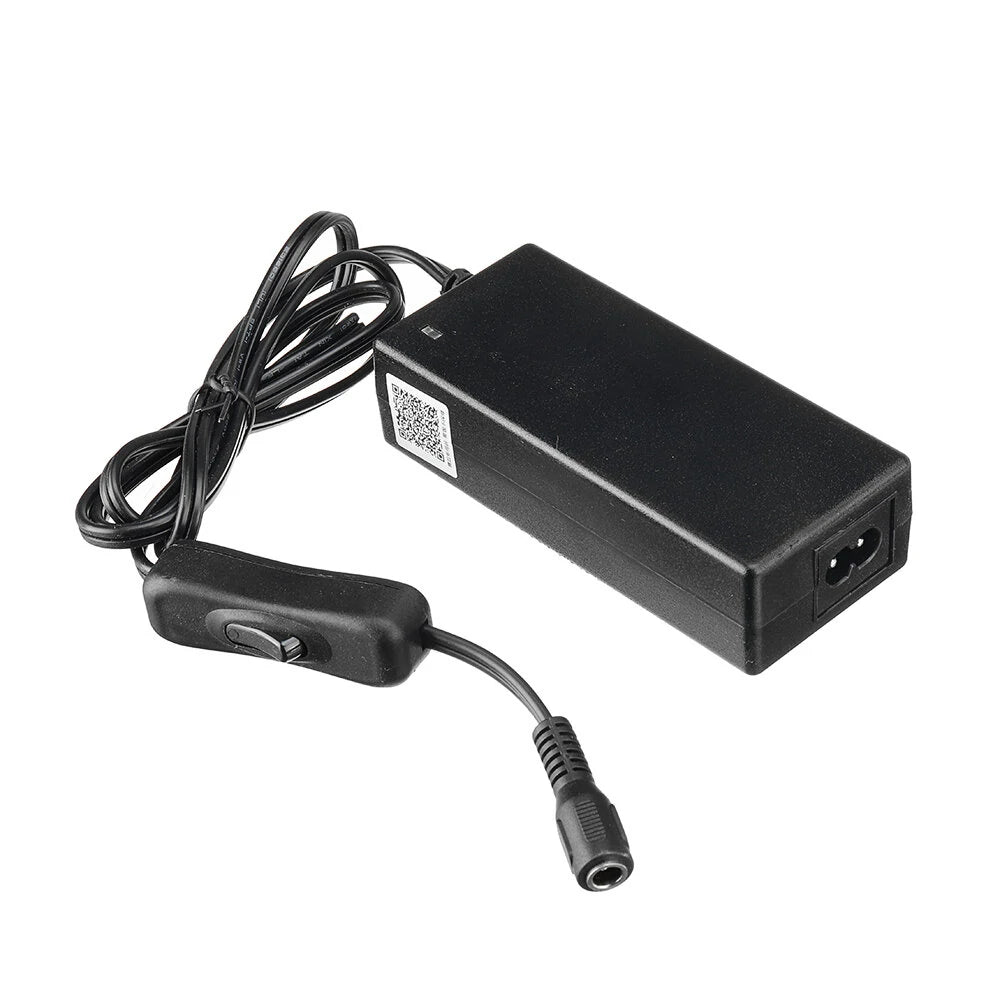

• Input Voltage/Current/Power: 12VDC/2A/24W
• Voltage: 110V (US Plug); 220V (EU Plug)
• Maximum Working Material Diameter: 20mm
• Working Material Length: 135mm
• Axis Z Slider Travel: 30mm
• Axis X Slider Travel: 160mm
• Working Materials: Lignin plastic, soft metals (gold, silver, copper, aluminum), acrylic, plastic, etc.
• Features a 0.02mm scale line, enhancing precision when processing materials with the hand wheel.
• Weight: 3.5kg/4kg
• Dimensions: 280x190x200mm/350x220x255mm

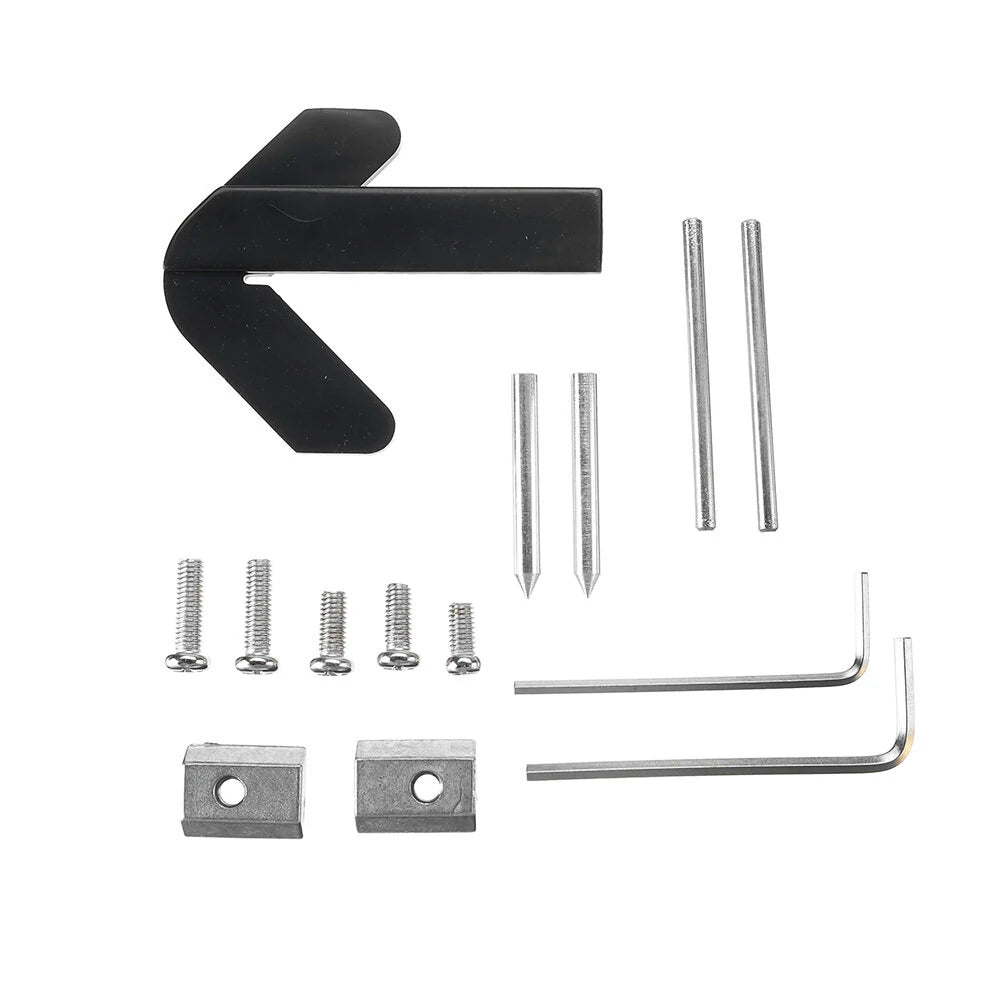

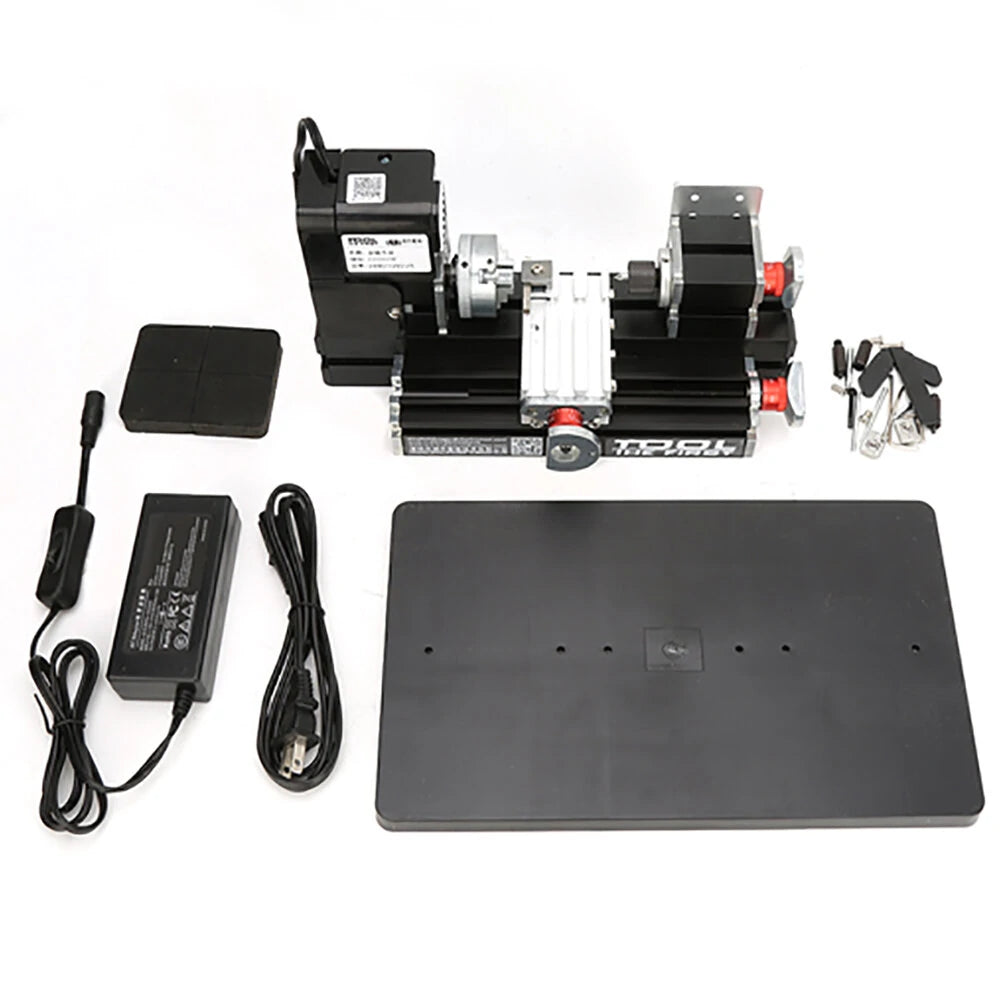

Package Includes

• 1x Wood Lathe Set
