Battery Tester EBD-A20H 30V 20A 200W Multifunction DC Electronic Load with PC Software Control

EBD-A20H Electric Load - Precision & Versatility for Battery and Power Supply Testing

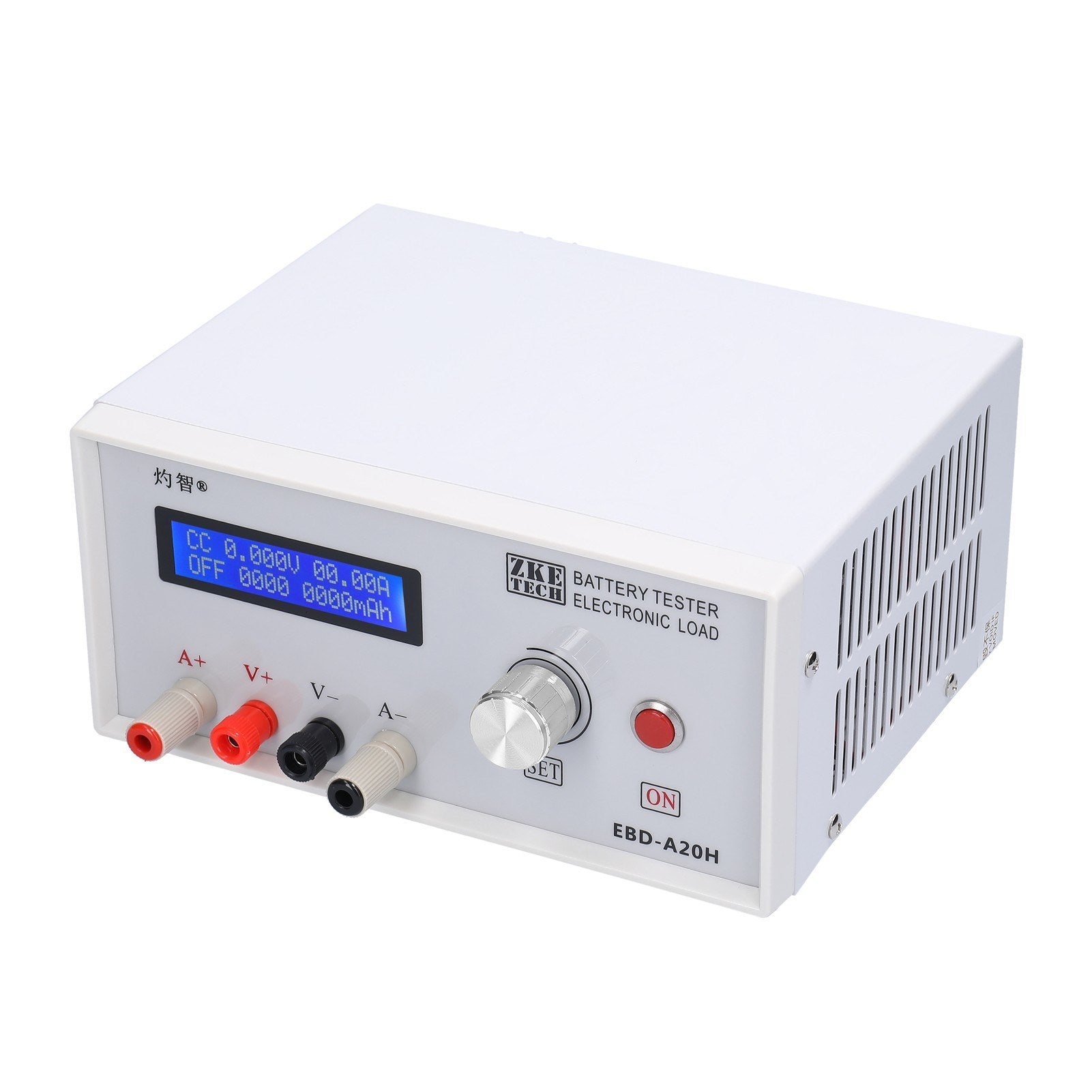

The EBD-A20H is a high-quality electric load device designed for comprehensive battery capacity and power supply testing. It offers multiple discharge modes and showcases test results on a large, clear LCD display. Seamlessly integrate with computers for expanded features via online software.

Key Features:

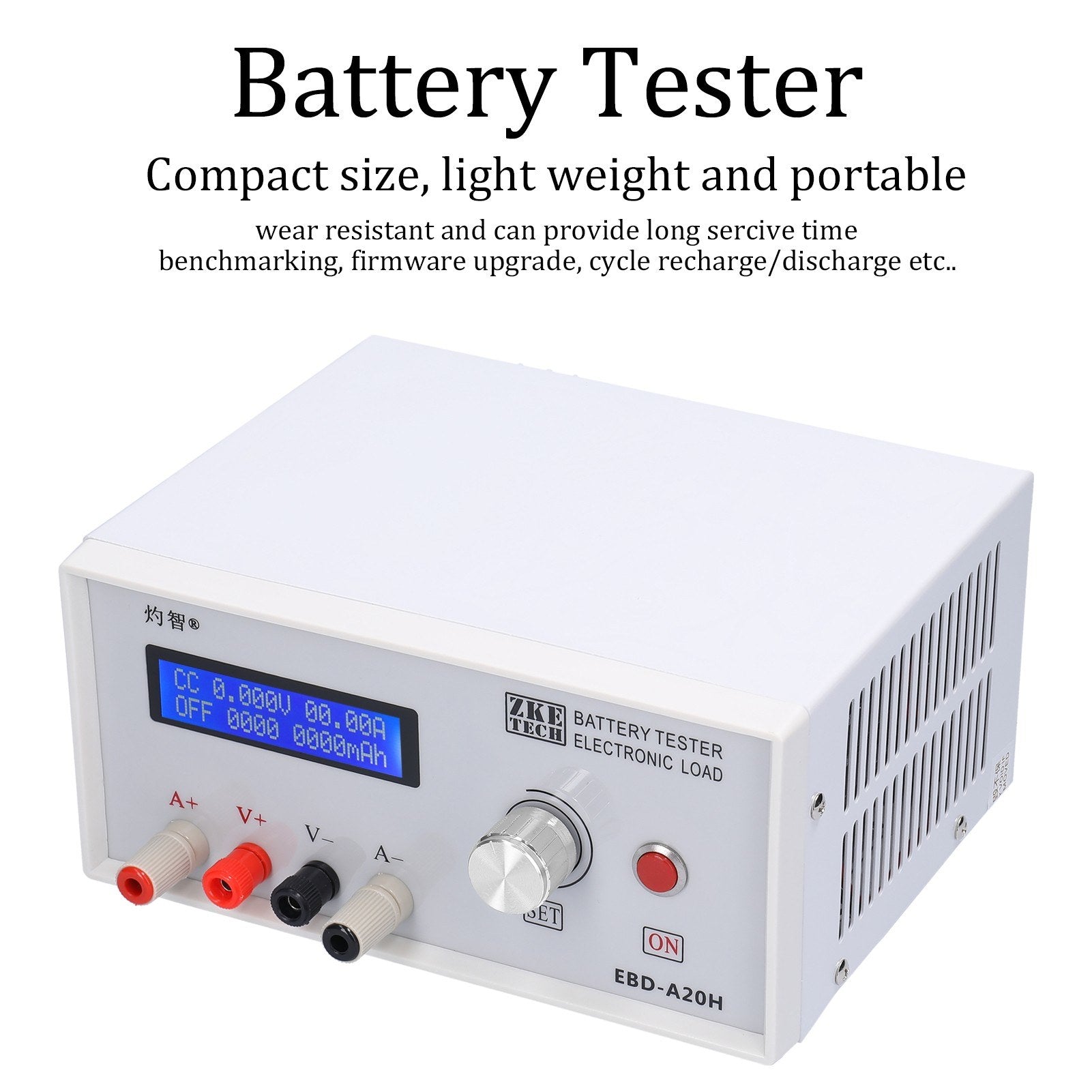

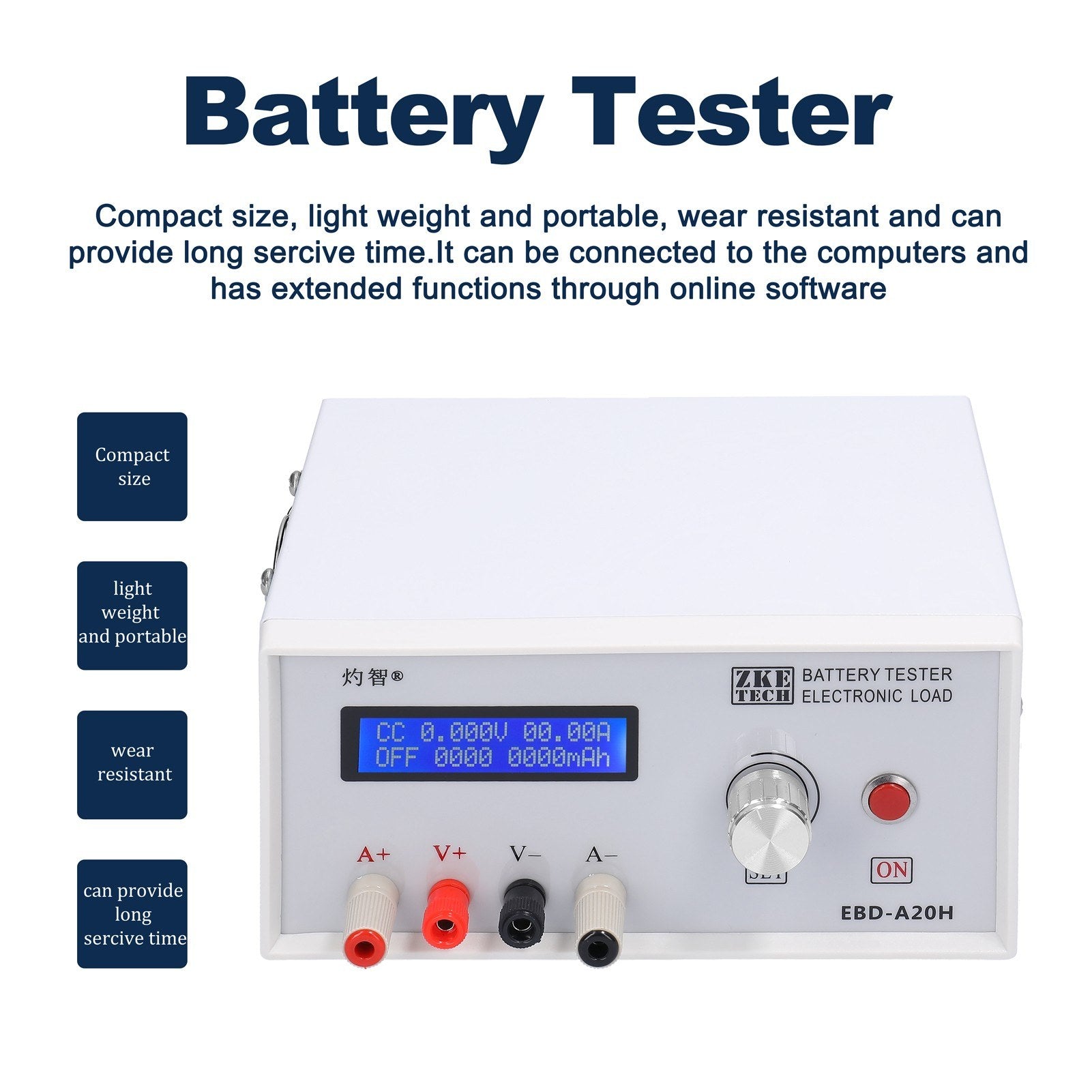

• Portable Design: Compact, lightweight, and wear-resistant for extended service life.
• Clear LCD Display: Monitor voltage, current, capacity, time, power, energy, and more.
• High Discharge Capability: Supports up to 20A discharge with a maximum power of 200W.
• Four-Wire Detection: Ensures accurate measurements by separating voltage test and current channels.
• Flexible Modes: Choose from DSC-CC, DSC-CP, CHG-CV modes tailored to your requirements.
• Extended Functionality: Supports online computer control, curve plotting, calibration, firmware upgrades, and cycle recharge/discharge functions.

Specifications:

• Product Name: Battery Tester
• Model: EBD-A20H
• Material: Aluminum Alloy
• Configurations: Simple or Standard (EU or US Plug options)
• Voltage Setting: Discharge 0.00-30.00V (Min. step 0.01V)
• Current Setting: Discharge 0.10-20.00A (Min. step 0.01A; automatic current limit in case of power overrun)
• Modes:
  • DSC-CC: Constant discharge current for battery capacity or power supply testing
  • DSC-CP: Constant discharge power to simulate equipment or test power supply
• Voltage Test Accuracy:
  • 0.000-4.500V (low pressure) ±0.5%
  • 4.50V-30.00V (high pressure) ±0.5%
• Current Test: 0.10-20.00A, ±0.5% accuracy
• Capacity Test:
  • 10Ah - Resolution 0.001Ah
  • 10Ah-100Ah - Resolution 0.01Ah
  • Above 100Ah - Resolution 0.1Ah
• Discharge Power: Max 200W
• Connection: Four-wire detection for precision
• Computer Online Connectivity: Via dedicated USB to TTL serial port for enhanced functionalities

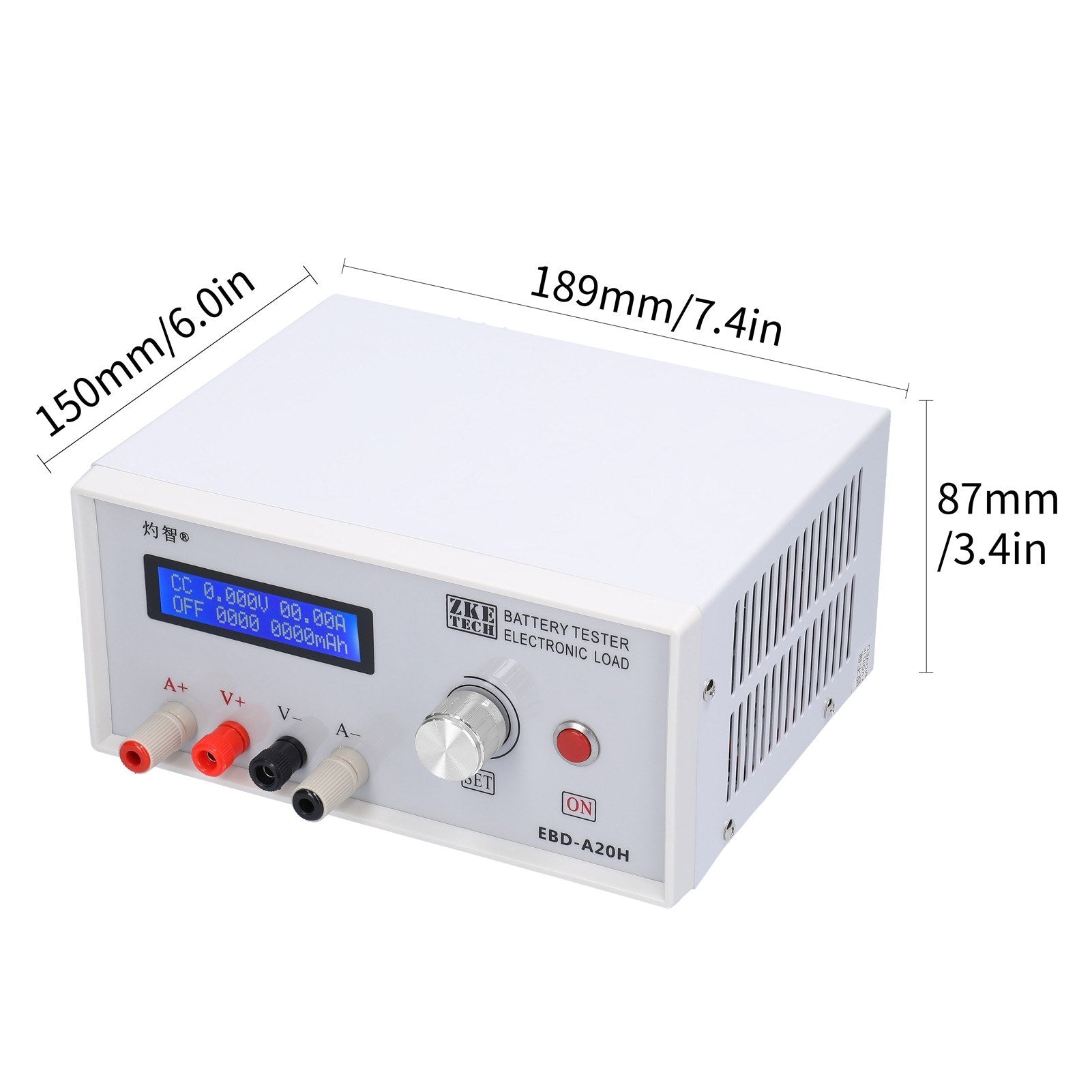

• Package Size: 380 x 290 x 150mm / 14.96 x 11.42 x 5.91in
• Package Weight:
  • Simple: 1800g / 3.97lb
  • Standard: 2000g / 4.41lb

Important Note:

The discharge current is limited by maximum power, being less than 20A above 10V and less than 10A above 20V.

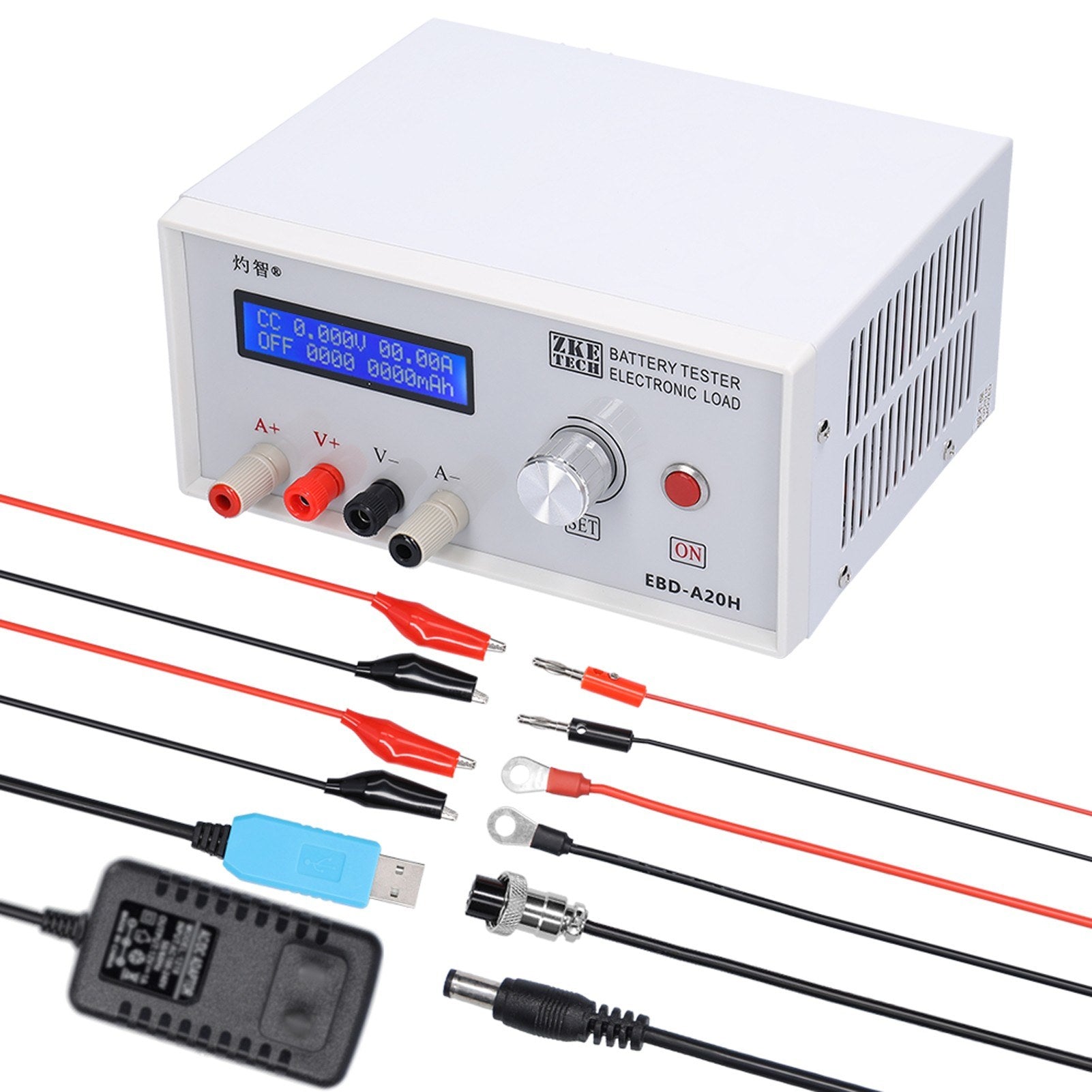

Packing List:

Simple Configuration:

• 1 x Battery Tester
• 1 x Test Lines

Standard Configuration:

• 1 x Battery Tester
• 1 x Test Lines
• 1 x USB to TTL Serial Port Line
• 1 x DC12V 1A Power Supply
