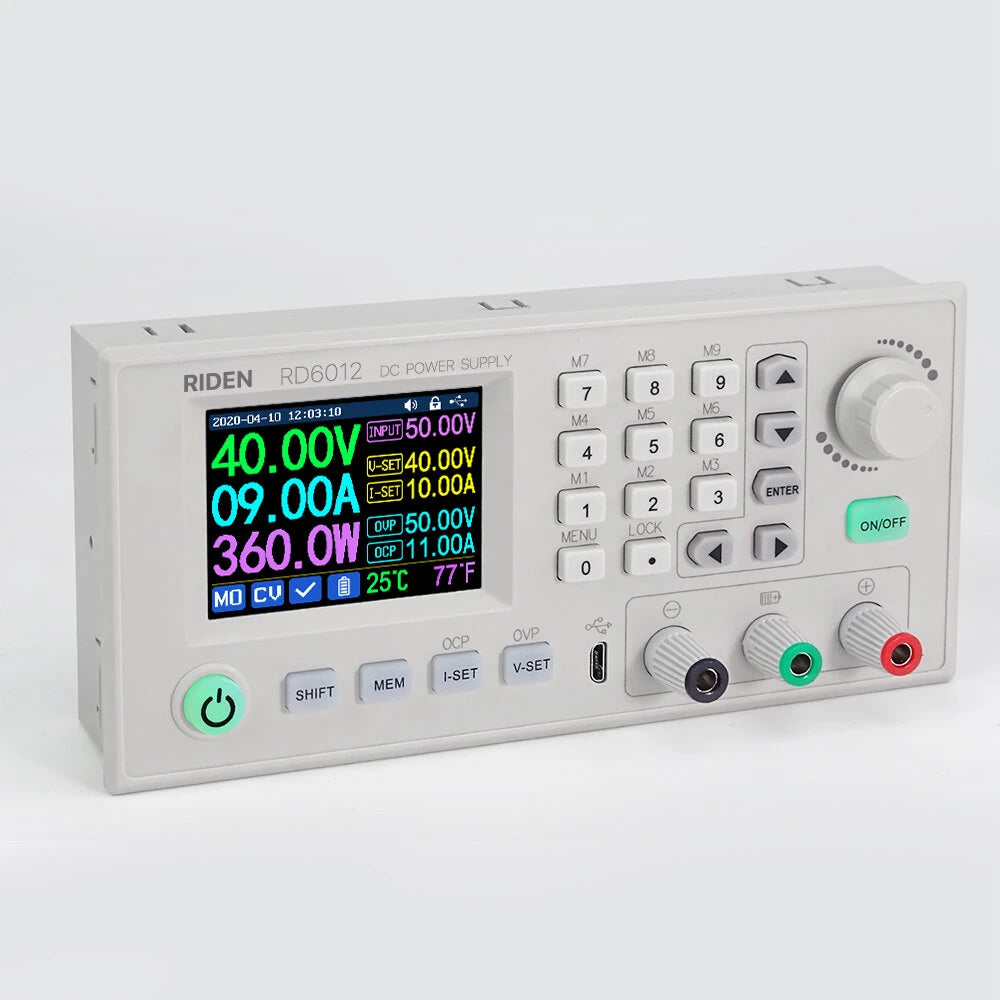

RIDEN® RD6012W USB WiFi 60V 12A DC-DC Step Down Power Module with Voltmeter

RIDEN® RD6012W USB WiFi 60V 12A DC-DC Step Down Power Module with Voltmeter

$76.99 USD
$0.00 USD $76.99 USD
Sale Sold out
Shipping calculated at checkout.
Model

Shipping Icon Estimated Delivery: -

Product Overview

Precise Details:

  • Support Power Supply: (Product ID: 1689167)
  • Support S800 Case: (Product ID: 1995241)

Technical Parameters

Model RD6006, RD6006-W, RD6012, RD6012-W
Input Voltage Range 6-70.00V
Output Voltage Range 0-60.00V
Output Current Range RD6006: 0-6.000A, RD6012: 0-12.00A
Output Power Range RD6006: 0-360W, RD6012: 0-720W
Resolution
  • Input Voltage Measurement: 0.01V
  • Output Voltage Setting: 0.01V
  • Output Current Setting: 0.001A (RD6006), 0.01A (RD6012)
  • Battery Voltage Measurement: 0.01V
Accuracy
  • Input Voltage: ±(1%+5 digits)
  • Output Voltage Setting vs Measurement: ±(0.3%+3 digits)
  • Output Current Setting vs Measurement: ±(0.5%+5 digits)
  • Battery Voltage Measurement: ±(0.5%+3 digits)
Temperature Range -10°C to 40°C
External Sensor Temperature Detection Range: -10°C to 100°C / 0°F to 200°F; Accuracy: ±3°C/±6°F
Constant Voltage Mode Response Time: 2ms (0.1A-5A Load), Load Regulation: ±(0.1%+2 digits)
Constant Current Mode Load Regulation ±(0.1%+3 digits)
Measurement Ranges
  • Capacity: 0-9999.99Ah
  • Energy: 0-9999.99Wh
  • Statistical Error: ±2%
Cooling and Protection
  • Fan Start: Output Voltage >40V or Output Current >4A or System Temp >45°C (for RD6006), Output Current >8A (for RD6012)
  • Over Temperature Protection: System Temp >80°C
Display and Communication
  • Screen: 2.4-inch color HD display
  • USB Communication: Yes
  • WiFi Communication: Varies by model (No/Yes)
Dimensions and Weight Product Dimension: 167 x 81 x 65mm, Weight: About 607g (RD6006), About 642g (RD6012)

Package Includes:

  • 1 x Power Module

Important Notes Before Buying:

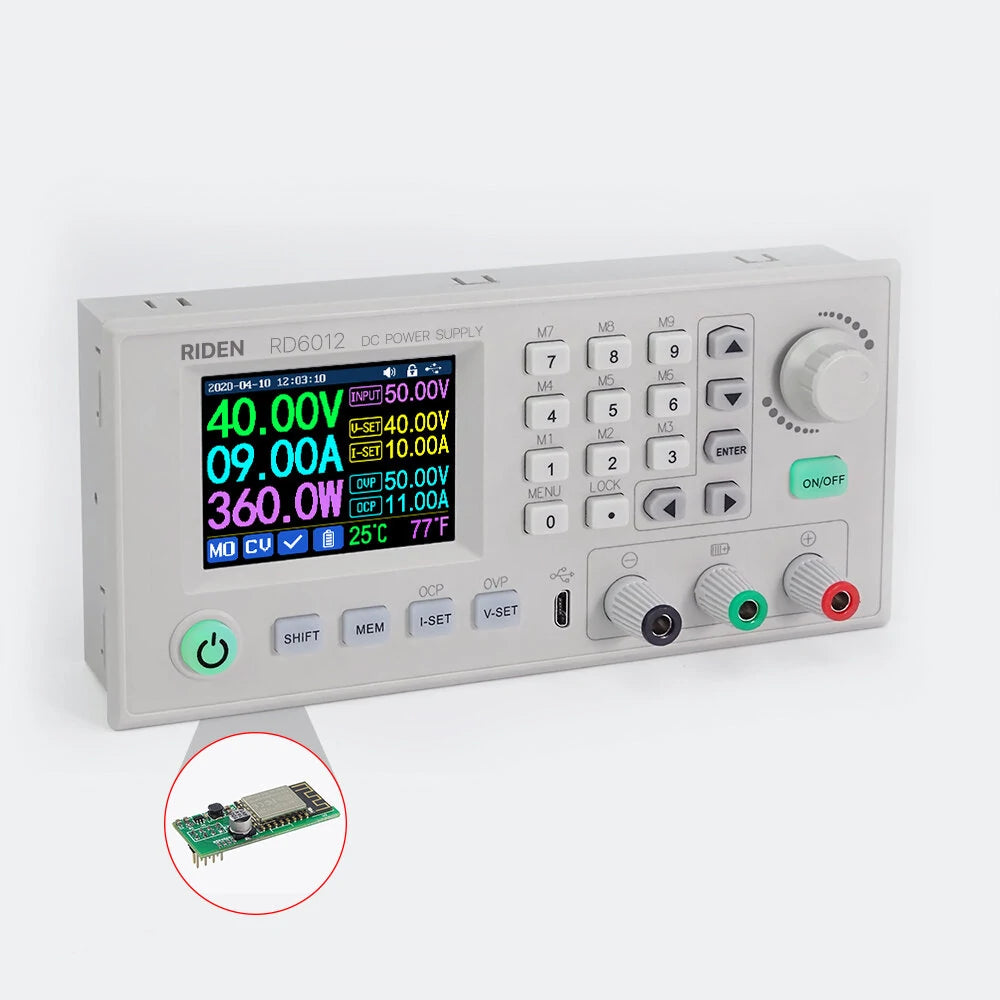

  1. The RD6012 series has two versions: RD6012 and RD6012-W. The '-W' models come with a WiFi board, while the regular models do not.
  2. WiFi connection is a test feature. Limited support may be available.
  3. PC Software is supported for Windows 7 and above; the app is compatible with Android 5.0 and above. Check compatibility before purchase.
  4. S12A cases do not contain any power supply and must be purchased separately.
