ANENG M109 Digital Multimeter 4000 Count AC/DC Voice Broadcast Electrical Tester Auto Professional Meter

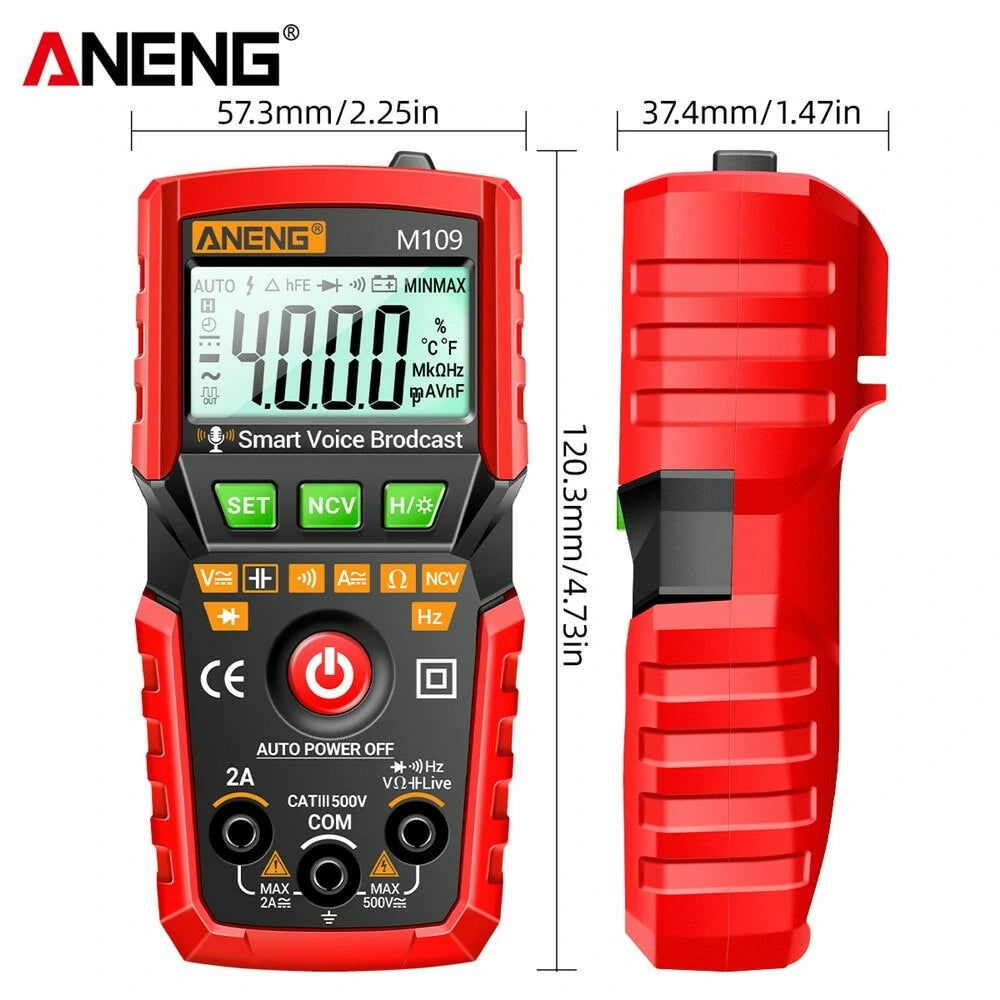

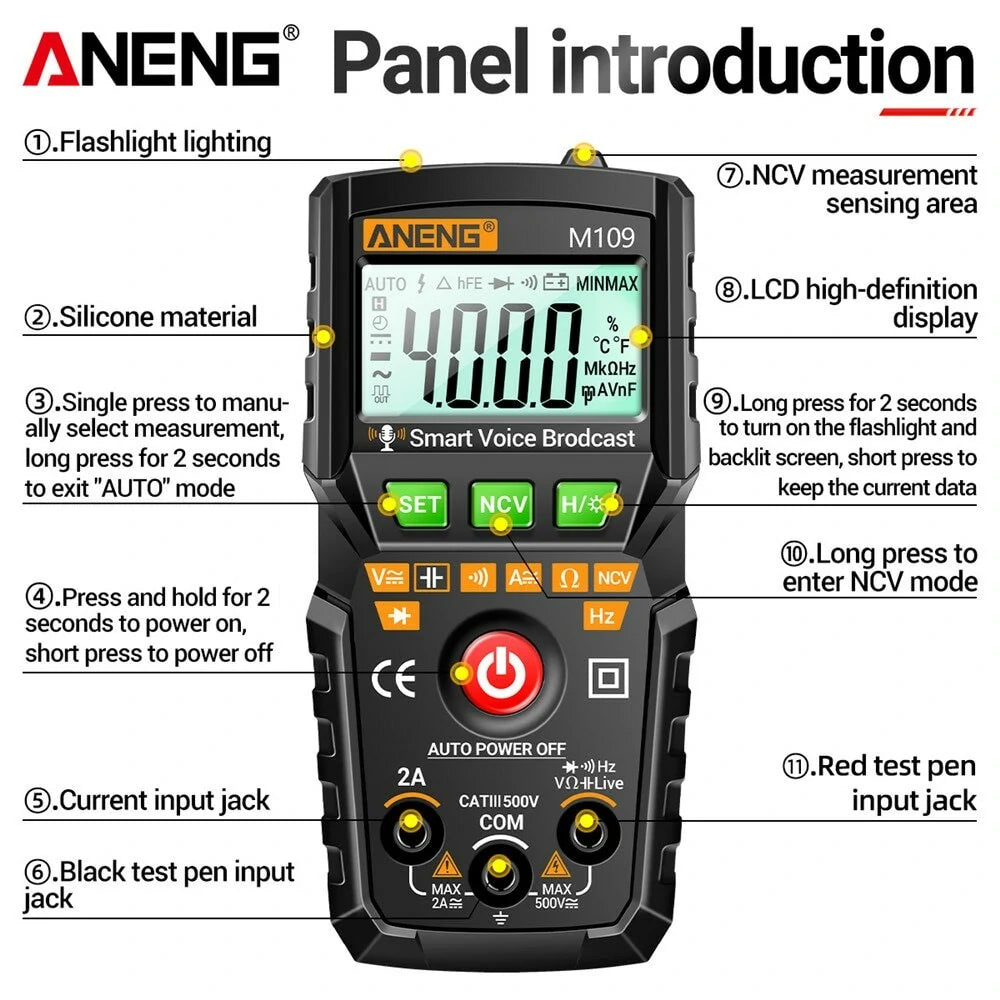

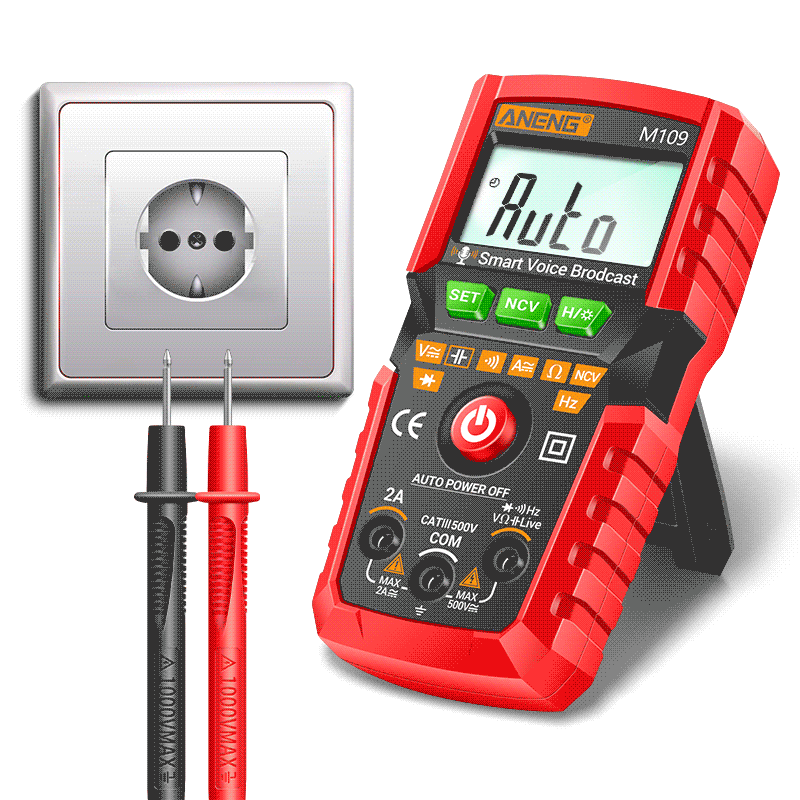

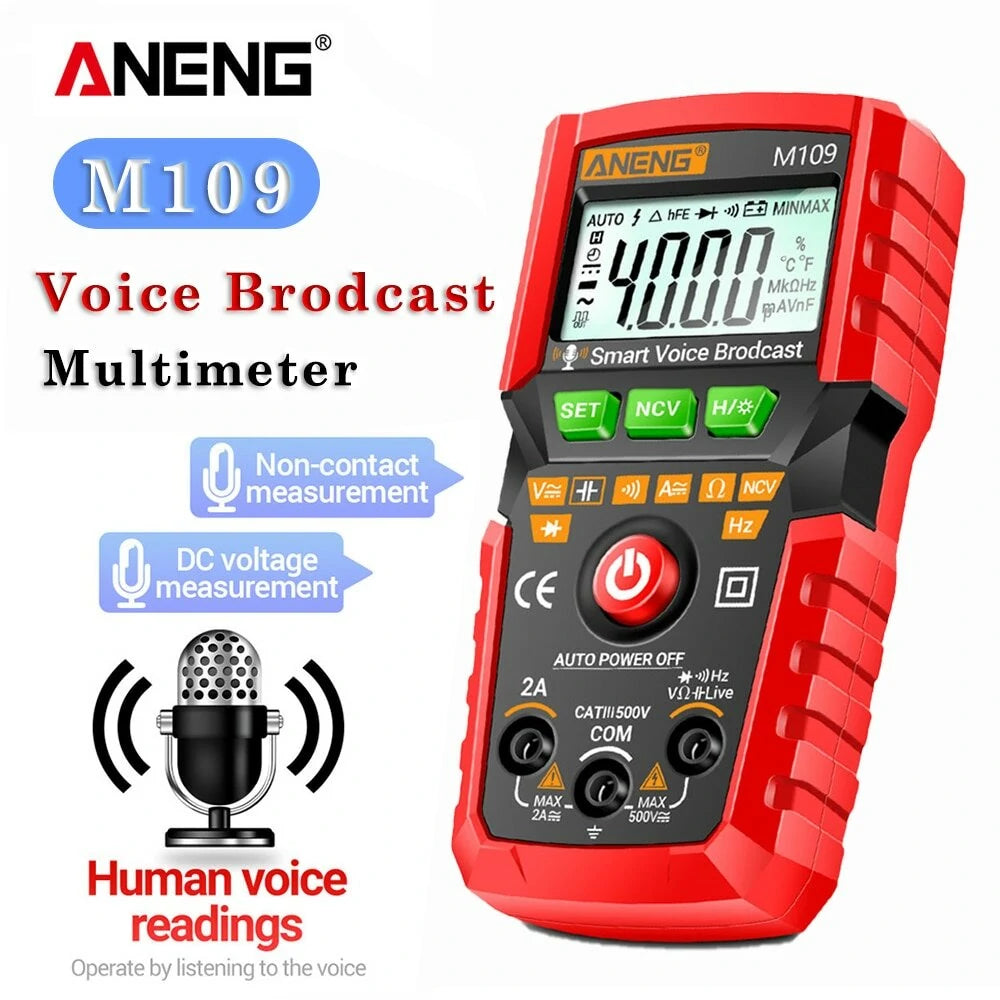

ANENG M109 Smart Voice Broadcast Mini Digital Multimeter

The ANENG M109 is a compact, auto-ranging digital multimeter equipped with smart voice broadcast functionality. It features a 4000-count LCD display, making it an ideal tool for both professionals and hobbyists when testing electrical systems.

Key Features:

• Brand: ANENG
• Model: M109
• Display: 4000 counts
• Material: ABS/PVC
• Power Supply: 2 * 1.5V AAA (not included)
• Low Battery Indication: Yes
• Auto Power Off: Yes
• Ranging: Auto
• Data Hold: Yes
• Backlight: Yes

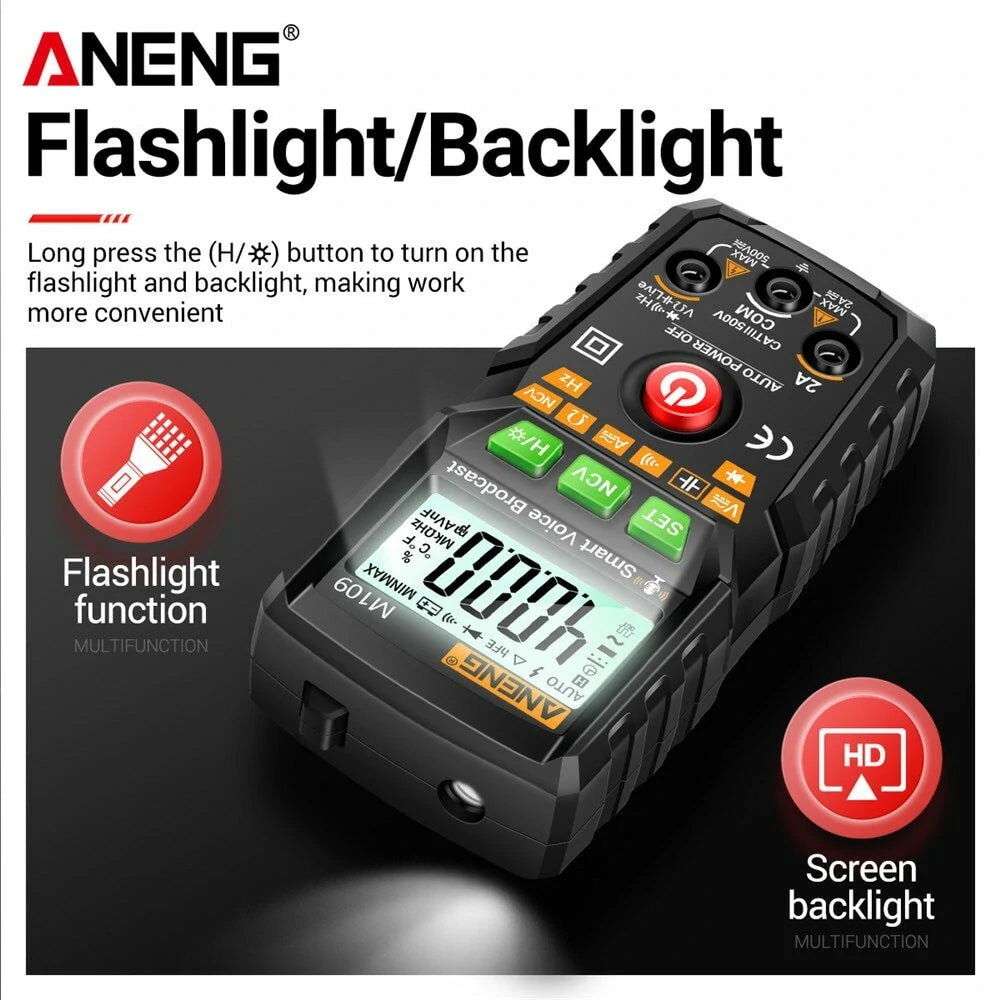

• Flashlight: Yes
• True RMS: No
• Diode Test: Yes
• Resistance Measurement: Yes
• Capacitance Measurement: Yes
• Continuity Test: Yes

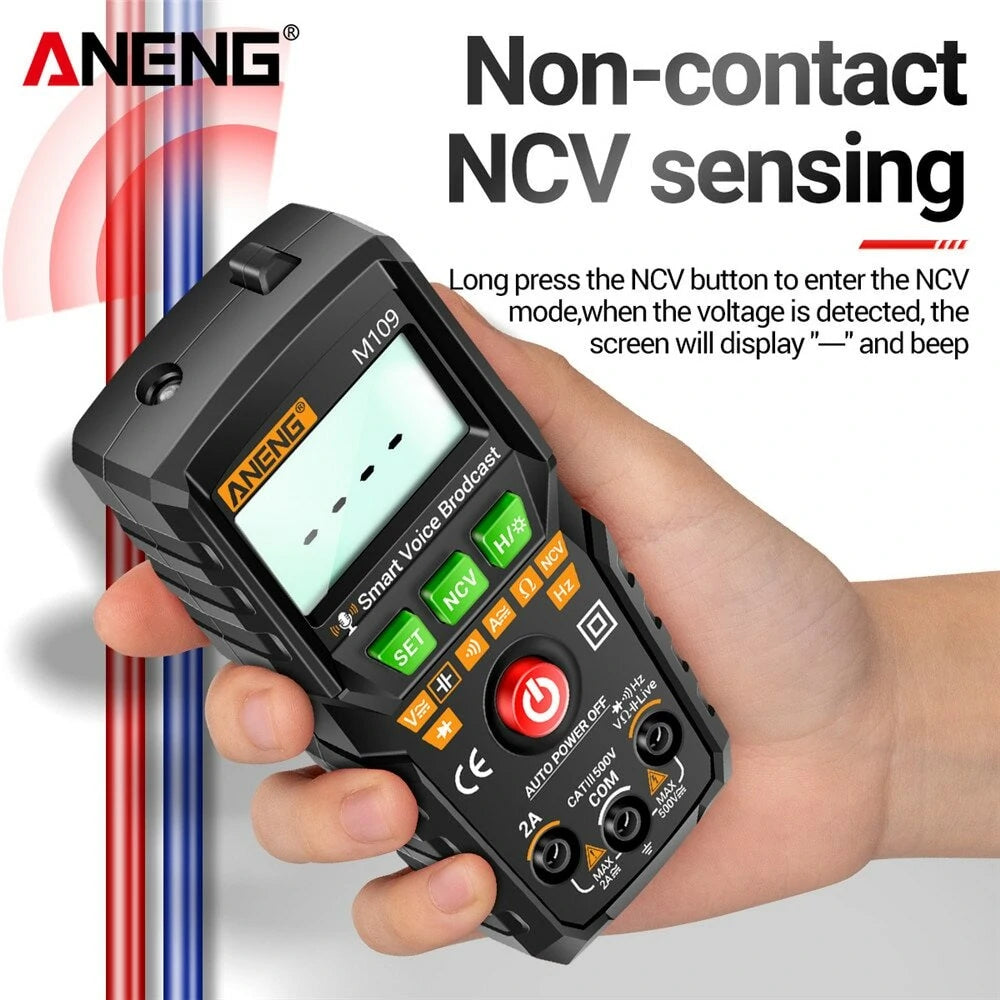

• Non-Contact Voltage (NCV): Yes

Measurement Ranges & Accuracy:

• DC Voltage: 4V/40V (±1.0%+5d), 400V/500V (±1.2%+5d)
• AC Voltage: 4V/40V (±1.2%+5d), 400V/500V (±1.5%+8d)
• Direct Current (DCA): 400mA/2A (±1.5%+5d/±2.5%+8d)
• Alternating Current (ACA): 400mA/2A (±1.8%+6d/±3.0%+8d)
• Capacitance: 4nF/40nF/400nF/4uF/40uF (±3.0%+5d), 400uF (±3.5%+5d), 4mF (±5.0%+6d)
• Resistance: 4.000kΩ (±1.5%+10d), 40.00kΩ/400.0kΩ/4.000MΩ (±1.0%+5d), 20.00MΩ (±1.5%+10d)
• Frequency: 400Hz/4KHz/40KHz (±1.5%+5d), 400kHz (±3.0%+5d), 4MHz (±4.0%+10d)

Operating Conditions:

• Operating Temperature: 0～40℃

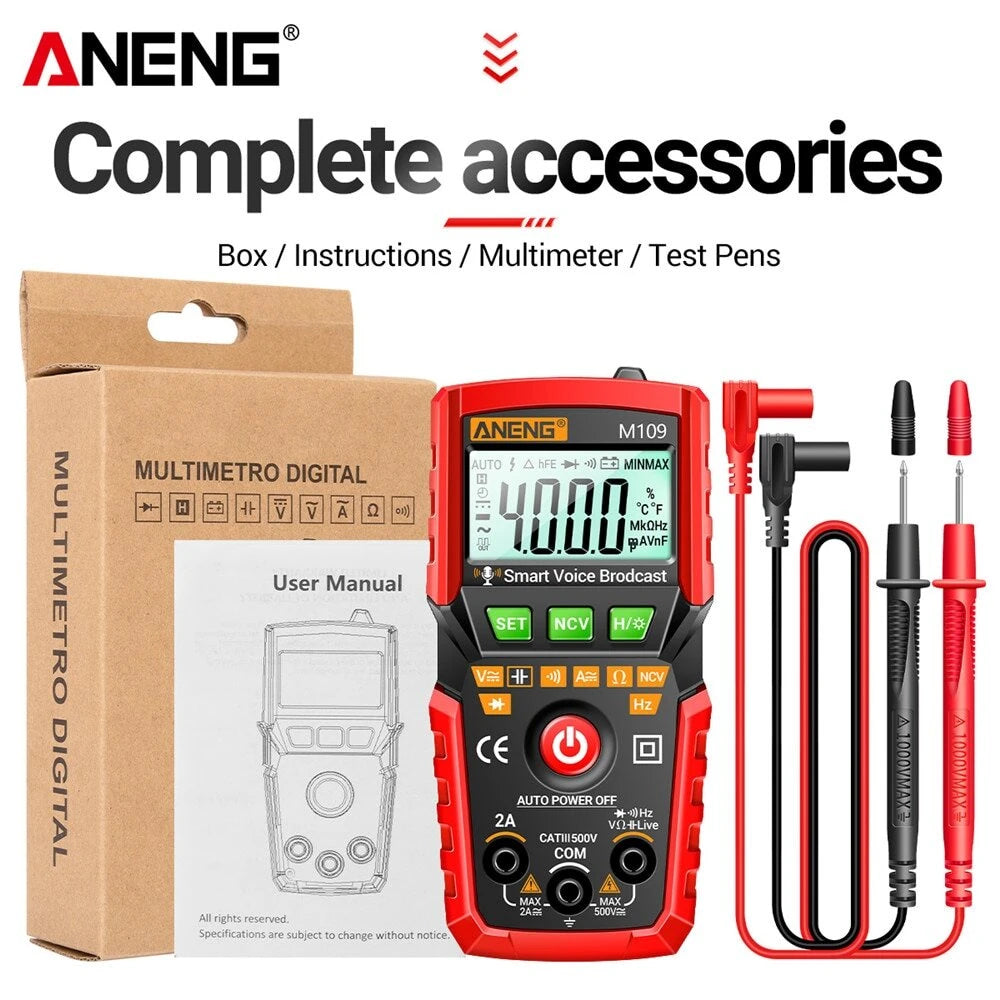

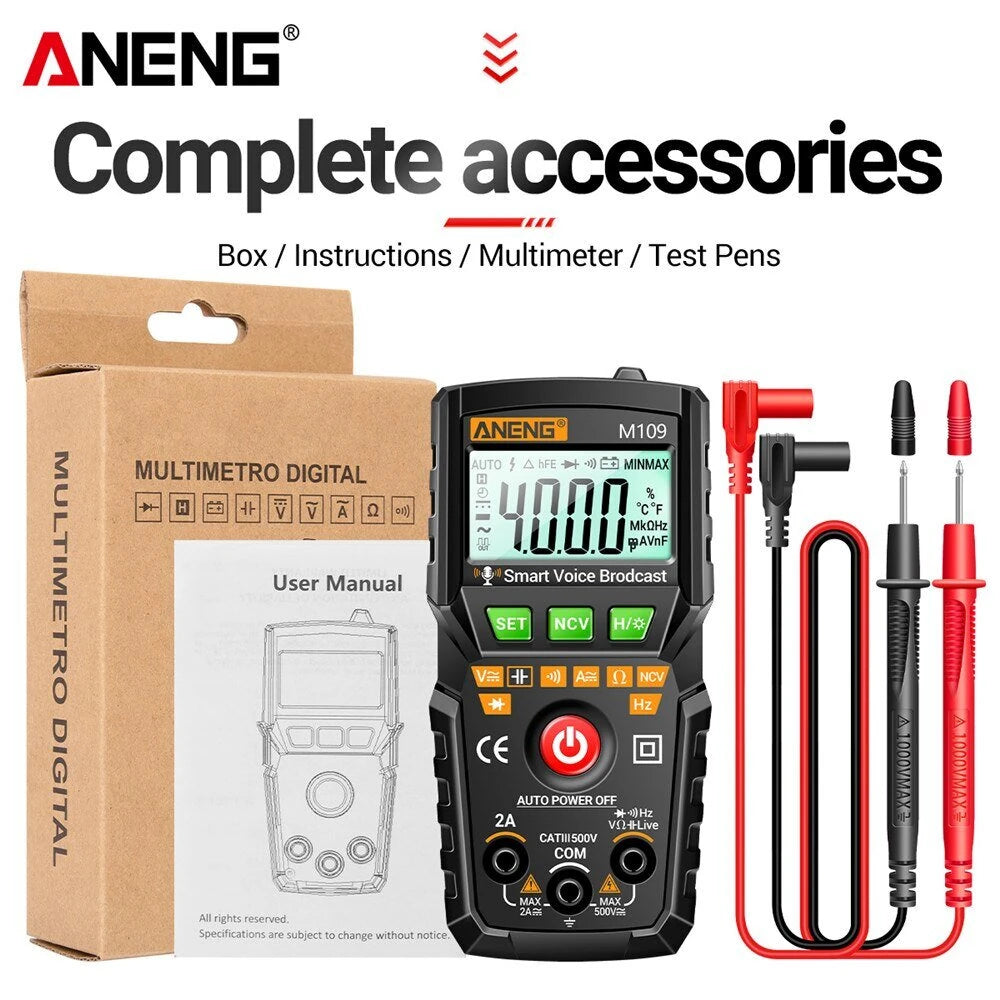

Package Includes:

• 1 x M109 Digital Multimeter
• 1 x Set of Test Leads
• 1 x User Manual
• 1 x Box

Explore the versatility and precision of the ANENG M109, the perfect companion for your electrical testing needs.
