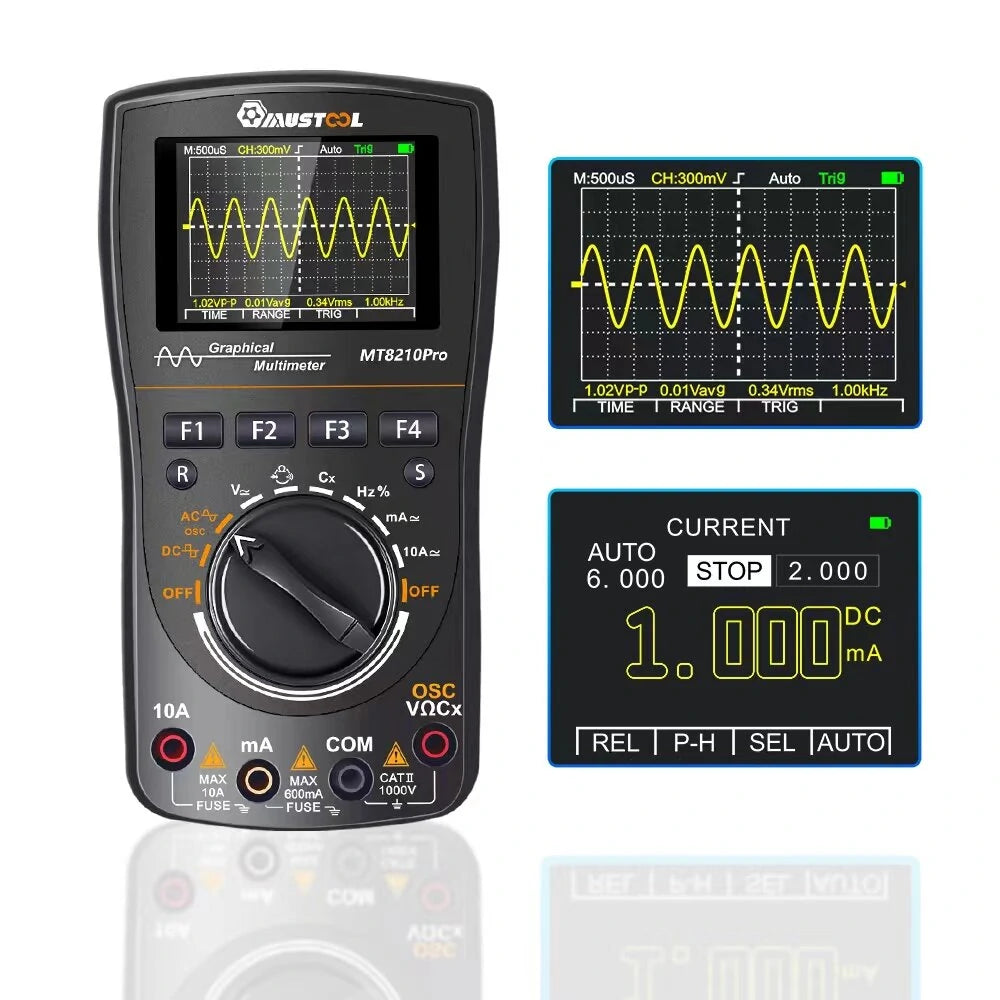

Mustool MT8210PRO Auto Oscilloscope
Features

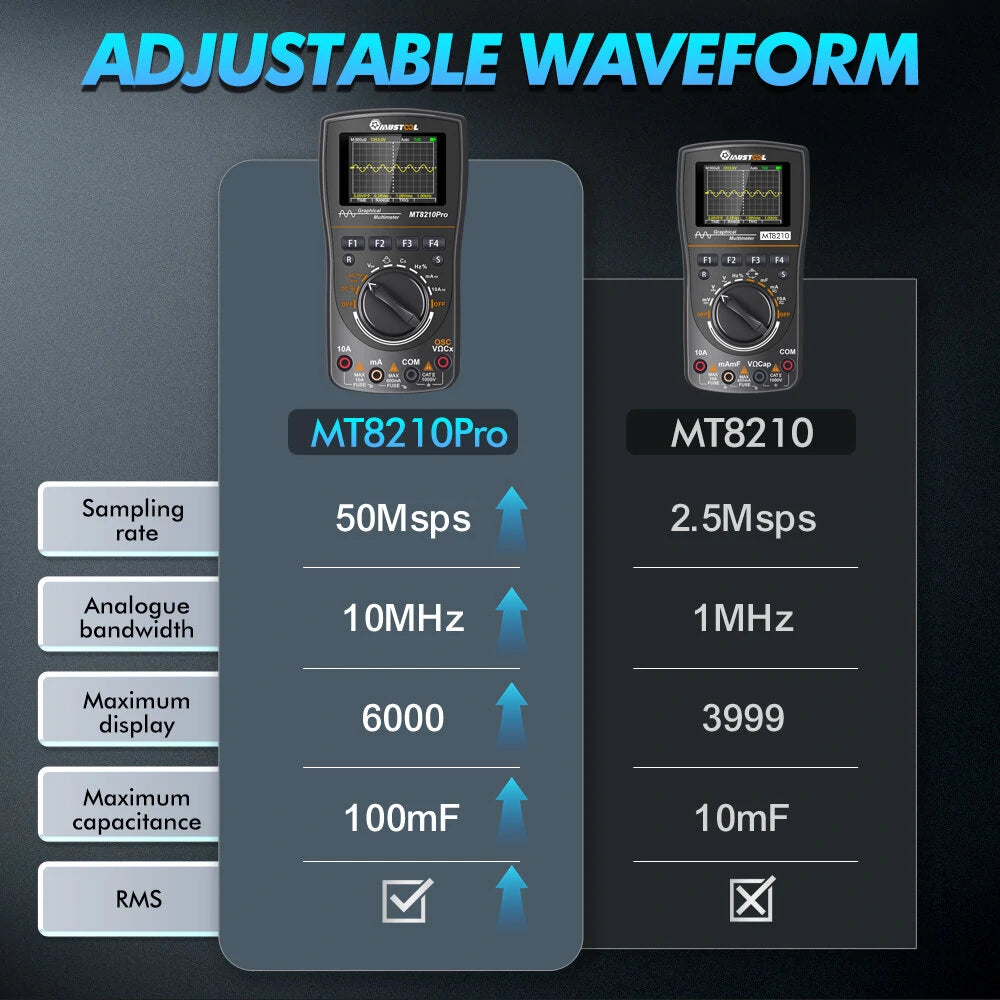

- High-Frequency Testing: The Auto Oscilloscope boasts a real-time sampling rate of 50Msps and a bandwidth range of ACV / 10MHz, making it a prime choice for diverse testing and analysis tasks.

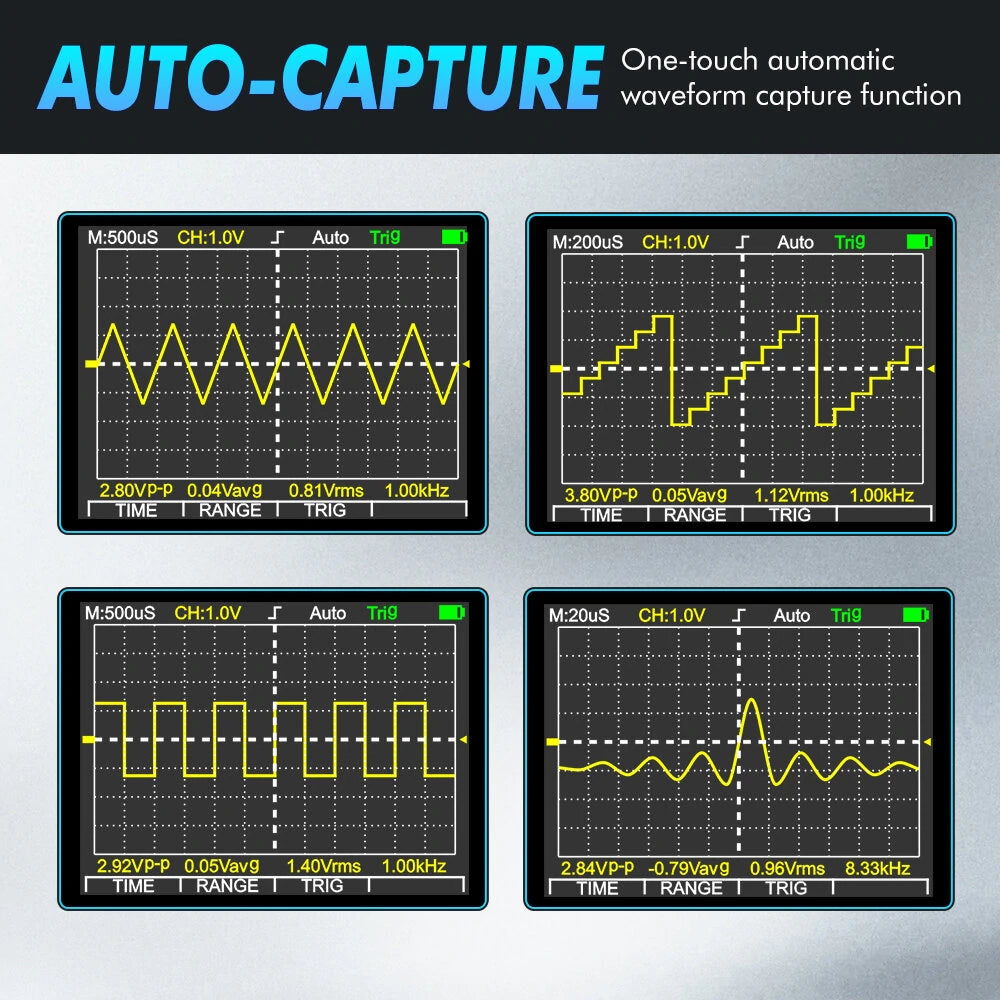

- Comprehensive Measurement: Offering an array of measurements such as Vp-p, Vavg, Vrms, and Hz, it ensures thorough and accurate results for all your testing and research needs.
- Precision in Details: With a vertical range accuracy at ±(5%+ 0.2div) and Time Base Accuracy at ±(0.01%+ 0.1 div), this oscilloscope assures precision in all your measurements.
- Wide Application: Its versatility extends from checking resistances (600.0Ω to 60.00MΩ) and testing capacitance (99.99nF to 99.99mF) to measuring frequency (1Hz to 20MHz).
- Energy Efficient: Features an automatic sleep mode activating after 15 minutes of inactivity to conserve energy and extend the life of the AA batteries.

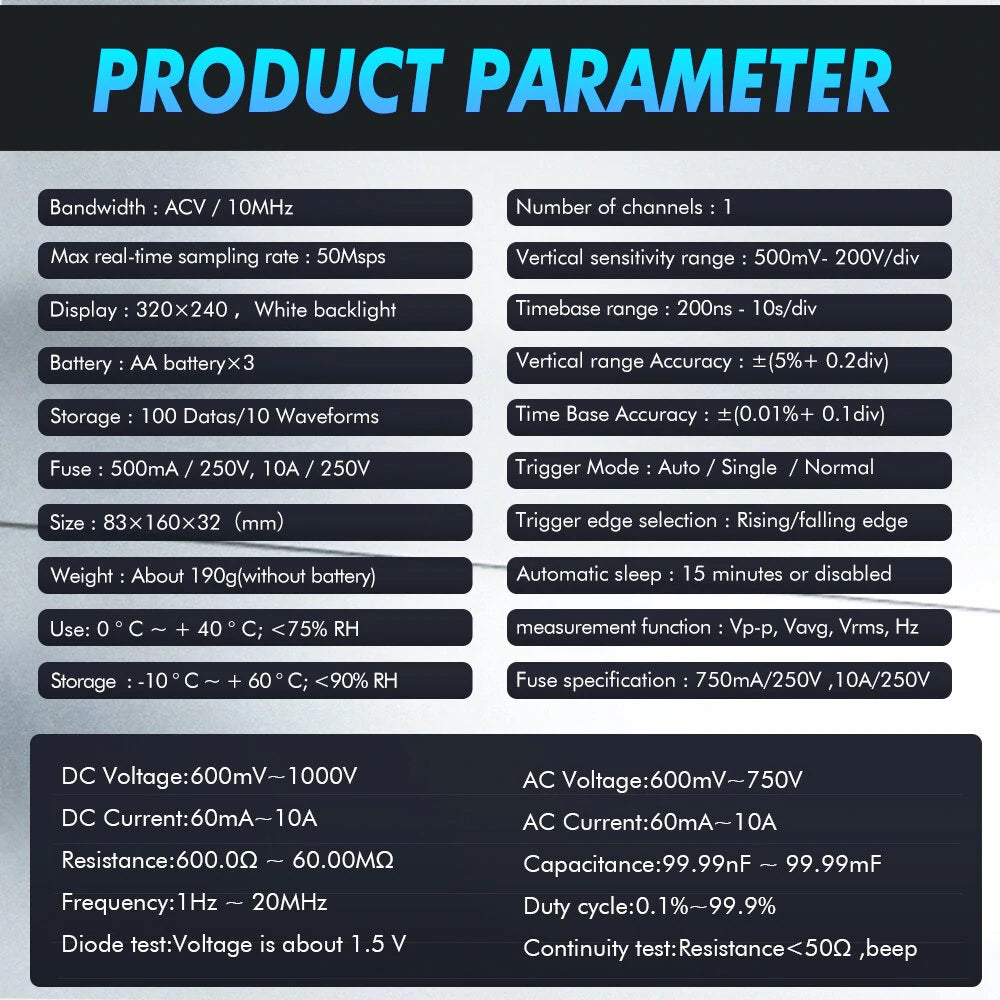

Specifications
| Brand | Mustool |
| Model | MT8210PRO |
| Bandwidth | ACV / 10MHz |
| Number of Channels | 1 |
| Max Real-Time Sampling Rate | 50Msps |
| Vertical Sensitivity Range | 500mV- 200V/div |
| Timebase Range | 200ns - 10s/div |
| Display | 320×240, White backlight |
| Battery | AA battery × 3 |
| Vertical Range Accuracy | ±(5%+ 0.2div) |
| Storage | 100 Datas/10 Waveforms |
| Time Base Accuracy | ±(0.01%+ 0.1 div) |
| Fuse | 500mA / 250V, 10A / 250V |

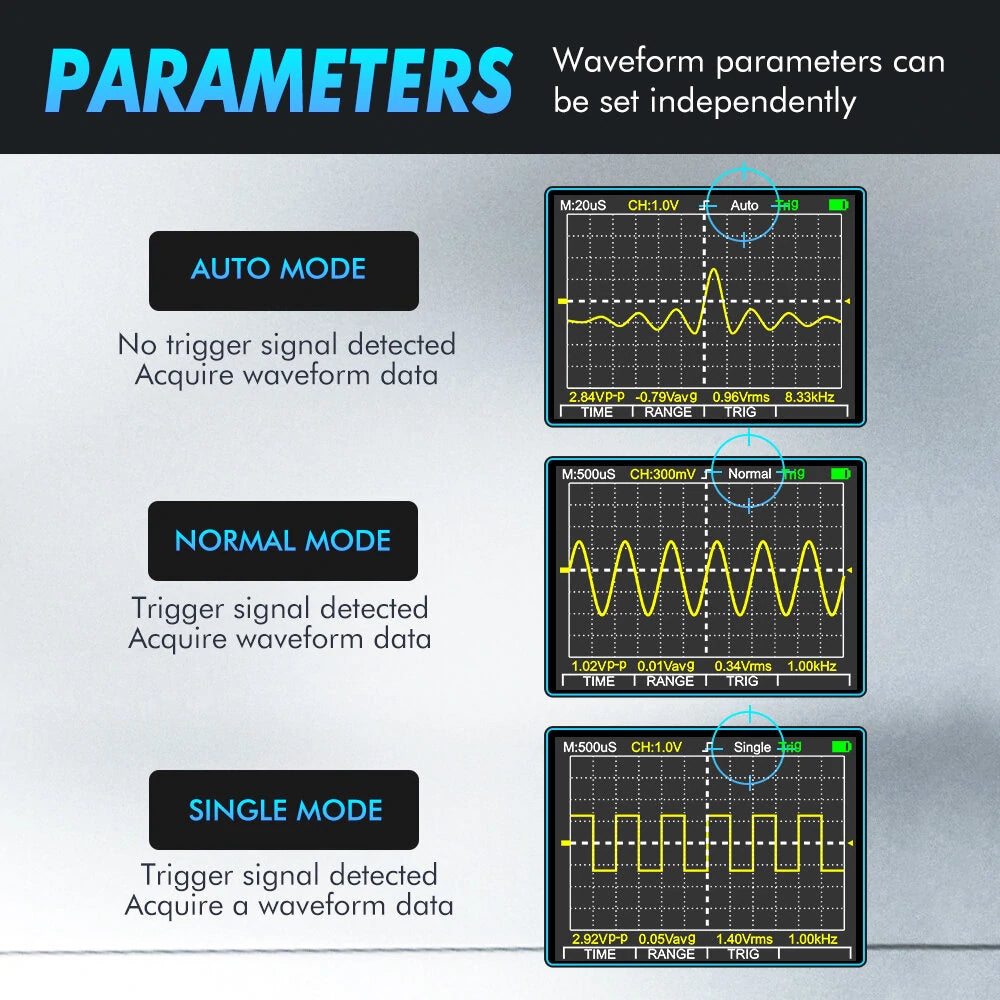

| Trigger Mode | Auto / Single / Normal |
| Size | 83×160×32 (mm) |
| Trigger Edge Selection | Rising/Falling edge |
| Automatic Sleep | 15 minutes or disabled |
| Weight (without battery) | About 190g |
| Measurement Functions | Vp-p, Vavg, Vrms, Hz |
| Operating Temperature | 0°C ~ 40°C |
| Storage Temperature | -10°C ~ 60°C |
| DC Voltage | 600mV ~ 1000V |
| AC Voltage | 600mV ~ 750V |
| DC Current | 60mA–10A |
| AC Current | 60mA ~ 10A |
| Resistance | 600.0Ω ~ 60.00MΩ |
| Capacitance | 99.99nF - 99.99mF |

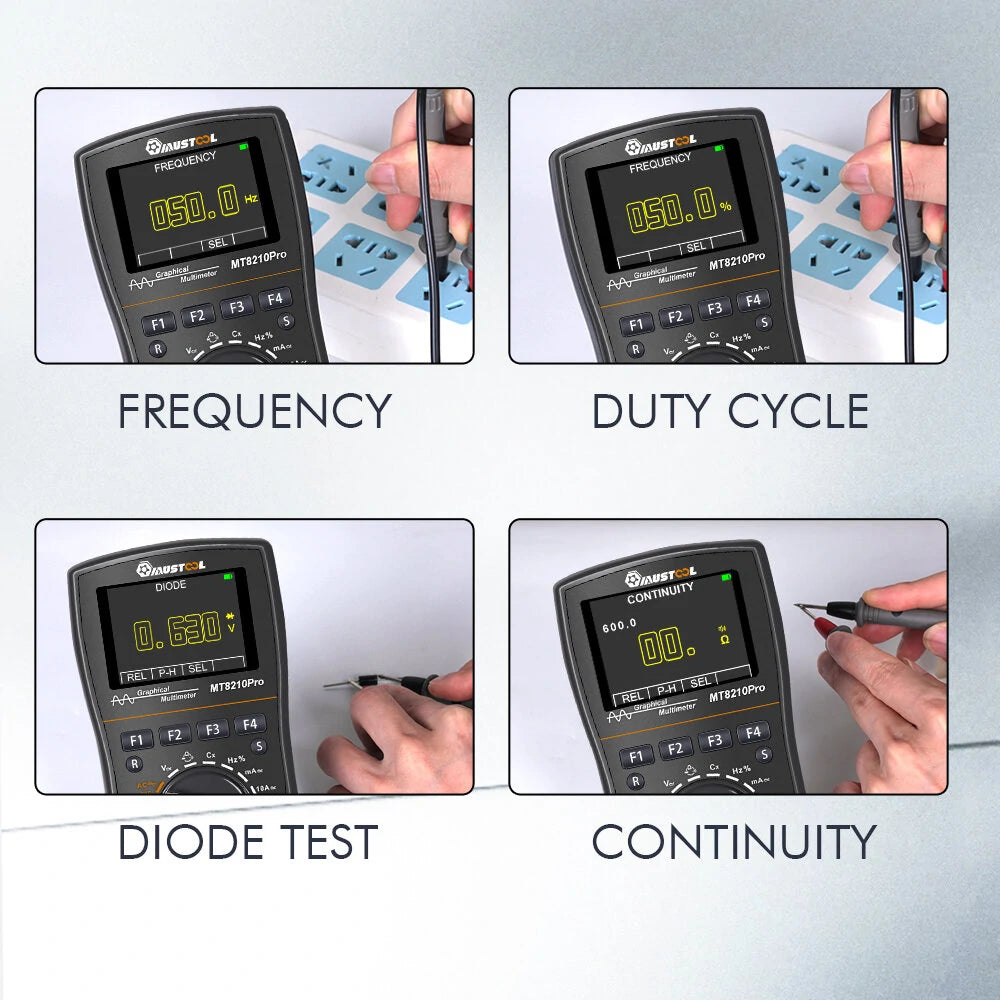

| Frequency | 1Hz ~ 20MHz |
| Duty Cycle | 0.1% - 99.9% |
| Diode Test | Voltage is about 1.5 V |
| Continuity Test | Resistance |
Package Included
- 1 x Host
- 2 x Test Leads
- 1 x Instruction Manual
- 1 x Packing Box
- 1 x Cloth Bag
