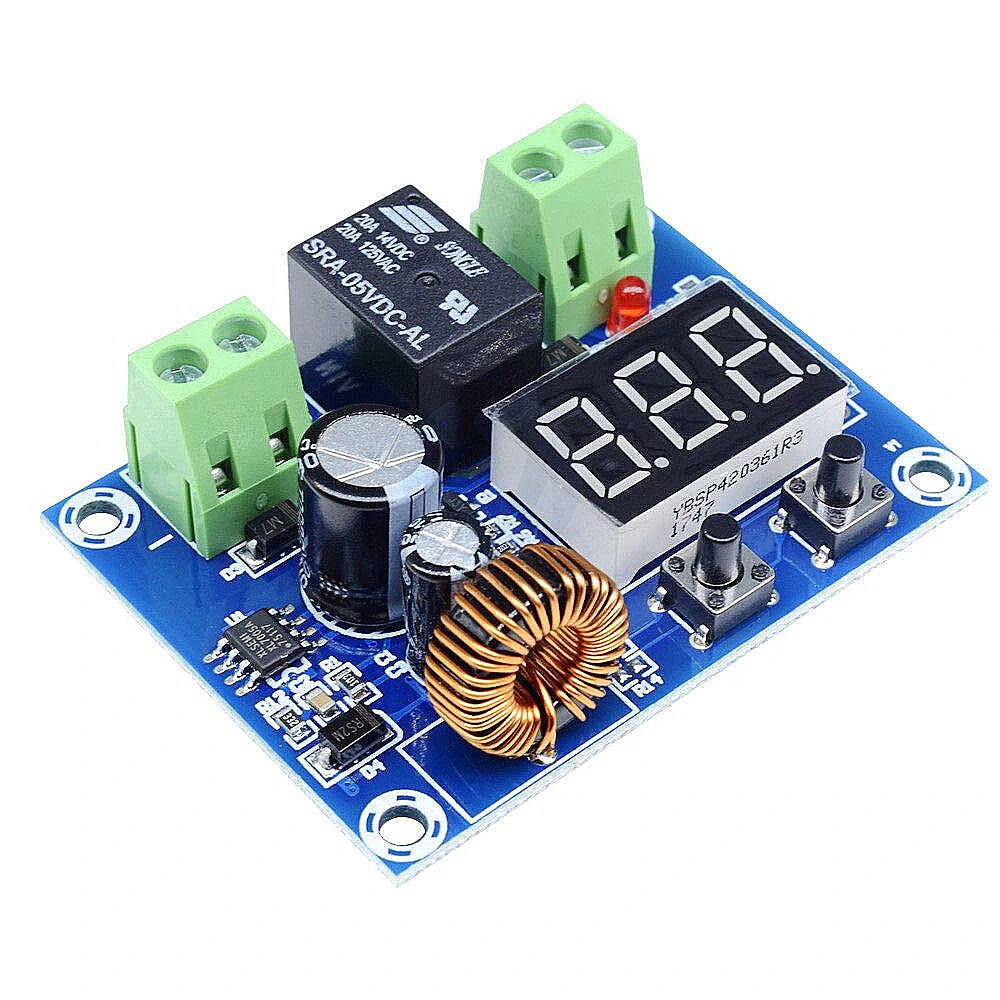

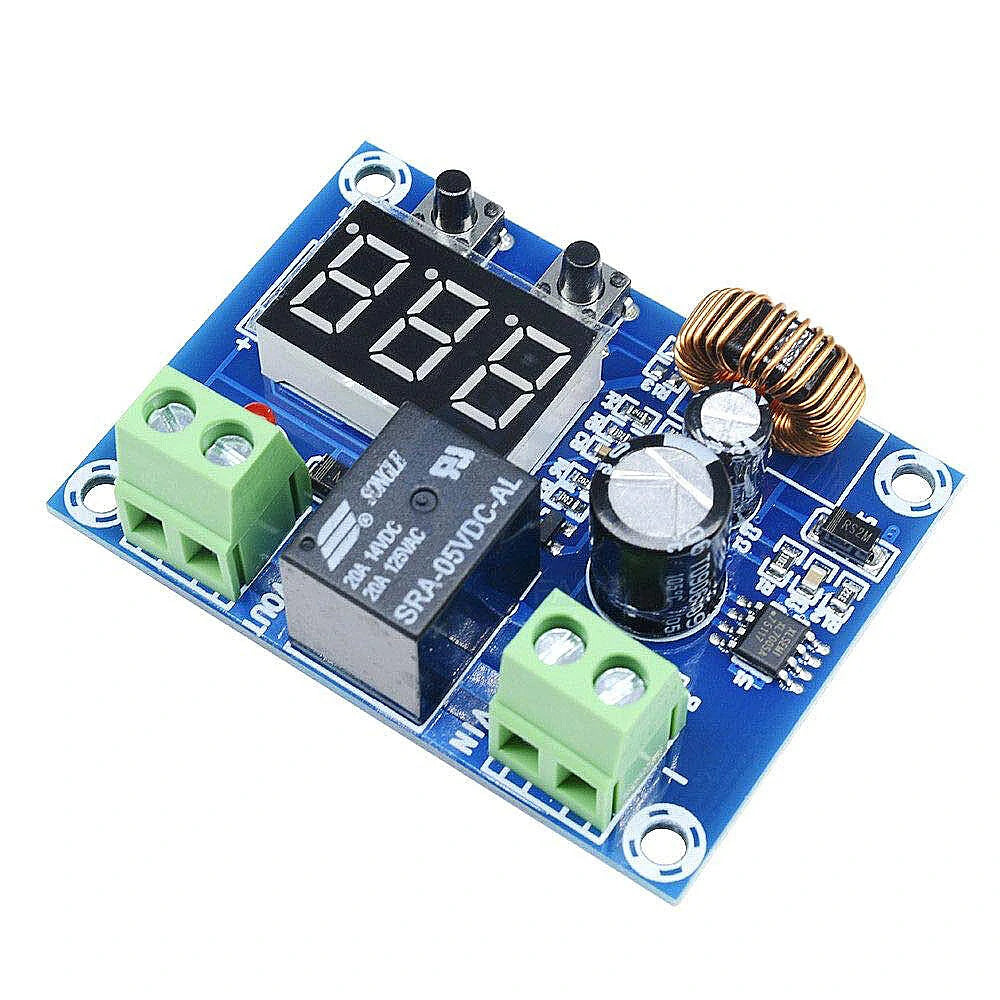

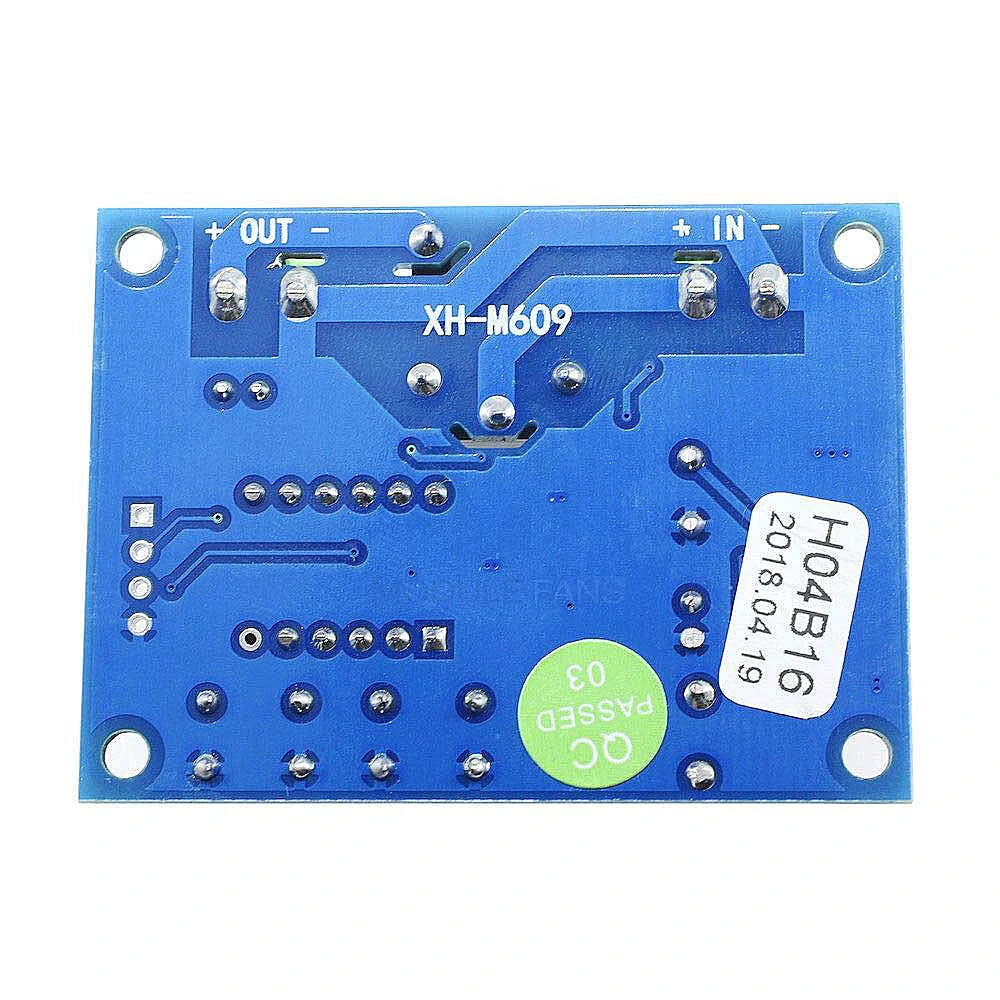

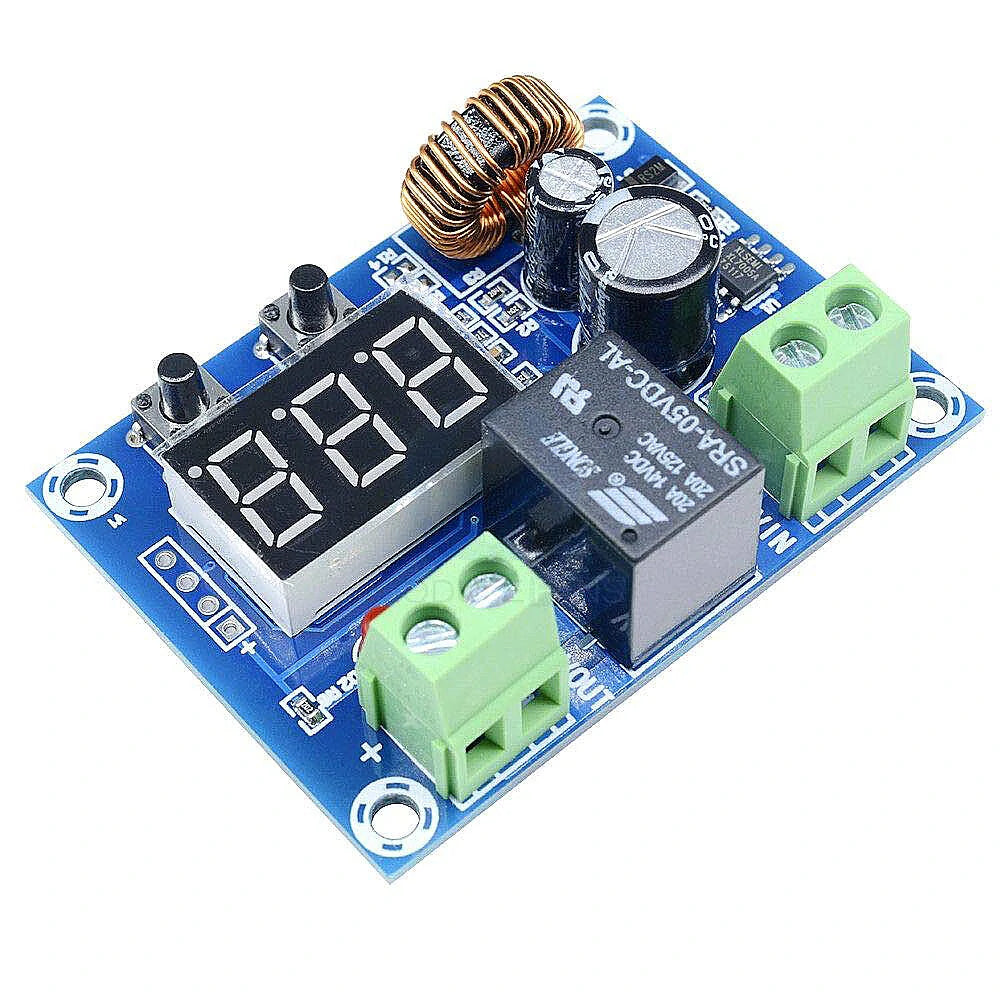

XH-M609 DC Voltage Protection Module: Lithium Battery Low Power Disconnect, Undervoltage Protection Board, 6-60V DC Output

Product Name: Battery Overdischarge Protection Module

Model: XH-M609

Specifications:

• Power Supply Voltage: DC 6-60V
• Output Voltage: DC 6-60V
• Control Precision: 0.1V
• Power Consumption: Minimal
• Scope of Application: Suitable for various accumulators and lithium batteries
• Net Weight: 28g
• Size: 57×42×19mm

Key Features:

1. ST Processing Chip: Utilizes a core chip from STMicroelectronics for stable and reliable performance.
2. European Terminal Design: Adheres to European design standards using eco-friendly materials; provides strong, reliable electrical performance.
3. High-Brightness Display: Equipped with a three-digit digital tube for precise 0.1 display accuracy, avoiding interference from black parts of the tube.

Settings:

Set Below 12.5V to Stop, Above 14V to Start

• Set Protection Value: Press "+" once to view the protection value. Double-click "+", and the decimal point flashes. Use "+, -" to adjust to 12.5. Without action for 3 seconds, the setting is saved automatically.
• Set Hysteresis Value: Press "-" once to view the hysteresis value. Double-click "-", and the decimal point flashes. Use "+, -" to adjust to 1.5. Without action for 3 seconds, the setting is saved automatically.

Set Below 10V to Stop, Above 15.5V to Start

• Set Protection Value: Press "+" once to view the protection value. Double-click "+", and the decimal point flashes. Use "+, -" to adjust to 10.0. Without action for 3 seconds, the setting is saved automatically.
• Set Hysteresis Value: Press "-" once to view the hysteresis value. Double-click "-", and the decimal point flashes. Use "+, -" to adjust to 5.5. Without action for 3 seconds, the setting is saved automatically.

Reset Instructions:

To reset the module, turn off the power, press and hold both buttons simultaneously, then turn on the power. The display will show "888" indicating a successful factory reset.

Factory Settings:

• Protection Value: 12V
• Hysteresis Value: 2V

Package Includes:

• 1 × Voltage Protection Module
