4G GSM Gate Controller with Remote Opener & Callny App Support

Product Features

• Based on GSM 4G communication frequency, supports up to 1000 users. Authorized users can control connected devices remotely via SMS or call with feedback provided by SMS, with no distance limitations.
• The Gate Controller is ideal for access control systems, garage doors, swing doors, folding doors, parking systems, and other electric equipment. Users receive notifications via SMS for remote control results, such as the opening and closing status of doors.
• Supports Ordinary User Authorization and multiple frequency bands including B25/B26/B28/B66, B38/B40/B41, B13/B17/B18/B19/B20, B1/B2/B3/B4/B5/B7/B8/B12.
• Compatible with Nano SIM cards supporting basic communication functions for SMS and calling. Simply close the PIN lock and connect the device as per the manual for easy operation and convenience.
• Features system security isolation, ideal for industrial control field applications, supports a wide working voltage range (9-36V DC), and includes anti-reverse connection protection design.

Specifications

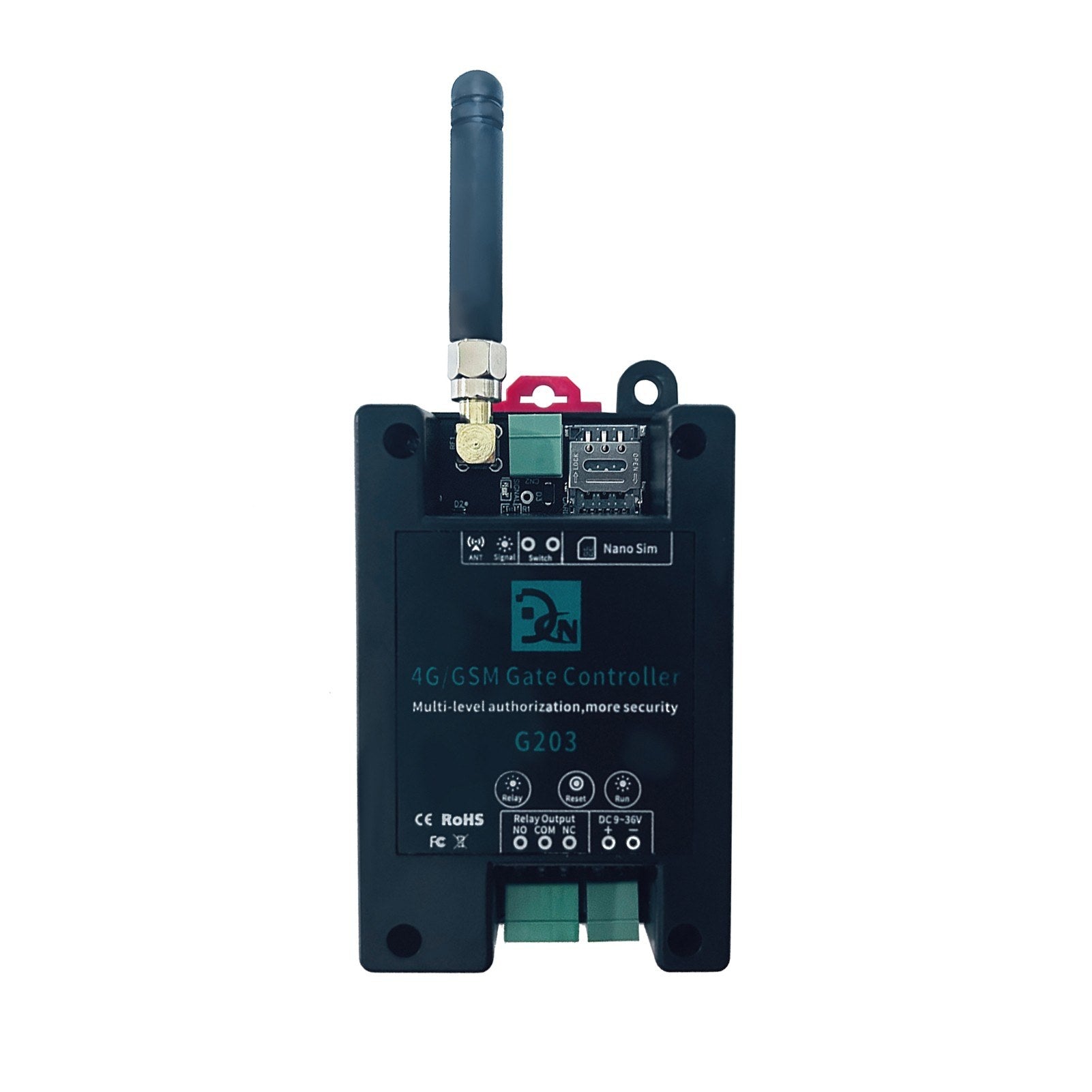

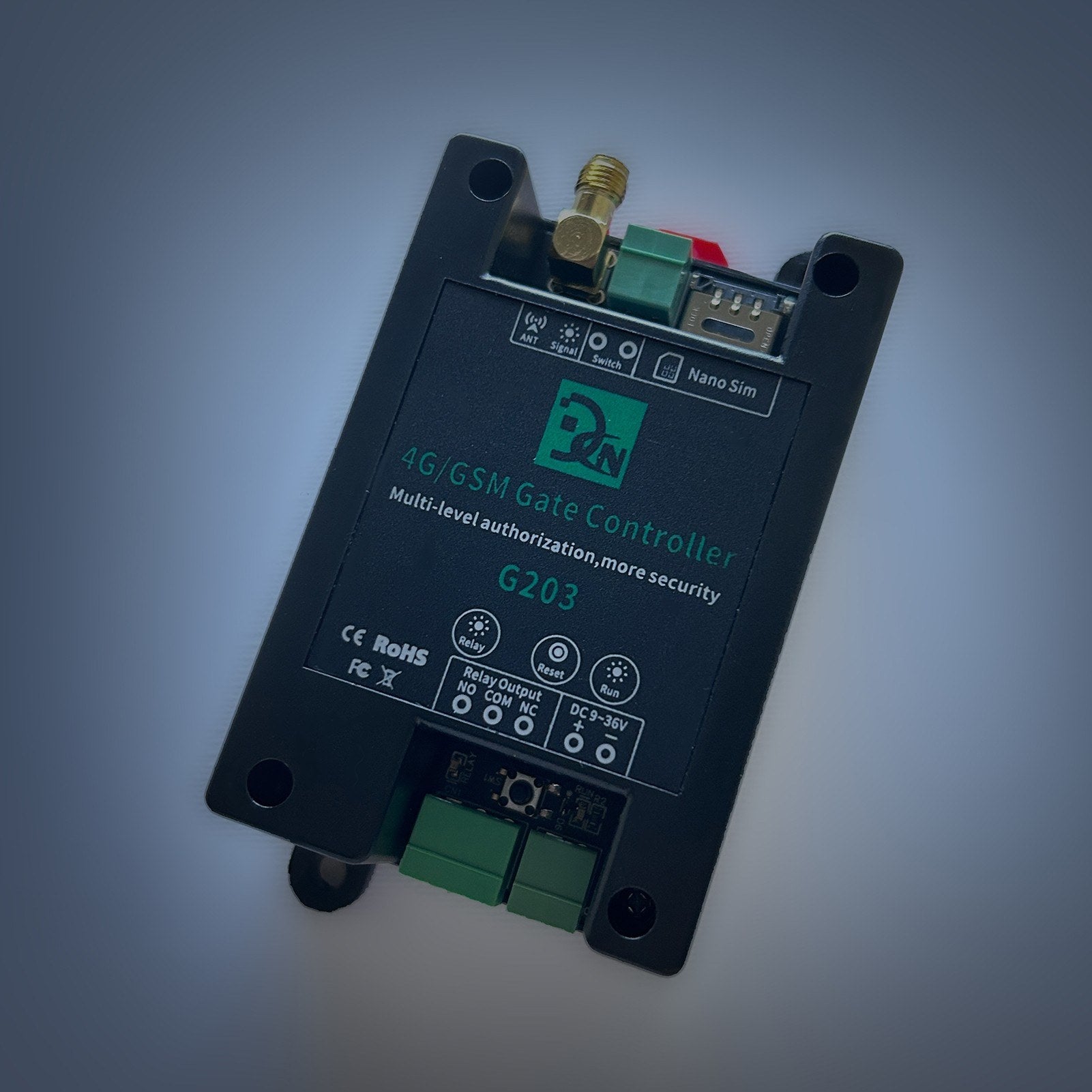

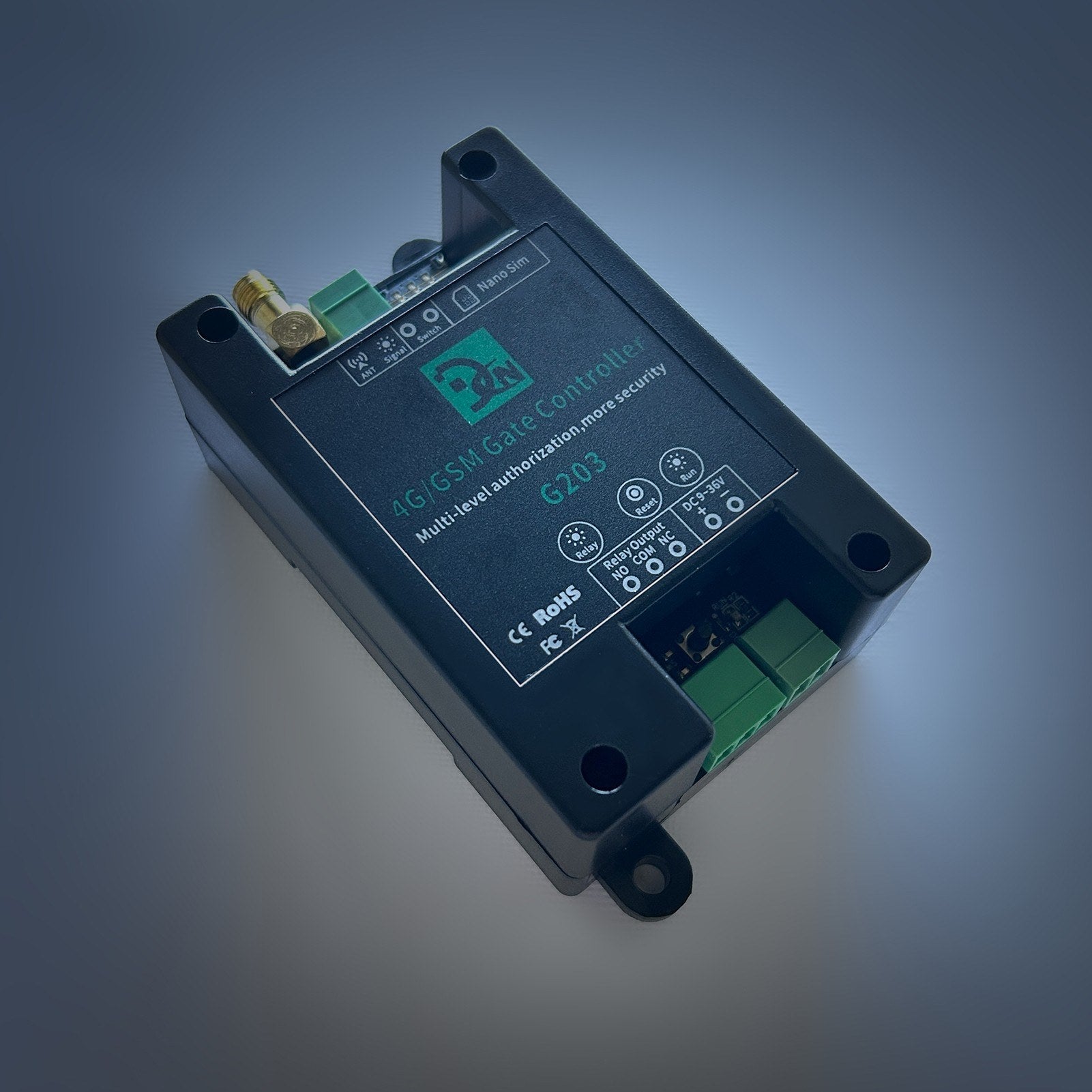

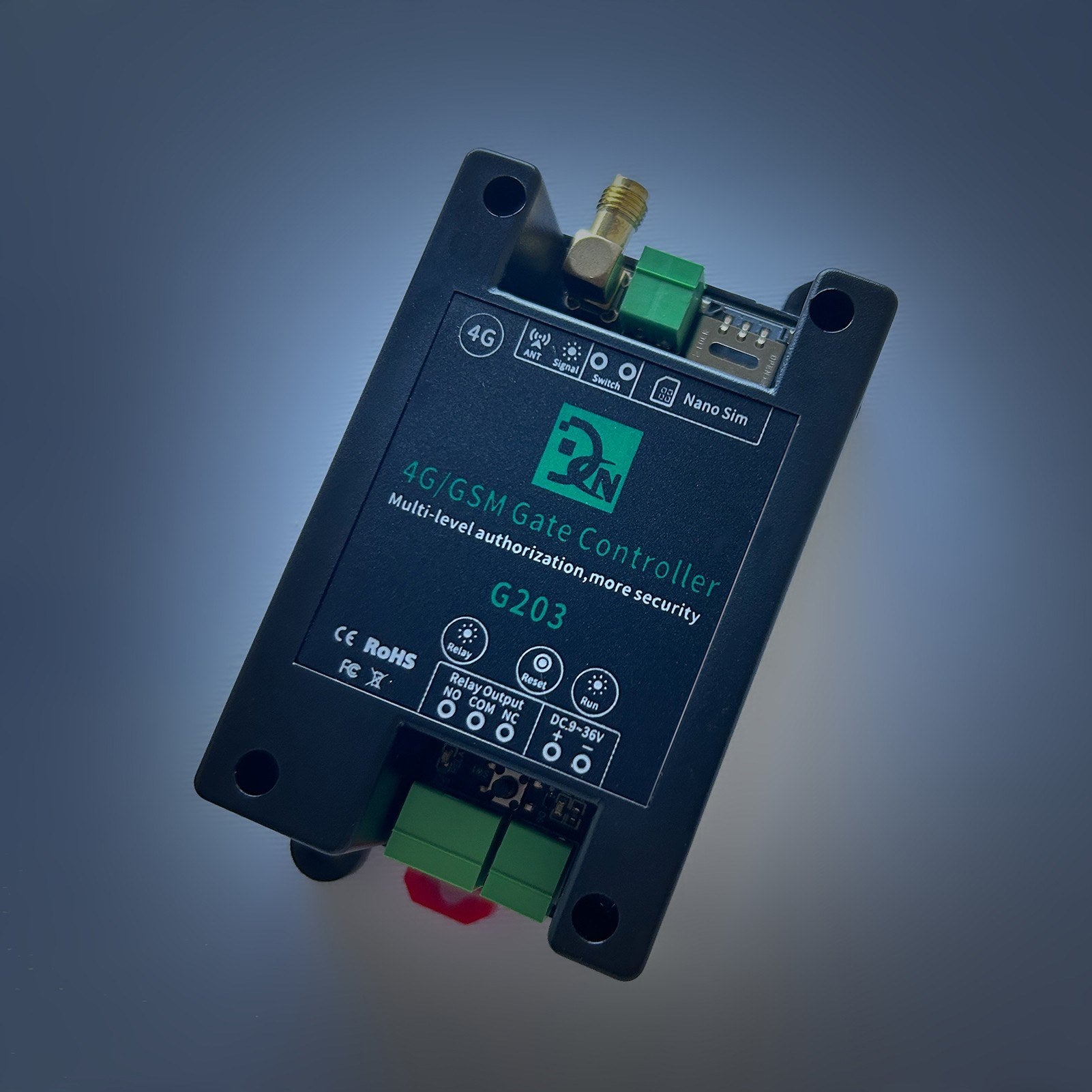

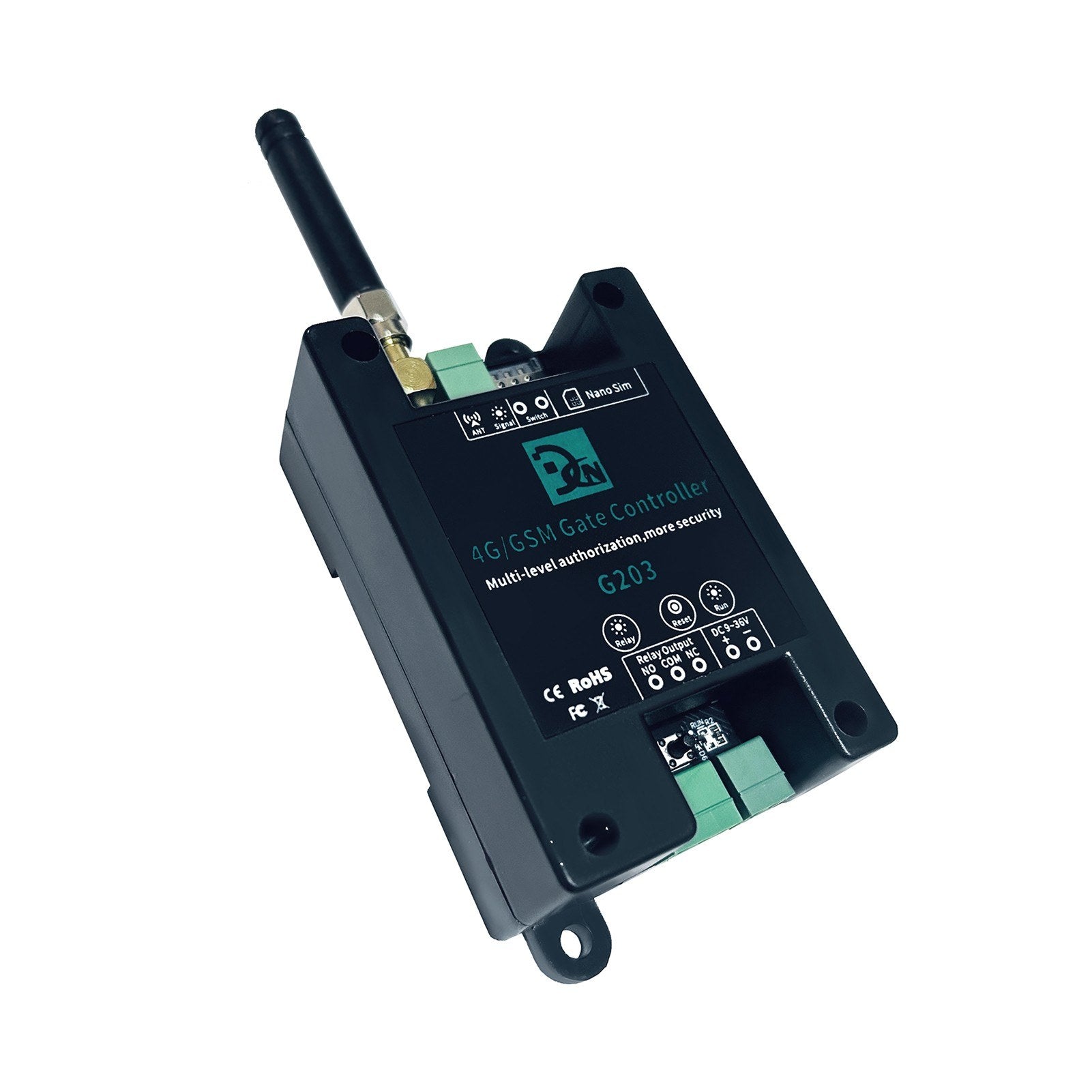

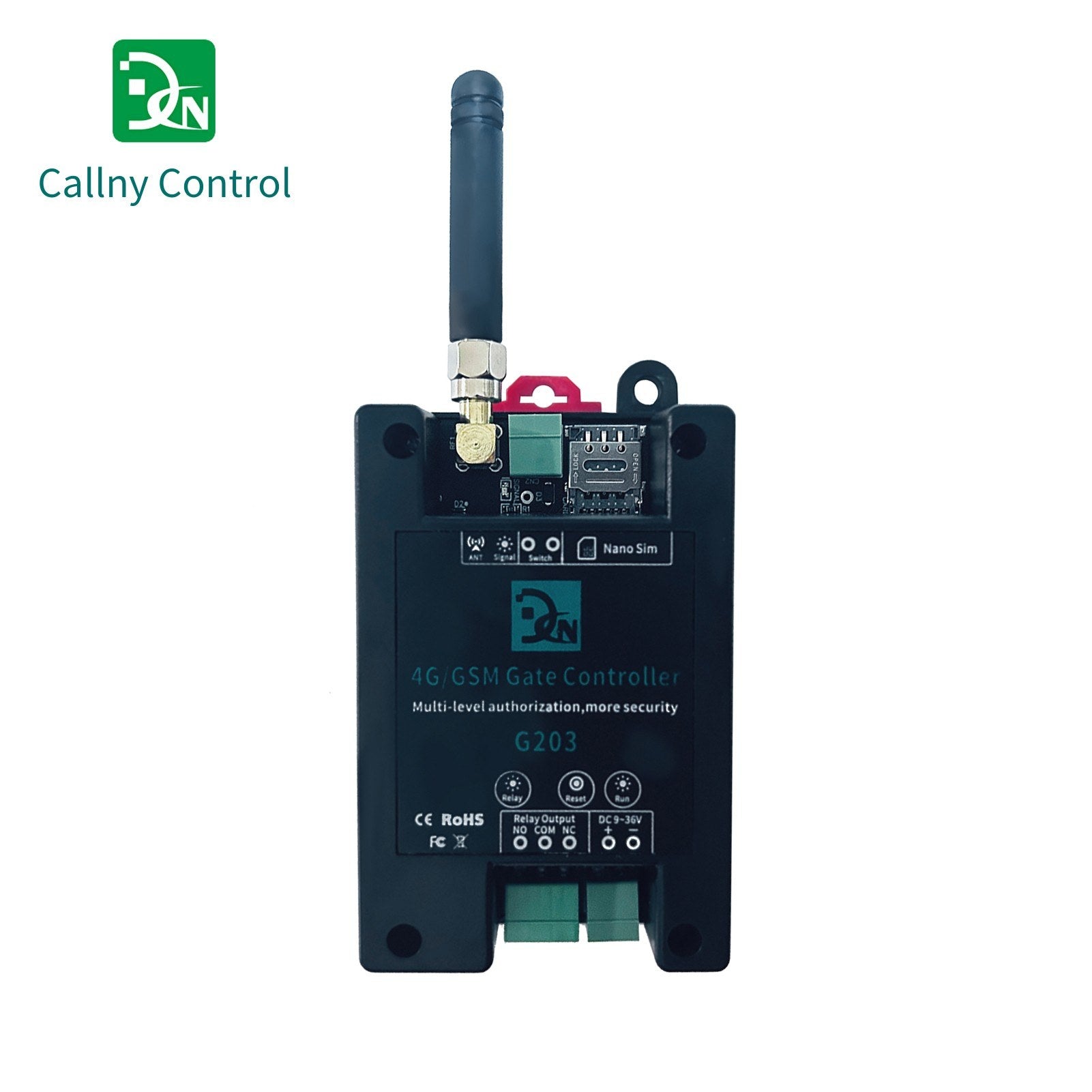

• Item: 4G/GSM G203 Gate Controller
• Color: Black
• Material: ABS
• Rated Voltage: DC 9V~36V/1A
• Working Temperature: -10℃ to +60℃
• Storage Temperature: -20℃ to +60℃
• Relative Humidity: 10-90%, no condensation
• Output Relay Related Voltage: 5A/250VAC, 7A/125VAC, 20A/14V
• SIM Card: Nano type, 3V
• Antenna: 50 Ω SMA
• Wired Switch: Supports
• Relay Port Contact Capacity: 5 Amps at 250VAC Cosφ=1, 20 Amps at 14VDC

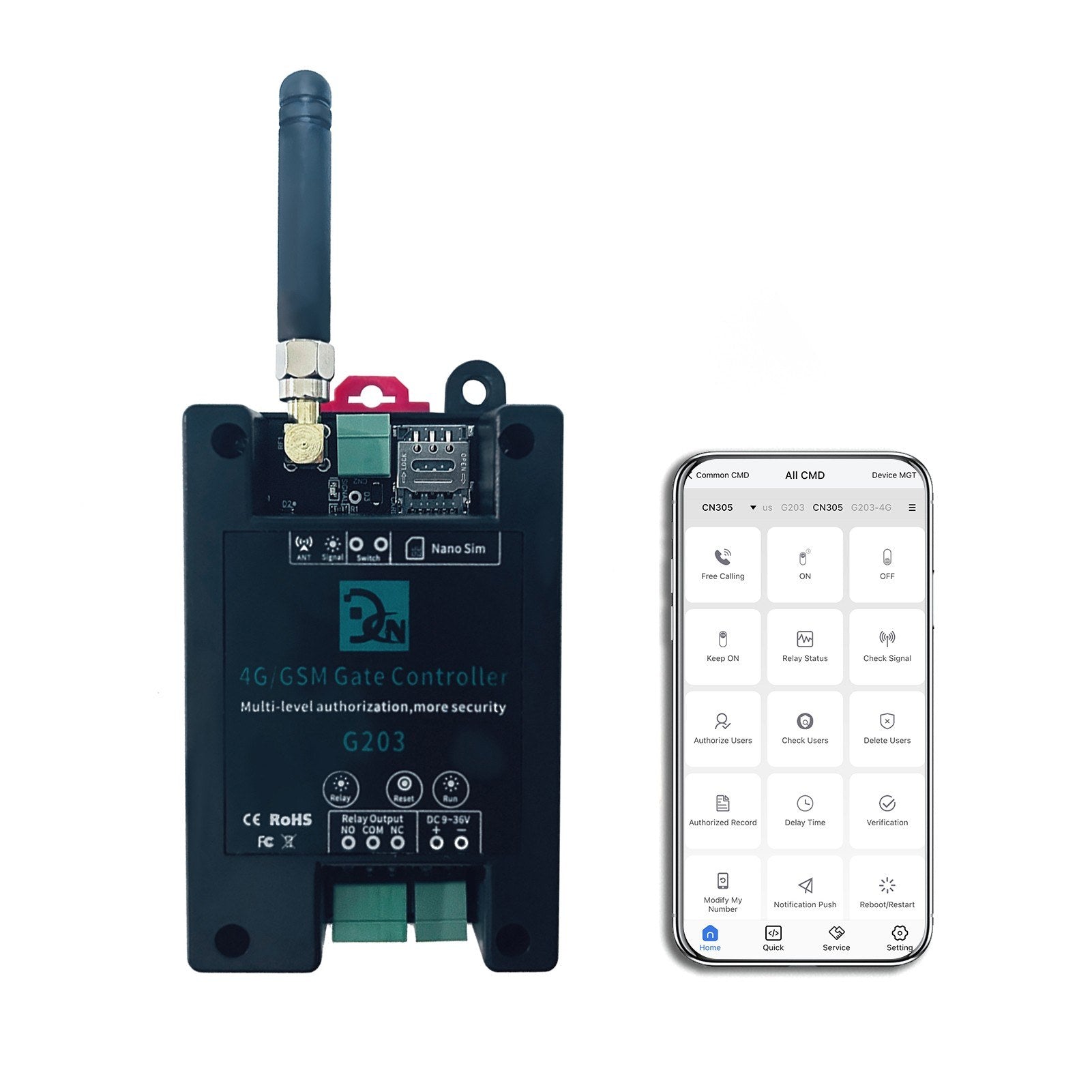

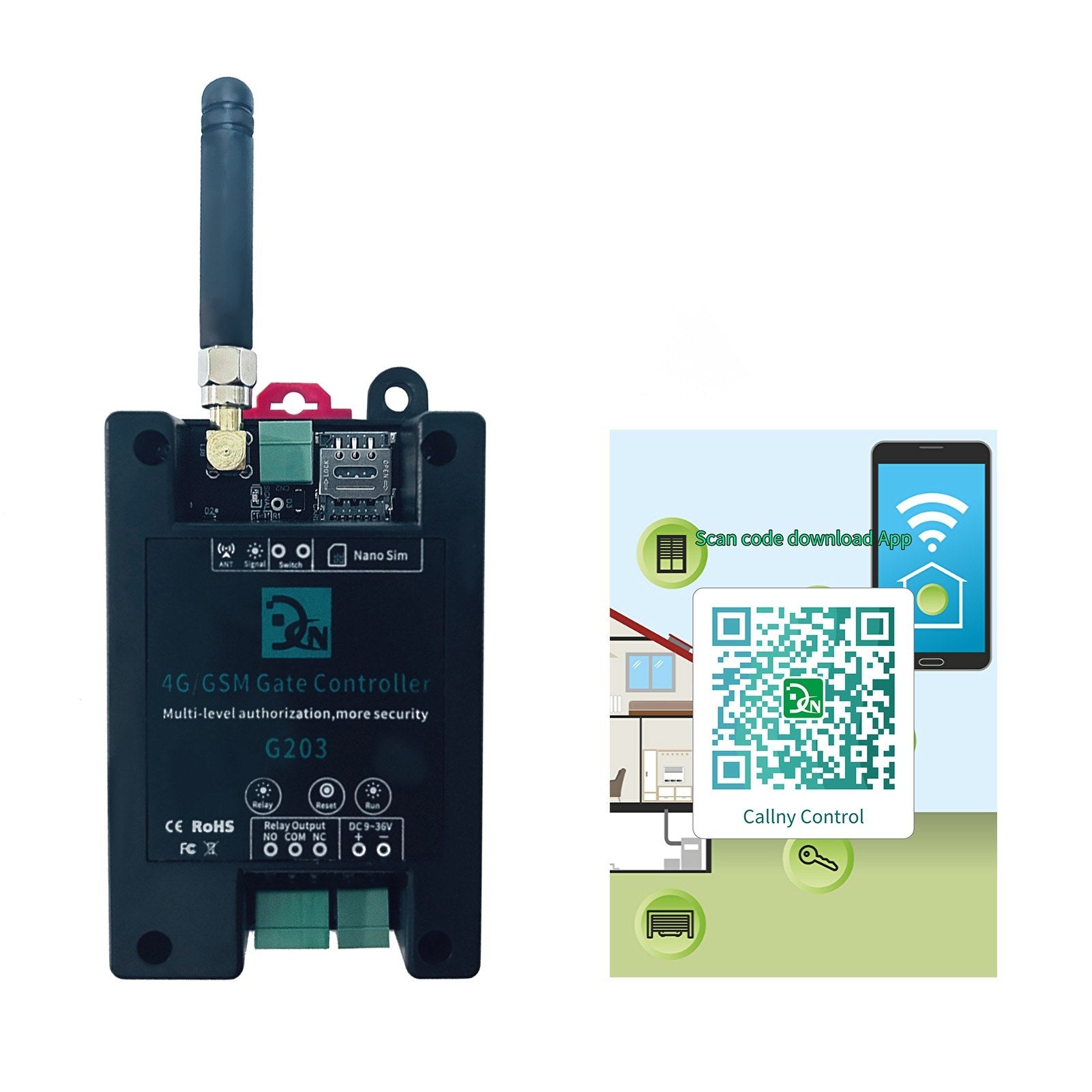

• App: callny control
• Size: 9.7 x 5 x 3.2 cm
• Package Size: 13 x 8 x 6 cm
• Package Weight: 200g

FAQ

1. Why doesn't the device respond to commands or calling after authorization?

   This may occur due to different communication methods by operators in various countries. The device may recognize a different number format. E.g., if your authorized number is +86 12345678, the device may recognize it as 12345678. In such cases, send a verification instruction to ensure the correct number is authorized using the following command: 0000#CHECKTHEPHONE# (0000 is the normal user's password). The device will respond with the recognized phone number, which should be used for re-authorization.

2. What are push users? What's the difference between Push notification and Operator's SMS return?

   Push notification: When anyone activates the relay, an SMS notification is sent to the super admin (notification push users). To disable this function, send [1234#N#].

   Operators SMS return: SMS returns are sent to users who activated the relay via SMS/free calling. To disable this function, send [1234#FBR].

Package List

• 1 x 4G/GSM G203 Gate Controller
