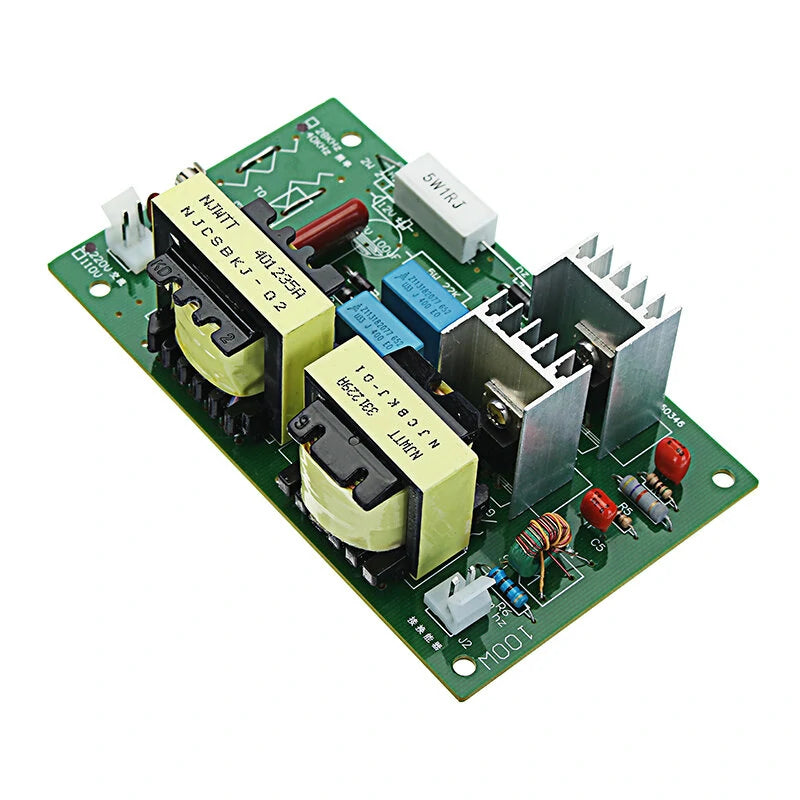

110V/220V 60W-100W Ultrasonic Cleaner Driver Board with Dual 50W 40KHZ Transducers

Product Specifications:

• Voltage: Dual voltage support (110V and 220V)
• Power: 60-100W
• Transducer: 50W, 40kHz
• Compatibility: Low-power ultrasonic cleaners, household/industrial cleaning machines, built-in generator systems

Key Features:

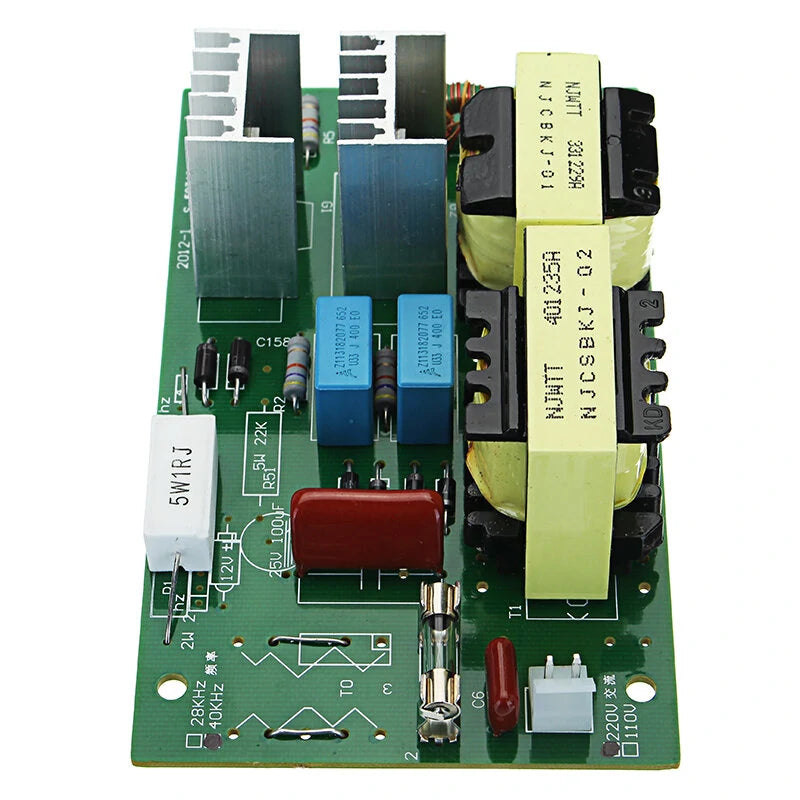

✔ Auto-detects input voltage (110V/220V)
✔ Real-time monitoring of frequency, power, and amplitude
✔ High-efficiency imported power tube

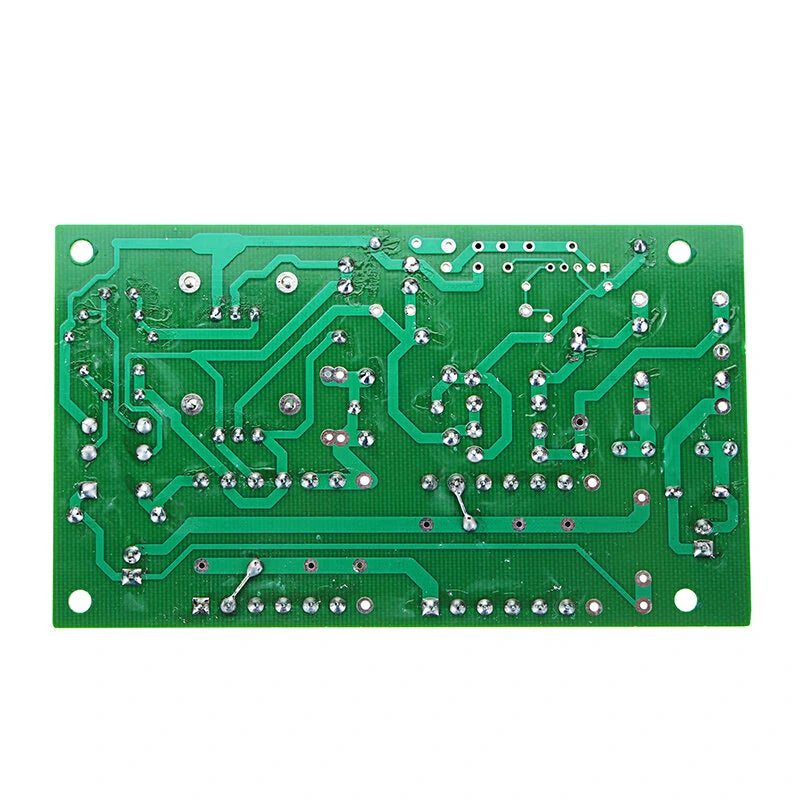

✔ Double-sided 2 oz PCB for stability

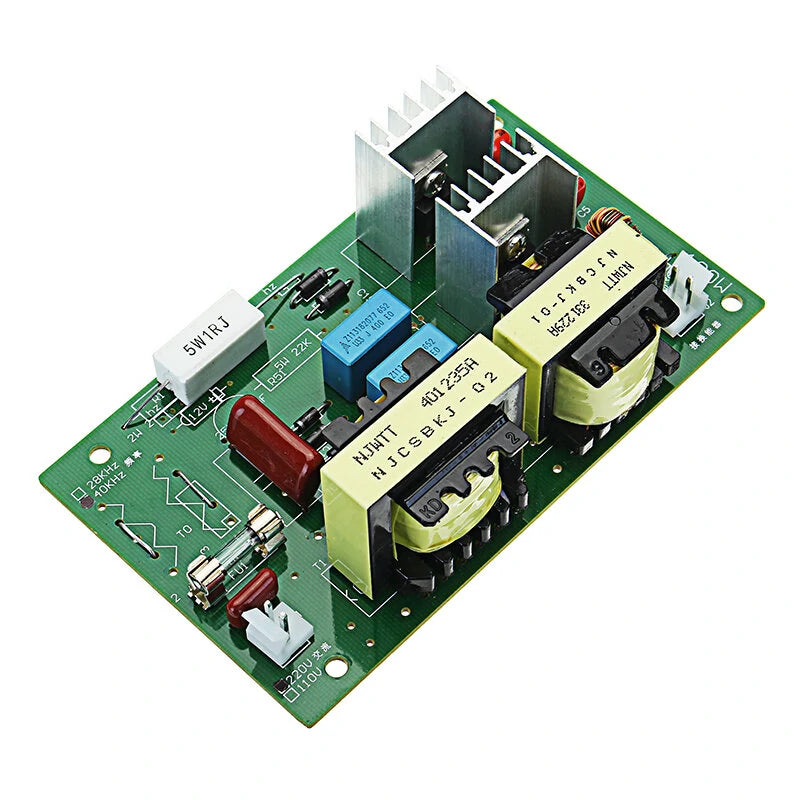

✔ Oversized heat sink for thermal management

Wiring Guide (Important!):

1. Never power the board without load or without cleaning fluid in the tank.
2. Polarity:
   • Transducer’s first two tabs = positive
   • Upper/lower metal columns = negative (reverse connection risks damage)


3. Ceramic welding:
   • Silver layer (negative side) must face outward.
   • Weld power lines to the dual-silver-layer side at ≤280°C (ideal: 250°C).


4. Installation:
   • Fix transducer’s larger side (with screw holes) to the tank base using adhesive.
   • Max 2 transducers per board.


5. Safety: Ground the tank and use a leakage protection switch.

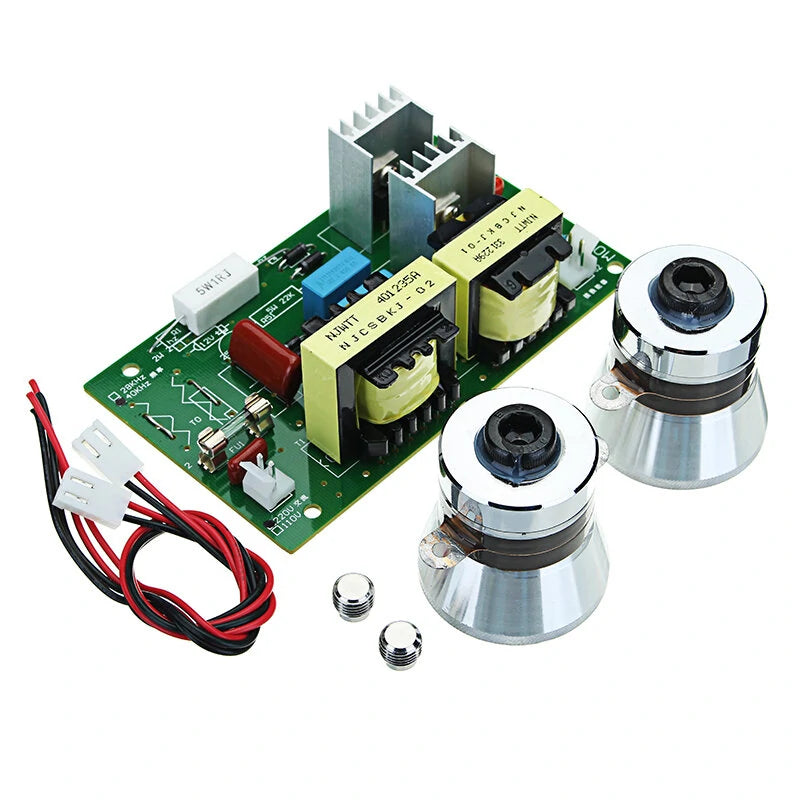

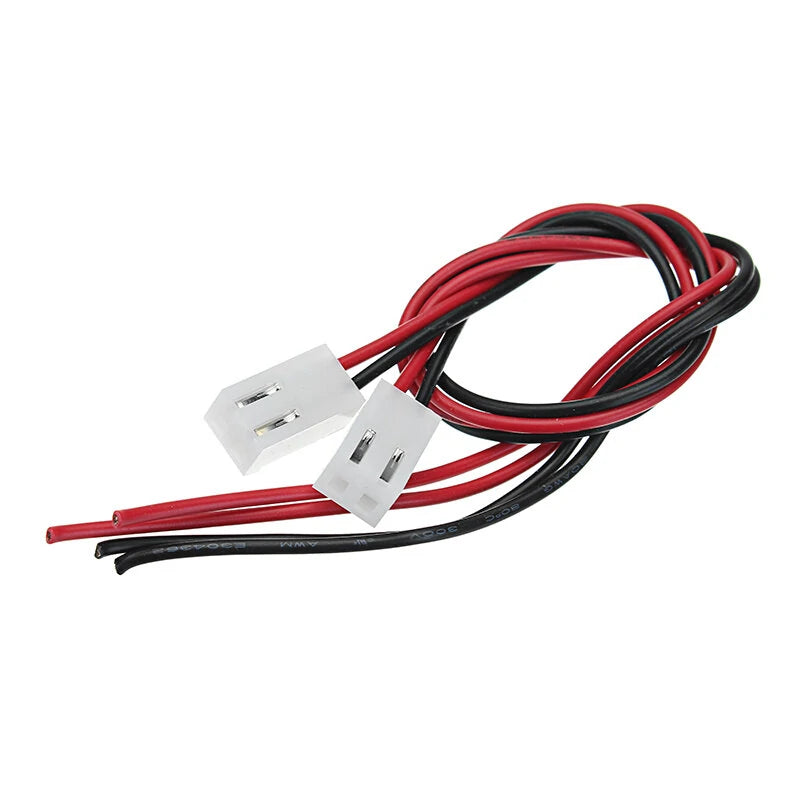

Package Contents:

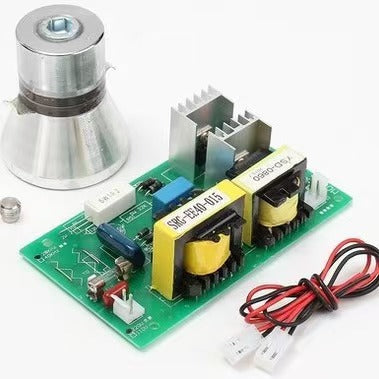

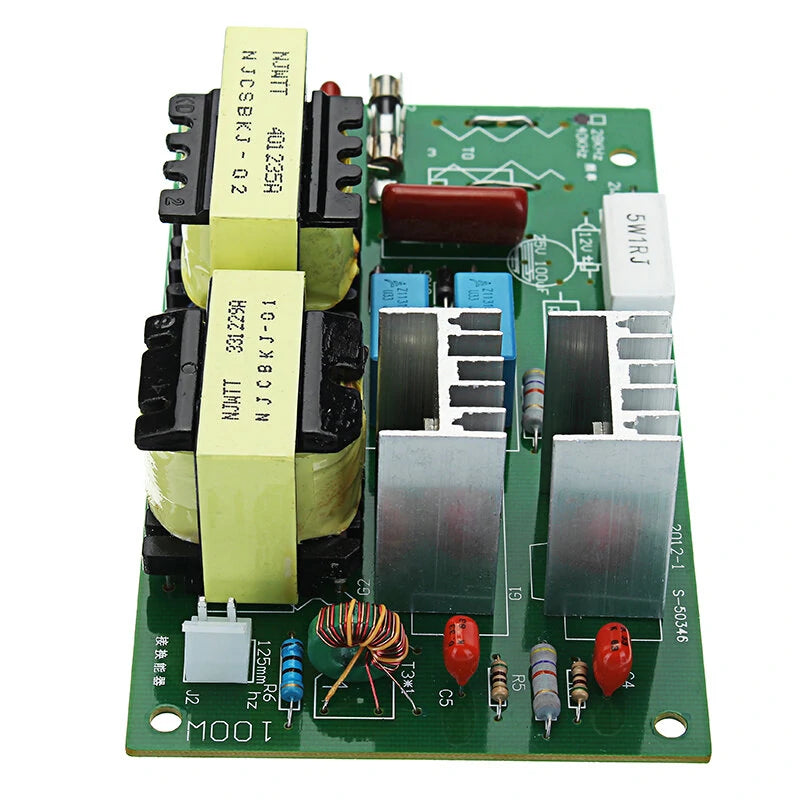

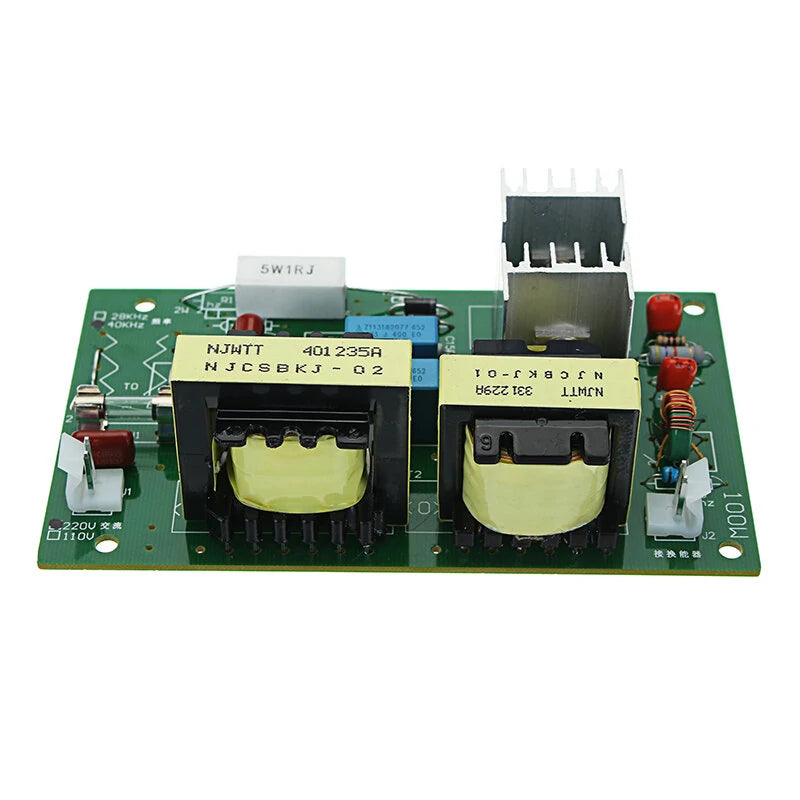

• 1 × Driver Board (110V/220V)

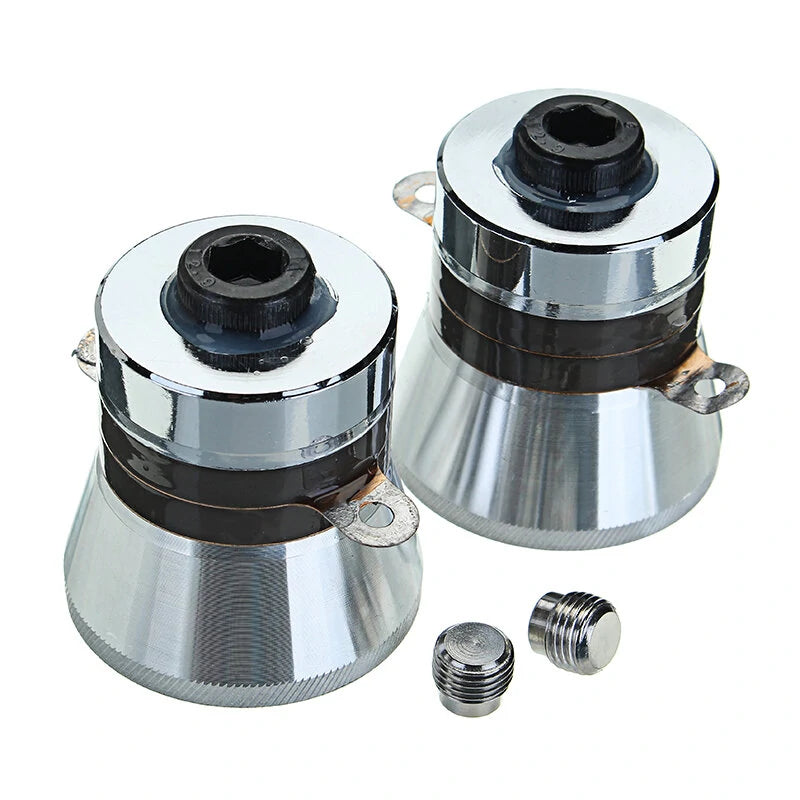

• 2 × 50W 40kHz Transducers
