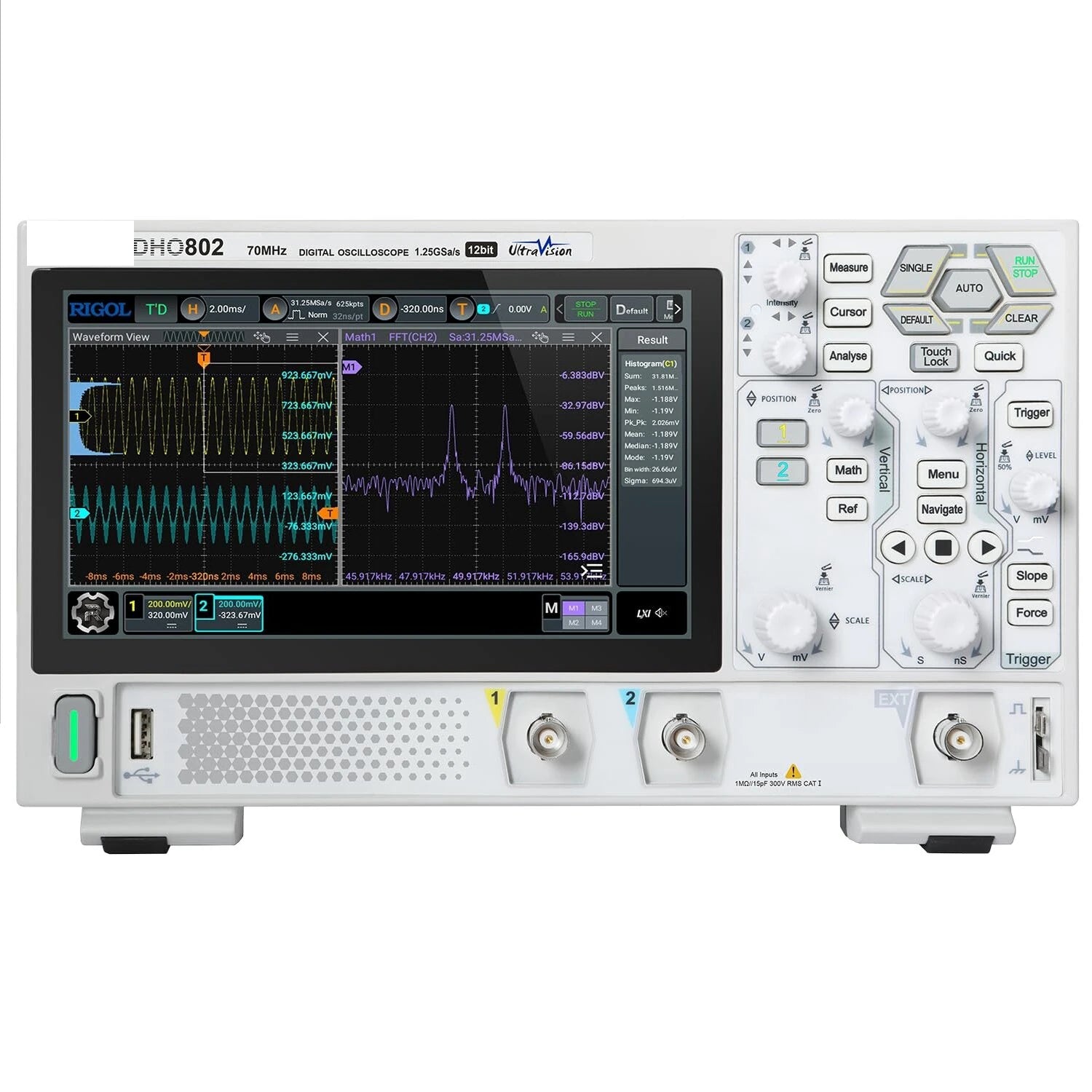

12-bit 70MHz Digital Oscilloscope w/ 1.25GSa/s, 1M wfms/s, 7 Touch, USB/LAN/HDMI
12-bit 70MHz Digital Oscilloscope w/ 1.25GSa/s, 1M wfms/s, 7 Touch, USB/LAN/HDMI
Regular price
$399.99 USD
Regular price
$0.00 USD
Sale price
$399.99 USD
Unit price
per
Shipping calculated at checkout.
Estimated Delivery: -
Couldn't load pickup availability
Guaranteed secure & safe checkout.
Specifications
- Model: DHO802
- Frequency Band: 70MHz
- Vertical Resolution: 12-bit
- Sample Rate: Maximum 1.25 GSa/s
- Waveform Capture Rate: 1,000,000 wfms/s
- Analog Channels: 2
- Storage Depth: Up to 25 Mpts
- Vertical Sensitivity Range: 500 μV/div to 10 V/div
- Screen: 7 inch 1024 x 600 high definition touch screen
- Interfaces: USB Device & Host, LAN, HDMI, Type-C power interface
- Dimensions: 10.5 x 6.4 x 3.0 inches (265.36 x 161.75 x 77.38 mm)
- Weight: 3.9 lbs (1.78 kg)
Features
- Ultra High Resolution: Provides 12-bit hardware high resolution, ensuring detailed and accurate signal representation.
- Exceptional Sampling and Capture Rate: Up to 1.25 GSa/s real-time sampling rate and up to 1,000,000 wfms/s waveform capture rate for precise signal analysis.
- Advanced Display: 7 inch 1024 x 600 high definition touch screen with real-time brightness function and Flex knob for an intuitive interactive experience.
- Versatile Connectivity: Equipped with USB Device & Host, LAN, HDMI and Type-C power interface, providing multiple connectivity options for various applications.
- Robust Signal Analysis Tools: Supports waveform search and navigation, along with an ultra-low background noise level, allowing for accurate testing of small signals.
Package Included
- 1 x DHO802 Digital Oscilloscope
- 1 x Power Cable
- 1 x USB Cable
- 1 x Ground Wire
- 2 x Probes
