Digital Torque Meter with Backlight, Dual Modes, Four Units, & Audible/Visual Alarm

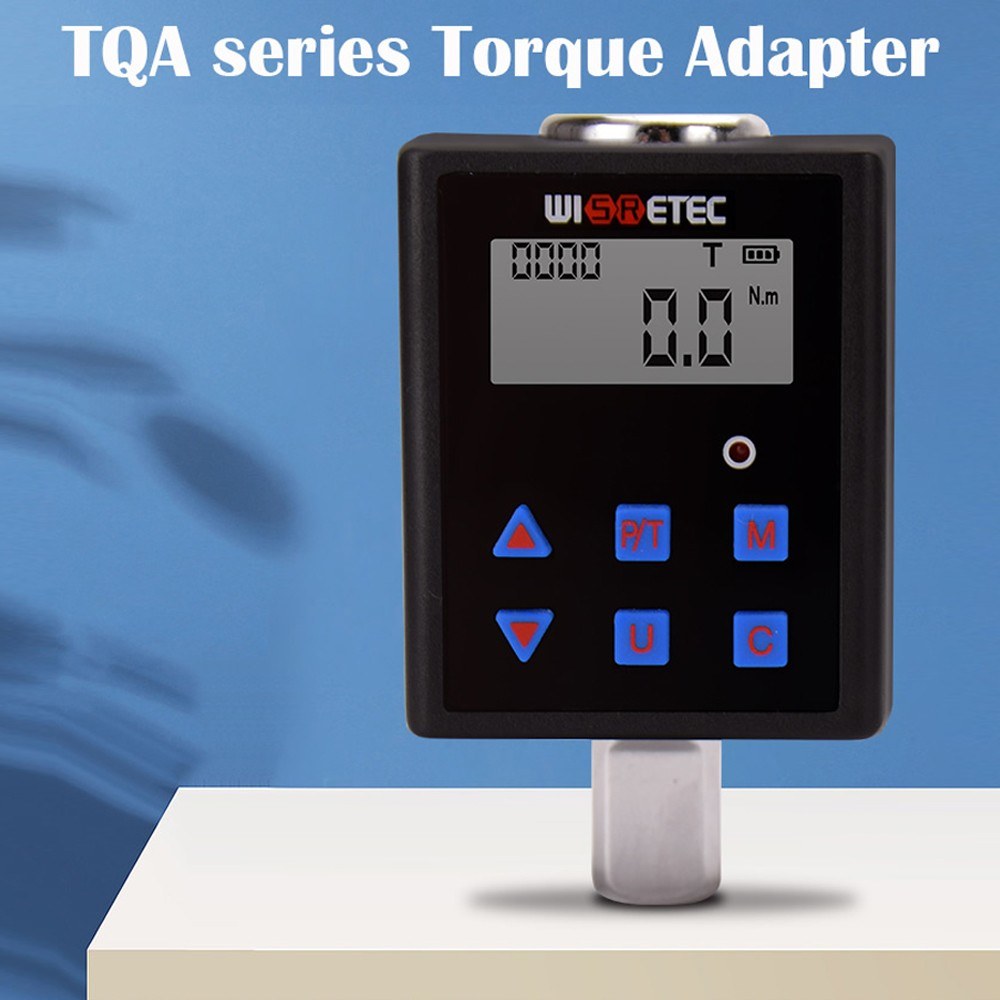

Digital Torque Meter

Perfect for various tightening and dismantling tasks, this Digital Torque Meter offers easy, lightweight operation with multi-unit conversion and audible alerts. It's designed for both clockwise and reverse directions. Use with a common ratchet to achieve the same functionalities as a digital torque ratchet (handle to be purchased separately).

Key Features

• Simple operation and portable design.

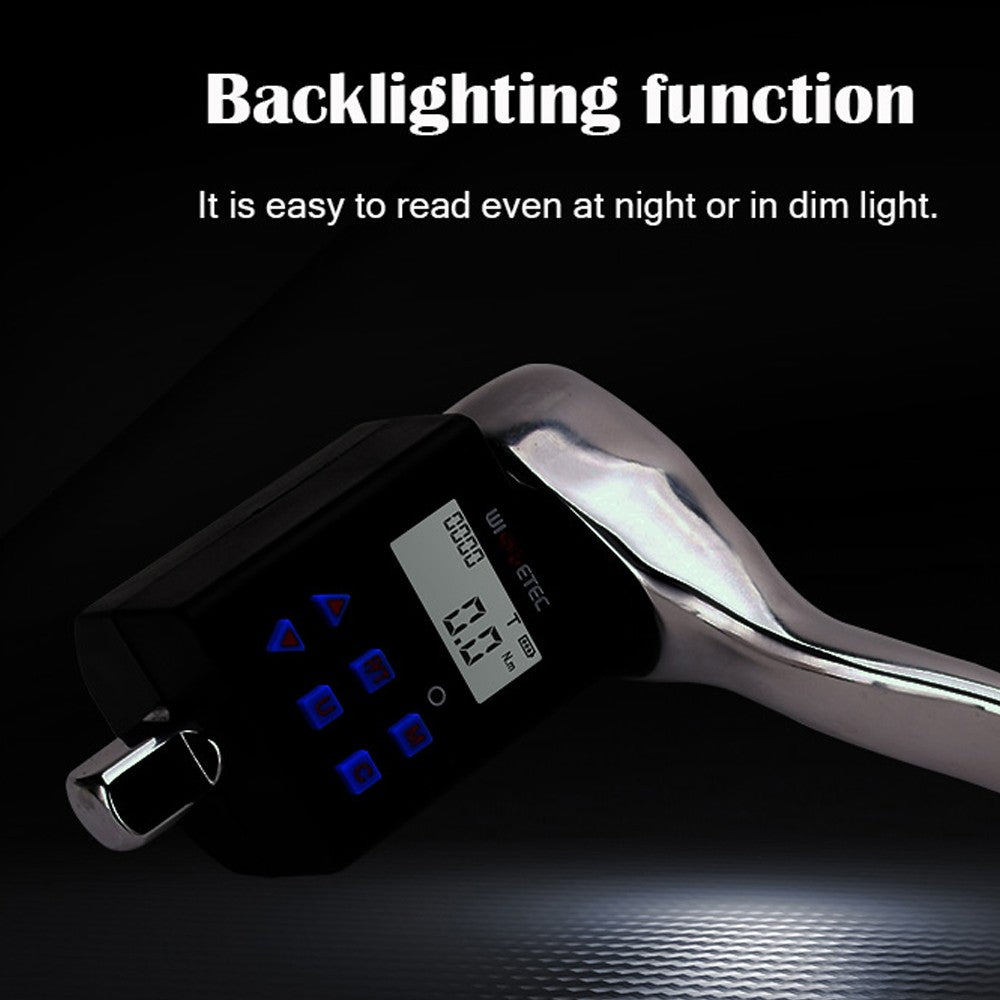

• Large backlit digital display showing torque value, unit, working mode, and data storage number for easy readability.

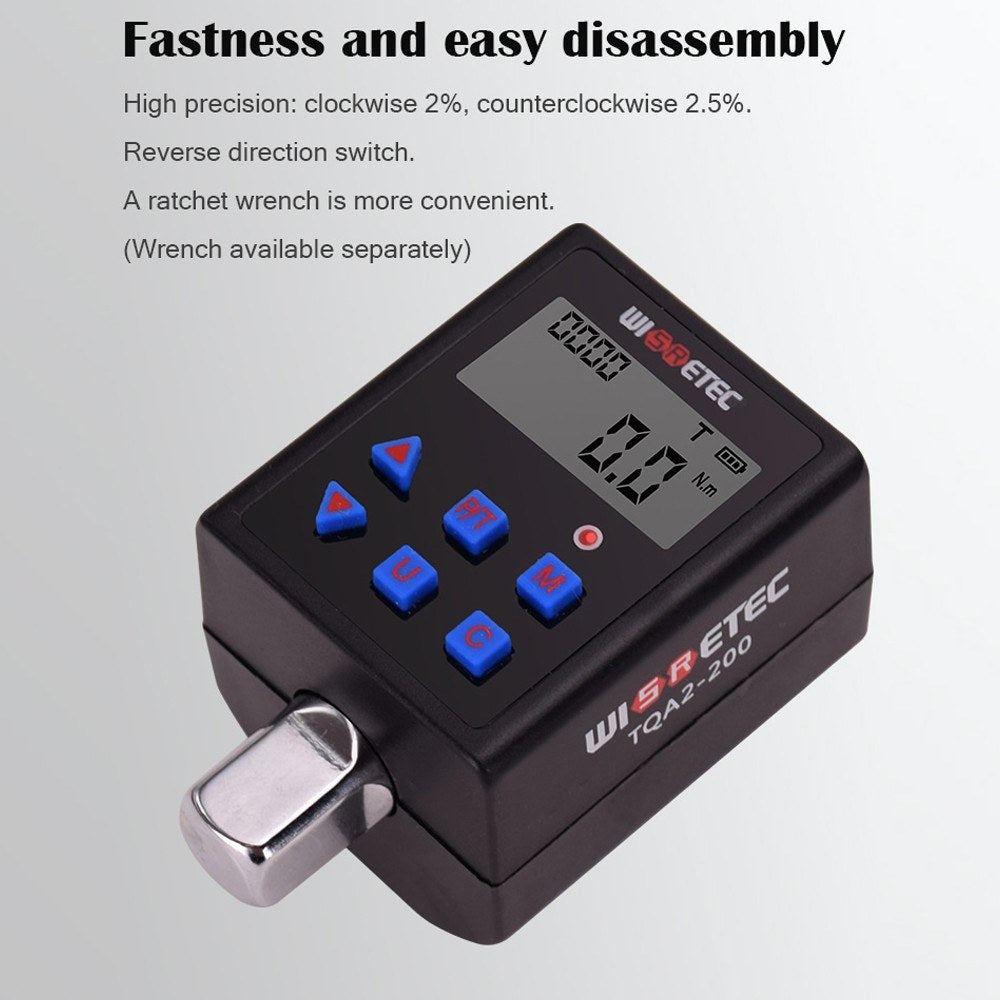

• Supports two-way measurement (clockwise error: 2%, counterclockwise error: 2.5%) for greater convenience.

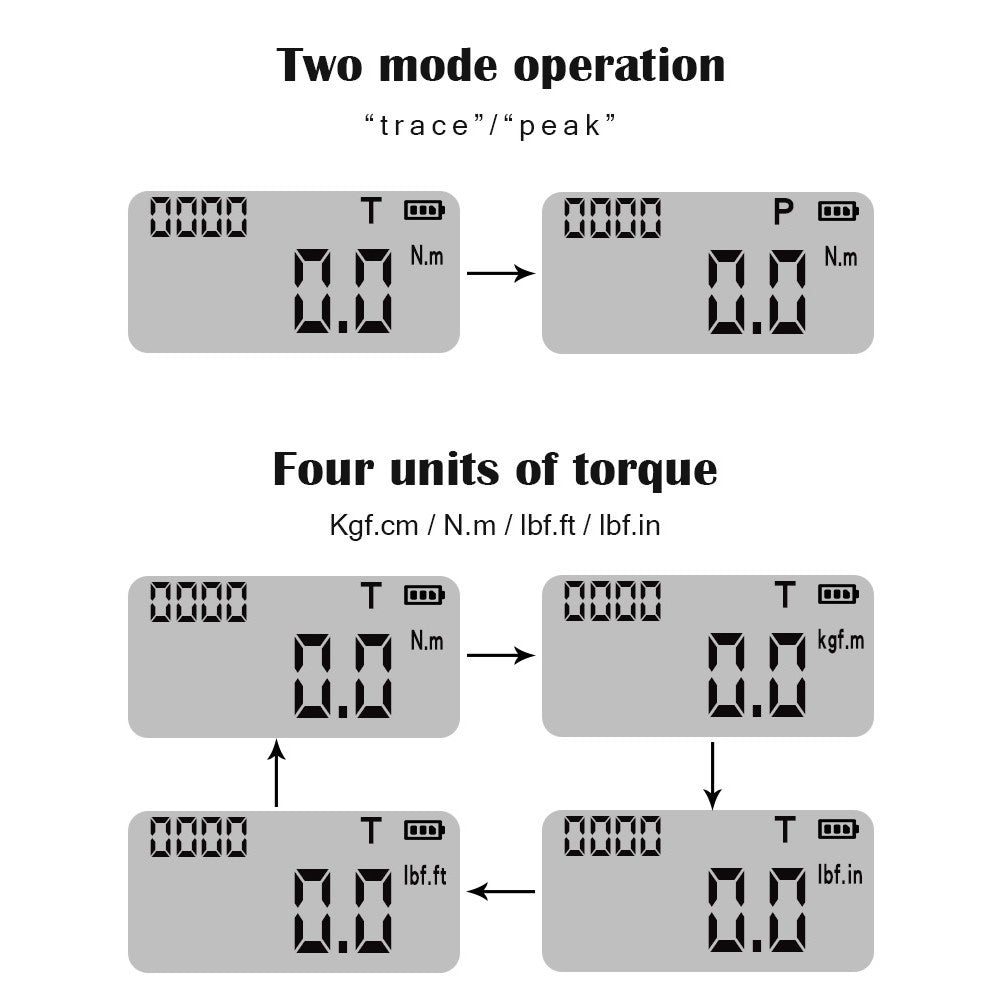

• Two working modes: "Trace" for tracking and "Peaks" for peaking, easily switchable.
• Four adjustable units: Kgf.cm, N.m, Ibf.ft, and Ibf.in.

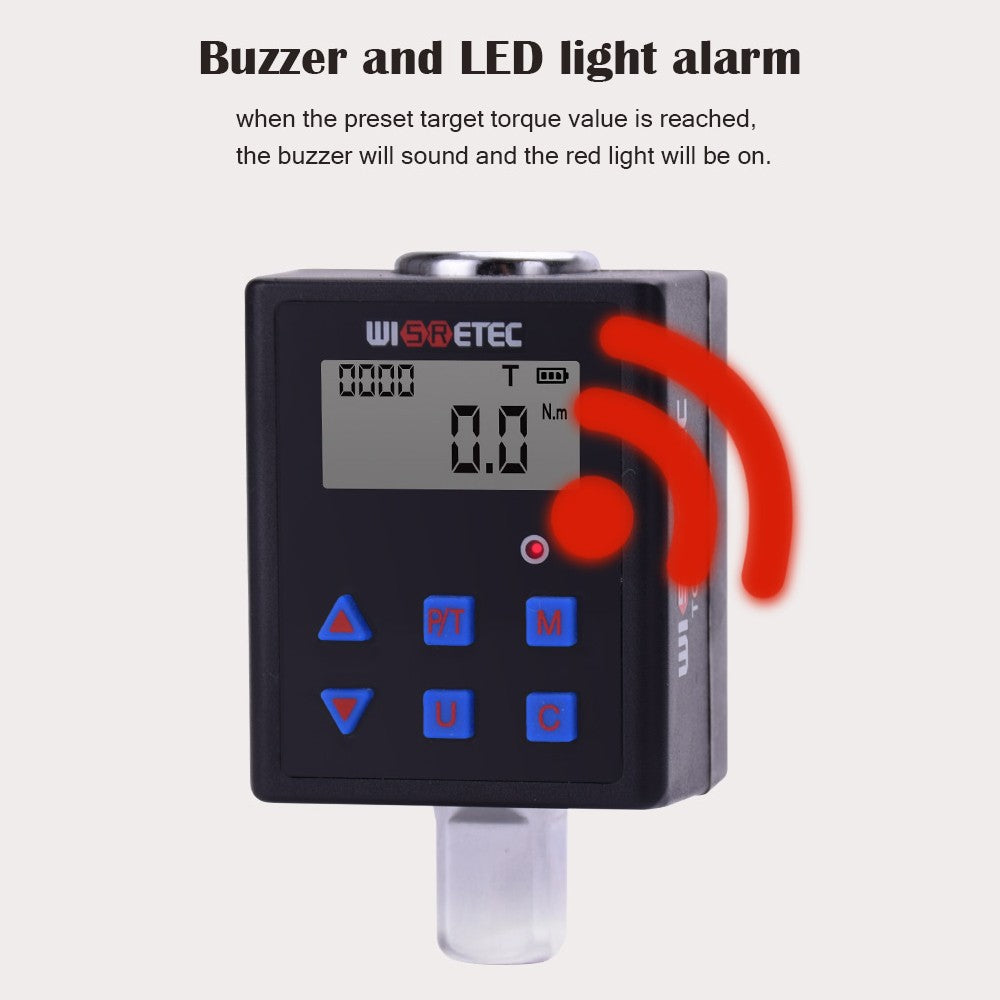

• Preset values with sound and light alerts; buzzer sounds and red light illuminates when the target torque is reached.
• Compatible with a common ratchet, functioning like a digital torque indicator (handle to be purchased separately).
• Ideal for automotive, bicycle, and machinery repair industries.

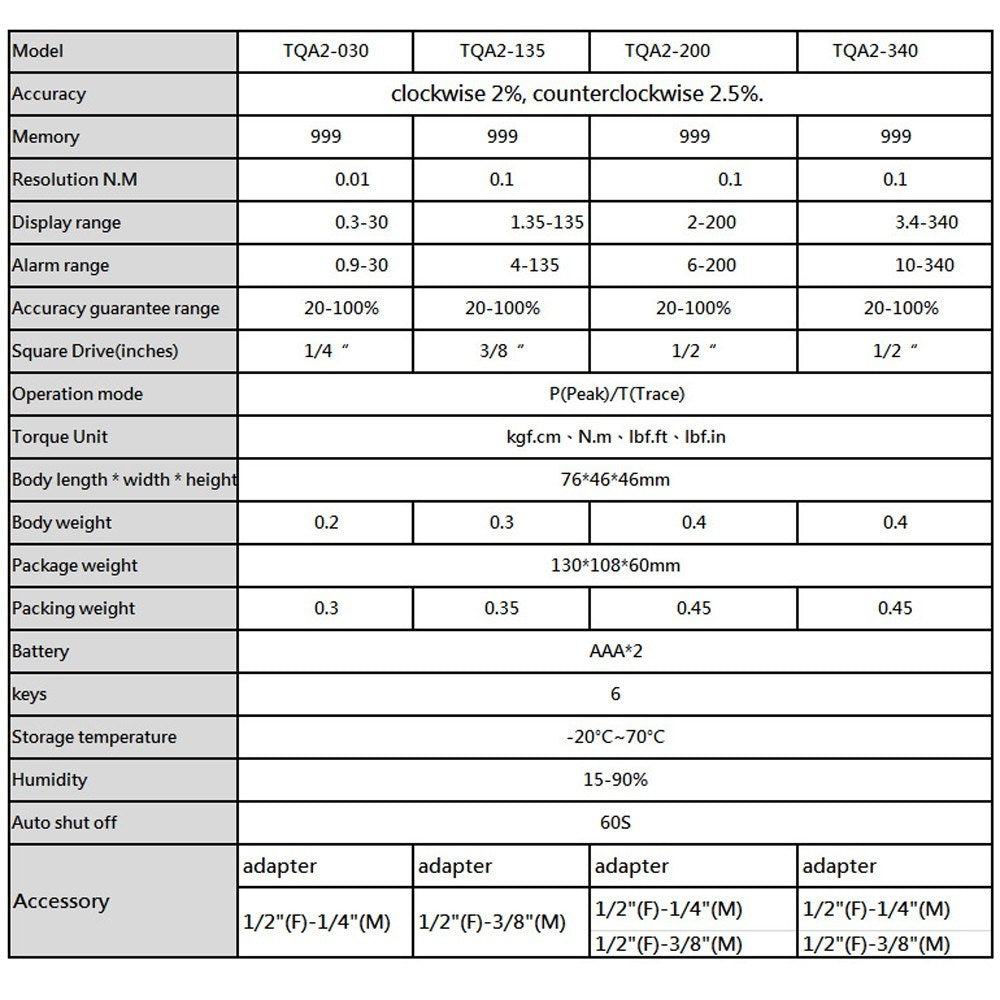

Specifications

Name	Details
Material	Plastics
Models	TQA2-030, TQA2-340, TQA2-135, TQA2-200 (optional)
Batteries	2 * No.7 batteries (not included)
Accuracy	2% clockwise, 2.5% counterclockwise
Data Storage	999,999,999,999
Indexing Values	0.01, 0.1, 0.1, 0.1
Display Ranges	0.3-30, 1.35-135, 2-200, 3.4-340
Alarm Ranges	0.9-30, 4-135, 6-200, 10-340
Accuracy Guarantee Ranges	20-100%

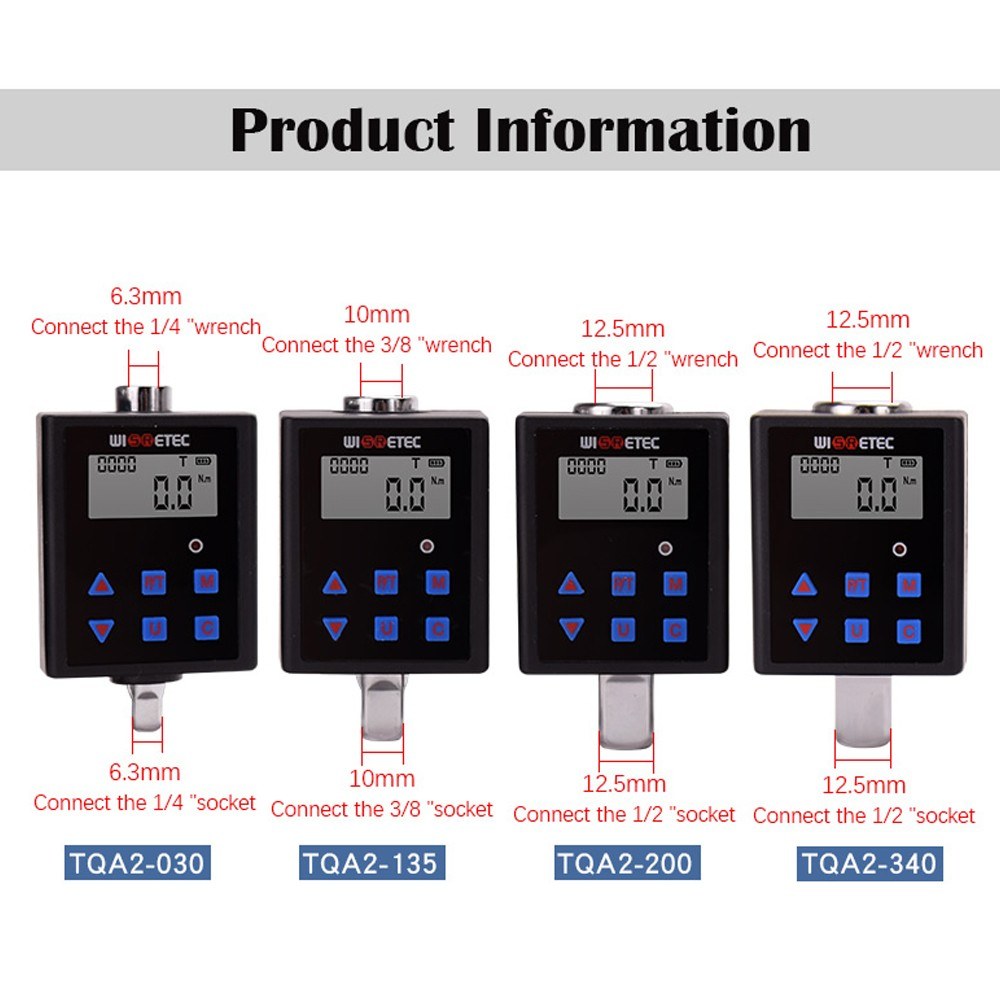

Connection Heads Size	1/4 inch, 3/8 inch, 1/2 inch
Operating Mode	P (Peaks) / T (Trace)
Torque Units	kgf.cm, N.m, Ibf.ft, Ibf.in
Push Button	6
Operating Temperature	-20°C to 70°C
Operating Humidity	15-90%
Automatic Shutdown	60s
Carried Adapter	TQA2-030: 1/2 inch square hole to 1/4 inch square head TQA2-340: 1/2 inch square hole to 3/8 inch square head TQA2-135 & TQA2-200: 1/2 inch square hole to 1/4 & 3/8 inch square head

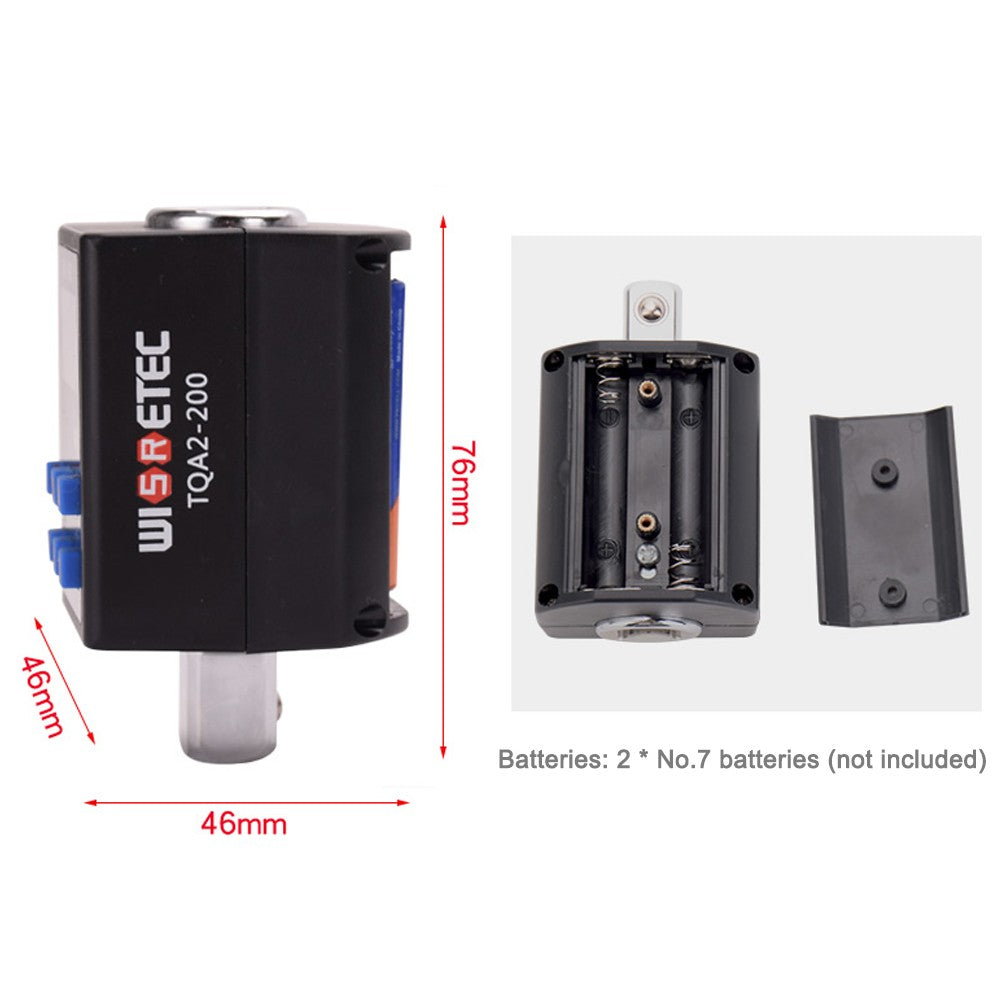

Product Size	76 * 47 * 47mm / 2.99 * 1.85 * 1.85in
Product Weight	TQA2-030: 200g / 7.05 ounces TQA2-340: 300g / 10.58 ounces TQA2-135 & TQA2-200: 400g / 14.11 ounces
Package Size	130 * 108 * 60mm / 5.12 * 4.25 * 2.36 in
Package Weight	TQA2-030: 300g / 10.58 ounces TQA2-340: 350g / 12.35 ounces TQA2-135 & TQA2-200: 450g / 15.87 ounces

Packing List

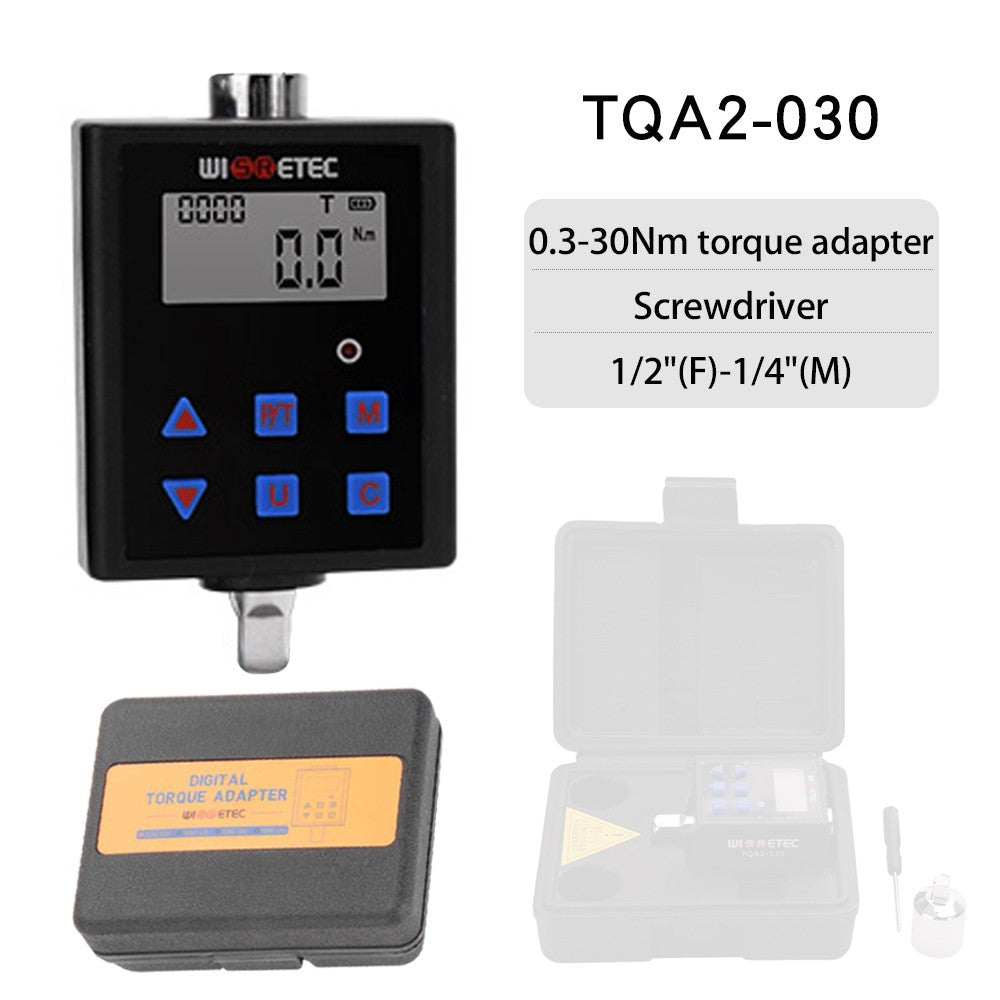

TQA2-030:

• 1 * Digital Torque Meter
• 1 * Screwdriver
• 1 * Joint Adapter

OR

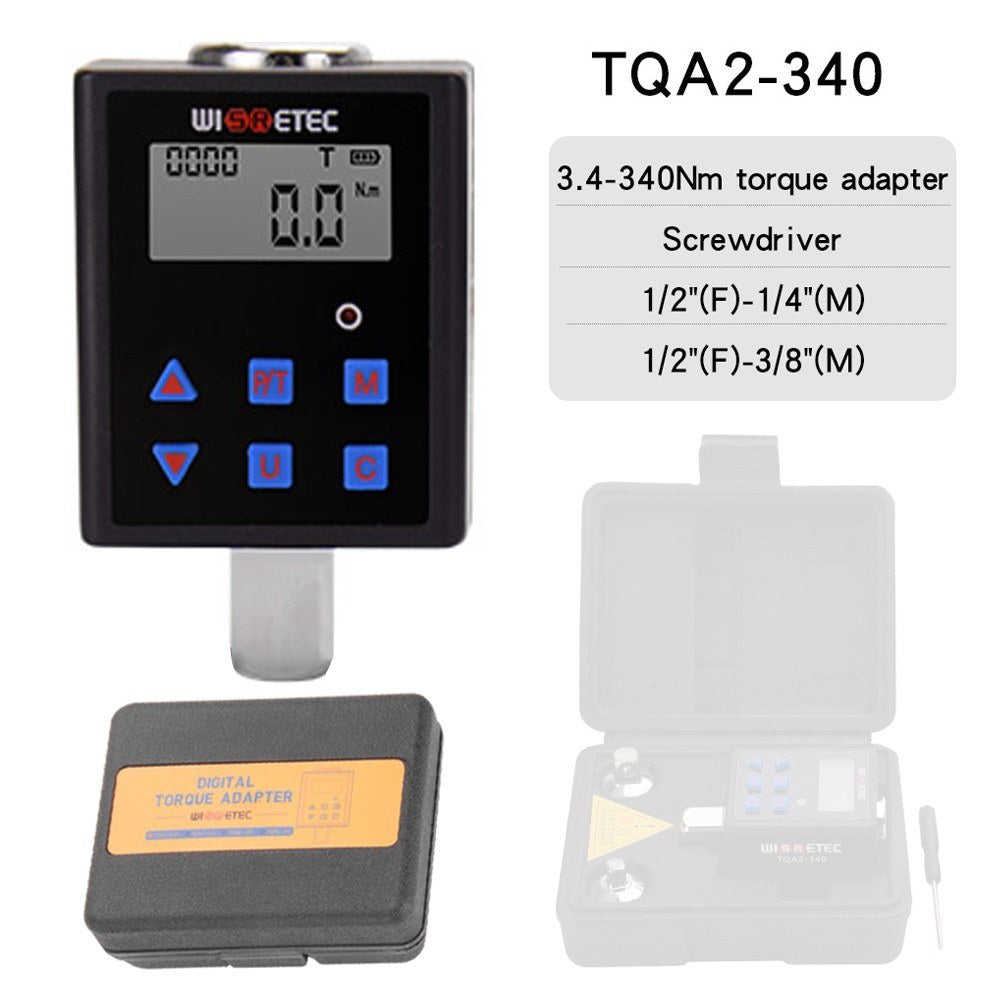

TQA2-340:

• 1 * Digital Torque Meter
• 1 * Screwdriver
• 1 * Joint Adapter

OR

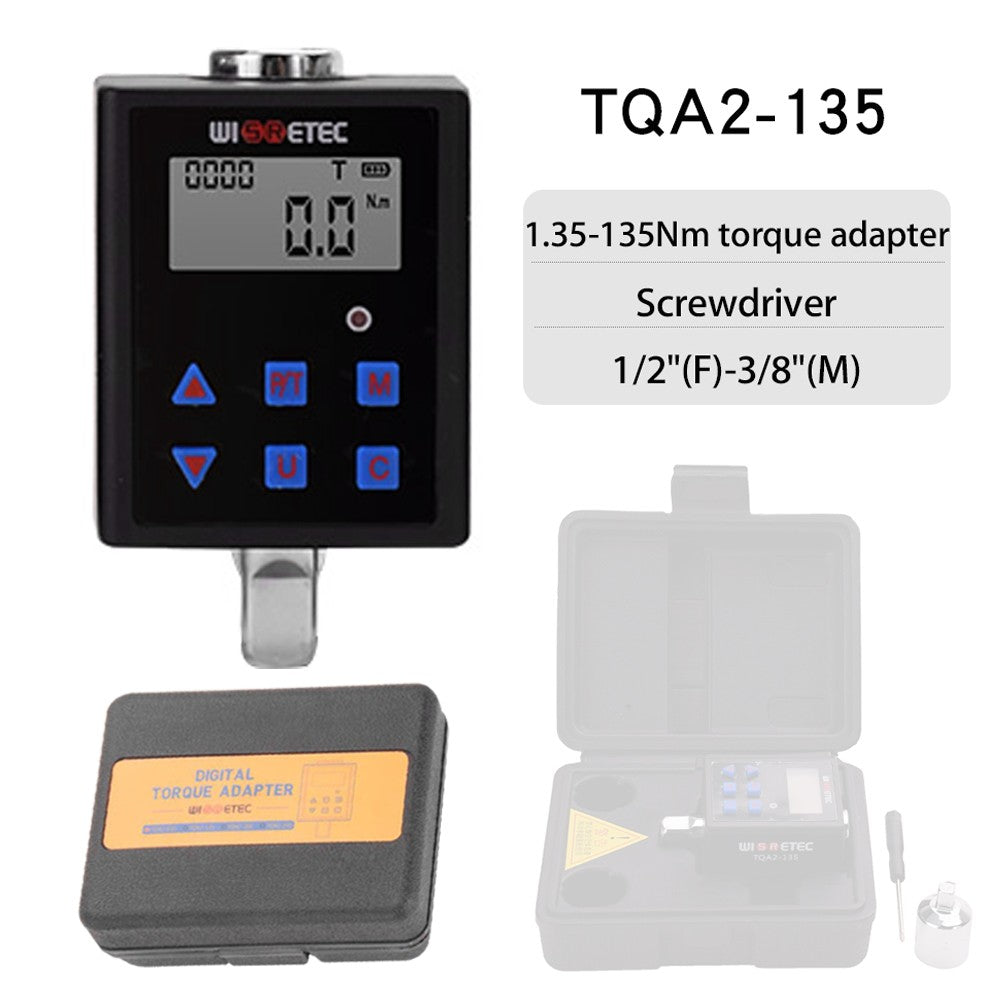

TQA2-135:

• 1 * Digital Torque Meter
• 1 * Screwdriver
• 2 * Joint Adapter

OR

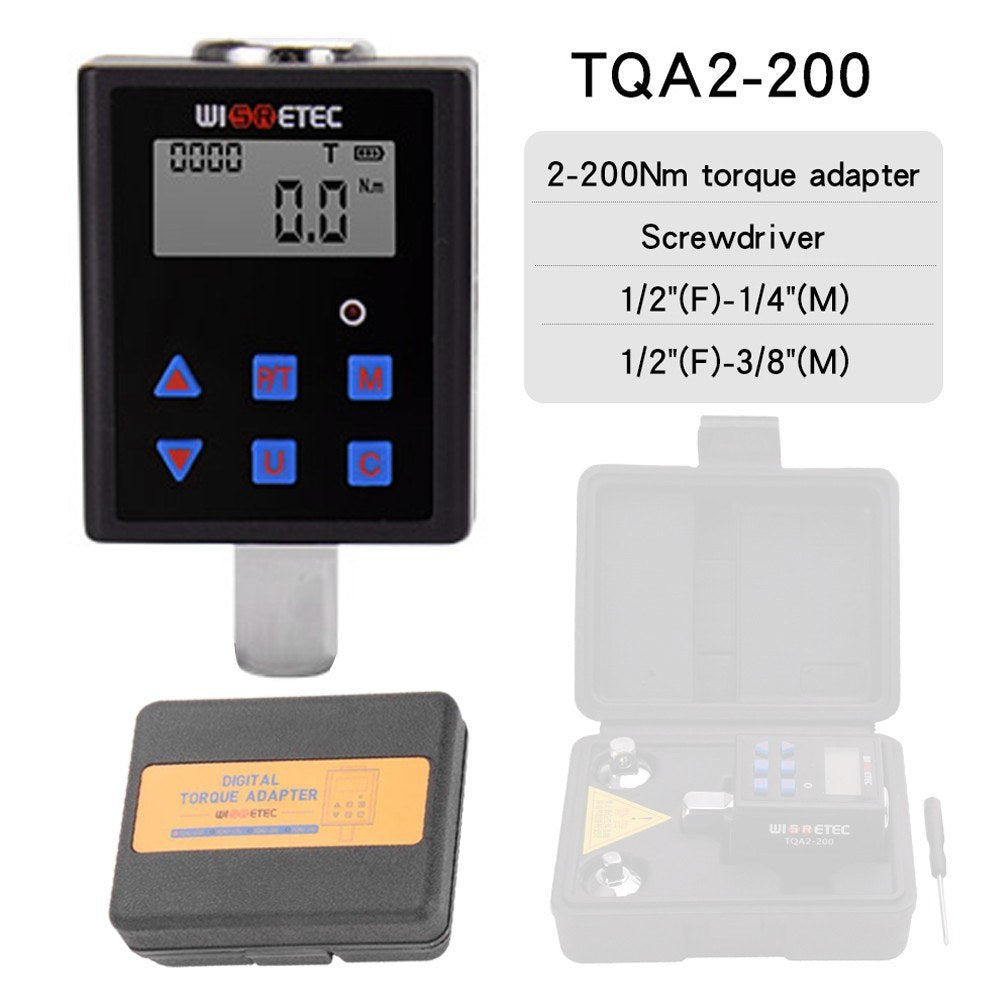

TQA2-200:

• 1 * Digital Torque Meter
• 1 * Screwdriver
• 2 * Joint Adapter
