High Torque 775 DC Motor, 12V-36V, 3500-9000 RPM, Powerful Performance

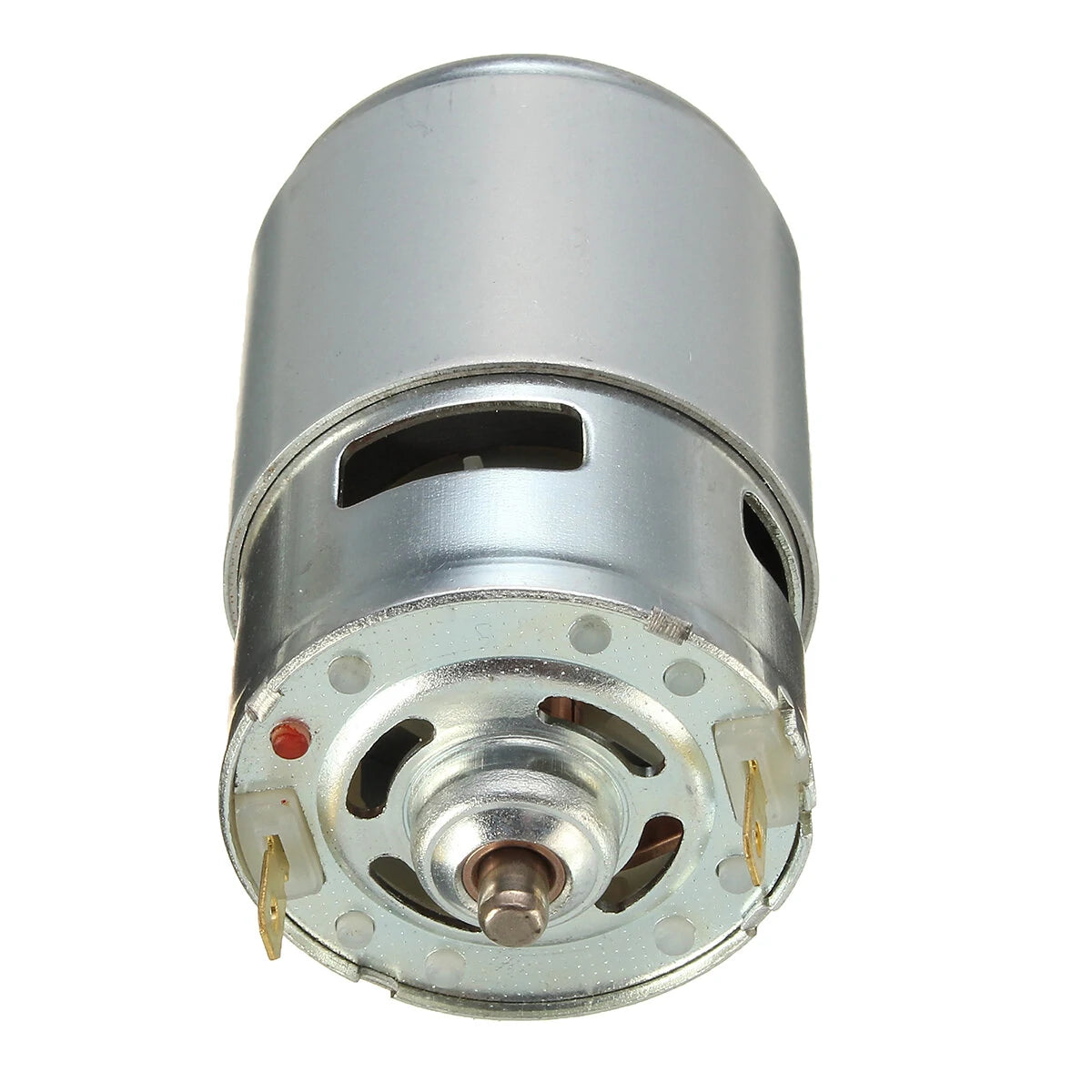

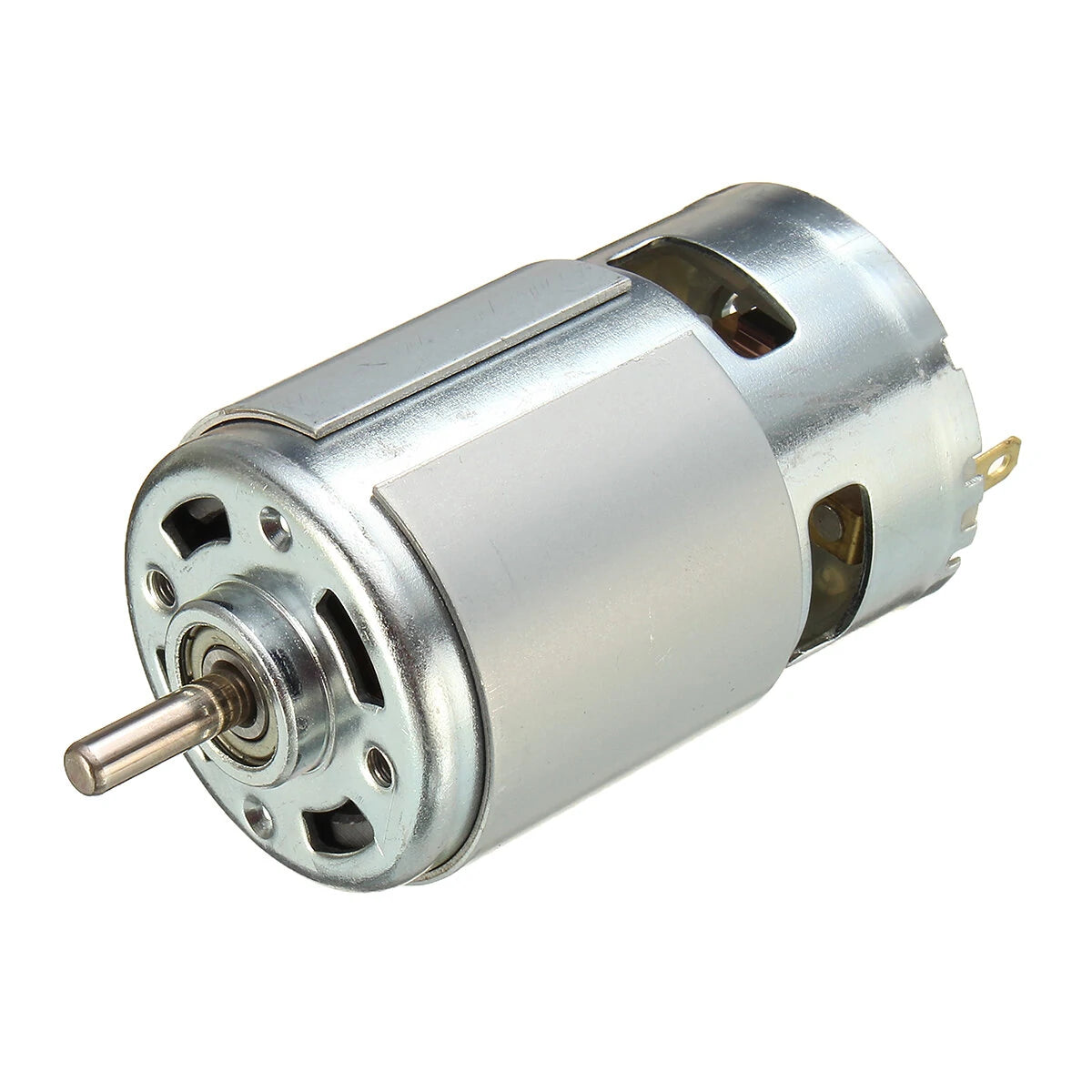

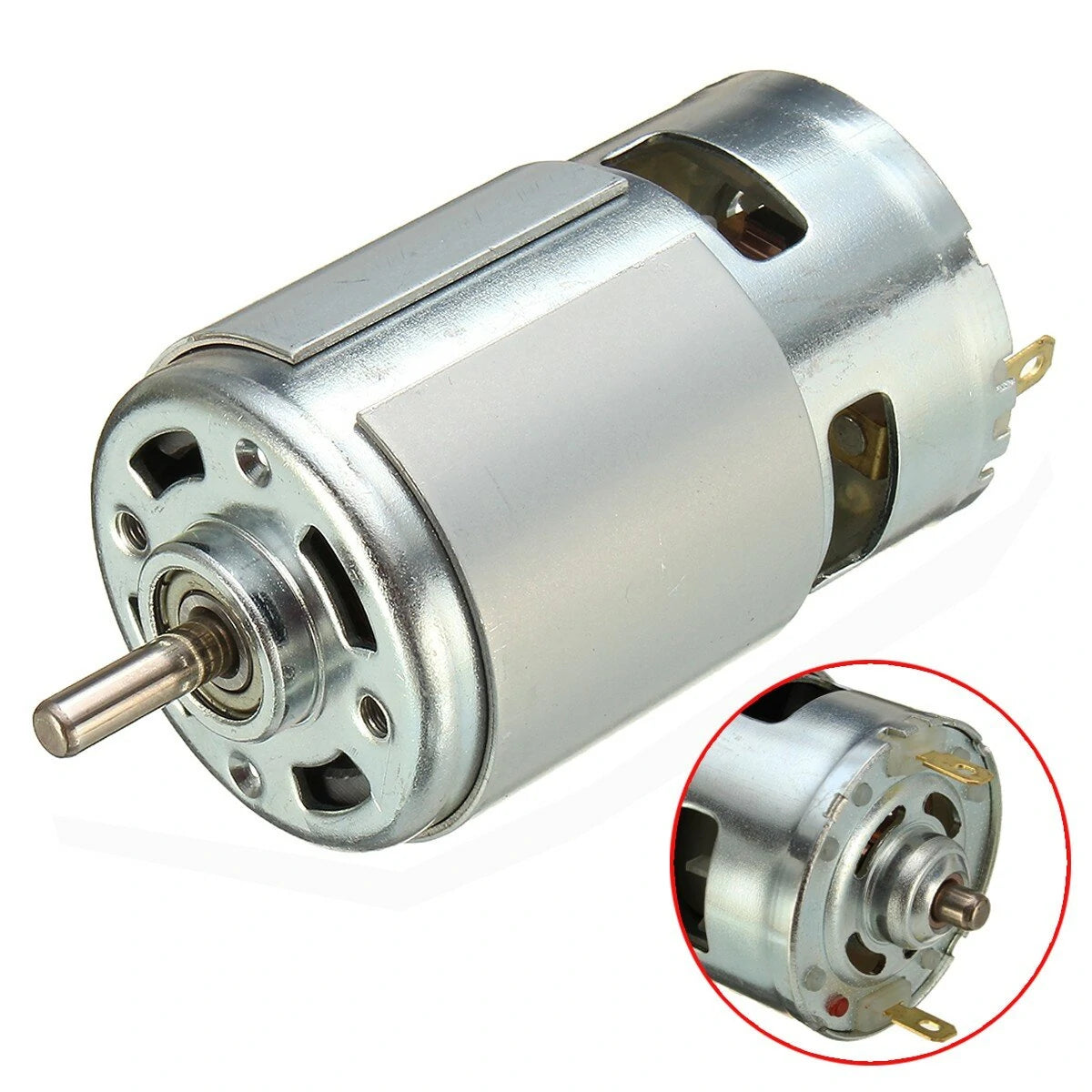

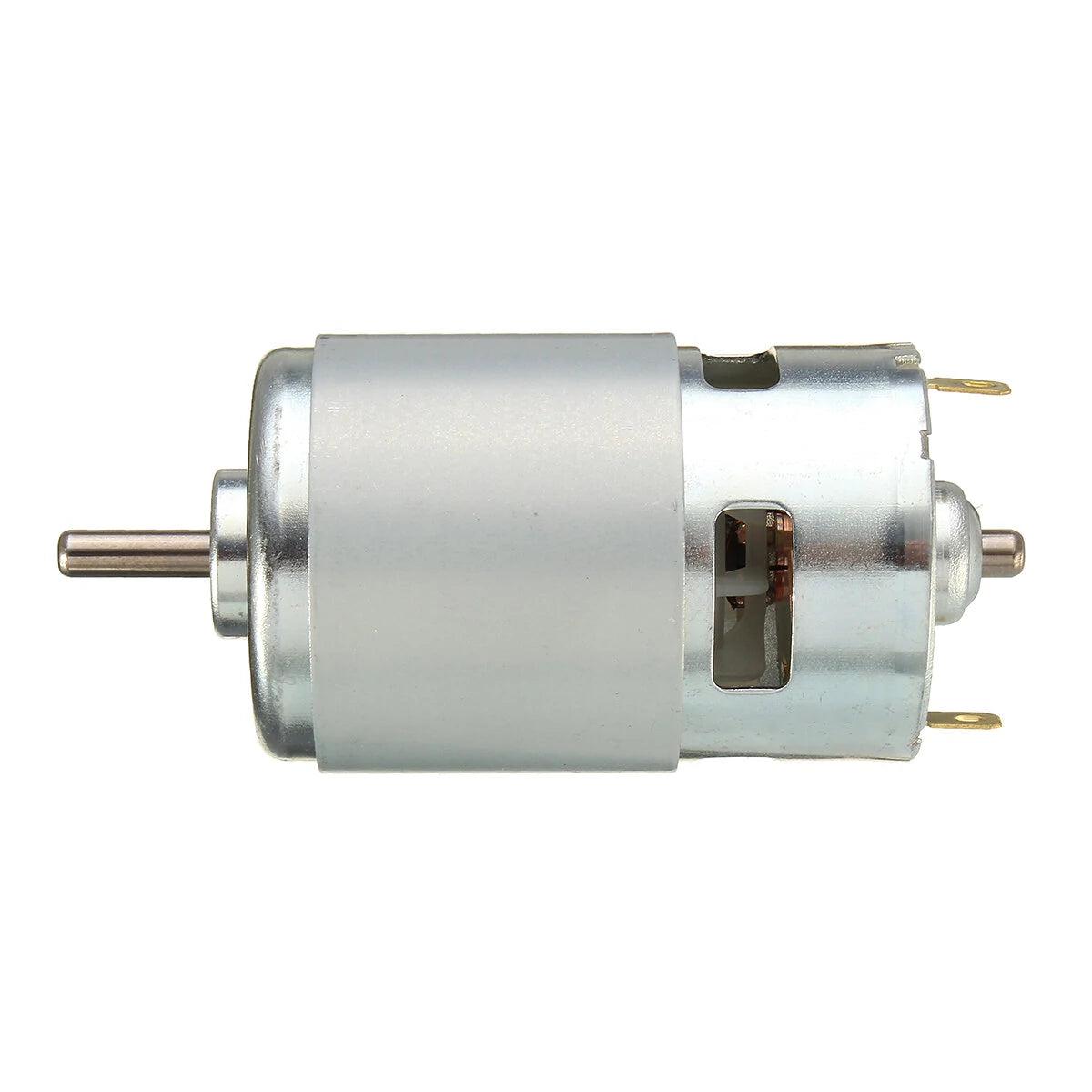

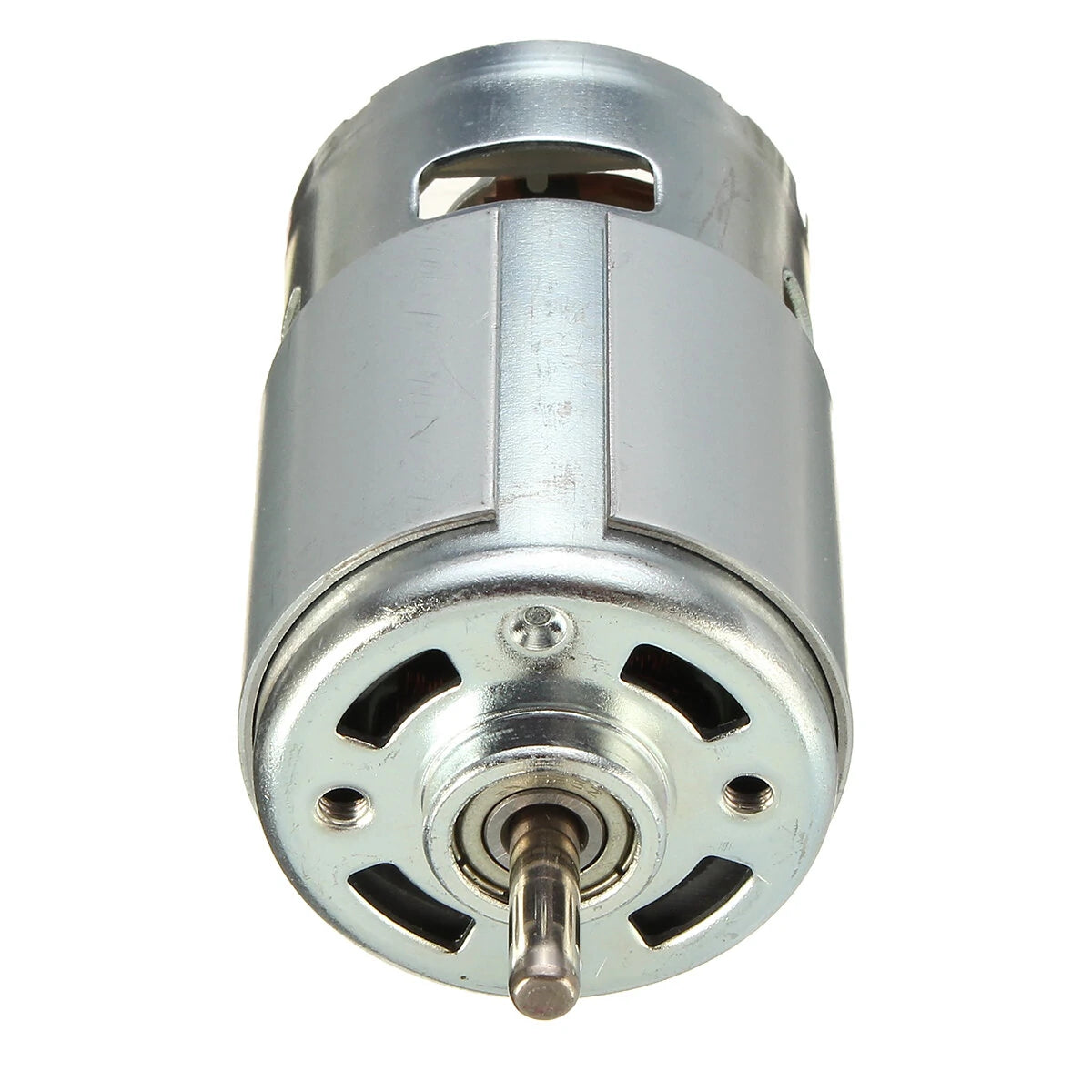

Product Description: 775 Motor

Specifications:

• Model: 775 Motor
• Shaft Diameter: 5mm
• Shaft Length: 17mm
• Body Length: 66.7mm
• Front Steps Diameter: 17.4mm
• Former High Level: 4.7mm
• Body Diameter: 42mm
• Motor Overall Length: 98mm
• Diagonal Installation Pitch: 28.8mm
• Mounting Hole Size: M4
• Mounting Holes: 2
• Torque: 2kg.cm or 0.2N.M
• Quantity: 1 Pc x 775 Motor
• Voltage (V) / Current (A) / Speed (RPM):
• 12V / 0.14A / 3500 RPM
• 18V / 0.15A / 4500 RPM
• 24V / 0.16A / 7000 RPM
• 30V / 0.17A / 8100 RPM
• 36V / 0.20A / 9000 RPM

Notice:

• Please allow a 1-3mm error due to manual measurement. Make sure you are aware of this before placing a bid.
• Colors may vary due to different display settings.

Features:

• Ball bearing with cooling fan.

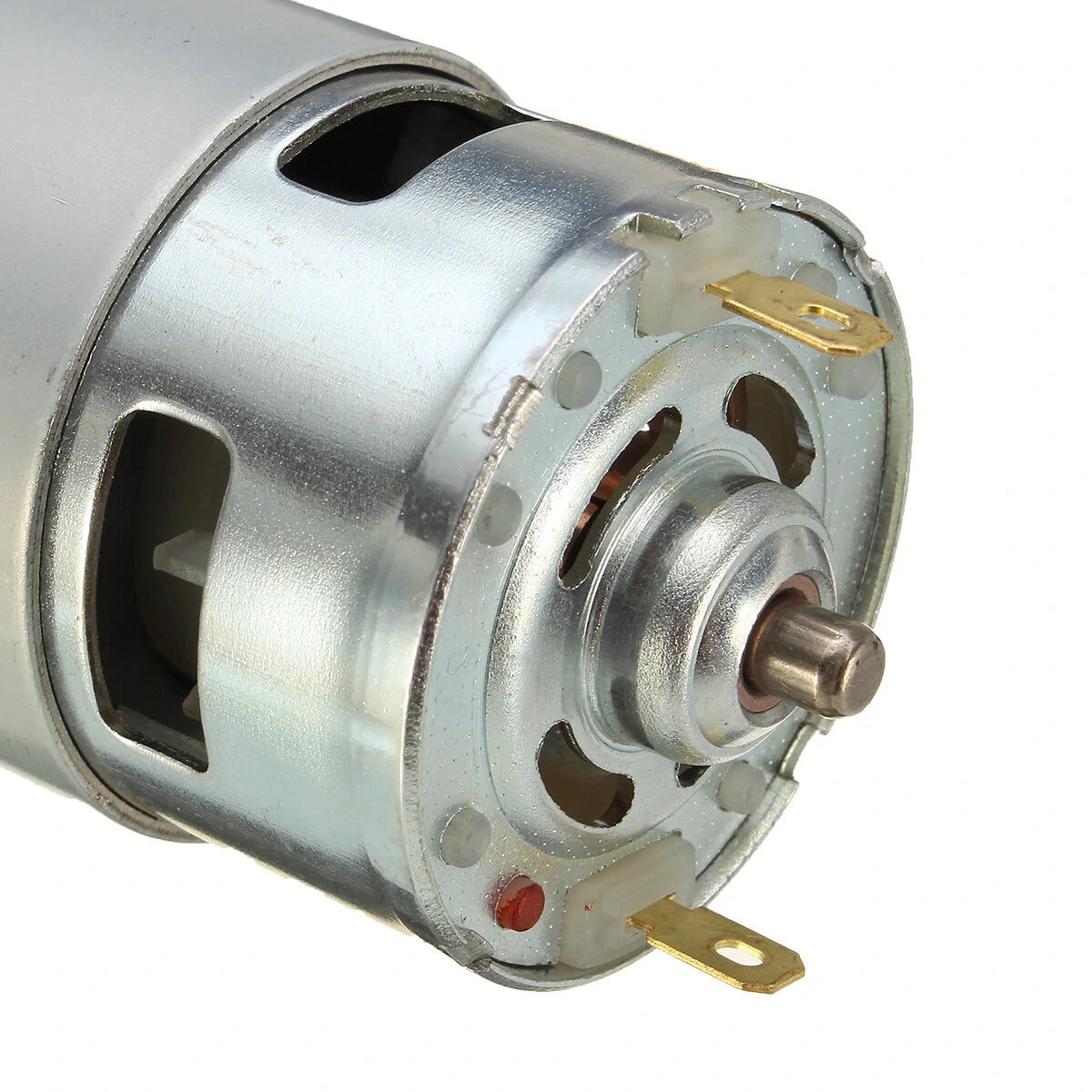

• The front end of the motor has a ball bearing, copper sets at the back end, and 5 groups of winding for large torque and low noise at 24V.
• Suitable for electric tool motors, with high power capability, ideal for creating a small spindle motor, and perfect for DIY projects.

Package Included:

• 1 x DC 775 Motor
