BSIDE ZT-5BQ 6000 Counts True RMS Digital Clamp Meter with BT and NCV Function

Product Overview

Discover the high-performance, battery-powered, auto-ranging digital clamp multimeter. With its 6000 counts LCD display and backlight, this multimeter is equipped to handle a variety of measurements including AC/DC voltage, AC current, resistance, capacitance, frequency, temperature, diode, and continuity tests, as well as NCV voltage tests, inrush current, and peak hold. Compact, accurate, and user-friendly, it is designed for both professionals and hobbyists.

Key Features

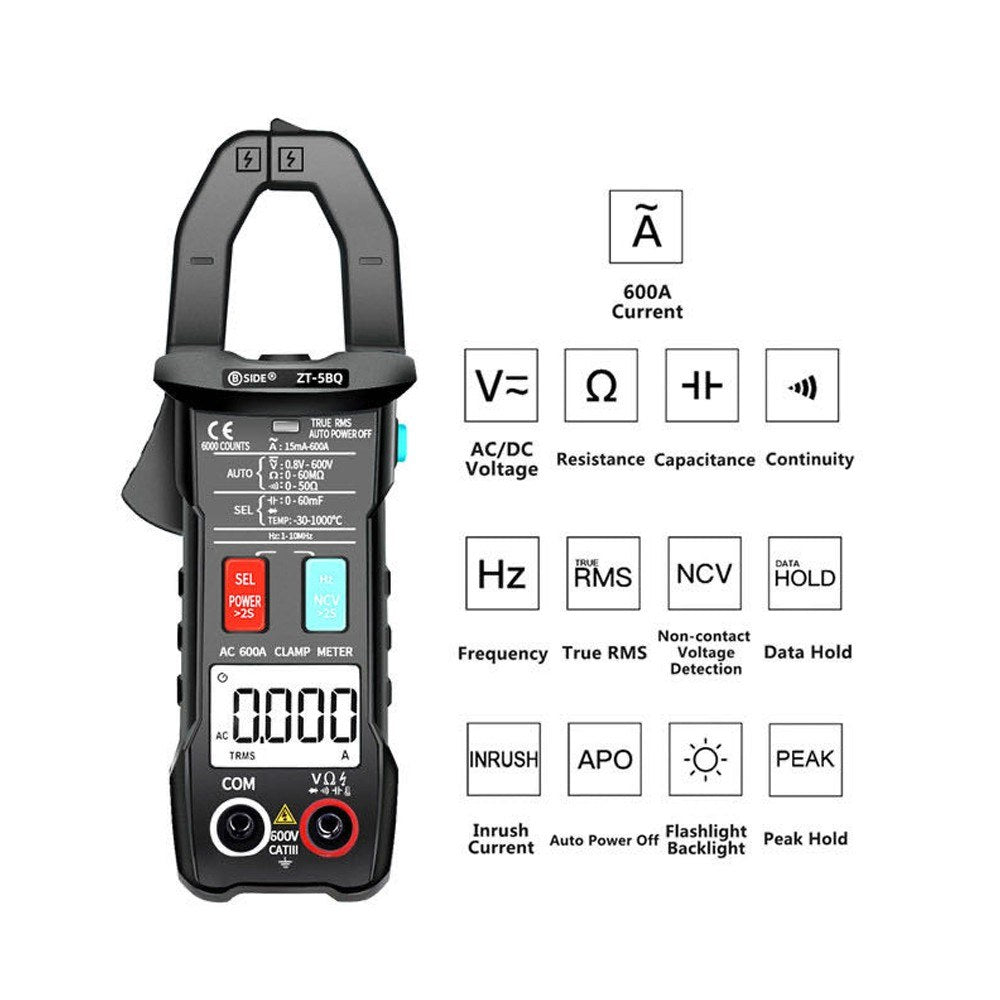

• Versatile Measurement Functions: Easily measure DC/AC voltage, AC current, resistance, capacitance, frequency, diode and continuity, temperature, inrush current, peak hold, and more.

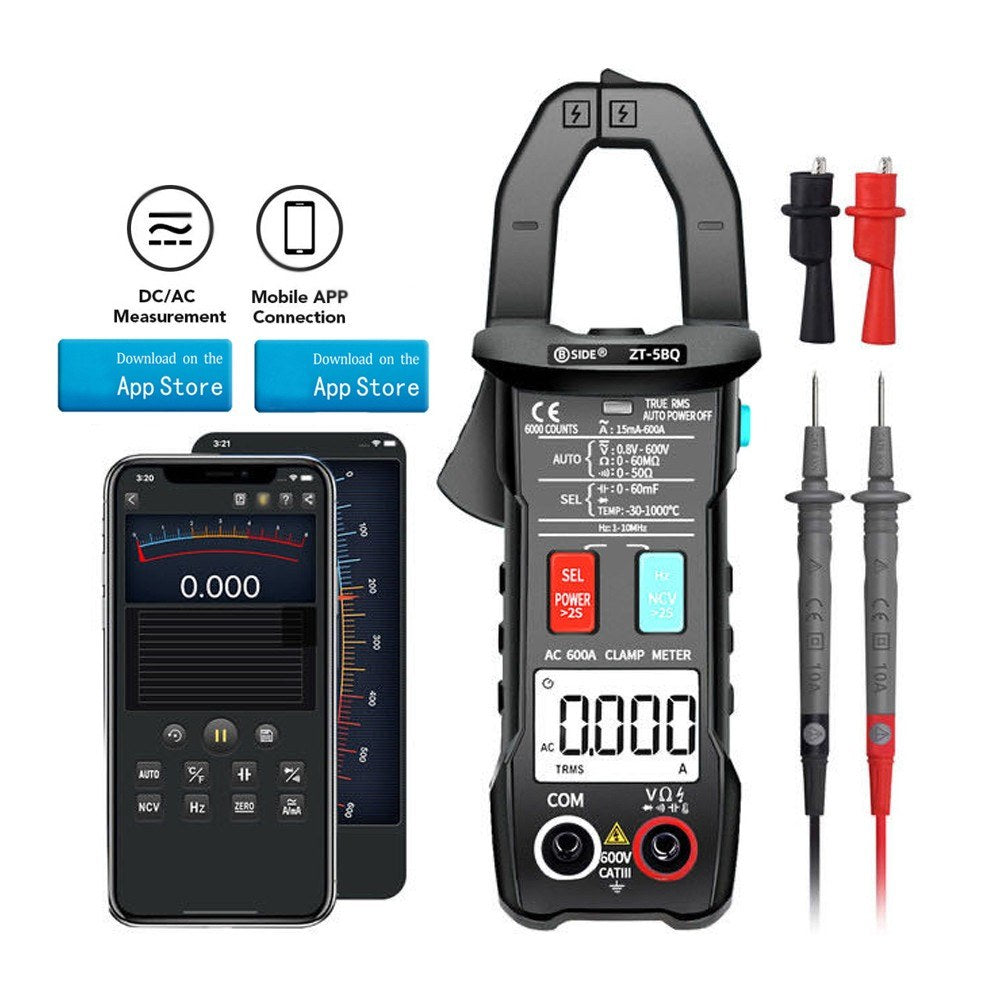

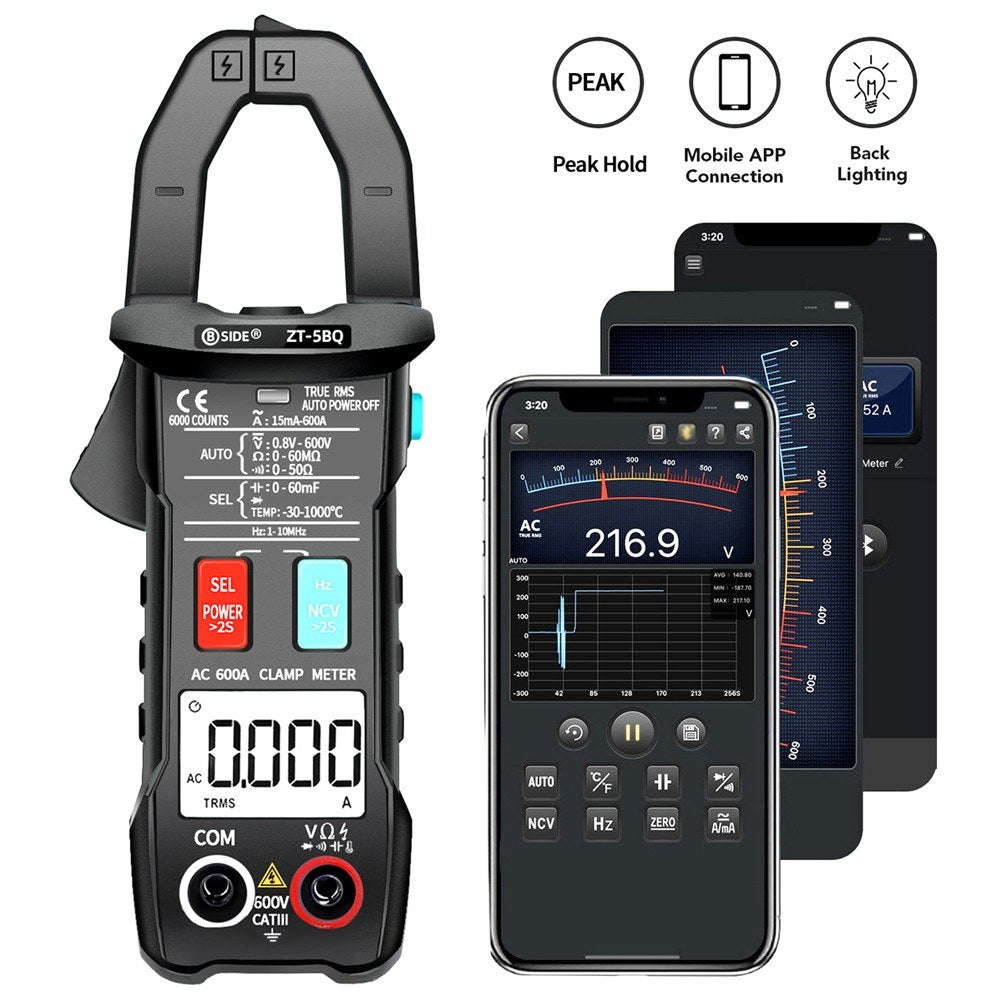

• Mobile APP Integration: Control the multimeter directly from your mobile phone using the free e-Bull app, compatible with iOS and Android. Connect up to four multimeters and monitor them in real-time.

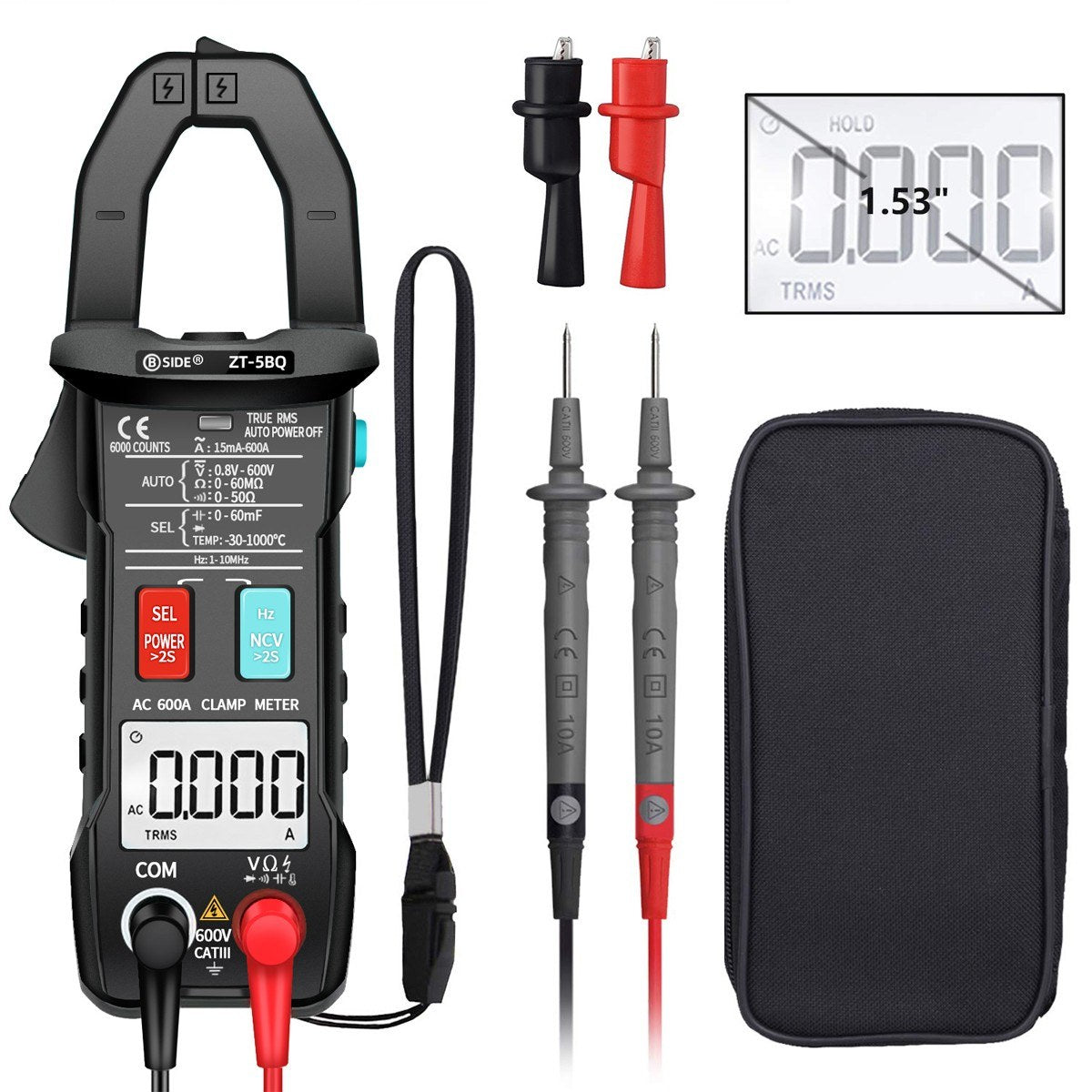

• Enhanced Display: The large LCD screen features a backlight to ensure clear visibility, with a data hold function to conveniently check or record measurements.
• Power Supply & Safety: Operates on two 1.5V AA batteries (not included). Includes an auto-off feature after 15 minutes of inactivity, with a beeper warning before shutdown. Offers high reliability and efficiency with a 600V CAT III safety level.

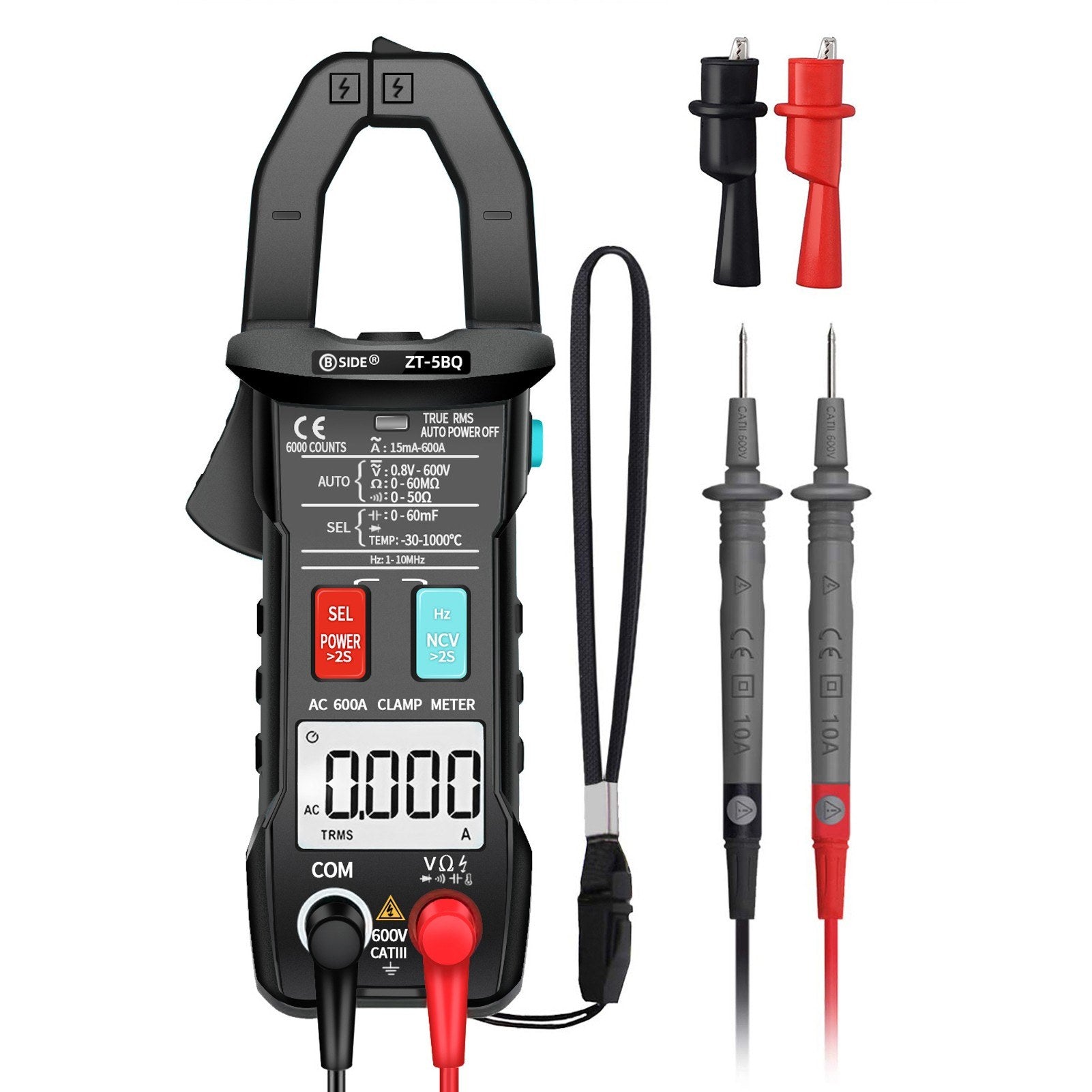

• Comprehensive Accessories: Comes with test leads, a temperature probe, and a storage bag for added convenience.

Specifications

• Material: ABS
• LCD Display: 6000 counts
• Range: Auto-range
• Sampling Rate: 3 times/second
• DC Voltage Range: 6.000V/60.00V/600.0V ±(0.5%+3)
• AC Voltage Range: 6.000V/60.00V/600.0V ±(1.0%+3)
• AC Current Range: 6.000A ±(5%+30), 60.00A/600.0A ±(2.5%+30)
• Resistance Range: Up to 60.00MΩ with various precision levels
• Capacitance Range: Up to 4.000mF ±(5.0%+5)
• Frequency Range: Up to 9.999MHz ±(0.1%+2)
• Temperature Range: -30~1000℃ / -22~1832℉ ±(2.5%+5)
• Additional Features: True RMS, data hold, low battery indicator, and more
• Working Environment: 0~40℃, <75% humidity
• Storage Environment: -20~60℃, <80% humidity
• Power Supply: 2 x 1.5V AA batteries (not included)
• Dimensions: 172 x 64 x 32mm
• Weight: 172g

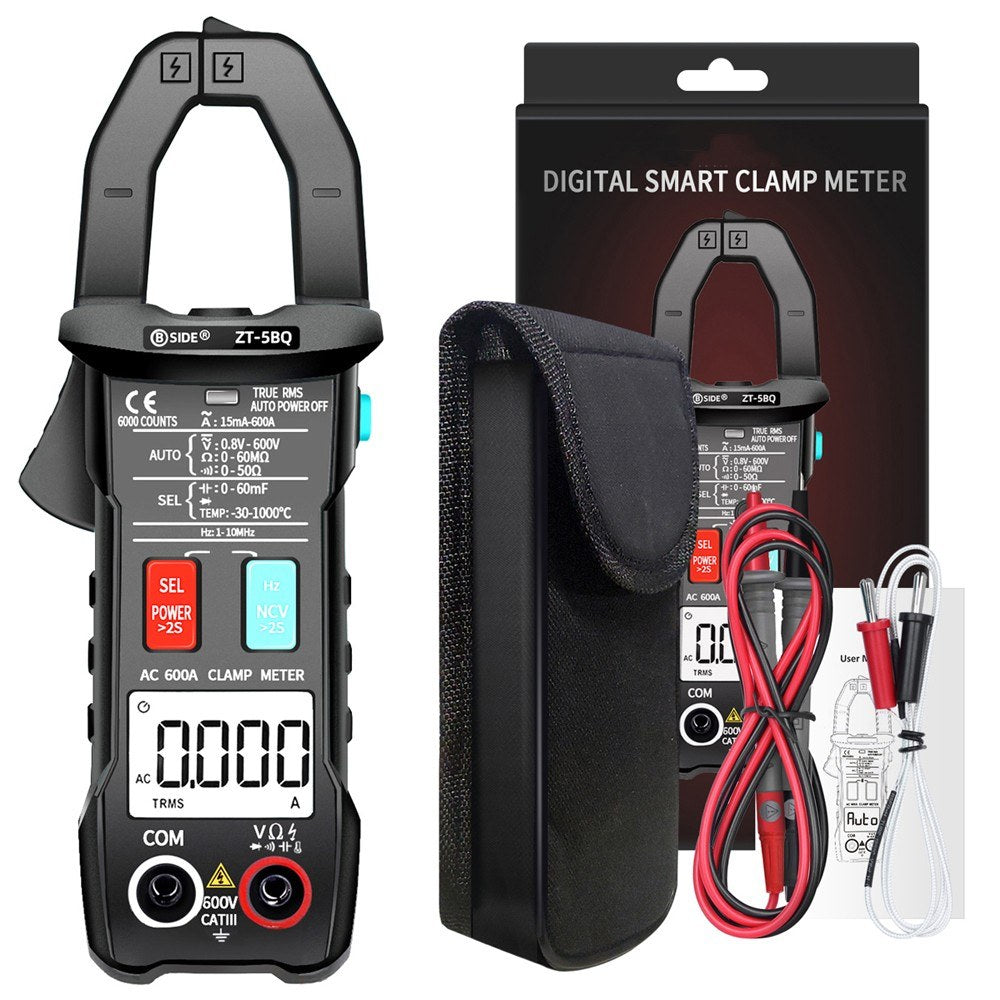

Packing List

• 1 x Clamp Meter
• 1 x Temperature Probe
• 1 x Storage Bag
• 2 x Test Leads
