QDB-3A Automotive Ignition Coil & Injector Tester with Solenoid Valve and Stepper Motor Diagnostic Tool

Ignition Coil Tester: Optimize Your Automotive Maintenance

The Ignition Coil Tester is an essential tool designed for automotive maintenance, offering simple operation and enhanced diagnostic capabilities. Its versatility and ease-of-use make it a must-have for quickly identifying component issues.

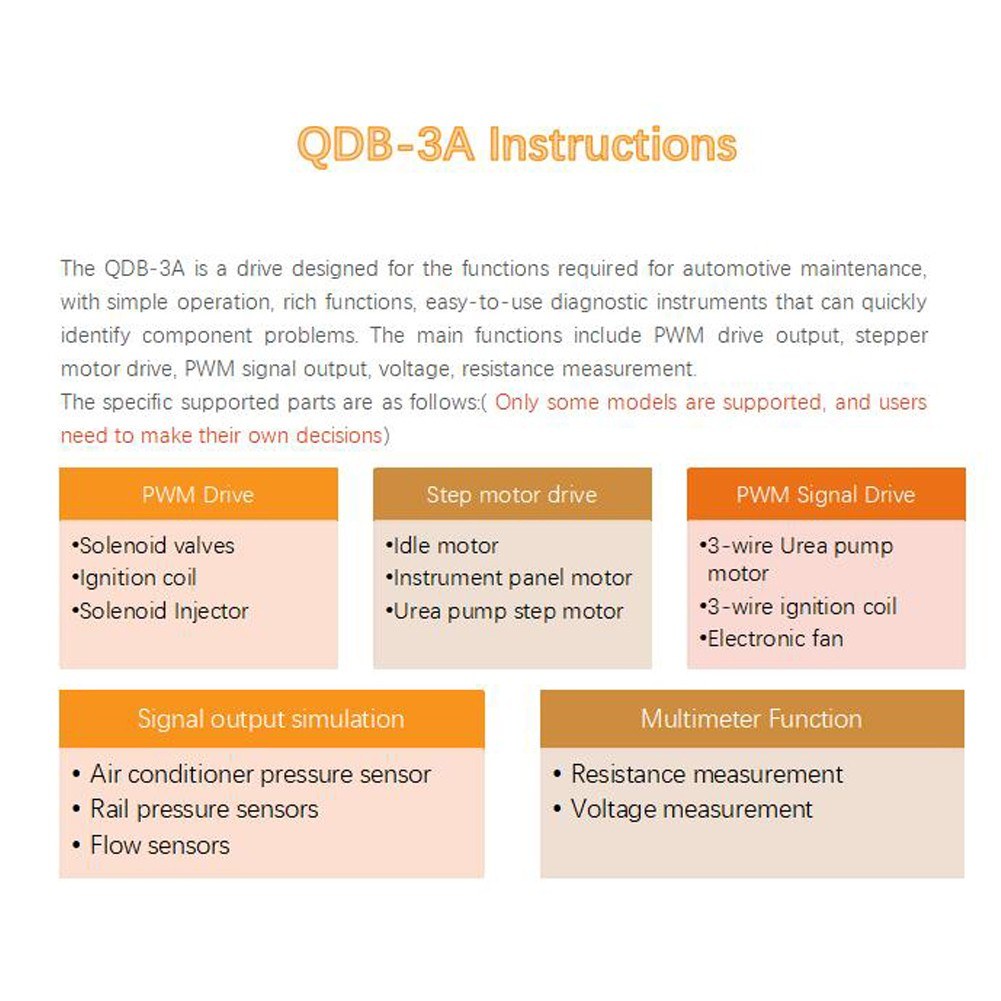

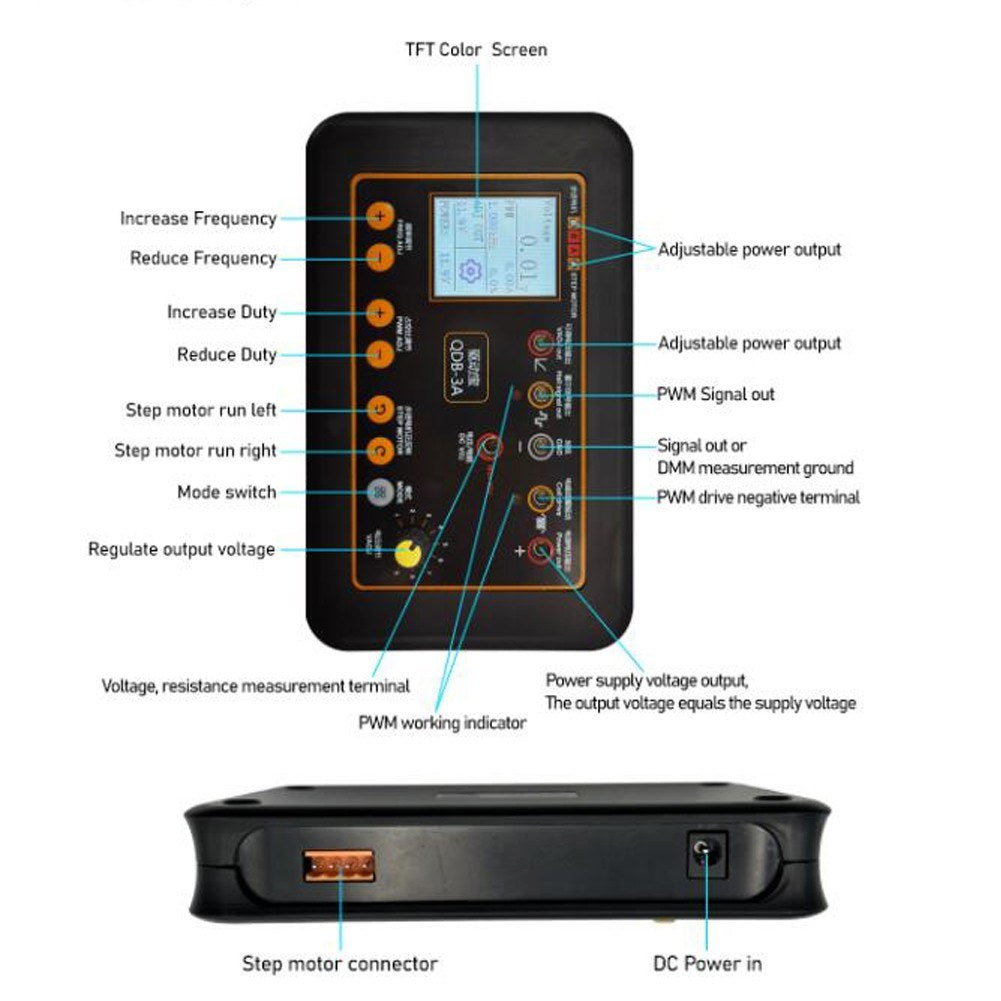

Main Functions:

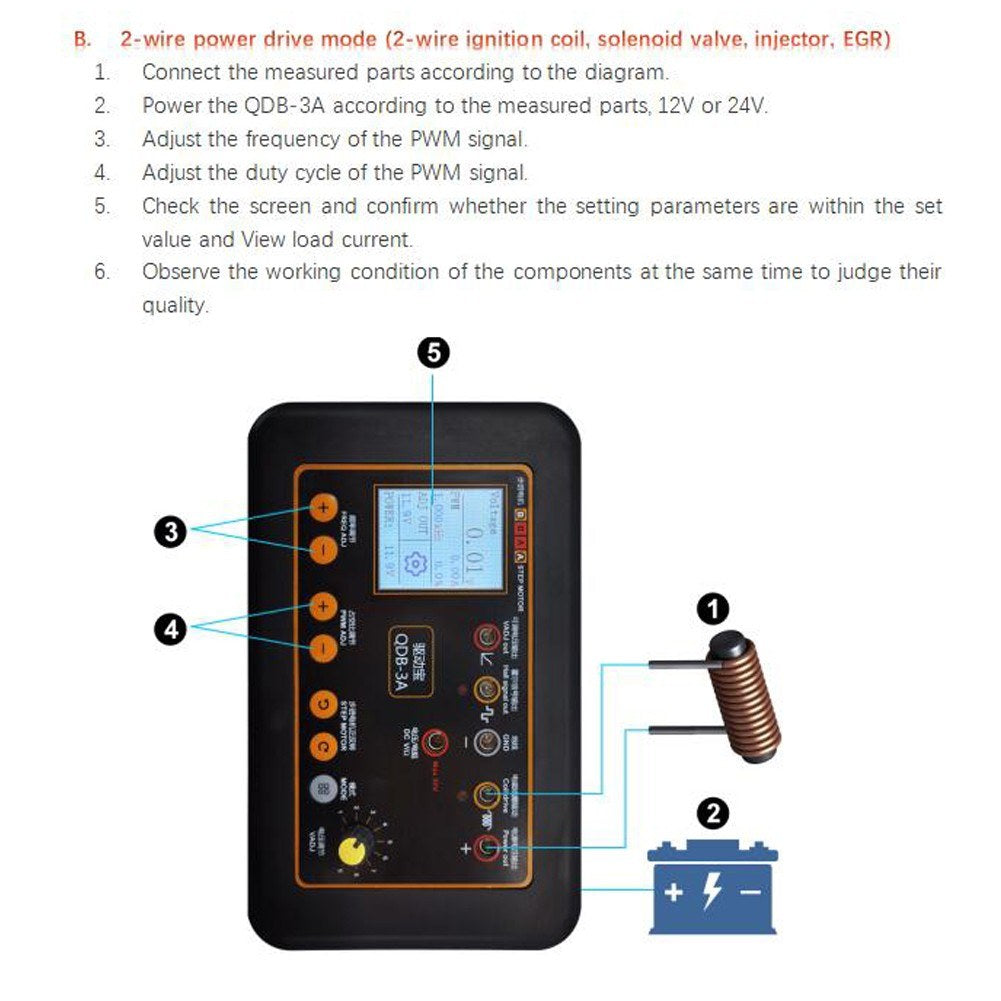

• PWM Drive Output

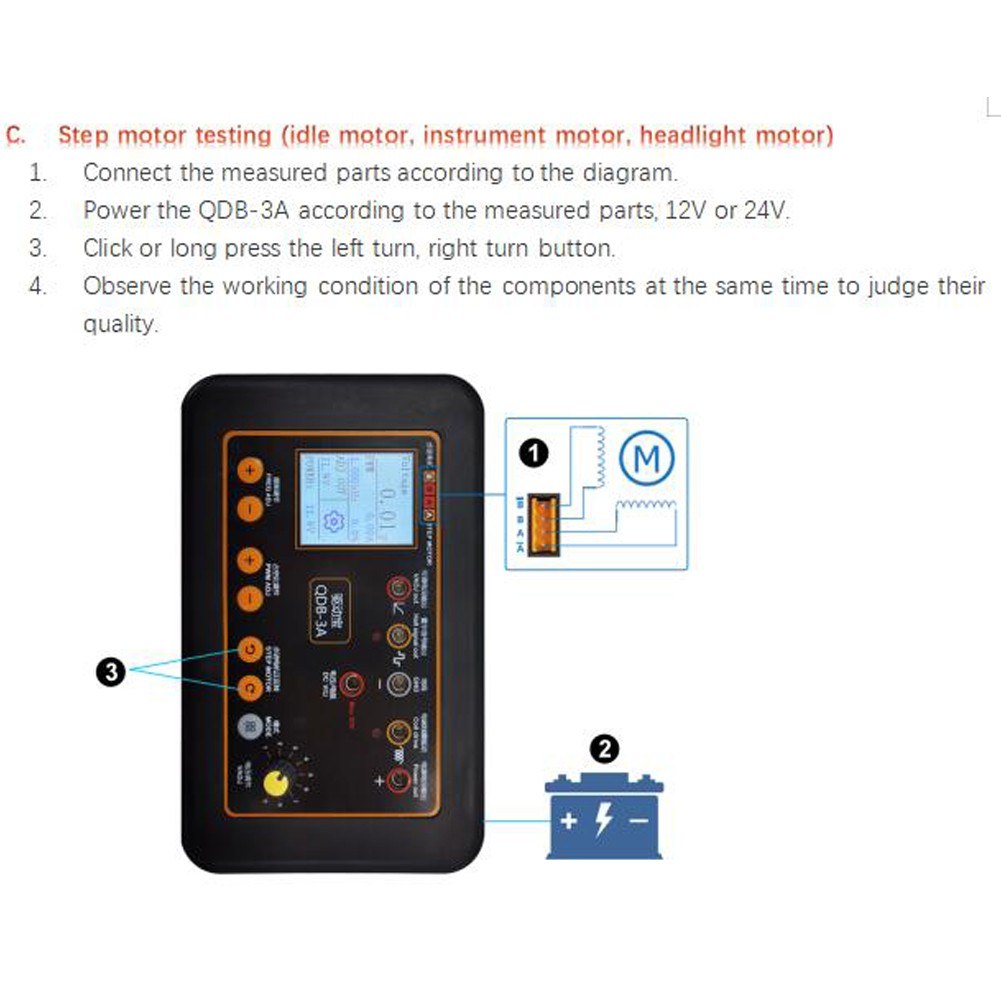

• Stepper Motor Drive
• PWM Signal Output

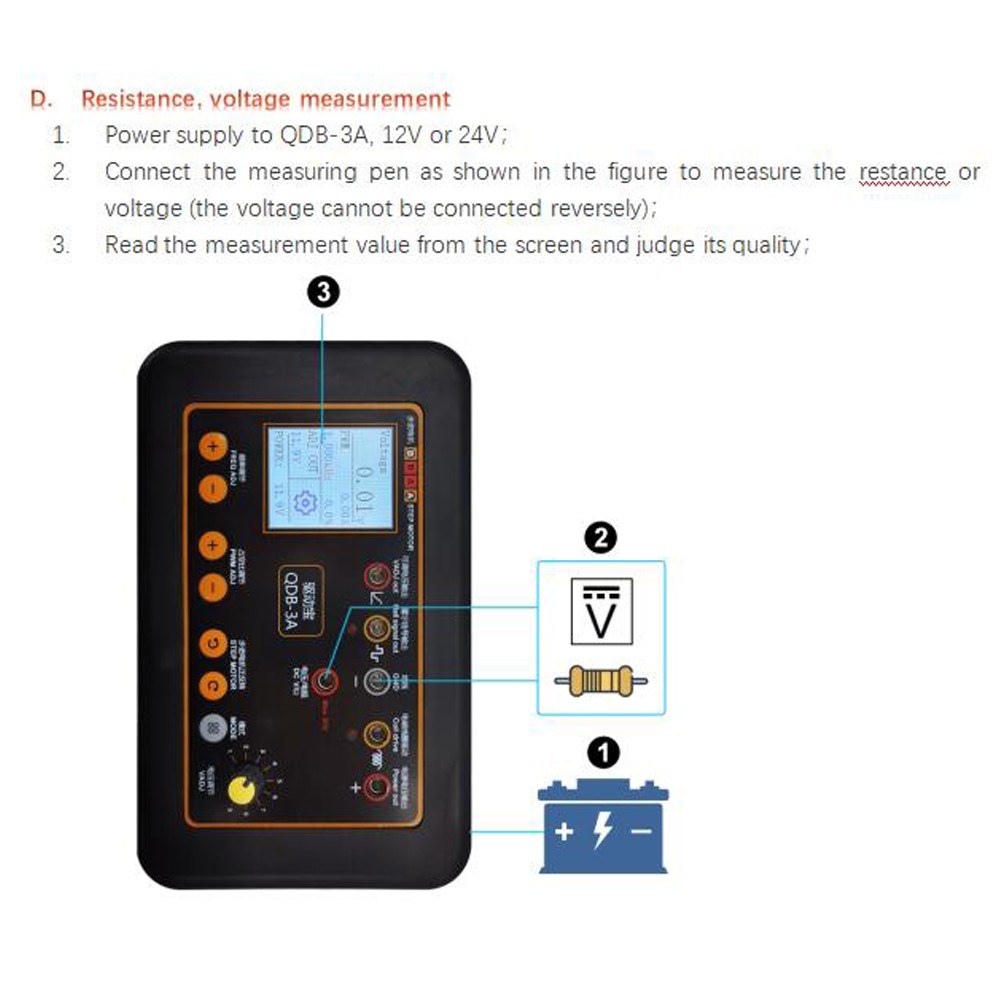

• Voltage and Resistance Measurement

Features:

• Versatile Testing Capabilities: This tester can drive and test a range of parts including ignition coils, fuel injectors, solenoid valves, and more, suitable for various automobile testing needs.
• High Precise Simulation: Accurately simulate different duty cycle sensors such as air conditioning pressure sensors and air flow meters using adjustable Hall signal output.
• Enhanced Safety Features: Operates on a 12 to 24V power supply with reverse connection and overcurrent protections to ensure safety.
• Wide Adjustment Ranges: Provides a broad range of adjustments for electromagnetic coil driving current, output frequency, duty cycle, and voltage to cater to diverse testing requirements.
• User-Friendly: Designed with adjustable parameters for ease of use, even for individuals without professional knowledge.

Specifications:

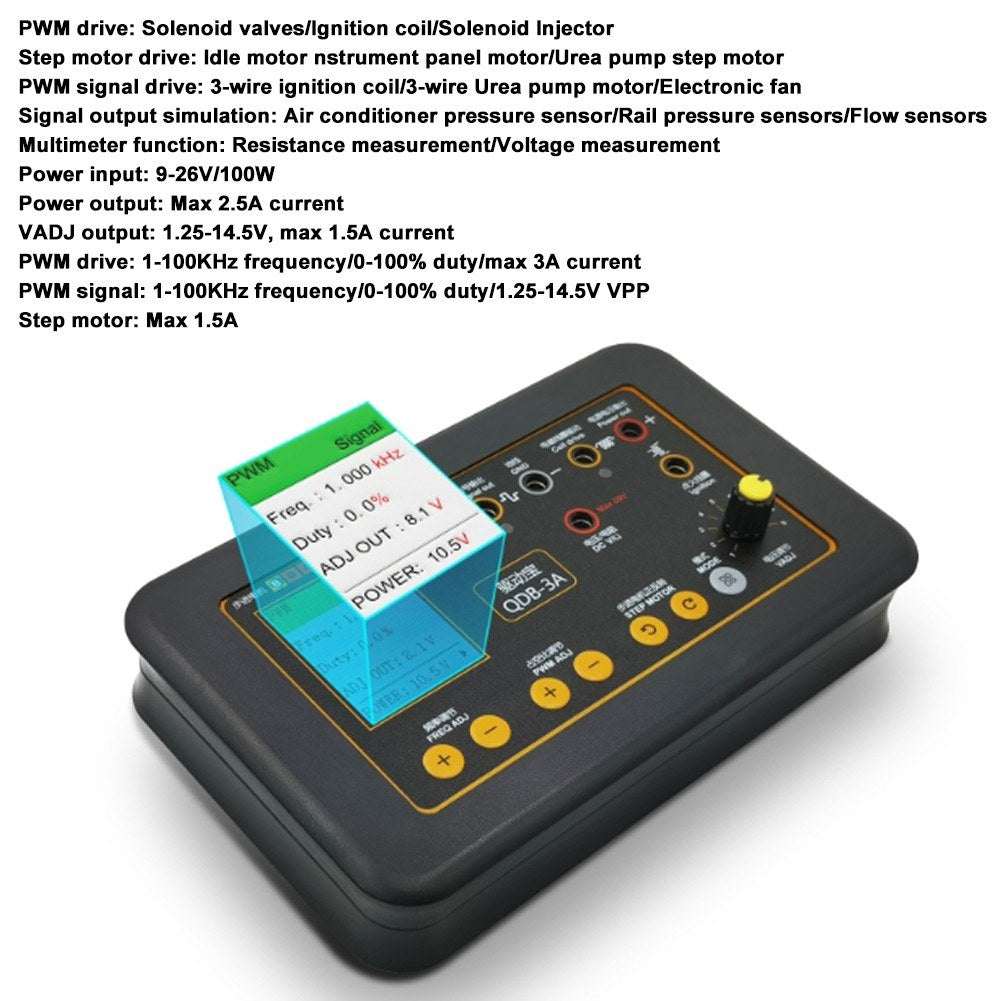

• Name: Ignition Coil Tester
• Material: ABS
• PWM Drive: Solenoid valves/Ignition coil/Solenoid Injector
• Step Motor Drive: Idle motor, Instrument panel motor, Urea pump step motor
• PWM Signal Drive: 3-wire ignition coil, 3-wire Urea pump motor, Electronic fan
• Signal Output Simulation: Air conditioner pressure sensor, Rail pressure sensors, Flow sensors
• Multimeter Function: Resistance and Voltage measurement
• Power Input: 9-26V/100W
• Power Output: Max 2.5A current
• VADJ Output: 1.25-14.5V, max 1.5A current
• PWM Drive: 1-100KHz frequency, 0-100% duty, max 3A current
• PWM Signal: 1-100KHz frequency, 0-100% duty, 1.25-14.5V VPP
• Step Motor: Max 1.5A
• OTR: 0-55℃
• Item Size: 165 * 96 * 26mm (6.50 * 3.78 * 1.02in)
• Package Size: 150 * 100 * 60mm (5.91 * 3.94 * 2.36in)
• Package Weight: 550g (1.21lb)

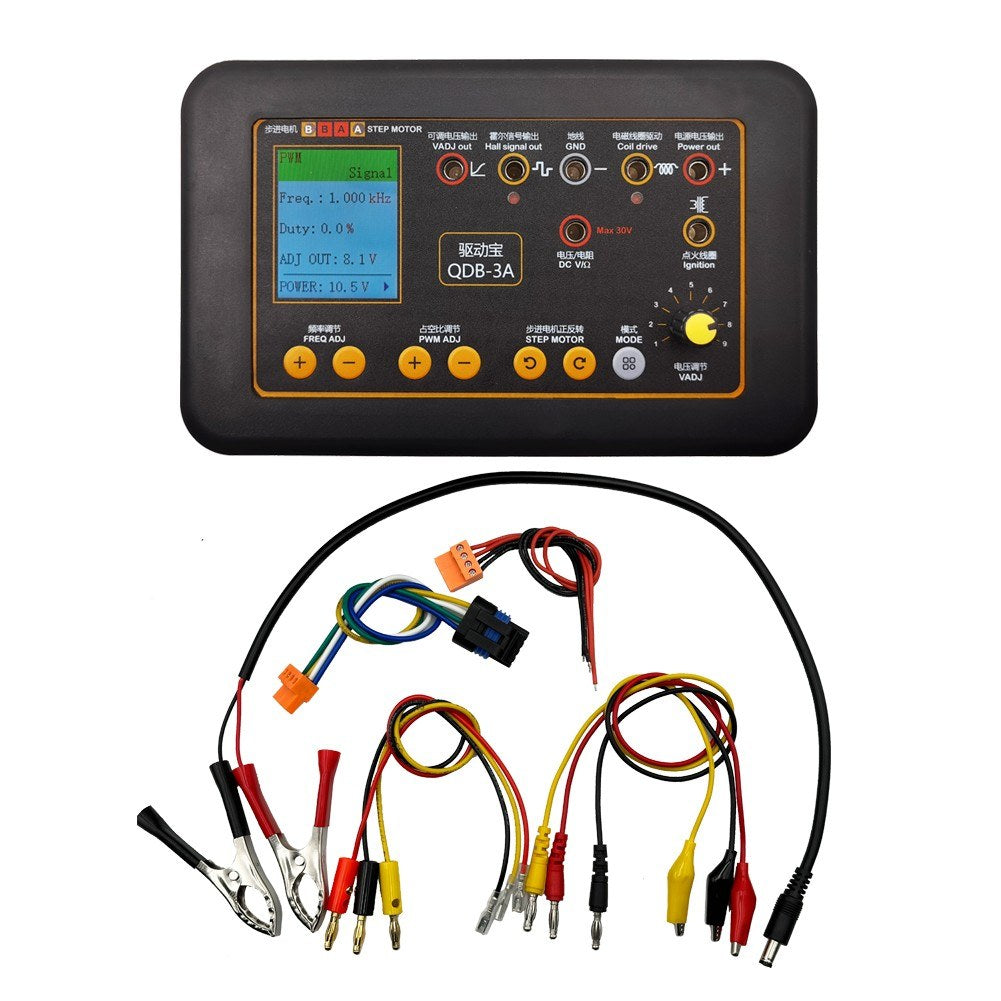

Packing List:

• 1 * QDB-A3 Ignition Coil Tester
• 1 * Power Cable
• 3 * Test Connection Cables
• 3 * Single Plugs
• 1 * Idle Speed Stepper Motor Plug
• 1 * Stepper Motor Welding Cable
