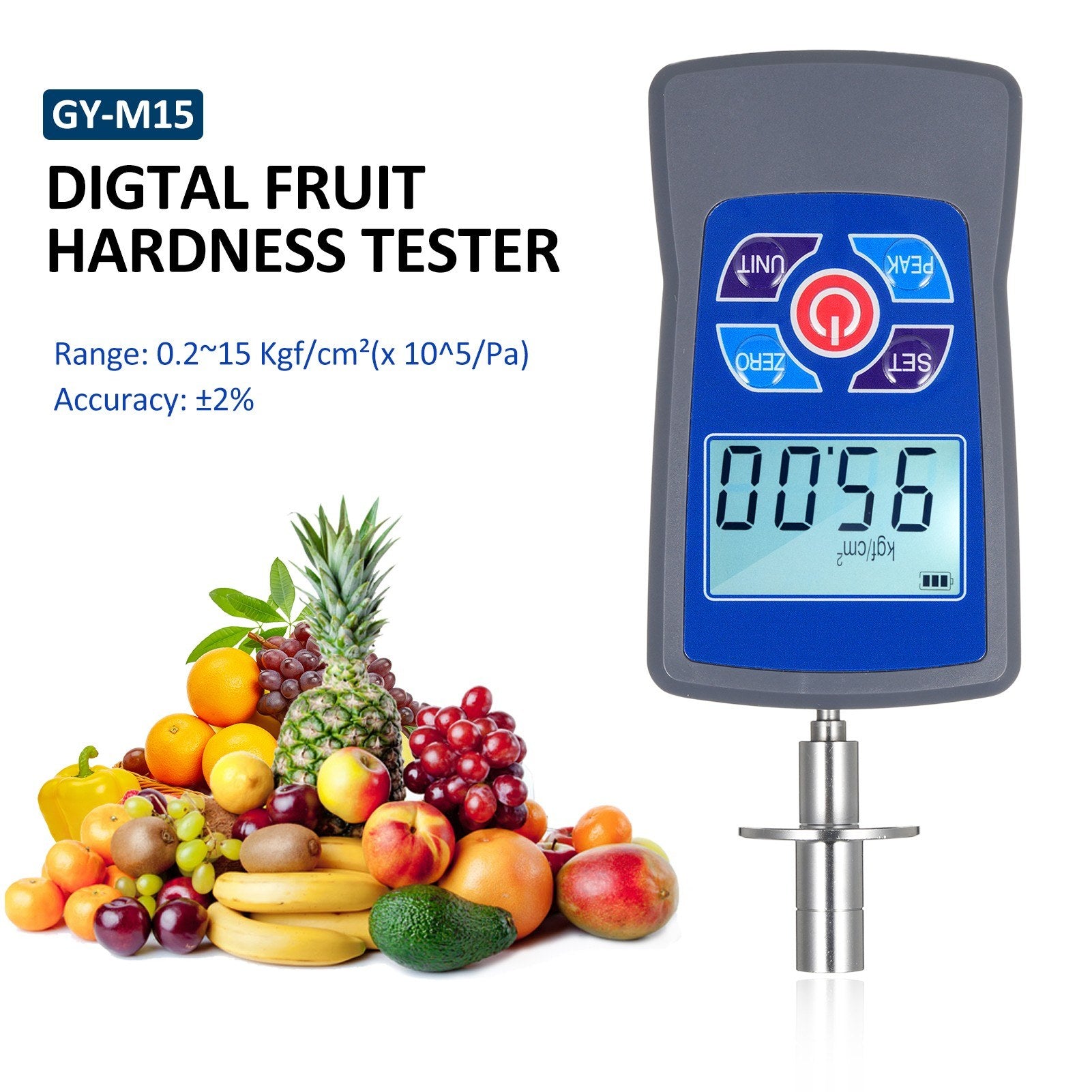

Digital Fruit Hardness Tester GY-M15 - Mini Penetrometer with 0.2-15 Kgf/cm² Range, 0.01 Kgf/cm² Load Division, Φ11.1mm Pressure Head

Enhanced Fruit Hardness Tester

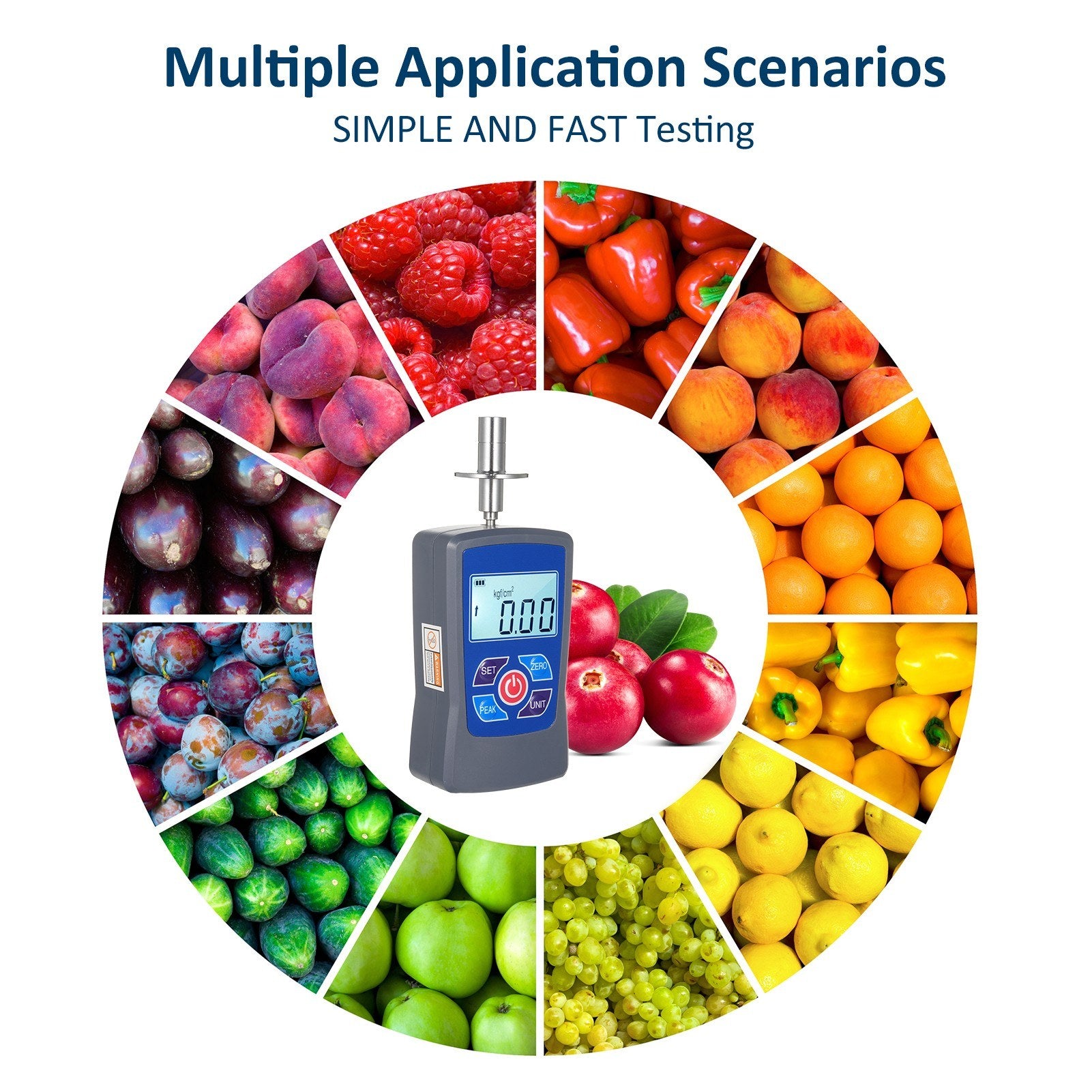

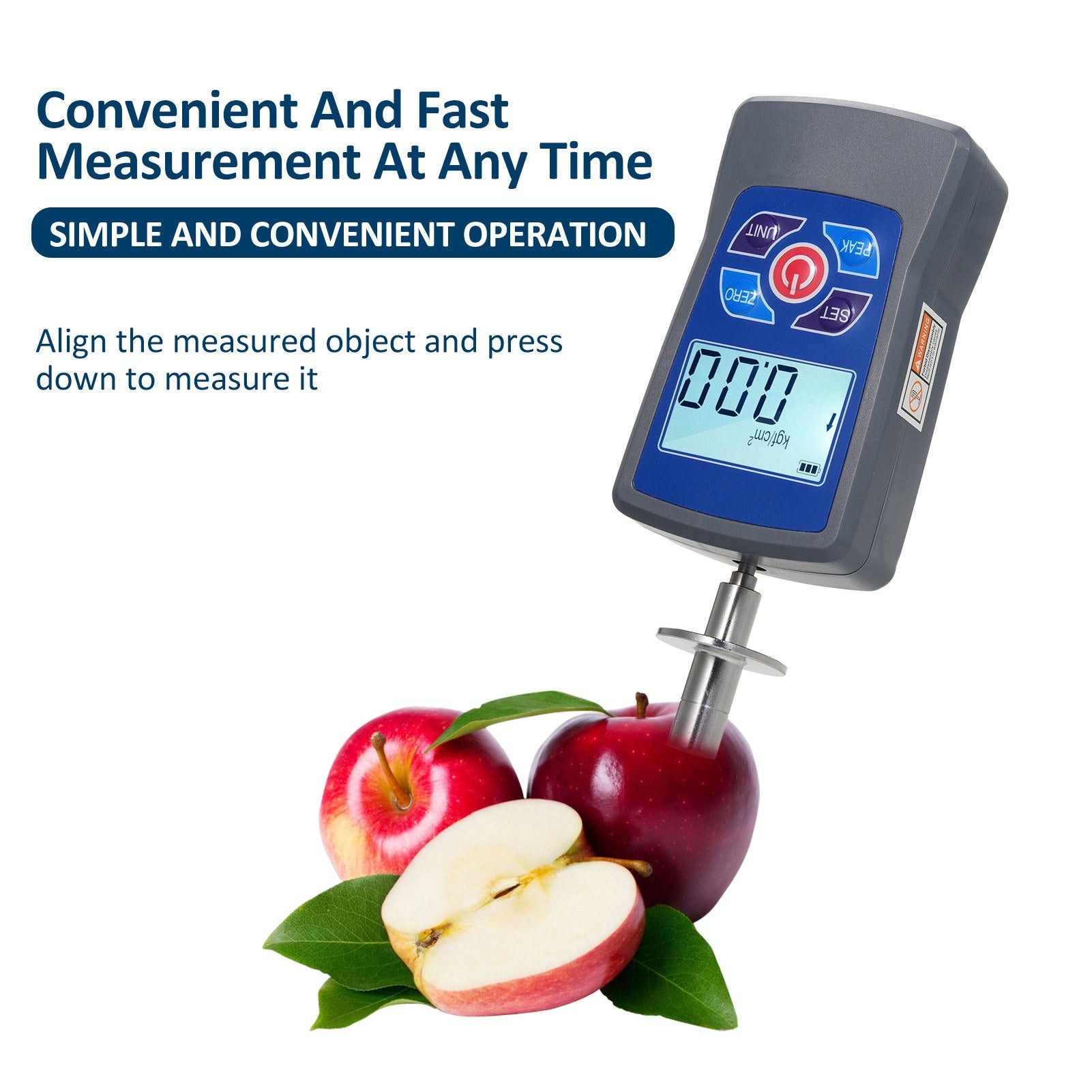

Experience high accuracy and ease of operation with our Fruit Hardness Tester, designed for convenient portability. Pair it with a special test bench to enhance measurement accuracy.

Note: For optimal scientific accuracy, use the measurement range between 10% to 100% of the full range. Avoid using less than 1% of the full range.

Key Features:

• Switch between three measurement modes: real-time, peak, and first peak value.
• Standard fruit hardness unit Kgf/cm² display.
• Set and monitor upper and lower limits with statistical analysis capabilities, including buzzer alarms when limits are exceeded.
• Automatic shutdown after a period of inactivity for enhanced power savings.

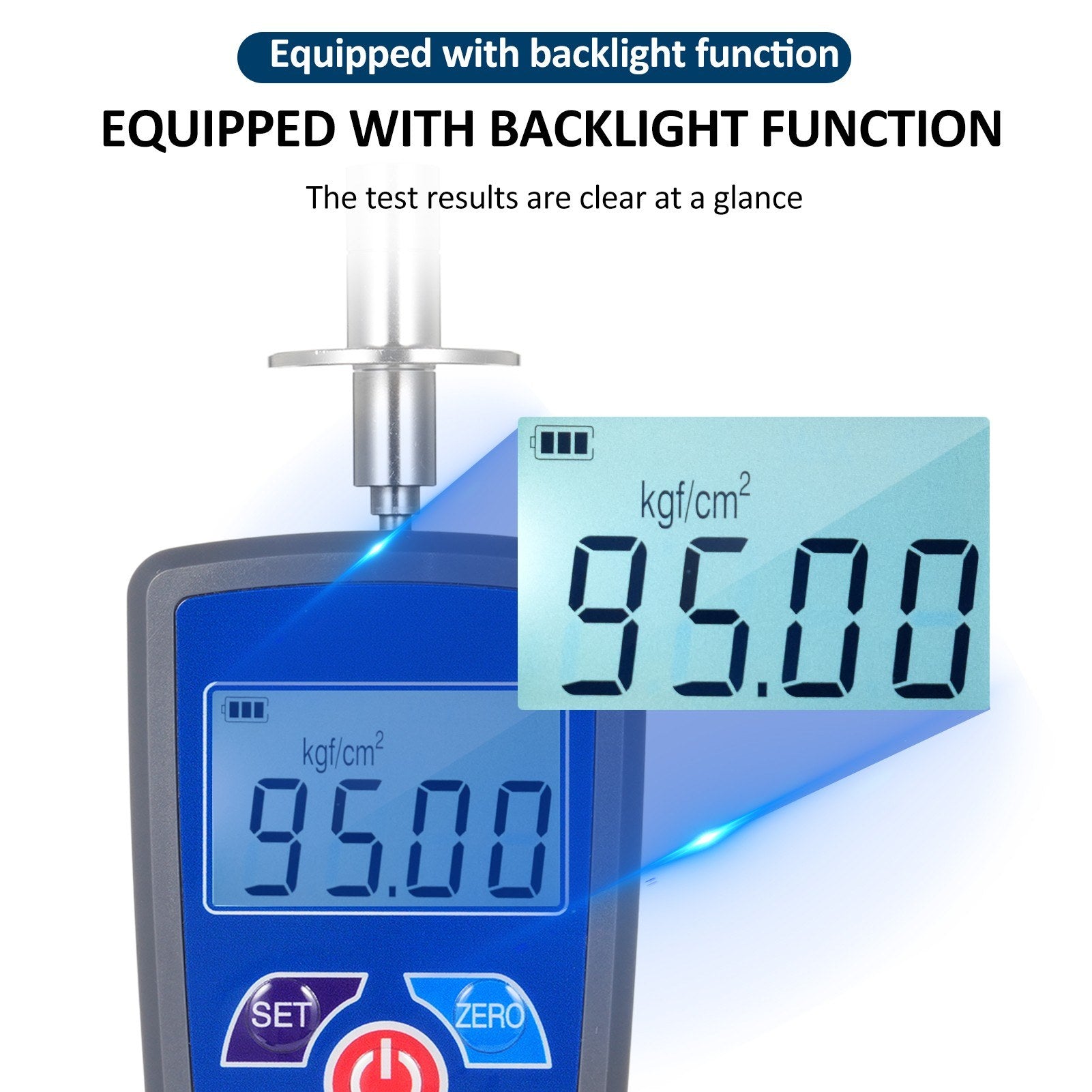

• Automatic backlight and buzzer alarm functions for convenient use.

Specifications:

• Model Options: GY-M15 / GY-M30
• Range:
• GY-M15: 0.2~15 Kgf/cm² (x10⁵ Pa)
• GY-M30: 0.4~30 Kgf/cm² (x10⁵ Pa)
• Pressure Head Diameter:
• GY-M15: Φ11.1mm
• GY-M30: Φ7.9mm
• Load Division Value: 0.01 Kgf/cm²
• Accuracy: ±2% (from 10% to 100% of the full range)
• Insertion Depth of Indenter: 10mm

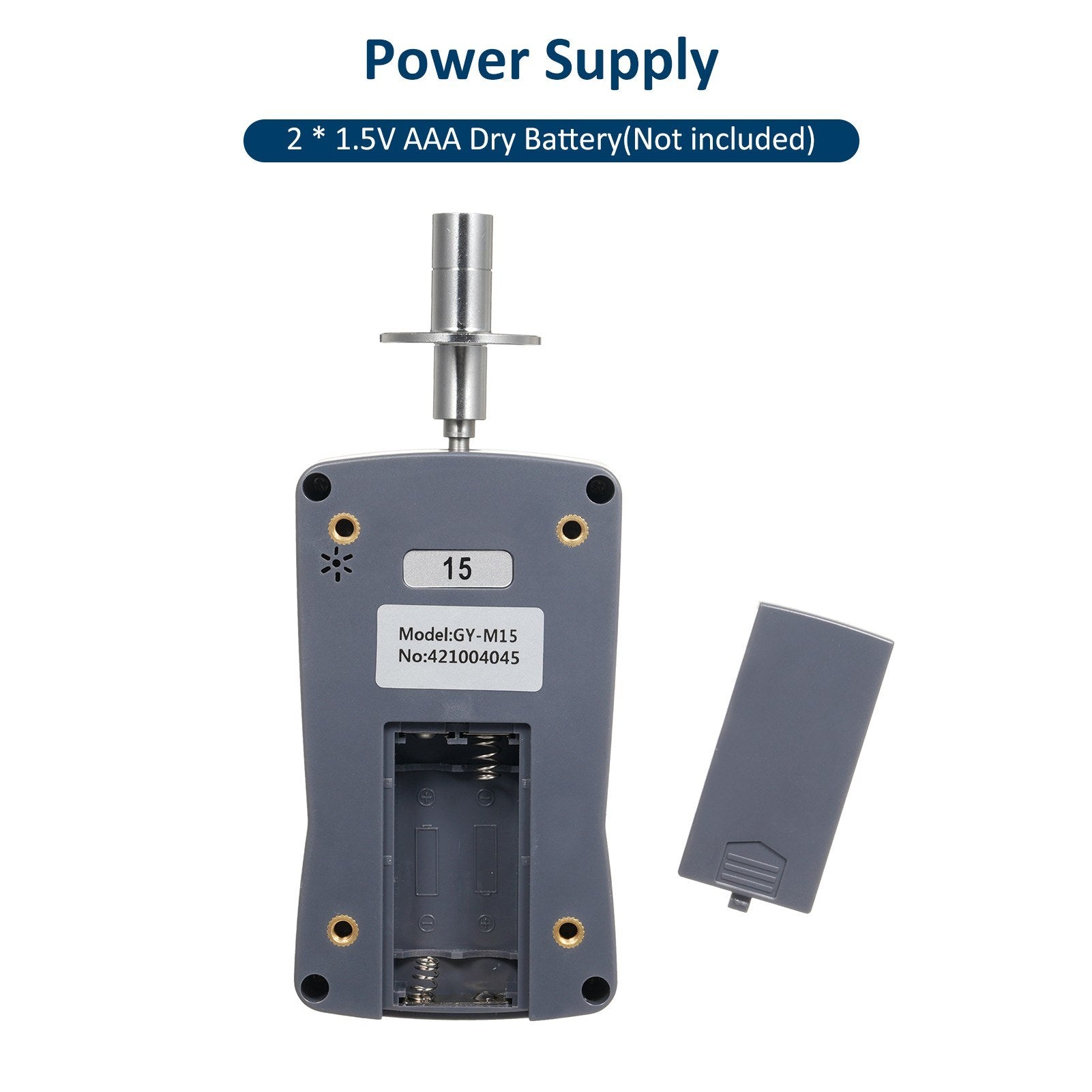

• Power Supply: 2 × 1.5V AAA Dry Battery (not included)
• Working Temperature: 5℃ to 35℃
• Transportation Temperature: -10℃ to 60℃
• Relative Humidity: 15% to 80% RH
• Work Environment: Ensure no focal source or corrosive media nearby
• Material: ABS

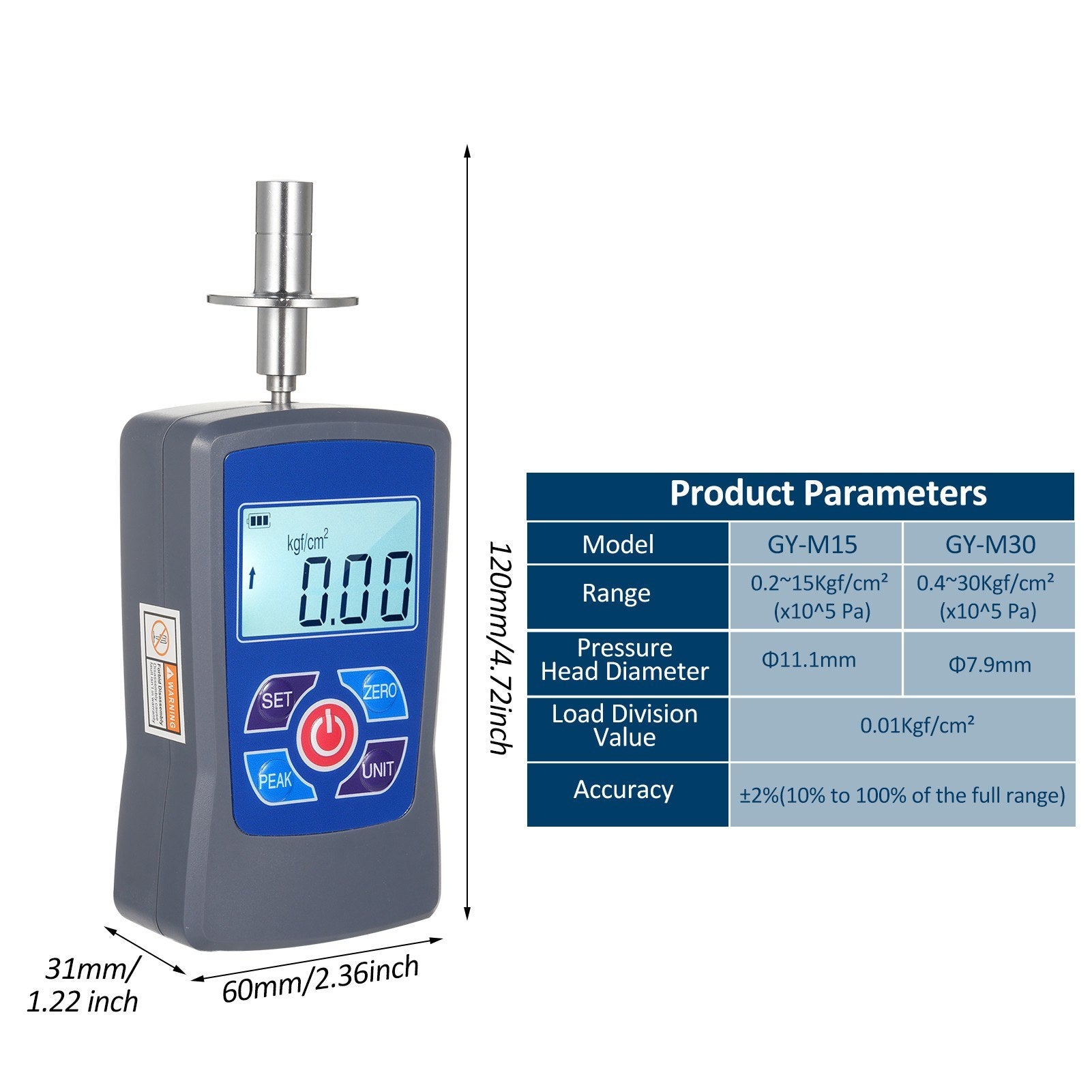

• Item Size: 120 × 60 × 31 mm / 4.72 × 2.36 × 1.22 inch
• Item Weight: 173g / 6.1oz
• Package Size: 18.2 × 13.7 × 4.6 cm / 7.16 × 5.39 × 1.81 inch
• Package Weight: 454g / 16.01oz

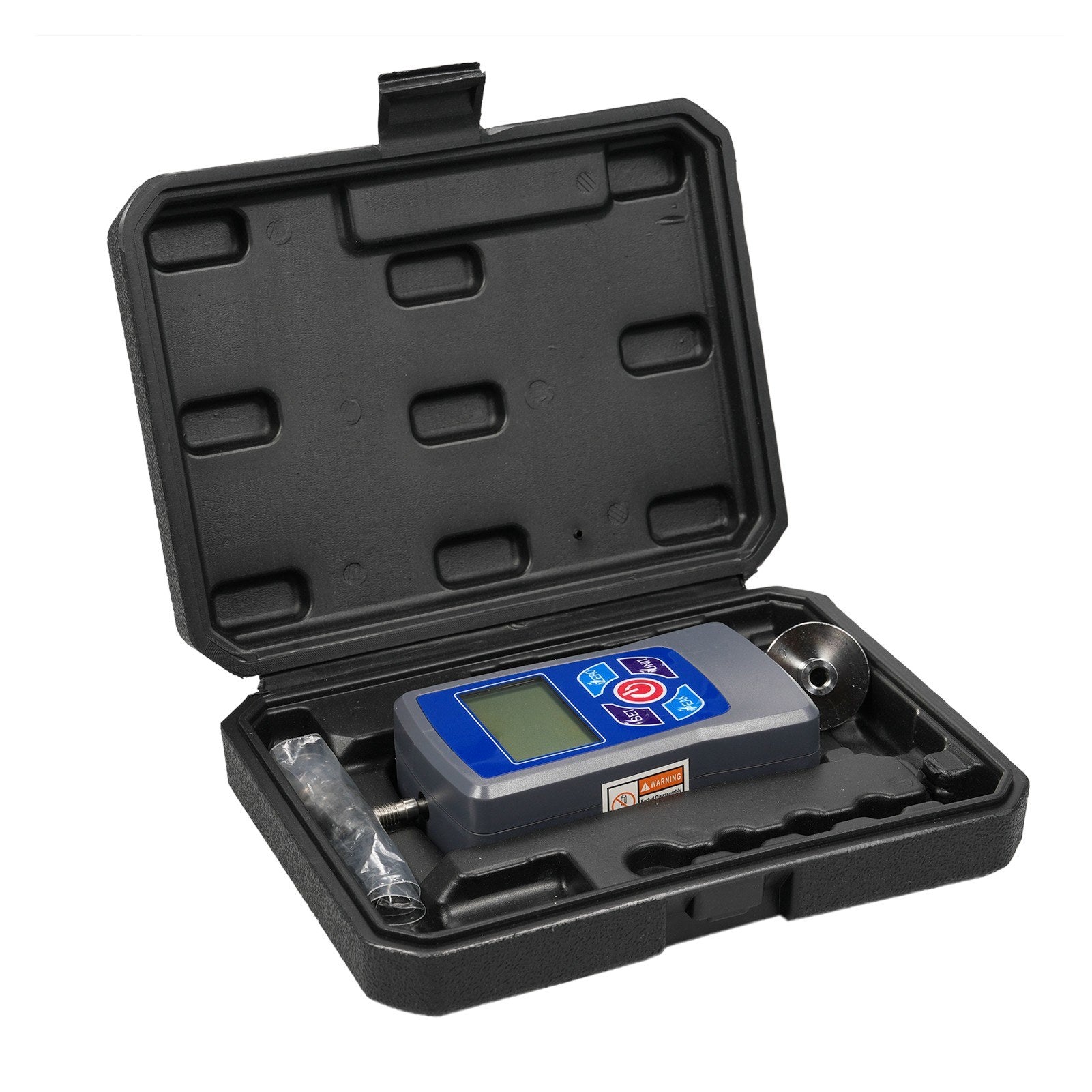

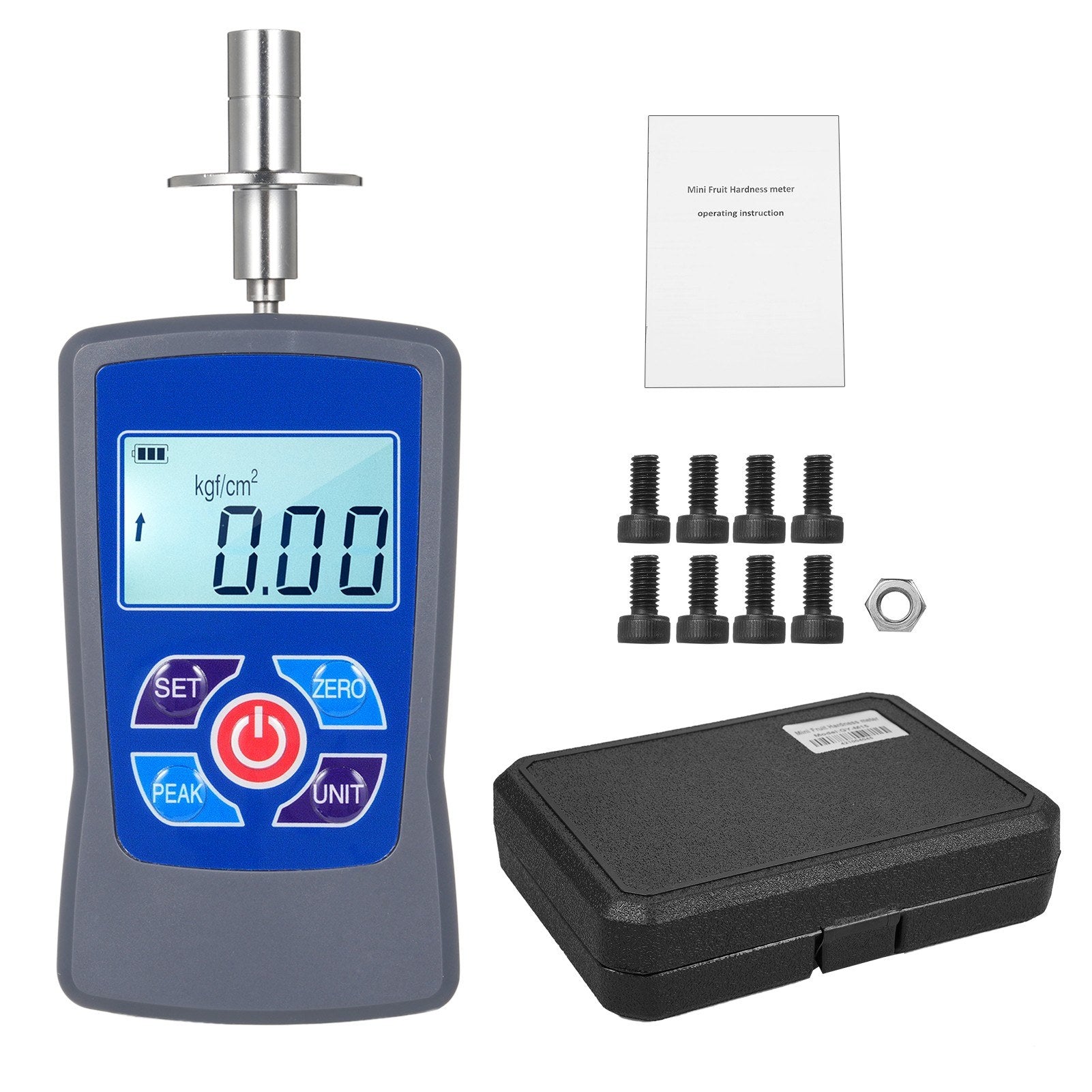

Package Contents:

• 1 × Fruit Hardness Tester
• 1 × Press Foot
• 1 × Hexagon Nut
• 8 × Hexagon Cylindrical Screws
• 1 × User Manual (English)
