PowMr PWM Pstar Solar Charge Controller 80A/60A/30A 12V-48V Lead-Acid & Lithium Battery Charger, Max PV 100V, Dual Mode

Upgraded Solar Charge Controller

Our solar charge controller is an all-in-one solution for efficient and reliable battery charging. Whether you're using lithium-ion or lead-acid batteries, it ensures optimal performance and battery longevity.

Key Features:

• Compatible with both lithium-ion and lead-acid batteries; supports user-defined configurations.
• Automatically detects 12V/24V/36V/48V system voltage.
• Offers a wide range of protection functions to ensure safety and extend battery life.
• Natural air cooling for silent operation.
• LCD screen for real-time monitoring and parameter configuration.
• Compact, lightweight, and easy to install.
• Equipped with 2 USB ports providing 5V, 2A output each.
• User-friendly setup with quick commissioning via front panel LCD.

Note: Do not charge Li-iron batteries if the battery temperature is below 0°C.

Model Options:

• Pstar-30A
• Pstar-60A
• Pstar-80A

Specifications:

PV Input:

• Max Open Voltage of PV Module: 100V
• PV Operation Voltage Range: Matches system voltage and ≤ 100V

Max. Input Power: (corresponding to each system voltage)

• 12V System: ≤360W / ≤720W / ≤960W
• 24V System: ≤720W / ≤1440W / ≤1920W
• 36V System: ≤1080W / ≤2160W / ≤2880W
• 48V System: ≤1440W / ≤2880W / ≤3840W

Charge Mode:

• Charging Technology: PWM
• Charge Algorithm: 3-Stages
• Self-consumption: ≤20mA
• Nominal System Voltage: 12V/24V/36V/48V

Rated Charging Current: 30A / 60A / 80A

DC Output:

Rated Output Current: 20A / 35A / 50A

USB Interface:

5V/2A each, two ports available.

Environment:

• Operating Temperature Range: -20℃ to +55℃
• Humidity Range: ≤90%, Non-condensing

General Specifications:

• Protection Class: IP30
• Dimension (L×W×H):
  • Pstar-30A: 187×94×49mm
  • Pstar-60A: 187×132×60mm
  • Pstar-80A: 187×132×60mm
• Net Weight:
  • Pstar-30A: 0.49kg
  • Pstar-60A: 0.7kg
  • Pstar-80A: 0.725kg

What's Included:

• 1 x PWM Pstar Controller

Advanced Technology:

Experience the benefits of advanced 3-Stage PWM Technology, ensuring high charging efficiency. This technology supports bulk, boost, and float charging modes, providing a fast, efficient, and safe battery charge experience while enhancing battery lifespan.

Compatible with 14 Types of Batteries:

Our controller supports multiple battery types, including SEL, USE, FLD, GEL, LiFePO4, and ternary lithium batteries. With clear icons on the LCD for various Lithium batteries, selecting and calibrating battery types are straightforward.

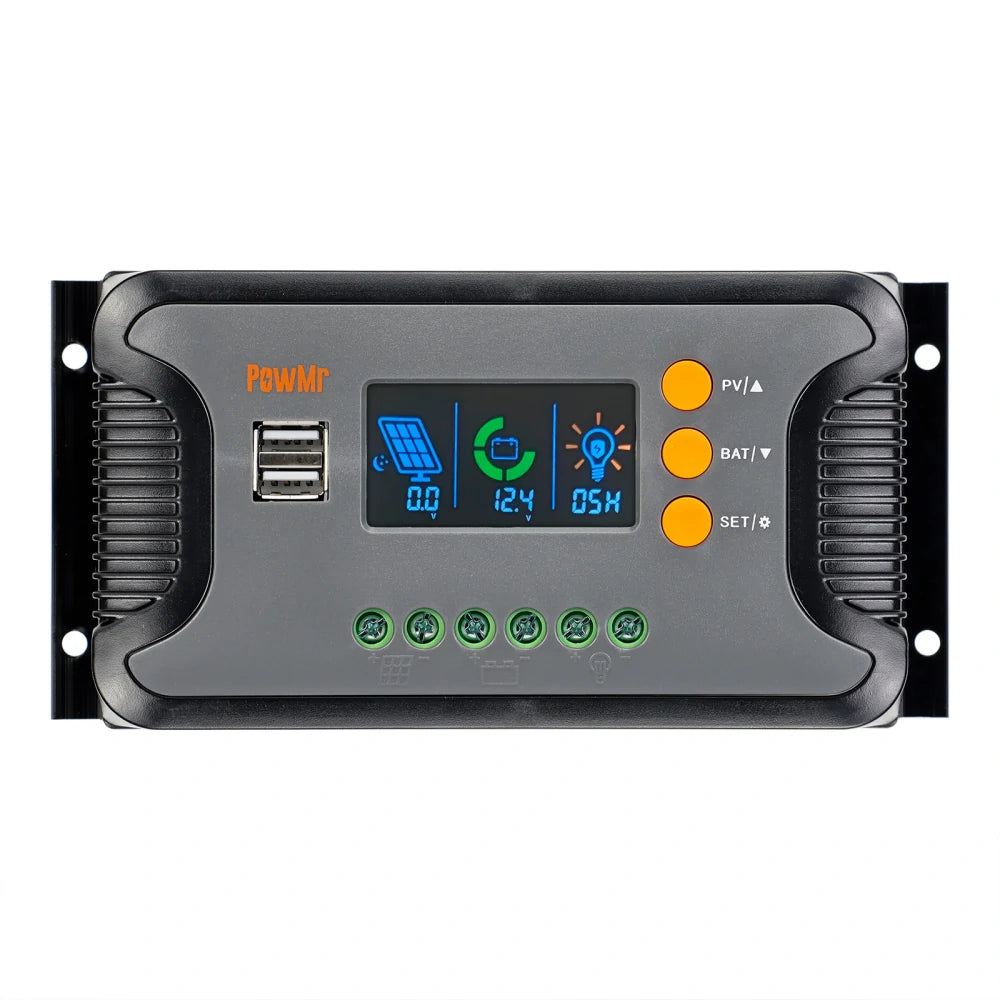

Easy-Read Backlit Display:

The built-in backlit LCD screen ensures real-time monitoring of charging parameters such as current, generated energy, temperature, and voltage, alongside error codes. It simplifies operation and resets to default display after inactivity.
