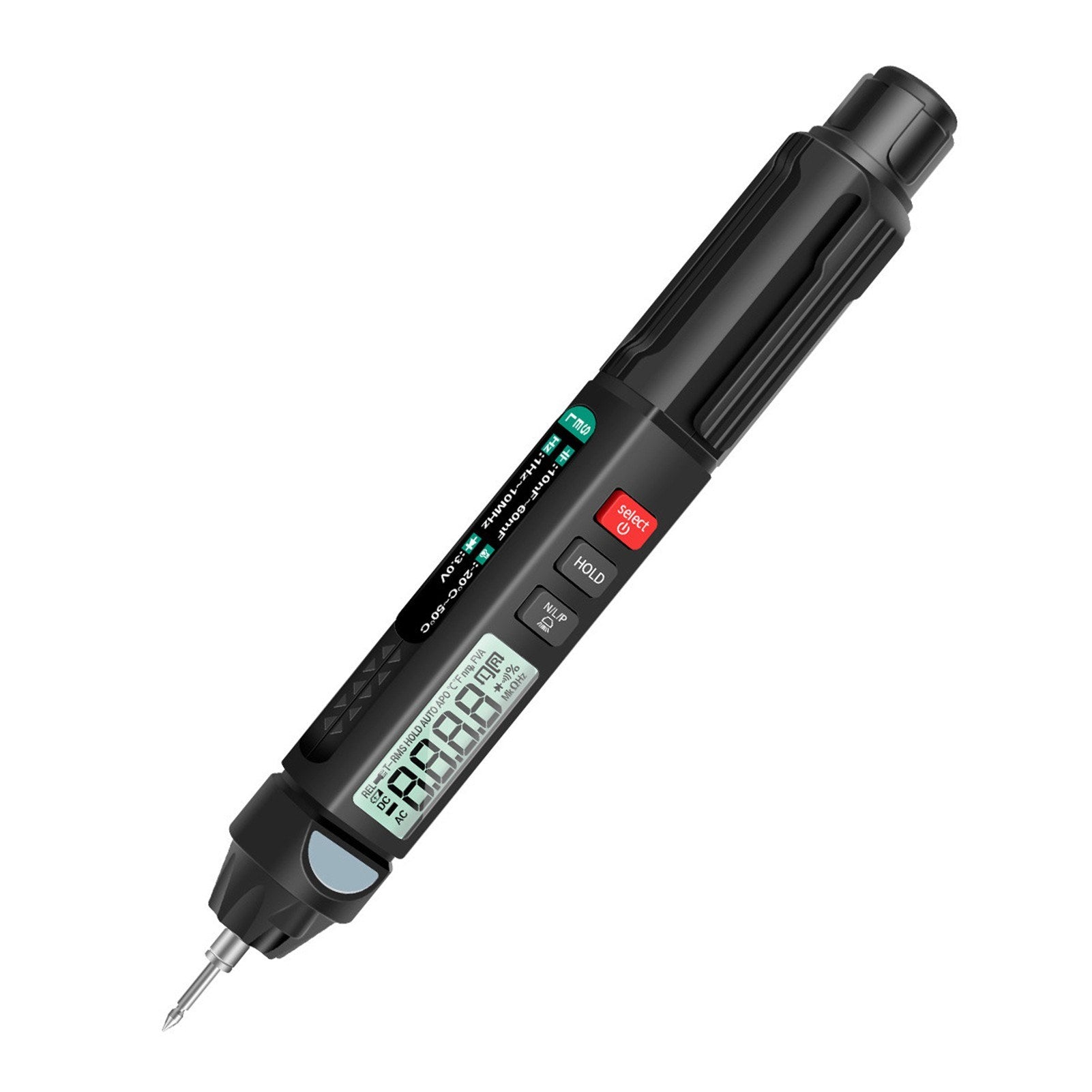

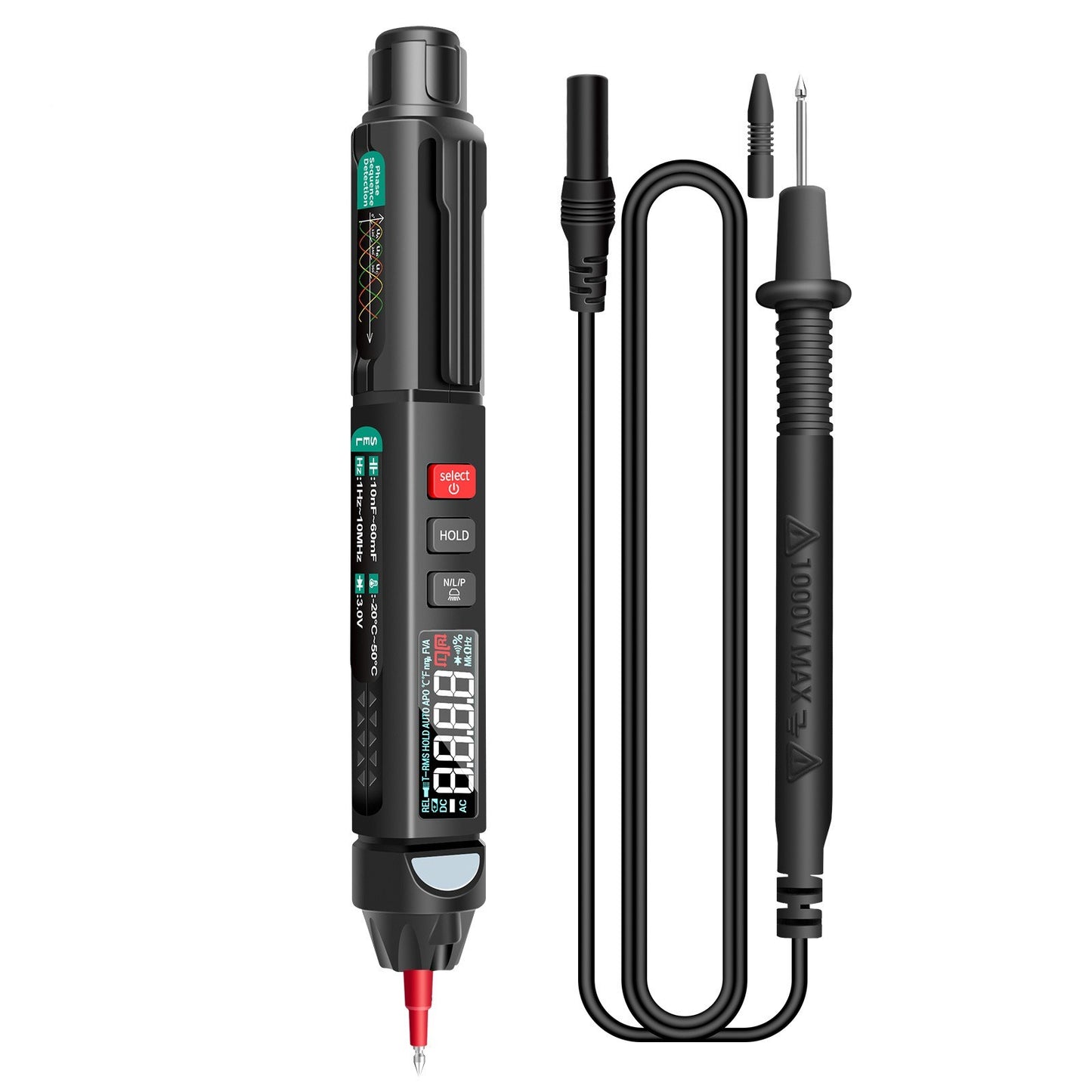

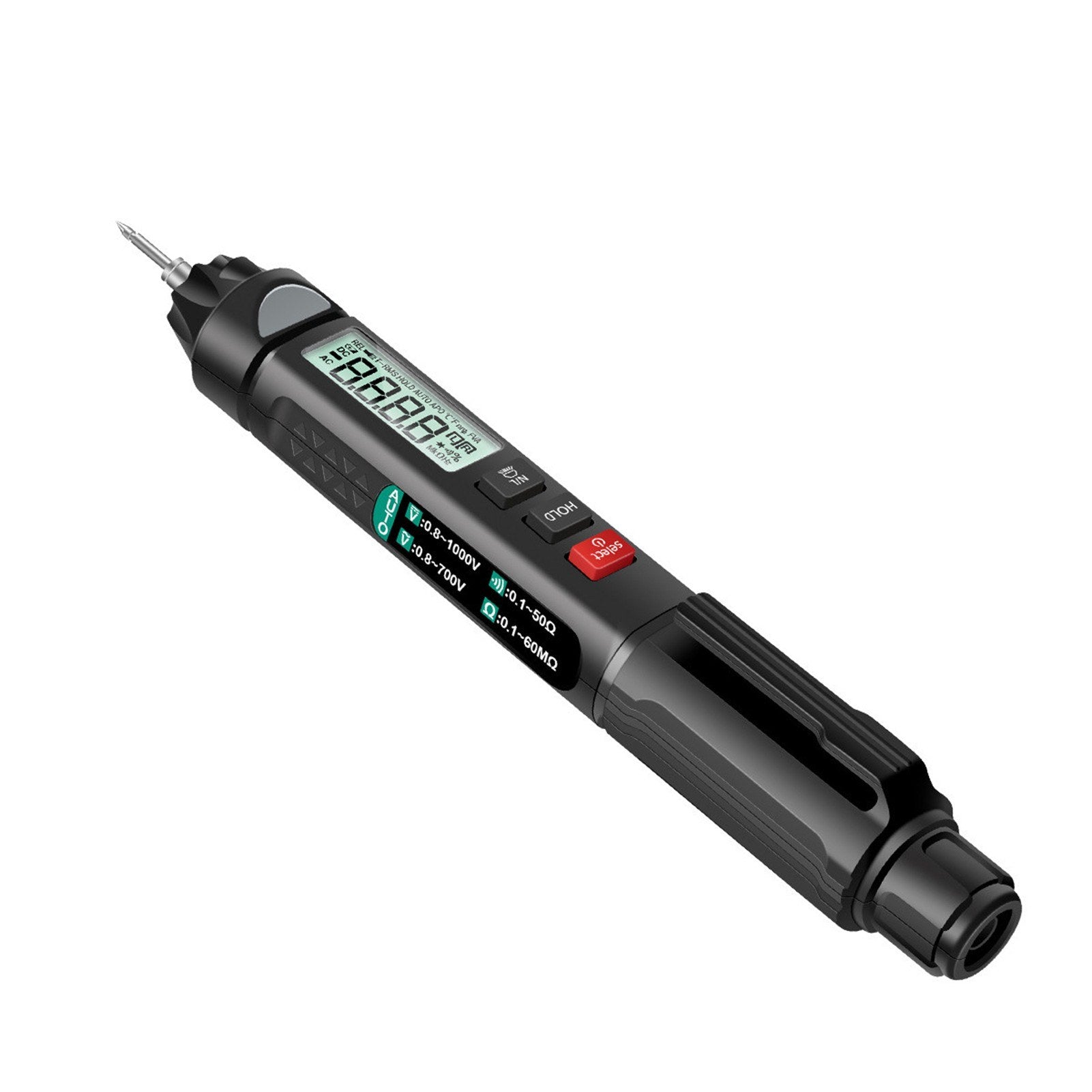

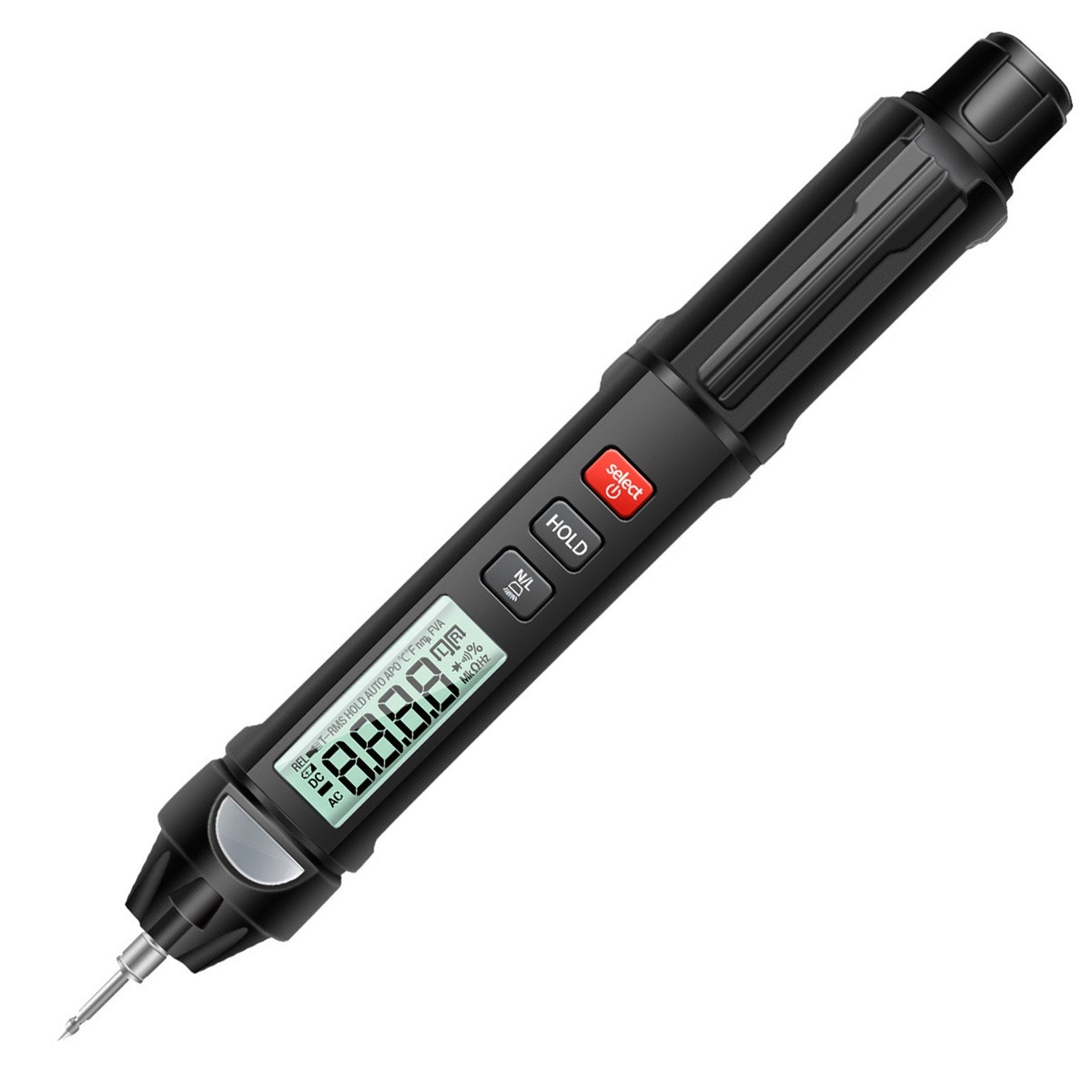

ANENG A3008 Digital Pen Multimeter 6000 Counts

ANENG A3008: Your Versatile Smart Multimeter

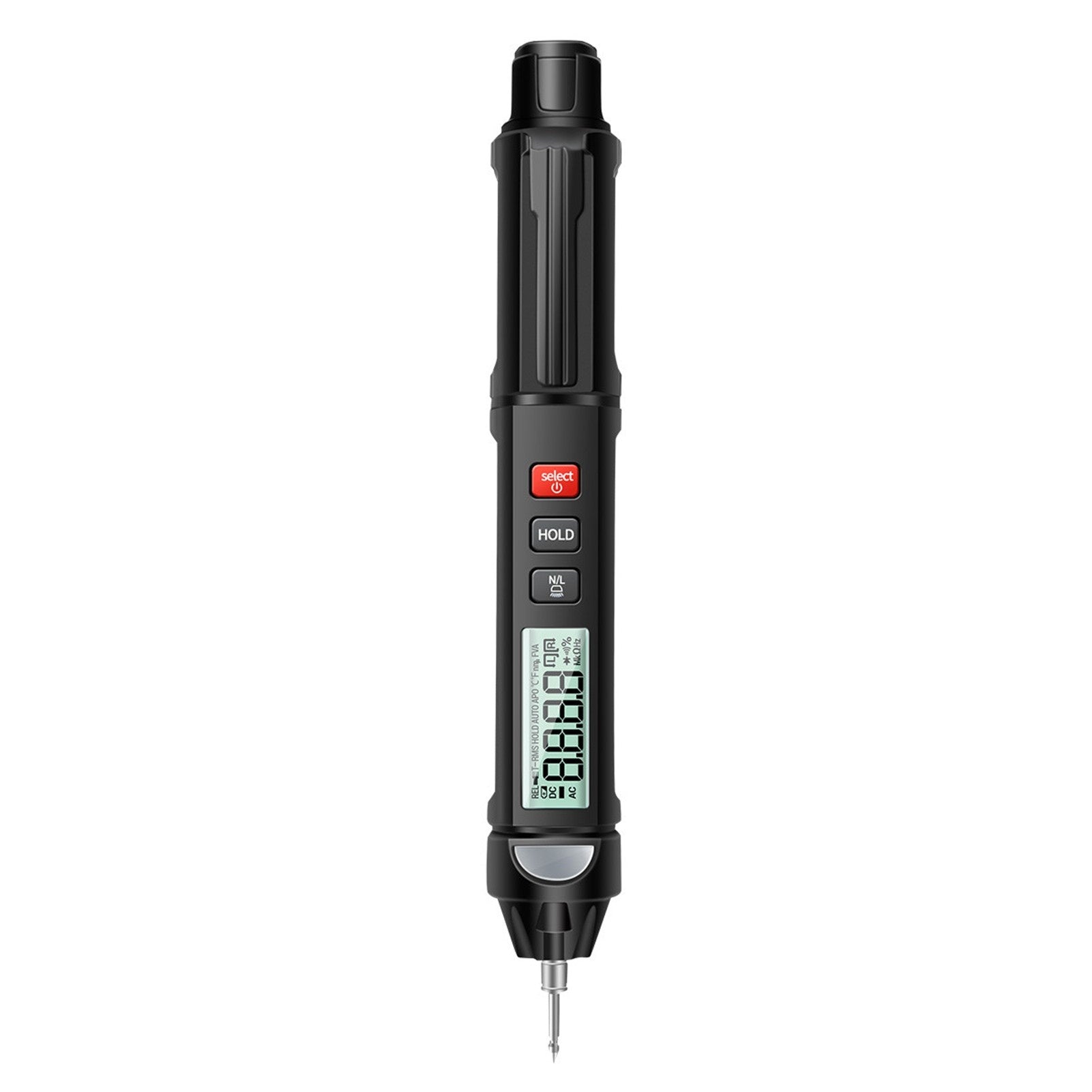

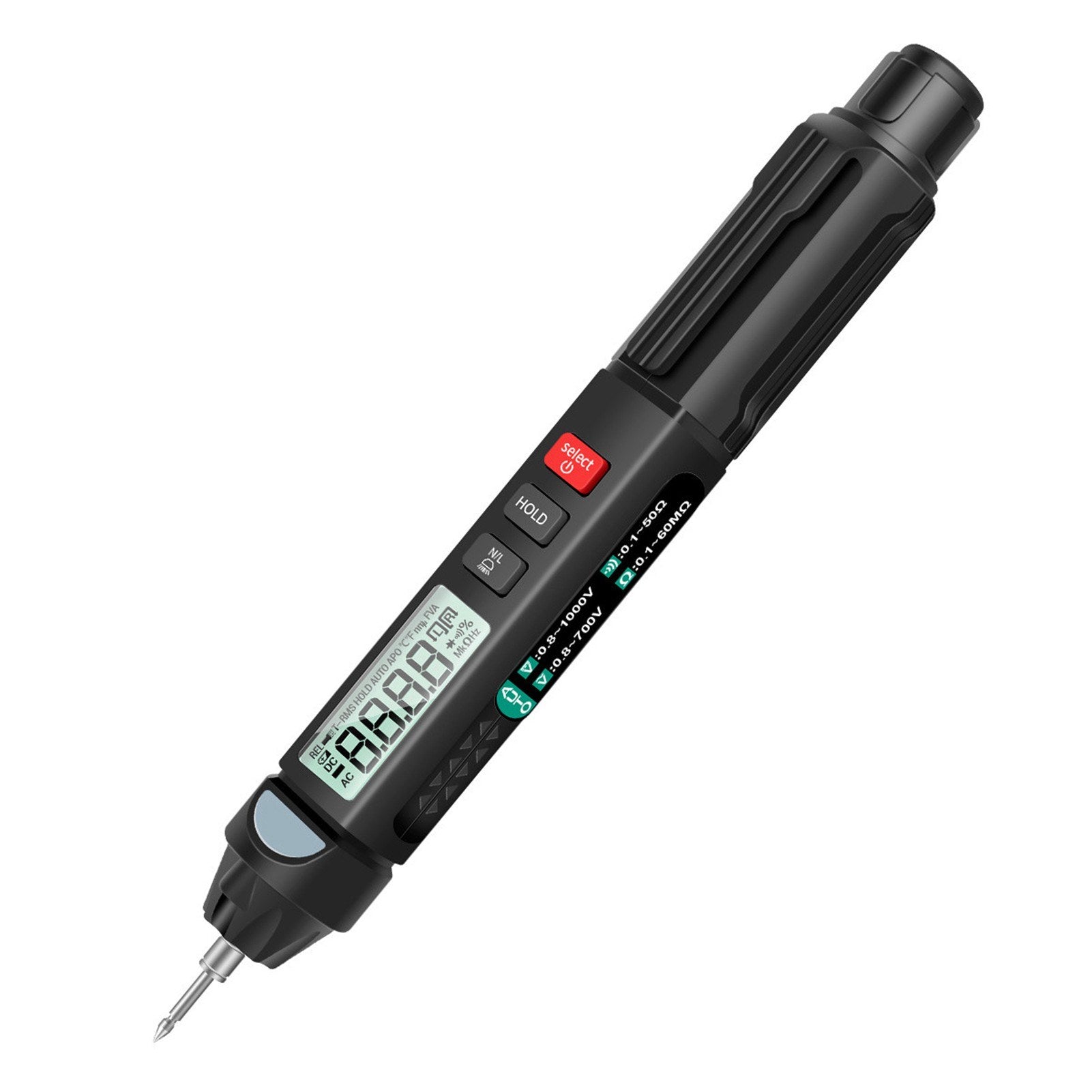

The ANENG A3008 is a compact, easy-to-use, pen-type multimeter featuring a 3 5/6 digits display with true RMS capabilities. Designed for effortless operation, it automatically identifies and measures DC voltage, AC voltage, and resistance without the need for manual adjustments. Perfect for professionals, hobbyists, and household use, this tool combines precision and convenience.

Key Features:

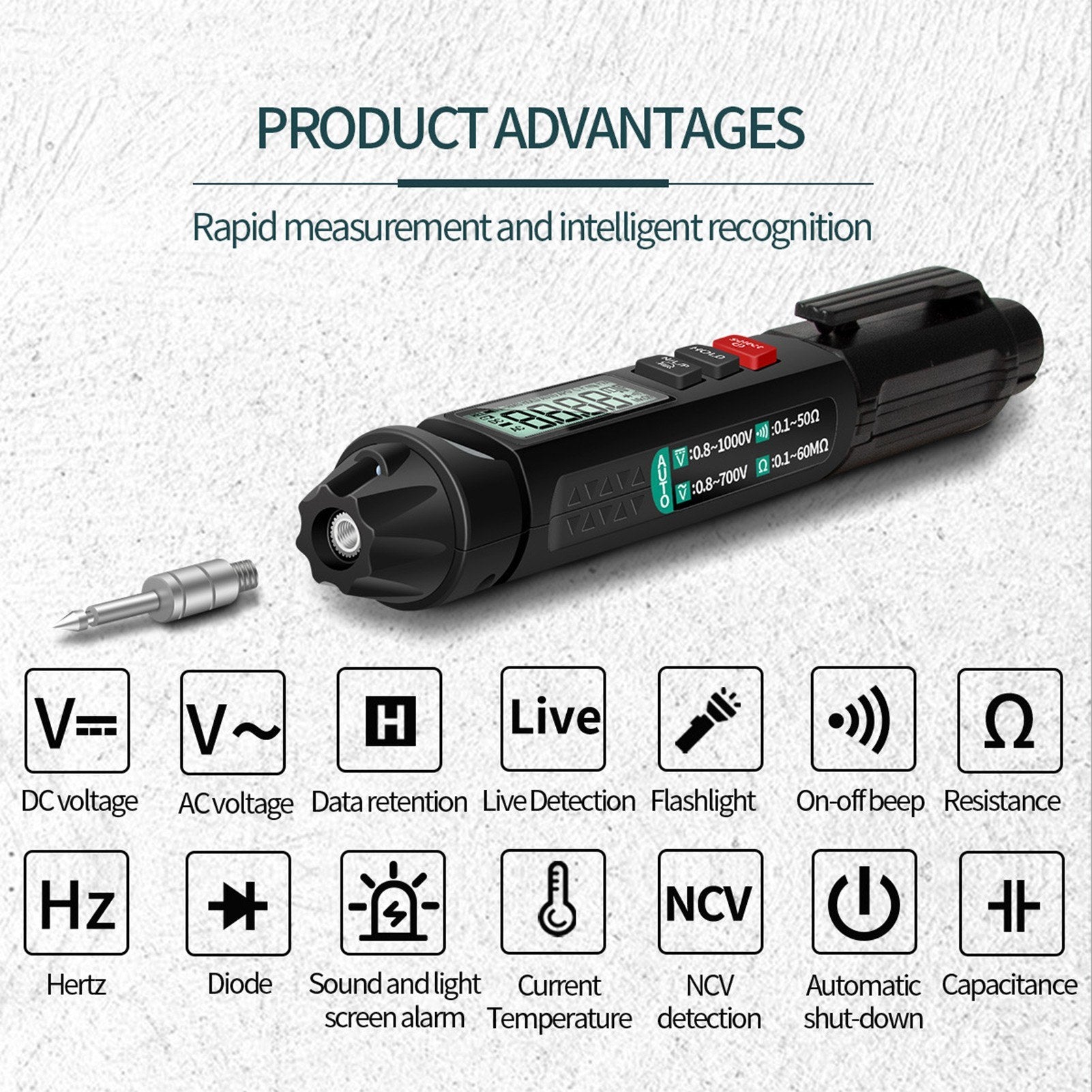

• Comprehensive Measurement Functions: Easily measure voltage, resistance, capacitance, diode, frequency, temperature, continuity, and perform zero line & non-contact phase sequence detection.
• High Precision & Fast Response: With 6000 counts and a sampling speed of 3 times per second, ensure every reading is quick and accurate.

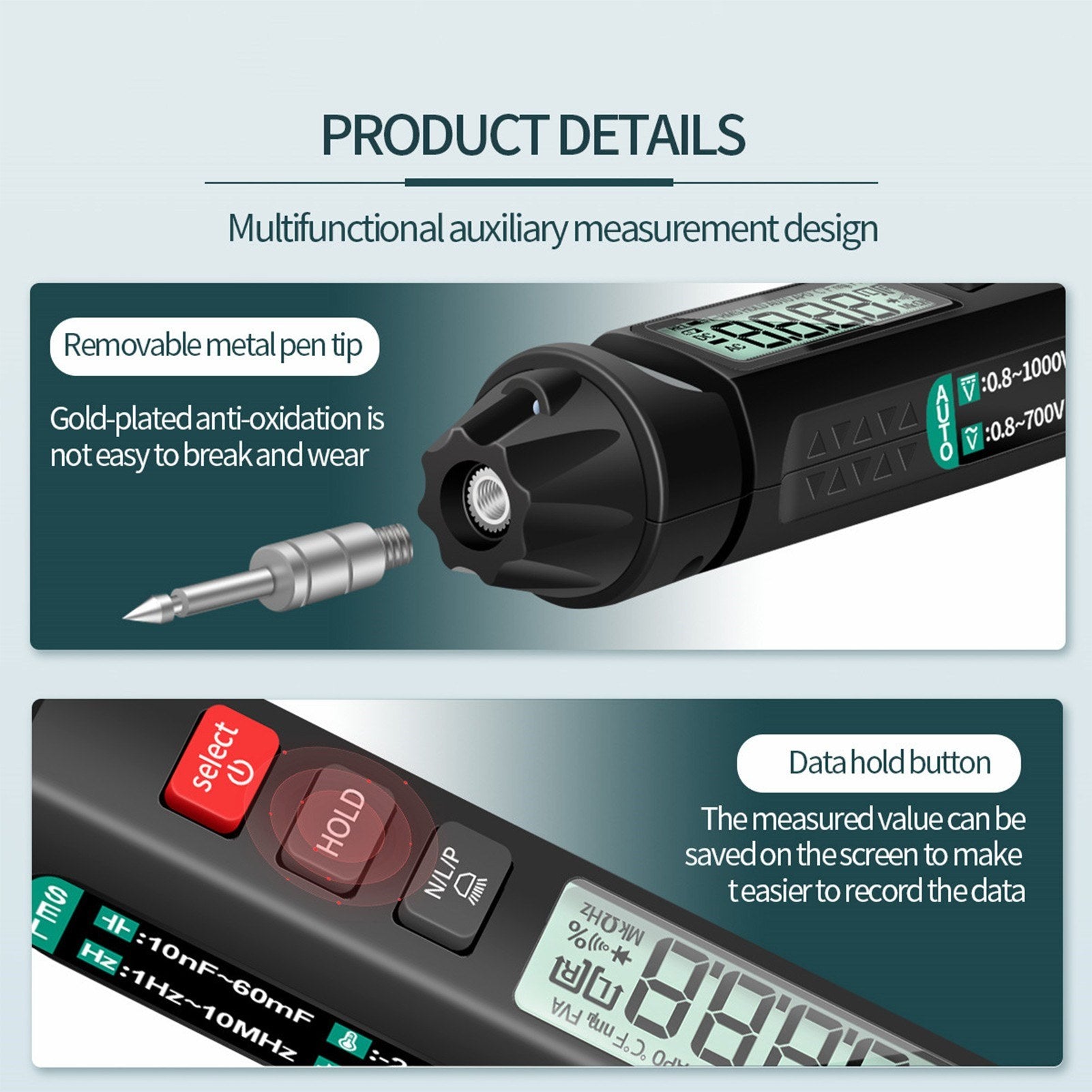

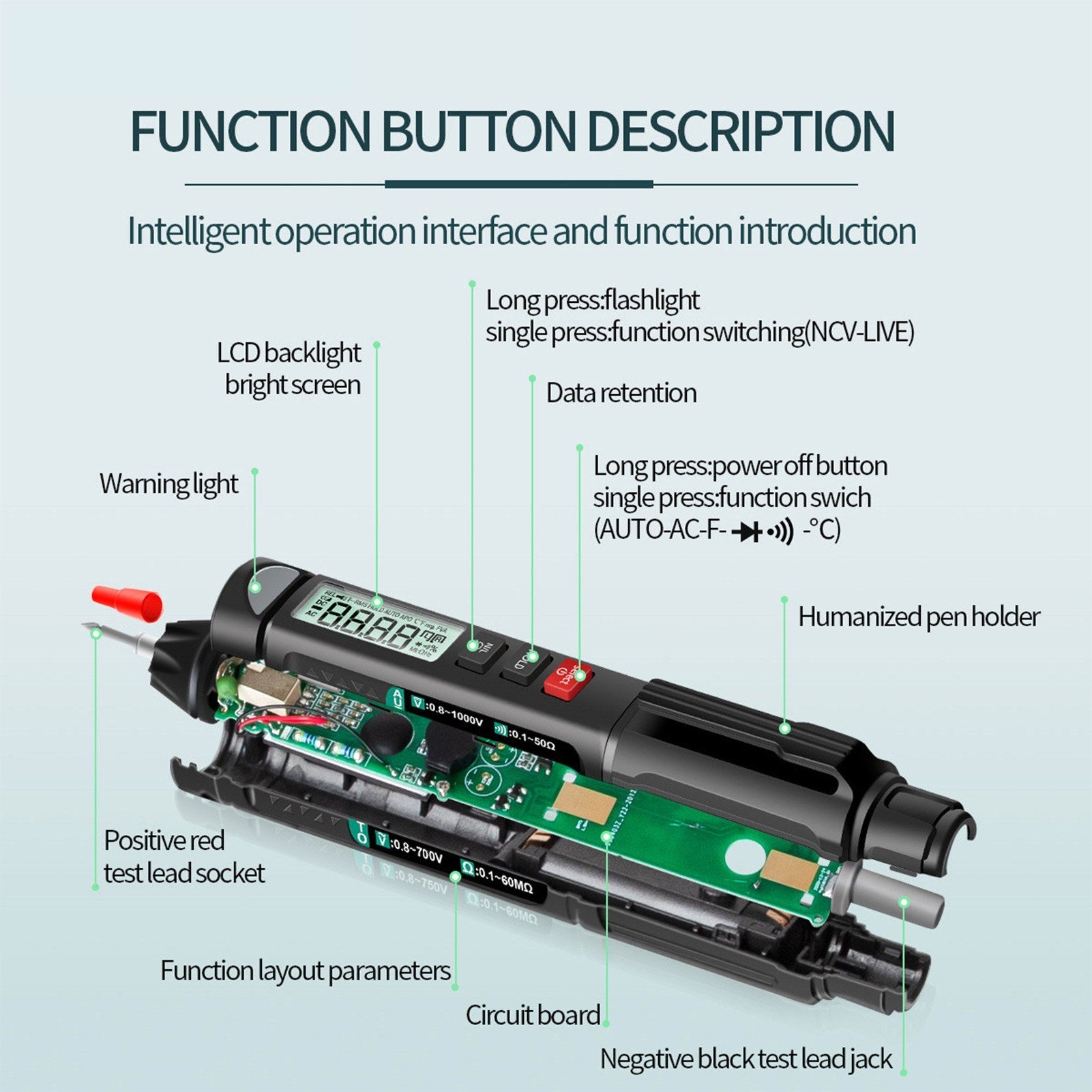

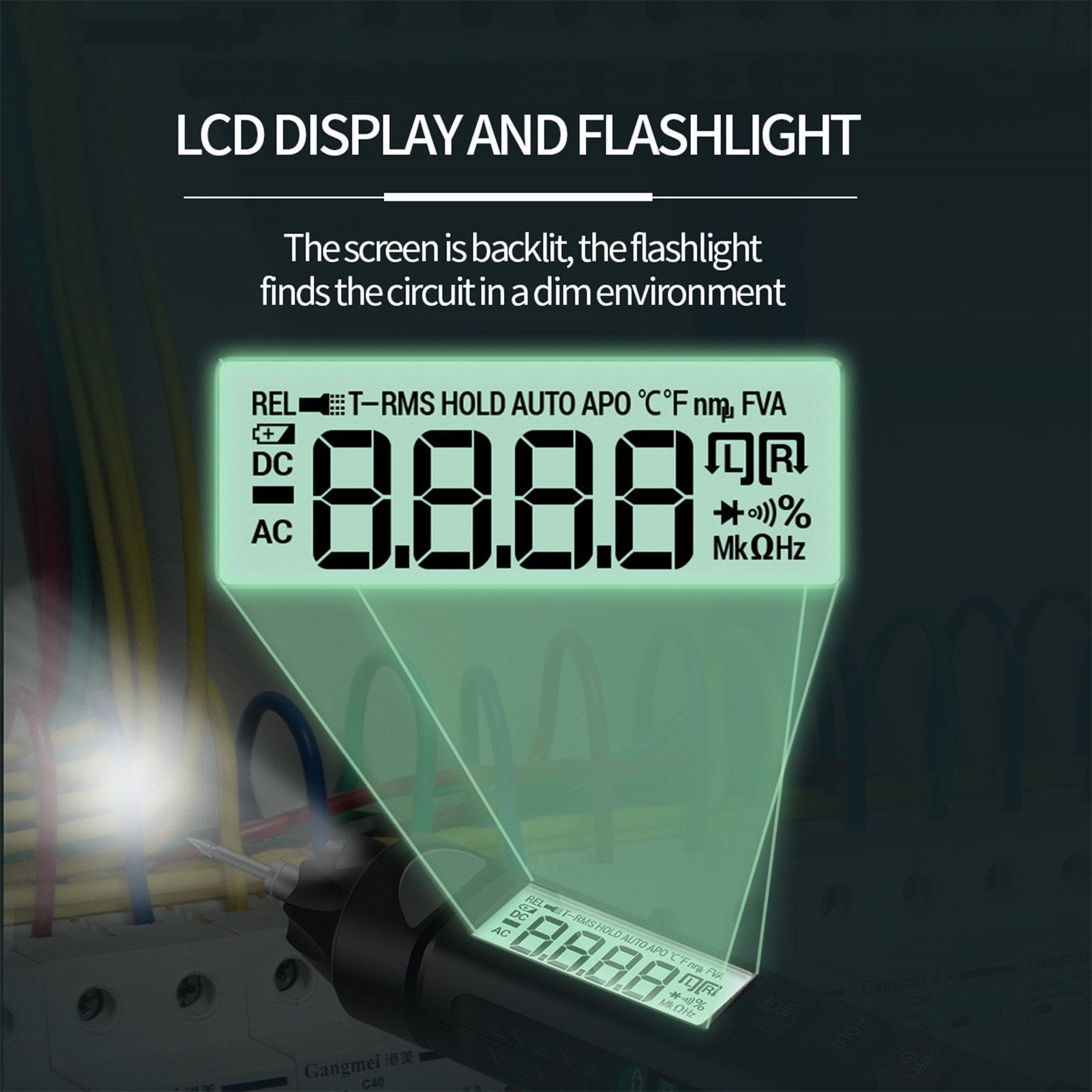

• User-Friendly Interface: Includes an LCD display for clear reading, a flashlight for dark environments, and a data retention function for easy data access. Alerts are provided through an alarm beep.
• Durable & Portable Design: Crafted from durable ABS with a lightweight, pocket-size design, it ensures comfort and ease of use on the go.

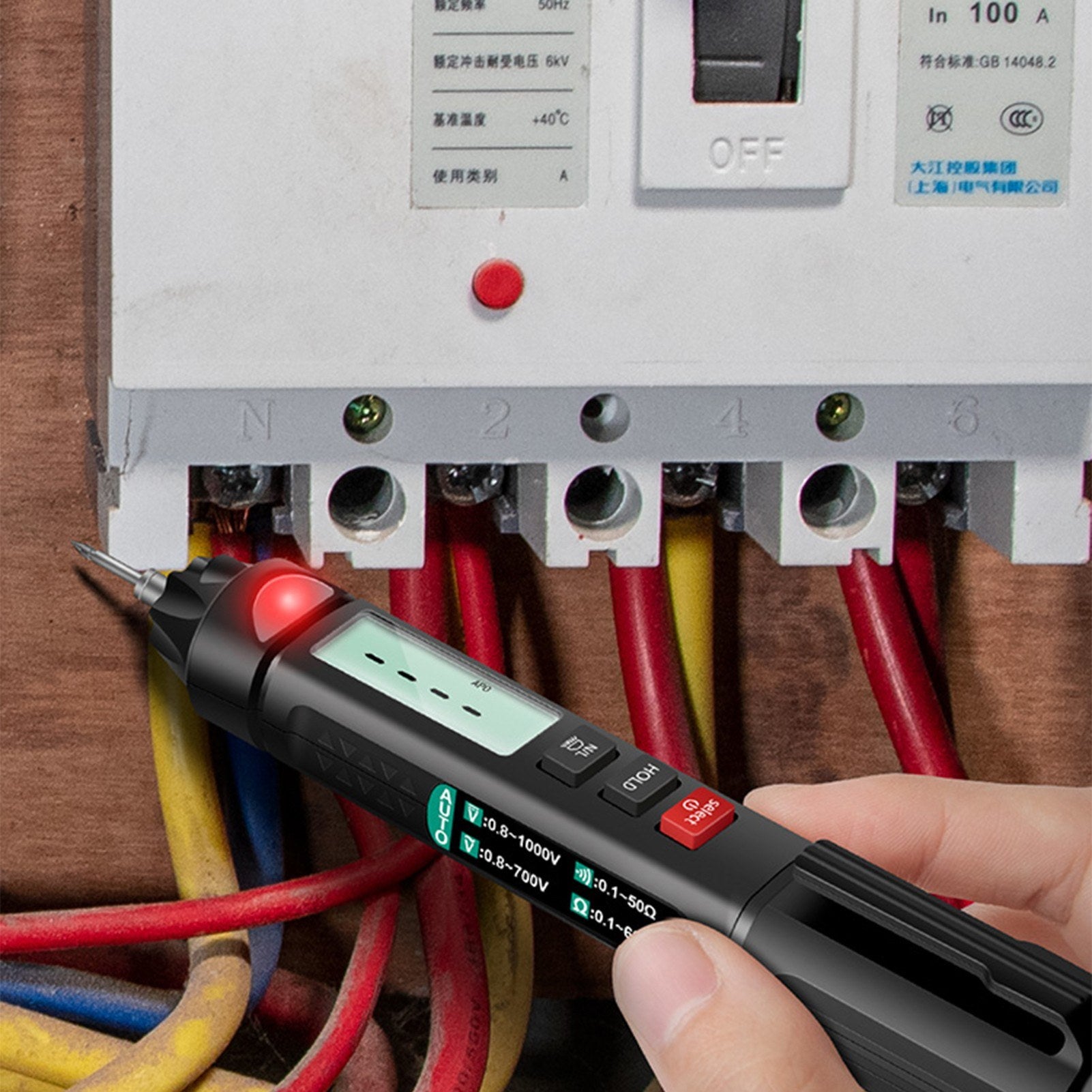

• Wide Application: A must-have tool for tackling automotive and household electrical problems safely and effectively.

Measurement Range & Accuracy:

• DC Voltage: DC6V/DC60V/DC600V ±(0.5%+4); DC1000V ±(0.8%+10)
• AC Voltage: AC6V/AC60V/AC600V ±(0.5%+4); AC700V ±(0.8%+10)
• Resistance: 600Ω ±(0.8%+5); 6kΩ/60kΩ/600kΩ/6MΩ ±(0.8%+3); 60MΩ ±(2.5%+3)
• Capacitance: 10nF/100nF/1uF/10uF/100uF/1mF/10mF ±(3.5%+20); 60mF ±(5%+3)
• Temperature: -20~50℃, ±(1.0%+5)＜50℃; 0~122℉, ±(0.75%+5)＜122℉

Specifications:

• Brand: ANENG
• Model: A3008
• Material: ABS
• Display: LCD display with maximum 5999 (3 5/6) automatic polarity display

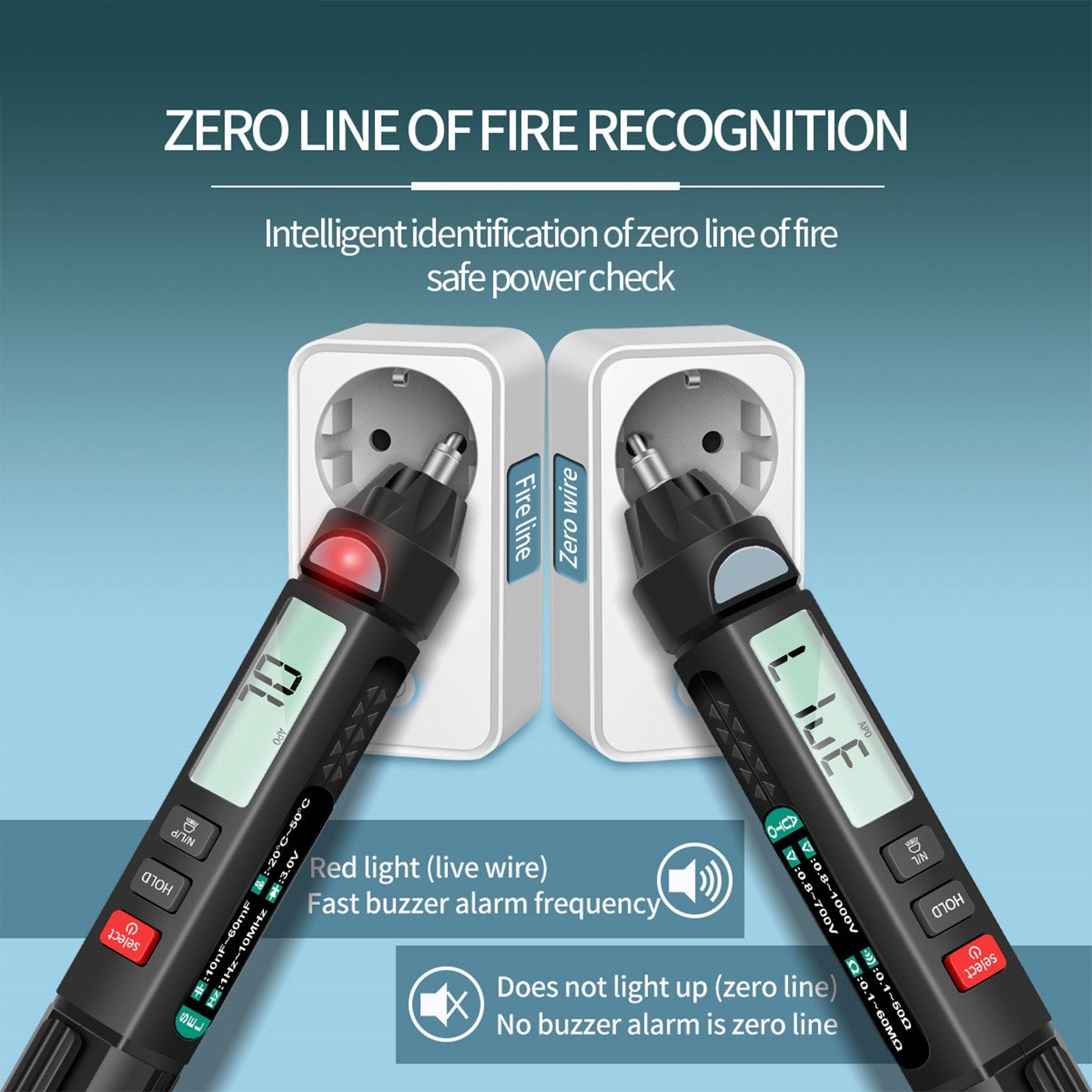

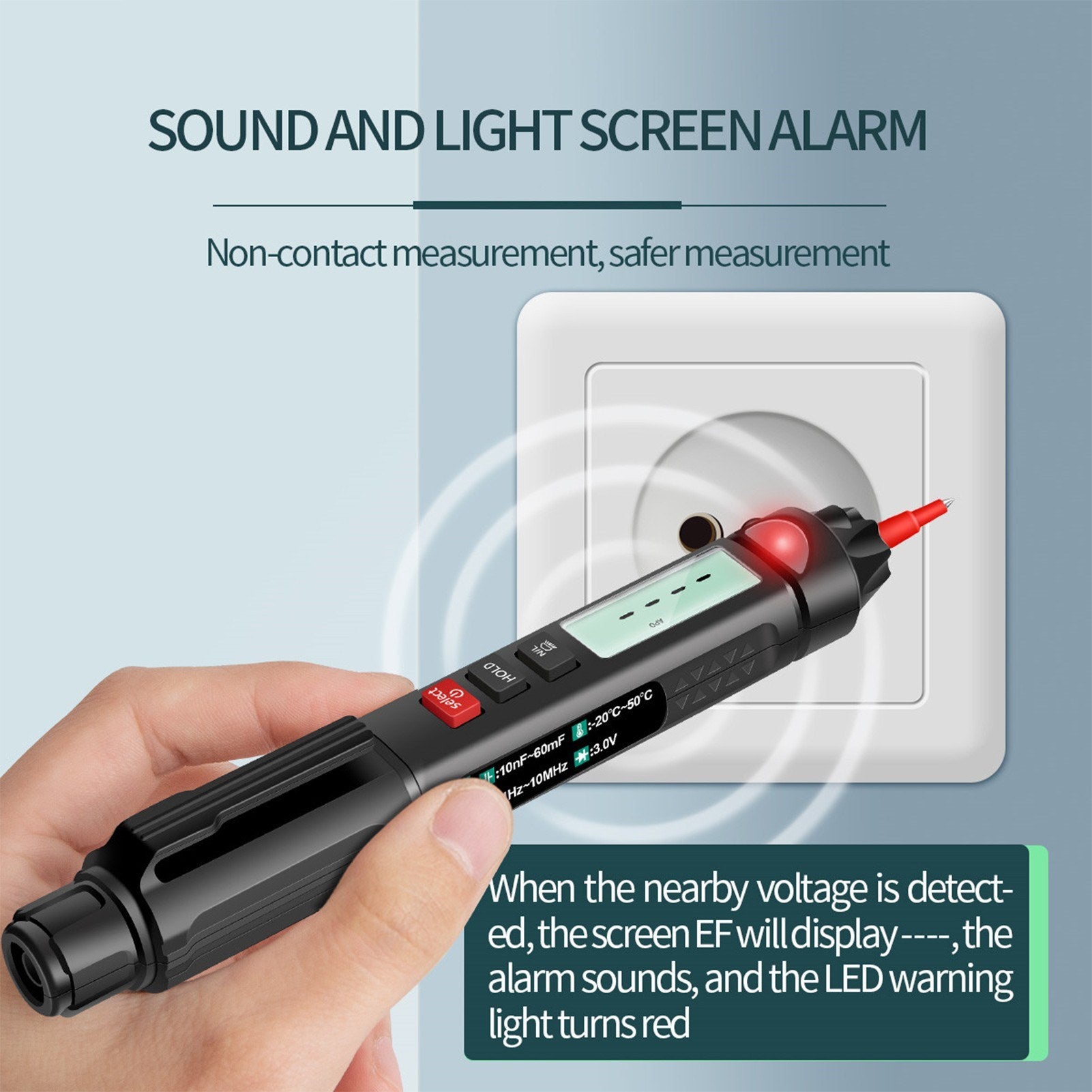

• Various Tests: DC/AC Voltage, Resistance, Capacitance, Diode, Continuity, Non-contact Phase Sequence, NCV, Neutral/Fire
• Extra Features: Backlight, Auto Power Off, True RMS, Data Hold, Flashlight, Temperature (℃/℉), Hz
• Operating Conditions: 0～40℃ temperature, <80% relative humidity
• Power Supply: 1* 1.5V AAA battery (NOT included)

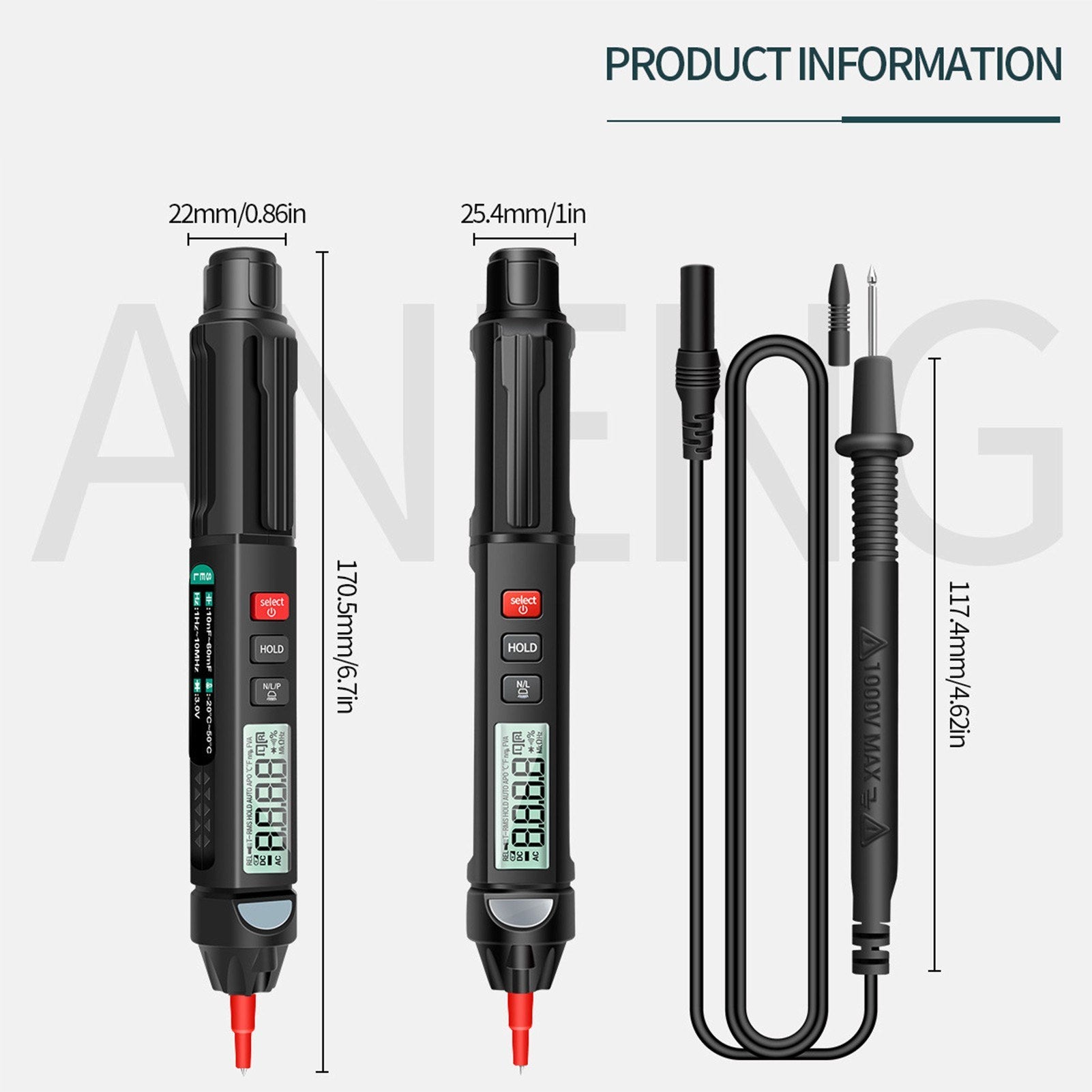

• Product Dimensions: 170.5*25.4*22mm / 6.71*1.0*0.86in
• Product Weight: Approximately 50g / 1.76oz

Note:

• The package includes the multimeter, test lead, and user manual. Other accessories are not included.
• Please thoroughly read the user manual before the first use.
• Measurements may vary slightly due to manual measurement processes.

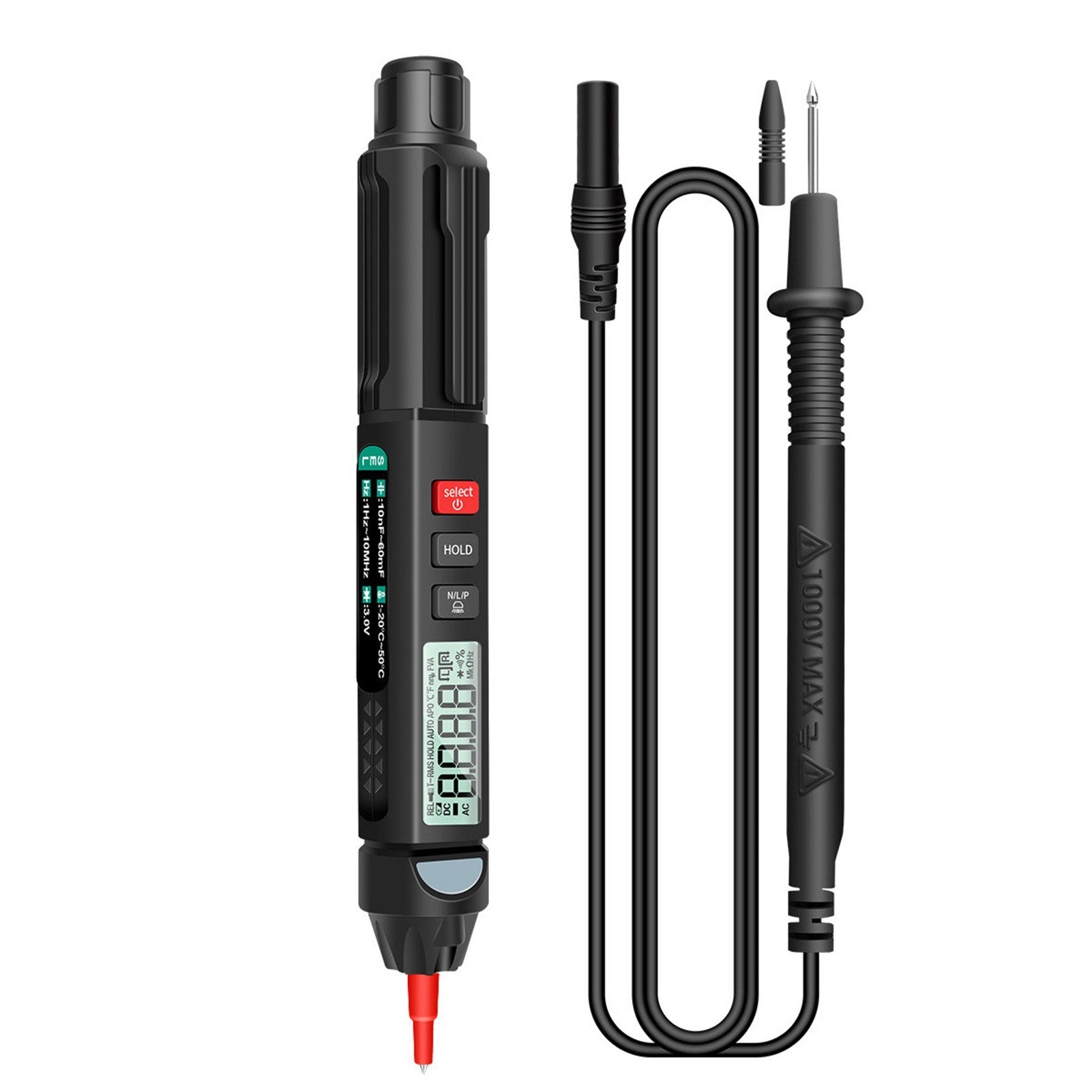

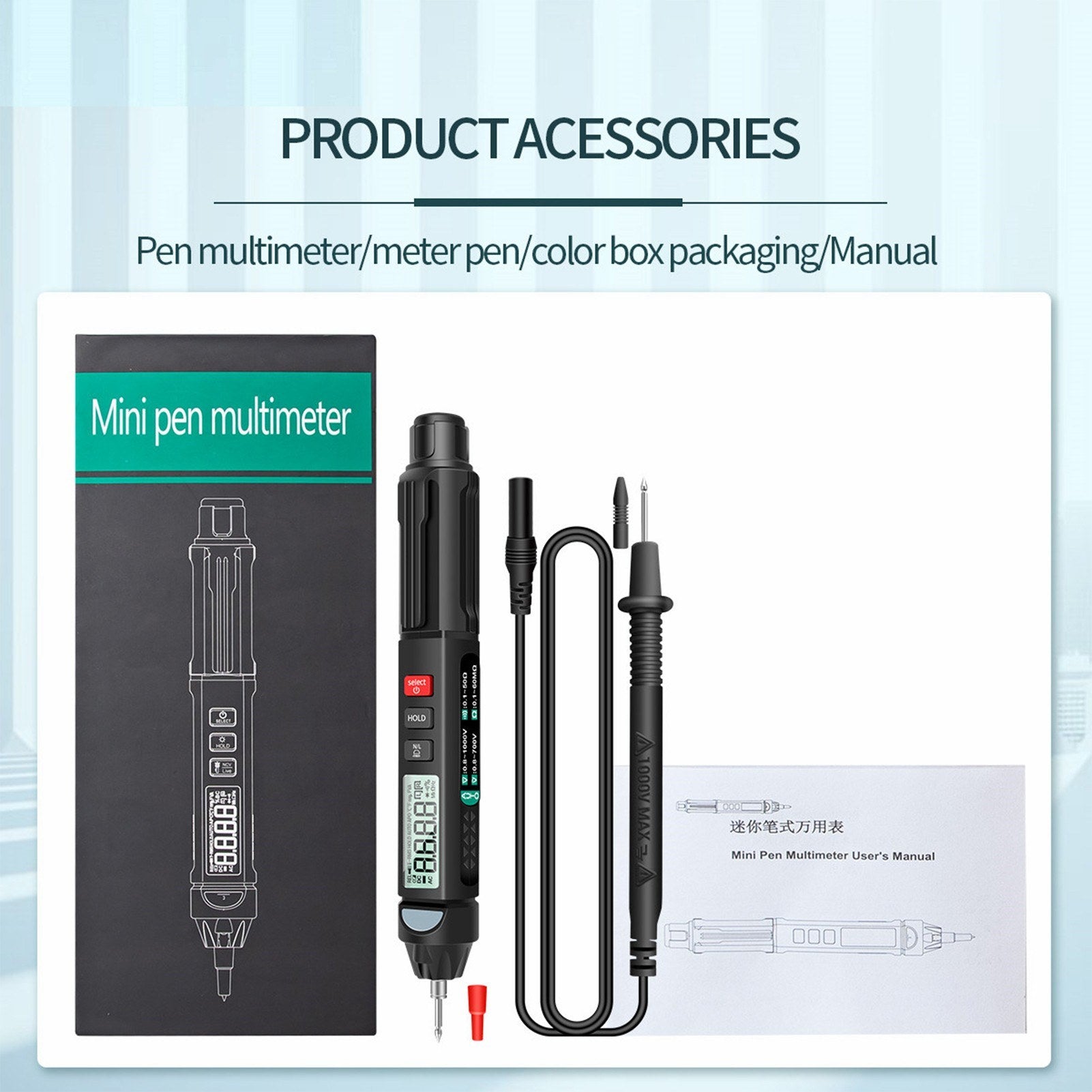

Packing List:

• 1 x Multimeter
• 1 x Test Lead
• 1 x User Manual
