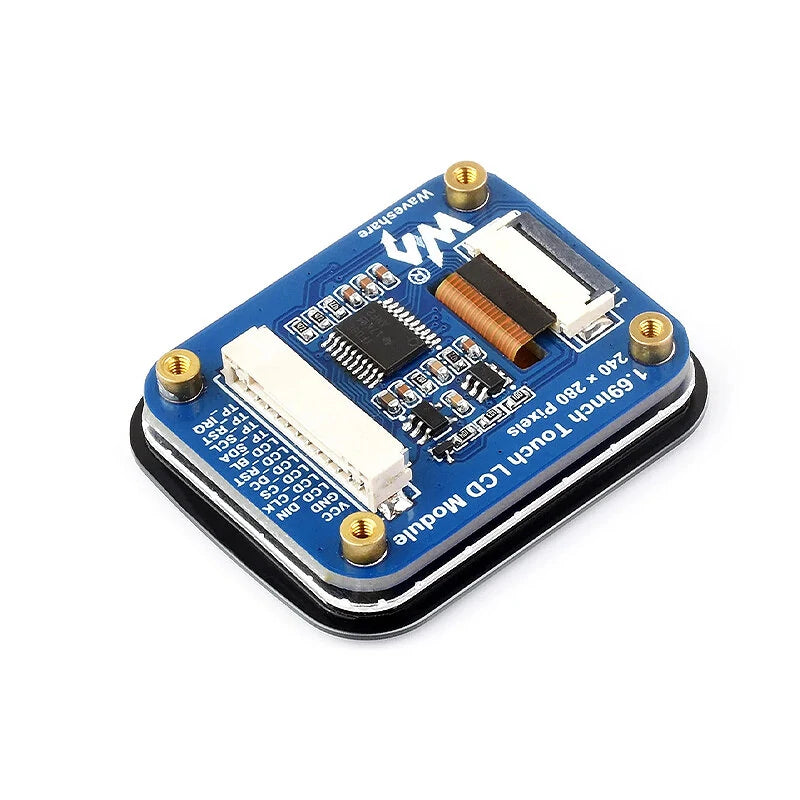

1.69 LCD Touch Screen 240x280 ST7789 for Raspberry Pi, ESP32S3, Pico, STM32
1.69 LCD Touch Screen 240x280 ST7789 for Raspberry Pi, ESP32S3, Pico, STM32
No reviews
Regular price
$19.99 USD
Regular price
$0.00 USD
Sale price
$19.99 USD
Unit price
/
per
Estimated Delivery: -
Product Description
Experience the clarity and convenience of our 1.69-inch Touch LCD Module, engineered to enhance your project experience with precise details and advanced features.
Key Features
- High-resolution display with 240 × 280 pixels and 262K colors for vibrant image clarity.
- Responsive capacitive touch screen with high transmittance and long service life.
- Built-in ST7789V2 driver chip and CST816T touch chip, utilizing SPI and I2C interfaces for efficient connectivity without occupying excessive pin resources.
- Compatible with major control boards including Raspberry Pi, ESP32S3, Pico, Arduino, and STM32.
Specifications
- Working Voltage: 3.3V/5V
- Resolution: 240 × 280 pixels
- Display Chip: ST7789V2
- Touch Chip: CST816T
- Display Interface: 4-wire SPI
- Touch Interface: I2C
- Display Panel: IPS
- Touch Type: Capacitive induction type
- Display Size: 27.972 × 32.634 mm
- Pixel Size: 0.11655 × 0.11655 mm
- Product Size: 33.13 × 41.13 mm
Package Includes
- 1x 1.69-inch Touch LCD Module
- 1x GH1.25 12-Pin Cable
Pin Description
Pin | Description |
---|---|
VCC | Power supply positive (3.3V/5V input) |
GND | Power ground |
LCD_DIN | SPI communication MOSI pin |
LCD_CLK | SPI communication CLK pin |
LCD_CS | Chip selection pin of LCD, active low |
LCD_DC | Data/command pin of LCD, low level indicates command, high level indicates data |
LCD_RST | Reset pin of LCD, active low |
LCD_BL | Backlight pin of LCD |
TP_SDA | Data pin of TP |
TP_SCL | Clock pin of TP |
TP_RST | Reset pin of TP, active low |
TP_IRQ | Interrupt pin of TP |
Pin Connection Reference
Pin | Raspberry Pi (BCM) | ESP32S3 | PICO | Arduino | STM32 |
---|---|---|---|---|---|
VCC | 3.3V | 3.3V | 3.3V | 5V | 3.3V |
GND | GND | GND | GND | GND | GND |
LCD_DIN | 10 | 11 | GP11 | 11 | PA7 |
LCD_CLK | 11 | 10 | GP10 | 13 | PA5 |
LCD_CS | 8 | 9 | GP9 | 10 | PB6 |
LCD_DC | 25 | 8 | GP14 | 7 | PA8 |
LCD_RST | 27 | 14 | GP8 | 8 | PA9 |
LCD_BL | 18 | 2 | GP15 | 9 | PC7 |
TP_SDA | 2 | 6 | GP6 | SDA | PB9 |
TP_SCL | 3 | 7 | GP7 | SCL | PB8 |
TP_RST | 17 | 16 | GP16 | 4 | PA10 |
TP_IRQ | 4 | 17 | GP17 | 3 | PB10 |
