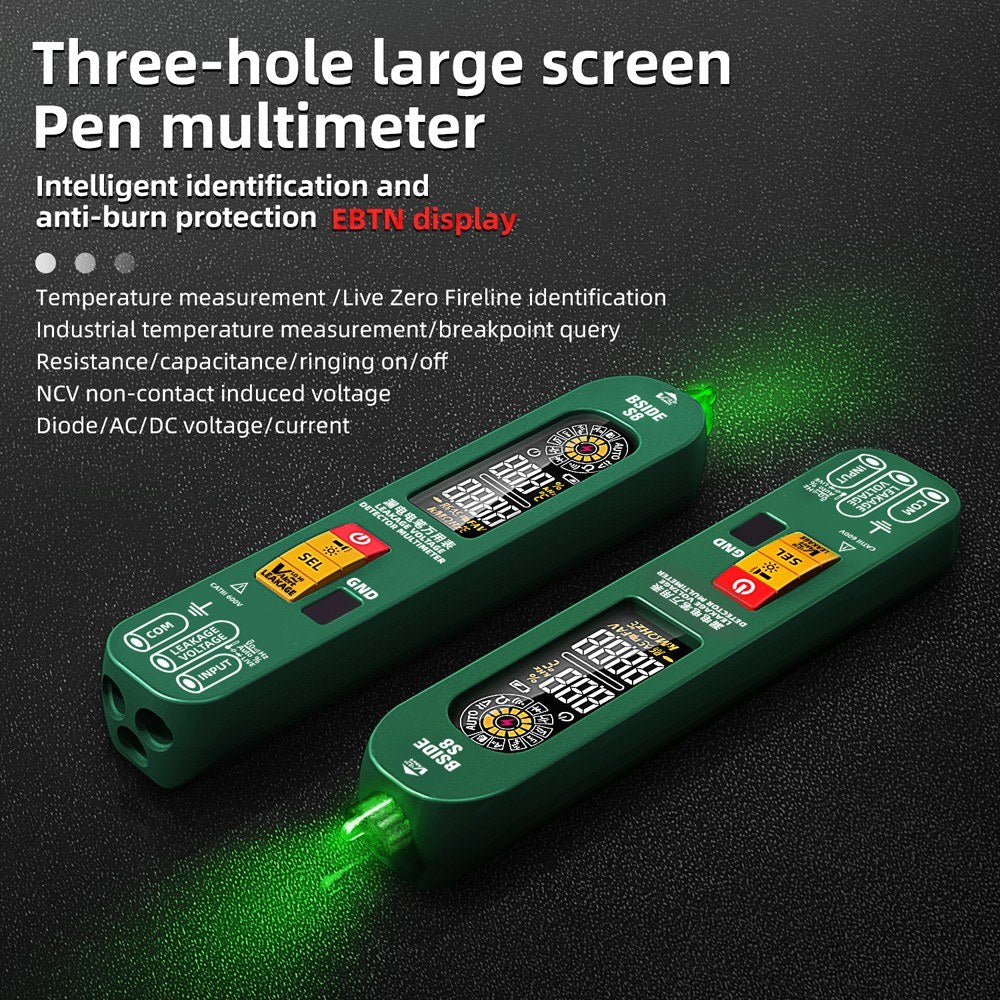

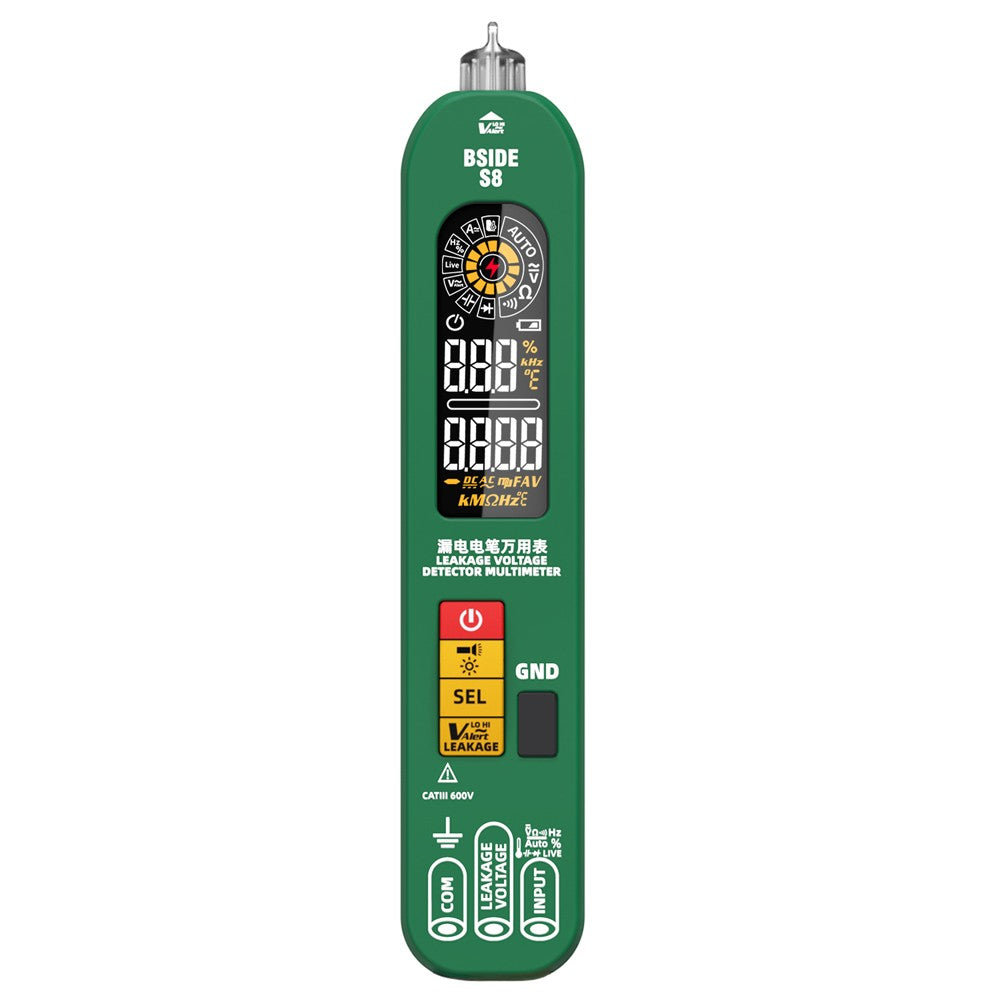

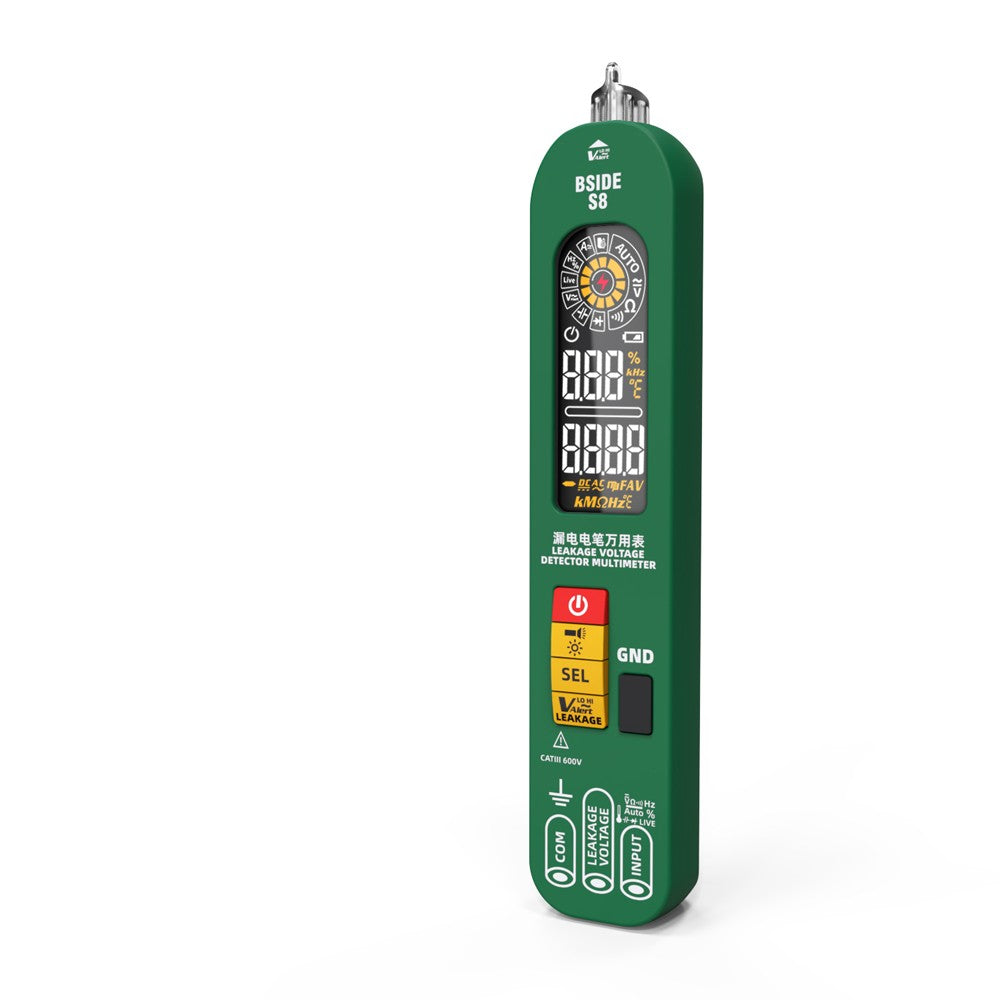

BSIDE S8 3-in-1 Digital Multimeter & Thermometer with EBTN Backlight Display, 6000 Counts

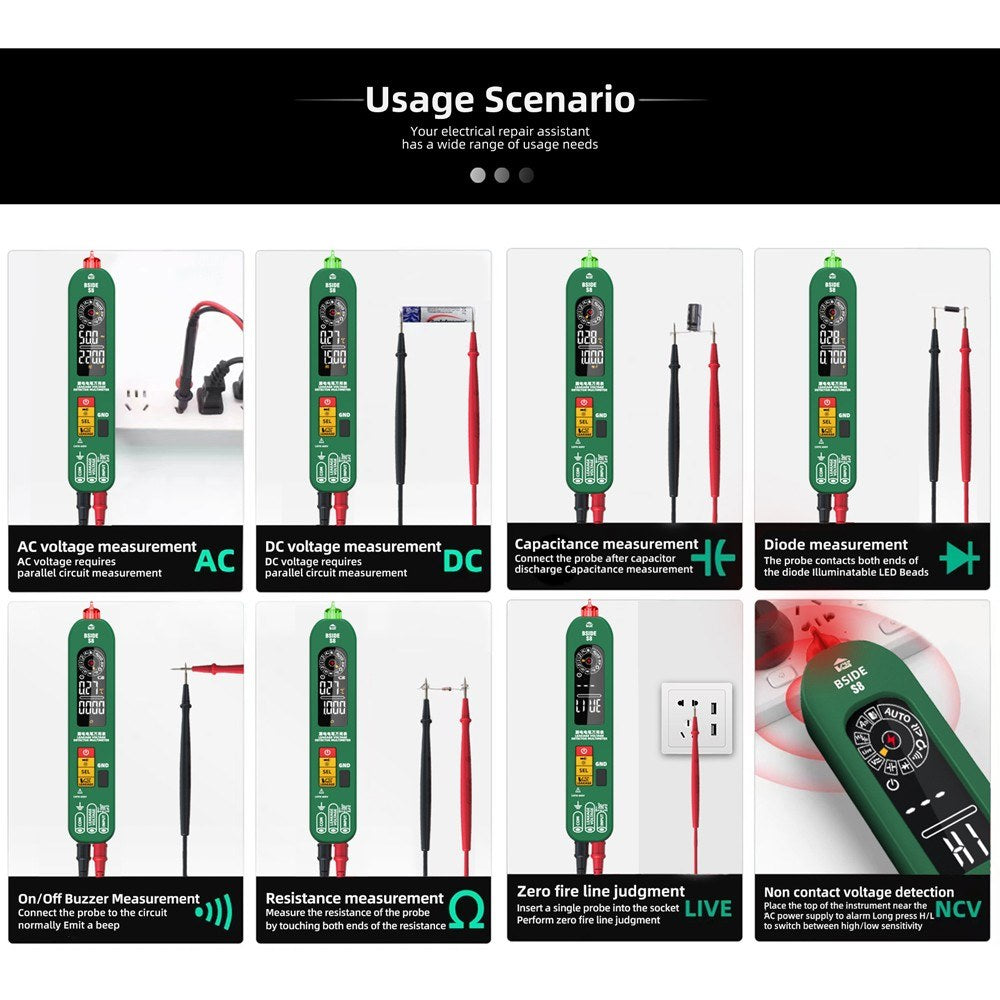

The multimeter is compact in size and equipped with a high-speed chip that supports full functionality and diversified measurement options. It can measure various electronic components to fulfill your multi-functional needs. This device supports AC/DC Voltage, AC/DC Current, capacitance, resistance, diode, on-off continuity, frequency, and temperature measurement functions. It offers features like automatic identification, zero-line firewire judgment, NCV voltage detection, data hold, and a 15-minute automatic shutdown when not in use. It is widely used across industries such as electrical testing, electronics, LED manufacturing, auto repair, and more.

Features:

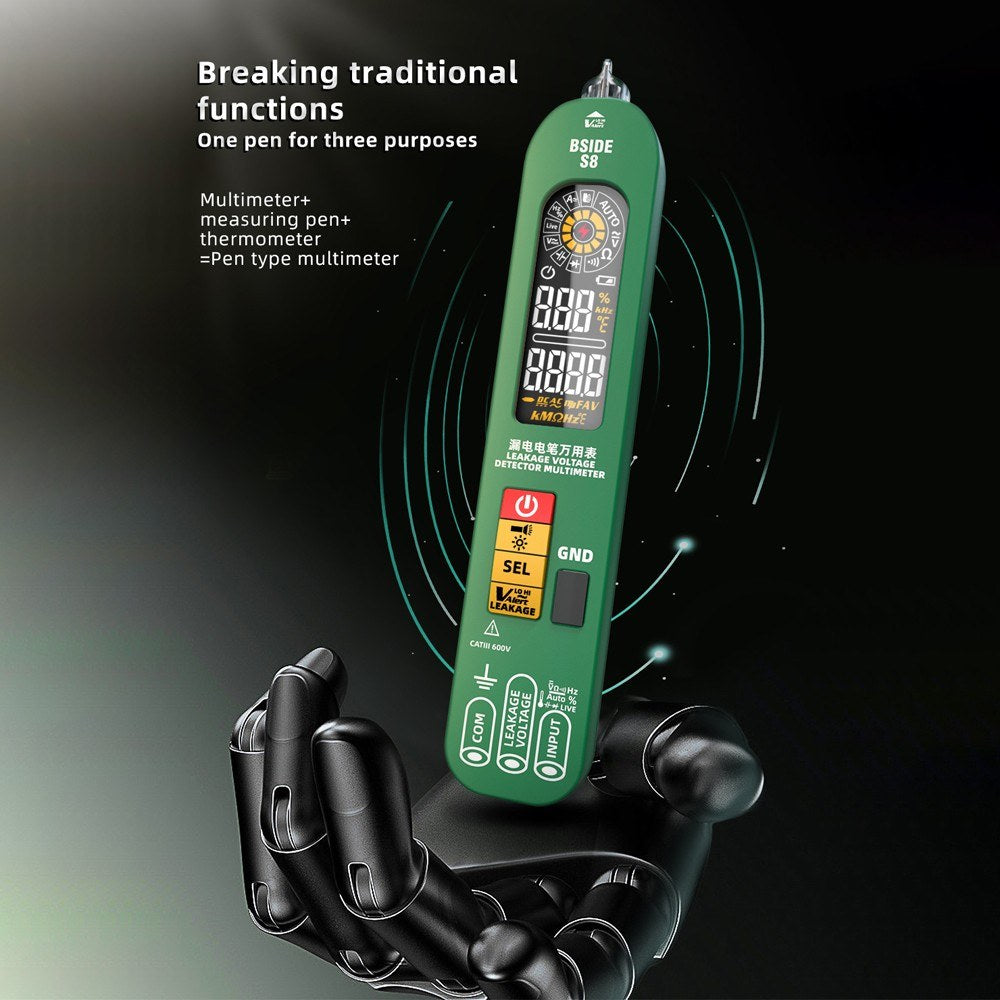

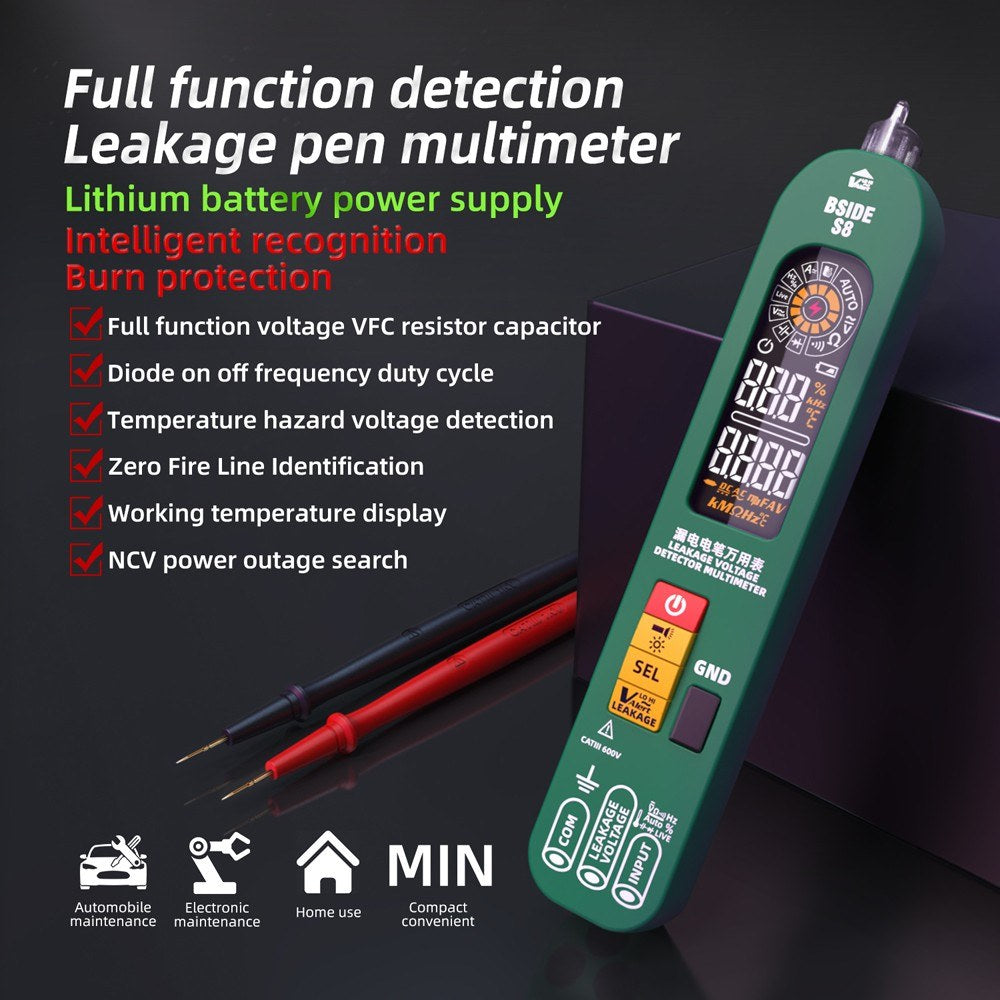

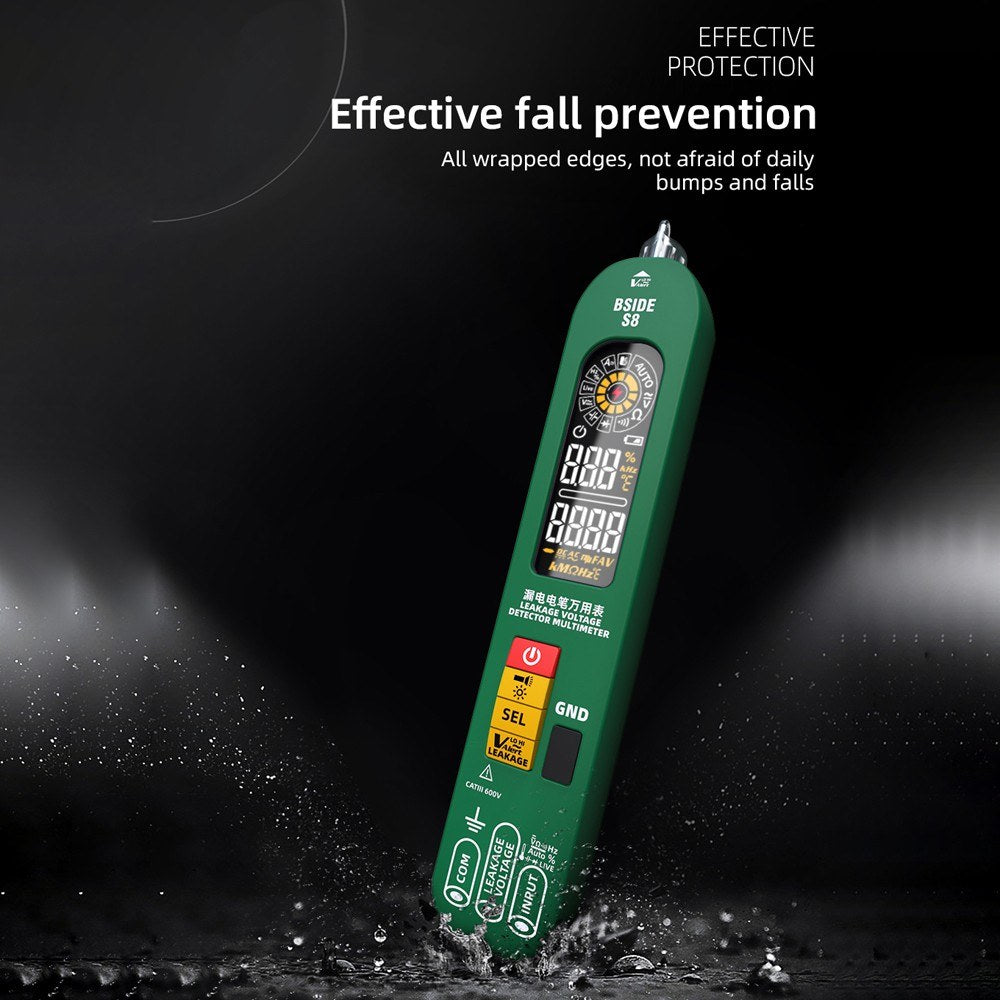

• Three-in-one Design: Combines an electrical leakage detection pen, a multimeter, and a thermometer for a comprehensive functional experience. It has a sleek appearance and features a large screen for easy readability. Designed ergonomically, it is compact, portable, and easy to carry. Curved buttons offer comfortable operation, and the silicone protective cover adds drop resistance for safer use.
• EBTN Color Backlight Display: The oversized EBTN color backlit display allows for clearer readings. It supports multi-mode switching with a clear display of mode functions for easier operation. The intelligent chip provides accurate measurements, fast response, and high accuracy.
• Full Functionality: Auto-ranging capability allows voltage measurement from 0-620V; it also measures current, capacitance, resistance, frequency, temperature, and other parameters. Supports diode tests, duty cycle measurement, non-contact voltage detection with adjustable sensitivity, inverter voltage test, and more. Automatic identification of AC and DC increases user convenience.

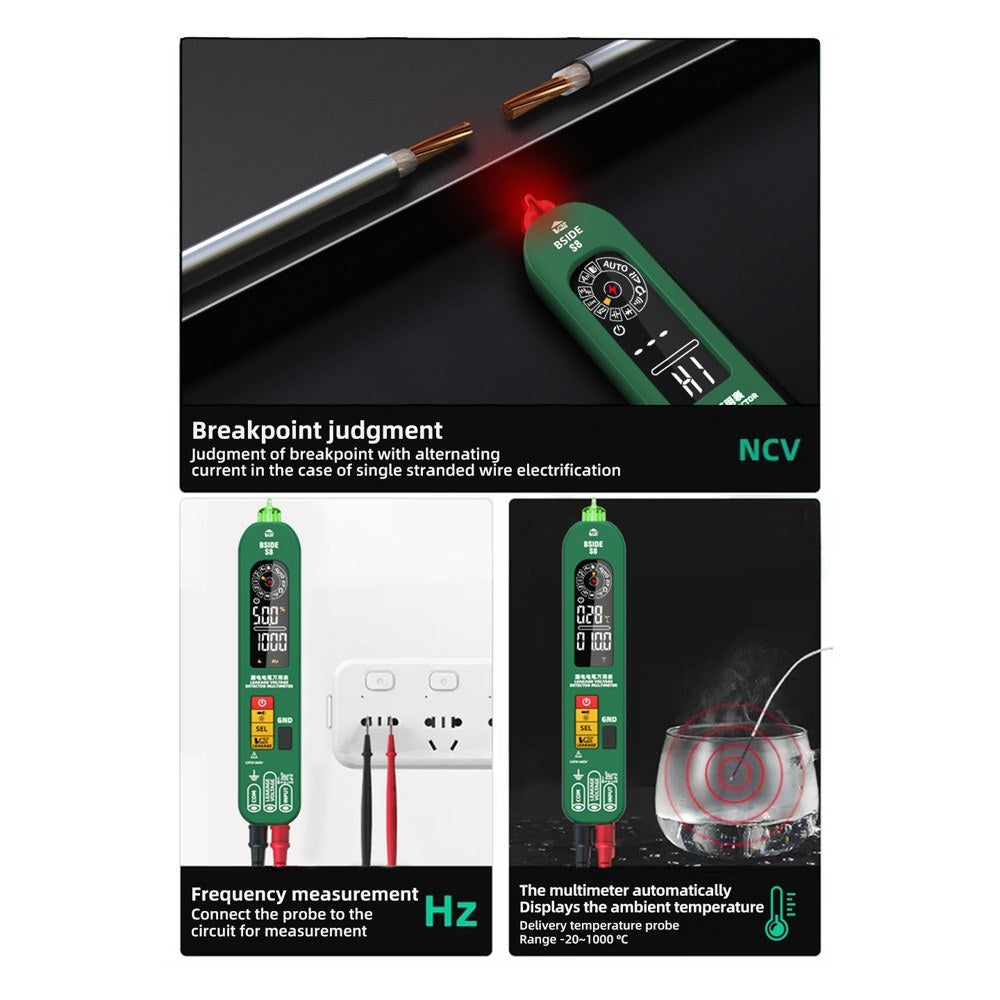

• Temperature Measurement: Displays ambient temperature automatically and is shipped with a -20~1000℃ temperature probe. Supports easy switching between Celsius and Fahrenheit units for convenient reading.
• Rechargeable Design: Features a built-in 3.7V, 400mAh lithium battery with Type-C charging, offering long-lasting use without the need for frequent battery replacements.

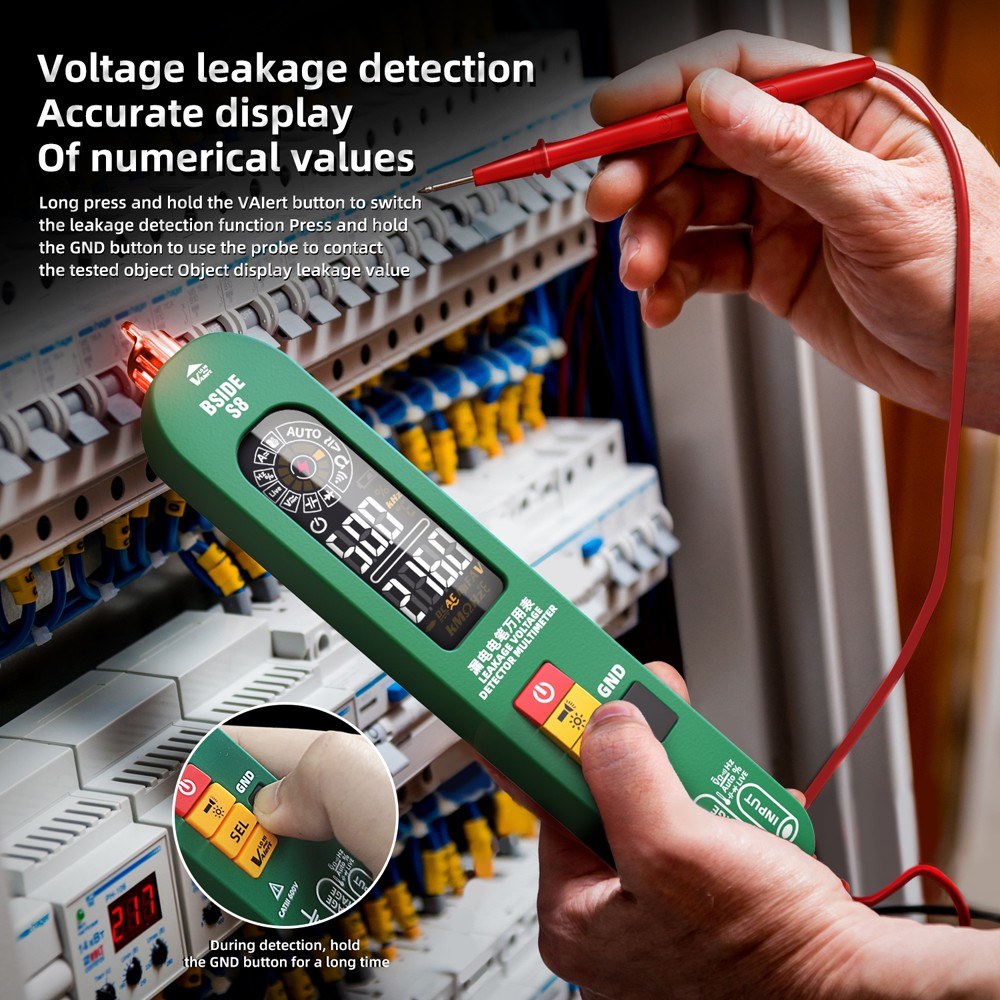

• Leakage Pen Function: Utilizes 47-pin silicone material to test AC leakage voltage, quickly identifying high and low conductor leakage voltage.

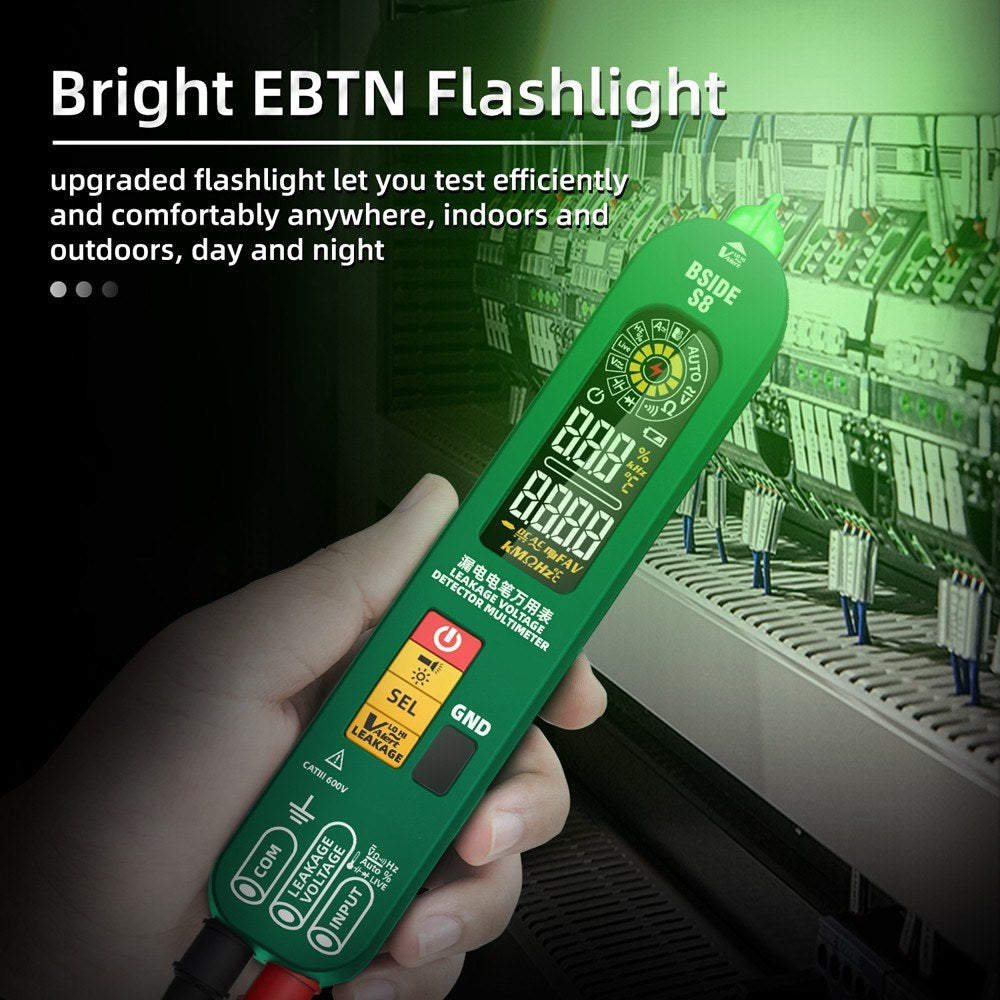

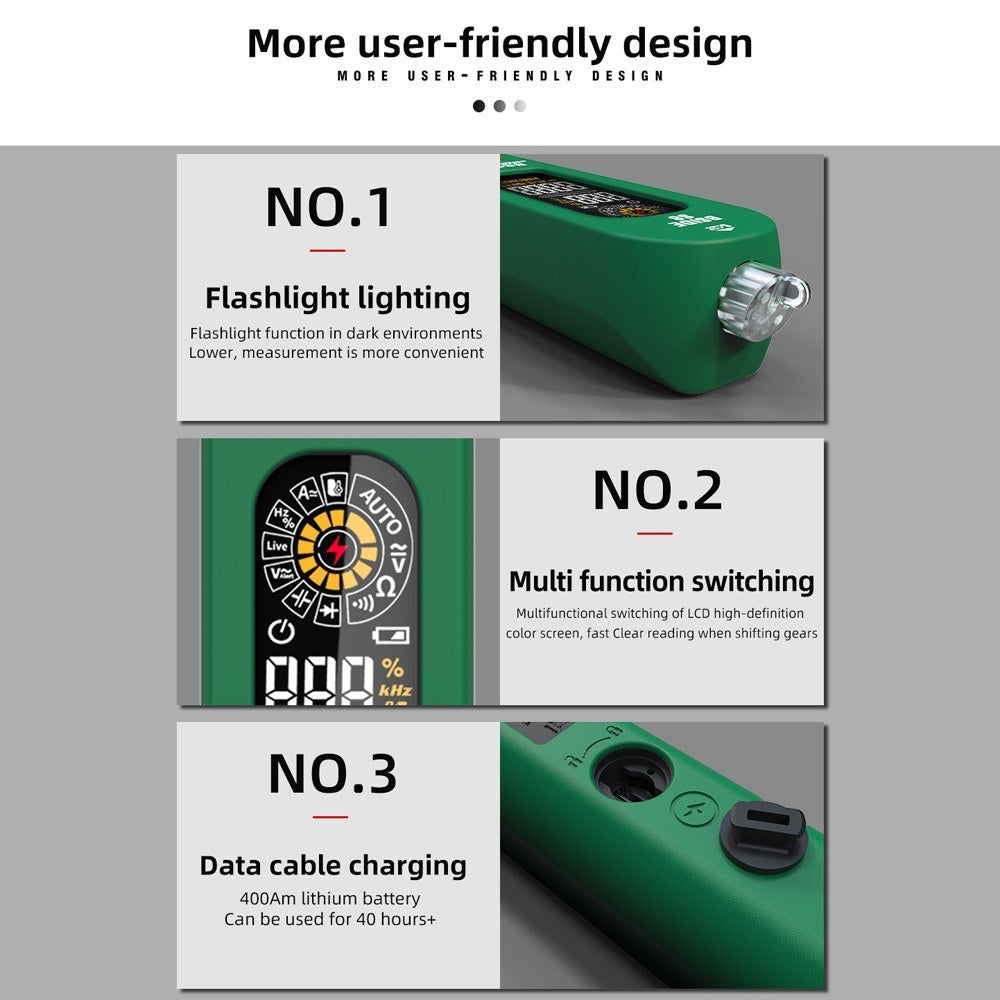

• Flashlight Illumination: Equipped for use in various working environments, provides illumination for dark settings.

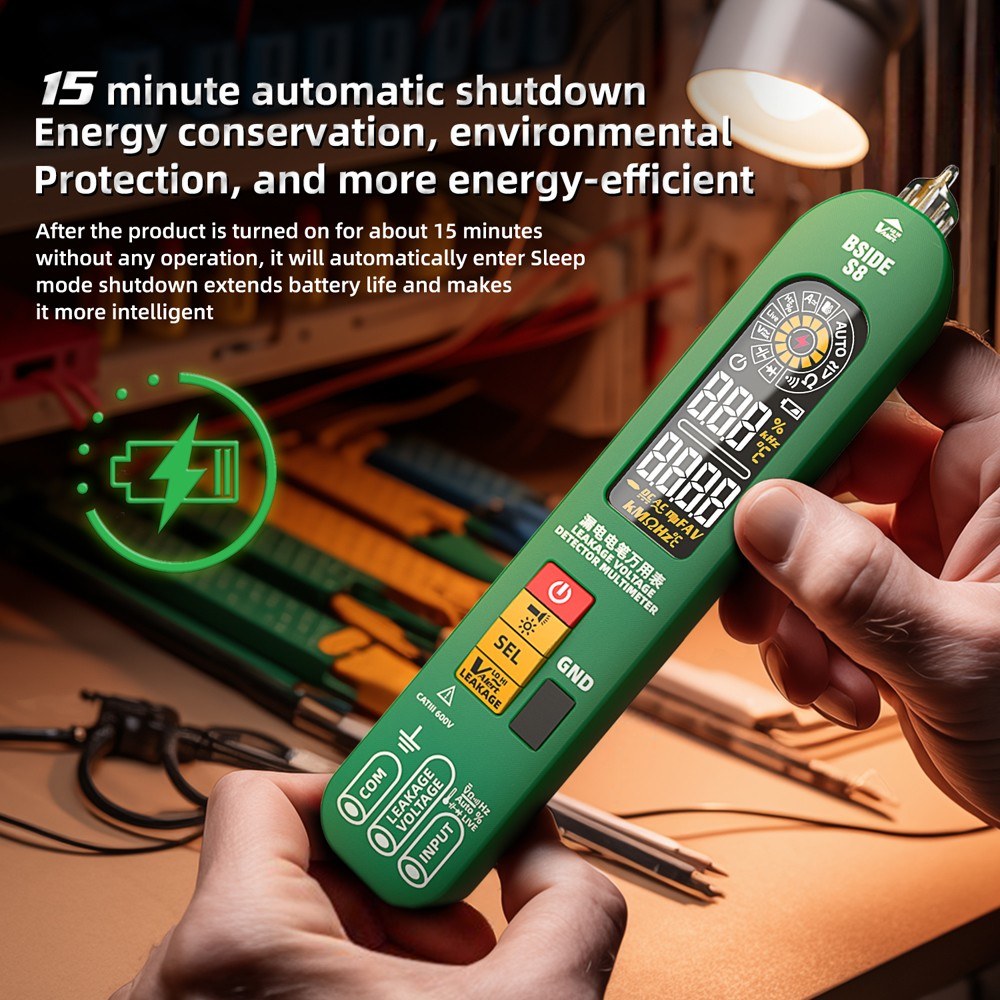

• Automatic Shutdown: To conserve power, the multimeter automatically shuts down after 15 minutes of inactivity.
• Screen Prompts & Anti-burning: Red screen prompts indicate current levels to prevent misuse, and the intelligent anti-burning chip offers full gear overload protection.
• Wide Applications: Suitable for testing and debugging electronic circuits, troubleshooting, and repair work in fields like electronics, communications, computers, and more.

Specifications:

• Name: Digital Multimeter
• Material: ABS
• Battery: Built-in 3.7V, 400mAh battery (included)
• DC Voltage: 0-620V (DC Mode), 0.8-620V (Auto Mode), 0.001V, ±(0.8%+3)
• AC Voltage: 0-620V (AC Mode), 0.8-620V (Auto Mode), 0.001V, ±(1.2%+5)
• VFC Mode: 10-620V, 1V, ±(4.0%+3)
• Leakage Test Mode: 12-300V, 1V, ±5%
• Resistance: 0.0Ω-60MΩ, ±(1.5%+3); 0.1Ω, ±(1.2%+3)

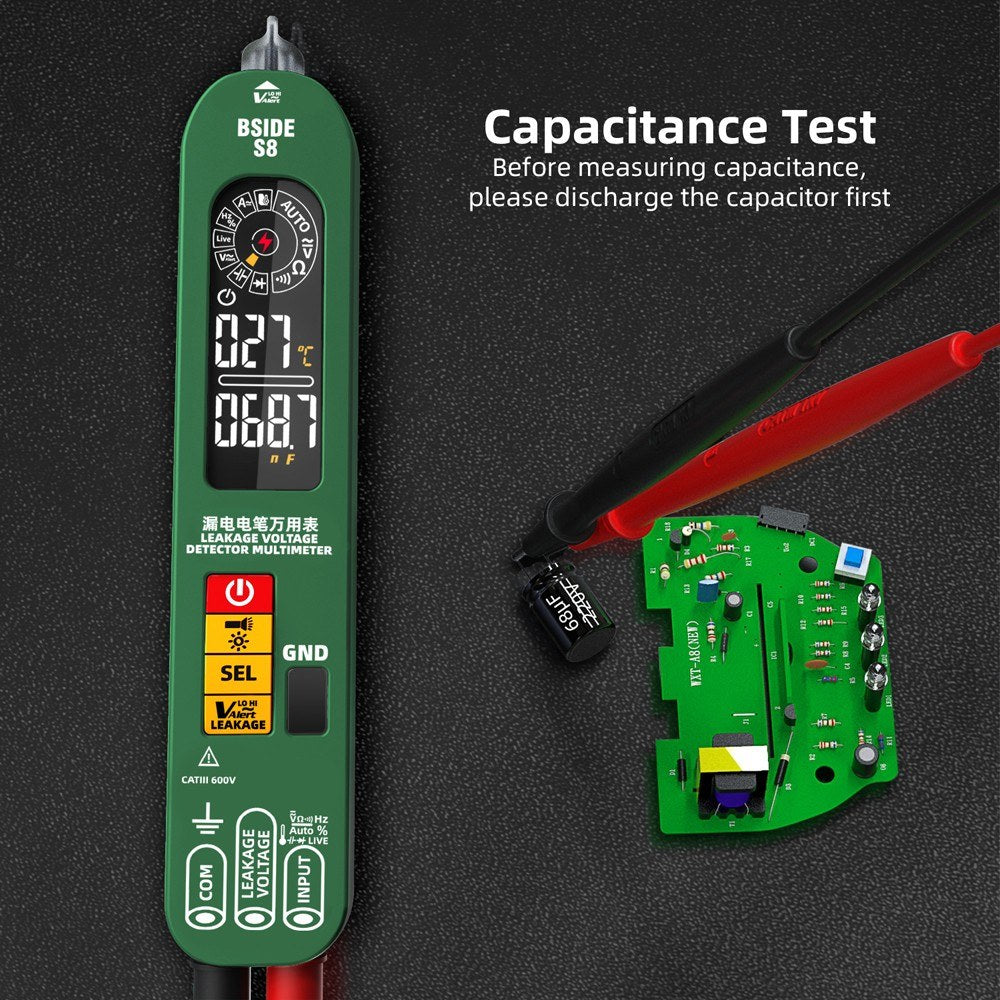

• Capacitance: 1nF-60mF, 0.01nF, ±(3.5%+8)
• Frequency: 1Hz-9.999MHz; 0.001Hz, ±(1.2%+3)
• Temperature: -50℃ to 999℃, 1℃/℉, ±(1.5%+2)
• Environment Temperature: 0-50℃, 1℃, ±2℃
• Diode: Automatic recognition of diodes less than 3V

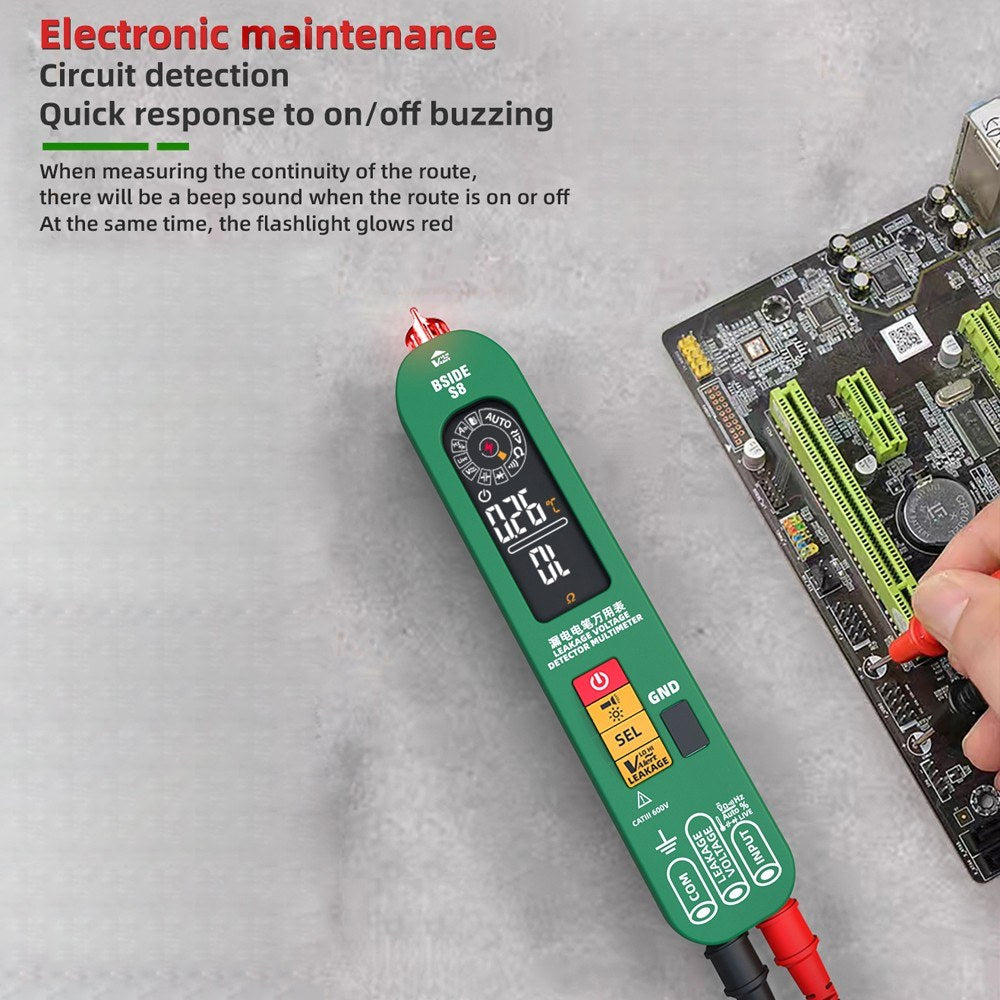

• On-off Continuity Test: Buzzer sounds when the measured resistance is <50Ω
• NCV: Yes
• Inductive Zero-fire Wire Recognition: Yes
• Auto Shut-off: 15 minutes
• Flashlight: Yes

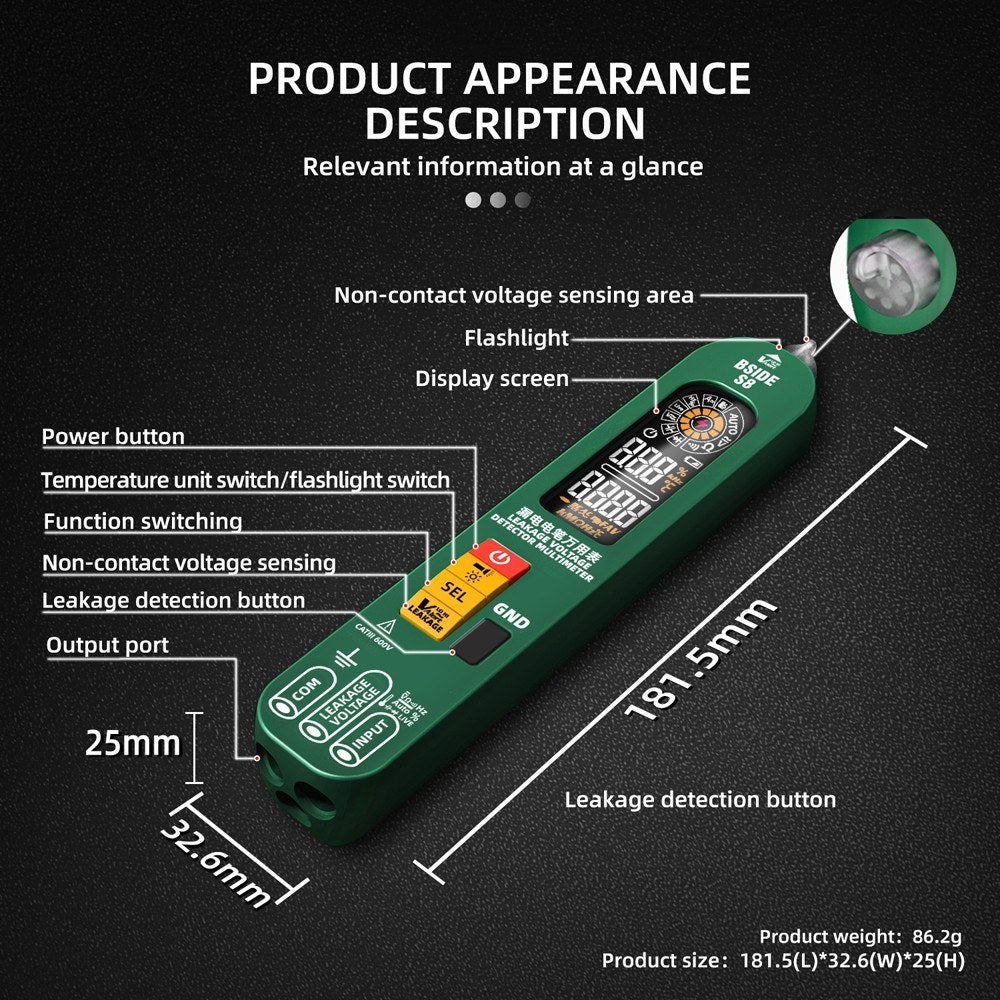

• Item Size: 181.5 * 32.6 * 25mm / 7.15 * 1.28 * 0.98 in
• Item Weight: 86g / 3.03 ounces
• Package Size: 200 * 82.5 * 42mm / 7.87 * 3.25 * 1.65 in
• Package Weight: 251g / 8.85 ounces

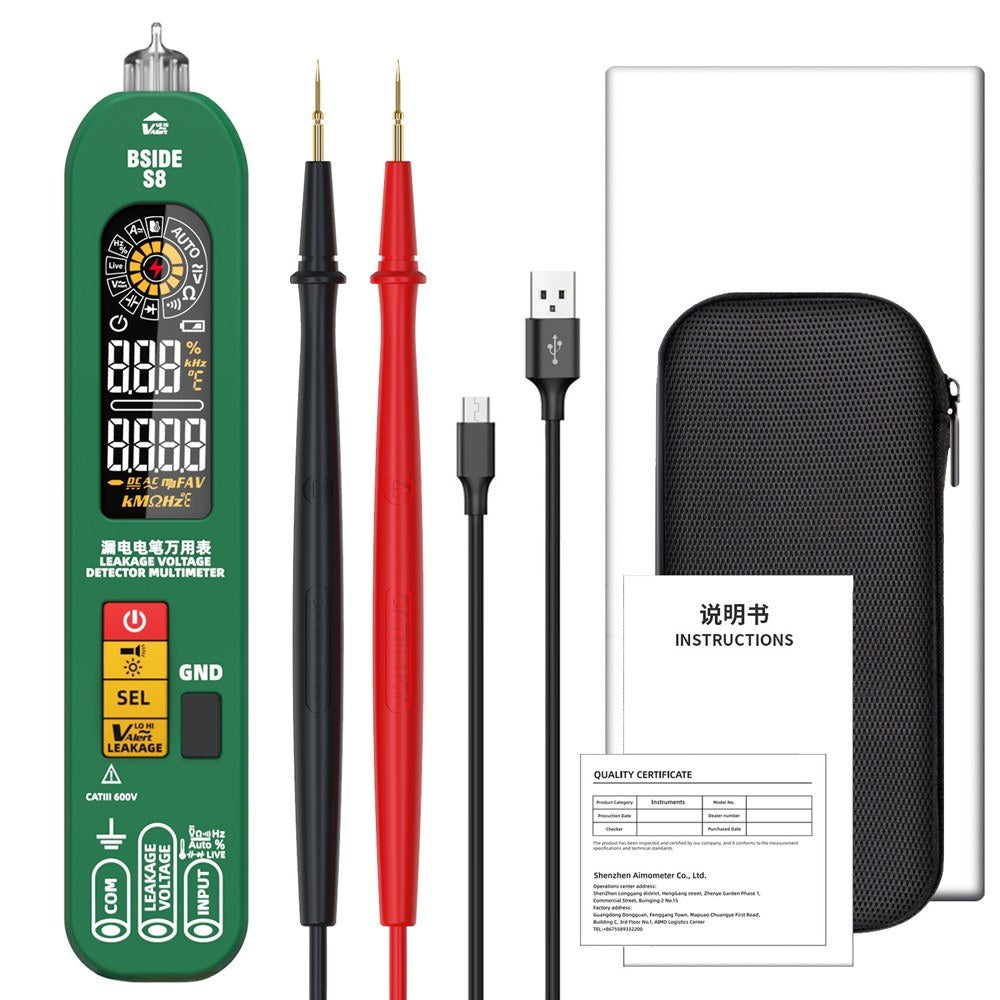

Packing List:

• 1 Digital Multimeter
• 1 Test Pen
• 1 Cable
• 1 Instruction Manual
• 1 Storage Bag
