MS6818 Professional 12-400V AC/DC Wire Network & Telephone Cable Tester Tracker - Portable

Product Description:

Model Number: MS6818S
Our MS6818S Cable and Pipeline Detector is a versatile tool designed to address multiple needs in diagnostics and identification. This upgraded model enhances the capability of detecting and identifying cables, electrical lines, and water/gas supply pipelines buried in walls or the ground. It is also efficient in detecting interruptions and short circuits in both cables and floor heating systems, as well as locating fuses and circuits, even those obscured by plastering.

Key Features:

• Integrated AC/DC Voltmeter: Measures 12 to 400V (AC/DC) with linear accuracy.
• Intuitive Display: Shows transmitting power, transmitted codes, battery status, main voltage, and AC/DC status, complete with warning symbols.
• Self-Inspection Function: Keeps you informed of the transmitter's working status with a convenient LCD display.
• Adjustable Sensitivity: The receiver's sensitivity can be adjusted both manually or automatically.
• Automatic Frequency Sweep: Facilitates seamless operation under mute mode for both transmitter and receiver.
• Expandable System: Add additional transmitters for expanded use or to differentiate between multiple signals.

Specifications:

• Technical Specifications:
• Voltage Measurement Range: 12V-400V (AC/DC)
• Output Signal Frequency: 125KHz
• Cable Depth Measurement Capability: 0-2.5 m (wall/underground)
• Main Voltage Measurement: Up to 0.4m
• Environmental Specifications:
• Working Temperature: 0~40°C
• Storage Temperature: -20°C~60°C
• Max Relative Humidity: 80% (non-condensing)
• Operational Altitude: Up to 2000m
• Power Requirements:
  6 x 1.5V AAA Batteries (not included), 1 x 9V Battery (not included)

Product model upgraded from MS6818 to MS6818S, with no changes in functionality.

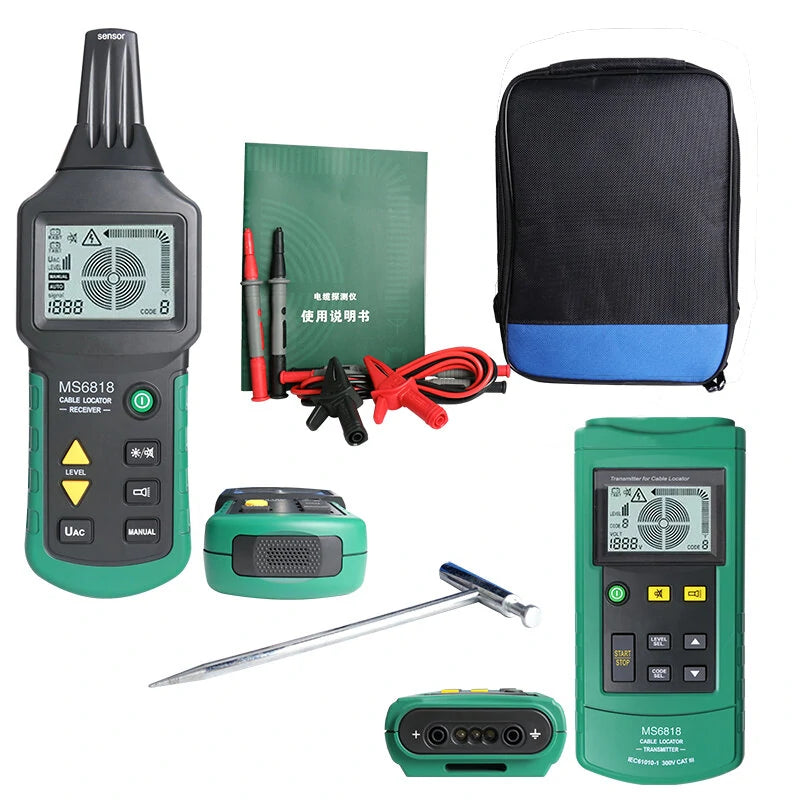

Package Contents:

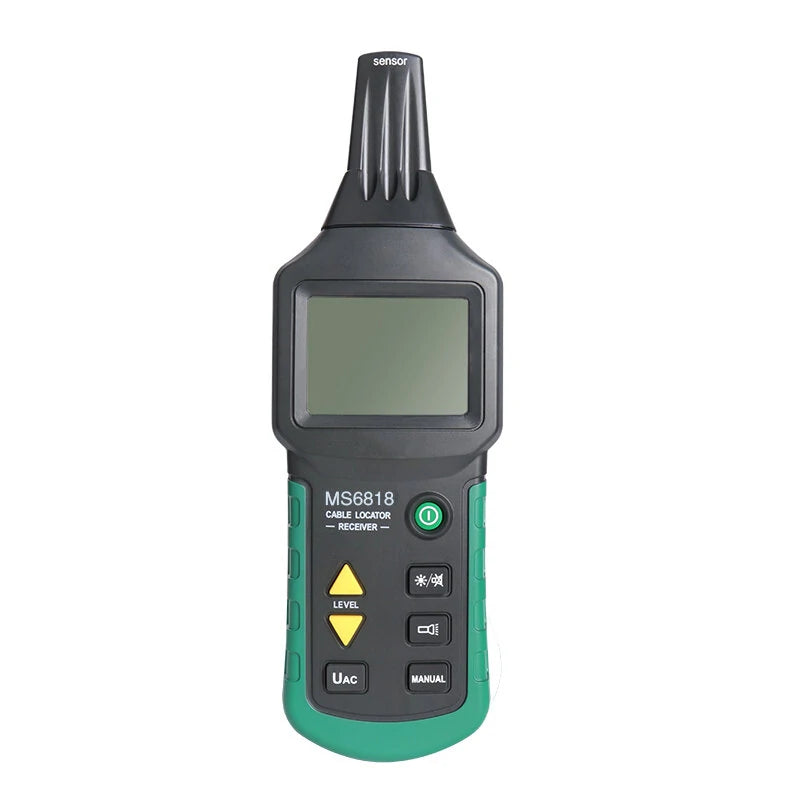

• 1 x MS6818 Receiver

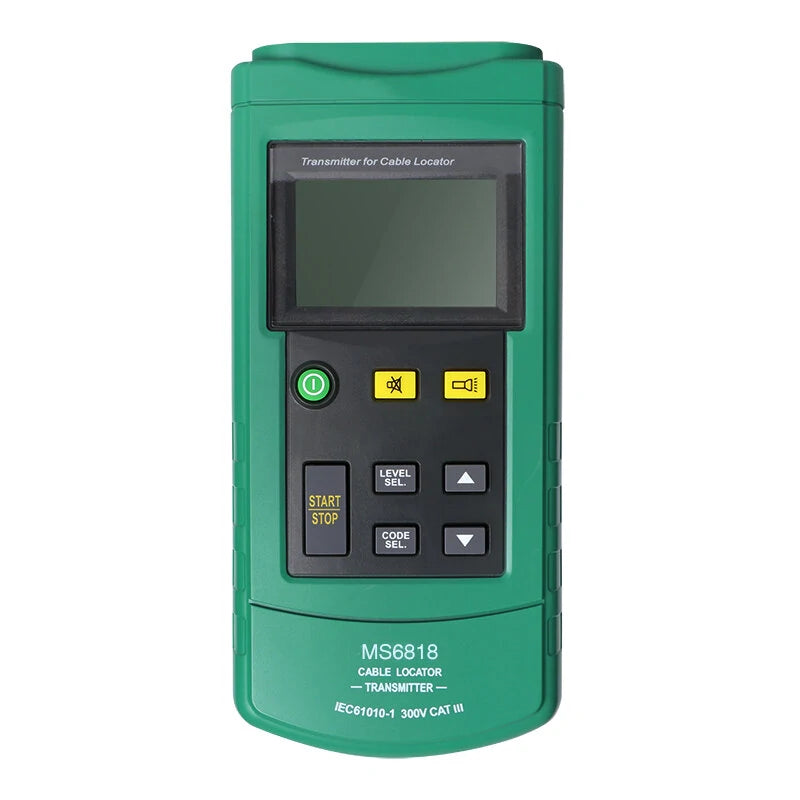

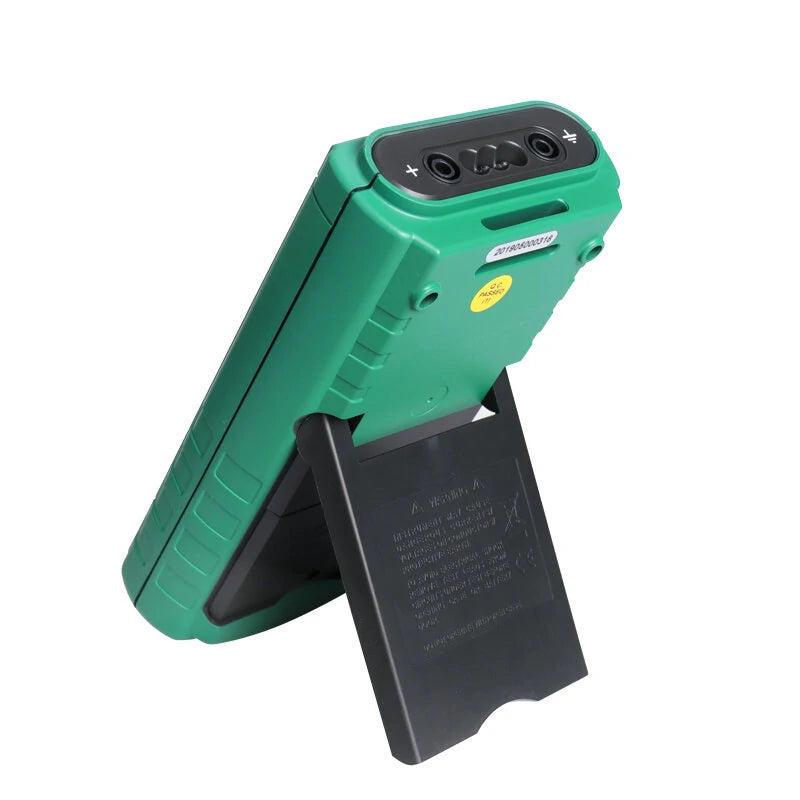

• 1 x Transmitter
• 1 x Set of Test Leads (Black & Red)
• 1 x Set of Test Probes (Black & Red)
• 1 x Set of Crocodile Clamps (Black & Red)
• 1 x Grounding Rod
• 1 x User Manual

Download the English User Manual
