8-Channel 18650 Battery Tester with 2.4-inch TFT Display, Multi-Mode Testing, Enhanced Safety, and Intuitive Interface

$38.58 USD

~~$0.00 USD~~ $38.58 USD

Sale Sold out

Shipping calculated at checkout.

Color black

Estimated Delivery: -

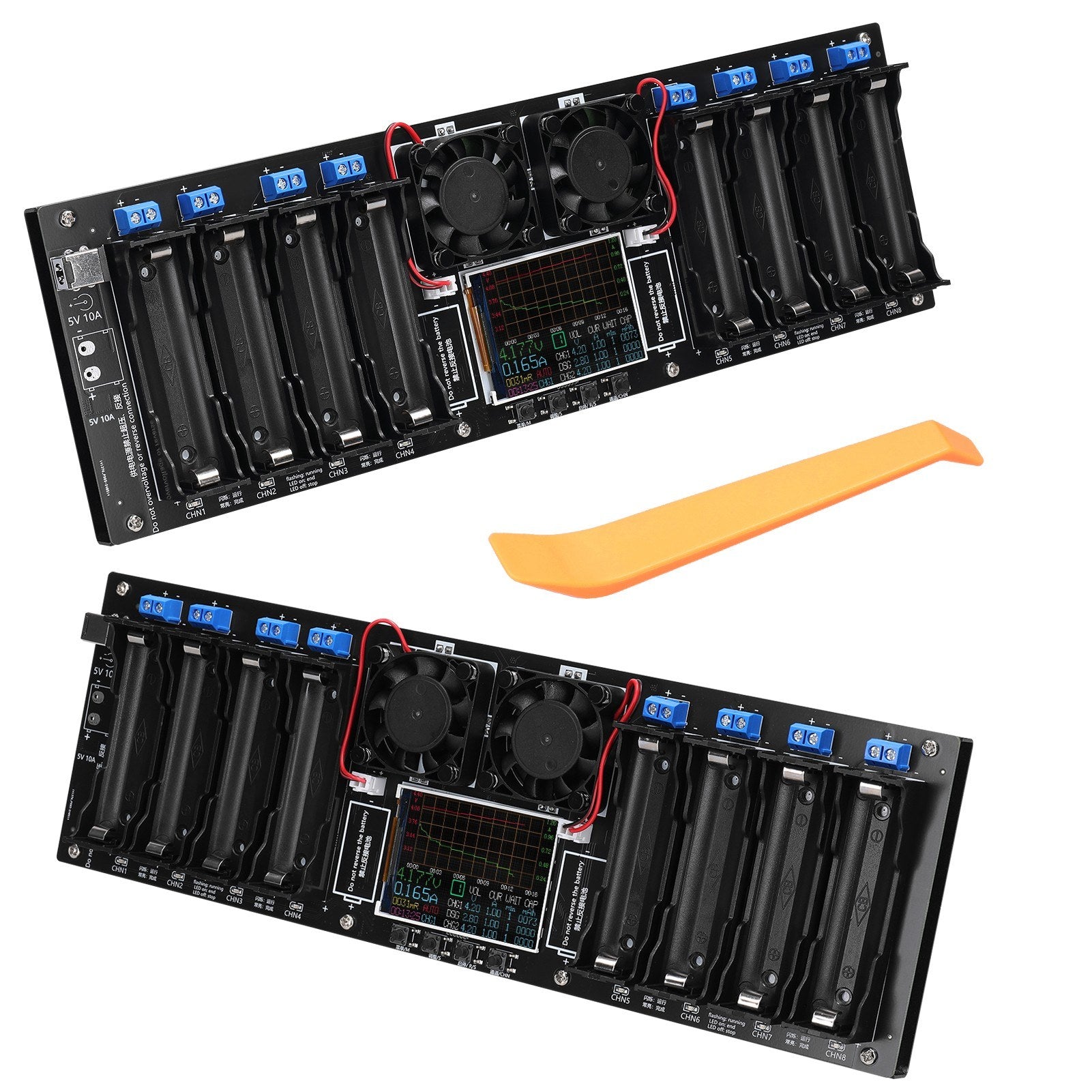

2.4" TFT 8-Channel 18650 Battery Tester

Experience a new level of battery testing with our 2.4" TFT 8-channel 18650 battery tester. Designed to meet the needs of professionals and enthusiasts alike, this device offers precise testing and conditioning of batteries through its comprehensive functionality, making it indispensable for battery testing, maintenance, and conditioning.

Key Features

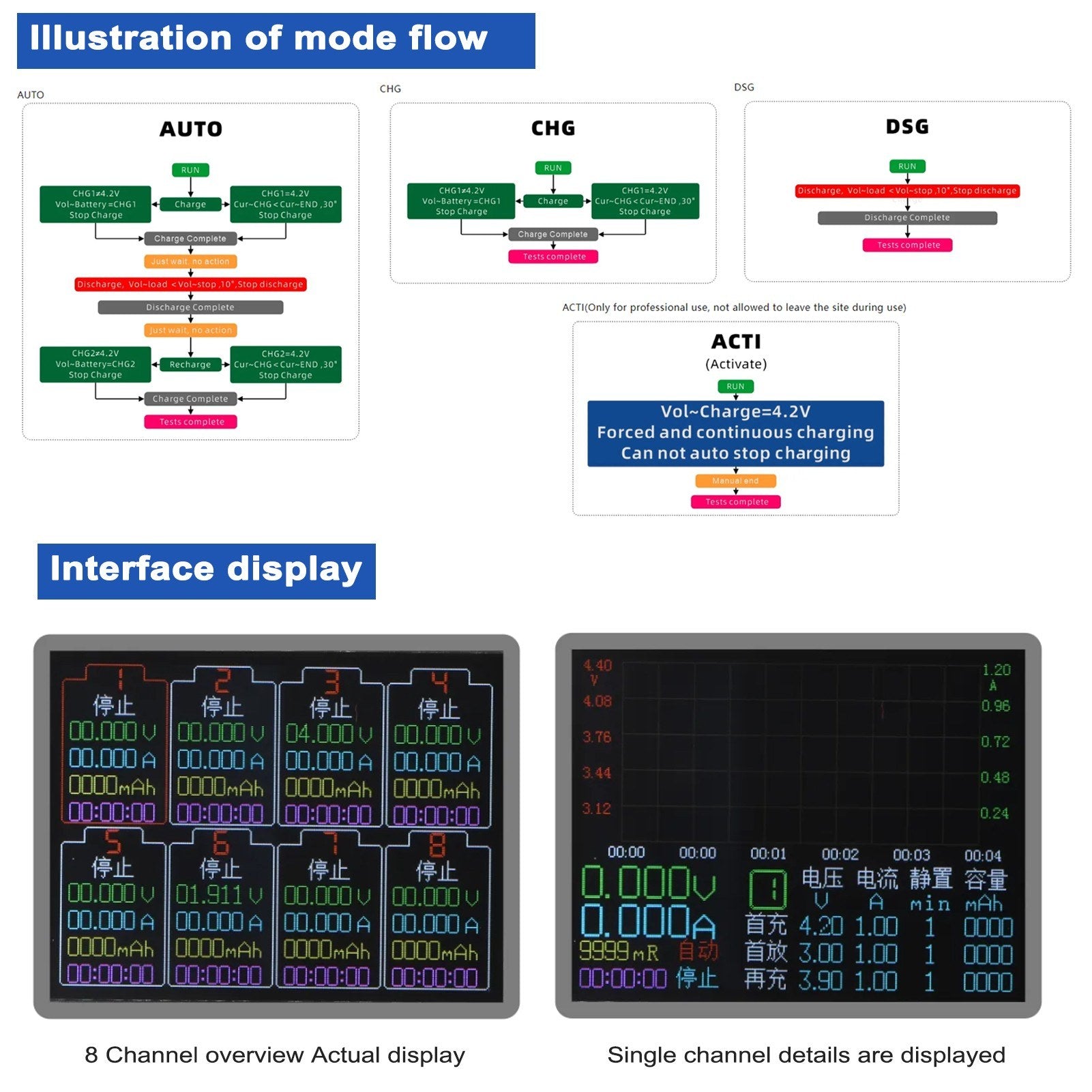

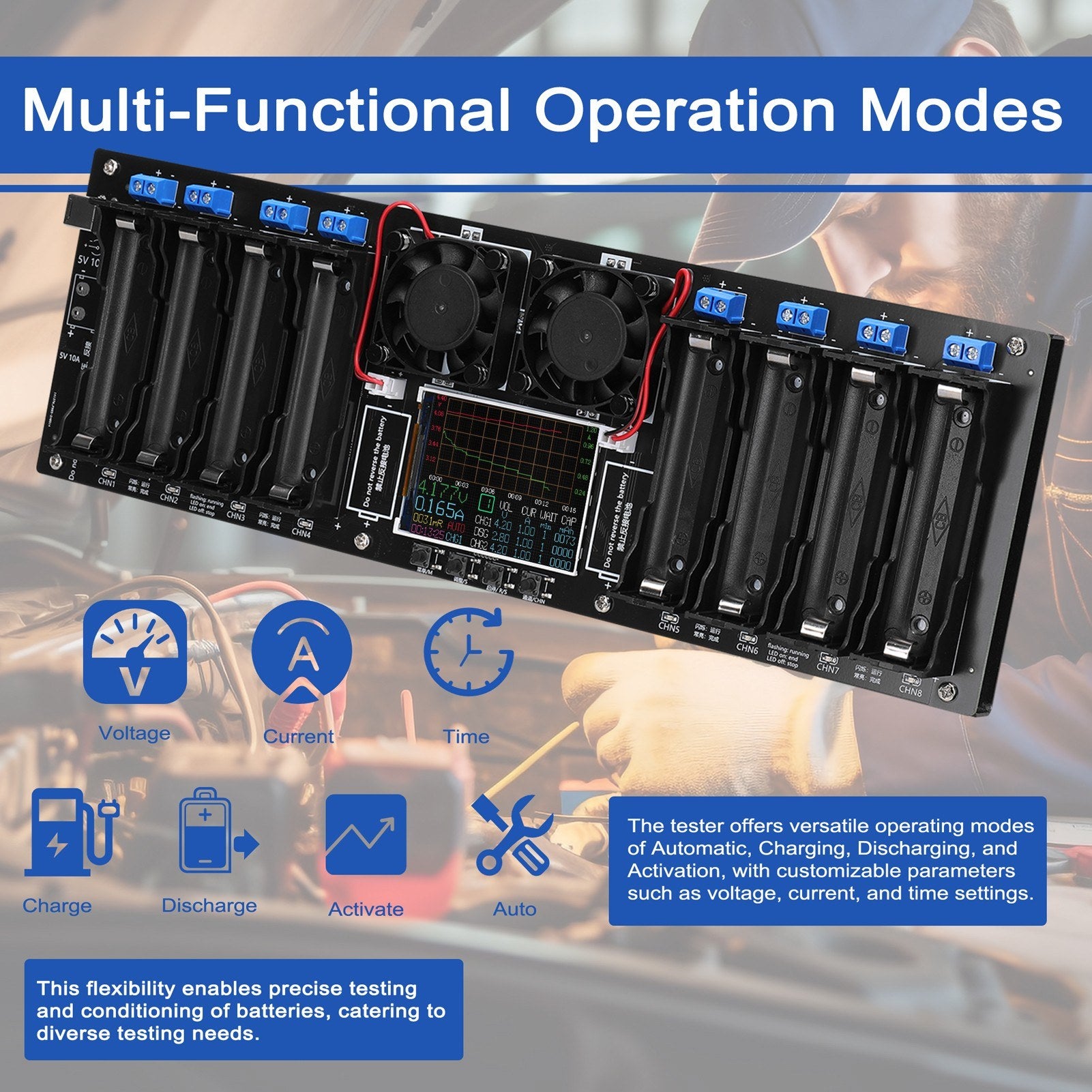

Multi-Functional Operation Modes & Customizable Parameters: Choose from Automatic, Charging, Discharging, and Activation modes. Customize parameters like voltage, current, and time settings to meet various battery testing needs.

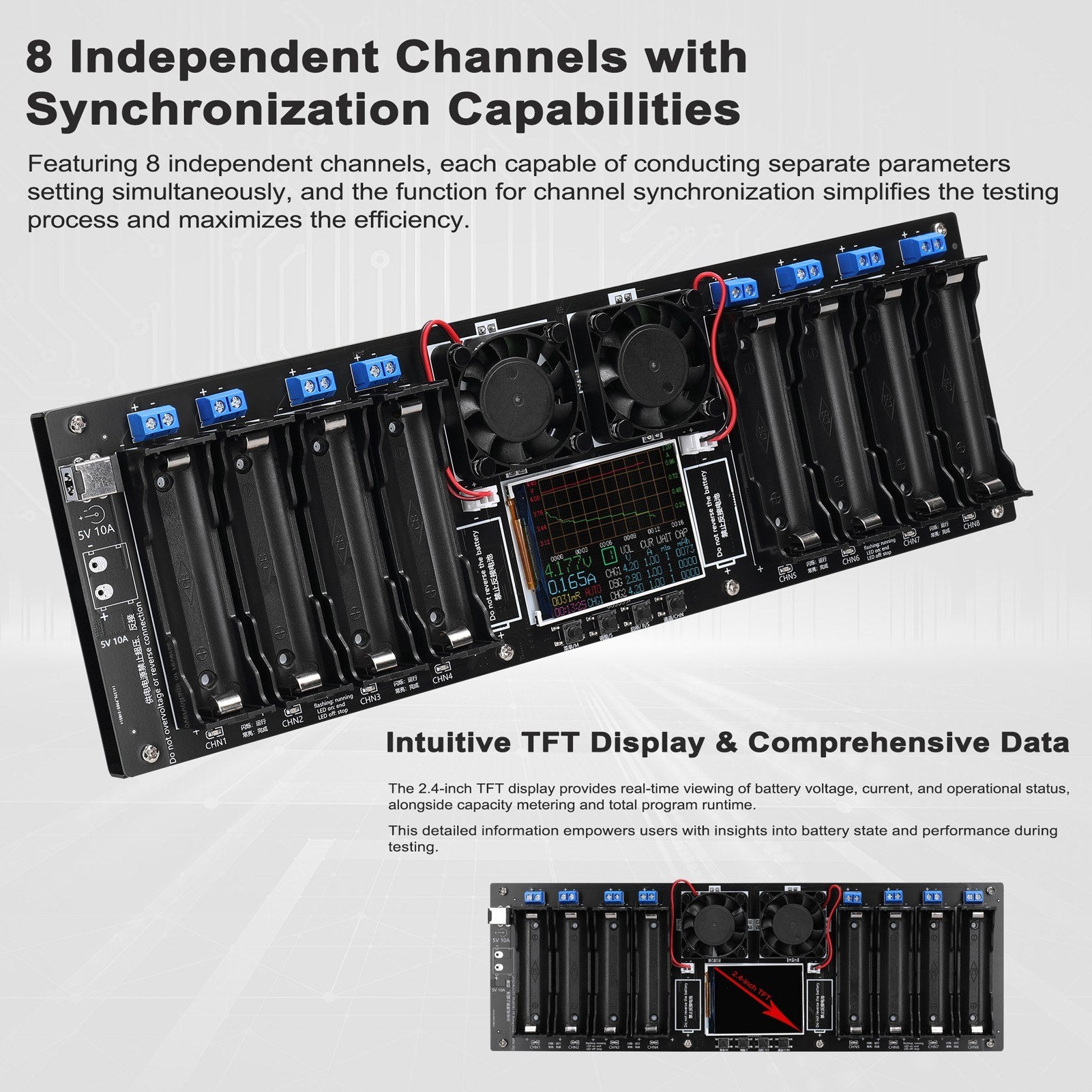

8 Independent Channels with Synchronization Capabilities: Utilize 8 independent channels that allow separate parameter settings. Synchronization capabilities simplify the process and enhance efficiency.

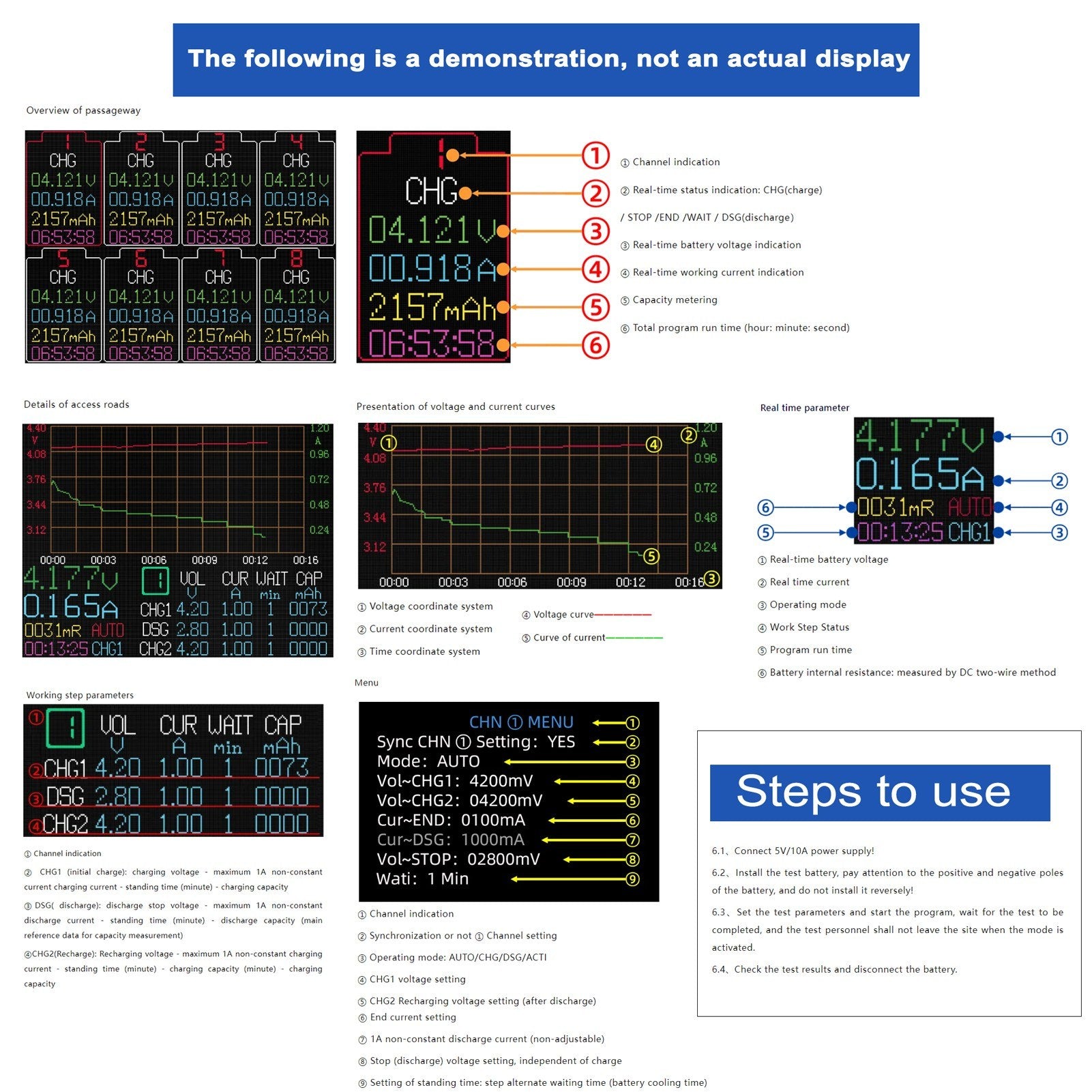

Intuitive TFT Display & Comprehensive Data: The 2.4-inch TFT display provides real-time data, including battery voltage, current, operational status, capacity metering, and total runtime, offering insights into battery performance.

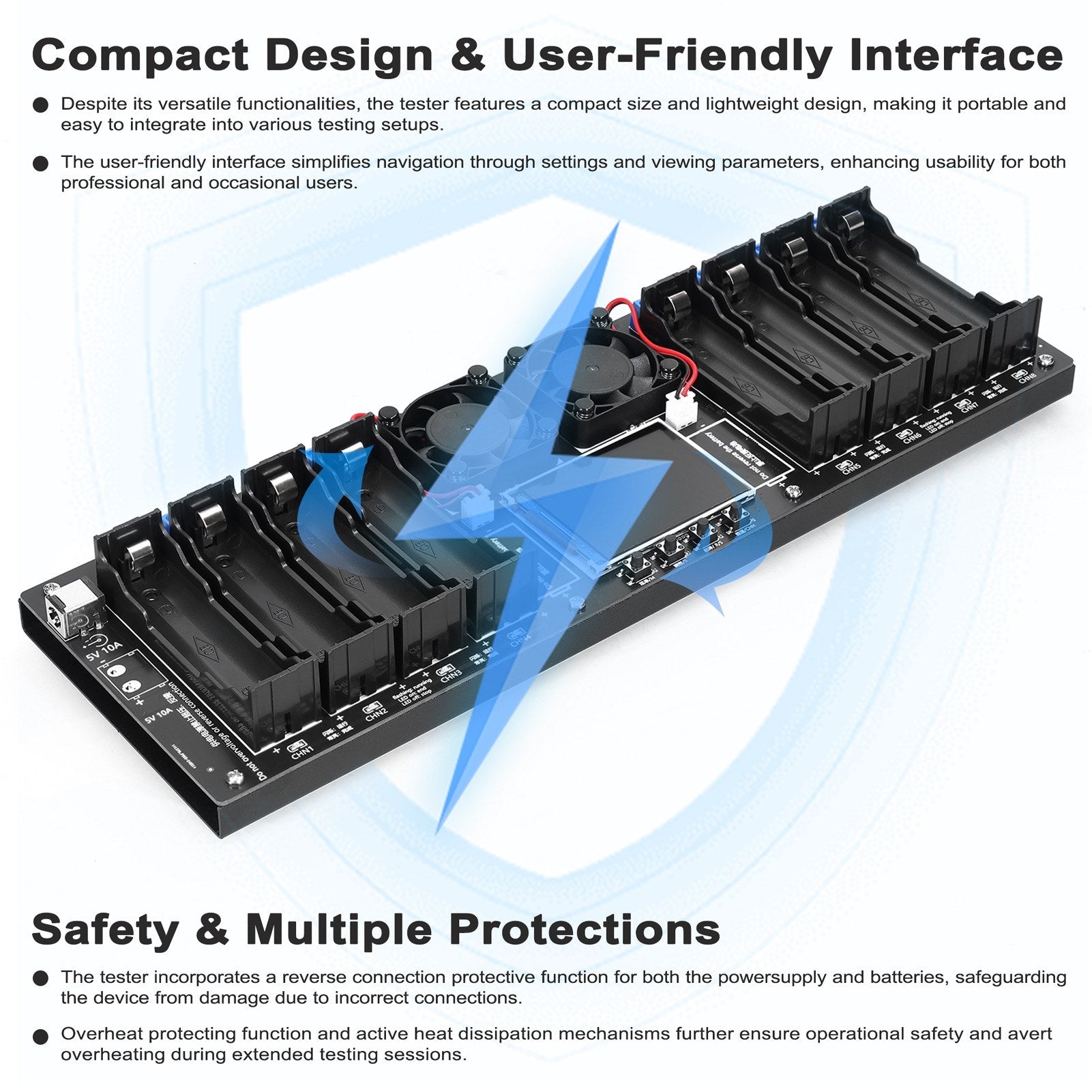

Safety & Multiple Protections: Features include reverse connection protection for power supply and batteries, overheat protection, and active heat dissipation to ensure safe operations.
Compact Design & User-Friendly Interface: Its portable and lightweight design, paired with an easy-to-use interface, makes it suitable for various testing environments.

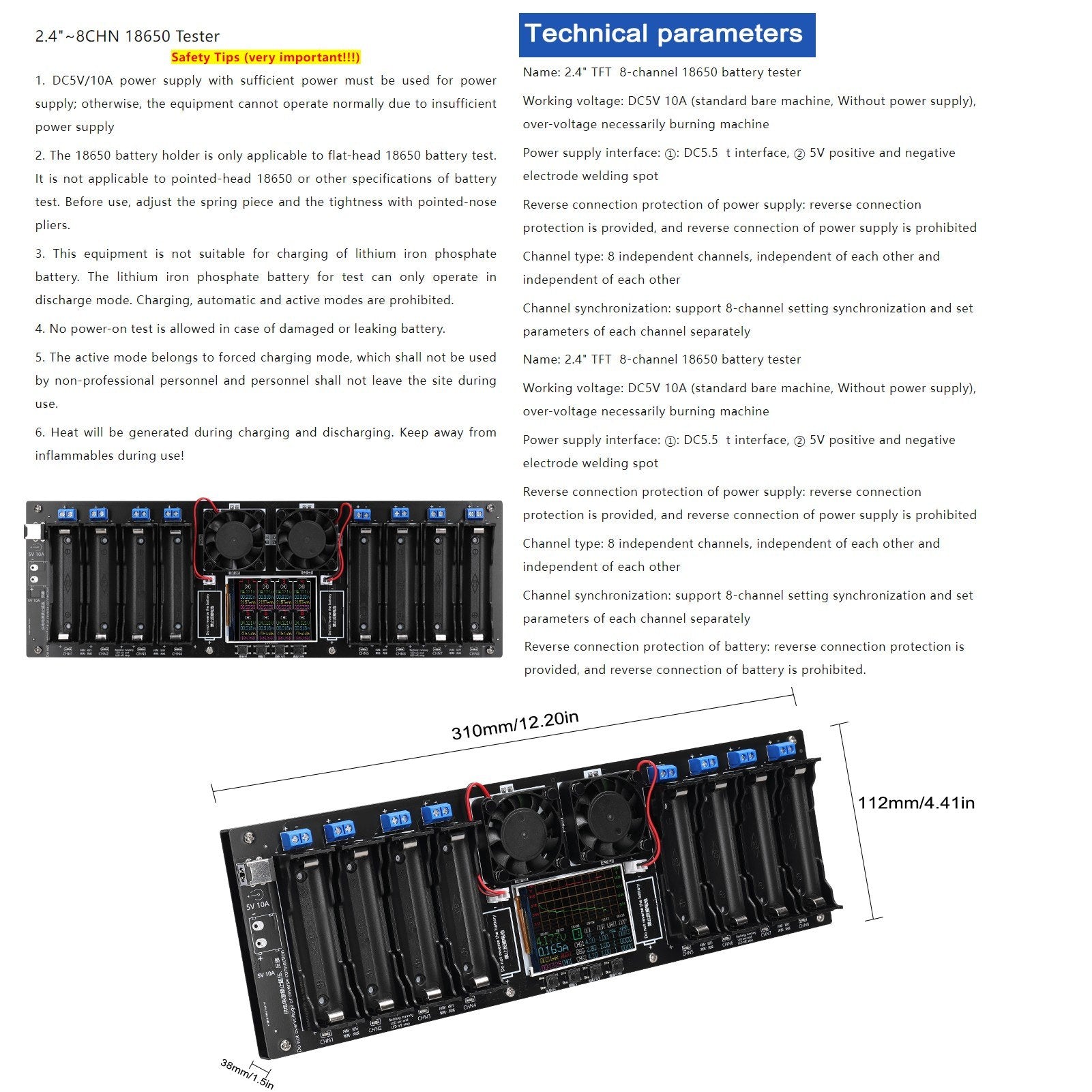

Specifications

Name:	Battery Tester
Material:	Plastics
Working Voltage:	5VDC, 10A (over-voltage results in potential damage)

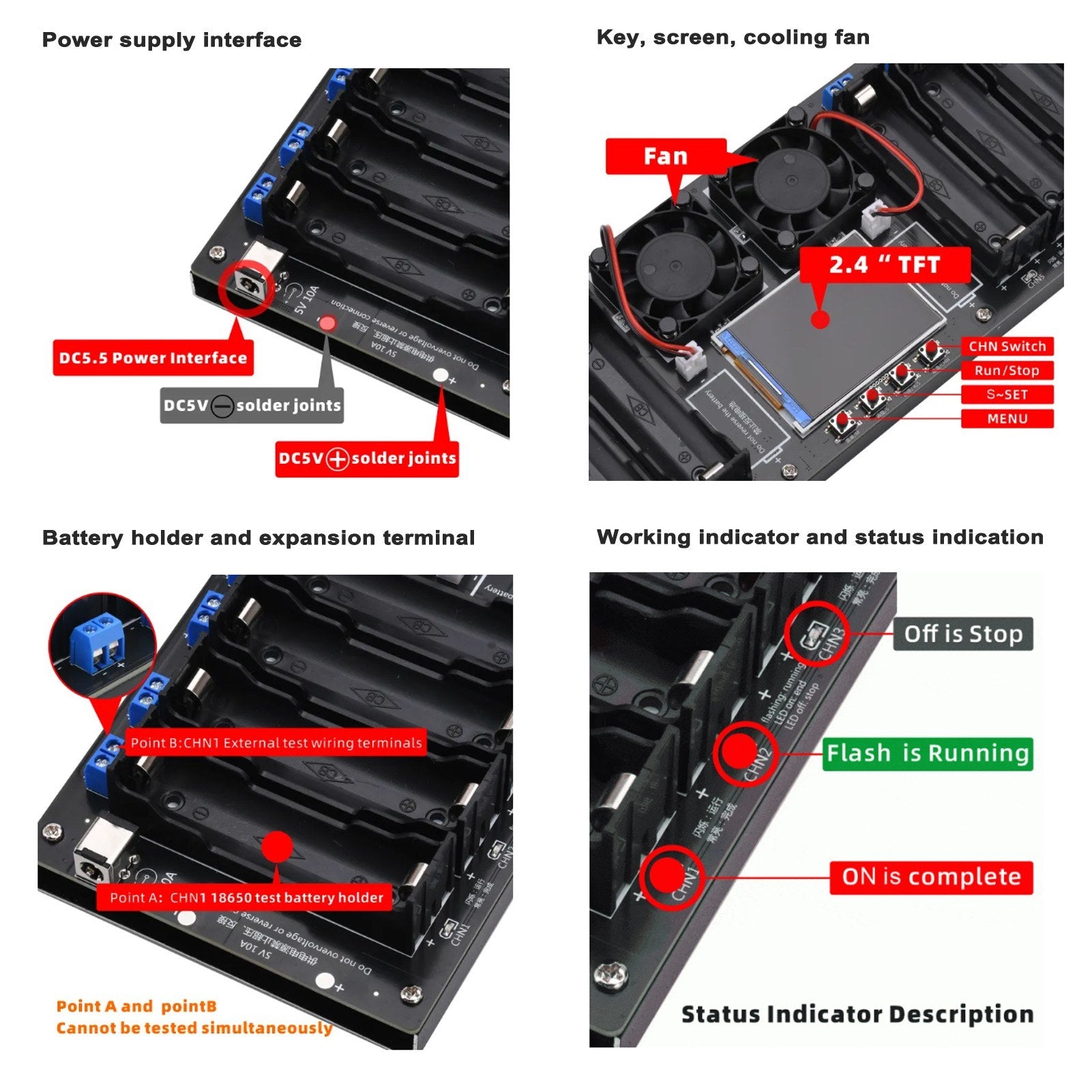

Power Supply Interfaces:	① Direct Current 5.5 t interface, ② 5V positive and negative electrode welding spots
Reverse Connection Protective of Power Supply:	Prohibits reverse connection, protection enabled
Channel Type:	8 independent channels
Channel Synchronization:	Supports synchronization and individual parameter settings
Charging Current:	Approx. 1A per channel (non-adjustable)
Charging (Stop) Voltage:	3.7V - 4.2V, 6 gears adjustable
Recharge (Stop) Voltage:	3.0V - 4.2V, 13 gears adjustable
Charging End Current:	Adjustable: 100mA, 200mA, 300mA
Discharge Current:	Approx. 1A per channel (non-adjustable)
(Discharge) Stop Voltage:	2.0V - 3.6V, 17 gears adjustable
Standstill Time:	1-5min adjustable
Channel Status Preview:	One-screen preview of all 8-channel status
Single Channel Detail Display:	Supported
Single-Channel Charging and Discharging Curve Display:	Supported
Internal Resistance Detection:	Two-wire method, used for sorting analogies within same batch
Heat Dissipation Mode:	Active heat dissipation
Overheat Protection:	Supported
Cyclic Charging and Discharging:	Single cycle supported in automatic mode
External Test Support:	Uses 2P terminal, one battery base or external test per channel
Reverse Connection Protective Function of Battery:	Prohibits reverse connection, protection enabled
Item Size:	310 x 112 x 38mm / 12.20 x 4.41 x 1.50in
Item Weight:	397g / 0.88lb
Package Size:	335 x 115 x 60mm / 13.19 x 4.53 x 2.36in
Package Weight:	508g / 1.12lb
