Digital Manifold Pressure Gauge & Vacuum Tester for HVAC Systems - Temperature & Valves Tool Kit

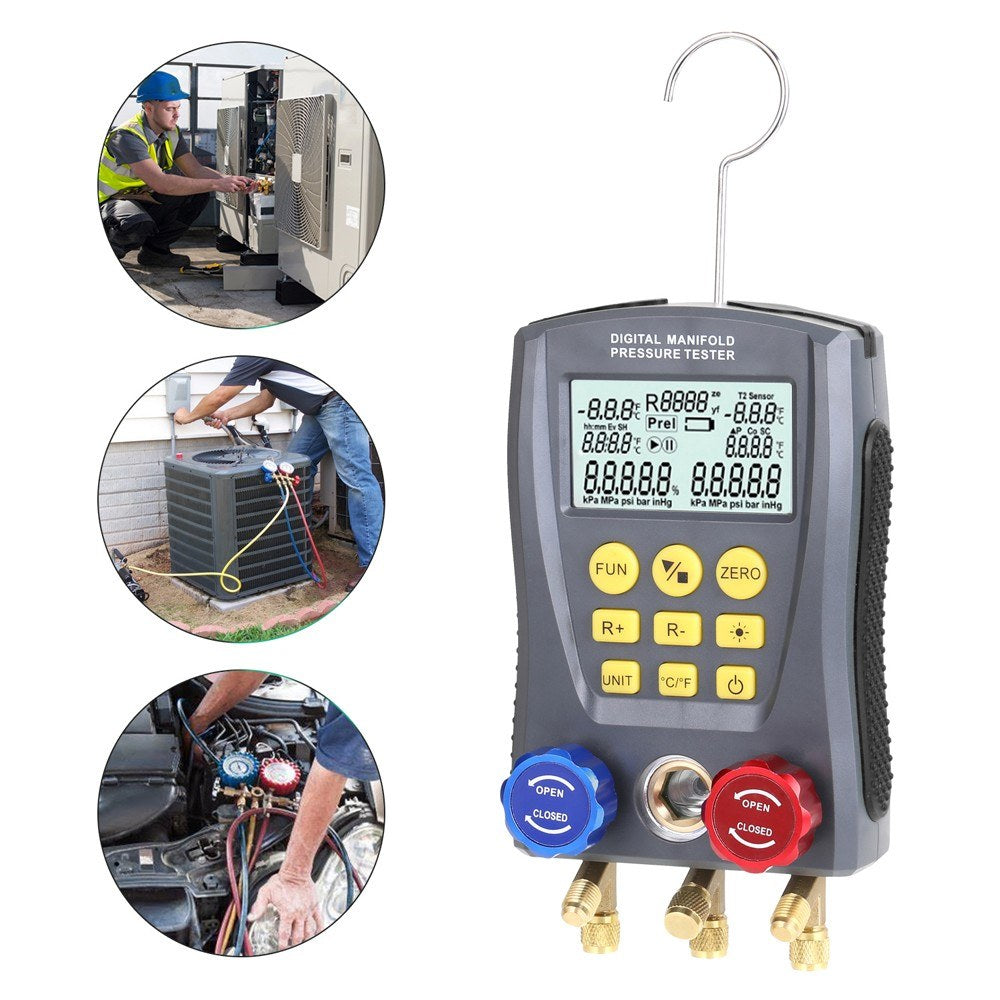

The Intelligent Electronic Refrigerant Group Instrument is a vital tool for the installation, testing, and maintenance of refrigeration equipment, including air conditioners and cold storage units. This advanced instrument offers:

• Dual Pressure and Temperature Testing: Provides digital readouts for precise monitoring.
• Multi-Unit Switching and Modes: Features a built-in refrigerant database to accommodate various needs.

Features:

• Constructed from high-strength plastics with a flexible, non-slip silicone design for a robust and comfortable grip.
• Equipped with a 32-bit digital processing unit and high-precision data acquisition unit ensuring high data accuracy and stability.
• Features a large-size LCD display with backlight support for clear and easy reading of data, even in low-light environments.

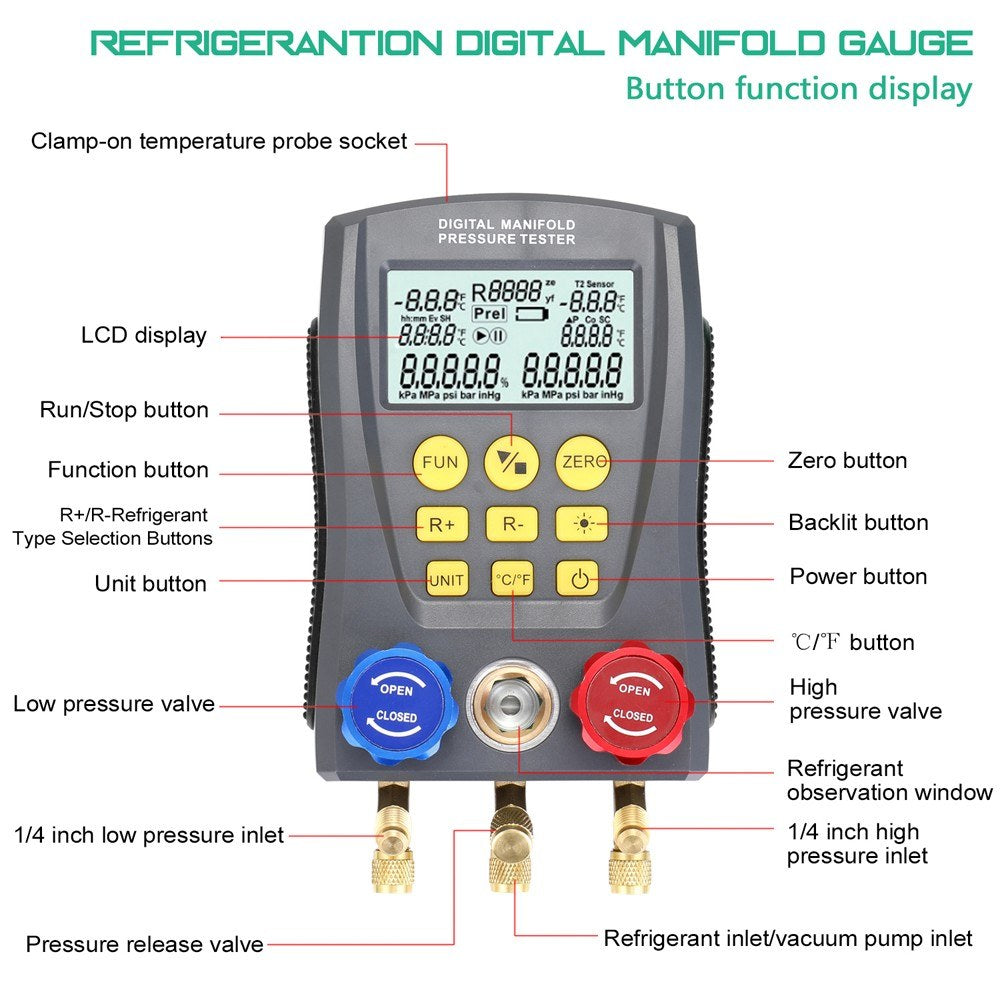

• Incorporates a durable valve-switch and 1/4-inch standard interface for versatility and longevity.

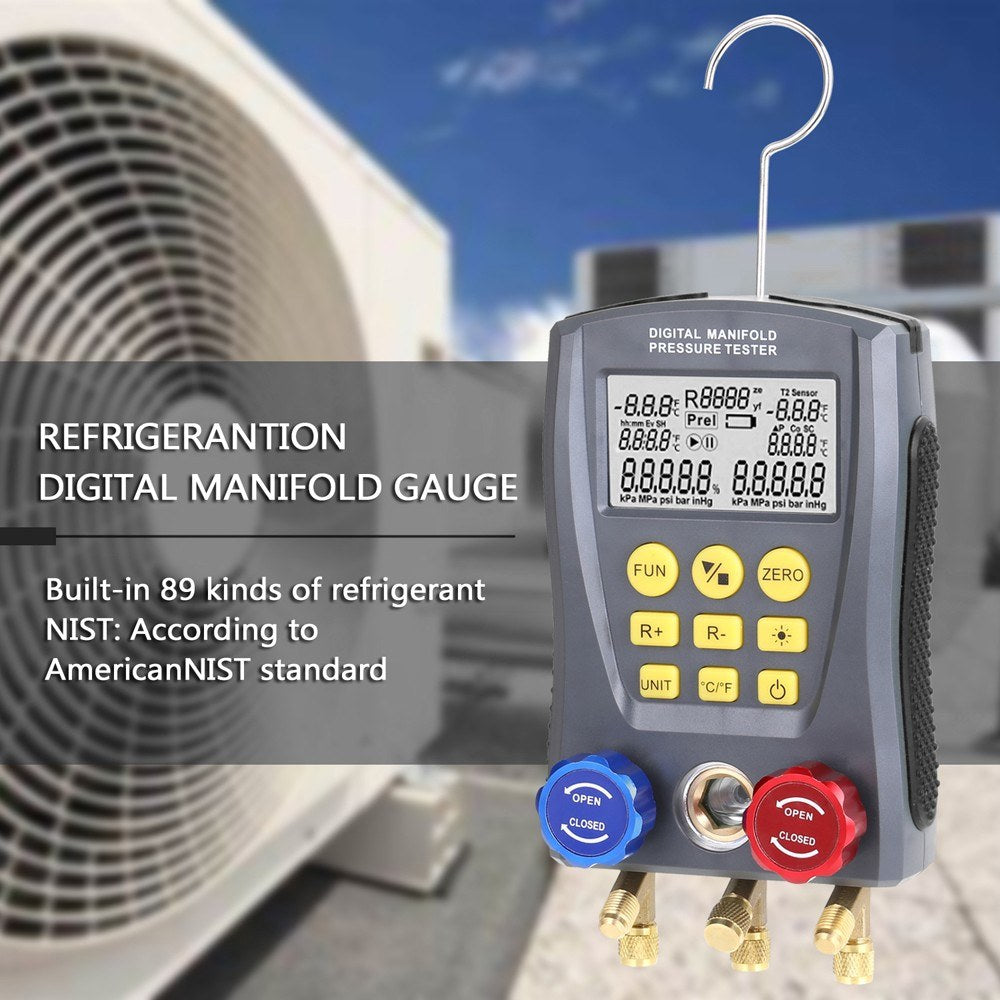

• Contains a database of 89 refrigerant pressure-evaporation temperatures, and calculates subcooling and superheat for direct reading of operational data.
• Capabilities include vacuum percentage measurement and pressure leak measurement with leak time speed recording.
• Highly functional, accurate, and user-friendly digital manifold for error-free tasks.

Specifications:

• Material: High-quality plastics

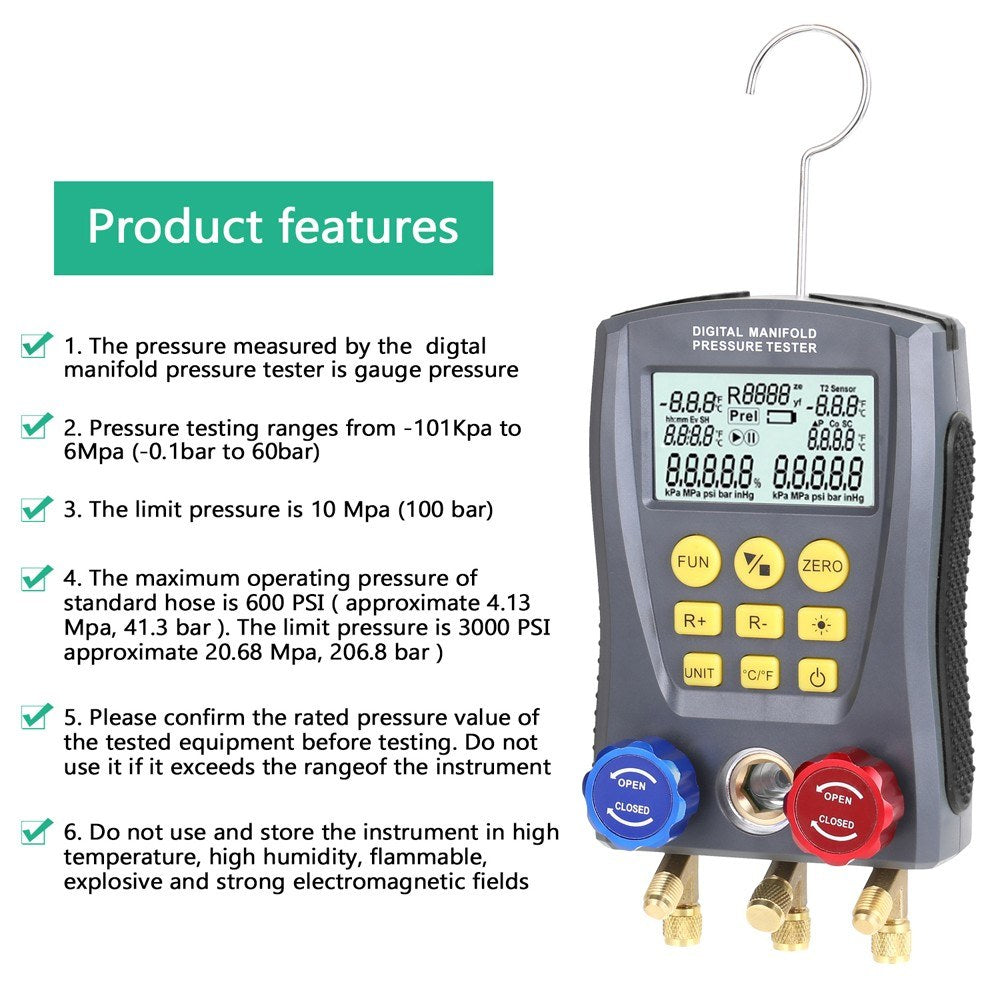

• Pressure Test Range: 0 Kpa – 6000 Kpa
• Pressure Test Resolution: 1 Kpa
• Pressure Test Accuracy: ±0.5% + 5dgt
• Pressure Overload Limit: 10000 Kpa (10 Mpa, 100 bar)

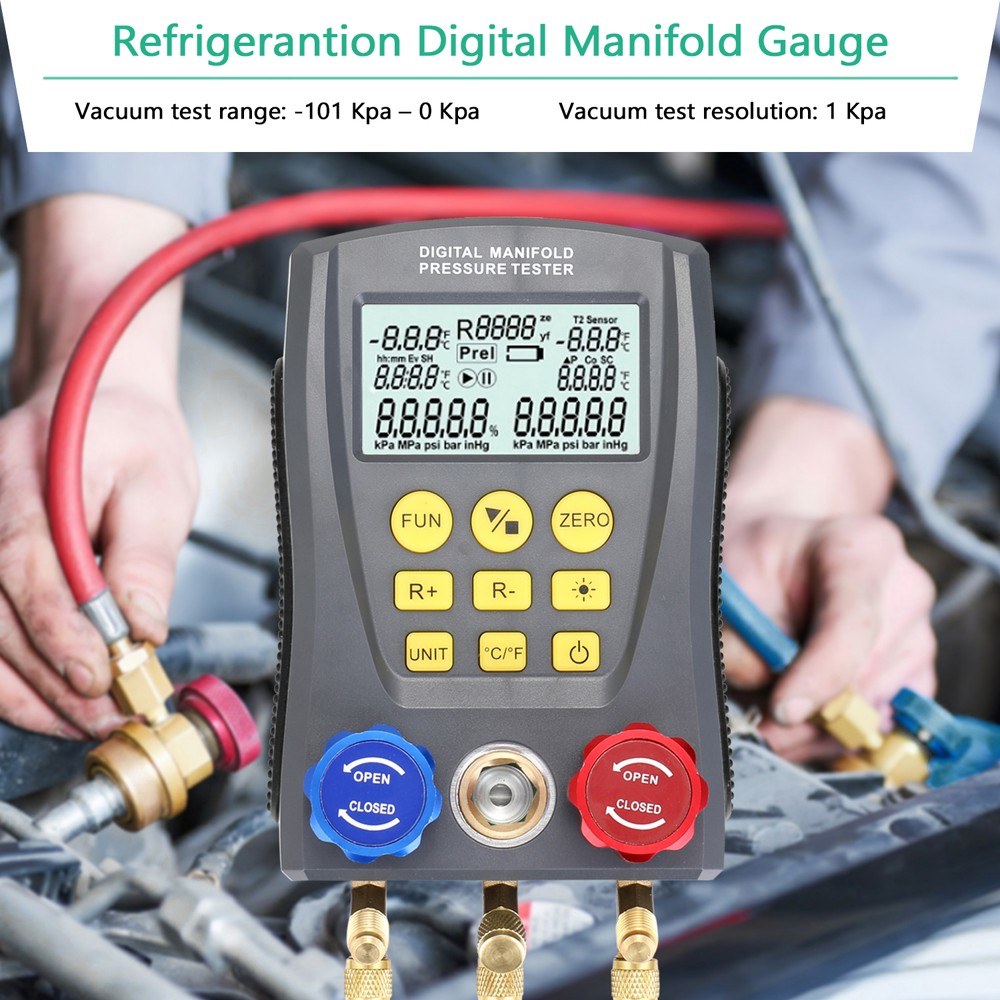

• Vacuum Test Range: -101 Kpa – 0 Kpa
• Vacuum Test Resolution: 1 Kpa
• Temperature Test Range: -40°C–150°C (-40°F–302°F)
• Temperature Test Resolution: 0.1°C (-40°C–99.9°C), 1°C (100°C–150°C); 0.1°F (-40°F–99.9°F), 1°F (100°F–302°F)
• Temperature Test Accuracy: ±0.5°C + 2dgt, ±0.9°F + 2dgt
• Power Requirement: 4 x 1.5V (AA/LR6) Batteries (not included)
• Pressure of Tube: 600-3000
• Item Weight: 1500g / 3.3lb
• Package Size: 250 x 150 x 80mm / 9.8 x 5.9 x 3.1in
• Package Weight: 1800g / 4.0lb

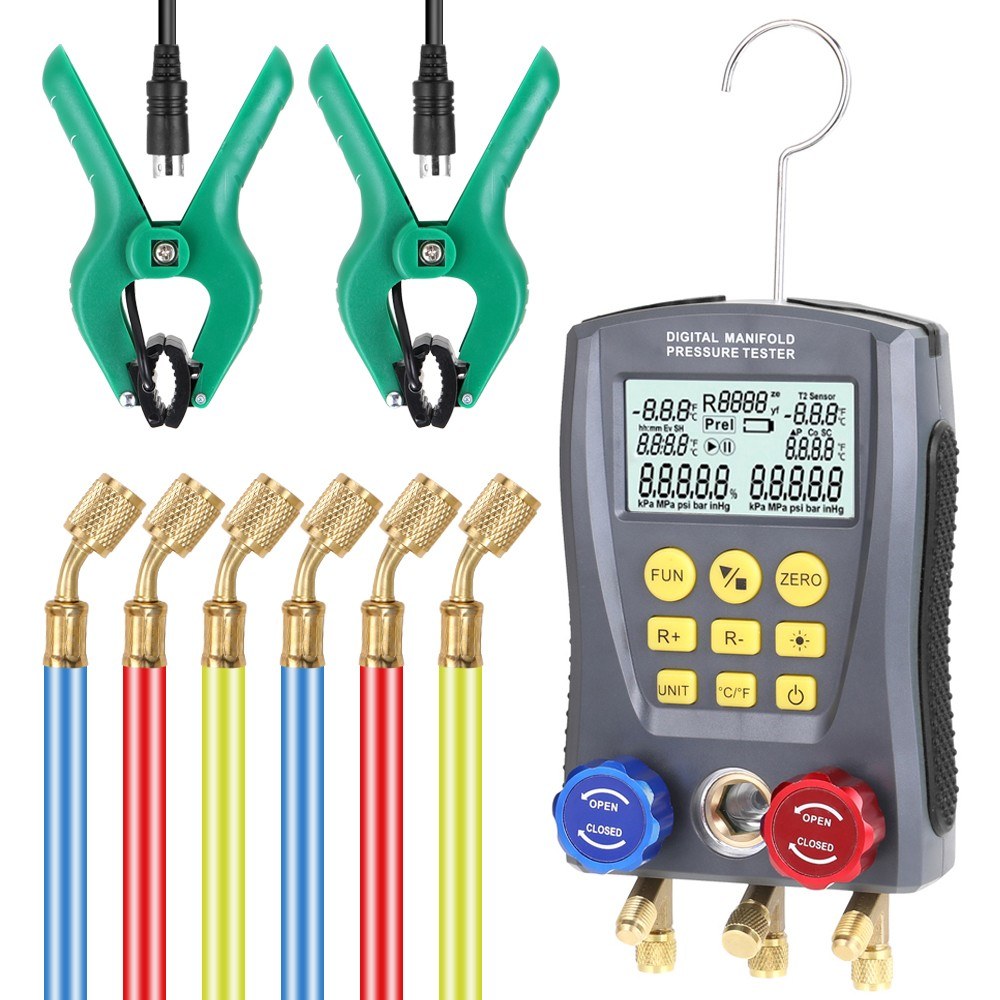

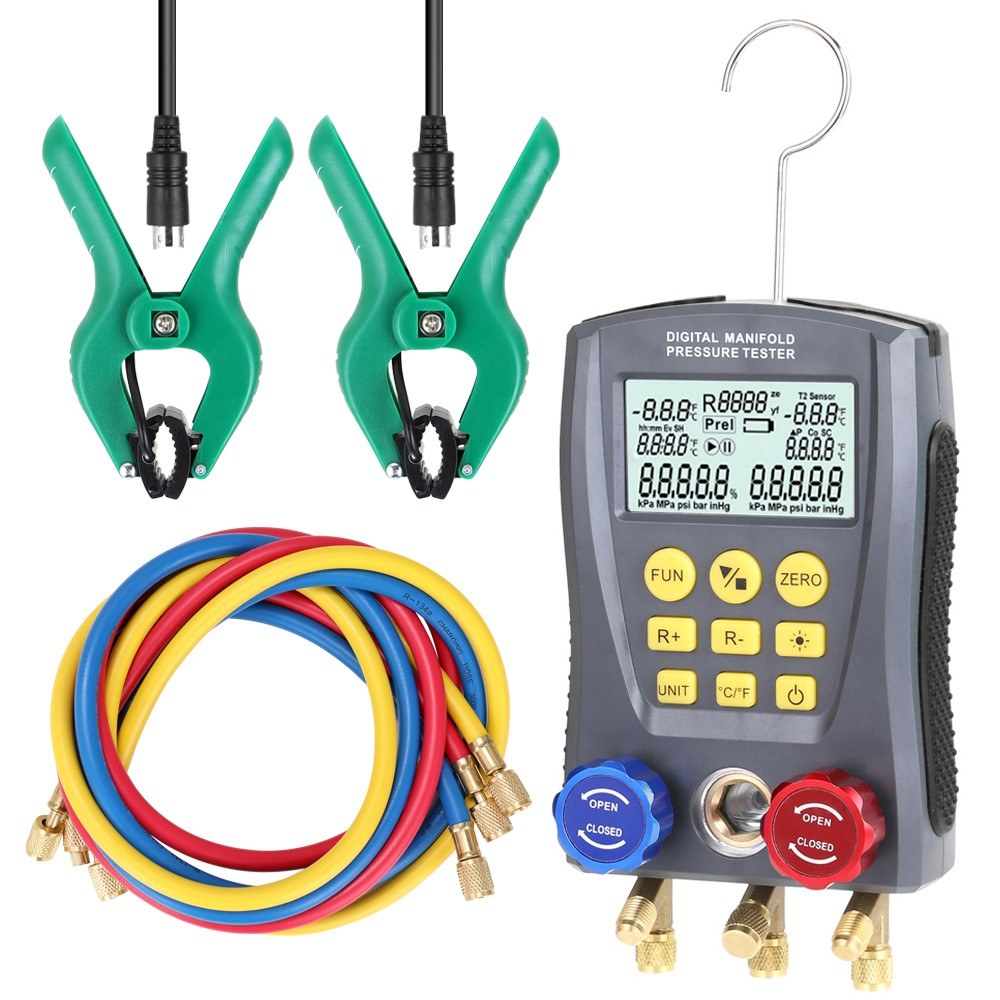

Package Includes:

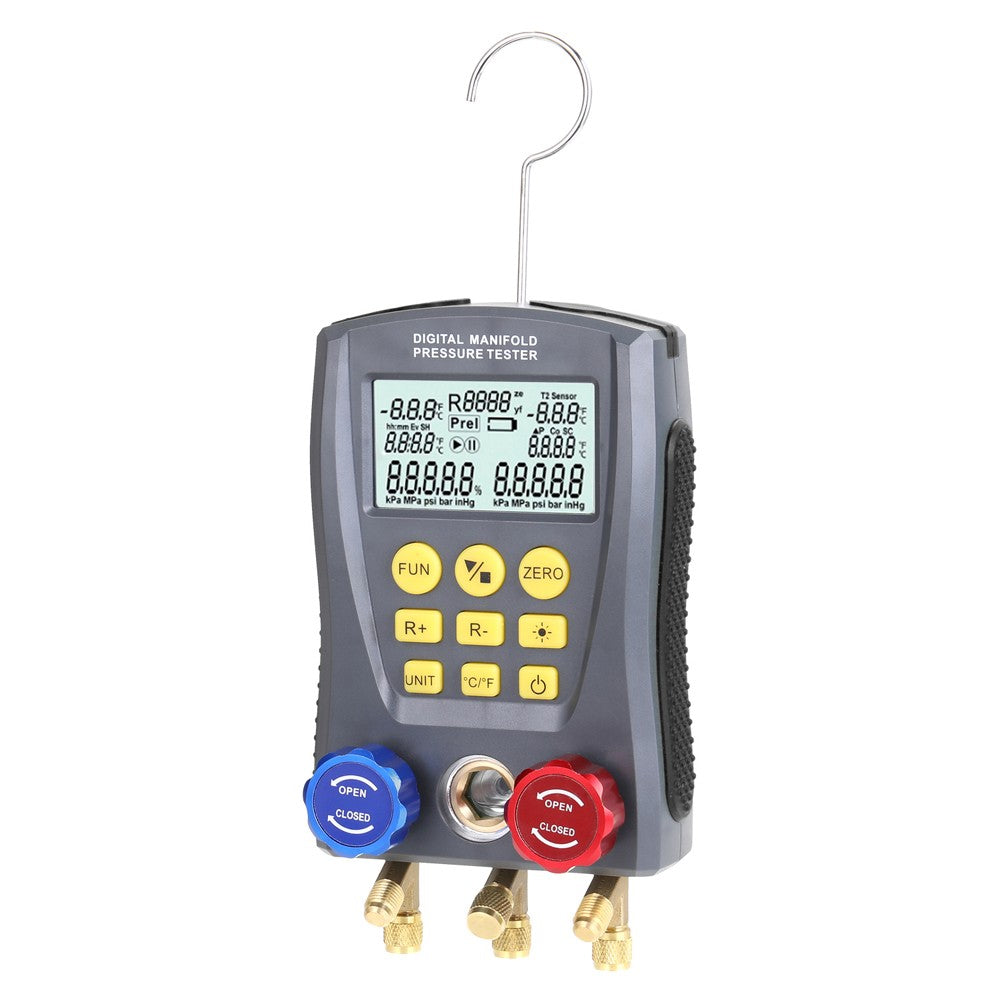

• 1 x Refrigerant Digital Manifold Gauge
• 1 x User Manual
• 2 x Temperature Clips

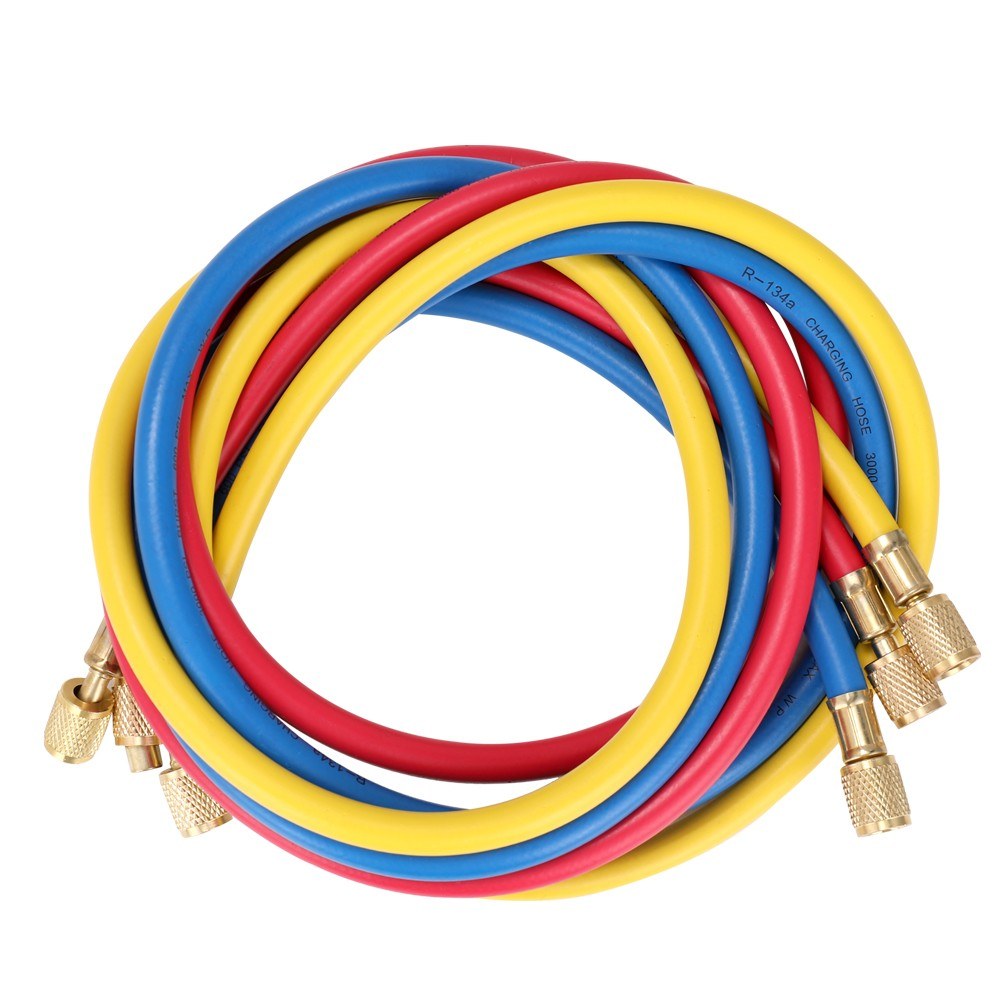

• 3 x Test Pipes
