FY6900 Dual Channel DDS Waveform Signal Generator 20MHZ/60MHZ - Pulse Source & Frequency Counter

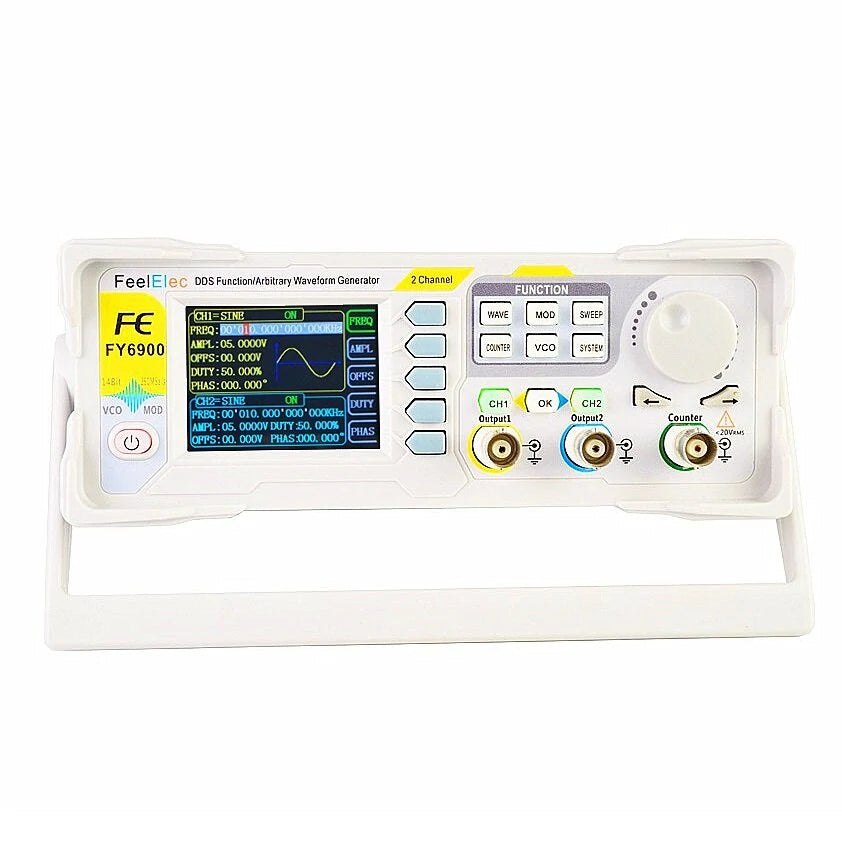

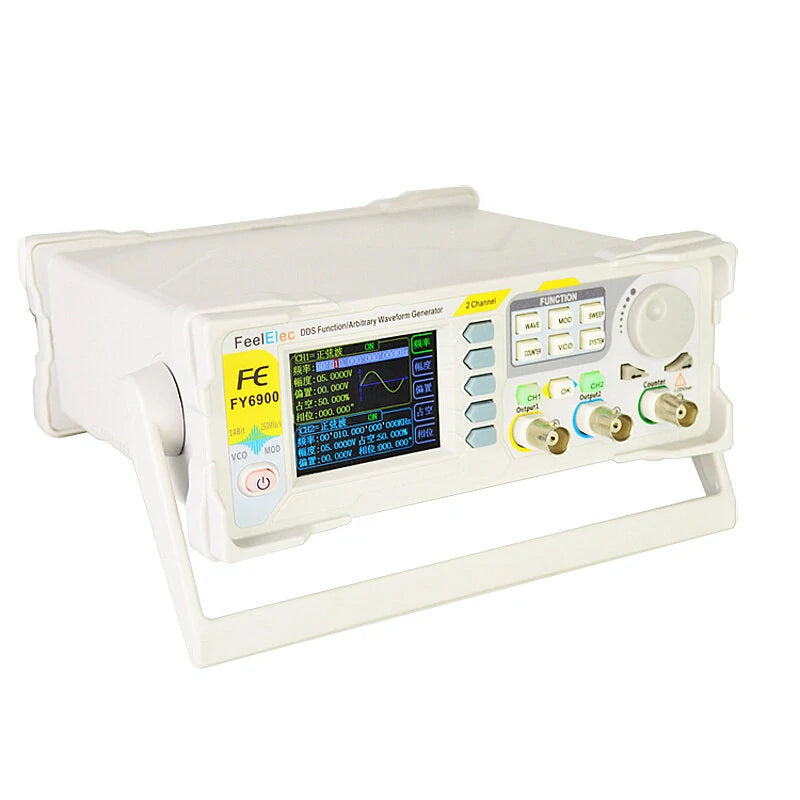

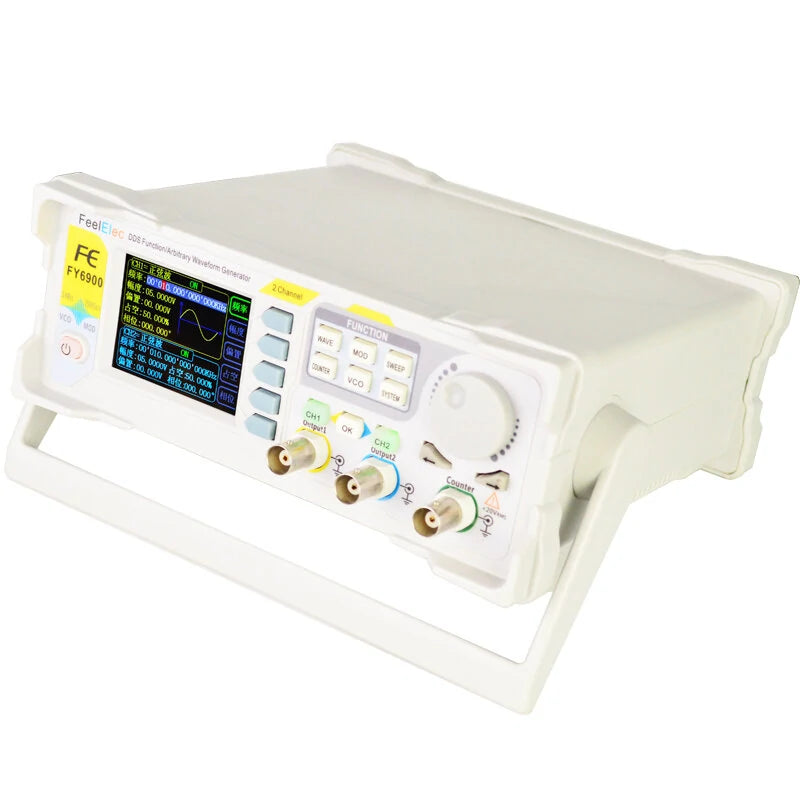

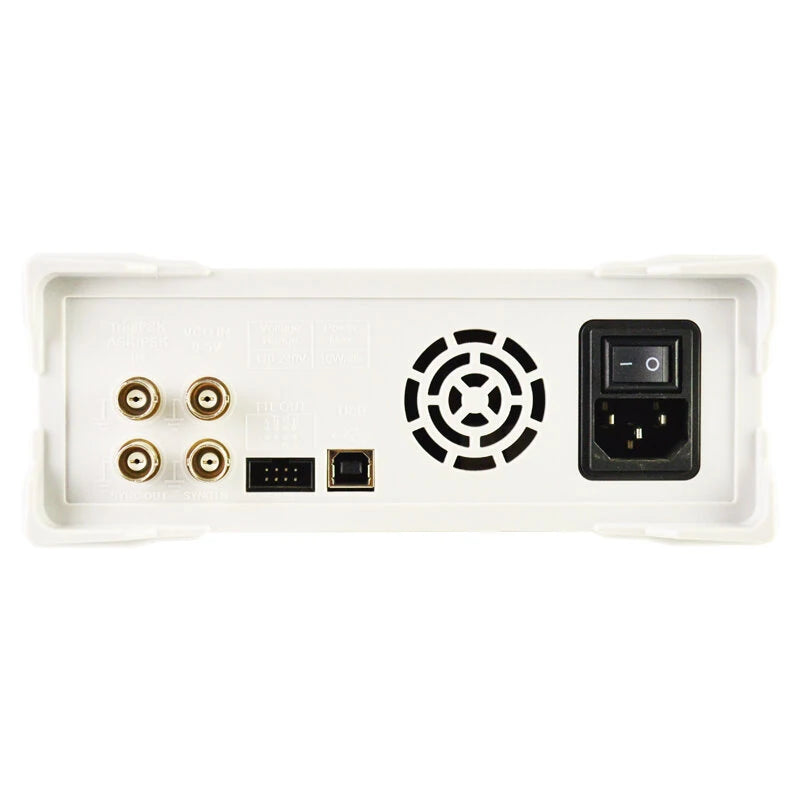

FY6900 DDS Signal Generator

Download the English User Manual

Download PC Software

Main Features

• Utilizes Direct Digital Synthesizer (DDS) technology for stable and precise signals with minimal distortion.
• Features a 2.4 inch TFT Color LCD (320×240 resolution) displaying parameters and graphics for two channels simultaneously.
• Equipped with a 14-bit high-speed D/A converter (5Vpp output quantization error < 1mV), 250MSa/s sample rate, and 14-bit vertical resolution.
• Outputs up to 97 functions/arbitrary waveforms including 33 preset and 64 user-defined waveforms.
• Various modulation types: AM, FM, PM, ASK, FSK, PSK.
• Sweep Function: Sweeps frequency, amplitude, offsets, and duty cycle with linear and logarithm sweep types.
• Includes a 100M frequency meter function for measuring frequency, period, pulse width, and duty cycle.
• Standard dual full functional channels equivalent to two independent generators.
• Supports multi-channel output with options for up to 16-channel synchronous output.
• Precise phase adjustment between channels with 0.01° accuracy.
• Amplitude range of 0~24Vpp with a minimum resolution of 1 mV.
• Stores 20 user-set parameter sets for quick access.
• Comprehensive PC software for waveform editing, included with user CD.

Technical Specifications

• Frequency Ranges: Sine (0~60MHz), Square (0~25MHz), Ramp/Triangle (0~10MHz), Pulse (0~10MHz), TTL/CMOS (0~10MHz), Arbitrary Waveform (0~10MHz).
• Resolution: 1μHz, ensuring high-frequency accuracy.
• Accuracy: ±20ppm, with stability ±1ppm/3 hours.
• Waveforms: Supports Sine, Square, Triangle, Sawtooth, and many more.
• Amplitude: 1mVpp~24Vpp up to 5MHz; 1mVpp~5Vpp > 20MHz.
• Phase Range: 0~359.99° with 0.01° resolution.
• Output Protection: Channels withstand over 60 seconds of short-circuiting.
• Power Supply: 100-240V (AC) wide voltage range.

Package Includes

• 1 x FY6900 DDS Signal Generator
• 1 x Power Cable
• 1 x USB Data Cable
• 2 x BNC-Clip Cables
• 1 x BNC-BNC Cable

Note: FY6900 supports English & Chinese menu switch. The default language is English.
