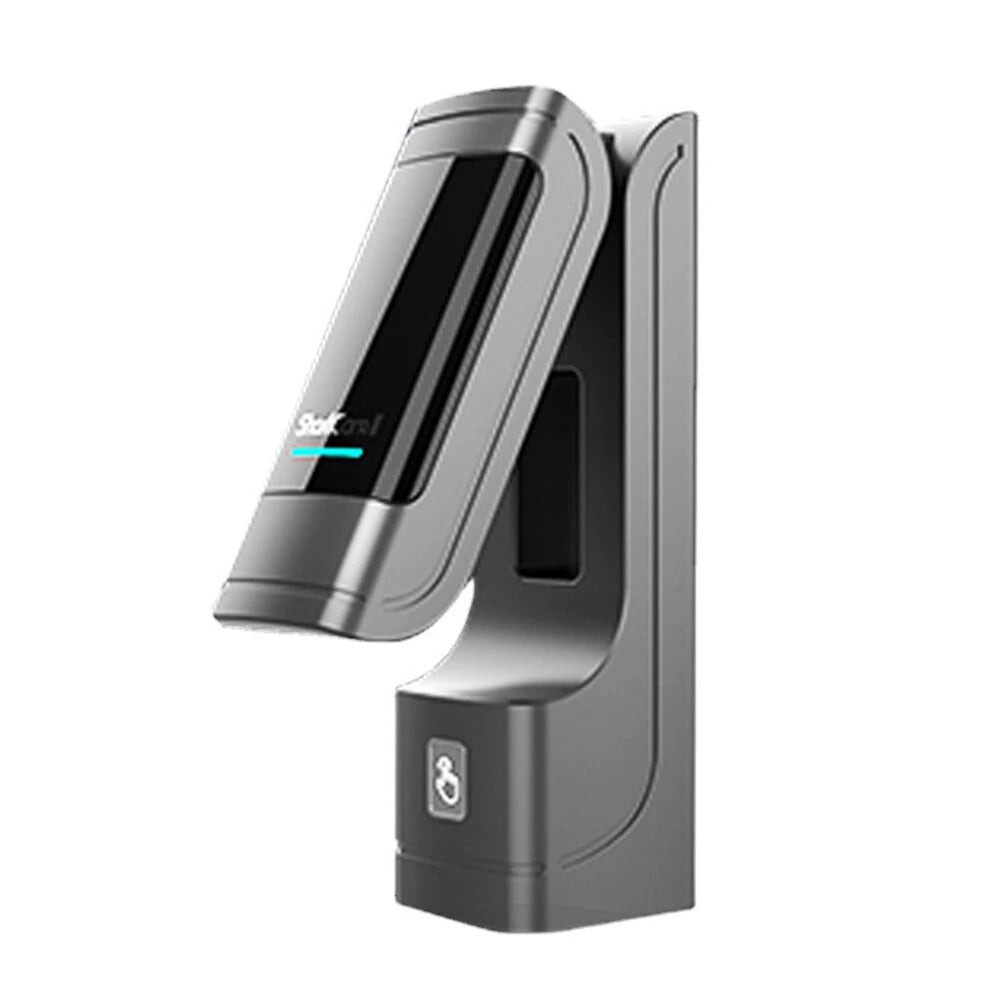

ShortCam II Wide Angle Infrared Thermal Camera - Compact & Precise PCB Troubleshooting

ShortCam II Wide Angle Infrared Thermal Camera - Compact & Precise PCB Troubleshooting

Regular price $379.99 USD
Regular price $0.00 USD Sale price $379.99 USD
Sale Sold out
Shipping calculated at checkout.
Additional Features

Shipping Icon Estimated Delivery: -

ShortCam II Thermal Imaging Camera

ShortCam II Infrared Thermal Imaging Camera

Note: The silicone pad comes in black or grey, chosen at random.

Features

  • High Resolution & Wide Coverage: The ShortCam II boasts a 256x192 resolution for a crystal-clear view. Its wide field of 25 degrees by 18 degrees offers comprehensive diagnostic capabilities.
  • Practical Tools: This camera includes functions such as high/low-temperature tracking, partial amplification, comparative analysis, capture, and video recording, allowing for swift PCB fault diagnosis.
  • Efficient Temperature Measurement: Perform accurate measurements with ±5℃ or ±5% precision across a range from -20℃ to 550℃, enabling quick detection of issues like overheating or short circuits.
  • Compact Design & Power Efficiency: Measuring just 48mm x 48mm x 154mm, the ShortCam II uses only 2.5W of power.
  • Flexible Display Modes: Choose from display modes such as visible light, partial fusion, and quick search for user-friendly operation. It supports JPEG and MP4 formats for easy data handling.

Specifications

  • Thermal imaging resolution: 256x192
  • Pixel size: 12 μm
  • Wavelength range: 8-14μm
  • Field of view angle: 25° x 18°
  • Visible light resolution: 2568H x 1448V
  • Interface: Type-C
  • Display modes: Visible light, partial fusion, quick search
  • Image display format: JPEG
  • Video storage format: MP4
  • Temperature measurement distance: 13 cm
  • Temperature accuracy: ± 5℃ or ± 5%
  • Temperature measurement range: -20℃ to 550℃
  • Product size: 48mm x 48mm x 154mm
  • Output voltage/power consumption: 5VDC/2.5W
  • Storage temperature: -20℃ to 60℃
  • Working environment temperature: 3℃ to 45℃

Package Includes

  • Type A:
    • 1 x ShortCam II Infrared Thermal Imaging Camera
    • 1 x Type-C Interface Cable
  • Type B:
    • 1 x ShortCam II Infrared Thermal Imaging Camera
    • 1 x Pad
    • 1 x Type-C Interface Cable
