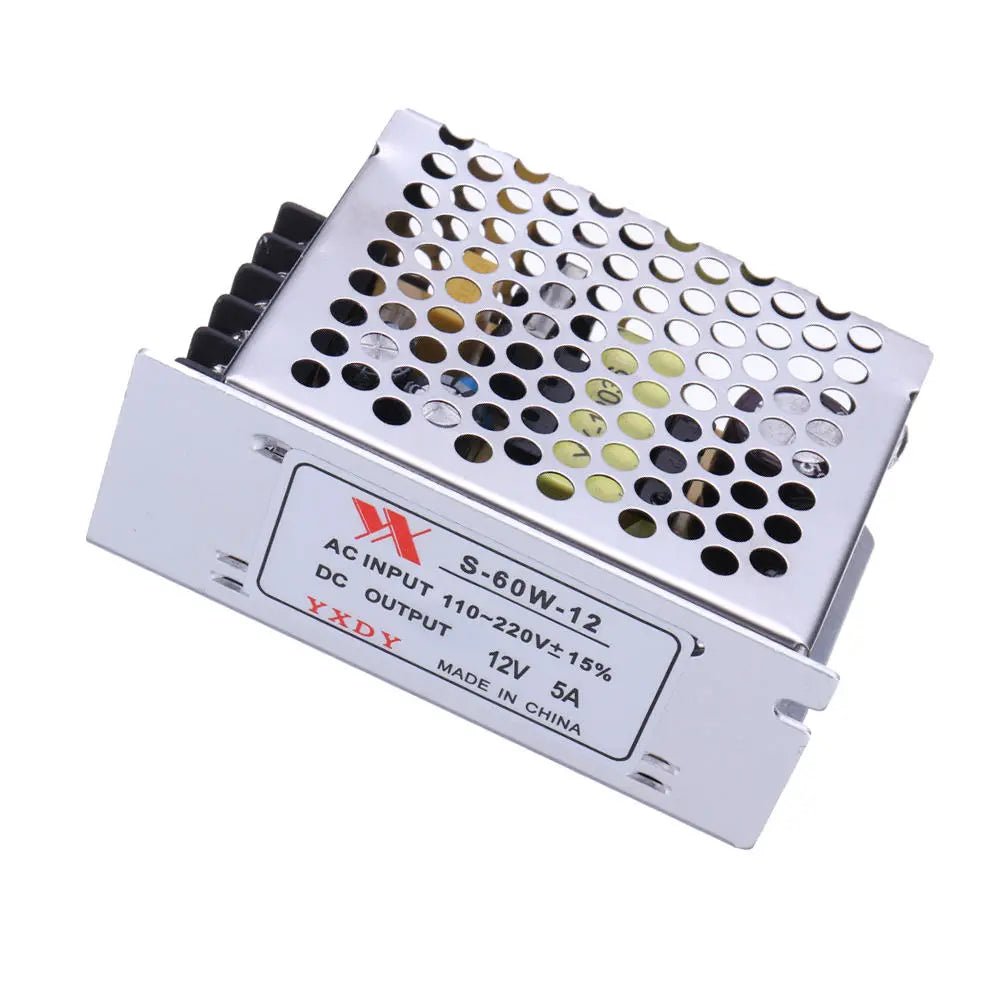

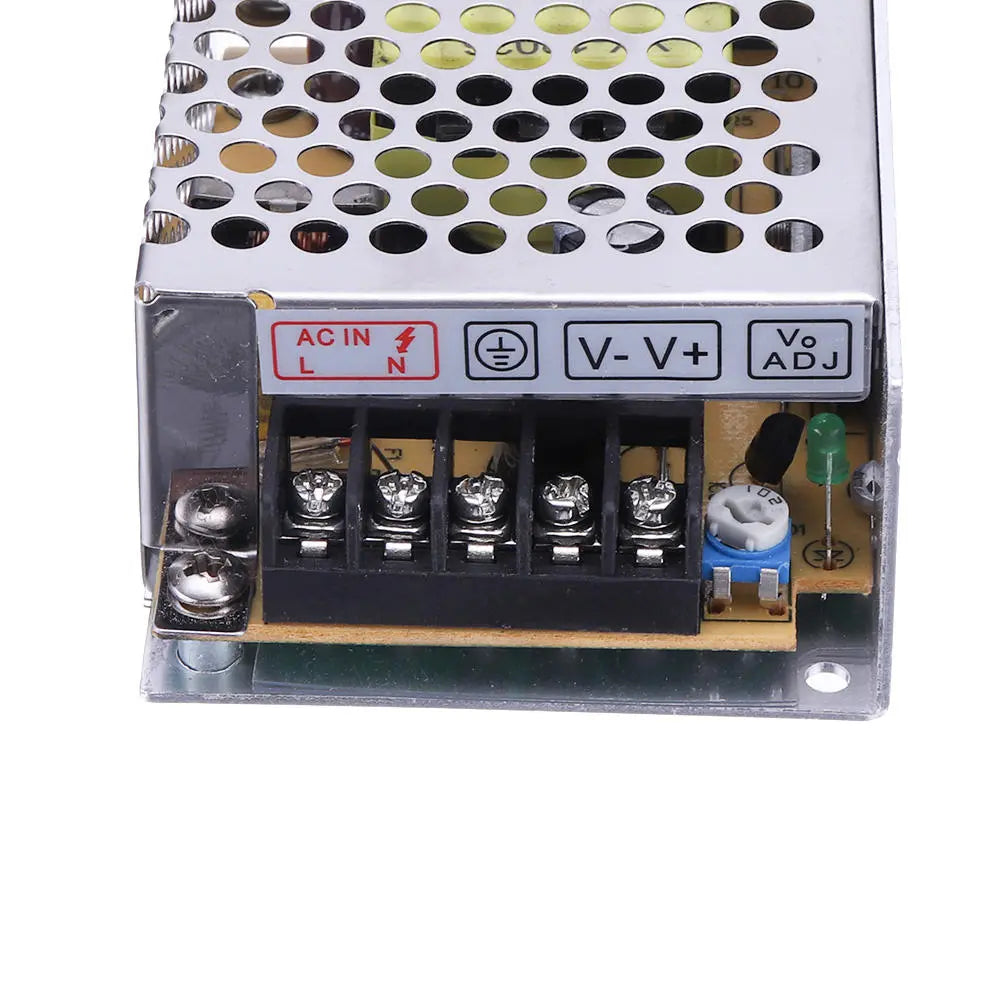

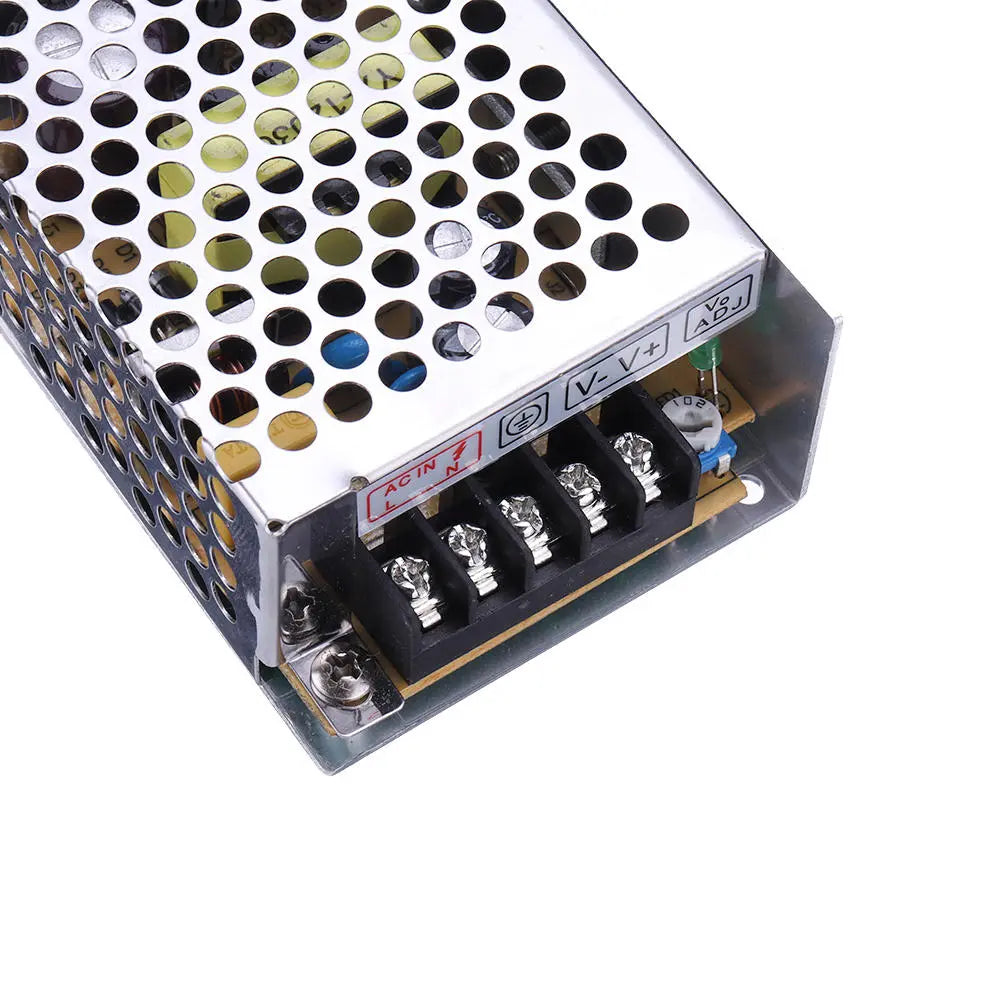

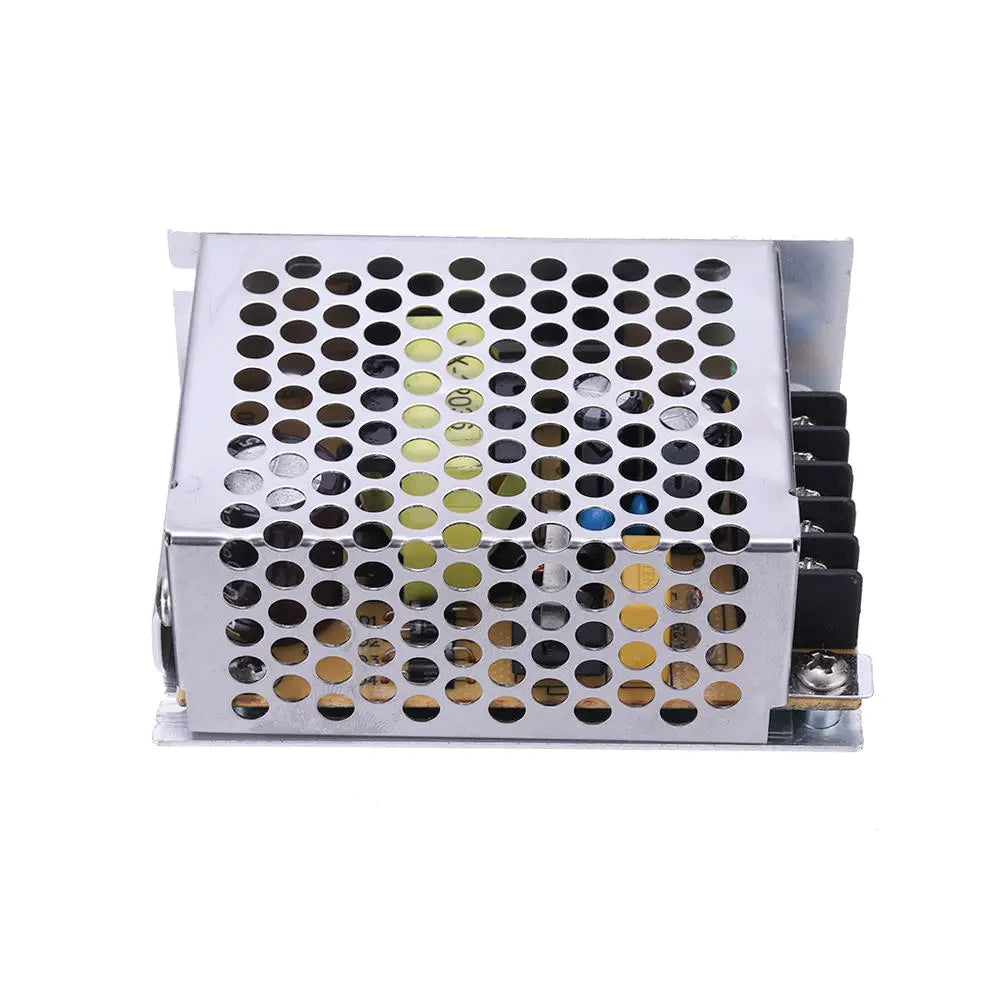

2-Pack 60W AC 100-240V to DC 12V 5A Power Supply Adapter for LED Strip Light

Compatibility

To confirm that this part fits your vehicle, please enter your vehicle's details below.

• Year: Select
• Make: Select
• Model: Select
• Submodel: Select
• Trim: Select
• Engine: Select

This part is compatible with 0 vehicle(s).

This part is compatible with 1 vehicle(s) matching.

This part is not compatible with any of your recent searches.

Recent Searches

• Year
• Make
• Model
• Submodel
• Trim
• Engine

Features

• Good anti-interference performance and high reliability.
• Low operating temperature and long service life.
• Wide input voltage range (100-240V), suitable for global use.
• Good insulation performance and high electric strength.
• Full load high temperature burning machine, 100% aging test.

Specifications

• Model: HS-60-12
• DC output voltage: 12V
• Output voltage tolerance: ±1%
• Rated output current: 5A
• Output current range: 0 - 5A
• Ripple and noise: 100mVp-p
• Line stability: ±0.5%
• Load stability: ±0.5%
• DC output power: 60W
• Efficiency: 85%
• DC voltage adjustable range: ±10%
• Input voltage range: 100 ~ 240VAC, 47 ~ 63Hz; 120-370VDC
• Input current: 2A/115V, 1A/230V
• Inrush current: Cold start current 30A/115V, 60A/230V
• Overload protection: 105%~150%
• Overvoltage protection: 15%-135%
• Temperature coefficient: ±0.03%/°C (0-50°C)
• Start, rise, hold time: 800ms, 50ms/115VAC; 300ms, 50ms/230VAC
• Shock resistance: 10 - 500Hz, 2G 10min, 1 cycle, 60 points each axle
• Pressure resistance: Input/output: 3KvAC; Input/housing: 1.5KvAC; Output/housing: 0.5KvAC
• Isolation resistance: Input/output, Input/housing, Output/housing: 500VDC/100MΩ
• Working temperature: -10°C to +60°C, 20% - 90% RH
• Storage temperature: -20°C to +85°C, 10% - 95% RH
• Dimensions: 85 × 60 × 34mm

Package Includes

• 2 x AC 100-240V to DC 12V 5A 60W Switching Power Supply Module
