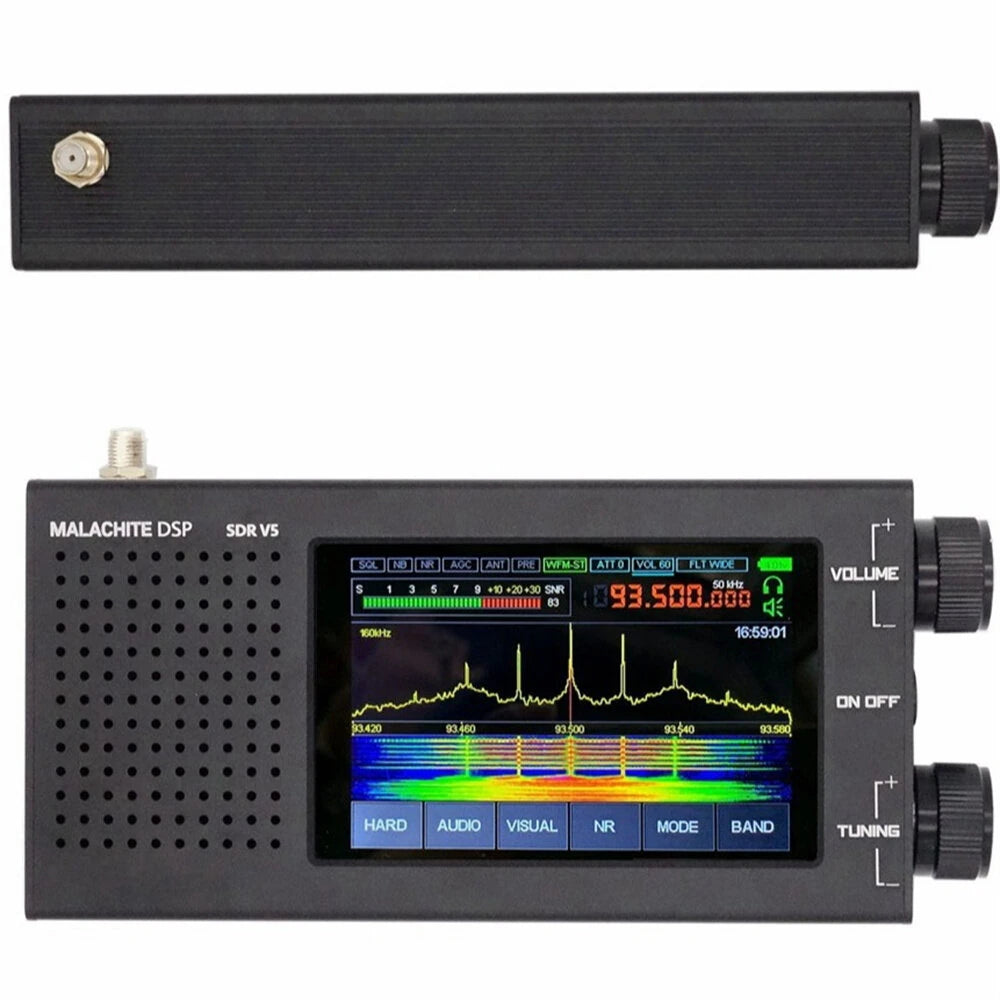

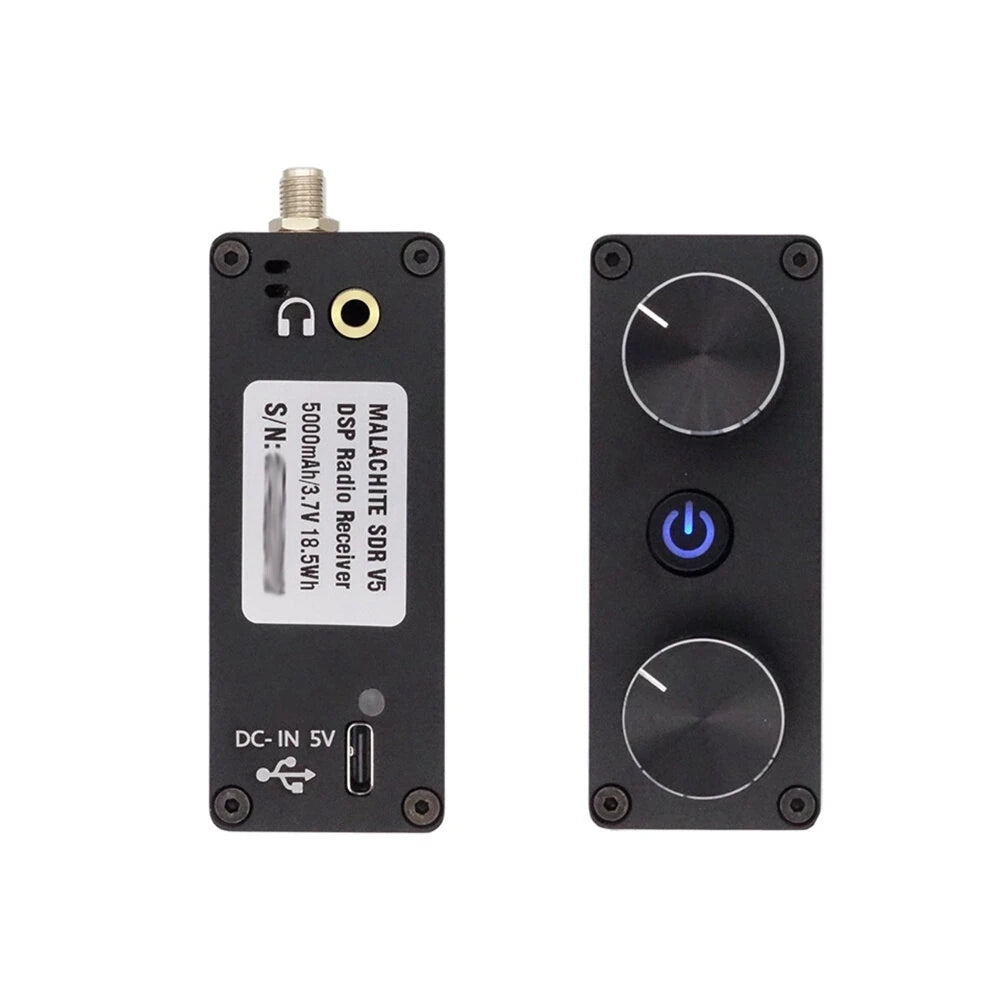

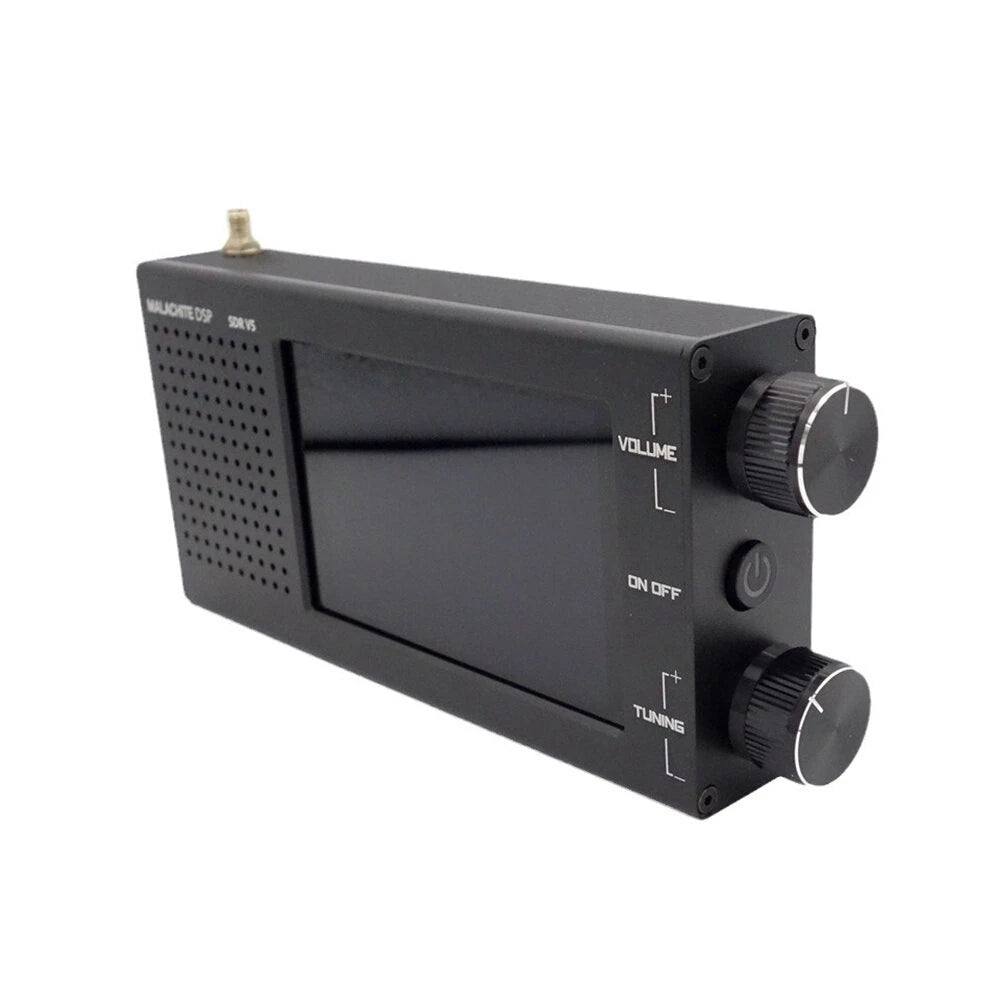

Malachite DSP SDR Receiver V5

Specifications:

• Model: Malachite DSP SDR Receiver V5
• Frequency Range: 10kHz ~ 250MHz, 400MHz ~ 2GHz
• Spectrum Width: 160kHz, 80kHz, 40kHz
• Modulation Types: AM, SSB, DSB, CW, NFM, WFM (Stereo RDS)
• Sensitivity: 0.3uV up to 1GHz
• Dynamic Range: 82 dB
• Antenna Interface: Single SMA gold-plated female connector, supports 50ohm and high impedance modes, with built-in RF preamplifier and 0-30dB programmable RF attenuator
• Battery Capacity: Built-in 3.7V 5000mAh lithium battery, up to 12 hours use per charge
• DSP Software Functions: Variable filter width, adaptive noise reduction (NR), noise blanker (NB), automatic gain control (AGC), automatic notch filter (ANF), RDS FM stereo support, analog stereo, equalizer
• Hardware Features: 480MHz STM32H743 ARM CPU, MSi001 multi-band multi-mode tuner, 3.5-inch 480x320 LCD screen, capacitive touchscreen, two mechanical encoders
• PC Connectivity: USB port for CAT, IQ, and audio data transmission
• CNC Aluminum Housing: Anodized surface treatment
• Dimensions: 162 x 74 x 29mm (L x W x H)
• Weight: 350 grams

Features:

• Enhanced DSP Capabilities: The Malachite DSP V5 delivers advanced digital signal processing (DSP) including variable filter width, adaptive noise reduction, and automatic gain control for a clearer reception. Built-in software features like noise blanker and automatic notch filter enhance listening by minimizing background noise.
• Broad Frequency Range & High Sensitivity: Covering frequencies from 10kHz to 250MHz and 400MHz to 2GHz, this receiver ensures you pick up even the faintest signals with a sensitivity of 0.3uV up to 1GHz and a dynamic range of 82 dB, perfect for serious radio enthusiasts and professionals.
• Long-lasting CNC Aluminum Housing: Designed with a custom CNC-machined aluminum enclosure, the Malachite DSP V5 promises durability and a premium look, thanks to its anodized surface treatment.
• Large Capacity Battery: The 3.7V 5000mAh lithium battery supports up to 12 hours of continuous use, ideal for extended outdoor use. Easily recharge via the included USB Type-C cable.
• Versatile Connectivity & Control: Featuring a USB interface, connect the receiver to a PC for CAT, IQ, and audio data transmission. Includes a capacitive touchscreen and two mechanical encoders for intuitive navigation and control.

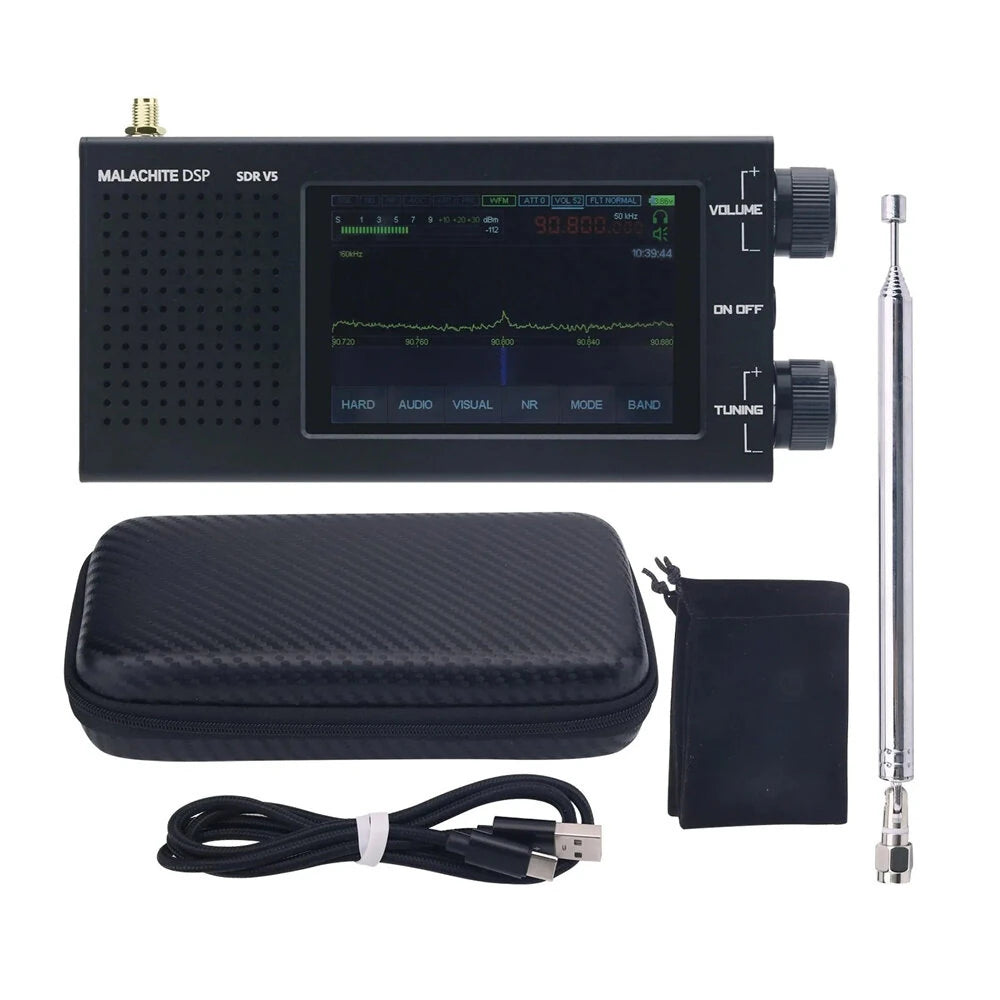

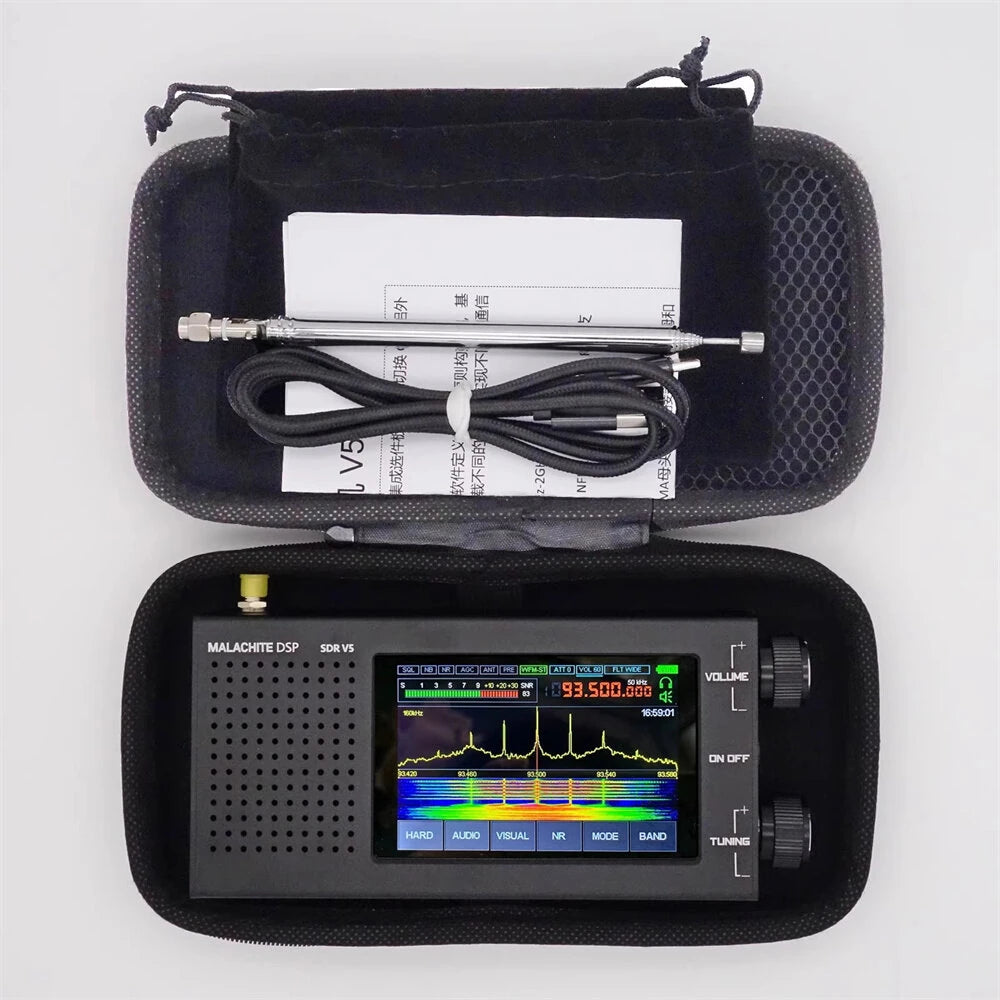

Package Included:

• 1 x Malachite DSP V5 Receiver
• 1 x Antenna
• 1 x EVA Protective Bag
• 1 x Type-C Data Cable
• 1 x Storage Bag
• 1 x User Manual
