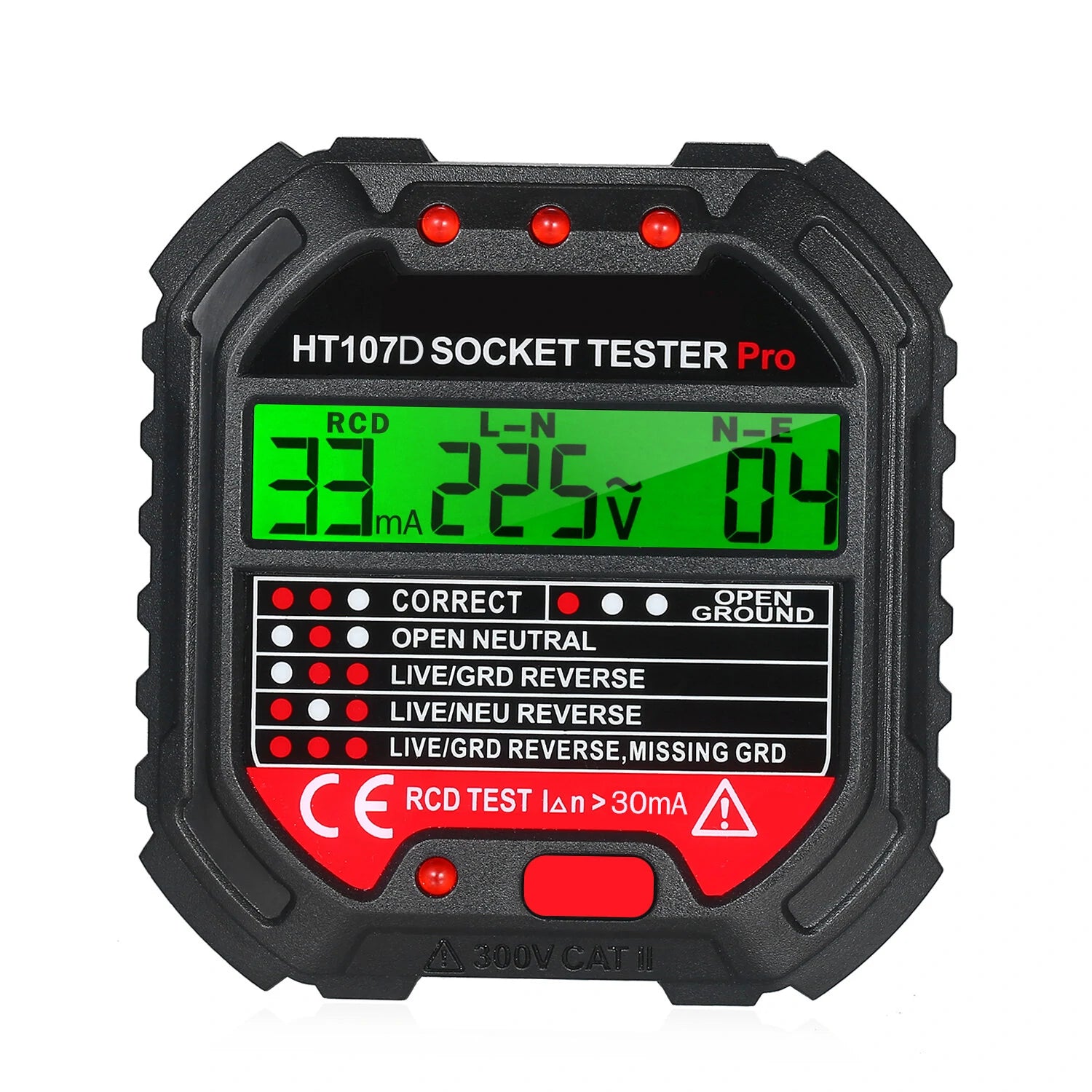

HT106/HT107 Automatic Electric Socket Tester and Voltage Detector

Features

• Portable Electric Socket Tester: This advanced tester rapidly detects correct or incorrect socket wire connections. It is compact, lightweight, and easy to use, featuring a voltage backlight LCD display for convenient voltage testing.
• Plug & Play: Equipped with an RCD/GFCI Test Button, this device allows you to check the leakage protector's working state with one click, providing essential protection against electric shock risks.
• Bright LED Display: The device has clearly labeled light patterns on its back. Red LED indicators are visible in strong sunlight and can also be used in the dark, ensuring quick readings.
• 6 LED Light Patterns: The easy-to-read indicators provide quick socket state identification, including Correct, Open Ground, Open Neutral, Live/Neutral Reverse, Live/Ground Reverse, and Missing Ground.

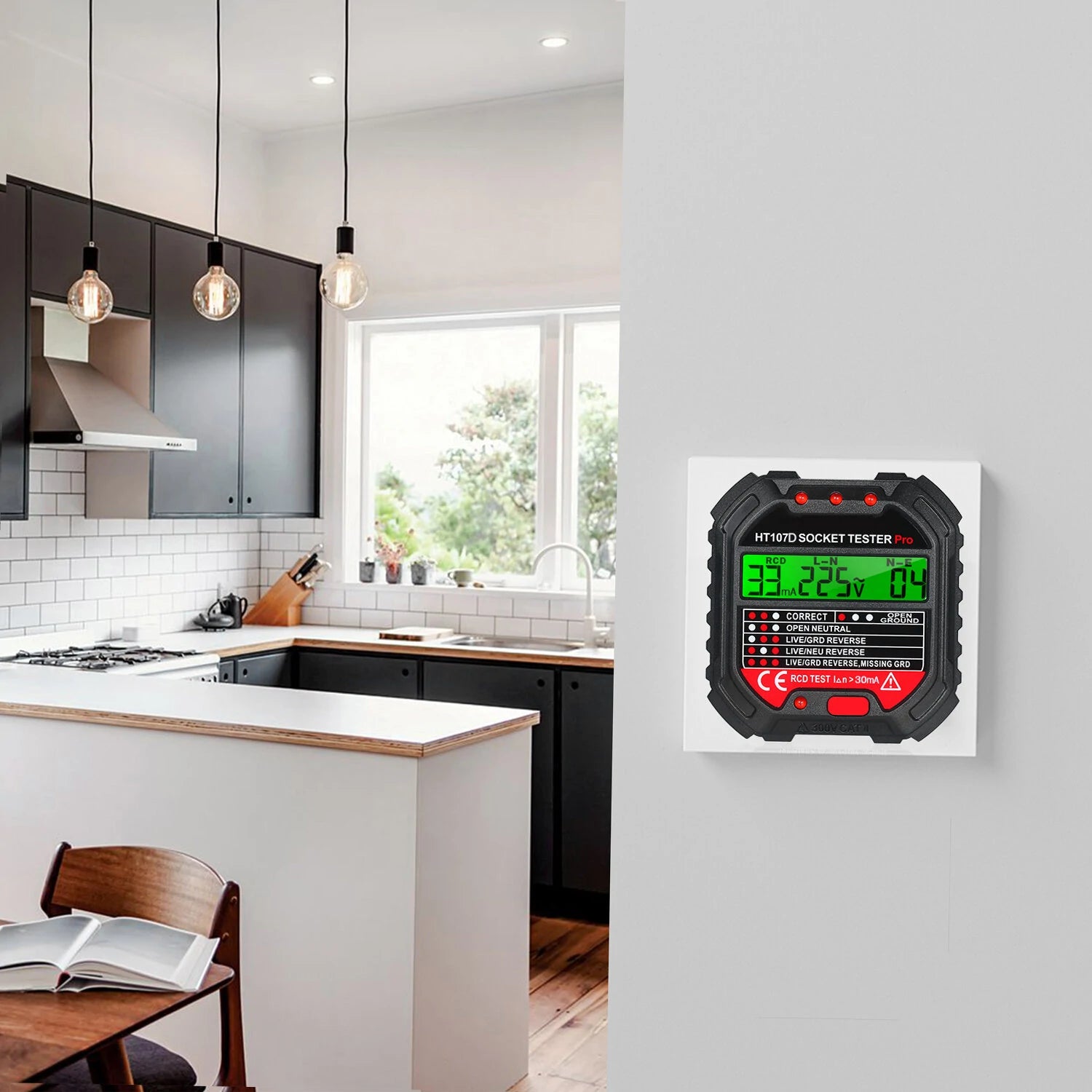

• Wide Application: Ideal for electric maintenance testing, office socket testing, power strips, and wall sockets testing in schools, laboratories, factories, and other areas. It is also perfect for home improvement acceptance and safety inspections, saving you time in diagnosing socket issues.

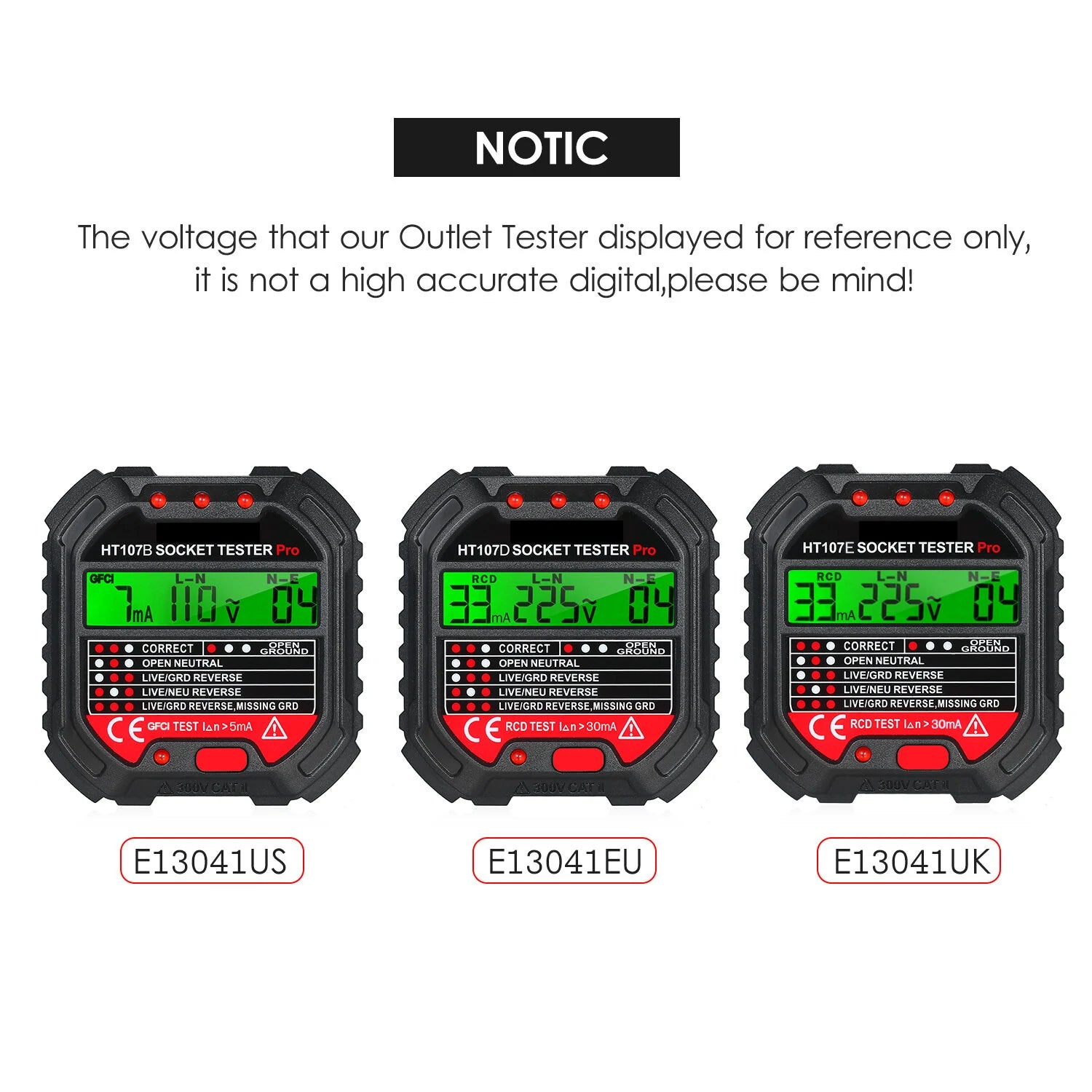

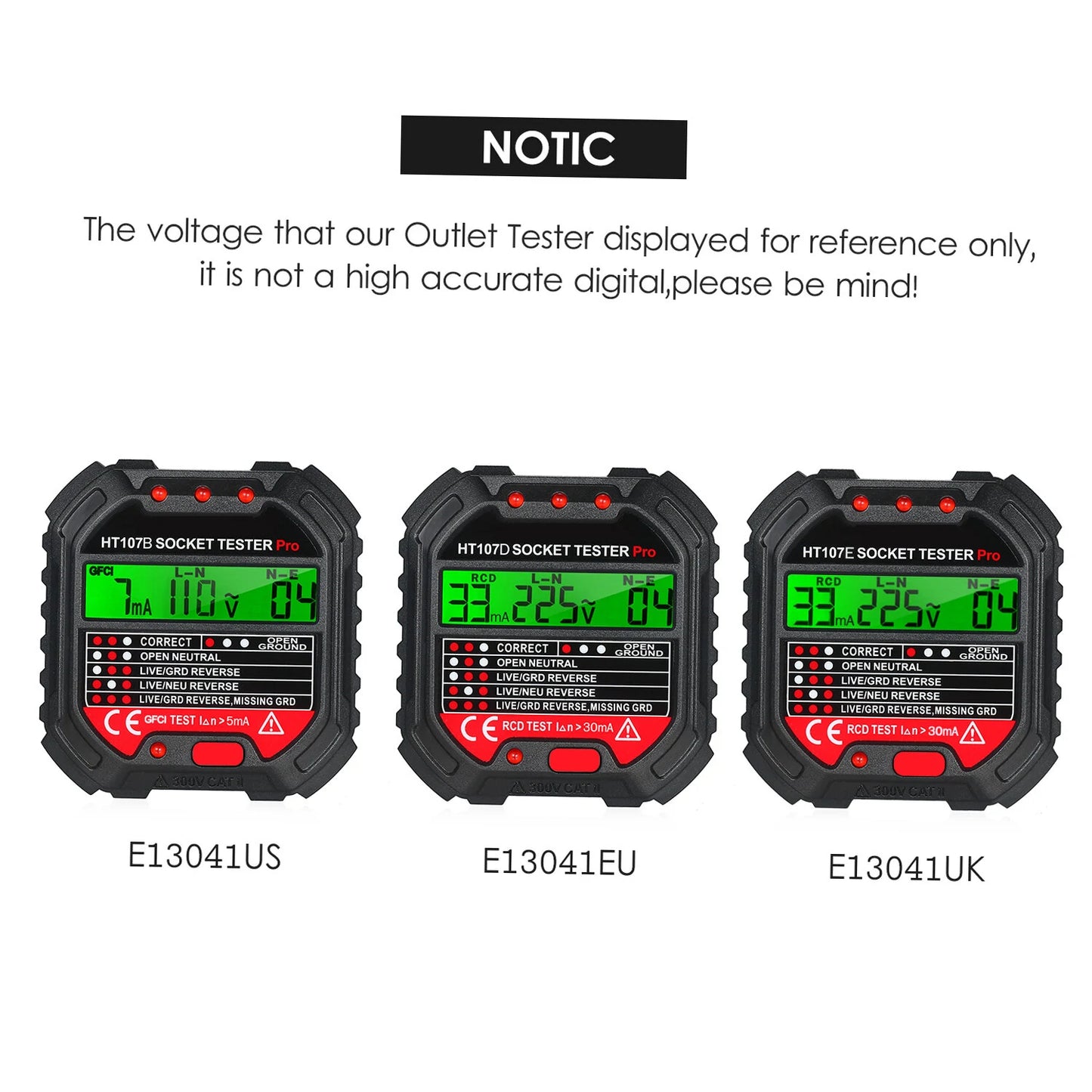

Note

Please be aware that the displayed voltage value is for reference only.

Specifications

• Color: Black

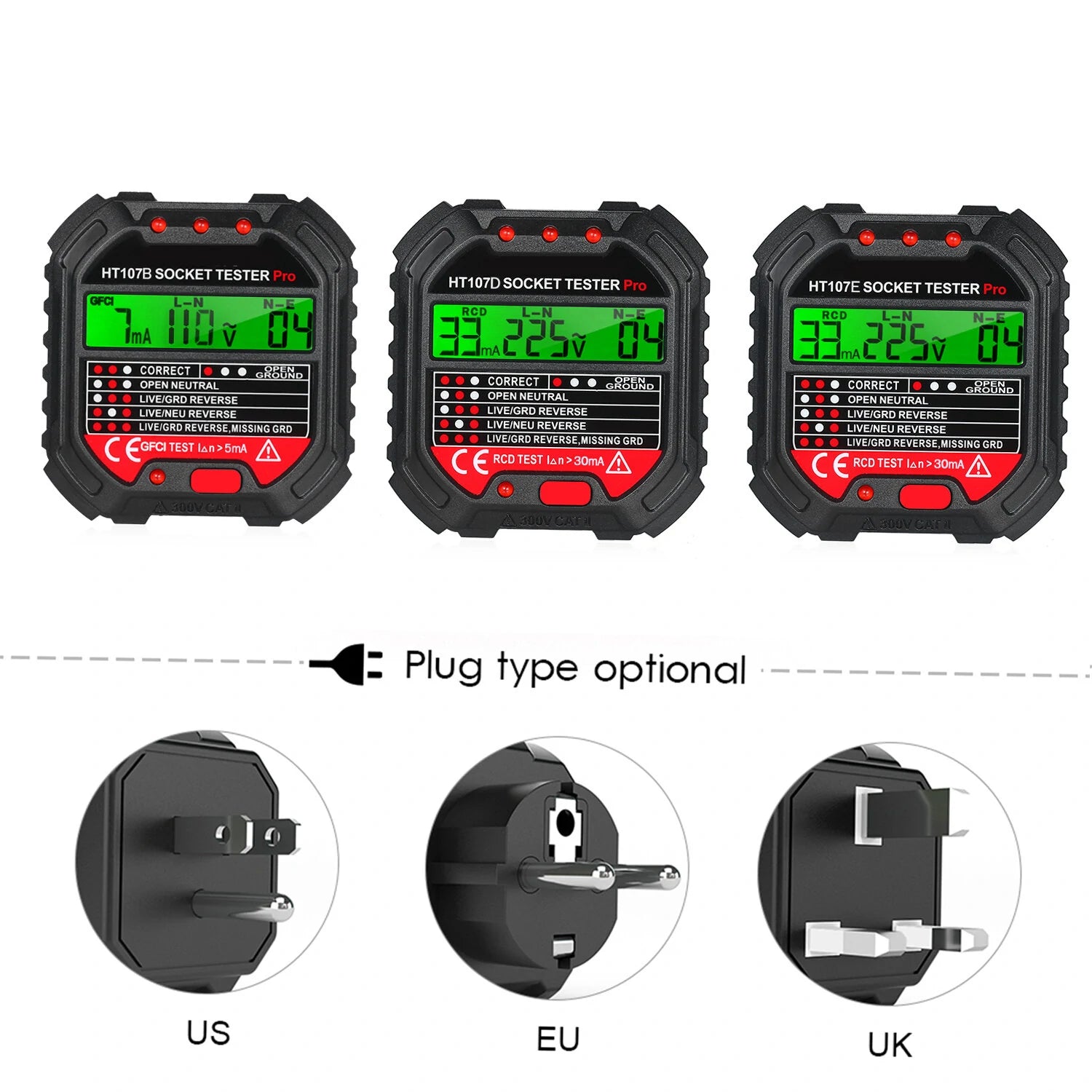

• Model: HT106 / HT107 (EU/UK/US Plug) Optional
• HT106B - US Plug
• HT107B - US Plug
• HT106D - EU Plug
• HT107D - EU Plug
• HT106E - UK Plug
• HT107E - UK Plug
• Material: Flame Retardant ABS
• Operating Voltage: 90~250V/45~65Hz
• Phase Voltage: 90~250V/45~65Hz
• Leakage Voltage: 0~99V/45~65Hz
• Accuracy: ± (2.0%+2)
• RCD Test: ＞30mA (EU/UK Plug)
• RCD Working Voltage: 220V±20V
• GFCI Test: ＞5mA (US Plug)
• GFCI Working Voltage: 110V±20V
• Working Environment: 0℃ ～ 40℃, 20% ～ 75%RH
• Storage Environment: -10℃ ～ 50℃, 20% ～ 80%RH

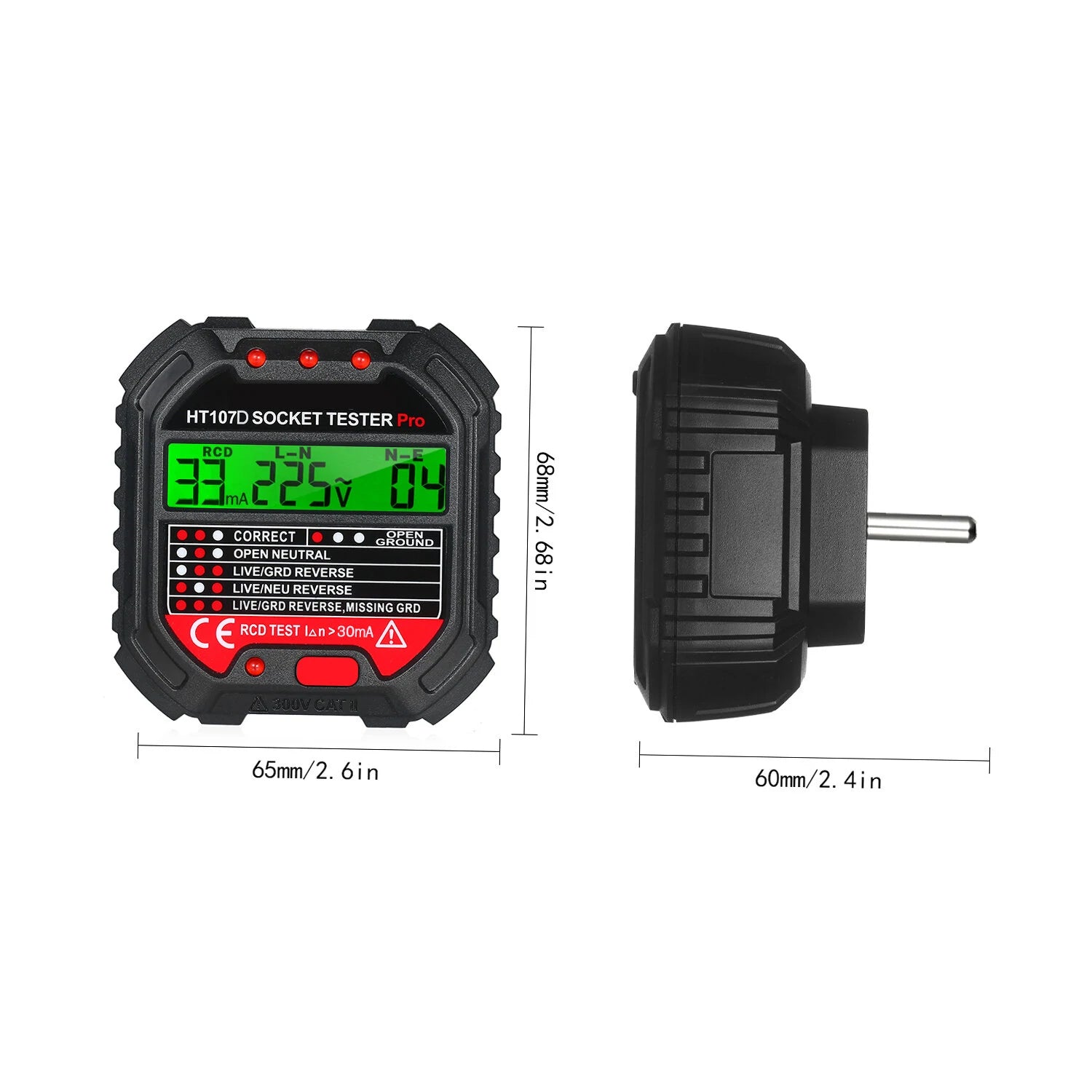

• Item Size: 68 x 65 x 60mm / 2.7 x 2.6 x 2.4in
• Item Weight: 74g / 2.6oz
• Package Size: 83 x 74 x 76mm
• Package Weight: 110g

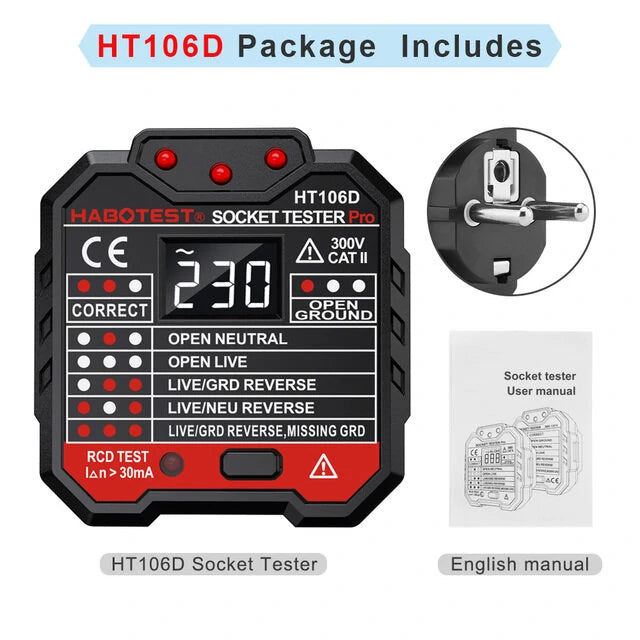

Package Includes

• 1 x Electric Socket Tester
