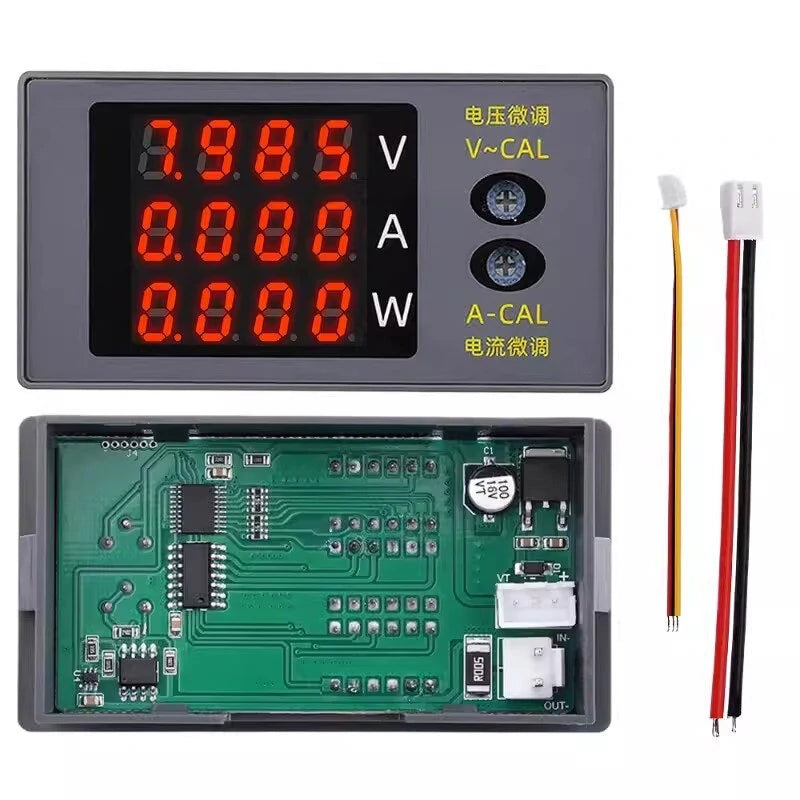

DC730 High Precision Digital Volt-Amp-Watt Meter 0-100V 10A 1000W Energy Current Voltage Monitor

Product Details

• Model: DC730
• Working Voltage: XH-3P red and black wire DC7~30V (Do not exceed voltage limit)
• Voltage Measuring Range: DC0.000~100.0V with an error of ±1.00V, 0.1V increments
• Current Measurement Range: 0.000A~10.00A with an error of ±0.1A, 0.03A increments
• Power Measurement Range: 0.000~1000W
• Energy Consumption: 20mA (DC12V measured)
• Voltage Display Fine-tuning: Supported, adjustable resistance
• Current Display Fine-tuning: Supported, adjustable resistance
• Product Dimensions: 79.3 × 42.1 × 26.2mm
• Installation Opening: 71.7 × 39.1mm

Features

• Constructed with high-quality ASB material, featuring an LED digital display for accurate readings, stable performance, and high efficiency.
• Voltage measurement range from DC0.000 to 100.0V with an error margin of ±1.00V.
• Current measurement range from 0.000A to 10.00A with an error margin of ±0.1A.
• Measures power ranging from 0.000 to 1000W.
• Real-time testing of DC voltage, current, and power with simultaneous on-screen display.
• Supports fine-tuning for both voltage and current display adjustments.

Package Includes

• 1x Power Meter
• 1x XH-2.54-3P Red, Black, and Yellow Wire
• 1x VH-3.96-2P Coarse Red and Black Wire

Wire Explanation

XH-2.54-3P Wire (155mm): Thin wire for various connections.
- Thin Red Wire: Connects to the positive pole of the working power supply (not to exceed 30V).
- Thin Black Wire: Connects to the negative pole of the working power supply; can share the connection with the thick black wire.
- Thin Yellow Wire: Voltage test wire, connects to the positive pole of the test circuit power supply.

VH-3.96-2P Wire (165mm): Thick wire for current testing.
- Thick Red Wire: Current test positive pole, connects inline with the load's negative end.
- Thick Black Wire: Current test negative pole, connects to the power supply's negative terminal.

Shunt Connection: On-board low temperature drift alloy resistor shunt to be connected as per the wiring diagram for effective use.
