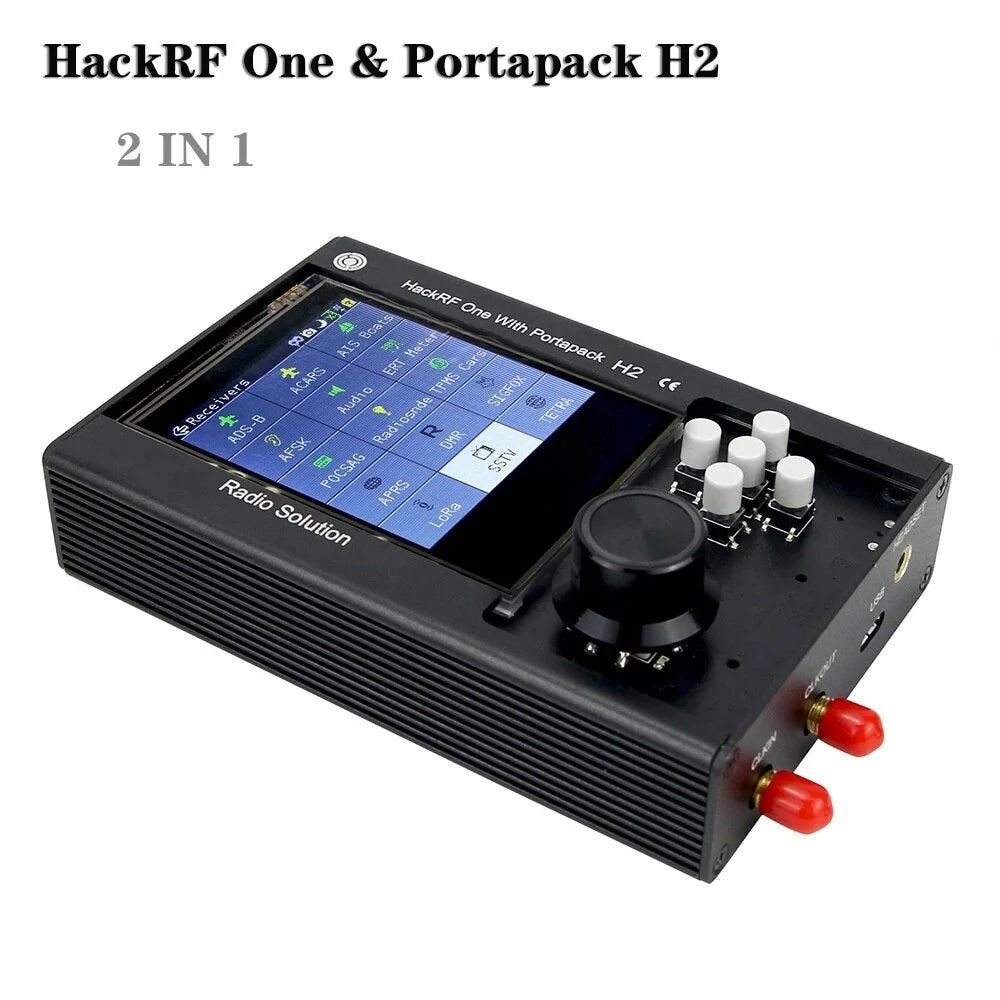

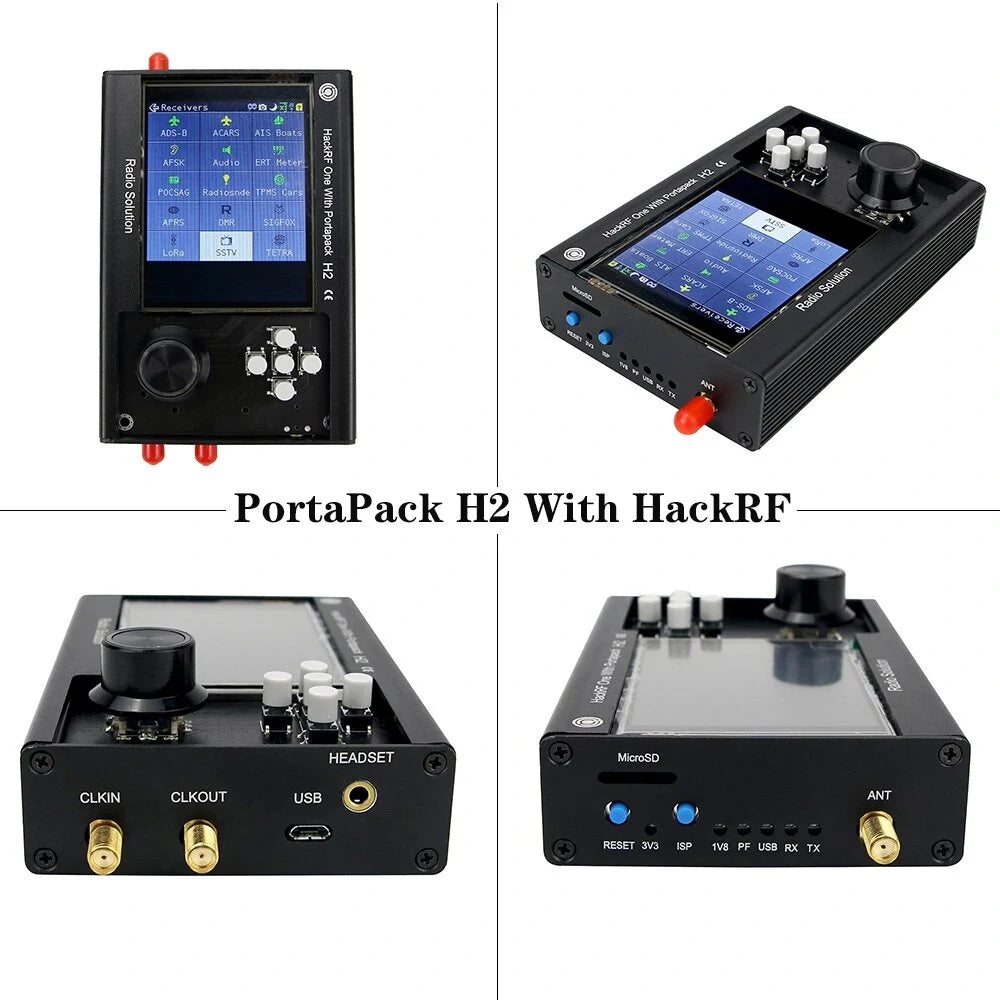

PortaPack H2 & HackRF One SDR: 1MHz-6GHz Assembled Radio with Antennas & Rechargeable Battery

Hardware Configuration:

• 3.2 inches TFT 240 x 320 screen
• Navigation switch
• Audio output
• Microphone input
• DC 2.1 interface
• 4-layer gold plate
• ROSH process

Enhance your software-defined radio HackRF with the PortaPack, eliminating the need for a laptop! The PortaPack connects to your HackRF, adding an LCD touchscreen, navigation controls, headphone jack, real-time clock, and micro SD card slot.

Simply attach a USB battery, and you're equipped to explore the radio spectrum anywhere. The PortaPack firmware leverages the fast ARM processors in your HackRF, operating independently of a computer (except for firmware updates).

Functions:

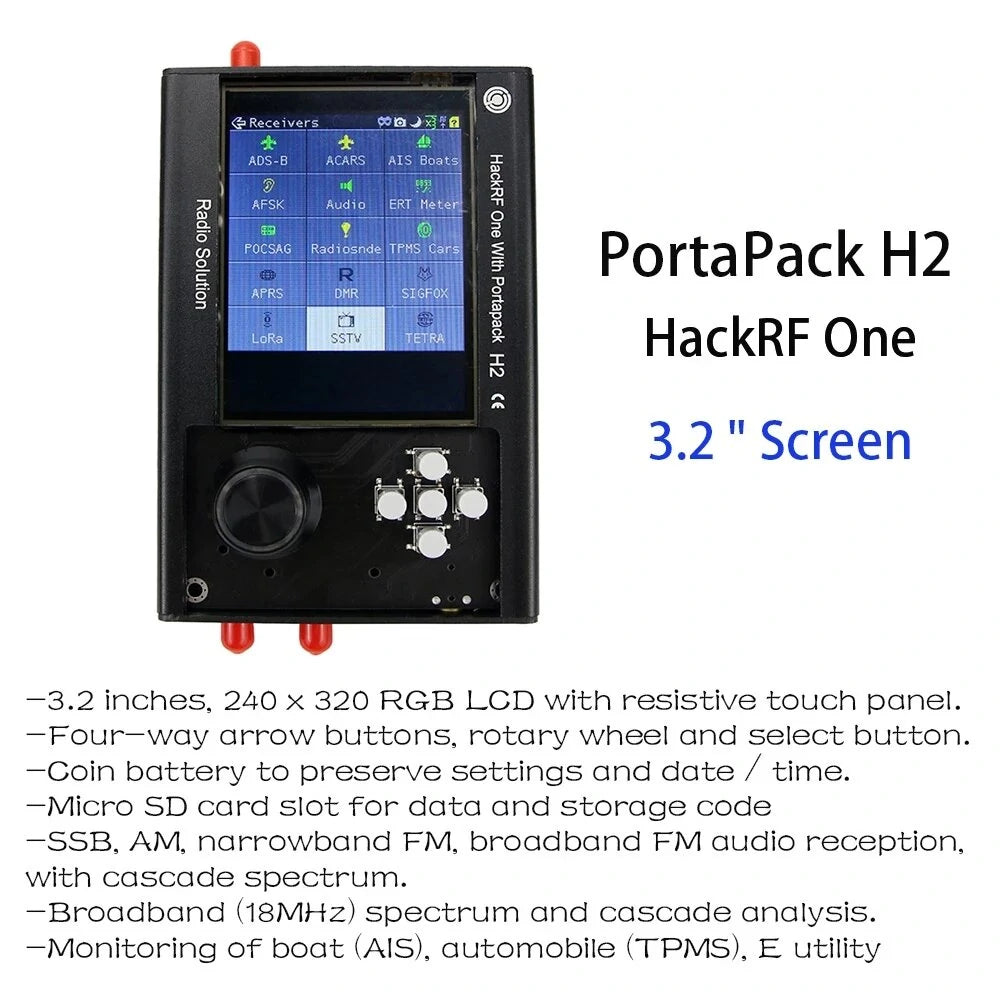

• 3.2 inches, 240 x 320 RGB LCD with resistive touch panel
• Four-way arrow buttons, rotary wheel, and select button
• Coin battery to retain settings and date/time
• Micro SD card slot for data and storage
• SSB, AM, narrowband FM, broadband FM audio reception with cascade spectrum
• Broadband (18MHz) spectrum and cascade analysis
• Monitoring of AIS (boats), TPMS (automobiles), and ITRON ERT (utility counters)
• HackRF mode runs HackRF firmware for use with SDR host computer software
• Calibration PPM for precise tuning
• Sleep mode conserves energy by only turning off the display

Features:

• Compatible with HackRF Unio; not compatible with the first HackRF Jawbreaker design
• Works with SDR software in "HackRF mode"
• Reception sensitivity varies by band, not a substitute for handheld ham radio receivers
• Built-in rechargeable lithium battery

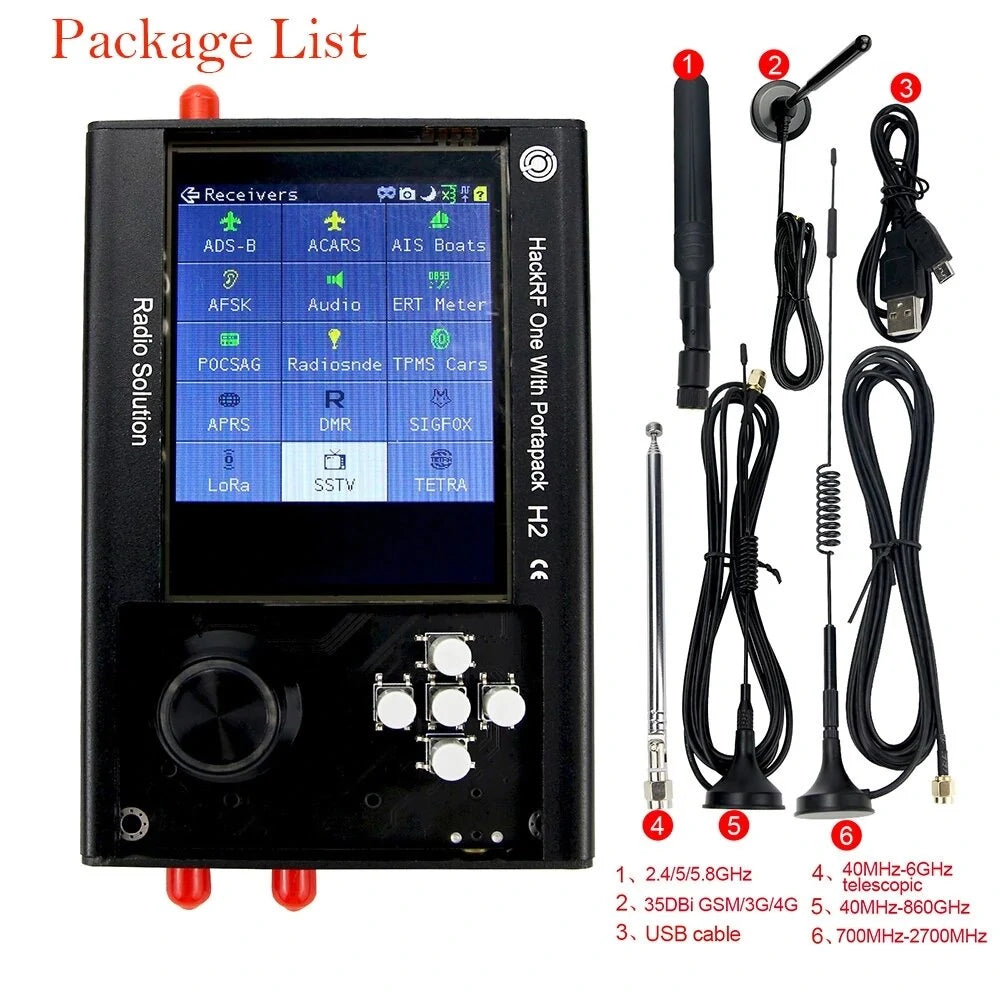

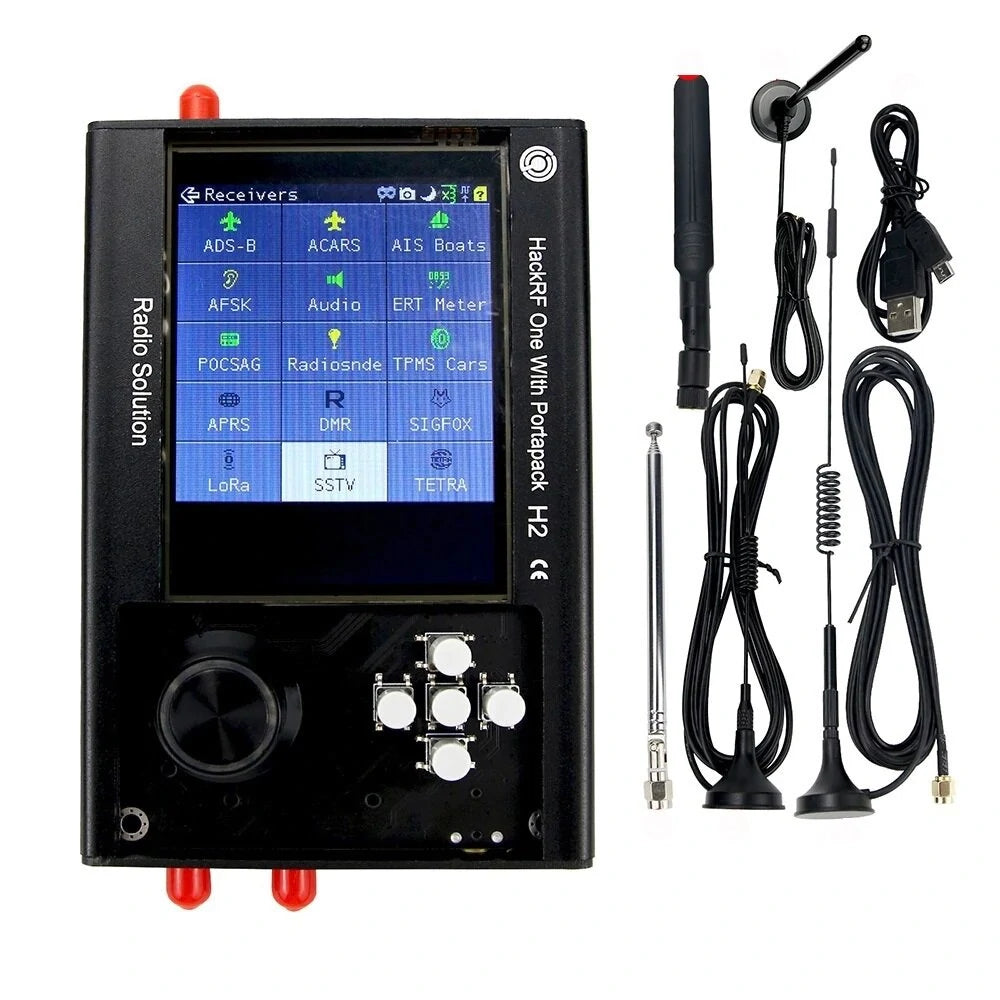

Package Includes:

• 1 x SDR Radio (PortaPack H2 + HackRF)
• 1 x Data Cable
• 5 x Antennas

Note:

• The product comes assembled.
• The battery is included.
