UNI-T UTi260V Thermal Camera: 256x192 Infrared, 5MP Visible, -20~550℃, 30m Laser Range, App/PC Connectivity

Thermal Imaging Camera Overview

Discover the capabilities of the UNI-T UTi260V Thermal Imaging Camera. This state-of-the-art device is designed to deliver precision, versatility, and user convenience.

Key Features:

• High-Resolution Imaging: Experience superior image clarity with an infrared resolution of 256 x 192 and a visible light resolution of 5 million pixels. Ideal for accurate temperature assessments and fault diagnostics.
• Wide Temperature Range & Measurement: Capable of measuring temperatures from -20 to 550 ℃ with exceptional accuracy (± 2 ℃/± 2%), ensuring adaptability for various applications.

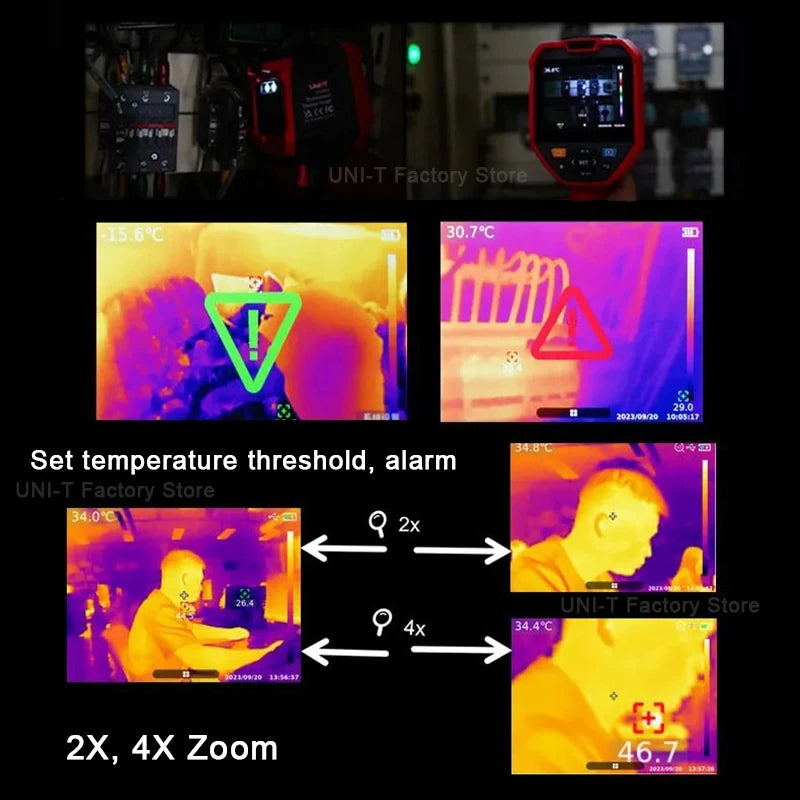

• Advanced Image Modes: Choose from thermal imaging, visible light, T-Mix/dual light fusion, and picture-in-picture modes to suit diverse environments and enhance image detail.

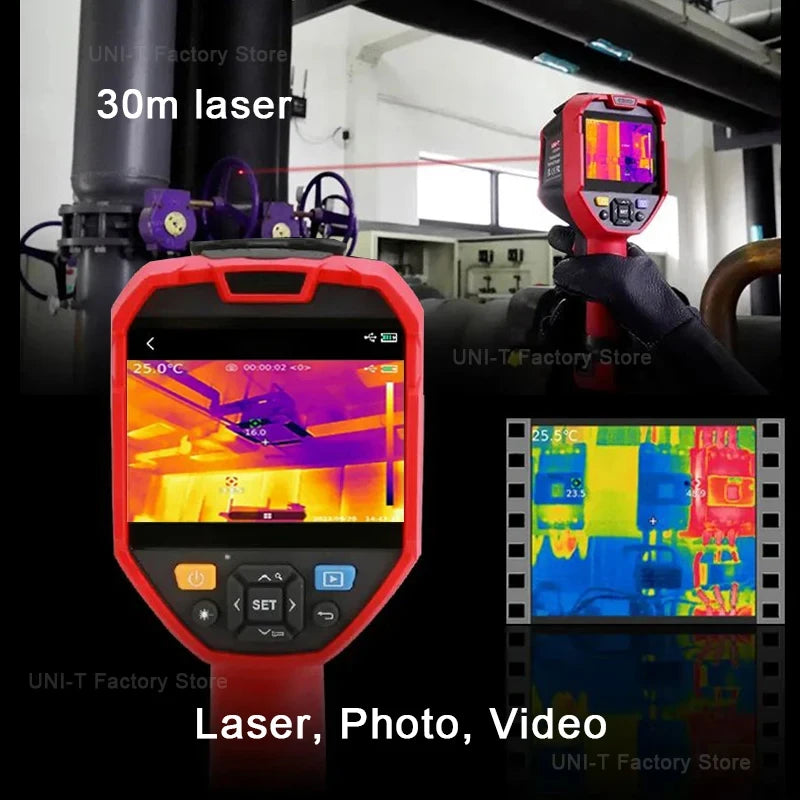

• Integrated Laser Ranging: Safely measure distances up to 30m with the built-in laser ranging feature, ensuring accurate data collection from secure distances.

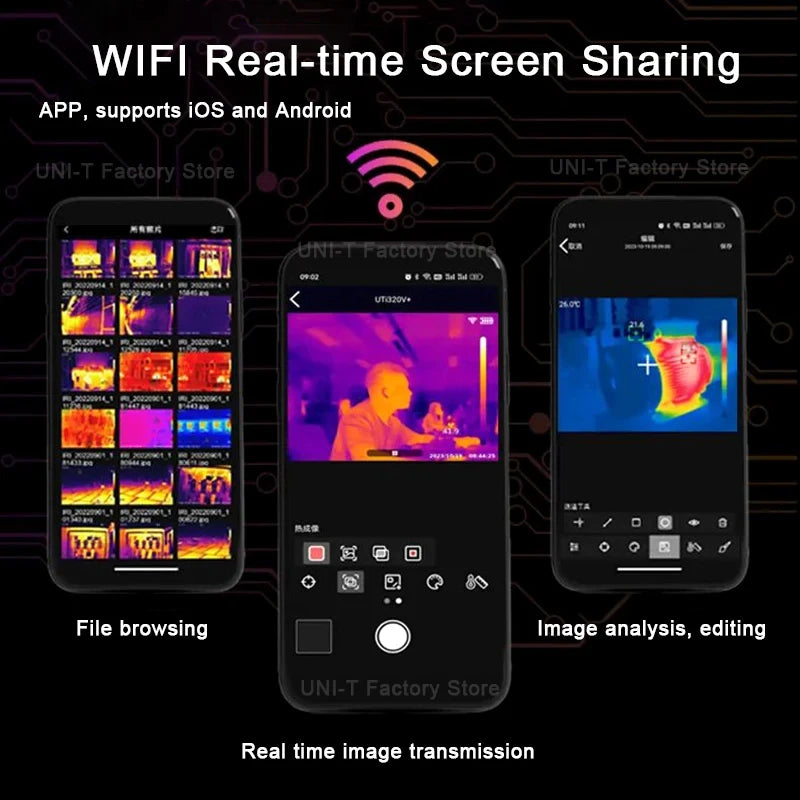

• Comprehensive Analysis & Connectivity: Benefit from real-time image transmission via a mobile app and PC software. Easily store photos and videos for in-depth analysis and report generation.

Technical Specifications:

• Brand Name: UNI-T
• Model: UTi260V
• Infrared Resolution: 256 x 192
• Visible Light Resolution: 5 Million Pixels
• Display: 3.5" LCD touch screen, 640 x 480 resolution
• Temperature Range: -20 to 550℃
• Laser Ranging: 0.3 to 30m

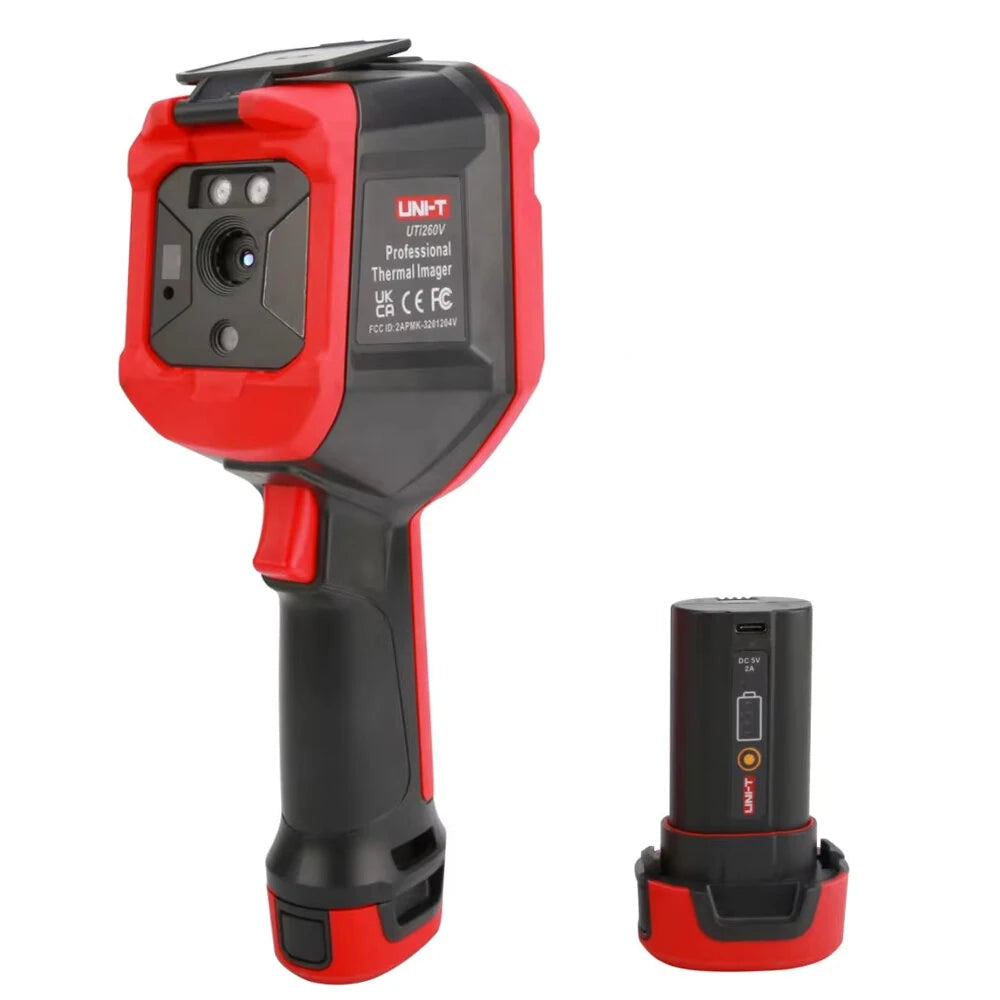

• Battery: 3.7V, 5200mAh replaceable
• Protection Level: IP54, 2m drop protection
• Dimensions: 620 x 98 x 96.5mm
• Weight: 665g

Package Includes:

• 1 x Infrared Thermal Imager
• 2 x Batteries
• 1 x USB Cable
• 1 x Micro SD Card
• 1 x Instruction Manual
• 1 x High-Strength Impact Resistant Portable Case
