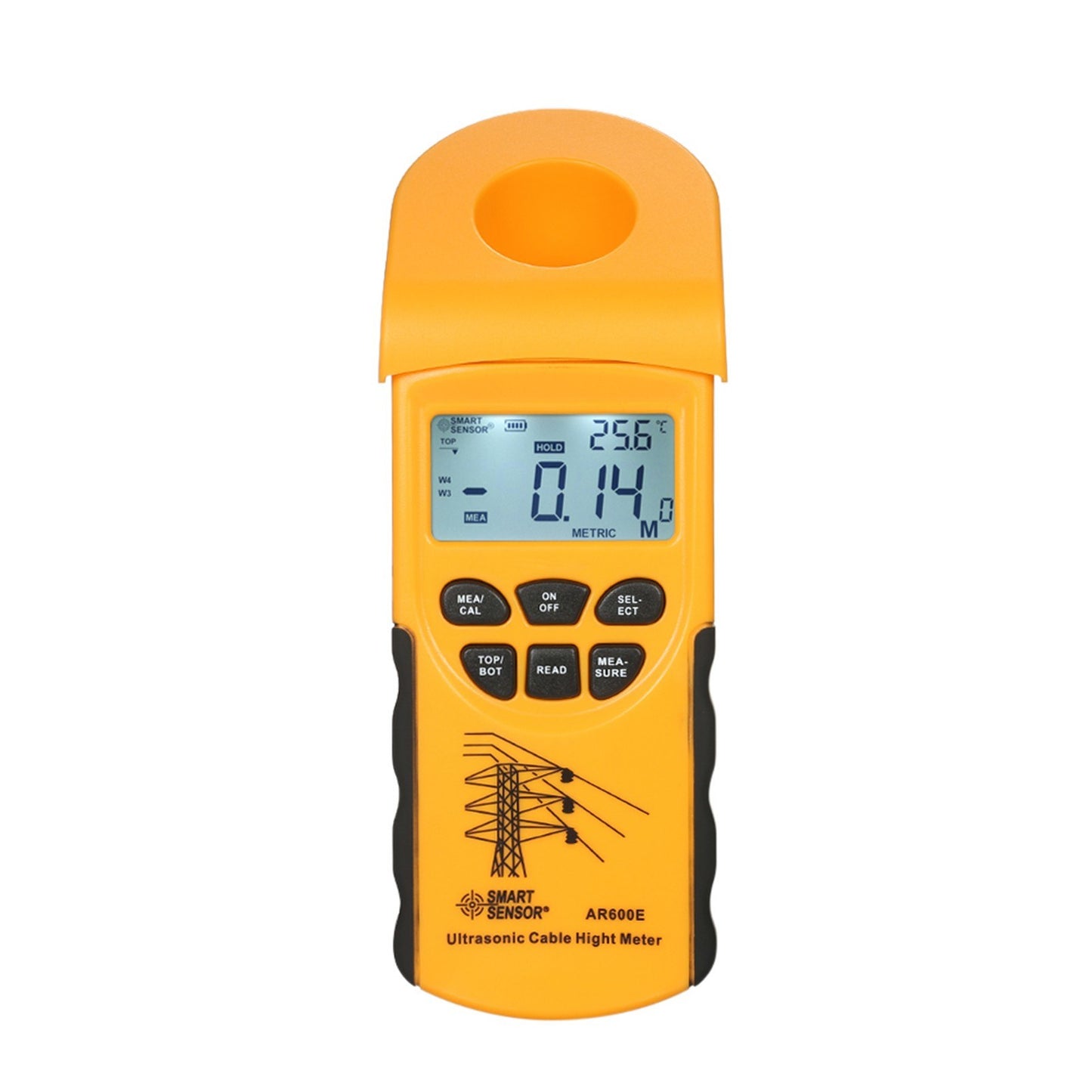

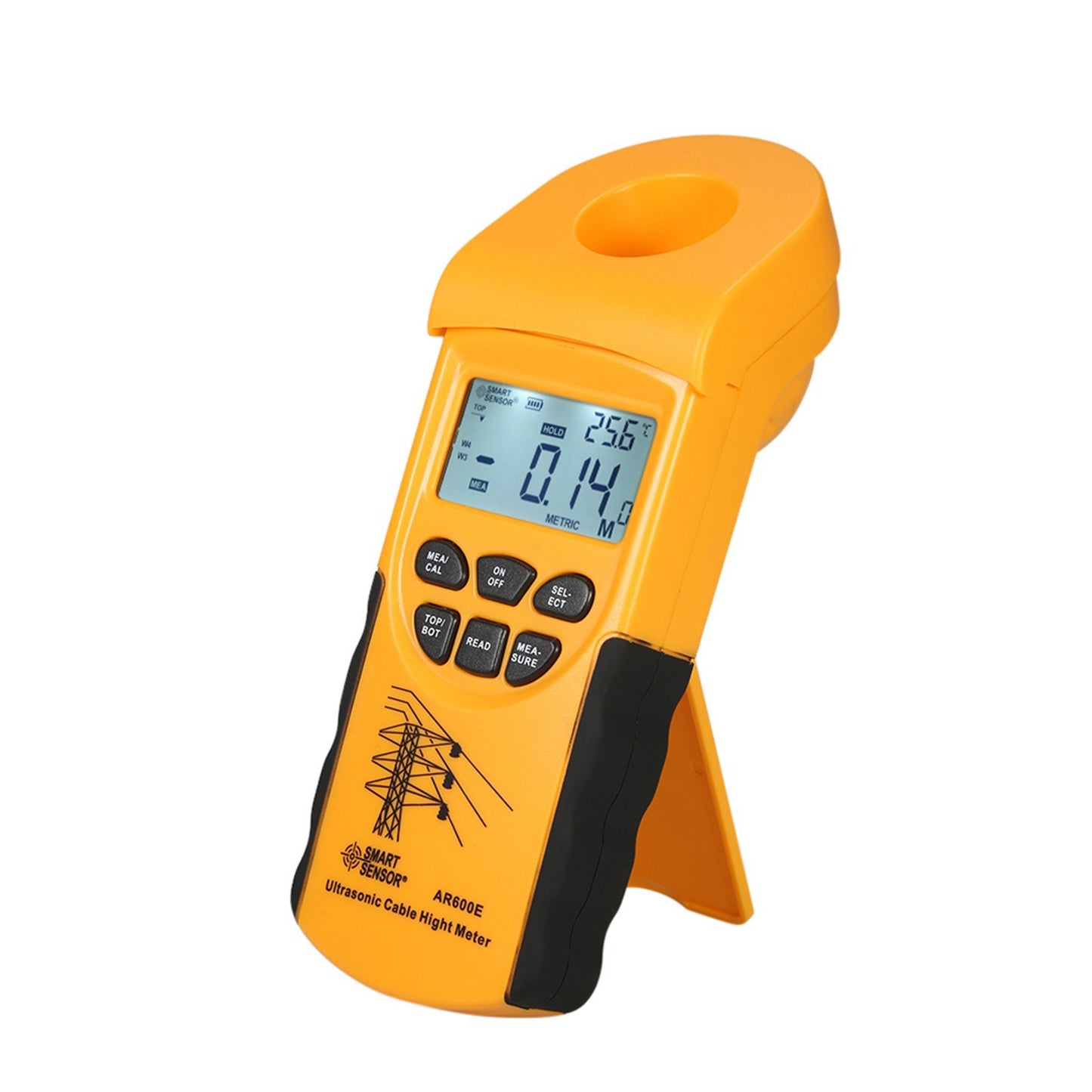

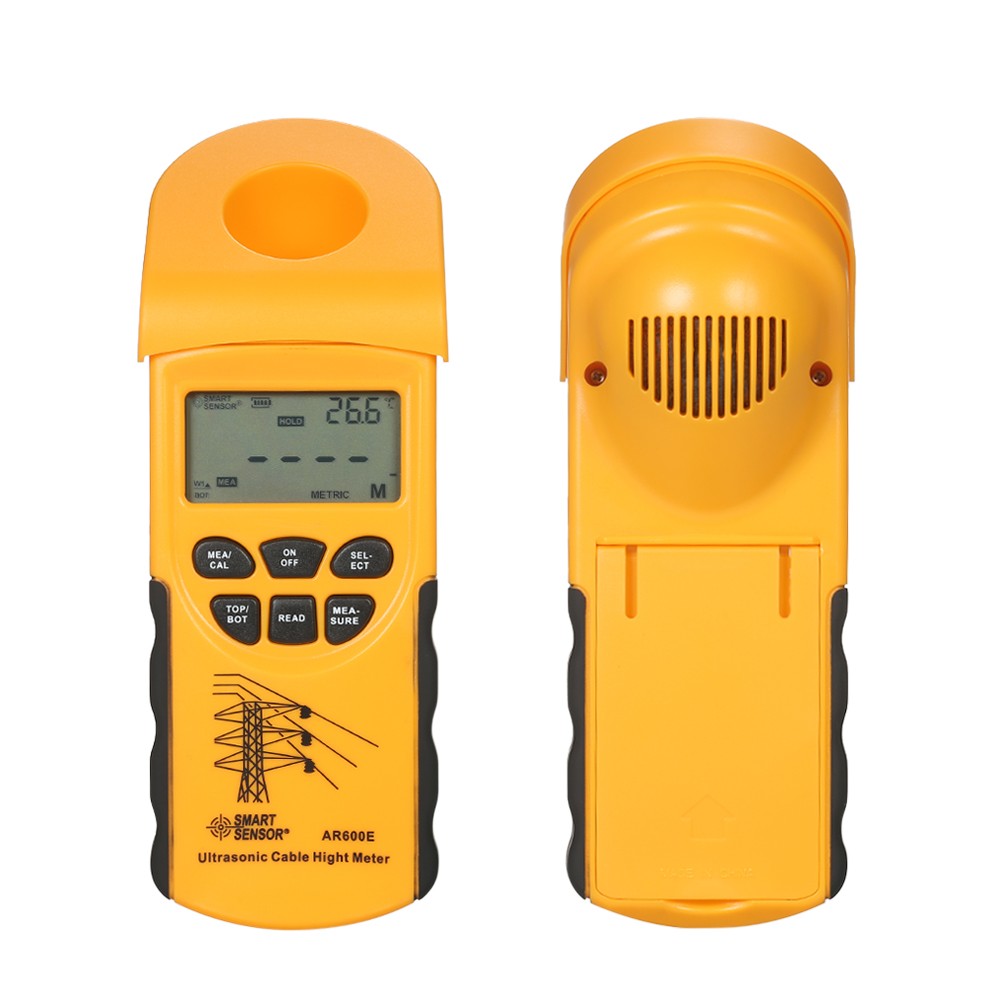

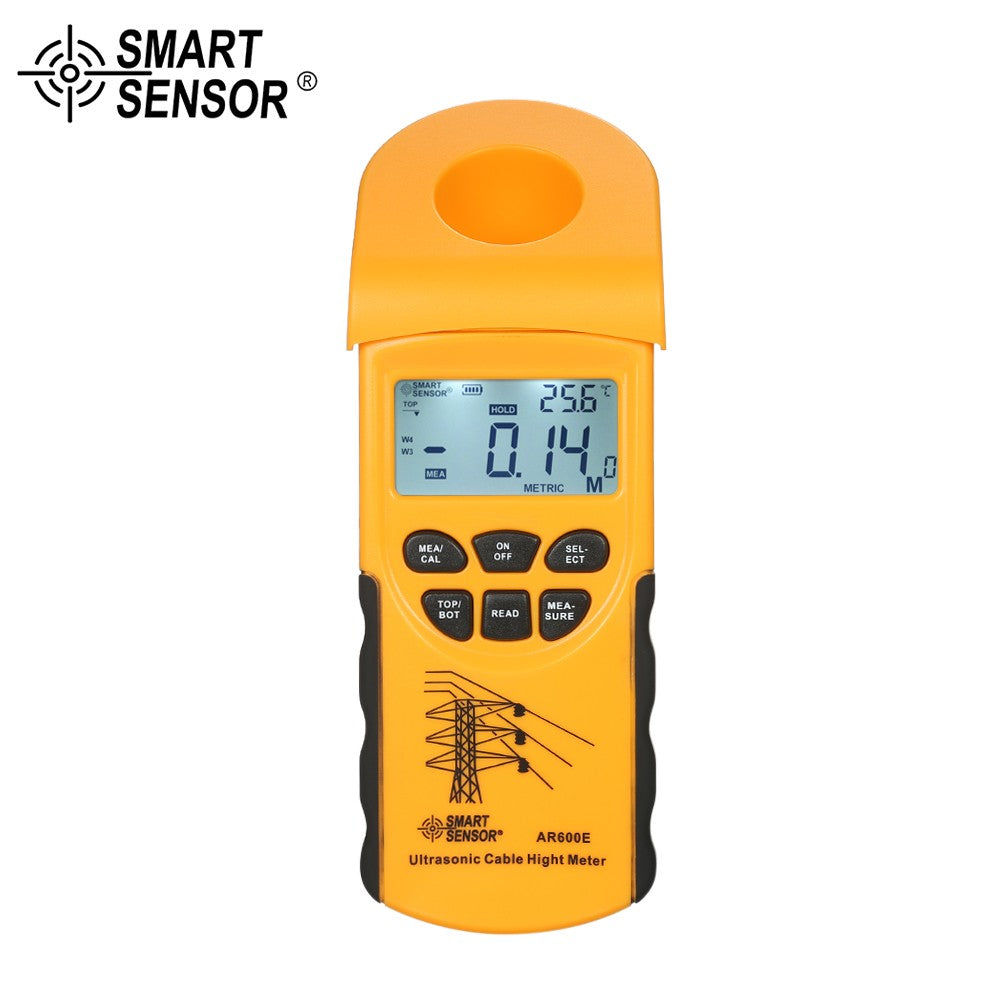

Professional Digital Cable Height Meter

Experience fast, accurate, and safe cable height measurements with our Professional Digital Cable Height Meter. Utilizing advanced ultrasonic technology, it provides precise readings swiftly, ideal for various cable applications.

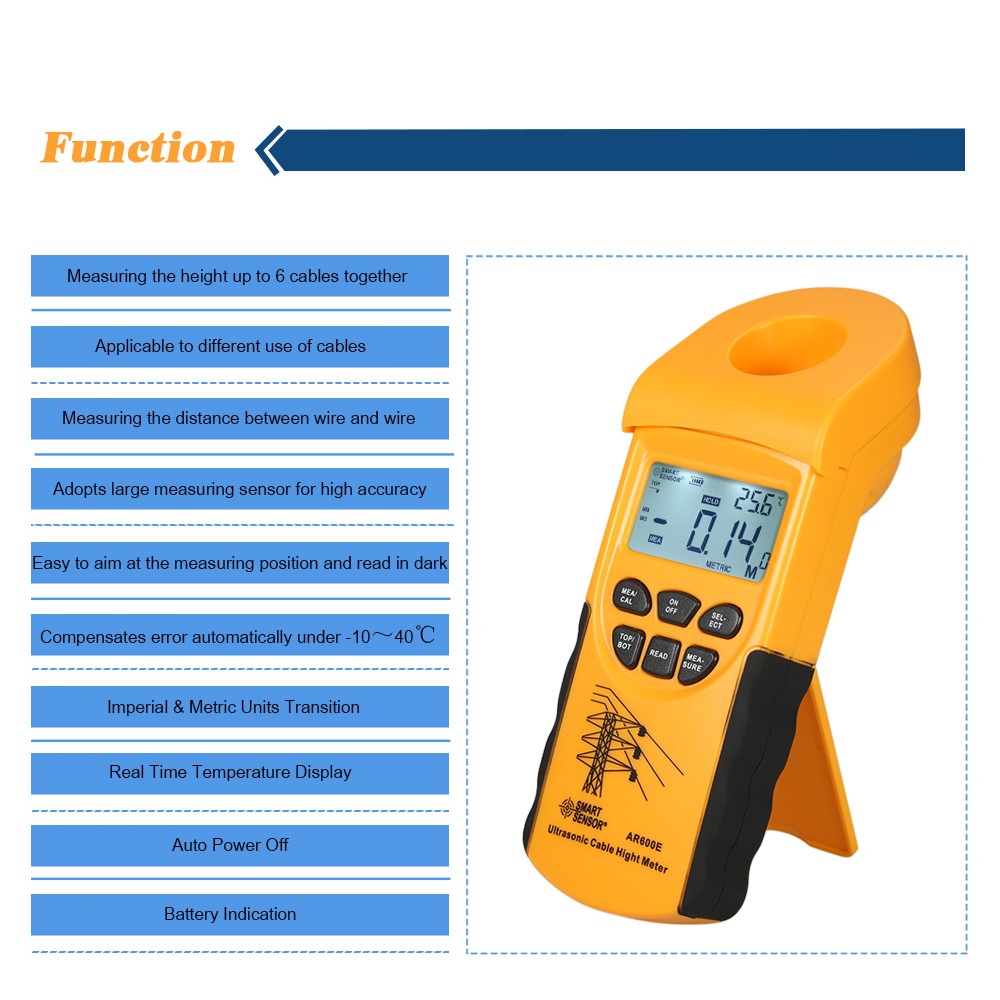

Features

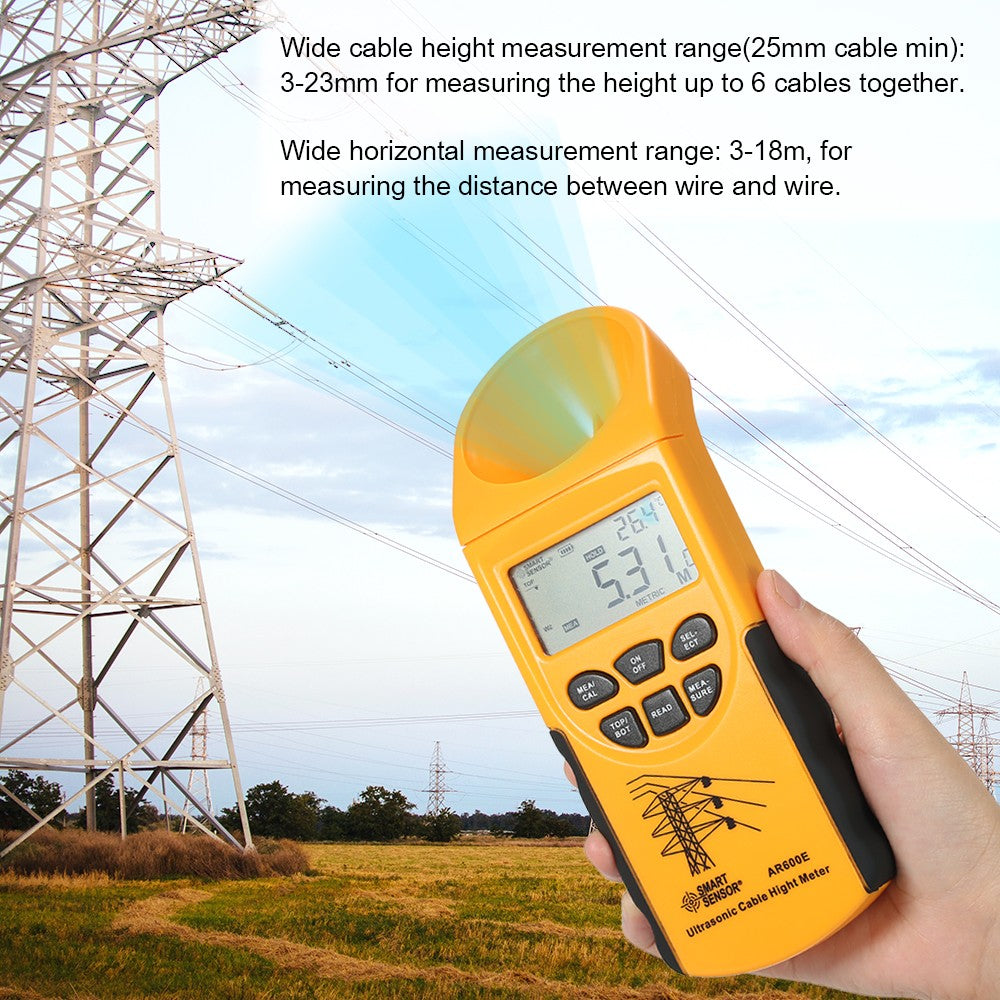

• Extensive Measurement Range: Measures cable heights from 3 to 23mm for up to 6 cables simultaneously.
• Wide Horizontal Measurement: Able to measure distances between wires from 3 to 18m.
• User-Friendly Design: Designed for easy operation, suited for different cable uses.
• Enhanced Accuracy: Equipped with a large sensor for superior precision compared to other meters.
• Digital Display: Features a backlit LCD display for easy reading in low-light conditions.
• Temperature Compensation: Automatically adjusts for accurate measurements in temperatures ranging from -10℃ to 40℃.
• Versatile Applications: Suitable for depth measurements in locations like elevator shafts and wells, provided there’s sufficient width for ultrasonic reflection.

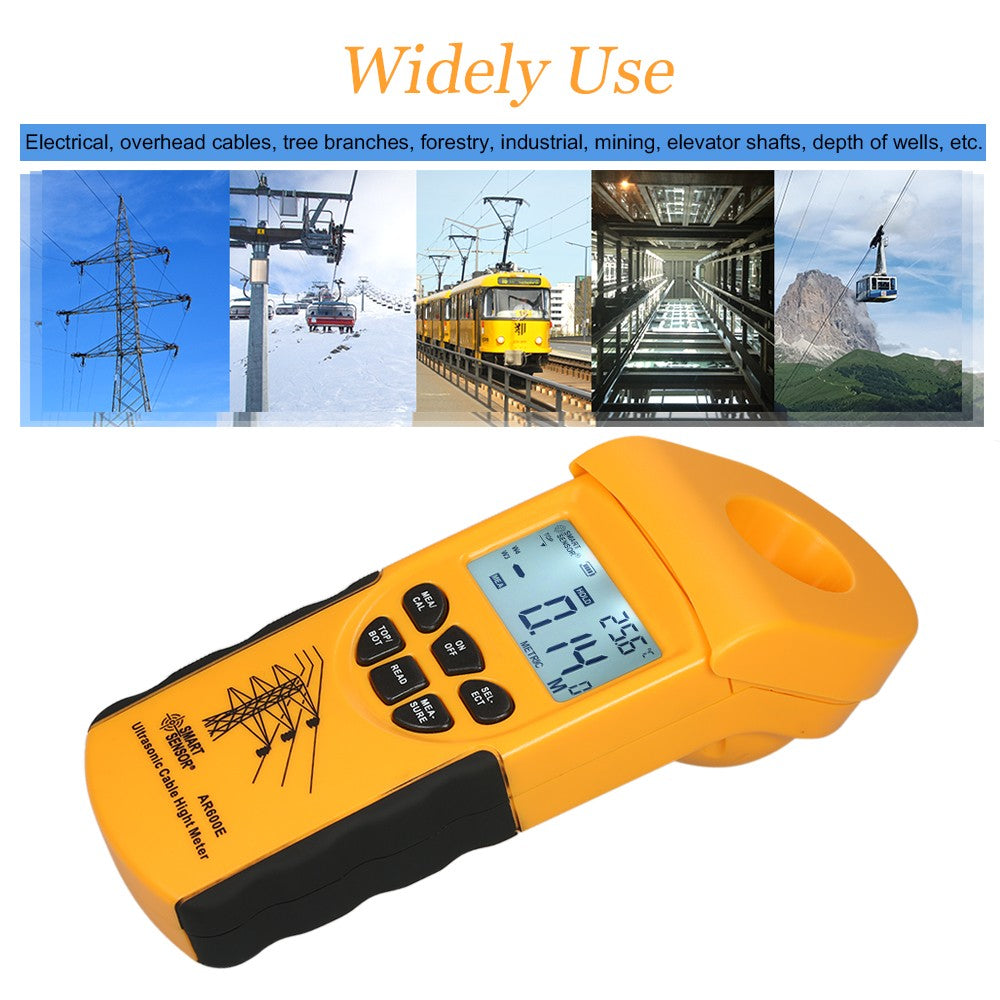

• Wide Usage: Ideal for various fields including electrical work, forestry, industrial applications, and more.

Specifications

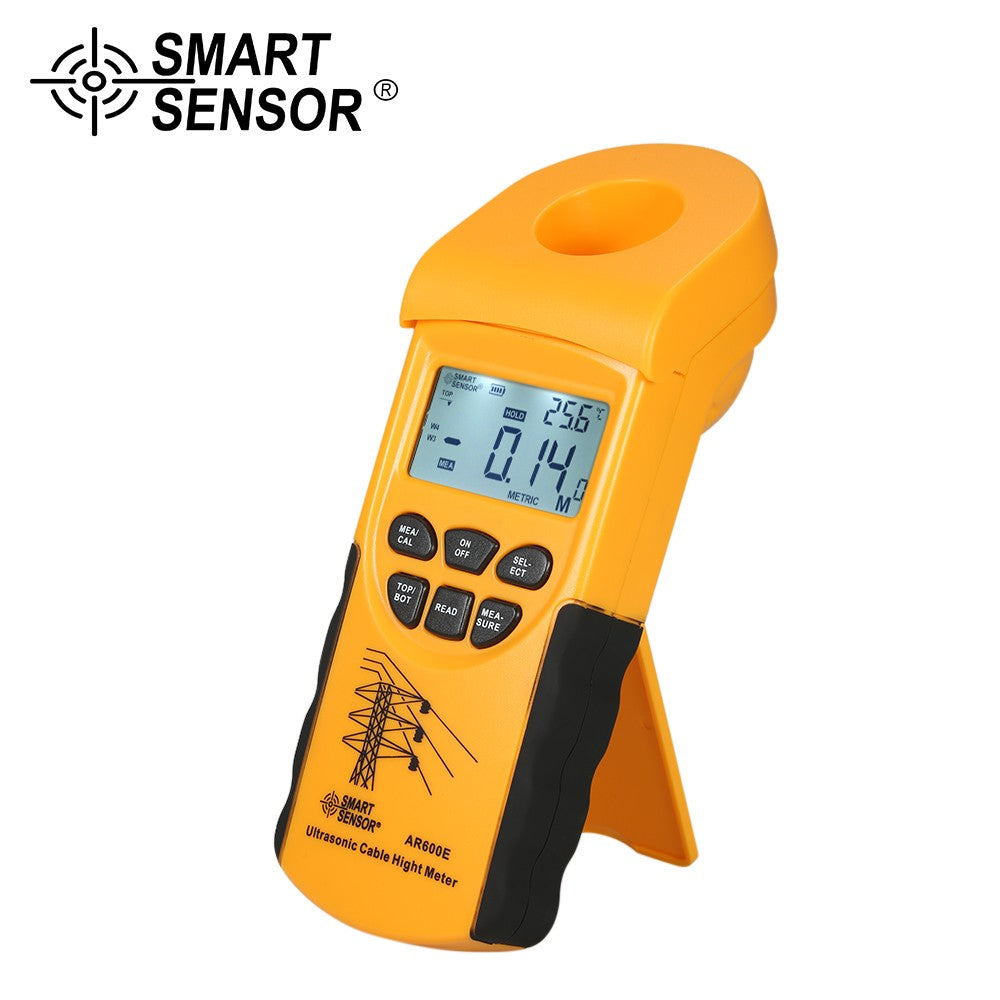

• Brand Name: SMART SENSOR
• Color: Yellow
• Material: ABS Plastic
• Display: LCD Backlight Display, 52 x 26mm
• Measurement Ranges:
  • 25mm Cable Min: 3 to 23m
  • 12mm Cable Min: 3 to 15m
  • 5.5mm Cable Min: 3 to 12m
  • 2.5mm Cable Min: 3 to 10m
• Horizontal Measuring Range: 3 to 18m
• Resolution: ±5mm (Range <10m), ±10mm (Range >10m)
• Accuracy: 0.5% ± 2 digits
• Minimum Gap Between Wires: 150mm

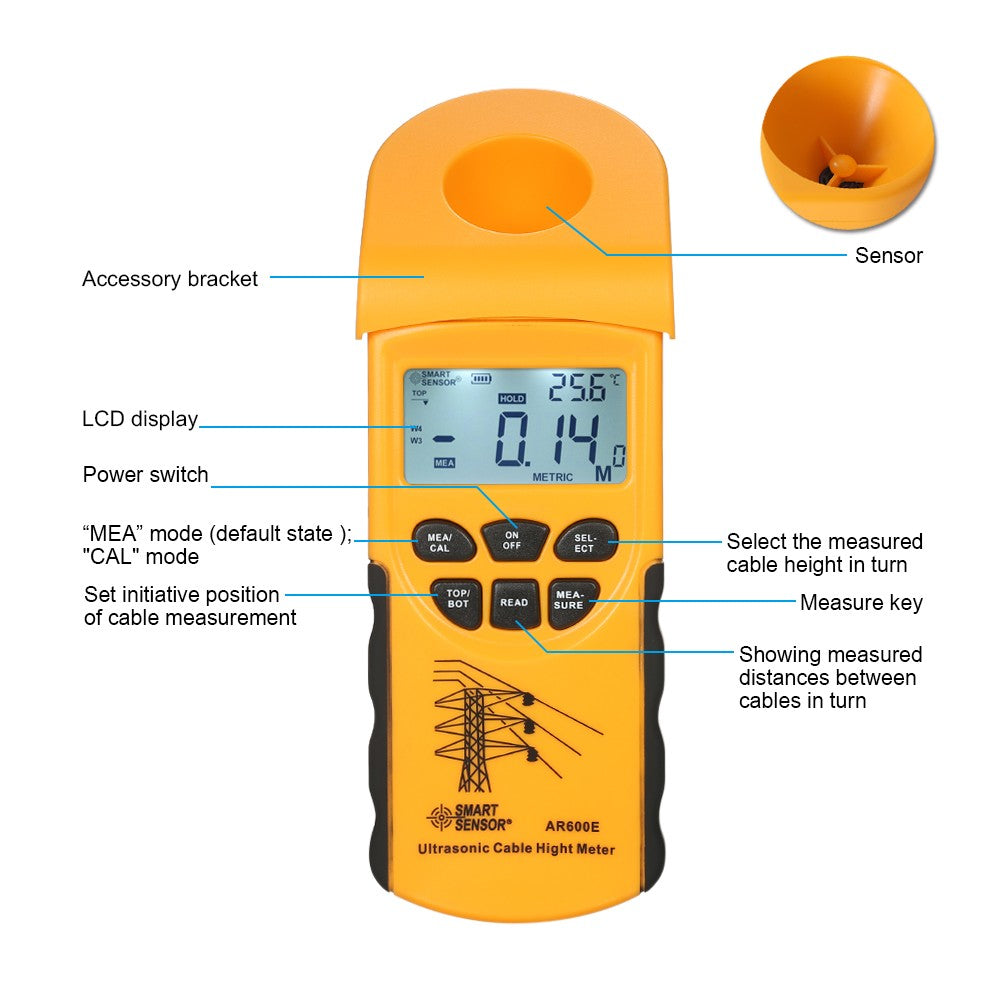

• Modes:
  • BOT Mode: Measures the Height of the Lowest 6 Cables
  • TOP Mode: Measures the Height of the Highest 6 Cables
• Auto Features: Auto Power Off, Backlight Display, Battery Indication, Imperial & Metric Units Transition, Real-Time Temperature Display
• Auto Power Off Delay: 120 seconds
• Operating Temperature: -10℃ to 40℃ (14℉ to 104℉)
• Storage Temperature: -20℃ to 60℃ (-4℉ to 140℉)
• Operating Humidity: 10% to 95% RH, <80% RH Storage

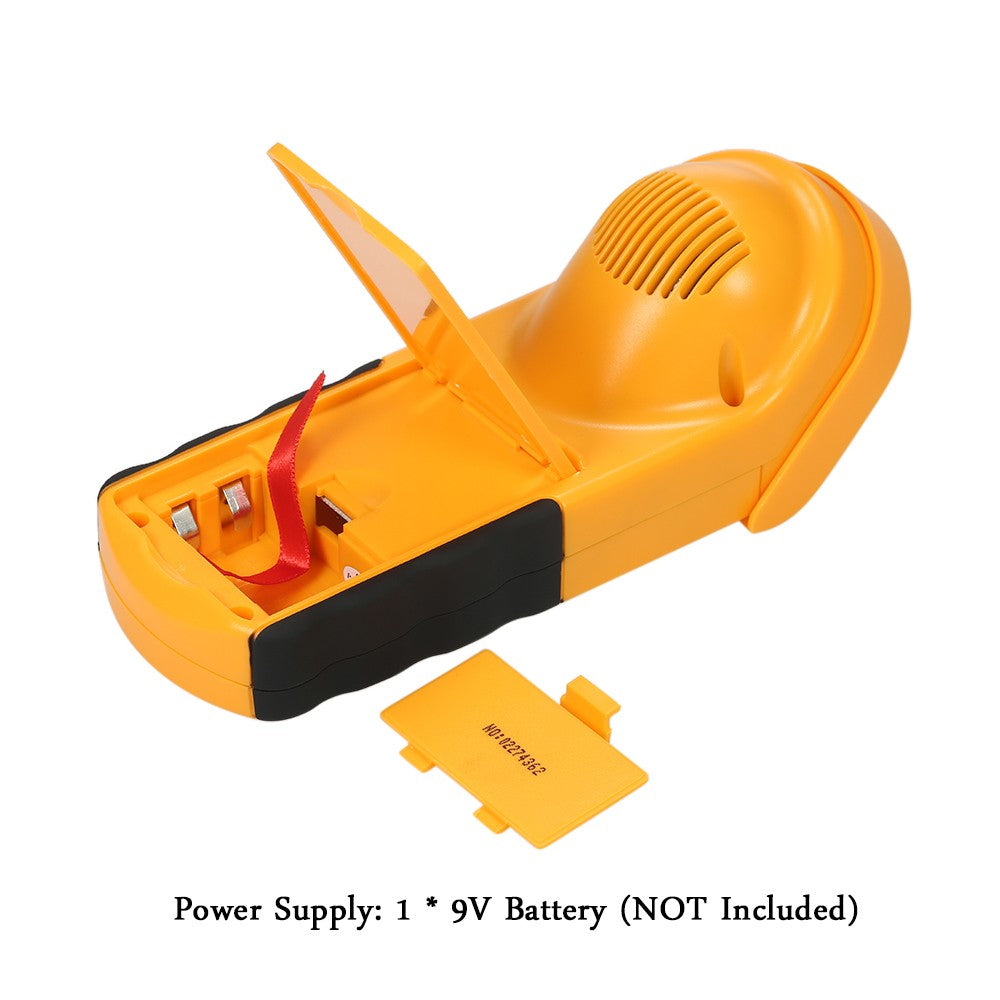

• Power Supply: 1 x 9V Battery (NOT Included)

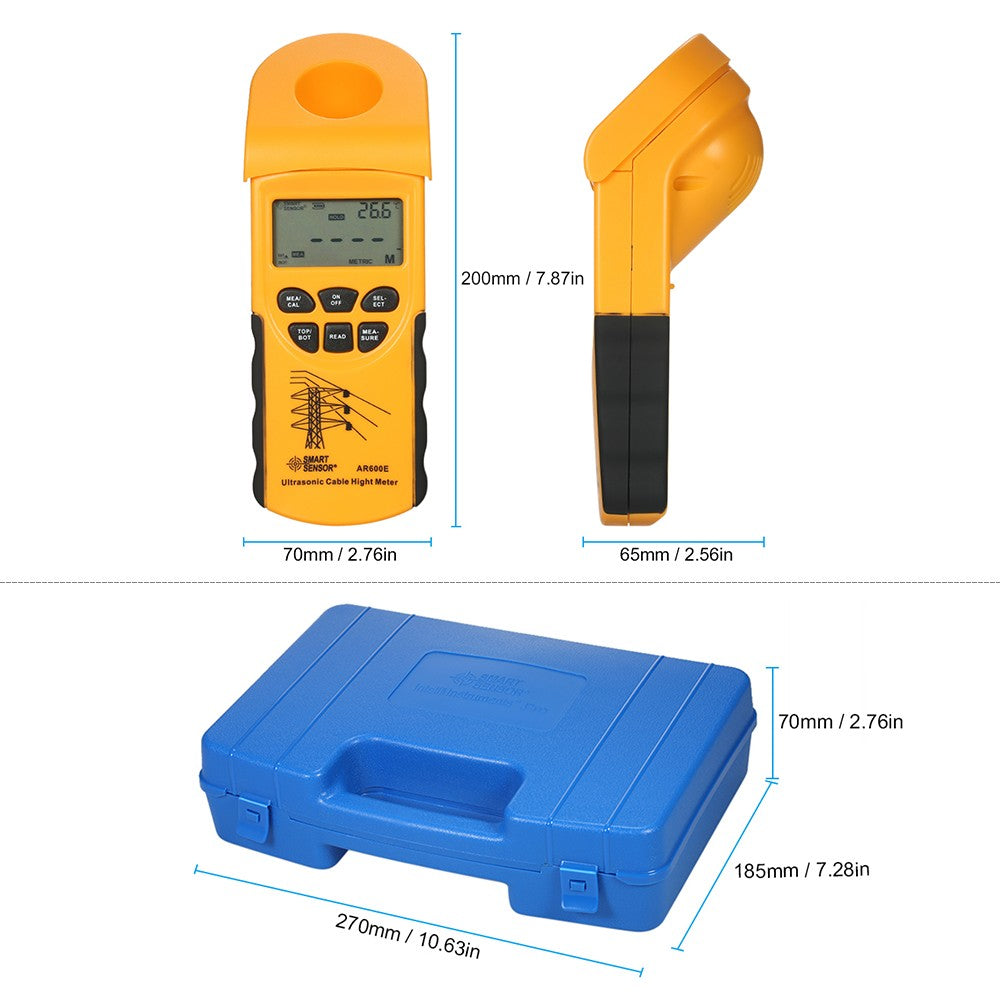

• Product Size: Approx. 70 x 65 x 200mm / 2.76 x 2.56 x 7.87 inches
• Product Weight: Approx. 182g / 6.42oz
• Package Size: Approx. 29.5 x 19.5 x 7cm / 11.61 x 7.68 x 2.76 inches
• Package Weight: Approx. 809g / 28.53oz

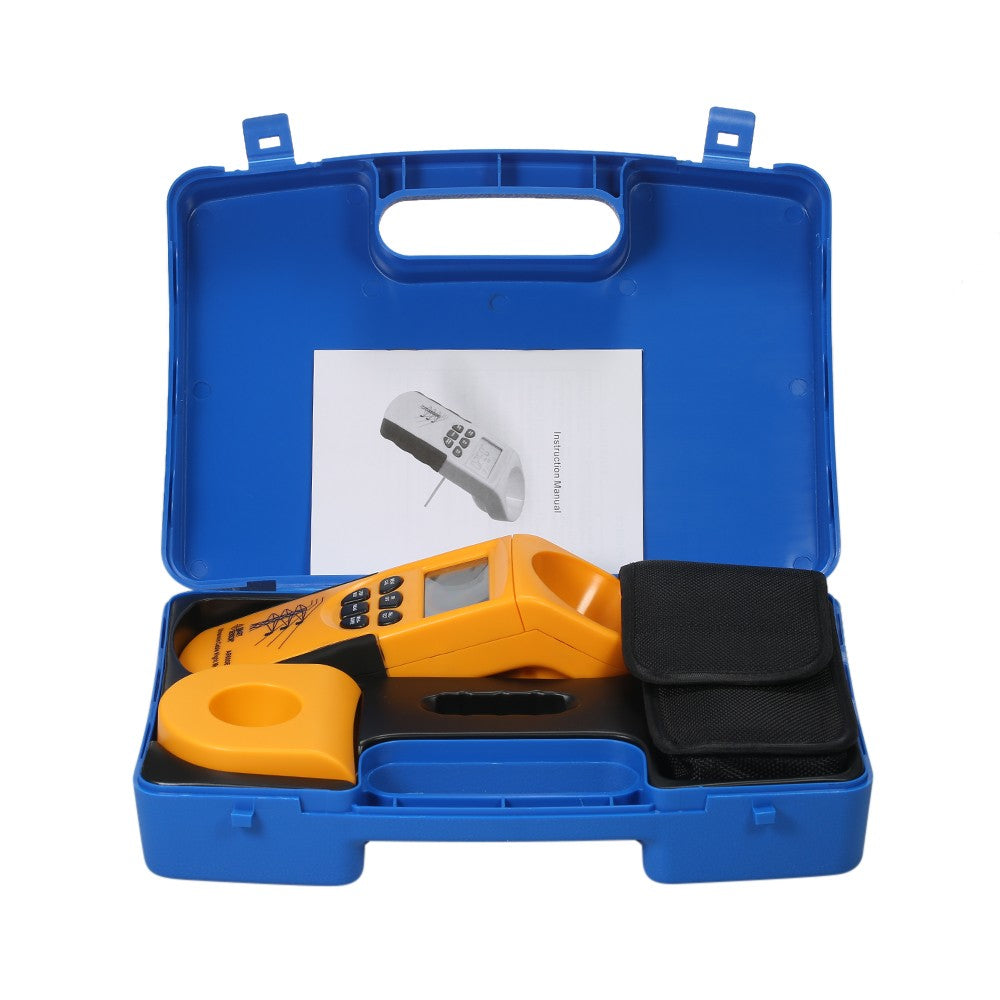

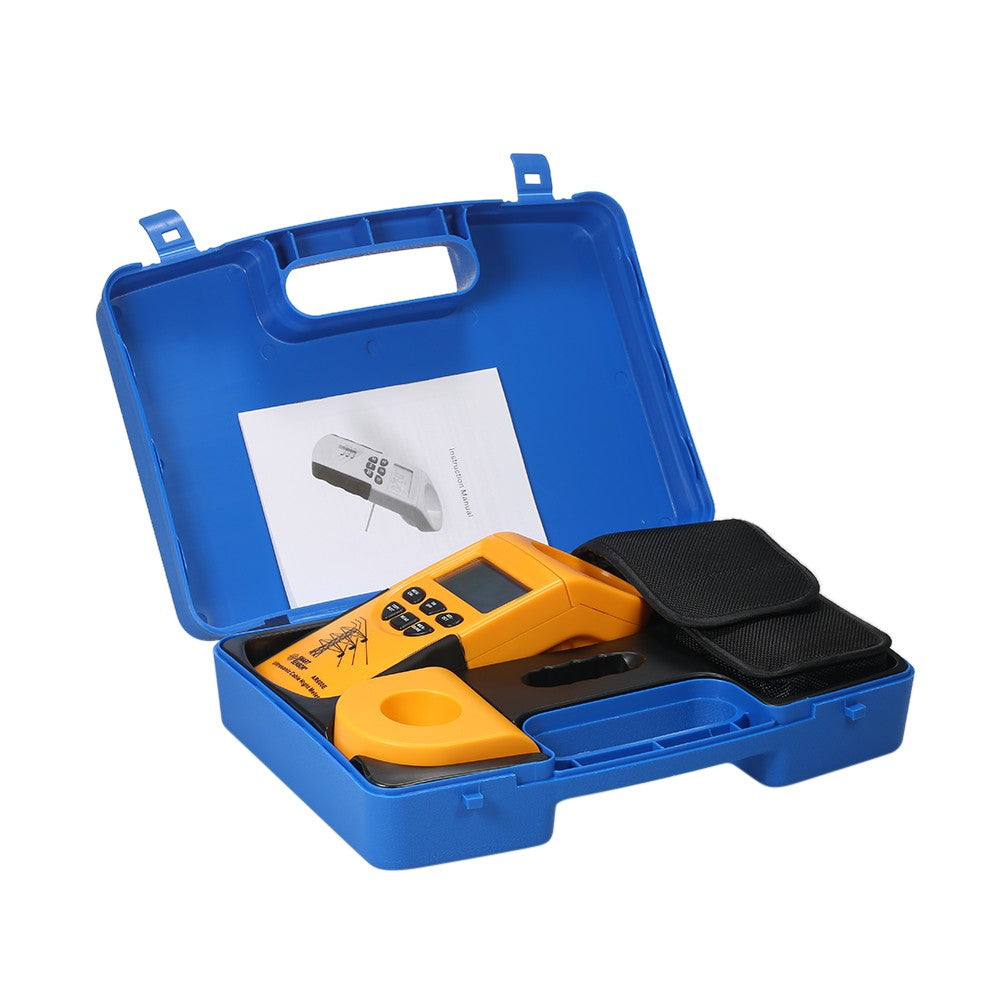

Package List

• 1 x Ultrasonic Cable Height Meter

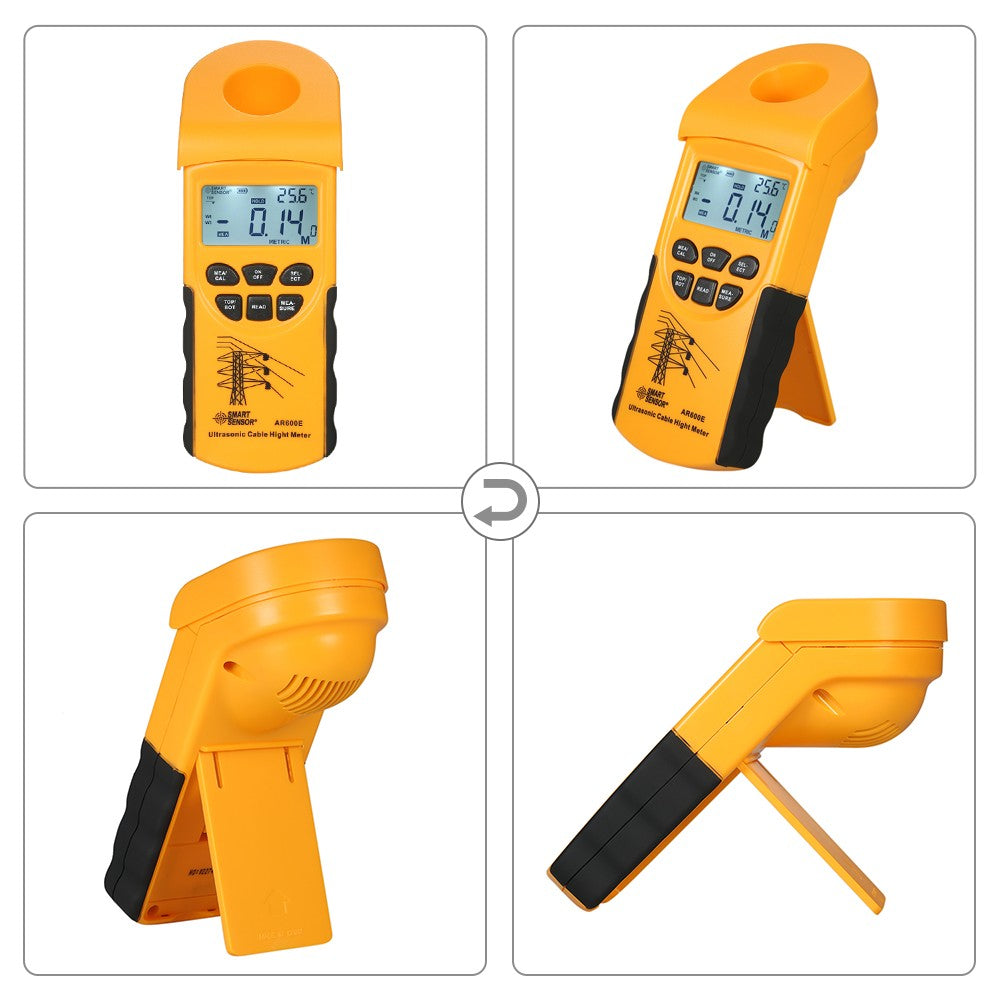

• 1 x Accessory Bracket (Horizontal Distance Measurement Only)
• 1 x Black Bag
• 1 x Storage Box
• 1 x User Manual (English)
