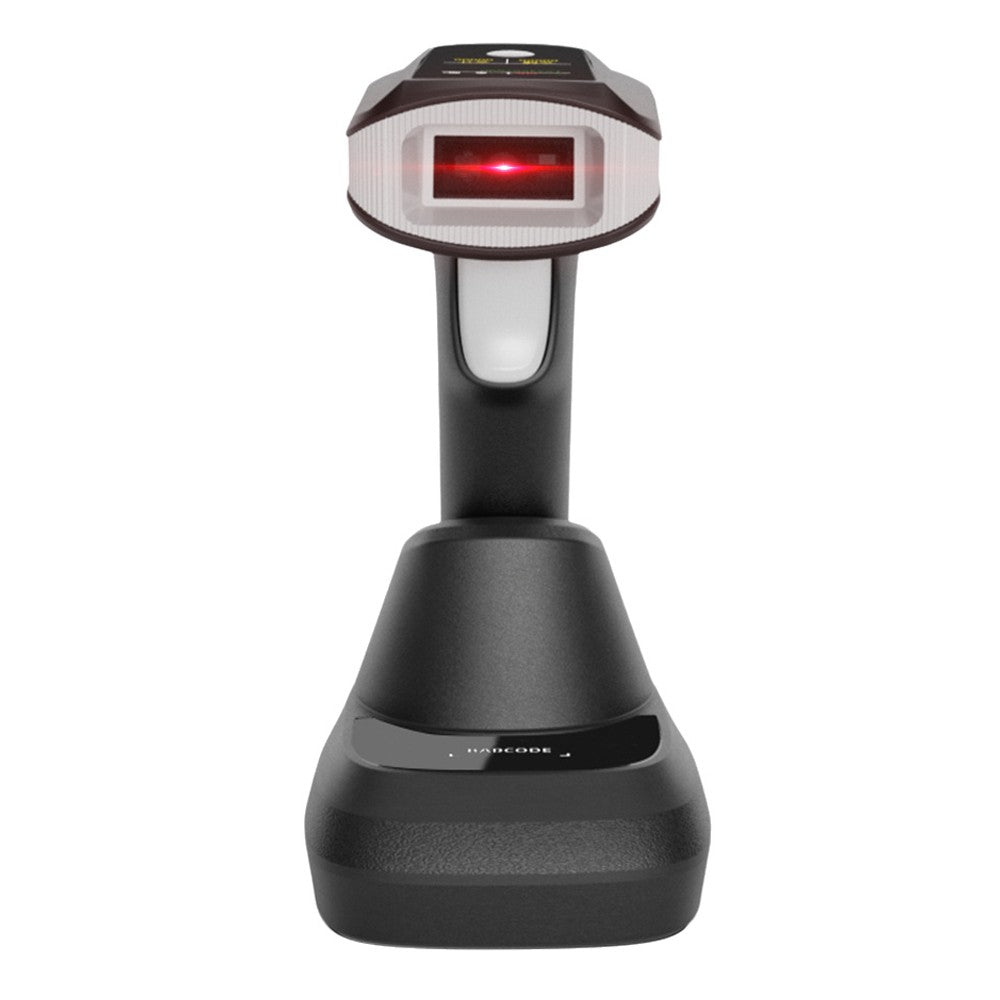

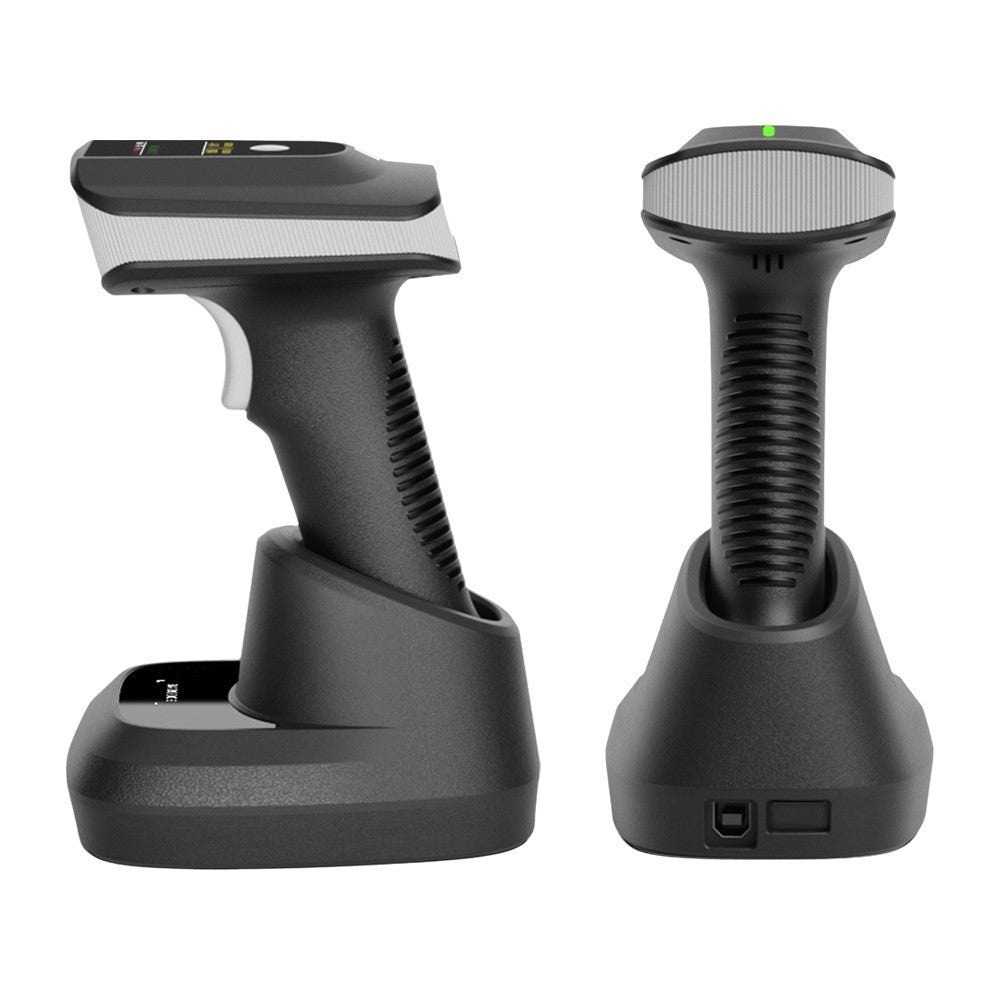

W10T-LS 2D/1D/QR Barcode Scanner with Display & Charging Base

Product Features

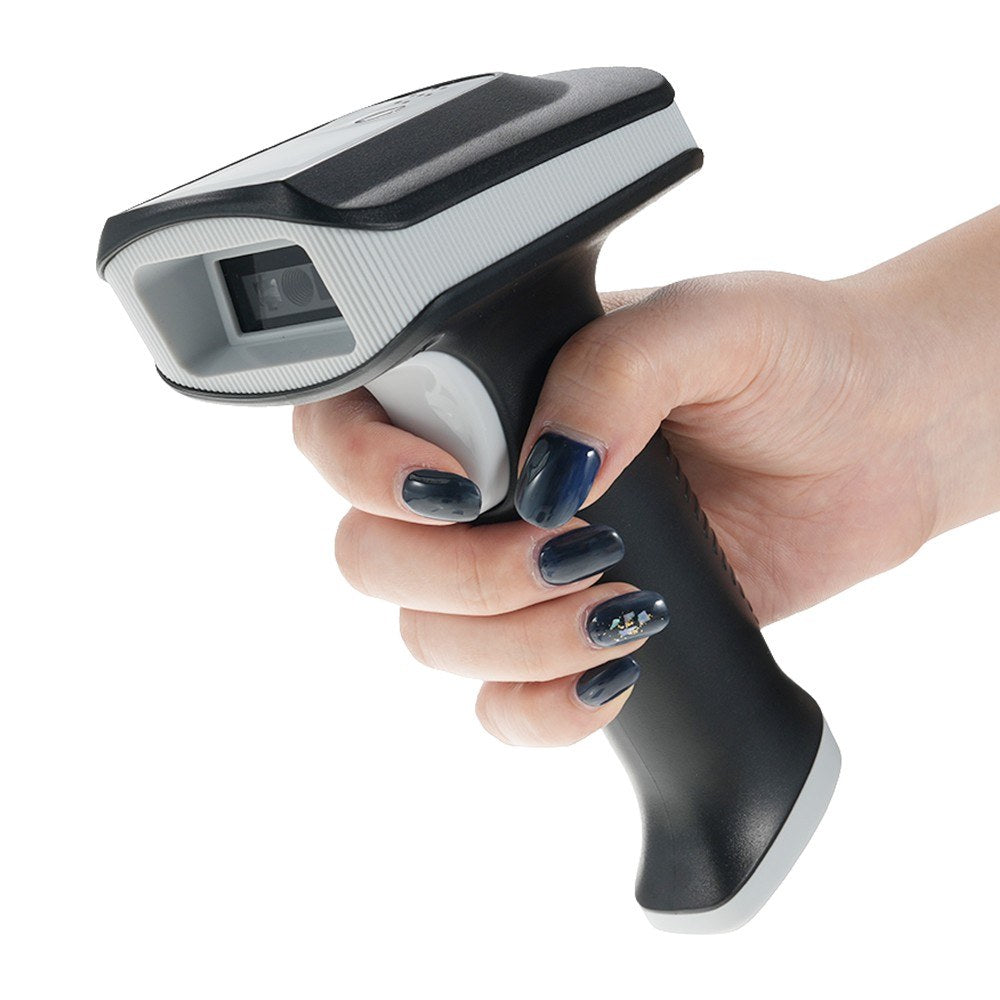

• Efficient Scanning: Handheld scanner capable of scanning and decoding 1D, 2D, and QR barcodes with high speed and accuracy. The cradle design allows hands-free use when processing multiple packages.

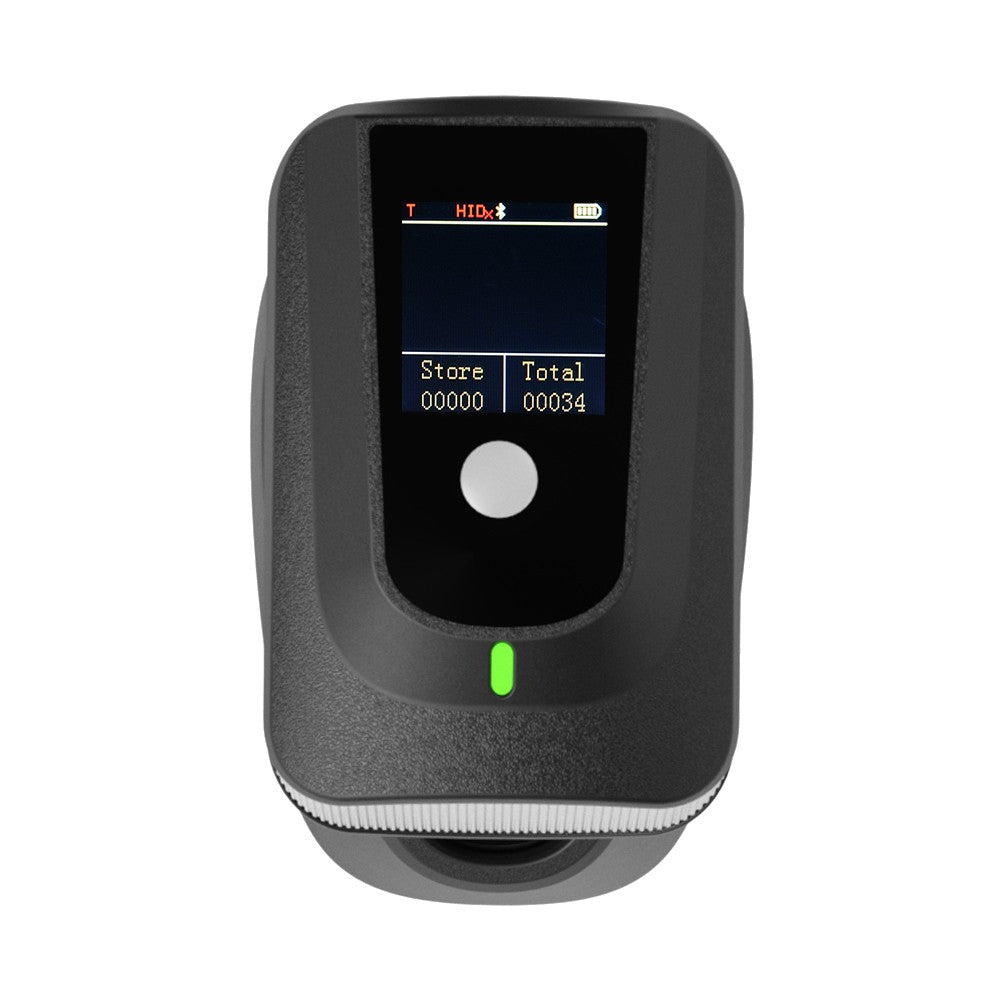

• Advanced Compatibility: Supports screen code scanning with a high-performance chip and a robust decoding capability. It features built-in storage and inventory mode, with support for remote online upgrades.

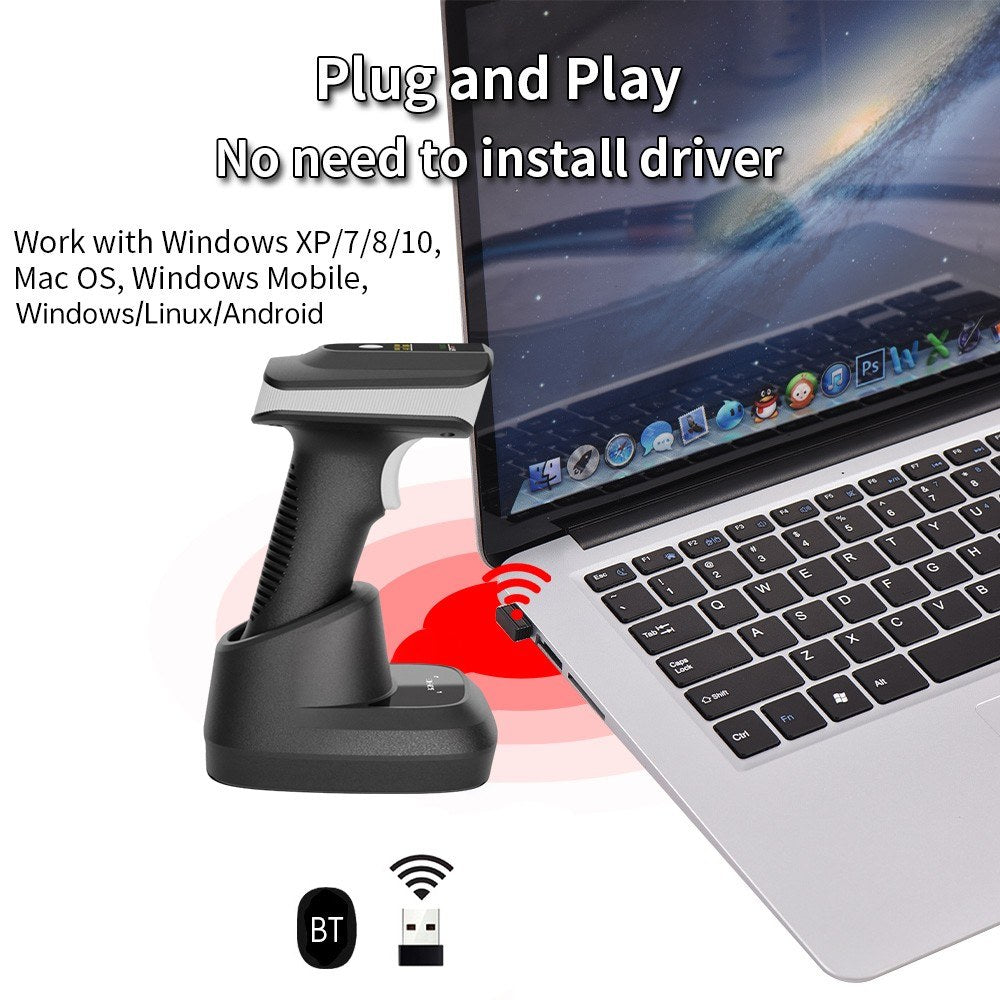

• Easy Setup: Enjoy hassle-free plug-and-play with no driver requirements, featuring one-click pairing. Compatible with Linux, Android, and Windows systems.

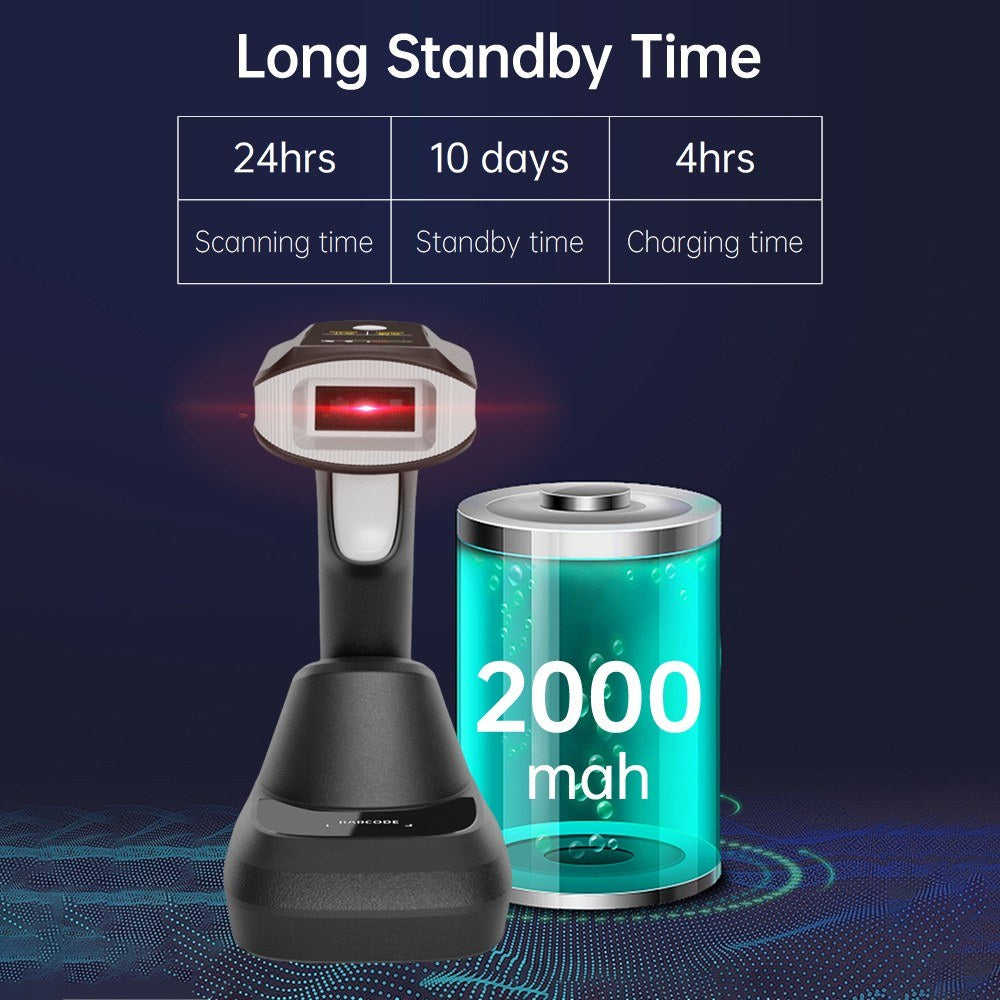

• Long Battery Life: Equipped with a 2000mAh lithium battery, offering 10 days standby time and 24 hours of operational service. Features 2.4GHz wireless transmission with a range of up to 80 meters.

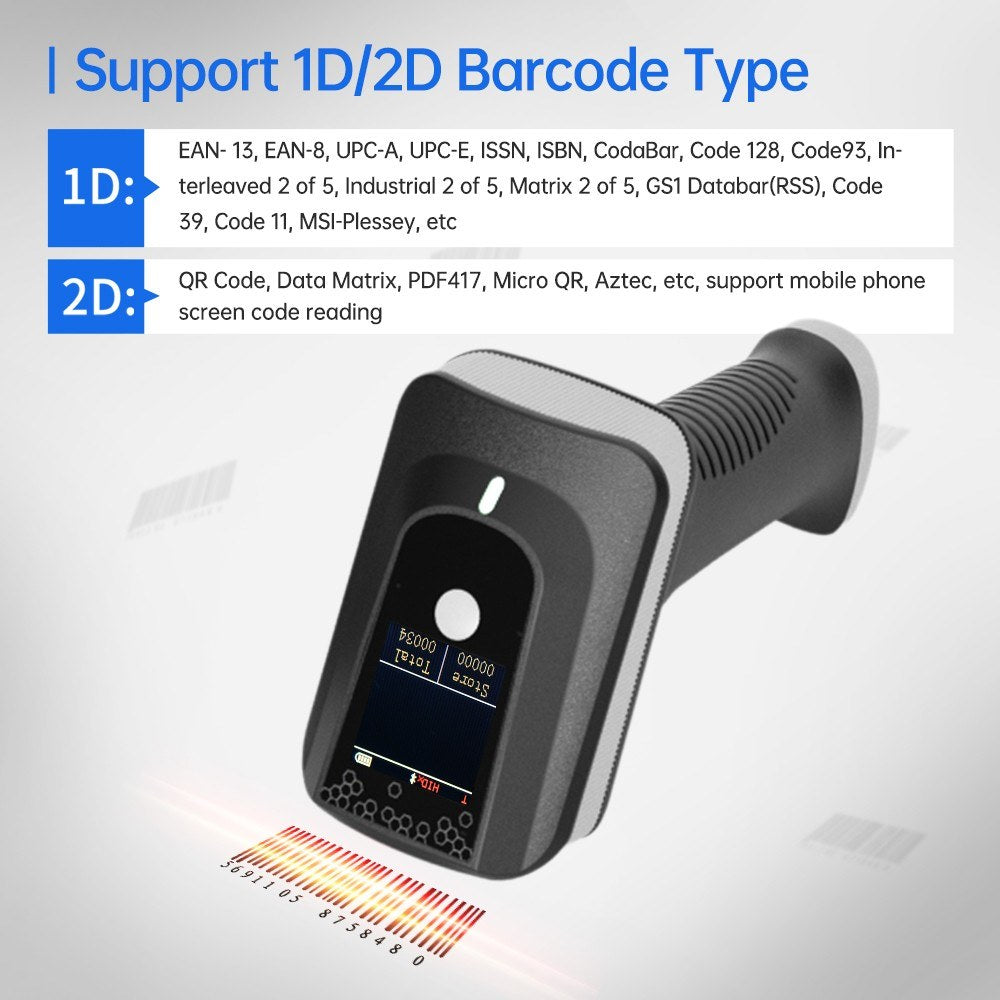

• Versatile Decode Capability: Efficiently scans a variety of barcodes, including EAN-13, UPC-A, and QR Codes, among others.

Specifications

• Model: W10T-LS

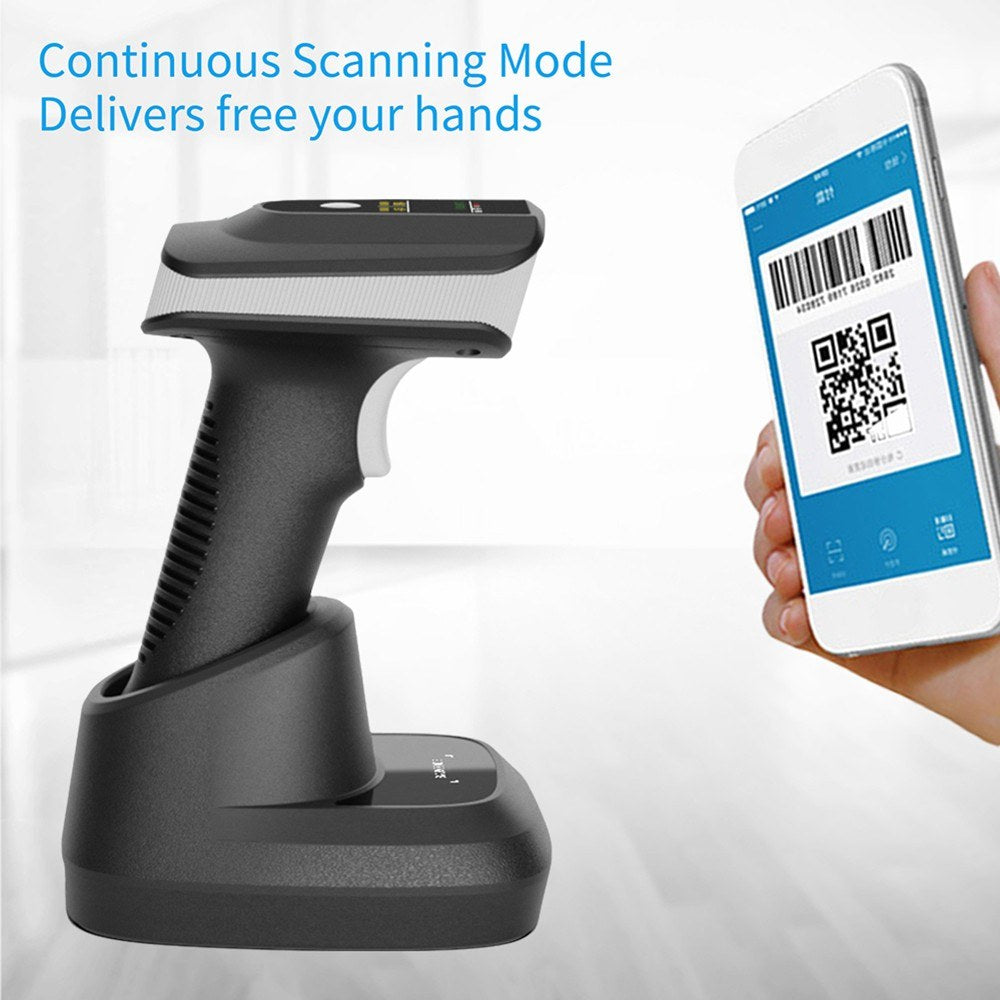

• Scan Modes: Push-button trigger, auto-sensing, continuous scanning
• Communication Interface: USB-HID keyboard, USB-COM virtual serial port

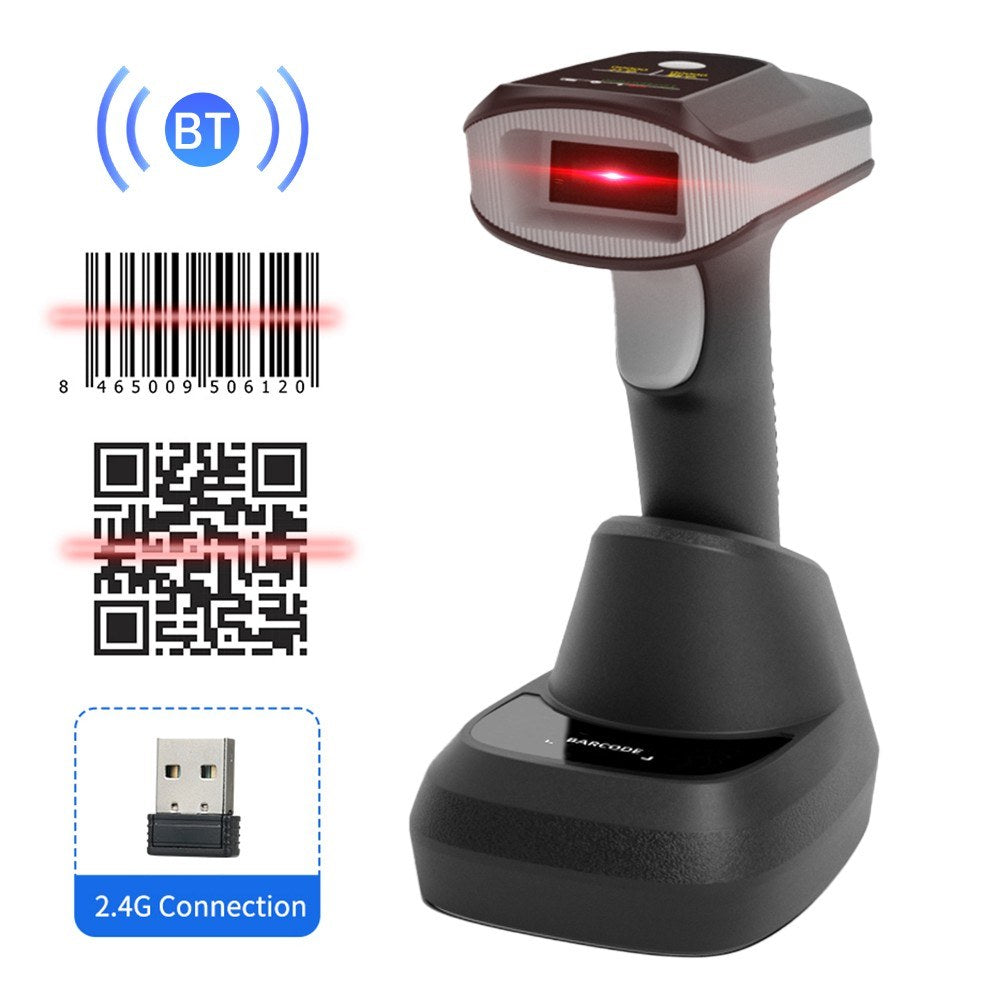

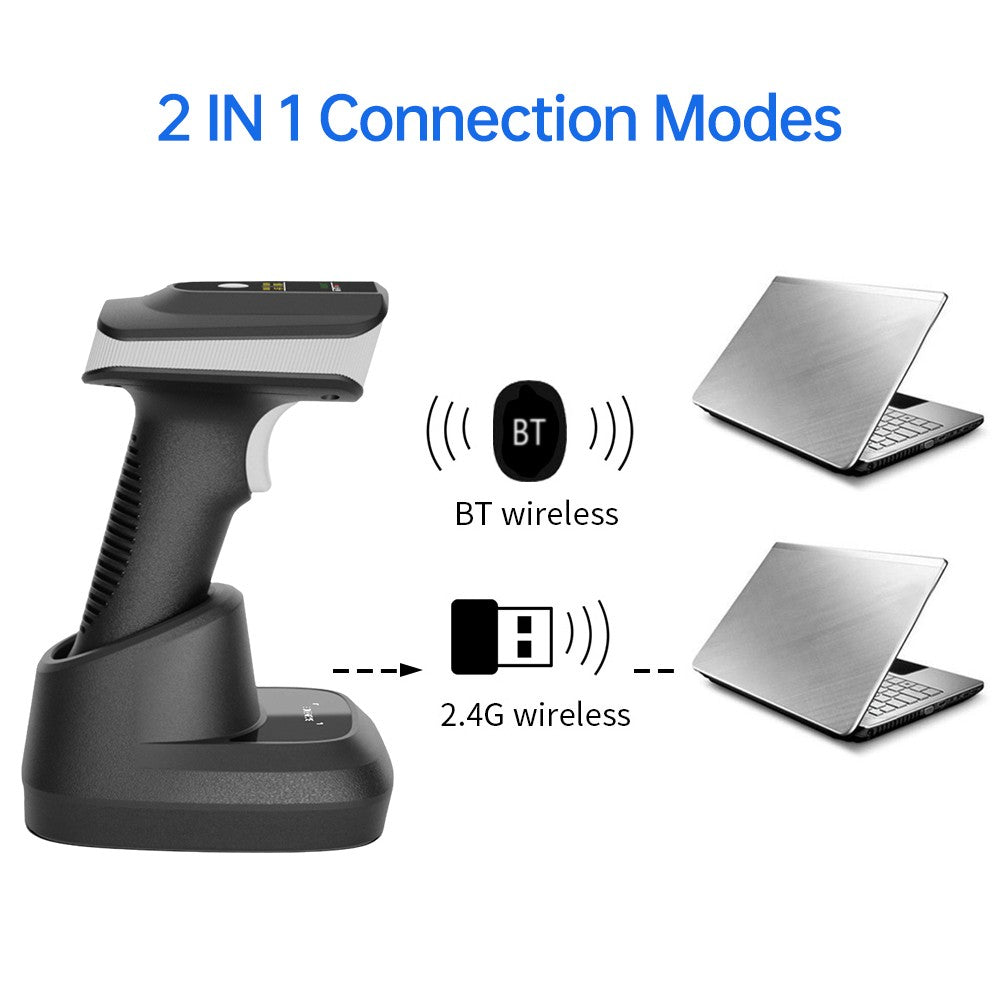

• Wireless Distance: 2.4G up to 80m, Bluetooth up to 20m in open environments

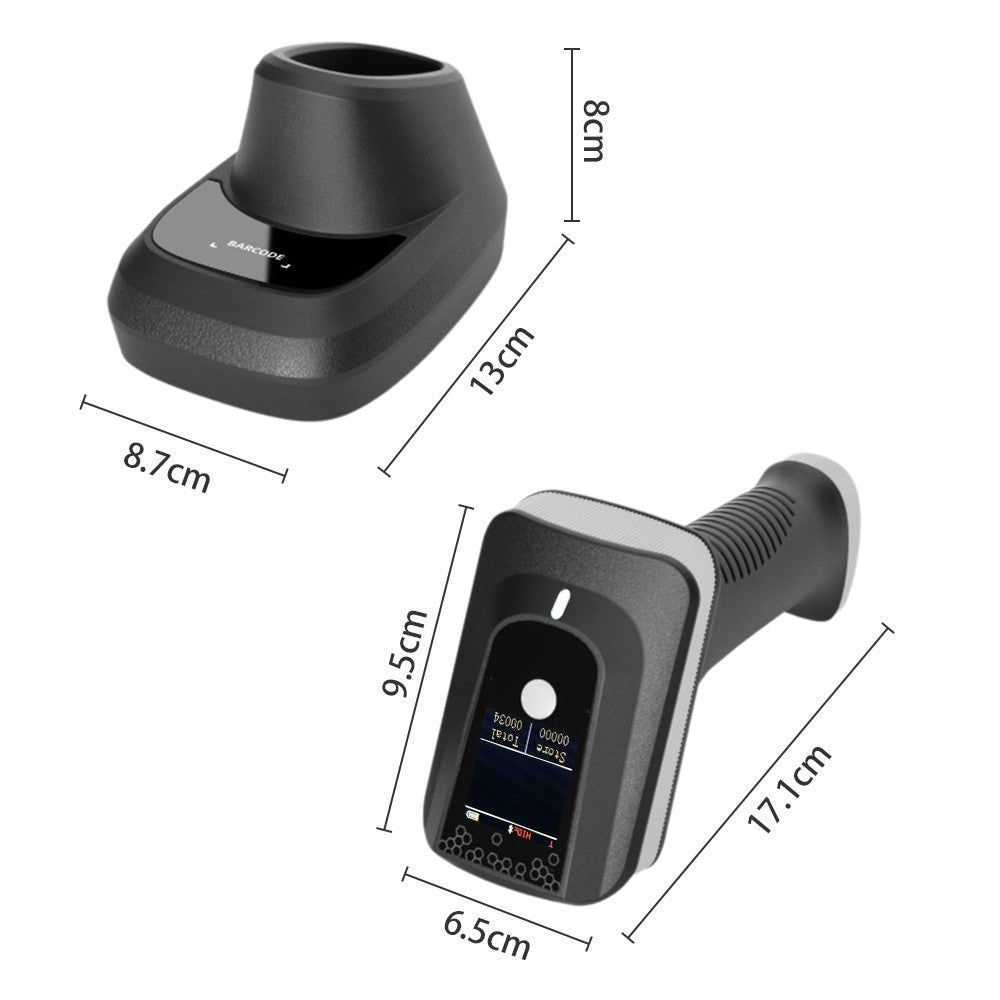

• Dimensions: Scanner - 157mm × 70mm × 112mm, Charger - 128mm × 81mm × 89mm
• Weight: 173.5g (net weight)
• Internal Storage: 500K
• Resolution: 640 × 480
• Light Source: White LED
• Scan Angle: ± 60° elevation, ±60° declination, 360° rotation
• Scan Rate: 120 frames/sec
• Field of View: 48° (H) x 30° (V)
• Print Contrast: Minimum 15%
• Minimum Resolution: 1D code 3MIL, QR code 5MIL
• Battery: 2000mAh lithium-ion, 4 hours charging time
• Input Voltage: DC 5V±10%
• Current: 350 mA operating, 130 mA standby
• Seismic Resistance: Withstands a 1.5m drop

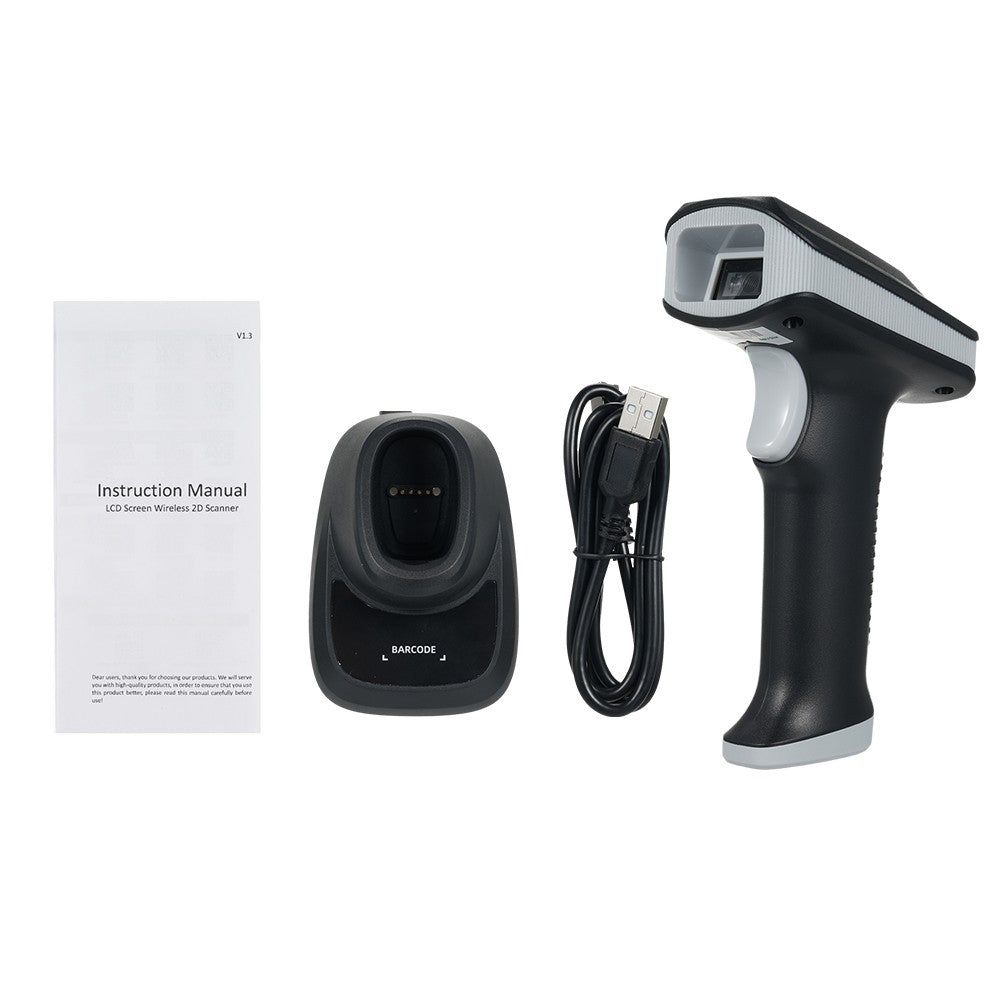

Package Includes

1. 1 x Barcode Scanner
2. 1 x Cradle
3. 1 x USB Cable
4. 1 x 2.4G Receiver (located at the back of the cradle)
5. 1 x User Manual
