Evalm

Raspberry Pi 5 PCIe Expansion Board for M.2 NVMe SSD MPS2242-2230

Raspberry Pi 5 PCIe Expansion Board for M.2 NVMe SSD MPS2242-2230

Regular price $7.99 USD
Regular price $0.00 USD Sale price $7.99 USD
Sale Sold out
Shipping calculated at checkout.
Model

Shipping Icon Estimated Delivery: -

Product Features:

  • Compatible with Raspberry Pi 5, supporting PCle x1 in both Gen2 and Gen3 modes.
  • Works with NVMe solid-state drives; suitable for 2242/2230 size SSDs (default welding with 2242 copper pillars).
  • Allows system boot from NVMe SSD or expands storage while booting from a TF card.
  • Equipped with a power supply circuit designed for a 2A current to align with the 5V1A current limit of Raspberry Pi 5's PCIE interface, delivering more than 3.3V 1.5A for SSDs.
  • Though SSDs often show a rated current of 2.5A to 3A, Raspberry Pi 5’s X1 mode ensures a lower actual current usage, sufficient for most drives.
  • Features onboard indicators for power ("PWR") and M.2 hard disk activity ("ACT").
  • Constructed with high-quality components, using immersion gold technology and lead-free production processes.
  • Includes four M2.5 fixing holes and a concave top design, making it easy to operate 40Pin GPIO.

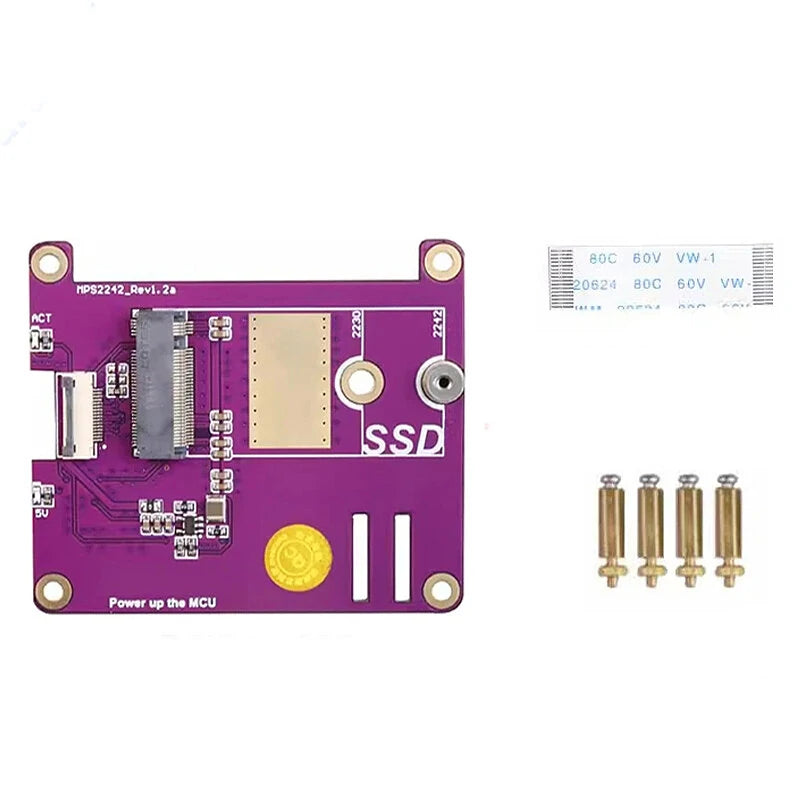

Package Includes:

  • 1x Module Board (MPS2242-2230 & MPS2242-2242 options available)
  • 1x FPC Cable
  • 4x Copper Pillars

Note: Raspberry Pi 5 is not included.
