USB-C Fast Charge Trigger Module: PD QC AFC 5V-20V Output Charger

Product Specifications

• Supports induced voltages: 5V, 9V, 12V, 15V, 20V
• Fast charge protocols: PD2.0/PD3.0, QC2.0/QC3.0, AFC
• Compatible voltage levels: 5V, 9V, 12V, 15V, 20V (without voltage step support)

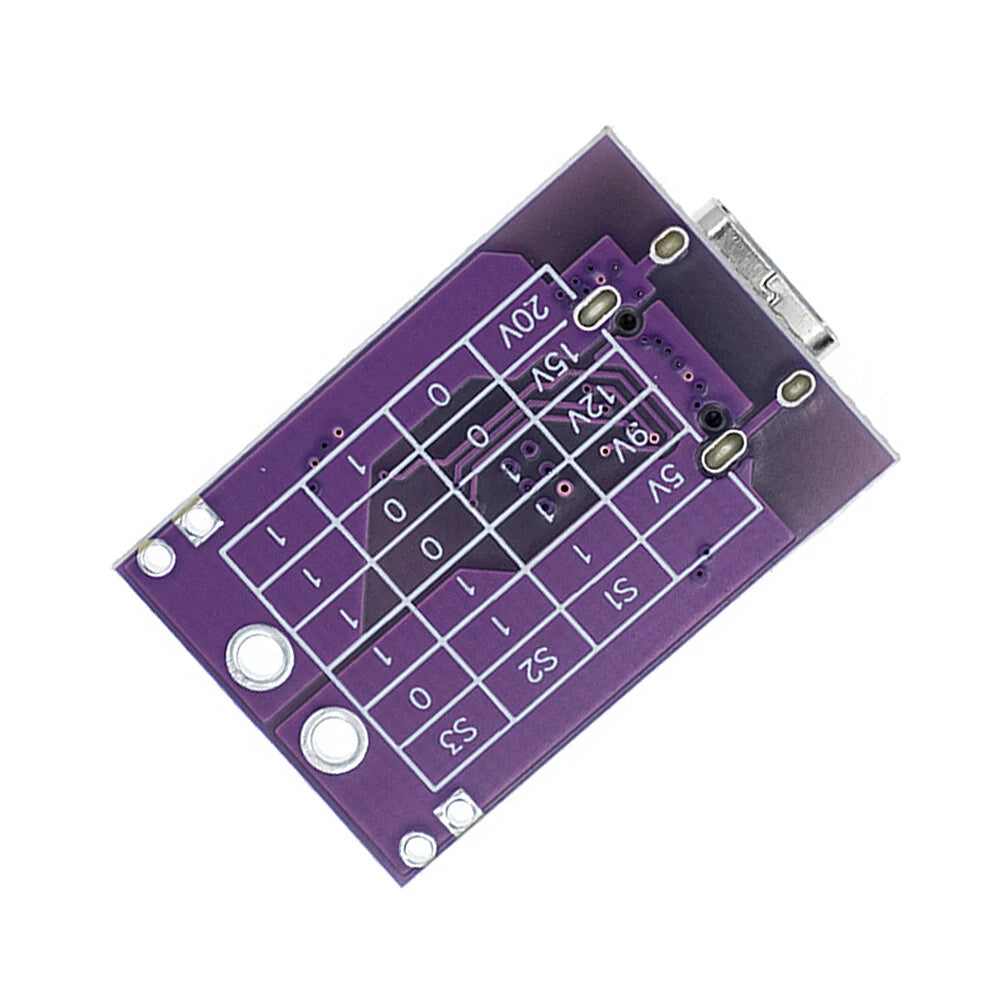

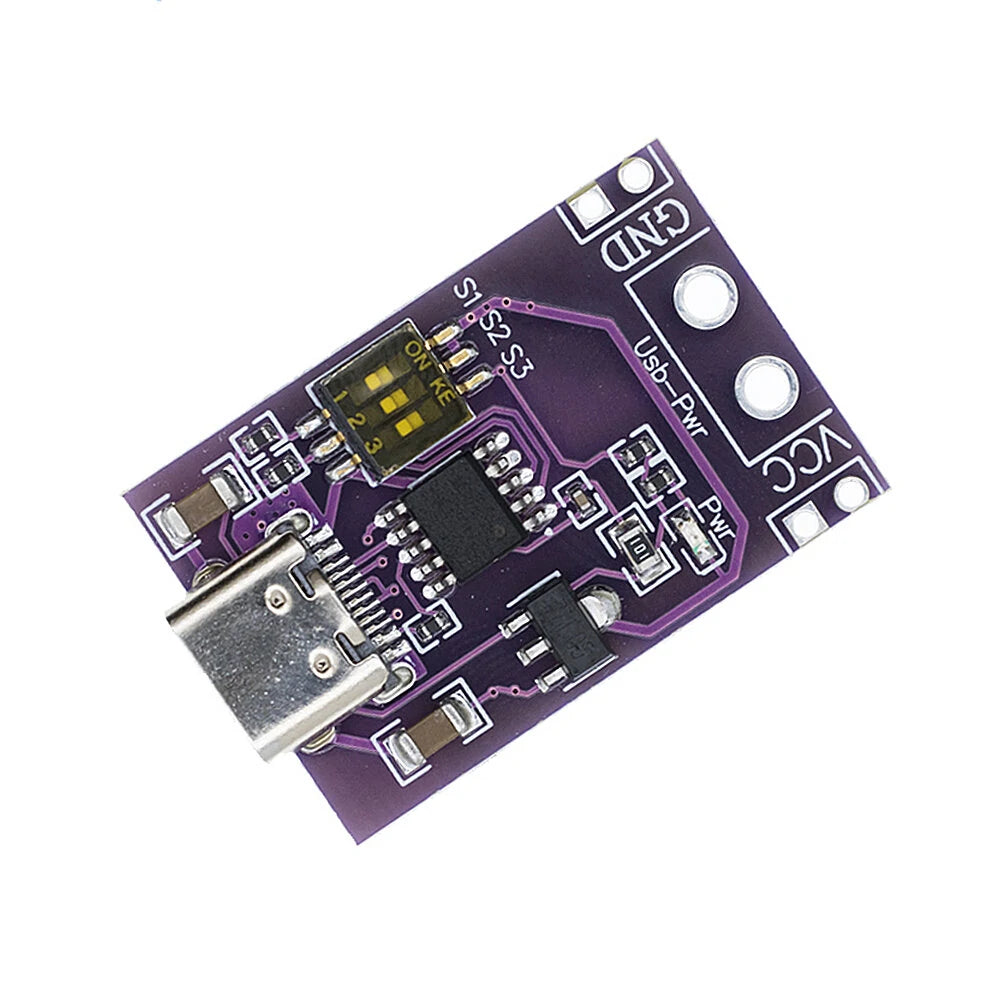

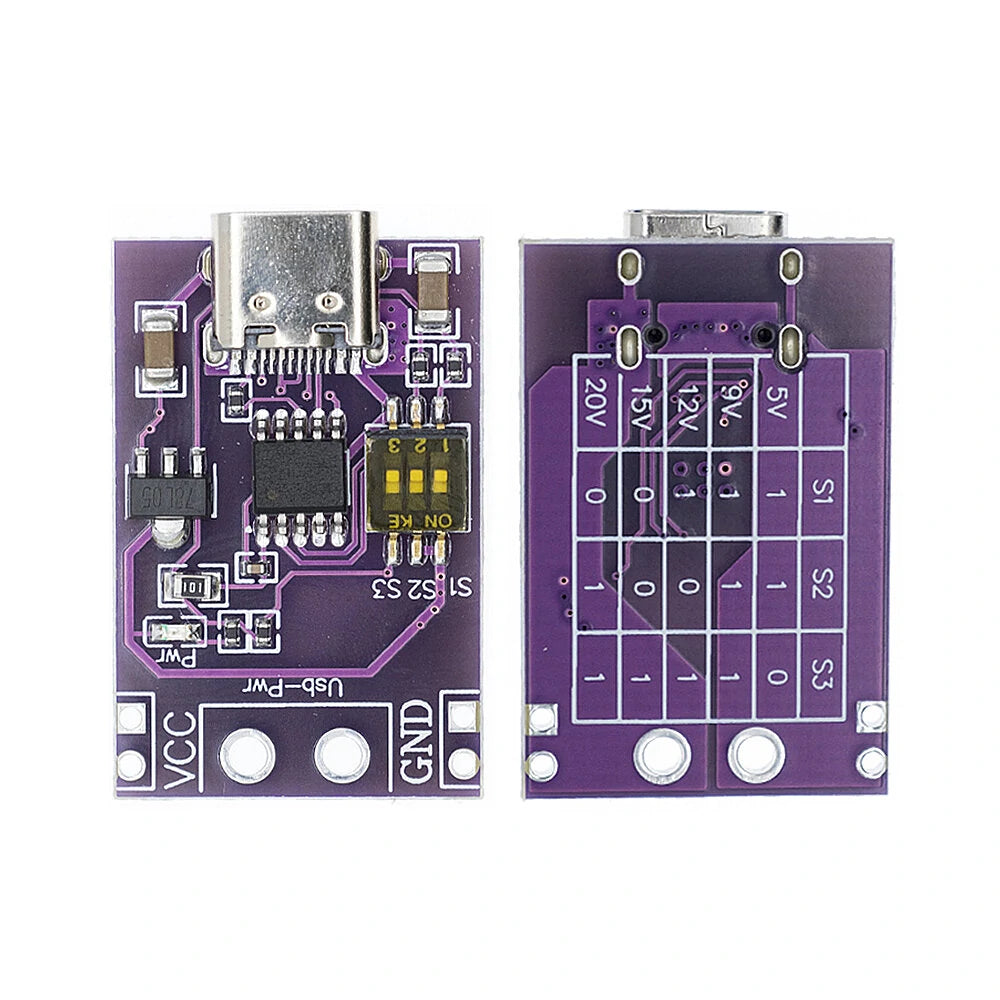

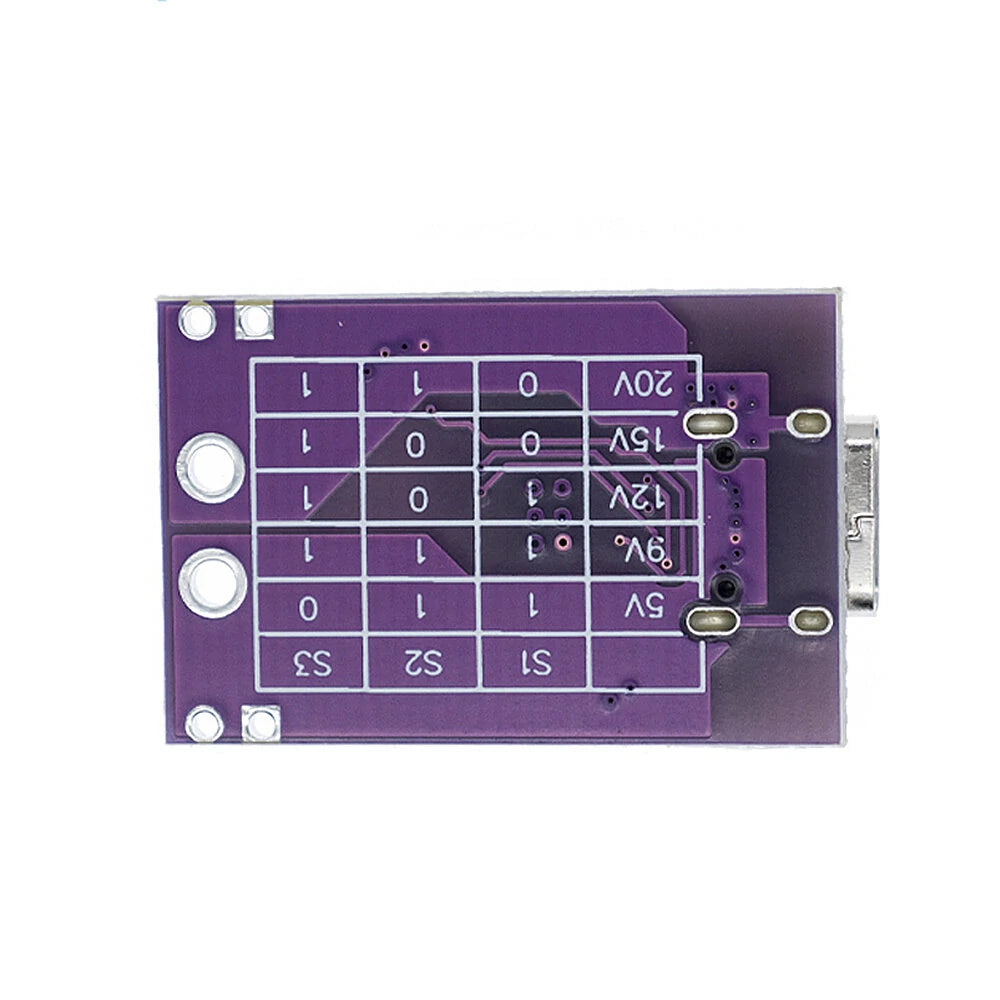

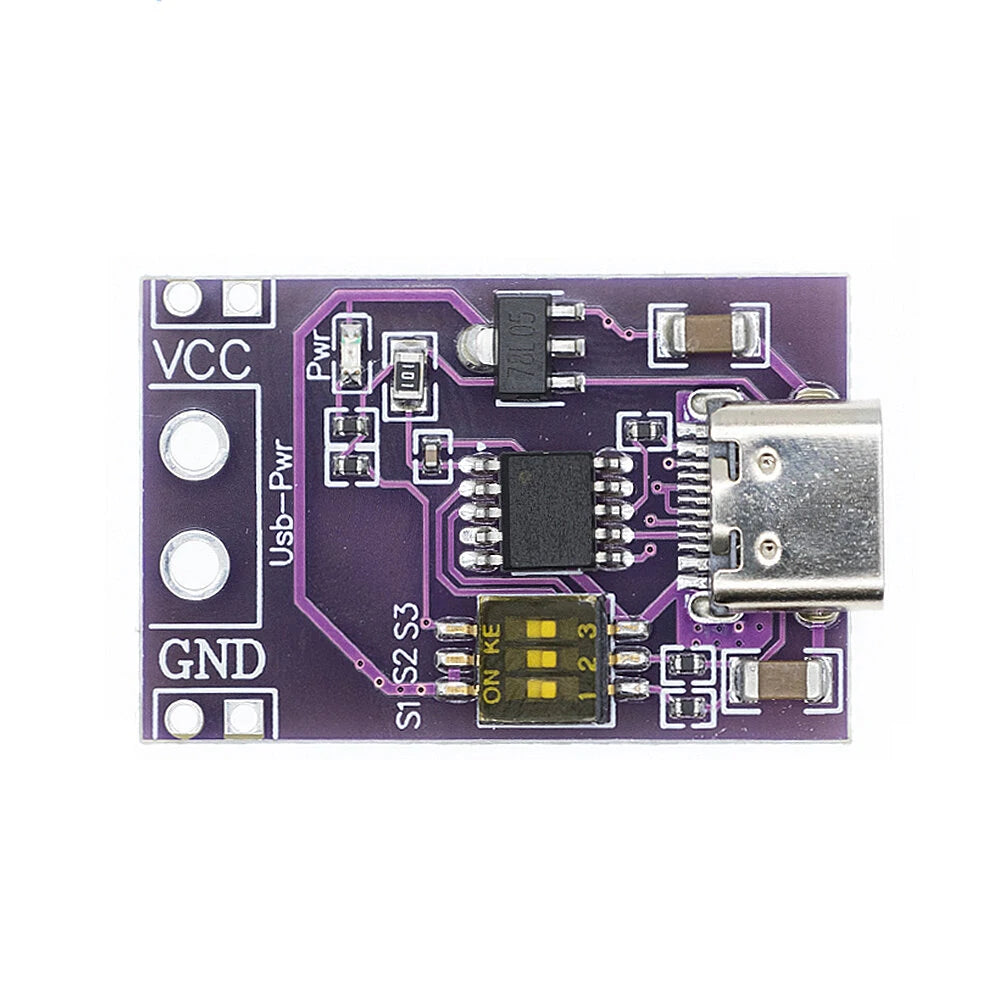

• Voltage adjustment via DIP switch, refer to board instructions for controls
• Dimensions: 3.1×2 cm
• Weight: 2.9 g

Important Usage Notes

1. Always measure voltage with a multimeter after adjusting the DIP switch since there is no built-in voltage indicator.
2. If DIP switch settings are incorrect, the module may output any specified voltage.

Key Features

• Stable performance
• Easy installation
• Versatile applications
• Reliable and safe to use
• Supports fixed voltage outputs: 5V, 9V, 12V, 15V, 20V

Package Includes

• 1× PD QC AFC Fast Charge Decoy Trigger Module
