LILYGO® T-Display-S3 ESP32-S3 1.91 AMOLED Touchscreen Dev Board - WiFi Bluetooth 5.0

Introduction to the T-Display-S3 AMOLED

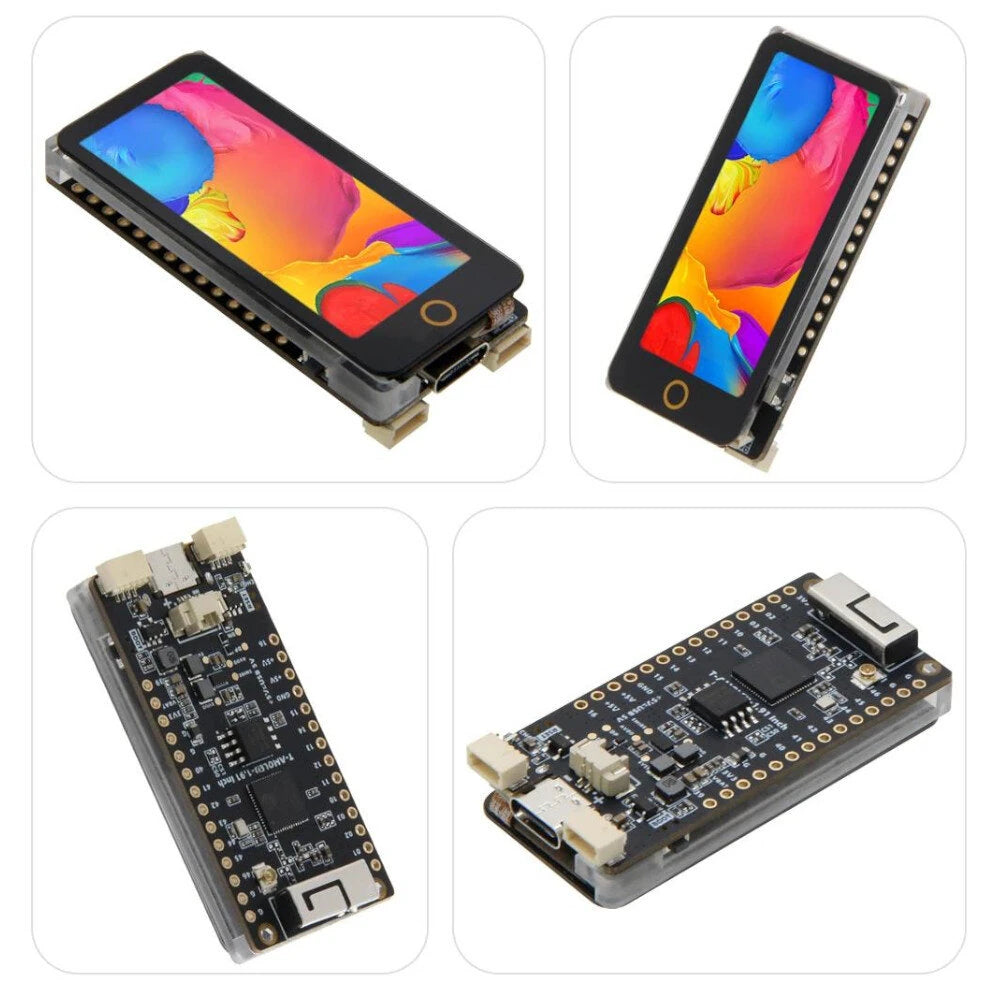

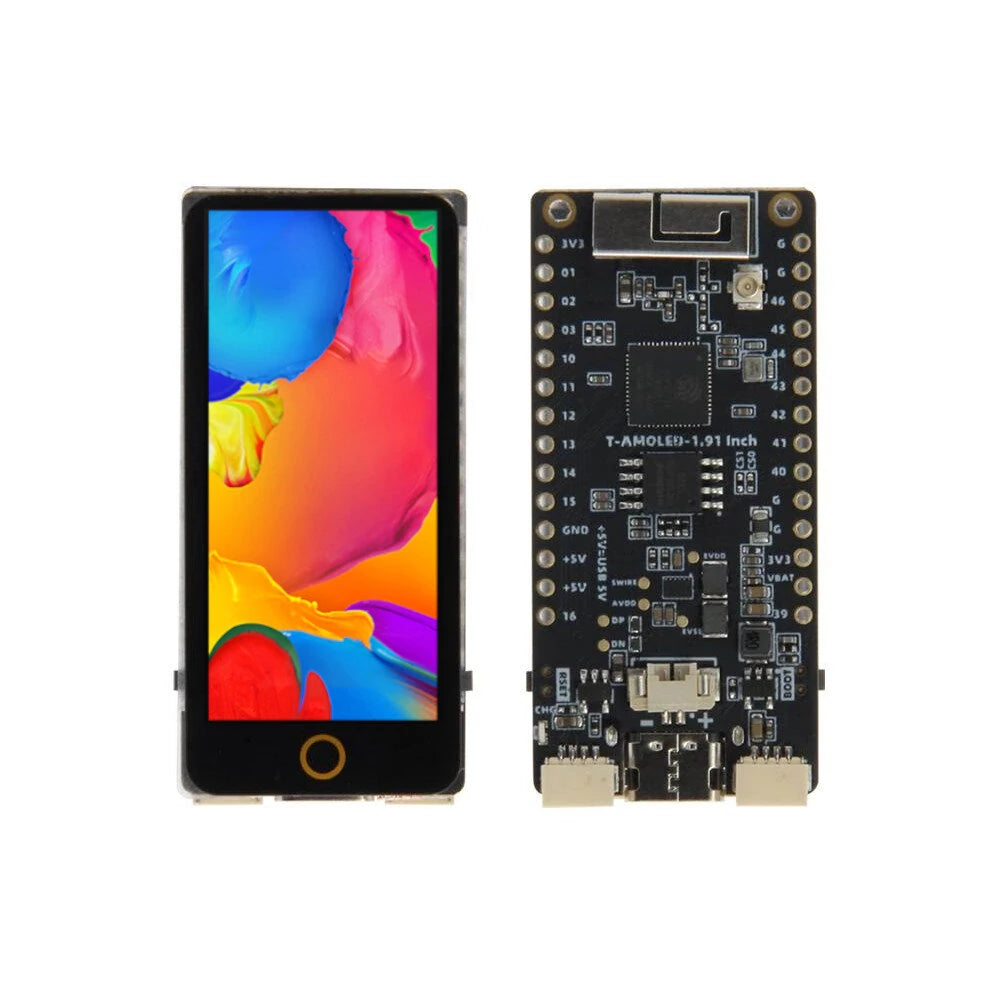

The T-Display-S3 AMOLED is a superior development board, evolving from the T-Display-S3, and is the first to combine the ESP32-S3 with an AMOLED display. This upgrade from an LCD screen to an AMOLED offers improved color reproduction and brightness. The transition from SPI to a QSPI interface also ensures faster performance, while the switch from an onboard antenna to a 3D antenna provides an enhanced WiFi and Bluetooth experience.

Key Features:

• Microprocessor: ESP32-S3R8 Dual-core LX7
• Flash Memory: 16MB
• PSRAM: 8MB
• Wireless Connectivity: 2.4 GHz Wi-Fi 802.11 and Bluetooth 5.0 (LE)
• Supported Programming Platforms: Arduino IDE, PlatformIO-IDE, MicroPython

Additional Features:

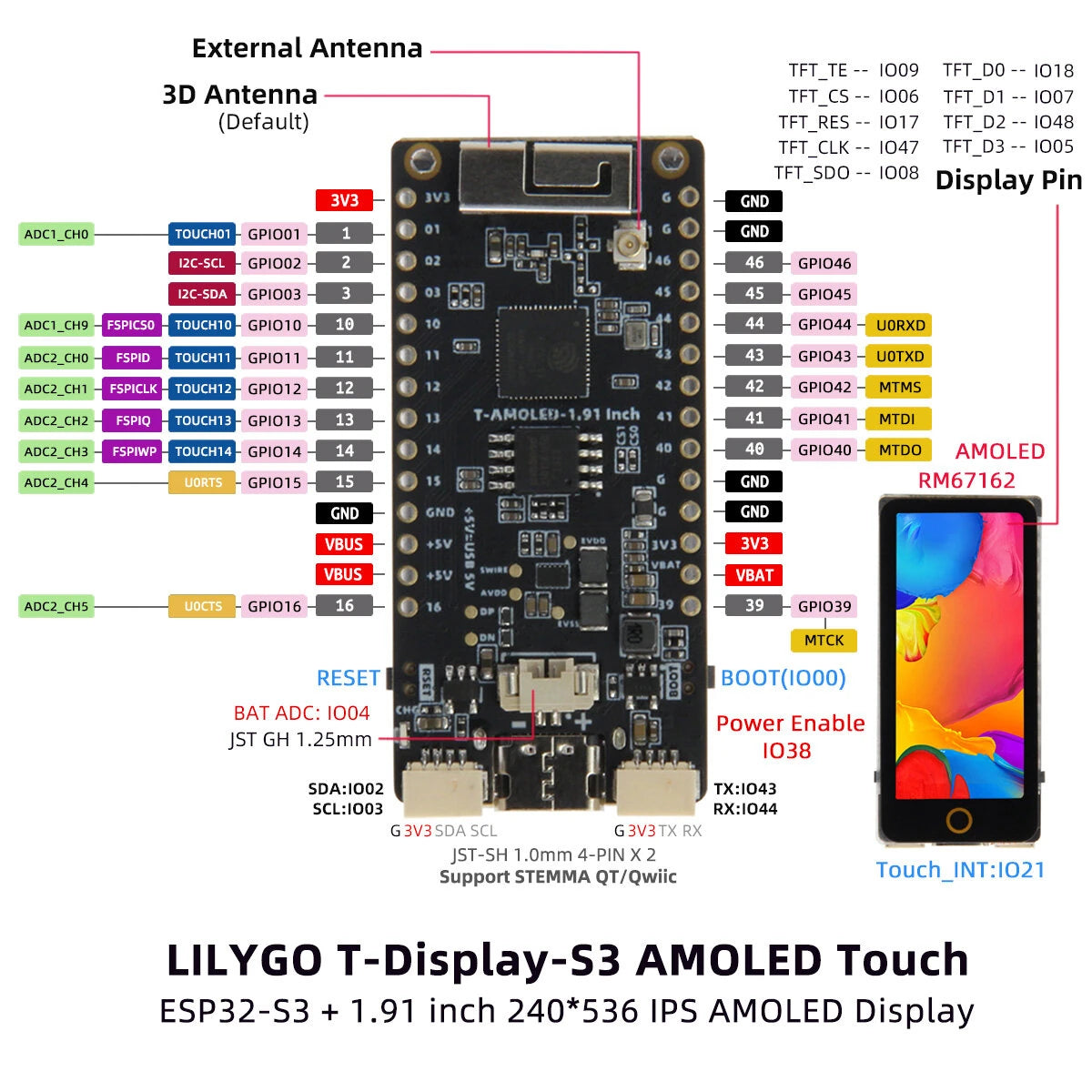

• Battery Voltage Detection: IO04
• Onboard Functions: Boot, Reset, IO21 Button

Display Specifications:

• Screen: 1.91 inch RM67162 IPS AMOLED
• Drive Chip: RM67162
• Active Area: 19.8x44.22mm
• Resolution: 240(W) x RGB x 536(H)
• Interface: QSPI
• Viewing Angle: IPS Full View Angle

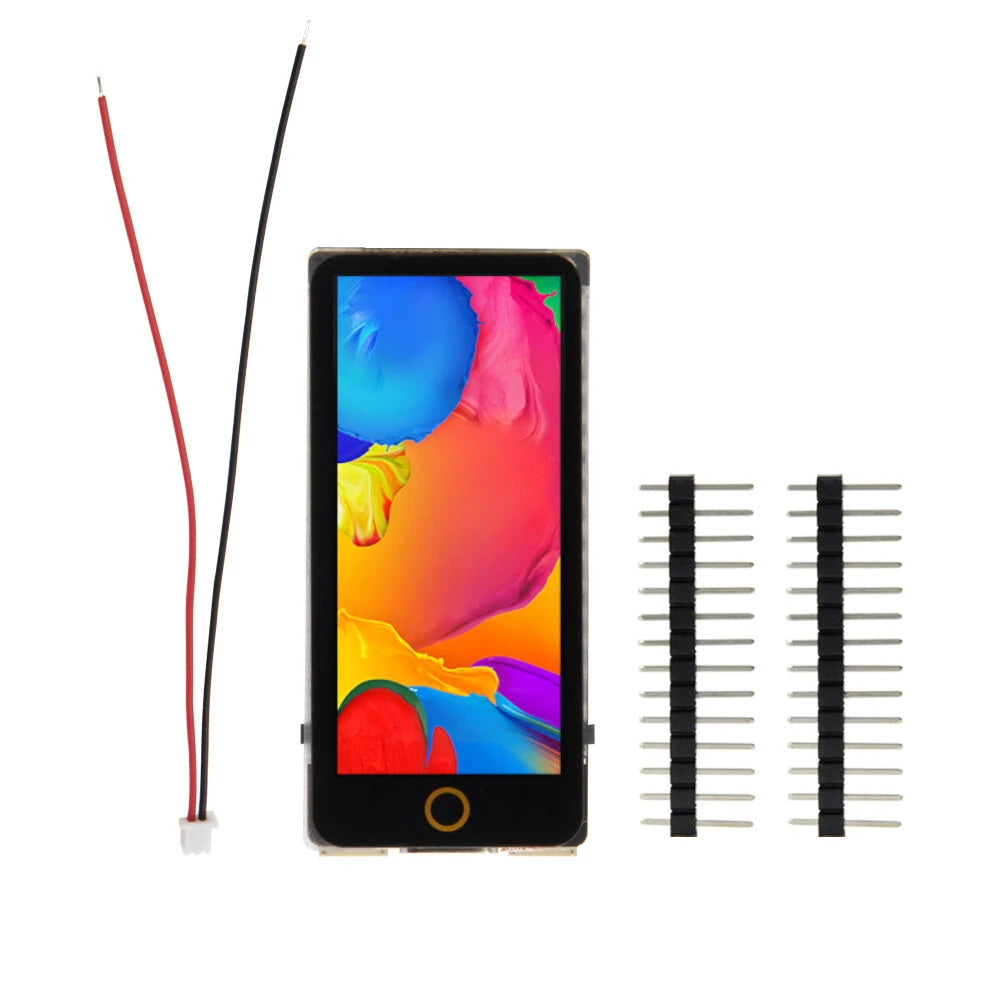

Package Includes:

• 1 x Touch Screen Pin, not soldered (H681)
