100MHz P6100 Oscilloscope Probes with BNC Clip Cable

Product Description

P6100 Oscilloscope 100MHz x1 x10 600V PKCATI BNC Clip Probes Clip Cable

Features:

• Attenuation Ratio: 1x/10x
• Input Resistance: 1MΩ / 10MΩ
• Input Capacitance:
  • 1X: 85pF-135pF
  • 10X: 18.5pF-22.5pF
  • Compensation Range: 15pF-45pF
• Bandwidth:
  • 1X: DC-6MHz
  • 10X: DC-20MHz
  • Additional Options: 40MHz, 60MHz, 100MHz, 150MHz, 200MHz
• Rise Time:
  • 1X: ≤58ns
  • 10X: ≤17.5ns
  • Additional Options: ≤8.75ns, ≤5.8ns, ≤3.5ns, ≤2.3ns, ≤1.75ns
• Working Voltage:
  • 1X: ≤300V DC
  • 10X: ≤600V DC
• Operating Temperature: -10℃ to +50℃
• Non-Operating Temperature: -20℃ to +75℃
• Humidity: ≤85% relative humidity
• Cable Length: 120cm

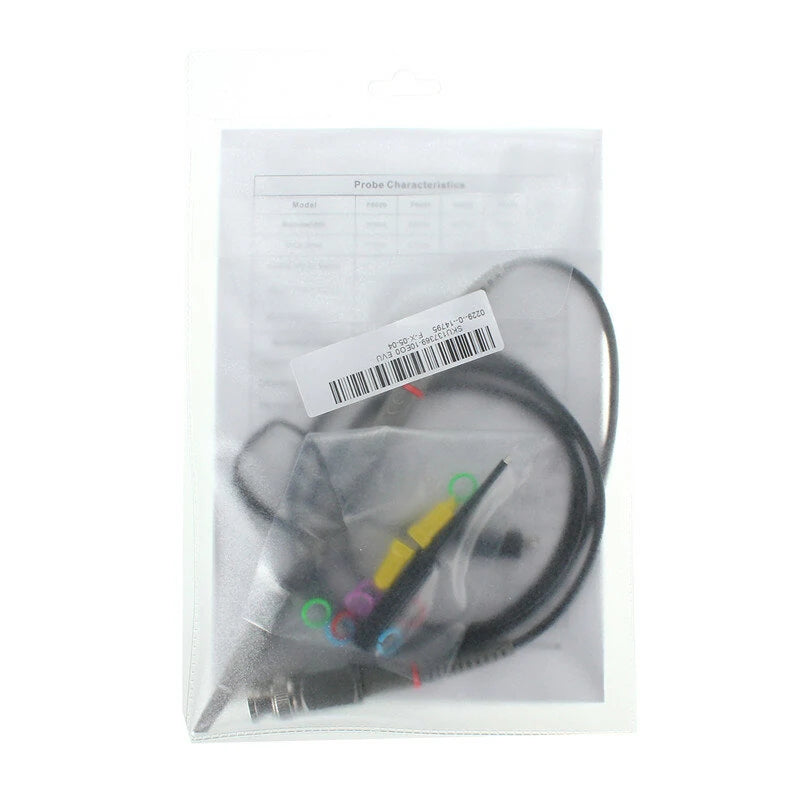

Package Includes:

• 1 x P6100 Oscilloscope Clip Probes
