BSIDE S30X Multimeter

Product Features

Versatile Functionality: The BSIDE S30X Multimeter is expertly designed to accommodate a wide range of tasks. Whether measuring DC and AC voltage or assessing resistance and capacitance, this device delivers reliable results. It’s the perfect tool for both professionals and hobbyists, making it an invaluable companion for any project.

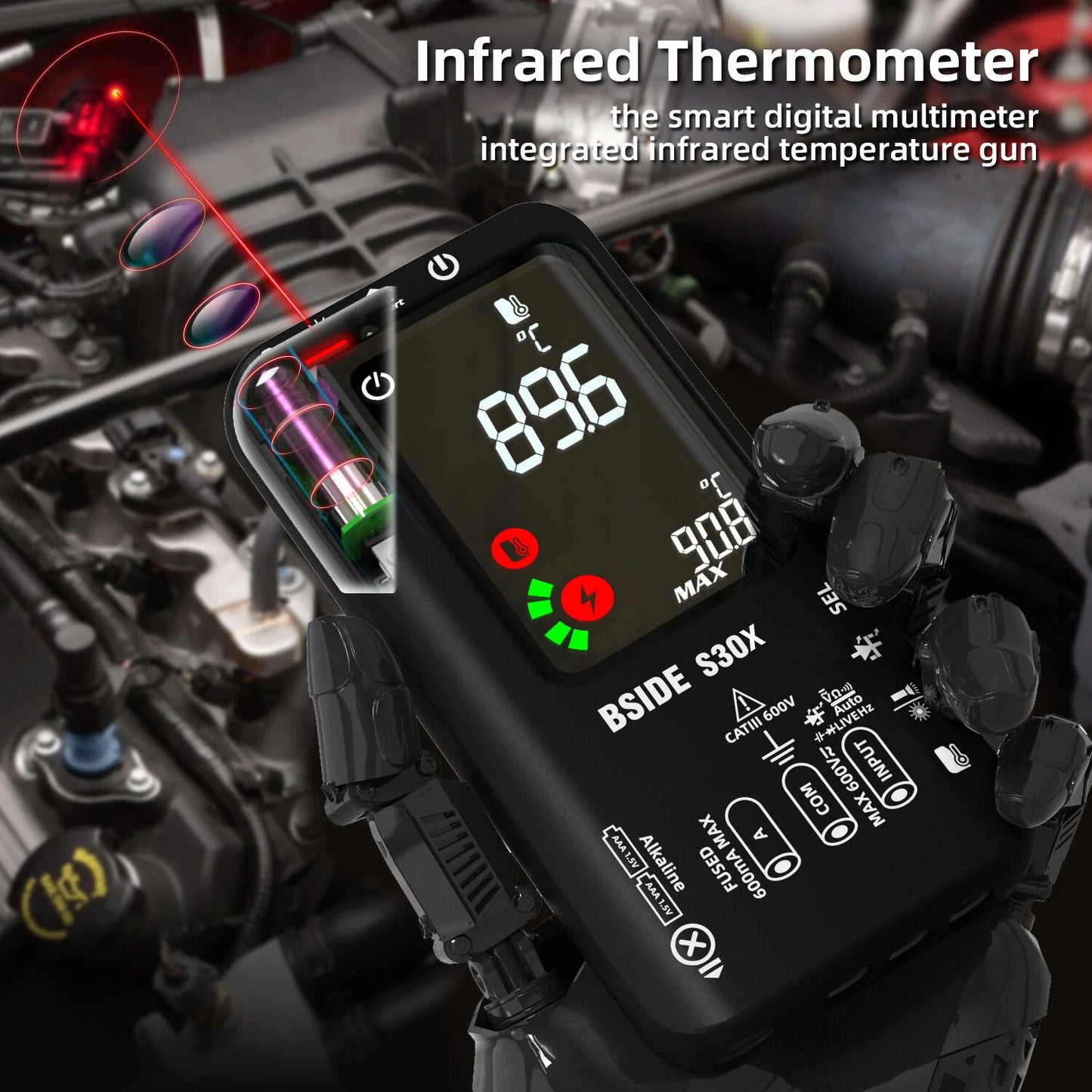

Enhanced Temperature Measurement: Stand out from the competition with the BSIDE S30X’s Infrared and Object temperature measurement capabilities. With an extensive temperature range and flexible distance ratio options (4:1 Fresnel lens and 12:1 Silicon lens), this multimeter offers precision for even the most sensitive tasks.

Efficient and User-Friendly: Designed with user convenience and safety in mind, the BSIDE S30X is equipped with features like Auto Power Off and V~Alert for live wire checks. The built-in flashlight and audible continuity checker ensure practicality across various environments, enhancing overall usability.

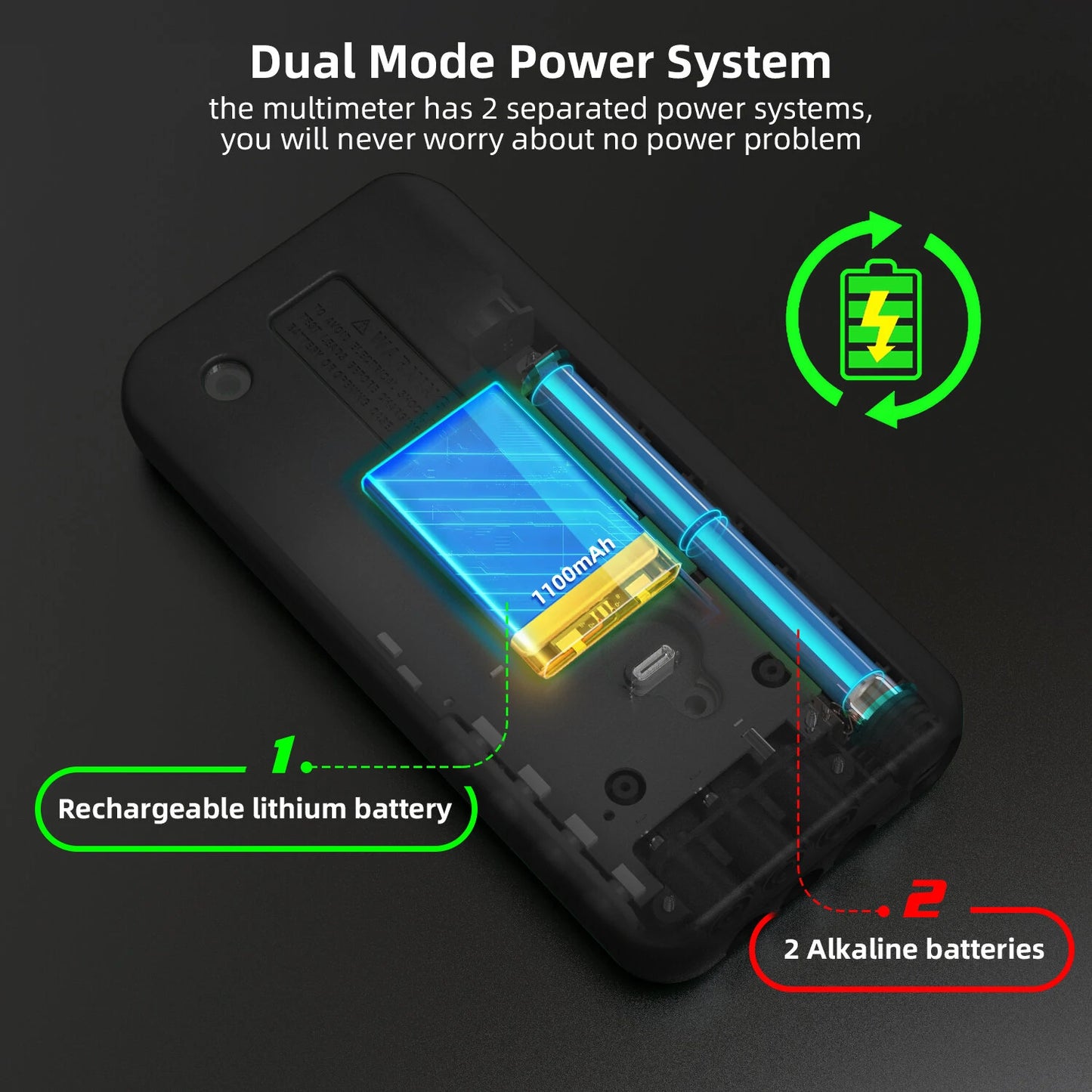

Reliable Power Options: Equipped with a built-in 1100mA 3.7V lithium battery and compatibility with 2xAAA Alkaline batteries, the BSIDE S30X promises readiness whenever needed. This dual power option ensures endurance and reliability during extended use.

Compact and Durable Design: Measuring just 161x78x21mm and weighing 245g, the BSIDE S30X is highly portable. Its robust construction guarantees durability, making it a long-lasting addition to any toolkit.

Specifications

• DC Voltage: 0~620V (DC Mode)
• AC Voltage: 0~620V (AC Mode)
• Resistance: 0.0Ω~9.999MΩ

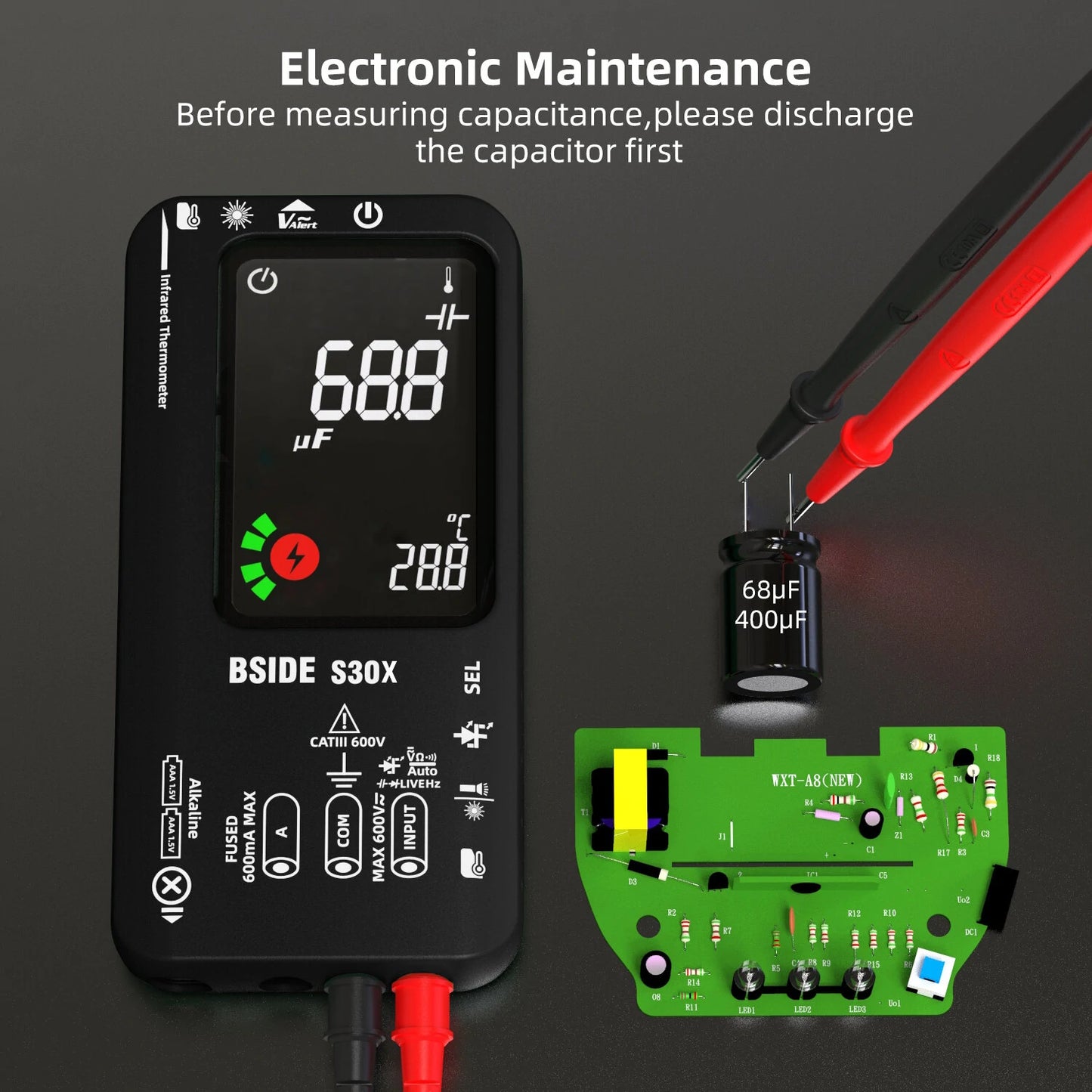

• Capacitance: 0.5μF~999.9μF

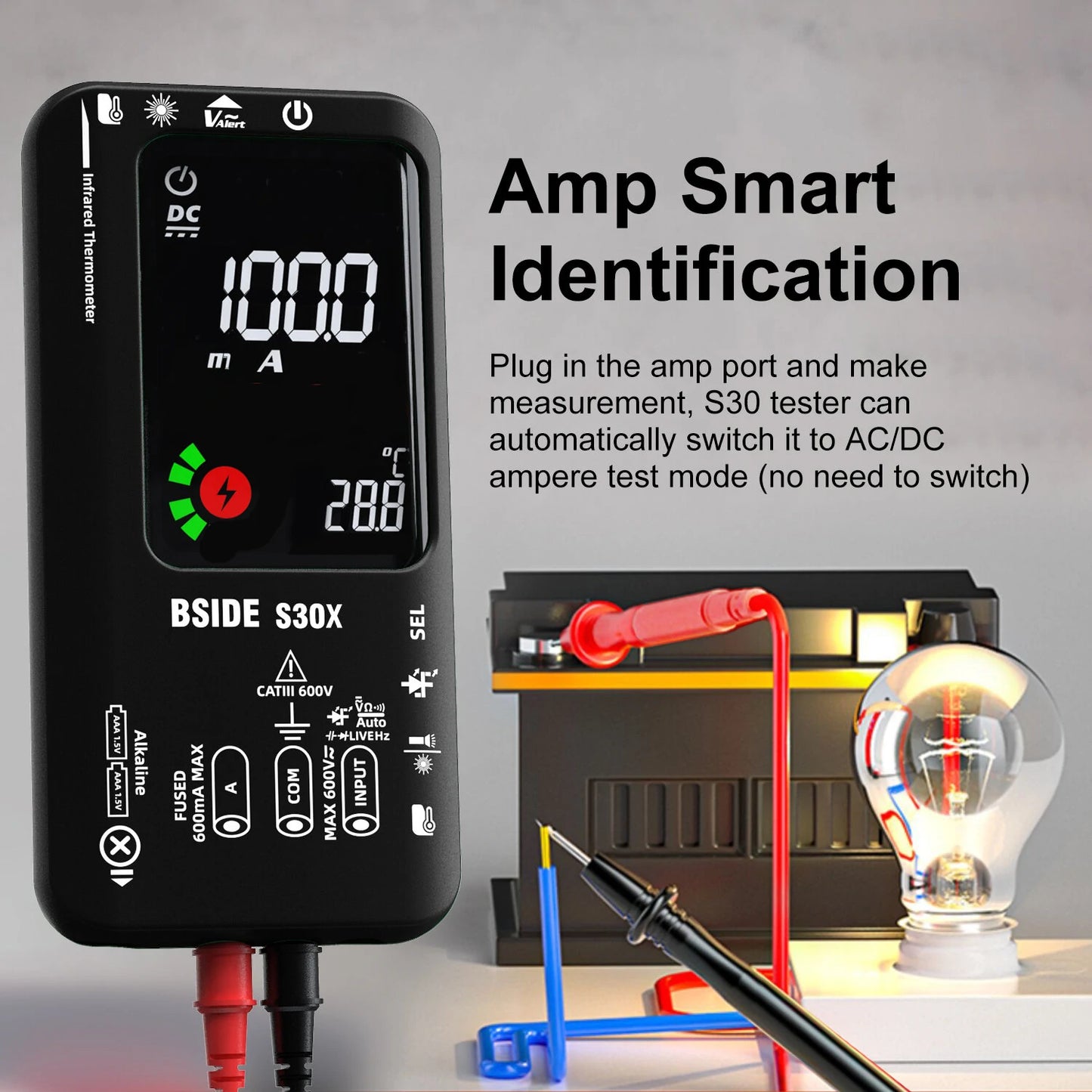

• AC Current: 1~610mA (40~200Hz)
• DC Current: 1~610mA (DC)
• Frequency: 100~1000Hz
• Infrared Temperature Measurement: -20℃~400℃
• Object Distance Ratio: 4:1 (Fresnel lens), 12:1 (Silicon lens)
• Size: 161x78x21mm
• Weight: 245g
• Power: Built-in 1100mA 3.7V lithium battery
• Compatible with: 2xAAA Alkaline battery (not included in the package)

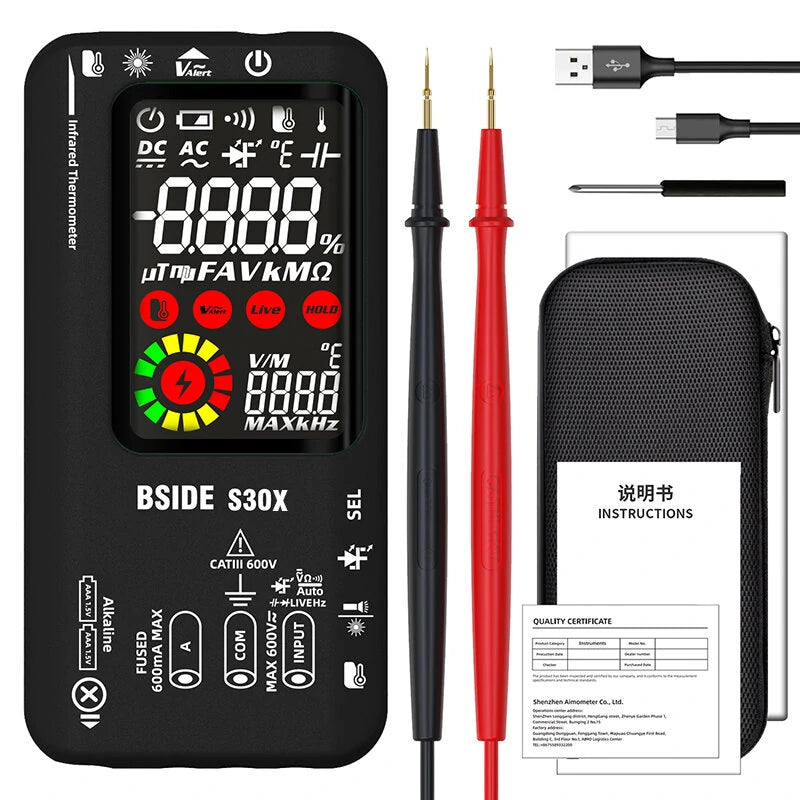

Package Includes

• 1x BSIDE S30X Infrared Temperature Multimeter (NO AAA Battery)
• 2 x Test Leads
• 1 x Charging Cable
• 1 x User Manual
