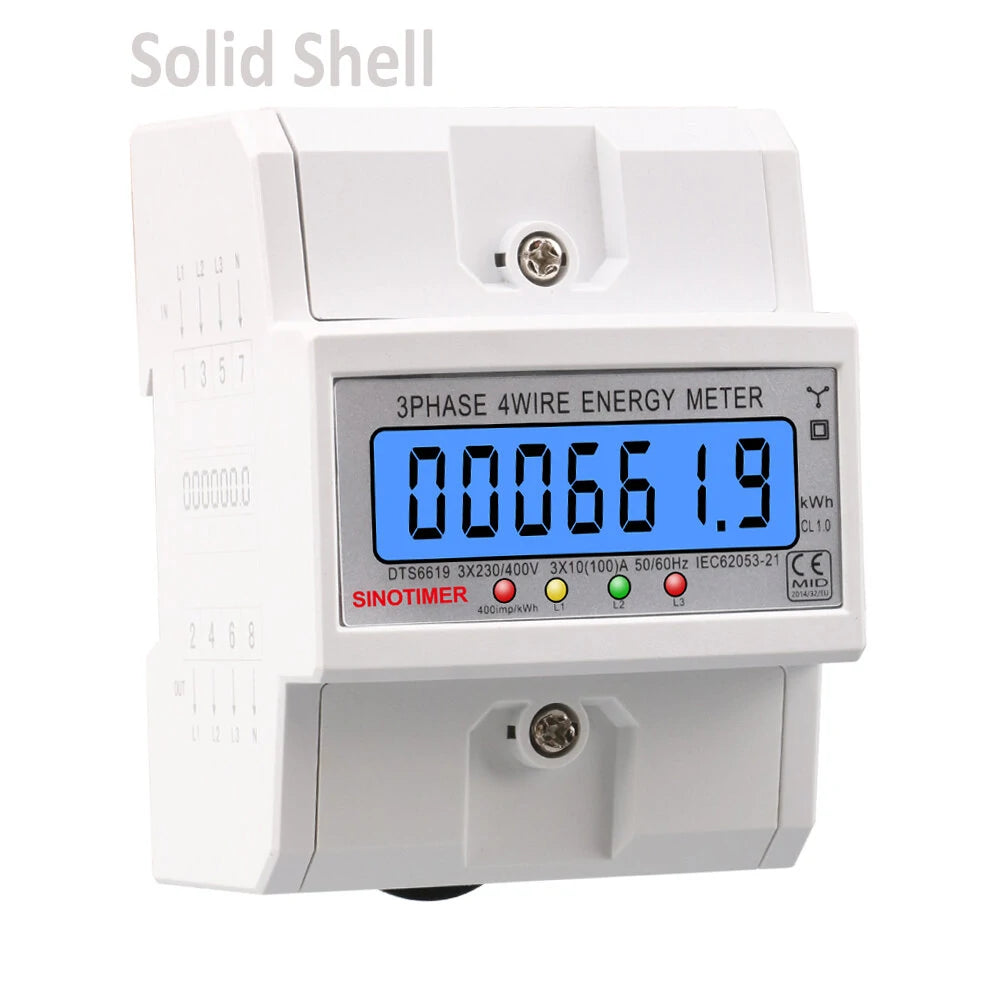

SINOTIMER DTS6619 100A LCD Backlit Digital 3-Phase Smart Power Meter

Features:

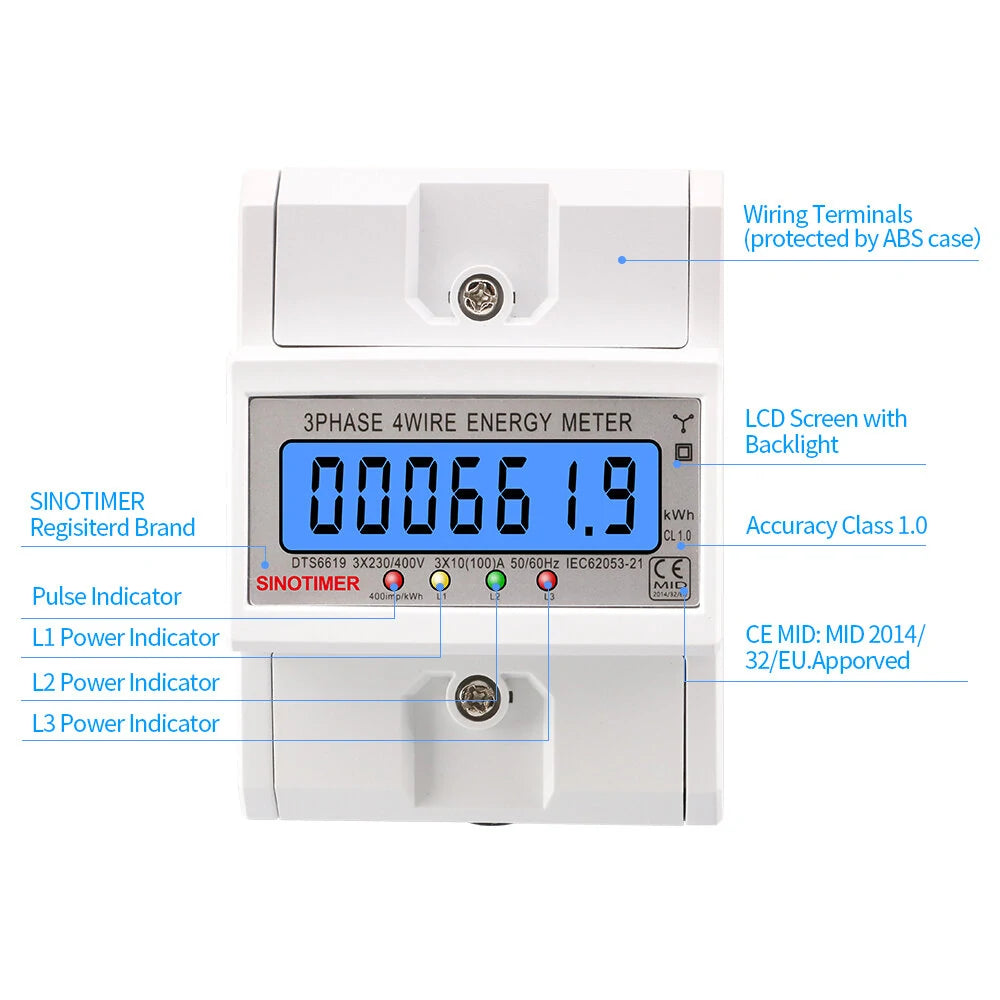

• Advanced LCD Display: The DTS6619 model includes a 6+1 digit LCD digital display with a backlight, ensuring easy readability even in low-light conditions.
• High Accuracy: Provides an impressive 1.0 accuracy level for precise and reliable readings every time.
• Efficient Energy Measurement: Accurately monitors power consumption with a reference current of 3 X 10(100A).
• Durable Material Composition: Crafted from robust metal and ABS materials, this power meter ensures lasting performance and durability.
• Wide Operating Range: Seamless operation at temperatures ranging from -20 to 55 degrees Celsius.

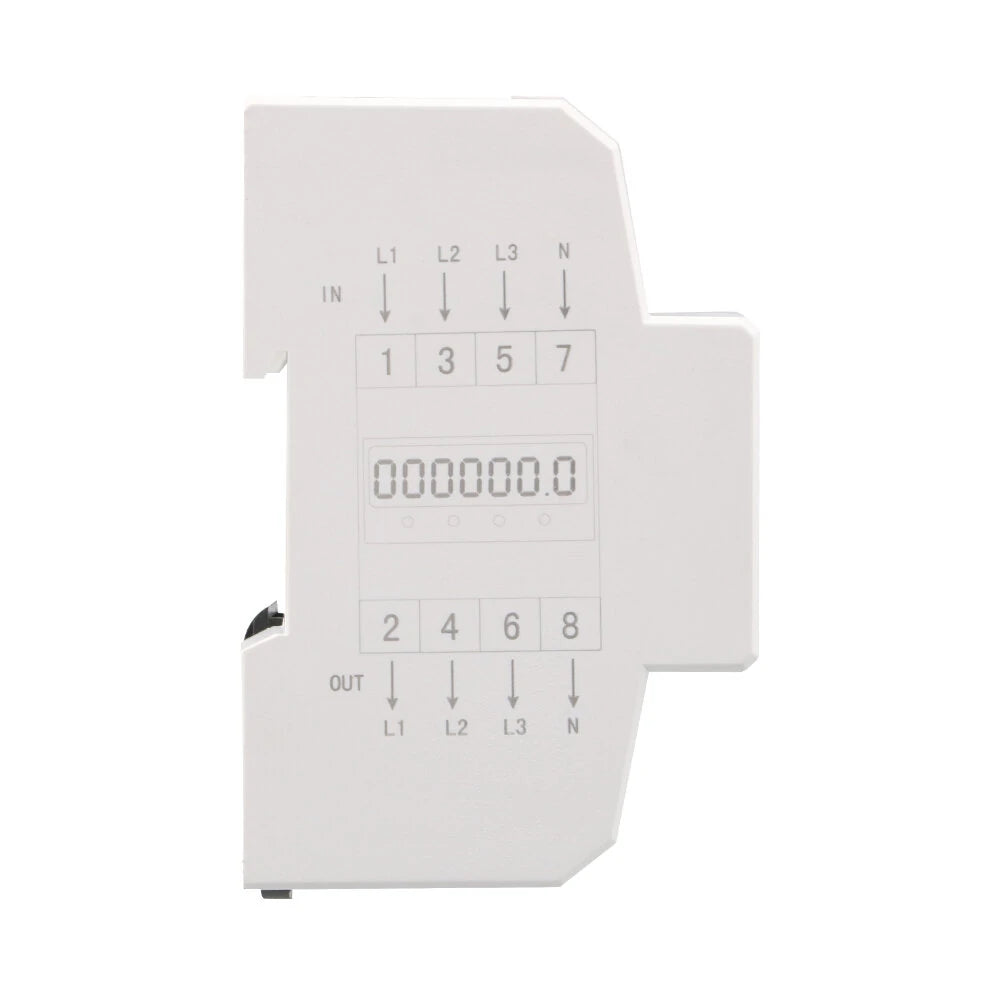

• Three-Phase Four-Wire Electronic Type: Employs advanced technology for accurate and efficient readings across multiple phases and wires.

Specifications:

• Brand Name: SINOTIMER
• Model Number: DTS6619
• Material: Metal, ABS
• Reference Voltage: 3 X 220/380(V), 3 X 230/400(V)
• Reference Current: 3 X 10(100A)
• Rated Frequency: 50/60 Hz
• Constant Pulse: 400imp / kWh
• Display: LCD 6+1
• Power Consumption: ≤2W, 10VA
• Starting Current: 0.004Ib
• Operating Temperature Range: -20 ~ 55°
• Storage Temperature Range: 25 ~ 70°
• Operating Voltage Range: 0.9-1.1 Rated Voltage
• Utmost Voltage Range: 0.8-1.15 Rated Voltage
• Annual Average Humidity: ≤75%
• Dimensions: Approx. 10.1 X 7.6 X 6.5cm / 3.97 X 2.99 X 2.55in
• Weight: 400g
• Max Operating Current: 100A
• Measuring Energy Range: 0.0-999999.9kwh
• Power Supply: AC
• Output Voltage: 380v ac
• Rated Voltage: 380v ac
• Phase: Three phase
• Optional Shell Color: White / Transparent

Package Includes:

• 1 x SINOTIMER DTS6619 Energy Meter (Shell color as your choice)
• 1 x English Operation Manual
