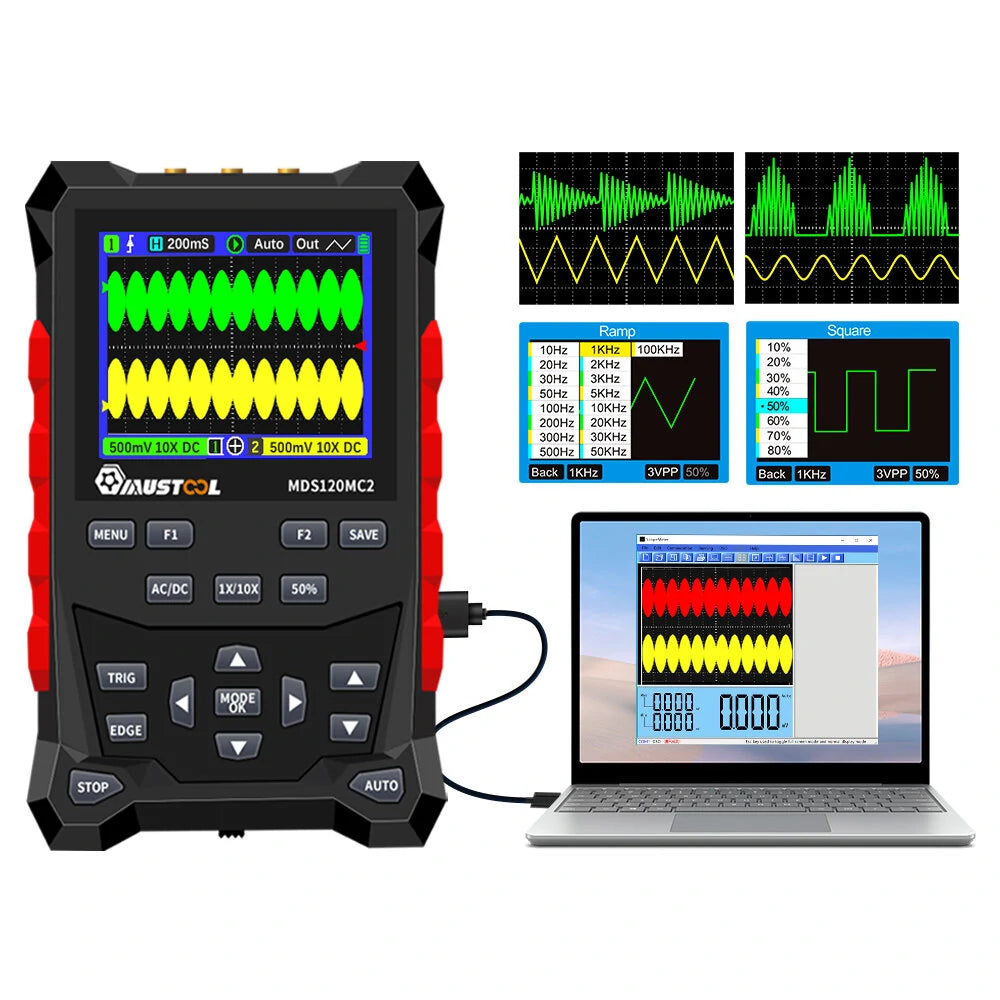

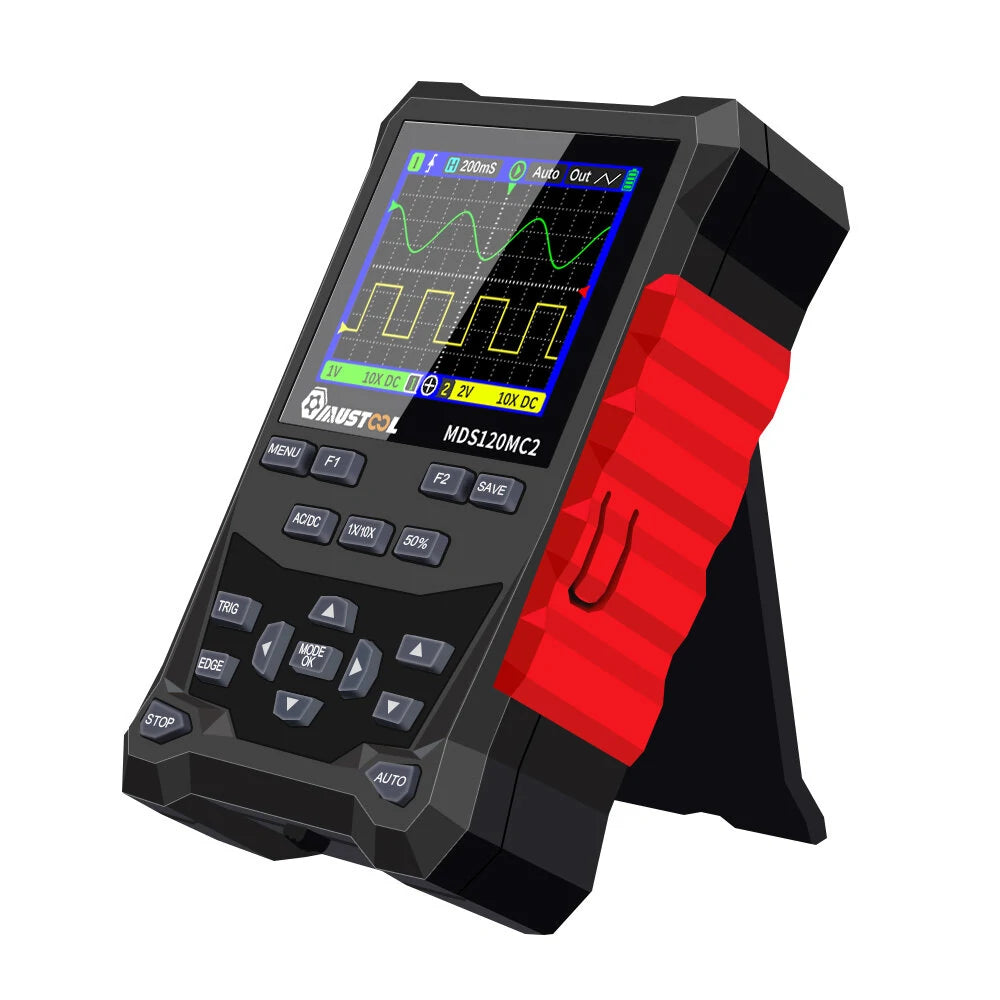

120MHz Dual Channel Handheld Digital Oscilloscope & 40MHz*2 Signal Generator - MUSTOOL MDS120MC2

Features:

• High-Resolution Display: The MUSTOOL MDS120MC2 Oscilloscope features a 320x240 LCD screen for clear and precise viewing of waveforms.
• Dual Functionality: This device acts both as an oscilloscope and a signal generator, providing versatility for electronic measurements and tests.
• High Storage Capacity: It can save up to 2500 DSO waveforms, facilitating better data tracking and analysis.
• Easy to Use and Portable: With its compact size and lightweight design of 187g, it is easy to transport, making it suitable for field applications as well.

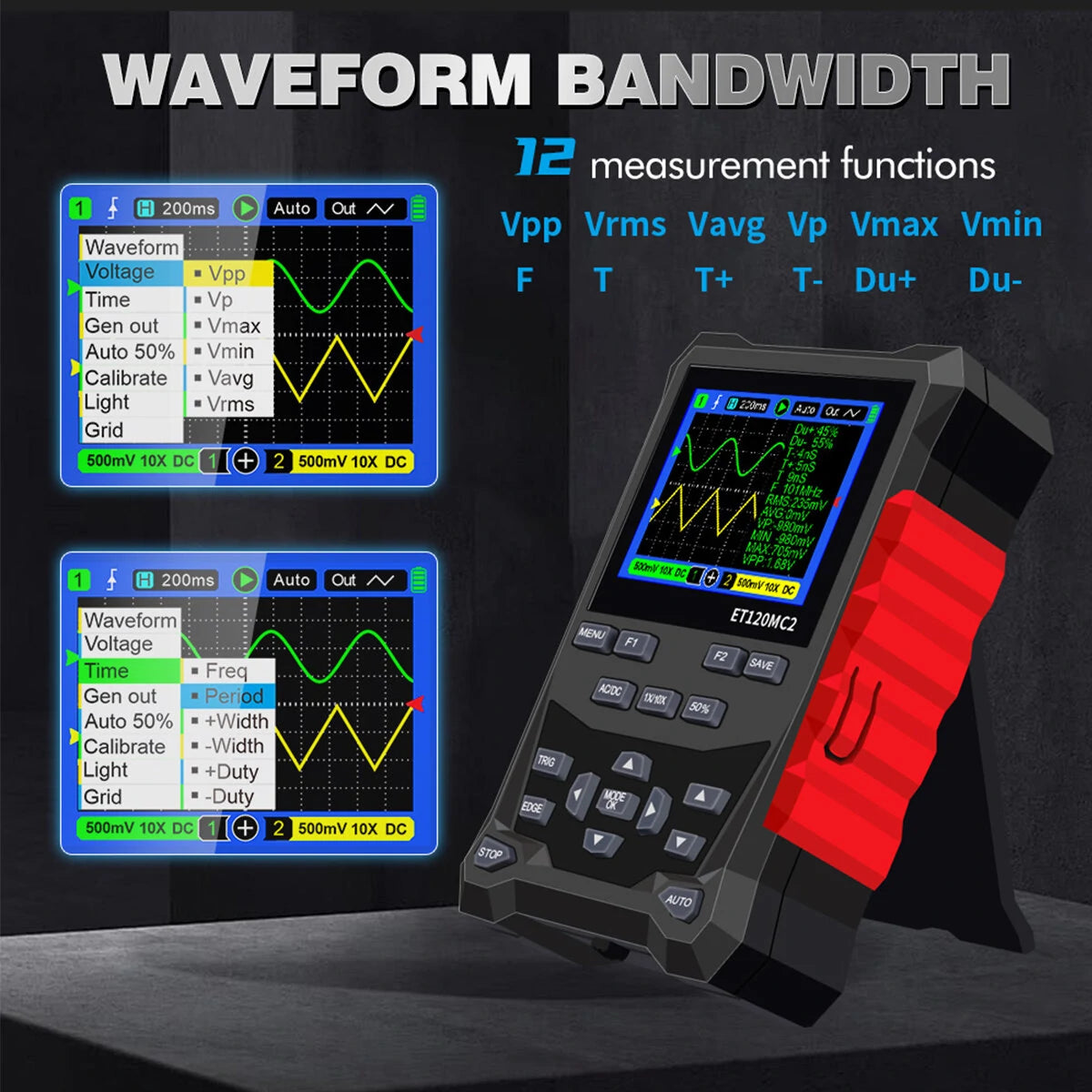

• Advanced Measurement Capabilities: Automatic measurement function and features that provide accurate voltage and frequency readings ensure high precision testing.

Specifications:

• Brand: MUSTOOL
• Model: MDS120MC2
• Type: Oscilloscope / Signal Generator
• Display: 320×240 LCD Screen
• Size: 124 × 80 × 35 mm
• Weight: About 187g
• Use Conditions: 0°C ~ +40°C

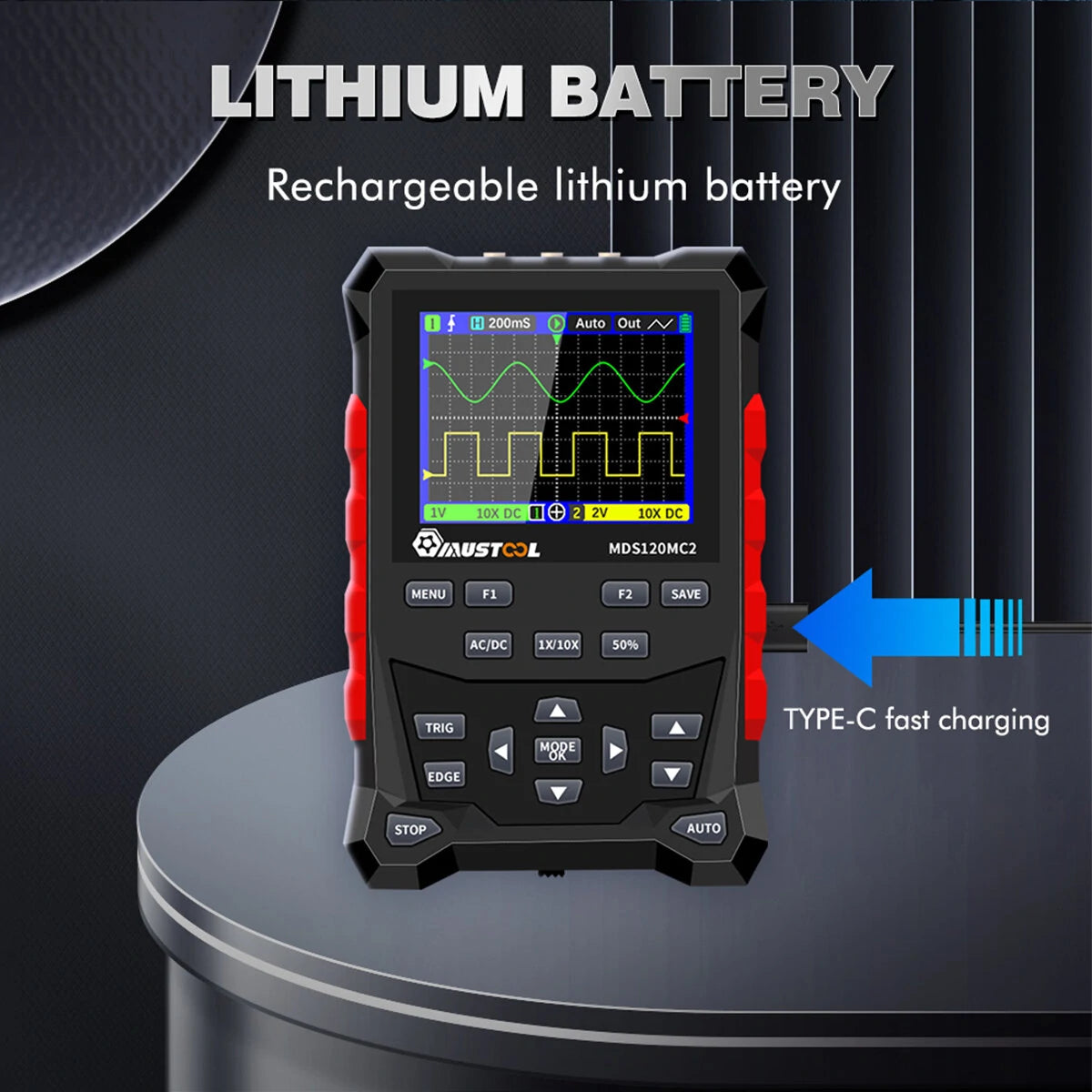

• Battery: Lithium battery
• Channel Quantity: 2
• Waveform Bandwidth: 120MHz
• Max Test Voltage: 1X: 80 Vpp, 10X: 800 Vpp
• Standby Time: About 4 hours
• Screen Resolution: 320×240
• Storage Depth: 12.8 div
• Input Impedance: 1MΩ
• Max Sampling Rate: 500MSa/s
• Signal Output:
  Sine/Triangle Wave: 10Hz ~ 100KHz
  Square Wave: 10Hz ~ 3MHz

Package Included:

• 1 x MUSTOOL MDS120MC2 Oscilloscope
• 2 x Probe
• 1 x Charging Cable
• 1 x User Manual
• 1 x Cloth Bag
