Quansheng UV-5R PLUS 5W Two Way Radio: UHF VHF DTMF FM Scrambler, NOAA, Air Band, CB Radio

Product Details

Specifications:

• Signal Channel Capacity: 200
• FM Radio Storage Capacity: 20
• Frequency Stability: ± 1ppm
• Dimensions: 115mm x 60mm x 37.5mm
• Weight: 234g
• Operating Temperature: -20°C to +60°C
• Antenna Impedance: 50 ohms
• Modulation Method: FM: 11KOF3E (12.5KHz), 16K0F3E (25KHz)
• NOAA Channels: 10
• Battery Capacity: 1600mAh

Reception:

• Reference Sensitivity:
• FM (12dB SINAD):
• F1 (50 to 76): -121dBm
• F2 (108 to 135.9975): -121dBm
• F3 (136 to 173.9975): -123dBm
• F4 (174 to 349.9975): -123dBm
• F5 (350 to 399.9975): -123dBm
• F6 (400 to 469.9975): -123dBm
• F7 (470 to 599.9975): -121dBm
• WFM (20dB SINAD) (76-108): -110dBm
• AM (10dB S/N) F2 (108-135.9975): -113dBm
• Audio Power: ≥ 0.5W
• Audio Distortion: ≤ 10%

Transmission:

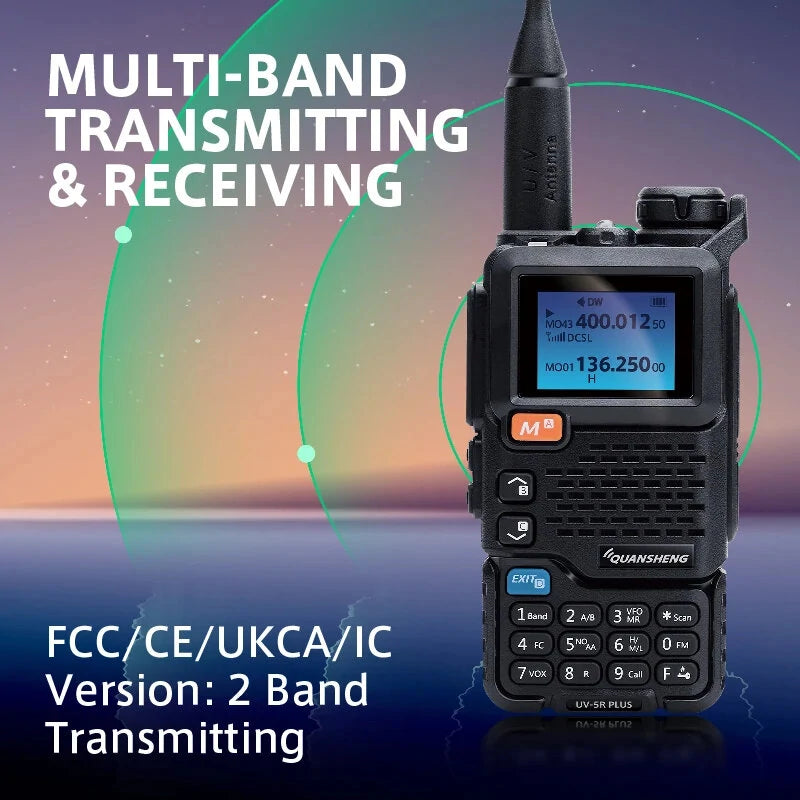

• Frequency Bands: 144 to 146MHz, 430 to 440MHz
• Transmission Power: 4W
• Emission Current: ≤ 1.5A
• Maximum Frequency Deviation:
• ≤ 5KHz (25KHz)
• ≤ 2.5KHz (12.5KHz)
• Modulation Distortion: ≤ 5%
• Spurious Emissions: ≤ 7.5uW
• Temporary Power:
• 70dB (25KHz)
• 60dB (12.5KHz)
• Residual Modulation: 40dB

Features:

• Super-long standby time
• Wireless radio replication
• 10-group scrambler
• Fast copy one channel
• Extra-large LCD display
• Functions as frequency meter for certain devices
• AM/FM aviation band receiving
• Cross-band intercom

Package Includes:

• Walkie Talkie x1
• Battery x1
• Antenna x1
• Belt Clip x1
• Lanyard x1
• Desk Charger x1 (EU)
• User Manual x1
