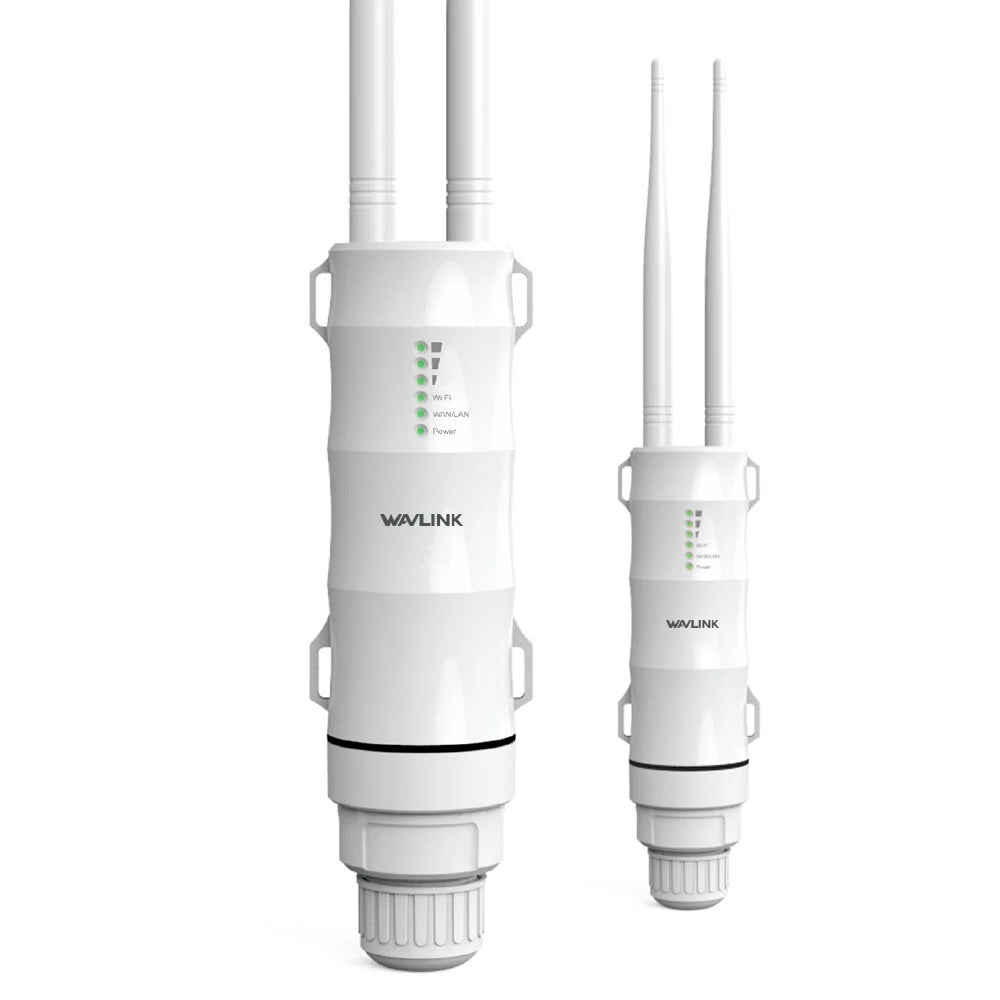

Wavlink AC600 Waterproof Outdoor WiFi Router & Repeater, Dual Band 2.4/5GHz, High Power 12dBi Antenna, POE, Access Point/CPE/WISP

Note: The product has been replaced with new packaging

Description

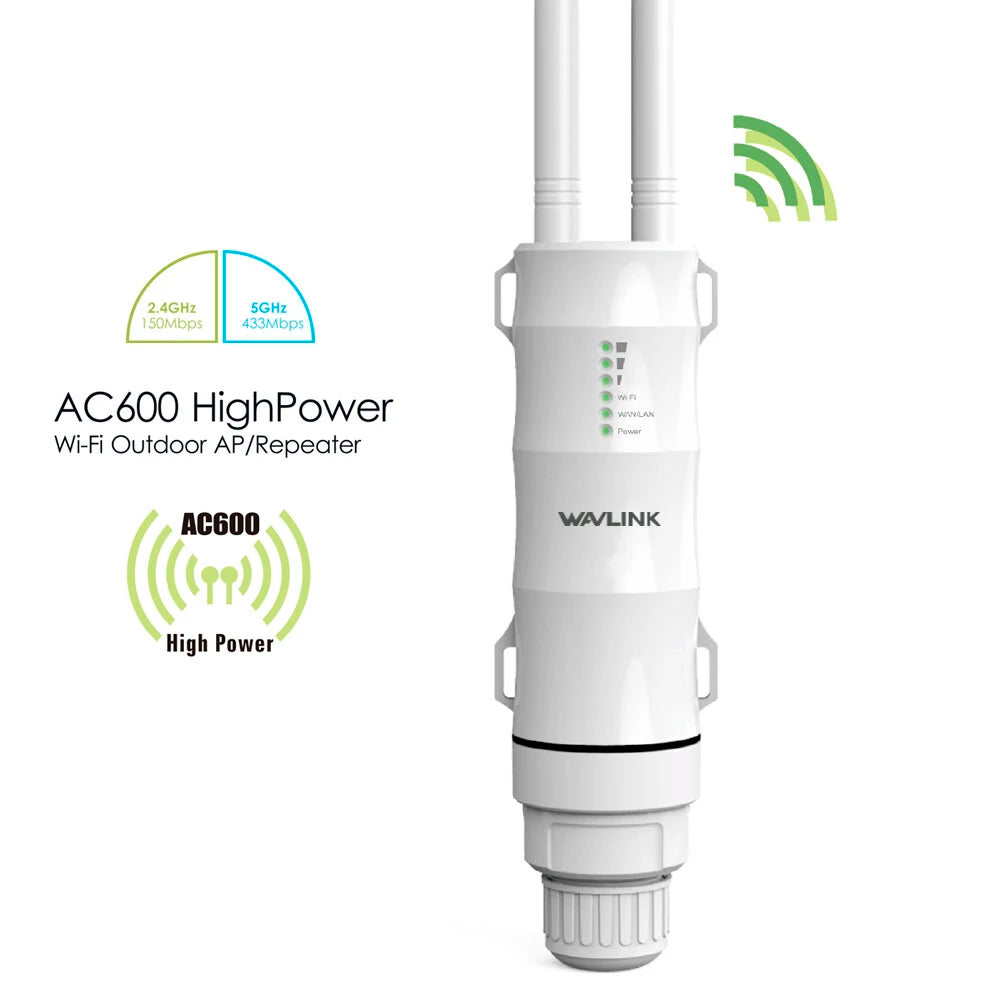

The AC600 HighPower Wi-Fi AP/Repeater is designed to provide seamless Wi-Fi service over large areas such as factories, communities, or streets. It extends existing 2.4GHz or 5GHz wireless signals to cover longer ranges, filling in where your current router or access point can't reach. With simultaneous 2.4G and 5G wireless network support, it delivers transmission speeds of up to 600Mbps. Equipped with 2 external antennas, it offers superior wireless performance, enhanced transmission rates, and stability through its automatic channel selection feature.

Features

• Next-generation Wi-Fi technology with 802.11ac standard
• Complies with IEEE 802.11 ac/a/b/g/n standards
• Dual-Band speeds up to 2.4GHz 150Mbps and 5GHz 433Mbps
• Weather-proof RJ45 connector with integrated Passive Power over Ethernet (PoE)
• Passive PoE support for flexible deployment
• High performance for long-range links, enhanced by its antenna design
• Offers up to 600mW power and an advanced receiver design
• Robust weatherproof casing withstands harsh outdoor environments

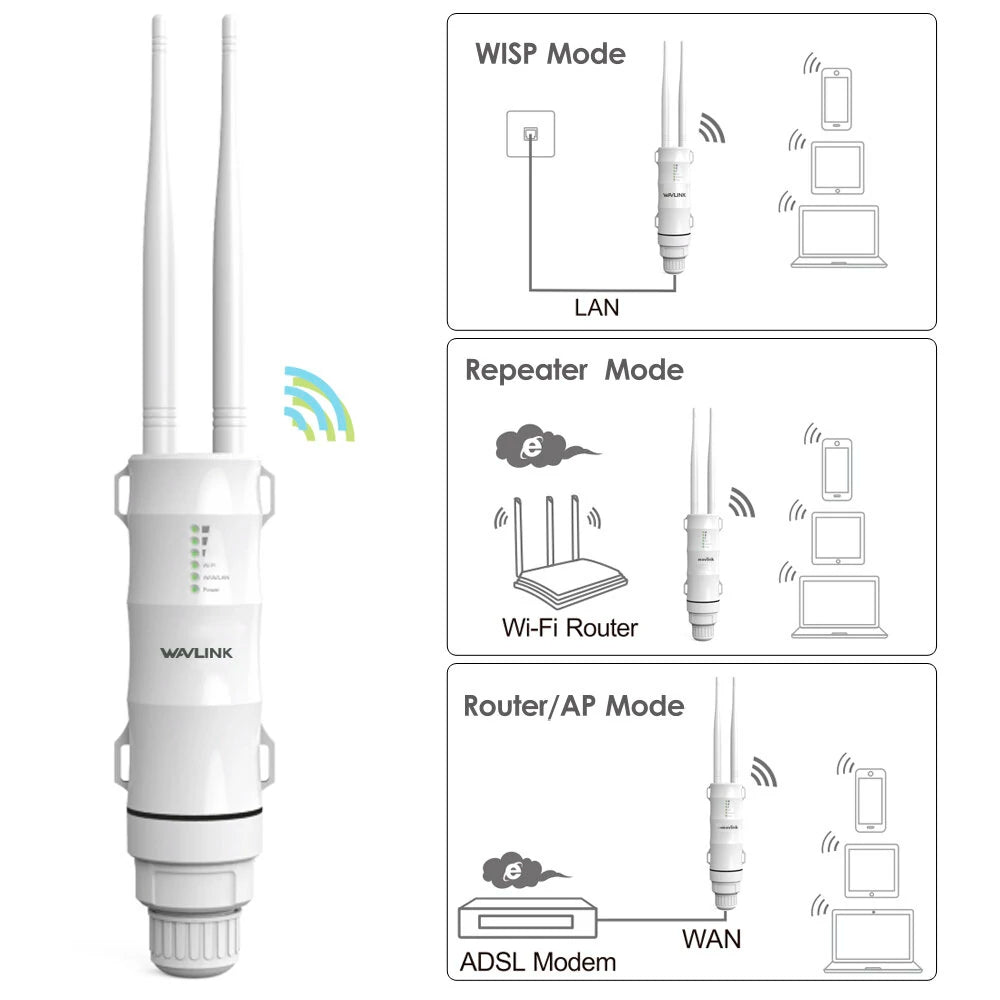

• Operates in multiple modes: Router, AP, Repeater, WISP
• Maximum security with 802.1X, WPA, and WPA2 protection
• Supports 3 LED indicators for wireless signal strength
• Built-in lightning arrester (15kV ESD)

Specifications

Hardware

• Ports: 1 x WAN/LAN
• Button: 1 x Reset (8 seconds)
• LEDs: 1 x Power, 1 x WAN/LAN, 1 x Wi-Fi, 3 x Signal
• Chipset: MT7688A+7610E
• Flash: 64Mb
• DDR2: 512Mb
• Power Supply: DC 52V (Passive PoE)
• Power Consumption: 7W MAX
• Rated Voltage/Frequency: Input 100-240 Va.c. 50/60Hz

Dimensions

• Unit Dimensions: 180mm x 50mm x 50mm (L x W x H)

Wireless

• Standard: IEEE 802.11b/g/n/a/ac
• Frequency Band: 2.4GHz, 5GHz
• Transmit Power: 27DBm MAX
• Sensitivity: 802.11b: -93dBm / 802.11g: -73dBm / 802.11n: -68dBm
• Speeds: 802.11ac up to 433Mbps, 802.11n up to 150Mbps
• Security: WPA-PSK/WPA2-PSK encryption
• Antennas: 2 x 7dBi Detachable Omni Directional
• Distance: Outdoors 500m, Indoors 150m (subject to actual environment)

Package Includes

• 2 x Omni antenna
• 1 x Wi-Fi AP/Router
• 1 x RJ-45 Networking Cable
• 1 x Power Adapter (International plug adapter provided as per country)
• 1 x POE Converter
• 1 x Main body holder
• 2 x Cable ties
• 1 x Screw fittings
• 1 x Quick Installation Guide
